musikelectronic geithain TS37SP User manual

musikelectronic geithain
TS 37SP
TS 37KSP
Instructions for installation and use

TABLE OF CONTENTS II
musikelectronic geithain GmbH TS 37SP / TS 37KSP
Table of contents
1 Introduction 1
2 Disclaimer 2
3 System description 3
4 Specications 4
4.1 Technicalspecications 4
4.2 Acousticaldiagramms 6
4.3 Technicaldrawings 7
5 Basic information 9
5.1 Guidelines 9
5.2 Disposal 9
5.3 Safetyinstructions 11
5.4 Deliverycontents 14
5.5 Cleaning 14
5.6 Environmentalconditions 14
5.7 Guaranteeacknowledgements 14
6 Controls and connections 15
7 Installation and operation 17
7.1 Mountingandpositioning 17
7.2 Startingupthespeakers 18
7.3 Wiring 19
7.4 Cableconnection 19
8 Operationandcongurationofthedevice 20
8.1 DesktopsoftwareMEGeithainDSPControl 20
8.2 Menustructure 20
8.3 Homescreen 20
8.4 Presetmenu 21
8.5 Channelmenu 22
8.6 Enteringnamesandpasswords 24
9 User rights 25
10 Troubleshooting 26
11 Notes 27

INTRODUCTION 1
musikelectronic geithain GmbH TS 37SP / TS 37KSP
1 Introduction
Dearcustomer,
Thankyouforthetrustyouhaveputinusbybuyingthesespeakers.Youdecideduponaquality
productthatinregardtotonalandtechnicalcharacteristicscompliestotheutmostexpectations.
Theusualburn-inperiodisnotrequired,becausethespeakersarearticiallyagedin-house.
Pleasereadthetechnicaldescriptionandmanualtotakeadvantageofthecapabilities
of these speakers and ensure safe operation.

DISCLAIMER 2
musikelectronic geithain GmbH TS 37SP / TS 37KSP
2 Disclaimer
Technical data and appearances are subject to changes without notice. Errors and omissions
excepted.MusikelectronicGeithainGmbHassumesnoliabilityforanylosswhichmaybesuffered
byanypersonwhorelieseitherwhollyorinpartuponanydescription,photographorstatement
contained herein. Musikelectronic Geithain GmbH products are sold through authorized fulllers
and resellers only. Fulllers and resellers are not agents of Musikelectronic Geithain GmbH and
have absolutely no authority to bind Musikelectronic Geithain GmbH by any express or implied
undertakingorrepresentation.Thismanualiscopyrighted.Nopartofthismanualmaybereproduced
ortransmittedinanyformorbyanymeans,electronicormechanical,includingphotocopyingand
recording,orbyanyinformationstorageorretrievalsystemwithoutthepriorwrittenpermissionof
MusikelectronicGeithainGmbH.
Allrightsreserved
Copyright©2018MusikelectronicGeithainGmbH

SYSTEMDESCRIPTION 3
musikelectronic geithain GmbH TS 37SP / TS 37KSP
3 System description
The active two-way reinforcement systems TS37KSP and TS37SP feature linearity and high
dynamics.Asanall-roundsystemtheyareusefulforspeechandmusicreproductioninmiddleand
largesizedauditoriaandaretherightdecisionwhensystemswithhighlevelsareneeded.Theactive
conceptallowsexibleadjustmentstoacousticalconditionsandguaranteesaperfectcombinationof
speakersandampliers.Thankstopre-programmedpresetsacombinationofouractivesubwoofers
andspeakerssavesthetimetocongurealoudspeakermanagementsystemandimmediatelyoffers
aperfectlyadjustedsystem.
Thecomponentsincludetwo10-inchconewoofersandone1.4-inchcompressiondriver.Bothare
effectivelysecuredfromdestructionbyaninternallimiter.Duringdevelopmentthehighfrequency
soundtransmissionwasoptimisedforsmallestpossiblecolouration.ThebassreexversionTS37SP
reaches a lower cut-off frequency of 65Hz. The resulting bass level enables the use as a full-
range system in many situations. Optionally our TT-subwoofers can be employed to extend the
basstransmissionrangemorethanoneoctave.Thewaveguideofthehorndriverisavailableintwo
openinganglesandisalsomountablerotatedthrough90°.Sothespeakerbecomesexiblyusable
andisaswellvariableregardingthemountingposition.
Avarietyofavailablemountingsprovideeasyassemblyforalmosteveryapplication.

SPECIFICATIONS 4
musikelectronic geithain GmbH TS 37SP / TS 37KSP
4 Specications
4.1 Technicalspecications
Cabinettype
TS37SP
TS37KSP
ventedcabinet
cardioiddirectivityinlowfrequencies
MaximumSPL 129dBpeak/r=1m(3′3″)
Frequencyresponse
TS37SP
TS37KSP
65Hz…20kHz−6dB
100Hz…20kHz−6dB
Coverageanglef>2 kHz 90°×60°(H×V)
60°×40°(H×V)
Transducers
LF
HF
2× 10″cone
1× 1.4″compressiondriver
Calibration
Acousticoutputlevel/PE=−14dBu 99dBSPL/r=1m(3′3″)
Mainsvoltage 85V…260V
Powerconsumption
Maximum
No-load
Stand-by
800W
25W
16W
Mainsconnectors 1×Powercon
1×Powerconloop-throughoutput
Ampliertype 2-channelPWMamplierwithtemperaturecontrolled
fan
Nominaloutputpower 2×300W
Maximumoutputpower 2×450W
Noiselevel ≤9dB(A)/r=1m(3′3″)
Inputs 1×XLRanalogue
Inputlevel −6dBu...+6dBu
Outputs 1×XLRanalogue
Controlinputs 1×RJ45Ethernet
1× USB
Electroniccrossoverfrequency 1.9kHz
Directivityindex seediagram
Equalizer 10freeprogrammableparametricEQs
Delay upto800ms
Dimensions(h×w×d) 860×320×370mm(33.9″×12.6″×14.6″)

SPECIFICATIONS 5
musikelectronic geithain GmbH TS 37SP / TS 37KSP
Weight 30kg(66.2lbs)
Environmentalspecications
Operatingtemperature
Storagetemperature
Relativehumidity
+15°C…+35°C(+59°F...+95°F)
−25°C…+45°C(−13°F...+113°F)
45%…75%
Designofthecabinet lumbercoreplywoodwithscratchproofstructure
coating
blackRAL9005,othercoloursonrequest
Additionalaccessories(optional) securitylug
stand,wallandceilingmountelements

SPECIFICATIONS 6
musikelectronic geithain GmbH TS 37SP / TS 37KSP
4.2 Acoustical diagramms
20 50 100 200 500 1k 2k 5k 10k 20k
[dB]
[Hz]
20
15
10
5
0
DIRECTIVITY INDEX (coverage angle 90° x 40°)
25 50 100 200 500 1k 2k 5k 10k 20k
105
100
95
90
85
80
75
[dB]
[Hz]
0° (TS37SP) 0° (TS37KSP) 45°h 180°h
FREE FIELD FREQUENCY RESPONSE

SPECIFICATIONS 7
musikelectronic geithain GmbH TS 37SP / TS 37KSP
4.3 Technical drawings

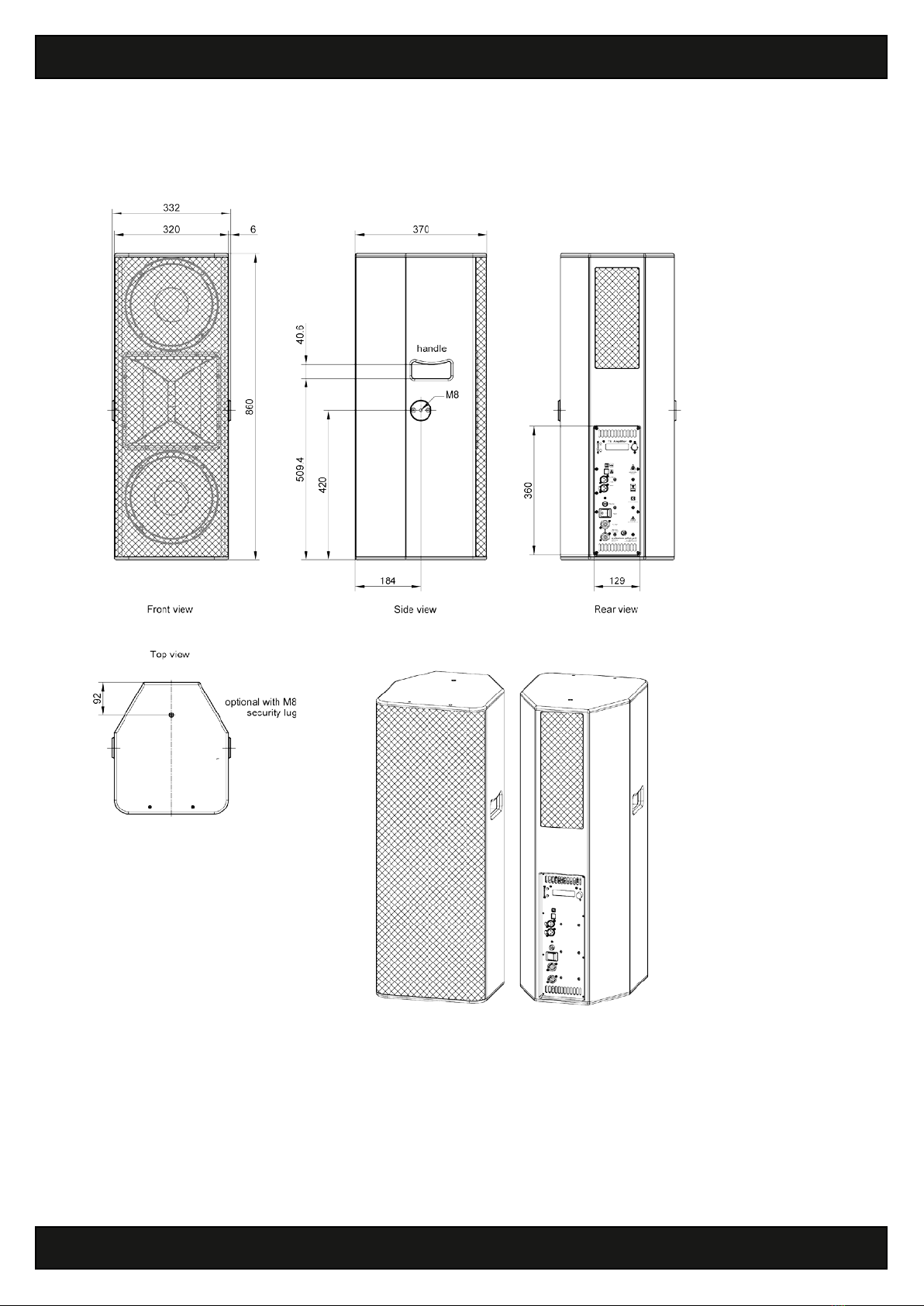

4.3.1 TS 37SP

SPECIFICATIONS 8
musikelectronic geithain GmbH TS 37SP / TS 37KSP

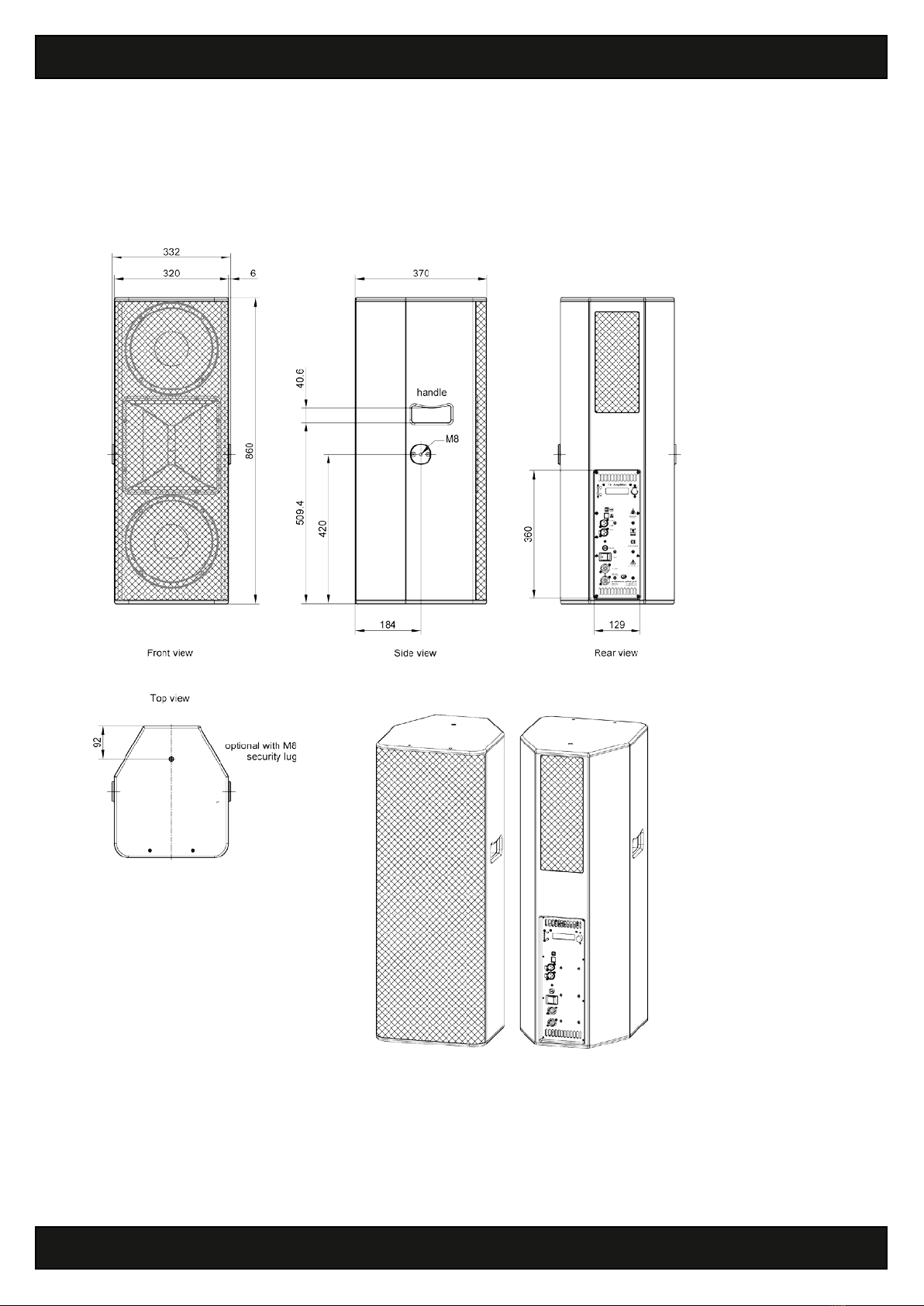

4.3.2 TS 37KSP
