MuxLab 500772 User manual

KVM HDMI over IP PoE Extender, UHD-4K - 500772
© MuxLab Inc. 2021 94-000845-C / SE-000845-C
Page 1

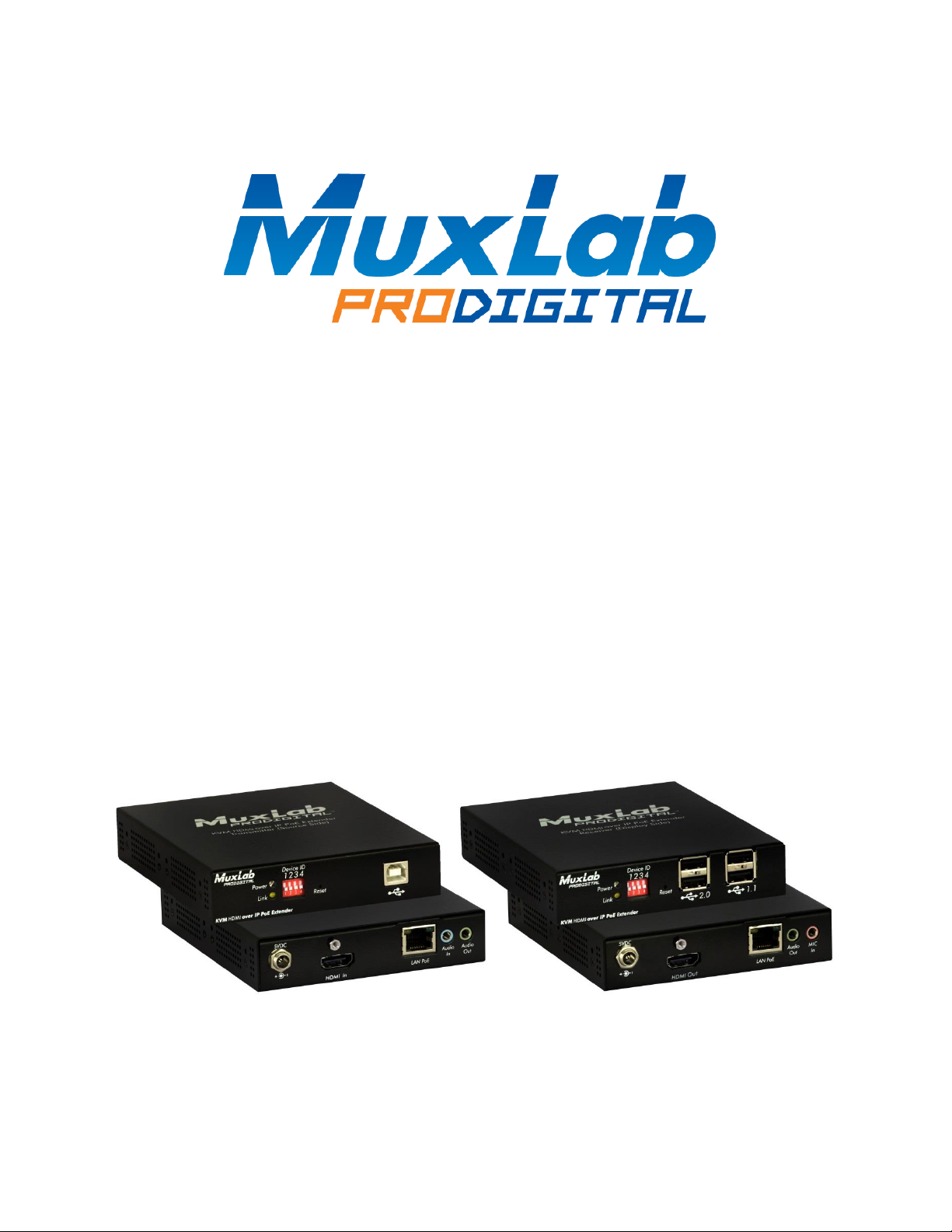

KVM HDMI over IP PoE Extender, UHD-4K
Operation Manual
500772

KVM HDMI over IP PoE Extender, UHD-4K - 500772
© MuxLab Inc. 2021 94-000845-C / SE-000845-C
Page 2
Table of Contents
1 Introduction ...............................................................................................................................................3
Key Features:.............................................................................................................................................3
2 Direct Switching Method ...........................................................................................................................5
3 On Screen Display (OSD) Switching Method..............................................................................................6
3.1 Login to the KVM Device.........................................................................................................................7
3.2 Logout from the KVM Device..................................................................................................................7
3.3 Bring up the KVM OSD Menu..................................................................................................................8
3.4 Selecting a Workstation to control .........................................................................................................8
3.5 Returning.................................................................................................................................................9
3.6 Refresh....................................................................................................................................................9
4 KVM Transmitter/Receiver Settings.........................................................................................................10
4.1 Firmware Version Information..............................................................................................................10
4.2 Upgrading Firmware .............................................................................................................................10
4.3 Changing the OSD Login Password .......................................................................................................11
4.4 KVM Device Statistics............................................................................................................................12
4.5 Network Settings...................................................................................................................................13
4.6 Setting the KVM Transmitter/Receiver Name ......................................................................................14
4.7 Selecting the OSD HotKey Sequence ....................................................................................................14
5 Specifications ...........................................................................................................................................16
6 Warranty Policy........................................................................................................................................18
6.1 Warranty Period....................................................................................................................................18

KVM HDMI over IP PoE Extender, UHD-4K - 500772
© MuxLab Inc. 2021 94-000845-C / SE-000845-C
Page 3
1 Introduction
The KVM HDMI over IP PoE Extender, UHD-4K allows HDMI & USB equipment to be connected up to
330ft (100m) over an Ethernet LAN, supporting 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0) resolutions via
Cat5e/6 cable in multiple point-to-point and point-to-multipoint configurations. The Transmitter
(500772-TX) and Receiver (500772-RX) support PoE (PD) if used with a PoE (PSE) Ethernet Switch.
The Transmitter terminates to a computer server/workstation via a HDMI & USB port, The Receiver
terminates to a HDMI display and up to 4 USB devices such as a keyboard, mouse, printer, drawing pad,
storage device, camera, etc., via a 4 port USB hub. A single Receiver can be switched via hotkey
sequences to any Transmitter on the network, allowing a single operator to manage numerous
servers/workstations, in a distributed KVM application.
There are two hotkey methods to switch from one workstation to another. There is a Direct Switching
Method and an On Screen Display (OSD) Switching Method. This manual explains how to control the
switching from one workstation to another, as detailed below.
Key Features:
•One operator can manage multiple servers/workstations
•Supports HDMI up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0)
•Receiver side includes a 4-port USB hub, for KVM applications
•Up to 330ft (100m) over Cat5e/6
500772-RX
PC
Smartphone
Tablet
500772 TX
Control from any device
from anywhere
500812
Server
Ethernet
Switch
HDMI Monitor
500772 TX
-
Server
Router
USM Keyboard
USB Mouse
USB Printer
USB Drawing Pad
WiFi
Cat 5e/6 Cable
HDMI Cable
USB Cable

KVM HDMI over IP PoE Extender, UHD-4K - 500772
© MuxLab Inc. 2021 94-000845-C / SE-000845-C
Page 4
•Supports 100’s of Transmitters & Receivers depending on network bandwidth
•Supports multiple point-to-point, and point-to-multipoint applications
•Supports audio insert & mic-out (TX), and audio extract & mic-in (RX)
Please reference the 500772 Installation Guide for instructions on how to connect Transmitters to
workstations and the Receiver to an HDMI display, USB keyboard and USB mouse (plus two additional
USB devices, if required). Note that the USB keyboard and USD mouse should be connected to the USB
1.1 ports. The remaining two USB 2.0 ports may be connected to other USB devices, such as an external
hard disk, USB memory stick, USB printer, USB drawing pad, etc.

KVM HDMI over IP PoE Extender, UHD-4K - 500772
© MuxLab Inc. 2021 94-000845-C / SE-000845-C
Page 5
2 Direct Switching Method
This method of switching from one workstation to another supports up to 16 workstations. It supports a
quick and simple method of switching to different workstations. If more than 16 workstations is
required, then the On Screen Display (OSD) Switching Method must be used.
Each Transmitter must have a unique Dip Switch setting (ranging from 0 to 15) which will automatically
correspond to the workstation ID. The Dip Switch represents a binary count as follows:
ID 0
ID1
ID 2
ID 3
ID 4
ID 5
ID 6
ID 7
ID 8
ID 9
ID 10
ID 11
ID 12
ID 13
ID 14
ID 15
0000
0001
0010
0011
0100
0101
0110
0111
1000
1001
1010
1011
1100
1101
1110
1111
To quickly switch from one workstation to another, say to switch from workstation ID 1 to workstation
ID 4, press and hold the “CTRL” key and while doing so quickly press “4” three times.
This will automatically switch the client operator to the workstation with ID 4.
Note that the hotkey keyboard mapping for ID 0 to ID 15 is as follows:
ID 0
ID1
ID 2
ID 3
ID 4
ID 5
ID 6
ID 7
ID 8
ID 9
ID 10
ID 11
ID 12
ID 13
ID 14
ID 15
CTRL
+
0
CTRL
+
1
CTRL
+
2
CTRL
+
3
CTRL
+
4
CTRL
+
5
CTRL
+
6
CTRL
+
7
CTRL
+
8
CTRL
+
9
CTRL
+
Q
CTRL
+
W
CTRL
+
E
CTRL
+
R
CTRL
+
T
CTRL
+
Y

KVM HDMI over IP PoE Extender, UHD-4K - 500772
© MuxLab Inc. 2021 94-000845-C / SE-000845-C
Page 6
3 On Screen Display (OSD) Switching Method
The OSD Switching Method does not rely on the Dip Switch setting and thus is not limited to only 16
workstations. This method supports 100’s of workstations.
To activate the OSD, quickly press “Scroll Lock” three times. This brings up the KVM OSD Menu, with a
pulldown tab to select from many workstations (scroll through the pulldown menu to select the desired
workstation). In addition, each KVM Transmitter can have a user defined alpha numeric name that is
representative of the attached workstation. For example the KVM Transmitter that is connected to the
main email server can have the name “Email Server 1” or “Main Email Server”.
The main KVM OSD Menu offers the operator a simple and clean menu selection as shown below. Note
that while the OSD is active, the operator is not connected to any workstation.
•Password Field: The user must enter his or her password in this field in order to login and be
provided system access. The default password is “admin”.
•Login: Type in a valid password and click on “Login”. If accepted, then access is granted.
•Logout: Click on “Logout”, to log out of the system. Access is denied while logged out.
•Node List: This field shows the previous workstation selected. When clicking on the pulldown
arrow, a listing of all workstations that may be selected for control is presented. Use the scroll
bar to view all workstations.
•Return: Returns control of the previous workstation (prior to bringing up the OSD).

KVM HDMI over IP PoE Extender, UHD-4K - 500772
© MuxLab Inc. 2021 94-000845-C / SE-000845-C
Page 7
•Connect: After selecting a workstation in the Node List, then pressing “Connect” provides
control over the selected workstation (assuming it is not already under the control of another
client).
•Refresh: Pressing “Refresh” updates the Node List of available workstations.
3.1 Login to the KVM Device
admin
Type in your password and click on Login with your mouse. The default password is “admin”.
The following screen will be displayed and is ready for you to select a workstation to connect with. Note
that the previously connected workstation is displayed by default in the Node List field.
3.2 Logout from the KVM Device
To Logout, simple click on “Logout”, and the login screen will be displayed. You will be required to login,
should you wish to take control of the KVM device and connect with available workstations.

KVM HDMI over IP PoE Extender, UHD-4K - 500772
© MuxLab Inc. 2021 94-000845-C / SE-000845-C
Page 8
3.3 Bring up the KVM OSD Menu
To bring up the KVM OSD Menu at any time, quickly press “Scroll Lock” three times. The OSD will be
displayed.
Note that this display is generated directly from the KVM Receiver, and is not being generated by any
workstation.
3.4 Selecting a Workstation to control
If the KVM OSD Menu is not currently being displayed, then do so at this time.
Before selecting a workstation to control, it is a good practice to click on “Refresh” first, just in case a
new workstation was recently added since the last time “Refresh” was executed.
To select a workstation, click on the dropdown arrow, as shown below, to list the workstations which
are controllable via the KVM device.
Note that the list includes the following information respectively:
•The Dip Switch setting selected on a given KVM Transmitter, where “CH0000”means Dip Switch
setting “0000”.
•The IP address of the KVM Transmitter.
The given name for the KVM Transmitter, which is generally a name that is representative of the
attached workstation.
Note: The KVM Transmitter name can be set via the web interface of the said KVM Transmitter.
To do so, follow the procedure in the section “Setting the Transmitter/Receiver Name”.

KVM HDMI over IP PoE Extender, UHD-4K - 500772
© MuxLab Inc. 2021 94-000845-C / SE-000845-C
Page 9
To actually select a workstation to control, use the mouse to click on the desired workstation from the
provided “Node List”. Workstations that indicate a status of “Ready” are available for control, while
workstations that have a status of “Busy” are already being controlled by another client and are not
available to you at this time. Click on a free workstation to highlight it and then click on “Connect” to
connect with that workstation.
Once connected, the workstation screen will be displayed and the mouse and keyboard will function
normally, just as if you were directly connected and located next to the workstation.
Note: If you accidently try to connect to a workstation with a “Busy” status (meaning that it is already
connected to another client), then the KVM OSD Menu will return within a few seconds, rather than
presenting the operator with the workstation screen.
3.5 Returning
Clicking on “Return”, will return you to the previous workstation you were controlling. Note that if
another client connected to your previous workstation, while your OSD KVM Menu was active, then you
will not have access to this workstation until it is free, or instead you can simply connect with another
workstation that is currently free (in “Ready” state). Note that when you active the OSD, you lose
control of the workstation you were controlling.
3.6 Refresh
Pressing “Refresh” updates the Node List of available workstations. Note that during power up, a refresh
is automatically performed by the system.

KVM HDMI over IP PoE Extender, UHD-4K - 500772
© MuxLab Inc. 2021 94-000845-C / SE-000845-C
Page 10
4 KVM Transmitter/Receiver Settings
The following section describes how to set and configure the KVM Transmitter and Receiver via their
web interface. To access either the KVM Transmitter or Receiver web interface, begin by entering the
KVM Transmitter/Receiver IP address into a computer web browser and press enter. Make sure the
computer is connected to the same subnet as the KVM Transmitter/Receiver, and that it has an IP
address that is within the same subnet range. Login, if required, with the appropriate password (the
factory default password is “admin”).
4.1 Firmware Version Information
To access the Firmware version information, press on the “System” tab, and then on the “Version
Information” sub tab. This will bring up the firmware version information for the given KVM
Transmitter/Receiver. An example KVM Transmitter version information screen is shown below.
4.2 Upgrading Firmware
To upgrade the firmware, begin by verifying your current KVM Transmitter and Receiver firmware
versions. To do this, follow the steps in the “Firmware Version Information” section. Then search for the
latest version of the KVM Transmitter and Receiver firmware on the MuxLab website in the “Support”
page section. If a newer version exists, then proceed to download it.
To upgrade the KVM Transmitter/Receiver, from the device web interface click on the “System” tab and
then on the “Upgrade Firmware” sub tab, see the example below. Press the “Choose File” button to
browse for the file previously downloaded, and once selected, press the “Upload” button to upgrade the
KVM Transmitter/Receiver.

KVM HDMI over IP PoE Extender, UHD-4K - 500772
© MuxLab Inc. 2021 94-000845-C / SE-000845-C
Page 11
4.3 Changing the OSD Login Password
The default OSD Login password is “admin” but may be changed via the KVM Receiver web interface. In
the “System” tab and then “Utilities” sub tab, the “Console API Command” field is used to set the new
password.
As an example to set the password to “12345”, from within the “Console API Command” field, type
“astparam s ui_password=12345”, and then press “Apply”, as shown below.
To save the new password, type “astparam save” in the “Console API Command” field, and press
“Apply”, as shown below.

KVM HDMI over IP PoE Extender, UHD-4K - 500772
© MuxLab Inc. 2021 94-000845-C / SE-000845-C
Page 12
The Login password is now set to “12345”. Record the new password in a safe place as a reference.
4.4 KVM Device Statistics
The KVM Transmitter/Receiver statistics is available via the device web interface by clicking on the
“System” tab and the “Statistics” Sub tab. See the example screens below.

KVM HDMI over IP PoE Extender, UHD-4K - 500772
© MuxLab Inc. 2021 94-000845-C / SE-000845-C
Page 13

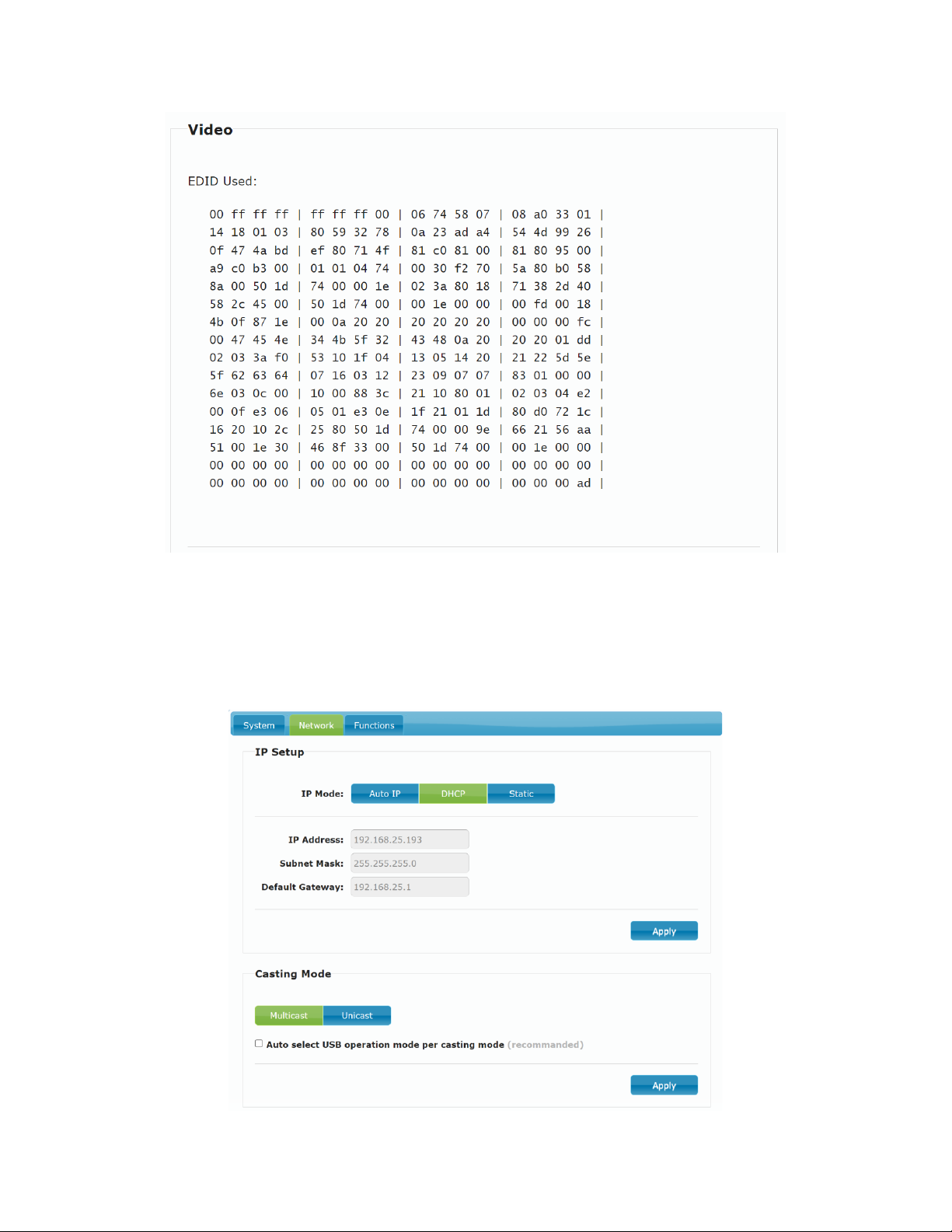

4.5 Network Settings
The KVM Transmitter and Receiver network setting can be managed by pressing the “Network” tab.
There are three sub tabs for additional control, “Auto IP”, “DHCP” and “Static”. The default setting is
“Auto IP”, and it is recommended that this mode be set.

KVM HDMI over IP PoE Extender, UHD-4K - 500772
© MuxLab Inc. 2021 94-000845-C / SE-000845-C
Page 14
4.6 Setting the KVM Transmitter/Receiver Name
The following steps illustrate how to set the name for each KVM Transmitter/Receiver. From the main
web interface home page click on the “Function” Tab and scroll down to the bottom. Enter the KVM
Transmitter/Receiver name in the “KVM unit name” field as shown below, and click on “Apply”. It is best
to select a name for the KVM Transmitter that is representative of the attached workstation, such as File
Server, Email Server, etc., or for the KVM Receiver that is representative of the client operator desktop.
The below screen shows an example of the KVM Transmitter screen.
4.7 Selecting the OSD HotKey Sequence
In order to set the OSD hotkey sequence, go to the KVM Receiver web interface and press the
“Function” tab and scroll down to the bottom. See the example screen below.

KVM HDMI over IP PoE Extender, UHD-4K - 500772
© MuxLab Inc. 2021 94-000845-C / SE-000845-C
Page 15

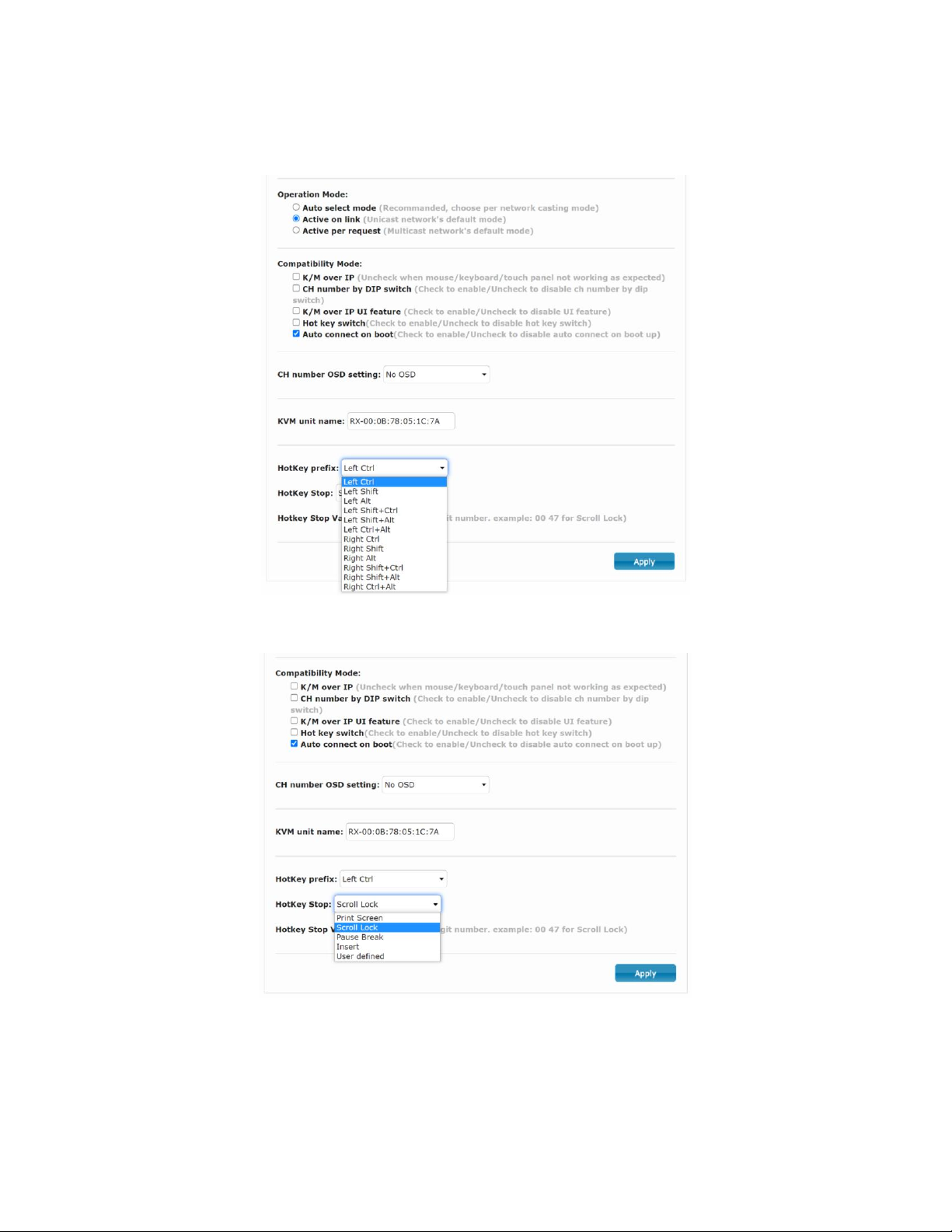

Click on the “HotKey prefix” pull-down arrow to select the hotkey prefix setting from the provided
options.
Click on the “HotKey Stop” pull-down arrow to select the hotkey stop setting from the provided options.
If the “User Defined” option is selected, then enter the value for this hotkey stop in the “Hotkey Stop
Value” field, as “00xy”, where “xy” is the hotkey stop key value.

KVM HDMI over IP PoE Extender, UHD-4K - 500772
© MuxLab Inc. 2021 94-000845-C / SE-000845-C
Page 16
5 Specifications
Environment
HDMI 2.0b
Devices
Computers and servers with HDMI monitor ports.
Transmission
Transparent to the user
Bandwidth
300MHz
Signals
HDMI 2.0 b protocol, HDCP 2.2
Connectors
Note: Cables not included.
One (1) HDMI receptacle.
One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
Two (2) 3.5mm jacks for audio insert (on TX)/audio extract (on RX).
One (1)2.1mm locking barrel jack for power
One (1) or Four (4) USB Connector(s) for Host (on TX)/Client (on RX)
Four (4) DIP Switches for device ID addressing.
Maximum Distance
Based on a maximum length
of 6.6ft (2m) of HDMI cable
per end.
Cat5e/6: 330ft (100m) up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0)
Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection
reduces the effective distance depending on the grade of twisted cable used.
Latency
Typicalone (1) Frame (16ms), maximum 2 frames (33ms)
Compression
JPEG 2000
Bandwidth
Up to 500Mbps
Network Requirement
1000BaseT with PoE
RJ45 Pin Configuration
Reverse Polarity Sensitive. Use
EIA/TIA 568A or 586B straight-
through wiring.
RJ45 Link
Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 (T)
Pin 7 (R) Pin 8 (T)
Cable
One (1) Cat 5e/6 or better twisted pair cables required
Power Source
This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE
(PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately.
PoE Standard
IEEE 802.3af
Power Consumption
Transmitter: 6Watt Receiver: 6Watt
Temperature
Operating: 0° to 40°C Storage: -20° to 85°C

KVM HDMI over IP PoE Extender, UHD-4K - 500772
© MuxLab Inc. 2021 94-000845-C / SE-000845-C
Page 17
Humidity: Up to 95% non-condensing
Dimensions
4.40” x 5.08” x 1.00” (112mm x 129mm x 25mm)
Weight
1.5lbs (0.68kg)
Compliance
Regulatory: FCC, CE, RoHS Flammability: 94V0
Warranty
3 years
Order Information
500772-TX KVM HDMI over IP PoE Extender TX, UHD-4K (UPC: 627699907726)
500772-RX KVM HDMI over IP PoE Extender RX, UHD-4K (UPC: 627699807729)
Accessories
(These items are sold
separately)
500920 16-Port Rackmount Transceiver Chassis
500917 Wall Mount Transceiver Bracket Kit
500993 Univ. Locking Power Supply 5VDC/2.6A US/UK/EU Blade

KVM HDMI over IP PoE Extender, UHD-4K - 500772
© MuxLab Inc. 2021 94-000845-C / SE-000845-C
Page 18
6 Warranty Policy
Items Under Warranty - Company Policy
MuxLab guarantees its products to be free of defects in manufacturing and workmanship for the warranty period from the date
of purchase. If this product fails to give satisfactory performance during this warranty period, MuxLab will either repair or
replace this product at no additional charge, except as set forth below. Repair and replacement parts will be furnished on an
exchange basis and will be either reconditioned or new. All replaced parts and products become the property of MuxLab. This
limited warranty does not include repair services for damage to the product resulting from accident, disaster, misuse, abuse, or
unauthorized modifications or normal decay of battery driven devices. Batteries, if included with the product, are not covered
under this warranty.
Limited warranty service can be obtained by delivering the product during the warranty period to the authorized MuxLab
dealer from whom you purchased the product, or by sending it to MuxLab. MuxLab will not accept any such product for repair
without a Return Material Authorization number (RMA#) issued by its Customer Service Department and a proof of purchase
date. If this product is delivered to MuxLab by mail, you agree to assume risk of loss or damage in transit, to prepay shipping
charges to the warranty service location, and to use the original shipping container or equivalent.
THE ABOVE LIMITED WARRANTY IS THE ONLY WARRANTY COVERING YOUR MUXLAB PRODUCT. THERE ARE NO OTHER
WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. SOME STATES DO NOT ALLOW LIMITATIONS ON IMPLIED WARRANTIES, SO THE ABOVE LIMITATION MAY NOT APPLY
TO YOU.
IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER, YOUR SOLE REMEDY SHALL BE REPAIR OR REPLACEMENT AS PROVIDED
FOR ABOVE. IN NO EVENT SHALL MUXLAB BE LIABLE TO YOU FOR ANY DAMAGES, INCLUDING ANY LOSS OF PROFITS, LOST
SAVINGS, OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF OR INABILITY TO USE THIS
PRODUCT, EVEN IF MUXLAB OR AN AUTHORIZED MUXLAB DEALER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES;
NOR WILL MUXLAB BE LIABLE FOR ANY CLAIM BY ANY OTHER PARTY. SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS WHICH MAY VARY FROM STATE TO STATE.
6.1 Warranty Period
Any product found to be defective within three (3) months of invoice, including one (1) month shelf life, may be returned for
replacement by a new unit or a satisfactory repair within one (1) month of receiving any returned product. The customer must
provide MuxLab with the serial number and proof of purchase of the defective unit being returned. All RMA’s issued are subject
to inspection by MuxLab, and will be returned to customer if not properly packaged –units must be returned in original
container or equivalent. MuxLab will not accept any such product for repair without an authorization from its Technical Support
department and without an RMA# issued by MuxLab Customer Service department. For a credit & replace RMA, the customer
will be liable to pay replacement invoice if defective products are not returned.
For Product more than six months old, including shelf life. The defective unit must be returned prepaid to MuxLab and then the
unit will be repaired or if repair is not possible, replaced by an equivalent unit and returned to the customer within one (1)
month of receiving any returned product. There is no charge for repair (parts and labor) during the full warranty period.
Items Defective and not under Warranty
For products which are no longer under warranty the policy is repair and return. An amount of 25% of the products published list
price at the time of purchase will be charged. Customer must issue a purchase order to cover the cost of repair.
Each unit will be returned to the customer within one (1) month from receipt of the unit by MuxLab. The defective unit must be
returned prepaid to MuxLab. The repaired unit will be returned to the customer FOB MuxLab. The repaired unit includes a 90
day warranty.

KVM HDMI over IP PoE Extender, UHD-4K - 500772
© MuxLab Inc. 2021 94-000845-C / SE-000845-C
Page 19
MuxLab Inc.
2321 Rue Cohen
Montreal, Quebec
Canada H4R 2N7
Tel.: [phone] Fax: [phone]
Toll Free (North America): 877 689-5228
URL: www.muxlab.com
E-mail: [email protected]
