MyGate strike User manual

OPENER FOR RACK-DRIVEN SLIDING MOTOR
STRIKE
English
Installation manual

11
1. WARNINGS AND GENERAL SAFETY INSTRUCTIONS
This manual contains important safety information.
An incorrect installation or an improper use may cause serious damages to persons or objects.
Read this manual carefully and completely. Pay particular attention to the sections marked by the symbol:
This indicates that risk to personal injury may occur if not adhered to. Store this manual safety for future use.
Always disconnect main power supply before operating in the automatic gate.
Make sure that the earth system is perfectly working and always connect the automatic gate to it.
The installation of automatic gates and doors must fully comply with the requirements set forth in 2006/42/EC Directive,
with particular reference to EN 12445 and EN 12453 standards.
The final connection to the electrical mains, testing and start-up of the automation must be performed by skilled and
qualified personnel (professional gate installers), who is responsible for carrying out the risks analysis and verifying the
compliance of the system with the current safety standards.
This product is exclusively designed and manufactured for the intended use specified in this manual. Any other use than
stated could compromise the integrity and the safety of the product and therefore is strictly prohibited. The automation
is designed to move driveway gates and not intended to be used for any other purpose.
Do not let children play with the radio transmitters and any other device which could accidentally start the gate
automation.
Use exclusively original parts by manufactured by Proteco for maintenance.
Do not carry out any alteration on the components of the automatic gate.
The manufacturer declines all liability in case components or additional devices not produced by MYGATE.
CE COMPLIANCE DECLARATION
MYGATE is a trademark by PROTECO S.r.l.
Manufacturer: PROTECO S.r.l.
Address: Via Neive, 77 – 12050 Castagnito (CN) – ITALIA
declares that
The product type: STRIKE Electromechanical gear motor for sliding gate
Models: STRIKE 4, STRIKE 5, STRIKE 8
Is built to be integrated into a machine or to be assembled with other machinery to crate a machine under provisions of 2006/42/EC Machinery
Directive, with reference in particular to the following requirements: 1.1.2, 1.1.3, 1.1.5, 1.2.1, 1.2.2, 1.2.3, 1.2.4.1, 1.2.6, 1.3.1, 1.3.4, 1.3.7, 1.3.8.2, 1.3.9,
1.4.1, 1.4.2.1, 1.4.2.2, 1.5.1, 1.5.4, 1.6.1, 1.6.2, 1.6.3, 1.6.4, 1.7.1, 1.7.3, 1.7.4, 1.7.4.1, 1.7.4.2, 1.7.4.3.
It complies with the essential requirements of EEC Directives:
2006/95/EC Low Voltage Directive
2004/108/EC Electromagnetic Compatibilità Directive
The product also complies, with the constraints of the applicable parts, with the following standards:
EN 12453, EN 12445, EN 12604, EN12605, EN 13241-1
EN 55014-1,EN 55014-2
EN 60335-1, EN 60335-2-103
EN 61000-3-2
EN 61000-3-3
The manufacturer also declares that the start-up of the machinery is not permitted unless the machine, in which the product is incorporated or of
which is becoming a component, has been identified and declared as conformed to 2006/42/EC Machinery Directive.
Castagnito, 11th November 2011 Angela Gallo
Amministratore Delegato
2. PRODUCT DESCRIPTION AND INTENDED USE
STRIKE gear motor is designed to automate residential or commercial sliding gate with rack.
Any other use than above described has to be considered as inappropriate and strictly prohibited.
All models feature an irreversible gearing system that locks the gate when it is in its fully closed position. Therefore
no additional lock is needed. In case of a power failure the motor lock can be released to move the gate manually
(see section 6).
The STRIKE 4 version, 24 Volts, can also be powered by a back-up battery system that allows emergency openings
even in case of a power cut.
ENGLISH

13
3 4
7 8 9 10
11 12 14
1
2
56
260 mm 230 mm 260 mm
15
2
2.1 TECHNICAL SPECIFICATIONS
Power supply
Current
Motor power
Capacitor
Thermic Protection
Maximum thrust
Class IPProtection
Revolutions (speed)
Opening speed
Gate maximum weight
Duty Cycle
STRIKE 5 STRIKE 8 STRIKE 4 STRIKE 5 110V STRIKE 8 110V

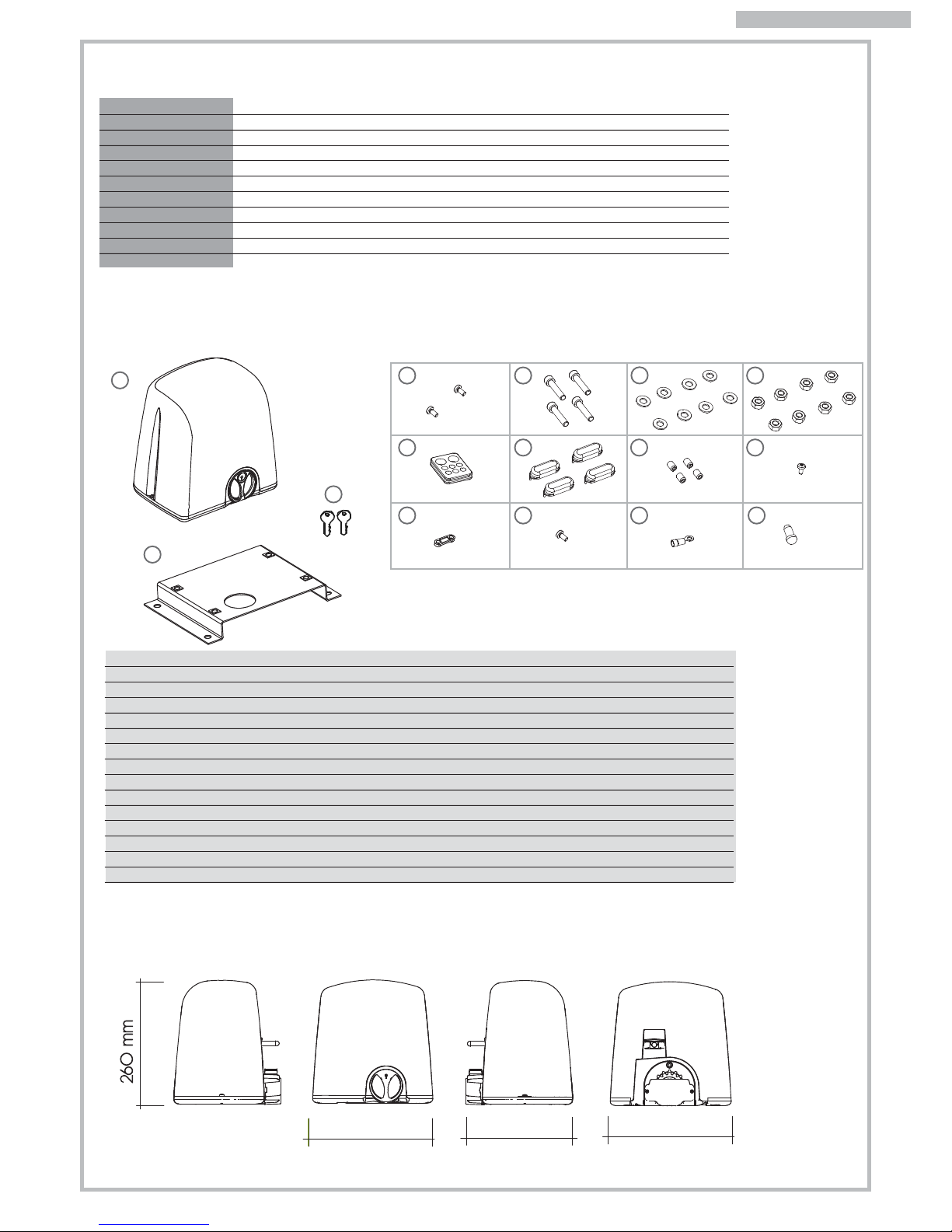

2.3 DIMENSIONS
2.1 PACK CONTENTS
1Strike Gear motor
2MPIS04 Anchor plate
3MVI0510B2 Screw 5x10 for cover
4MVI1060AZ Screw 10x60 for motor-anchor plate fixing
5MRO10Z Washer Ø10 for motor-anchor plate fixing
6MDAM10Z Nut Ø10 for motor-anchor plate fixing
7MPC06 Cable grommet SH70
8MTP22 Slot-cover
9MGR0610Z Limit bracket fixing screw 6x10 (for universal steel brackets only)
10 MVI3595D Screw TC 3.5x9.5 for cable-block
11 MBC02 Black cable block
12 MVI0510B2 Screw TC 5x10 for lug
13 MFAG01 Yellow lug for earth system
14 MMA02 Limit-switch tip
15 MCH03 Release key
230V ~ 50Hz 230V ~ 50Hz 24Vdc 110V ~ 60Hz 110V ~ 60Hz
1,2 - 1,7A 1,2 - 2A 0,7 - 10A 2,3 - 3,5A 2,2 - 4A
250W 300W 80W 280W 330W
8µF 10µF -- 30µF 30µF
150°C 150°C -- 150°C 150°C
350 N 440 N 350 N 380 N 460 N
54 54 54 54 54
1400 rpm 1400 rpm 1600 rpm 1700 rpm 1700 rpm
10,5 m/min 10,5 m/min 11 m/min 13 m/min 13 m/min
500 Kg 800 Kg 450 Kg 500 Kg 800 Kg
40% 40% 80% 40% 40%
ENGLISH

a
b
c
d
e
c1
3
2
3. INSTALLATION
3.1 PRELIMINARY CHECKS
Before the installation, to ensure correct working of the automation, please check the followings:
• Make sure the gate’s structure is suitable to be automated
• Check the weight, dimensions and type of the gate is appropriate to this type of automation
• Ensure the gate is able to open and close smoothly and is free of obstacles that may cause the gate to potentially
derail
• Check the ground and all surfaces for the installation are suitable for stable and safe fixing of the gate automation.
• Make sure the installation area for the automation is wide enough to accommodate the anchor plate and the motor
can be accessed easily in the event of power cuts.
• Ensure the location where the automation is installed is not exposed to flood hazards; if in doubt raise the automation
from above ground level.
• In cases where the automation has to be installed in a vehicles path or manoeuvre area, it is recommended to protect
it against accidental damage.
• Ensure an efficient earth connection system is in place.
• Make sure the surfaces for photocells fixing areas are flat and smooth enough to allow a perfect alignment between
transmitting and receiving units. They must both directly see each other as they are not reflective.
3.2 ELECTRICAL SET-UP
3.2.1 STANDARD INSTALLATION
3.2.2 ELECTRICAL CABLES SPECIFICATIONS
The cables required the electrical set-up (not included in the pack) may vary according to quantity and type of
devices installed.
Fig. 1
ASecurity cost 2x0,75
BPower Supply 2x1,50 + terra
CPhotocells rx 4x0,75
C¹ Photocells tx 2x0,75
DKey switch 2x0,75
EWarning light 2x0,75
230V
2x0,75
2x1,50+T
rx 4x0,75
tx 2x0,75
2x0,75
2x0,75
24V
ENGLISH ENGLISH

Fig. 2
55/60 mm
20/30 mm
Fig. 3
260+ 50 mm
177+ 50 mm
260
177
32
4
3.4 PRELIMINARY INSTALLATION WORK
AND MASONRY FOR ANCHOR PLATE
Identify approximately the place of each component and
proceed as follows:
a) Dig the foundation pit for the gear motor whilst considering
the anchor plate dimensions. Give an extra 5cm area extra
on each side. Pay attention to measurements shown in Fig.2.
b) Provide one or more ducts for the electrical cables so that
they can easily go through the purpose fabricated hole in
the gear motors anchor plate. Pay attention to the plate’s
orientation: hole for cables routing on the side opposite the
gate (see Fig. 2).
c) Set concrete into the pit. Ensure this is level and smooth out
the surface. Wait for the concrete to get solidify (this may
take a few days).
d) Insert the cables ducting to the hole in the anchor plate and
fix the plate to the concrete using suitable plugs.
e) Cut the cable ducts about 3cm above the anchor plate
level and route the cables for accessories and electrical
mains wiring as shown in Fig. 3 diagram. Ensure the cables
are at least 30-50cm out from the ducting to allow easy
wiring to the control panel.

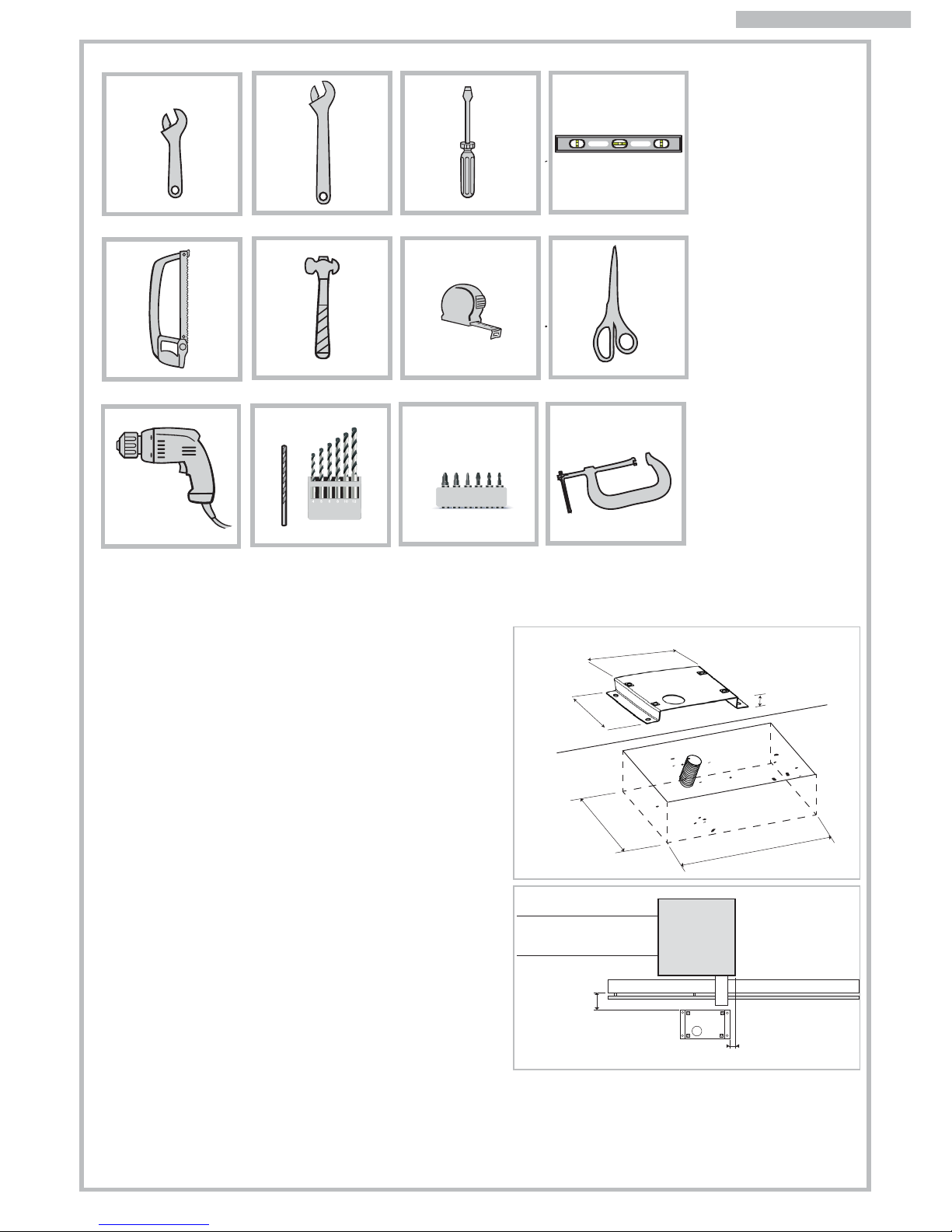

3.3 TOOLS NEEDED
ENGLISH

Fig. 5
Fig. 4
Fig. 6a
Fig. 6
25mm
Fig. 7
45
3.5 INSTALLATION OF THE GEAR MOTOR
a) Lift up the motor cover.
b) Insert the four hexagon-headed screws with the washers and
nuts in the loops of the motor base (Fig. 4).
c) Route the electrical cables in the purpose fabricated hole of
the motor base (Fig. 5) and gently lower the motor base
onto the anchor plate.
d) Move the screws in the loop’s centre and screw them up till
the lower nut rests on the anchor plate.
e) Use a spirit-level to make sure that the gear motor is perfectly
level (Fig. 6), if it is not adjust the four screws accordingly.
Then tighten all nuts.
f) Release the gear motor for manual operation as illustrated in
section 6 of this manual.

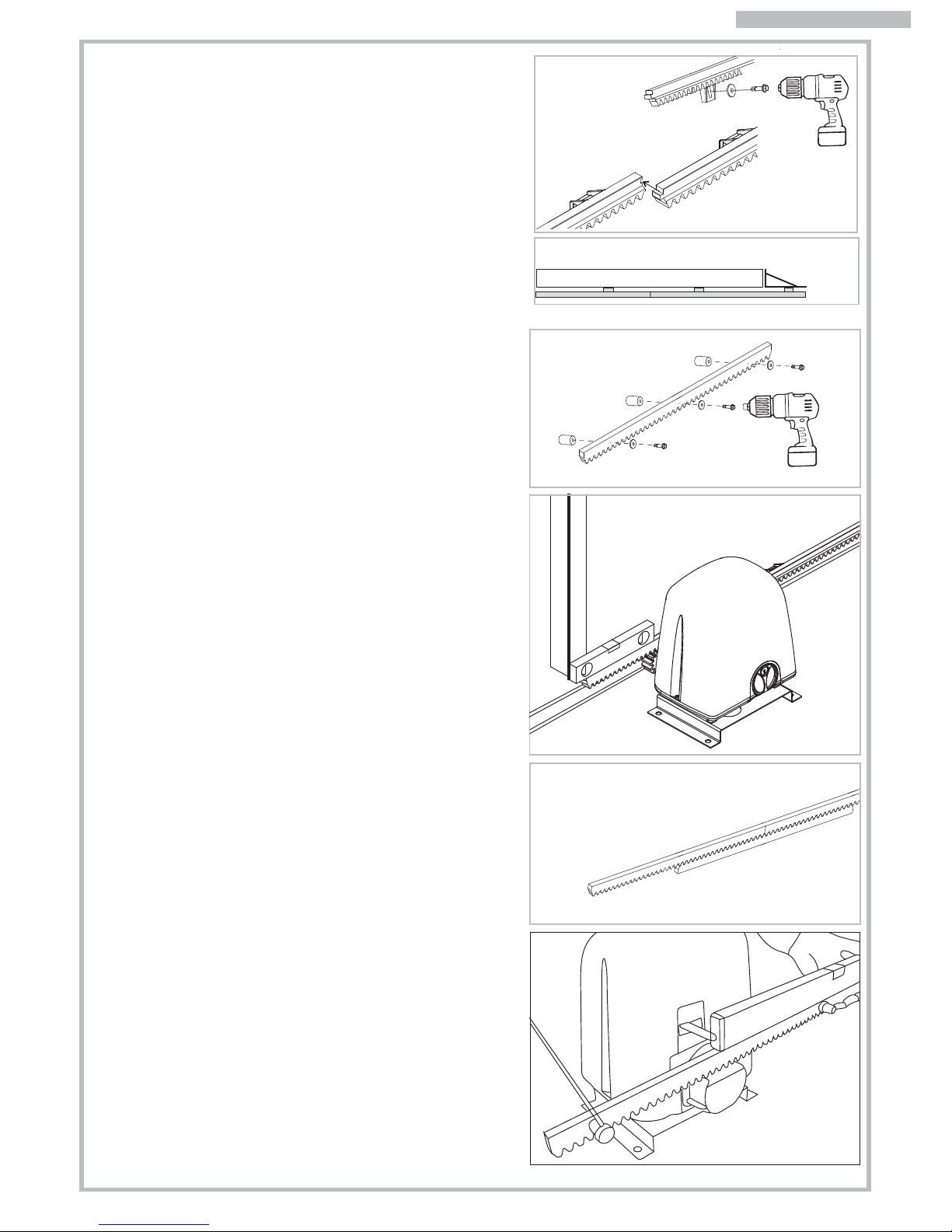

3.6 ASSEMBLY THE RACK
3.6.1 INSTALLING THE TOOTHED RACK B117 -
PVC RACK M4 20X26MM WITH INNER STEEL
FRAME (0.5M SECTIONS)
a) Move the gate manually to its open position.
b) Align the first section of the rack to the gate edge and lower
it on the pinion. Use a spirit-level to make sure it is perfectly
straight.
c) Fix this first section of rack to the gate with the provided
self-tapping screws. Fix the screws in the in the middle of the
slot as illustrated (Fig. 7).
d) Close the gate manually for about ½ meter, join the second
section of rack to first one and place it on the motor drive
pinion cog.
ENGLISHENGLISH

Fig. 8
Fig. 9
Fig. 10
Fig. 11
Fig. 11a
Fig. 7a
6
e) Keep the rack perfectly flat and fix it to the gate.
f) Repeat the same procedure until the gate is fully covered.
g) In case the last section of rack partially comes out from the
rack edge, do not cut it. Add a bracket as a gate extension
to support the last bit of rack (Fig. 8).
h) To avoid the gates weight being supported by the motors
drive pinion cog, adjust the four screws to lower a little the
gear motor and then tighten again all the nuts.
3.6.2 WELDING METAL TOOTHED RACK B102 –
STEEL RACK M4 12X30MM (1M SECTIONS)
a) Move the gate manually to its open position.
b) Assemble the three threaded stand-offs on the first section of
rack, positioning in the middle of the slot (Fig. 9).
c) Align the first section of the rack to the gates edge and lower
it on the pinion. Use a spirit-level to ensure the rack is
perfectly straight and level.
d) Weld the threaded stand-off to the gate (Fig. 10)
e) Move the gate manually, checking that the rack is always
resting on the motors drive pinion cog, and weld second
and third stand-offs.
f) Place the second section of rack side by side with the first
one, using an upside-down section of rack to synchronise
the rack teeth as illustrated in Fig. 11.
g) Move the gate manually and weld the three threaded
stand-offs.
h) Repeat the same procedure until the gate is fully covered.
i) In case the last section of rack partially comes out from the
rack edge, do not cut it. Add a bracket as a gate extension
to support the last bit of rack (Fig.8).
j) To avoid the gates weight being supported by the motors
drive pinion cog, adjust the four screws to lower a little the
gear motor and then tighten again all the nuts.
Check the gate always reaches the mechanical
stops keeping the alignment between the rack and
the motor drive pinion cog. Ensure that there are no
friction points in the gates complete travel.
ENGLISH

Fig. 12
Fig. 13 Fig. 14
Fig. 15
67

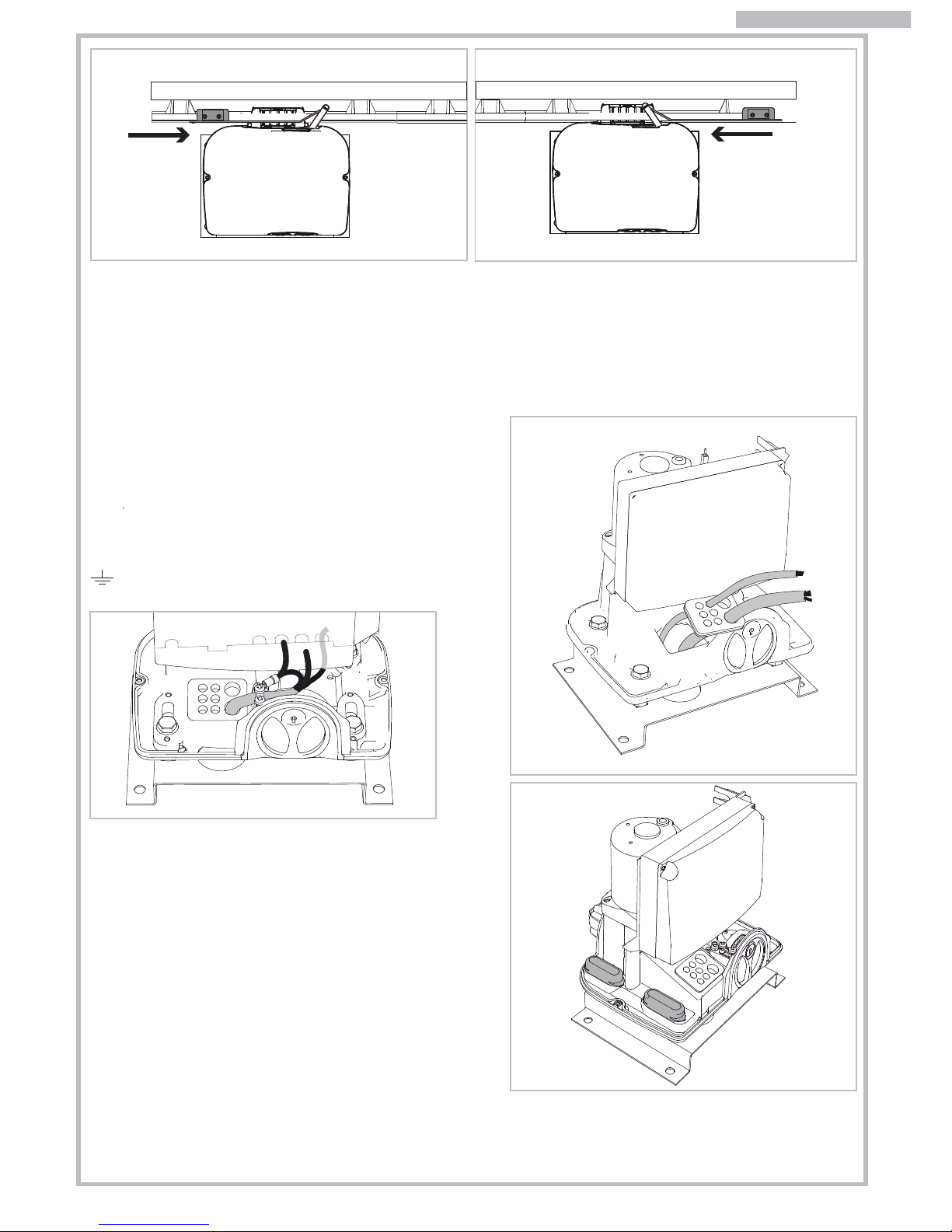

3.7.1 PVC BRACKETS FOR TOOTHED RACK B117
a) Identify closing and opening brackets according to the
motor position against the gate (Fig. 12).
b) Manually close the gate up to 3cm before the closing
mechanical stop.
c) Place the closing bracket on the rack and slide it until the
limit-switch is activated (Fig. 13).
d) Mark the bracket position onto the rack, slightly open the
gate and fix the bracket to the rack.
e) Manually open the gate (gate end aligned to the pillar
edge).
f) Place the opening bracket on the rack and slide it until the
limit-switch is activated (Fig. 14).
g) Mark the bracket position onto the rack, slightly close the
gate and fix the bracket to the rack.
NB. Tagliare eventuali eccedenze di cremagliera
3.7.2 UNIVERSAL STEEL BRACKETS
a) Identify closing and opening bracket according to the motor
position against the gate (fig. 15).
b) Manually close the gate up to 3cm before the closing
mechanical stop.
c) Put the two fixing screws on the closing limit bracket.
d) Place the closing bracket on the rack and slide it until the
limit-switch is activated (Fig. 13).
e) Tighten the screws to fix the bracket onto the rack.
f) Manually open the gate (gate end aligned with the edge of
the pillar).
g) Put the two fixing screws on the opening limit bracket.
h) Place the opening bracket on the rack and slide it until the
limit-switch is activated (Fig. 14).
i) Tighten the screws to fix the bracket onto the rack.
Click! Click!
ENGLISH ENGLISH
Motor connection LEFT
CLOSING
limit-switch
OPENING
limit-switch
Motor connection RIGHT
CLOSING
limit-switch
OPENING
limit-switch
RIGHT motor OPENING limit-switch LEFT motor CLOSING limit-switch
CLOSING
limit-switch
OPENING
limit-switch
CLOSING
limit-switch
OPENING
limit-switch
Motor connection RIGHT
Motor connection LEFT

Fig. 13 Fig. 14
Fig. 16
Fig. 17
Fig. 18
8
3.4 PRELIMINARY INSTALLATION WORK
AND MASONRY FOR ANCHOR PLATE
Identify approximately the place of each component and
proceed as follows:
a) Dig the foundation pit for the gear motor whilst considering
the anchor plate dimensions. Give an extra 5cm area extra
on each side. Pay attention to measurements shown in Fig.2.
b) Provide one or more ducts for the electrical cables so that
they can easily go through the purpose fabricated hole in
the gear motors anchor plate. Pay attention to the plate’s
orientation: hole for cables routing on the side opposite the
gate (see Fig. 2).
c) Set concrete into the pit. Ensure this is level and smooth out
the surface. Wait for the concrete to get solidify (this may
take a few days).
d) Insert the cables ducting to the hole in the anchor plate and
fix the plate to the concrete using suitable plugs.
e) Cut the cable ducts about 3cm above the anchor plate
level and route the cables for accessories and electrical
mains wiring as shown in Fig. 3 diagram. Ensure the cables
are at least 30-50cm out from the ducting to allow easy
wiring to the control panel.
4. ELECTRICAL WIRING
Insert the electrical cables into the control panel’s case by
piercing the rubber membrane and place the cable grommet
in its purpose fabricated seat on the motor’s base (Fig. 16).
Terminate the cable of the main supply with the provided
cable block (Fig. 17).
Follow the control panel’s instruction manual to proceed with
the correct cable wiring. Wire all cables for the earth system to
the provided lug and fix onto the motor base point marked with
symbol.
5. START-UP
Power the system and proceed with a careful checking of the
gear motor working and of all the accessories and safety
devices connected to the system.
In particular make sure that the electric limit-switch is always
activated in opening and closing before the gate reaches its
mechanical stops. Place the two slot-covers on the M10
screws. Lift the motor cover down and close it with the two side
screws.
Hand over this instructions manual to the end user and demon-
strate the correct use of the automation and how to release
the motor for manual operation of the gate in the event of
power cuts.
Once the assembling of the limit brackets to rack is completed, open and close the gate manually to check that the
brackets always activate the limit-switch system before the gate reach its mechanical stops. This checking is important
to preserve the correct working of the automation and continued good mechanical condition of the gate.
NB. Tagliare eventuali eccedenze di cremagliera.
Click! Click!
ENGLISH
RIGHT motor OPENING limit-switch LEFT motor CLOSING limit-switch

Proteco S.r.l. Via Neive, 77 - 12050 CASTAGNITO (CN) ITALY
Tel. [phone] - Fax [phone] - www.mygateautomation.com
89
Fig. 19
Fig. 19A
6. RELEASE PROCEDURE FOR MANUAL OPERATION
3.6 ASSEMBLY THE RACK
3.6.1 INSTALLING THE TOOTHED RACK B117 -
PVC RACK M4 20X26MM WITH INNER STEEL
FRAME (0.5M SECTIONS)
a) Move the gate manually to its open position.
b) Align the first section of the rack to the gate edge and lower
it on the pinion. Use a spirit-level to make sure it is perfectly
straight.
c) Fix this first section of rack to the gate with the provided
self-tapping screws. Fix the screws in the in the middle of the
slot as illustrated (Fig. 7).
d) Close the gate manually for about ½ meter, join the second
section of rack to first one and place it on the motor drive
pinion cog.
7. MAINTENANCE
Check the correct working of the automation at least twice a
year, pay particular attention to the safety devices, the torque
force produced, the release system for manual operation and
to all the mechanical moving parts. Any components display-
ing significant wear should be obtained from Proteco or
associated agents and replaced immediately.
8. DISPOSAL
Do not pollute the environment
Always cut the main power of the system during the release
and re-locking procedure to avoid any accidental activa-
tion of the gate.
6.1 How to unlock the motor for manual opera-
ting
a) Insert the key into the lock and turn it anti-clockwise (Fig. 19)
b) Turn the handle clockwise completely (180°) (Fig.19A)
c) Open and close the gate manually as required.
6.2 How to restore the automatic working
a) Turn the handle anti-clockwise completely.
b) Turn the key clockwise and take it out.
c) Manually move the gate until it re-engages the locking
system.
d) Restore power to the automation system.
Always keep the release key together with the instruction
manual in a safe place.
Some components may contain polluting substances.
Ensure materials are passed to authorised collection centres,
according to the laws and the regulations in force in your
locality for safe disposal.
ENGLISHENGLISH
