MyOUTDOORKITCHEN SW-63 User manual

Content
Product Introduction......
Product Standards..........
Components.................
Installation..............
Safety Instructions.......
Handling
Application Instructions........
Maintenance...............
Trouble Shooting..........
１
１
２
３
4
5
6
7
8
Thank you for purchasing our
products, read carefully through the
instructions and keep the manual in a
safe place to facilitate your reference
at a later time.
SW-63
User Manual
Beverage Cooler
Lindström & Sondén AB
Havsbadsvägen 1, 262 63 Ängelholm, Sweden
EN

P roduct I ntroduction and S tanda rds
1
7.
8．
1. In order to guarantee the product's quality, this product applies advanced refrigeration
and manufacturing technology. In addition, strict comprehensive detection technology and a
range of imported equipment are being used.
2． High-quality compressors are used to support a wide temperature range of the
refrigerating system. Low power consumption.
3． The inside and outside of the cooler are made of stainless steel, therefore they are
corrosion-resistant and durable.
4． Transparent, tempered glass door with LED lightning lights up the cooler and displays its
content.
5. The cooler is equipped with a roll-bond evaporator which allows faster refrigeration.
6. The transparent glass of the door prevents condensation and makes the contents of the
cooler easily visible.
The appliance is approved by CCC GS CE CB ETL RoHs etc.
The cooler is intended for private and commercial use.

Our company reserves the right to change the product. The appearance of the units that
you  purchase might be slightly different from the anual, but it does not affect  proper
 and usage.
2

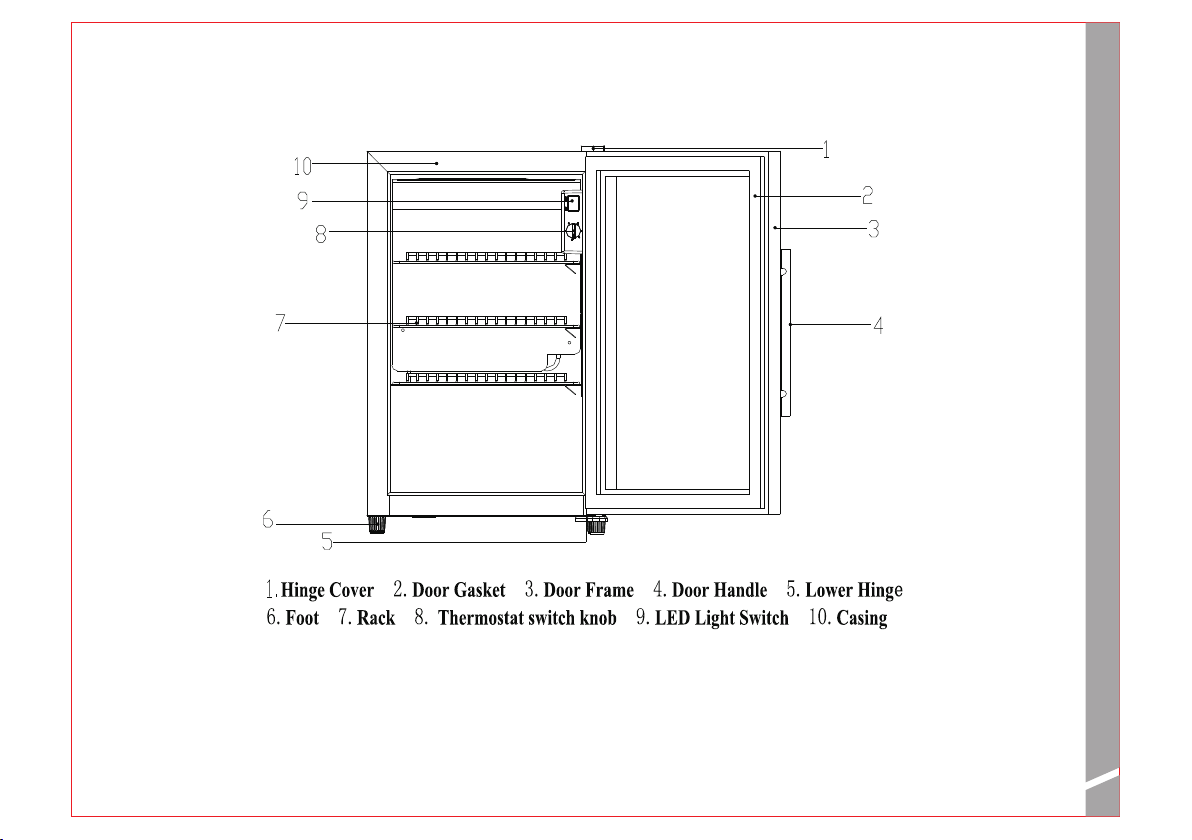

Components

3
Installation
Turn off the appliance and pull the power plug.
In case of problems with the compressor, the inclination shall not exceed 45°.
Please handle with care, the door is made of glass.
Remove the packing material and place the cooler on a flat and solid
surface.
Do not press on the glass door, the glass
could break.
Transport
Moving
Place the cooler in a location with good ventilation
Installation
Take out all goods
When moving the appliance, please empty it of all
contents to ensure that nothing can fall out.
In case of power failure or disconnection from the
mains, please plug in again after 5 minutes.
In case of power failure
5 min.
Ventilation

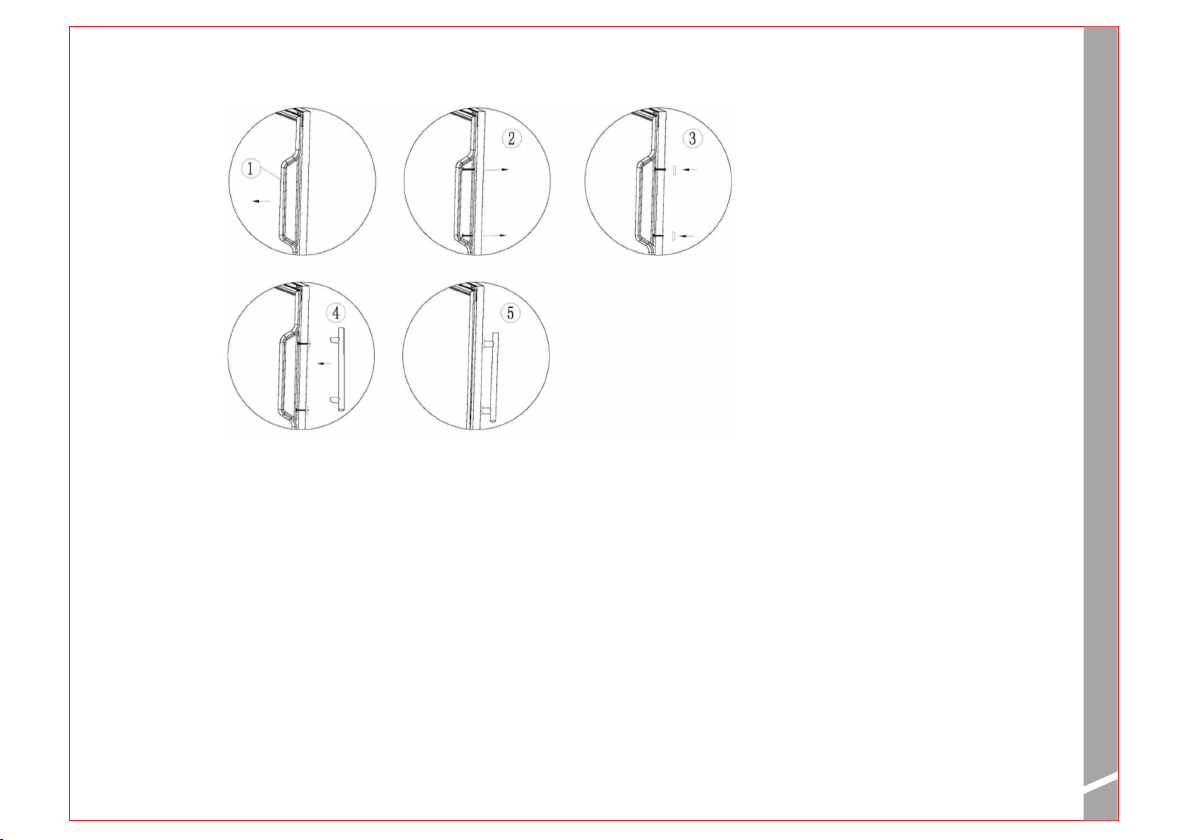

1. Pull back the door seal behind handle location.
2. Insert screws into pre-drilled screw holes.
3. Attach gasket.
4. Attach handle.
5. Tighten screws and press door seal back into place.
4
Handle Installation

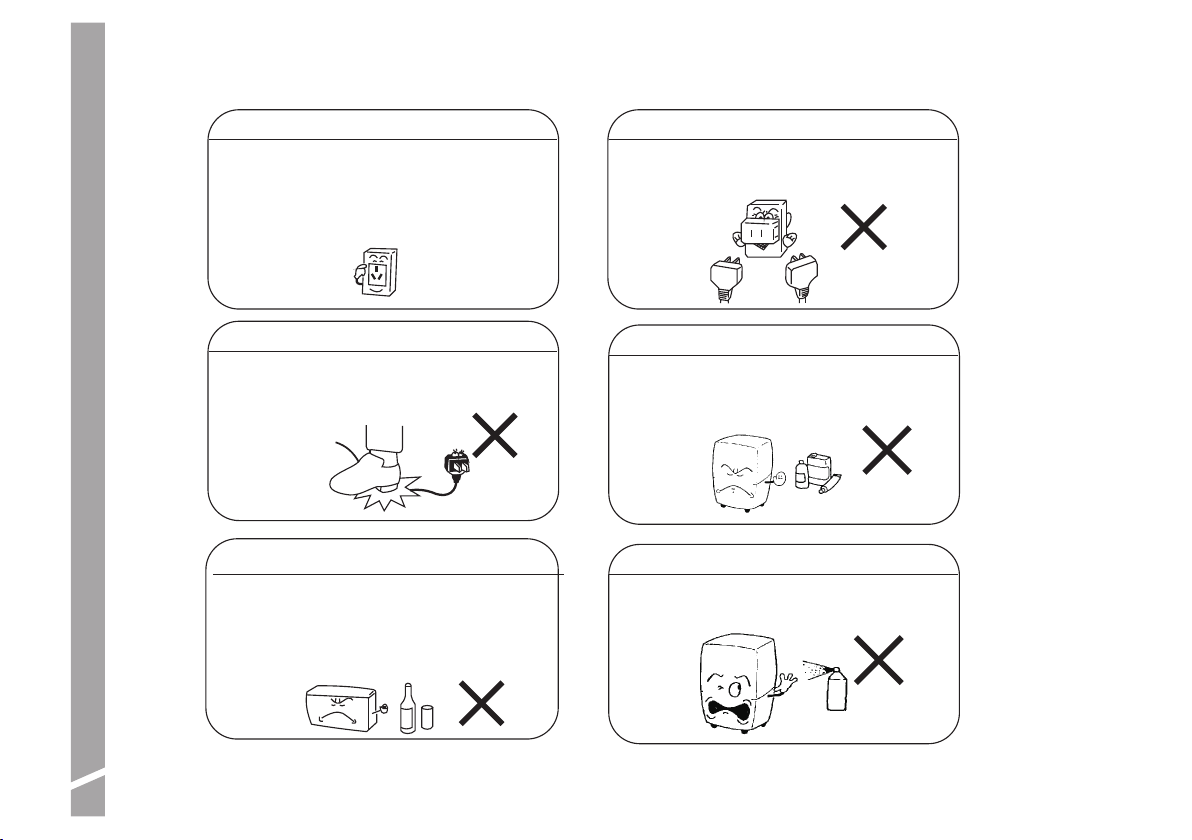

Do not store close to flammable products
Flammable and explosive materials are not allowed to be
stored nearby the cooler. It is forbidden to store the cooler
close to dangerous goods.
Do not damage the power cord and power socket
Avoid touching the power cable. This may lead
to power failure and even fire.
Do not spray flammable liquids nearby the cooler
Do not spray flammable and explosive liquids
such as oil paint nearby the cooler.
Should be equipped with specialized power socket and fuse
For normal use, the voltage should be according to the
nameplate, and the power socket should have a
reliable ground conductor.
This may lead to overheating and even fire.
Do not connect several appliances to one socket
Do not store any electrical appliances in
the cooler
Do not store any electric appliances in the
cooler, otherwise it may cause danger.
5
Safety Instructions

1、
1.1

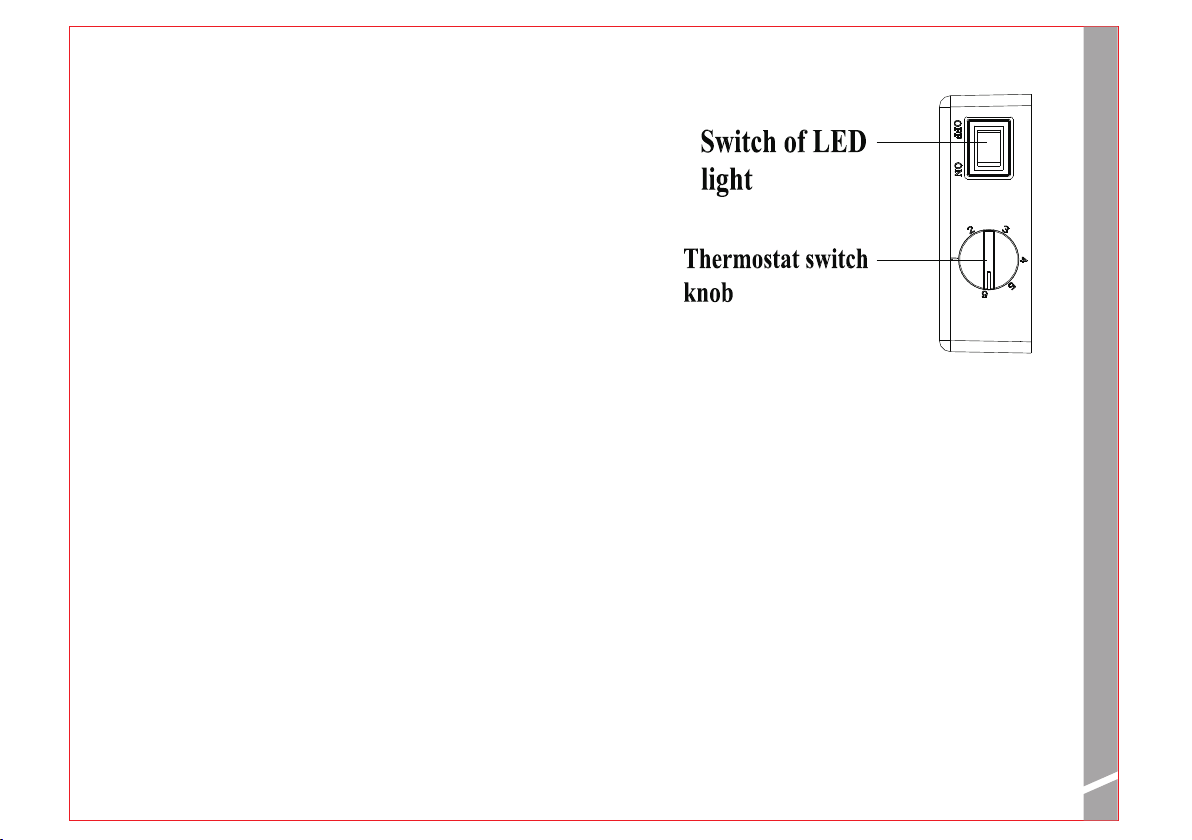

Settings
Before connecting the power, please check
the power cord, the light switch and the thermostat
switch knob.
1.2 Temperature setting:
The temperature setting has 1~6 gears, the
first is the highest temp. and the sixth is
the lowest temp. You can adjust according
to your needs.
1.3 Light setting:
Use the ON/OFF button to turn the LED lighting on
or off.
6
Handling

1. Damaged power cords should only be repaired by certified service technician.
2. Do not touch the compressor, the surface can get hot.
3. Do not hang anything on the door as the appliance may tip over.
4. Please keep the appliance clean on its in- and outside, otherwise the cooling effect may be affected.
5. If the appliance will not be used for an extended period of time, please follow instructions below:
1) Unplug the power plug and take out all of the items inside the appliance.
2) Clean the inside and outside of the appliance and dry it carefully.
3) Keep out of the reach of children, to make sure that children cannot enter the appliance.
6. Do not damage the refrigeration cycle pipe. The pipe runs inside and outside the
appliance. If the pipe is damaged, the refrigeration cycle could get interrupted.
7
Application Instructions

1. Clean the inside and outside of the products thoroughly.
1) Use a soft cloth to clean the cooler, you may even use a bit of mild detergent, and wipe dry with a soft dry cloth.
2) Please clean and maintain the cooler regularly.
2. Attention:
1) For safety, please disconnect the cooler from power before cleaning.
2) Do not directly flush with water.
3) Clean regularly. Plastic parts such as the door gasket, door frame etc. can be
damaged by exposure to refrigeration oil vapour for a long period of time.
4) The following liquids and substances can damage the surface of the
appliance:
Alkaline detergent, toilet soap, abrasives, boiling water, sweeper, lacquer
thinner, acetone, methylbenzene etc.
8
Maintenance

If the fault cannot be eliminated through inspection, please contact the
manufacturer or a service technician.
Trouble Shooting
Problem Solution
Appliance not working Is the power cord plugged in?
Cooling problem
Broken fuse?
No power?
No good ventilation?
Heat source close to the appliance?
Door does not close properly or stands open for too long?
Door gasket is not tight or deformated?
Too many bottles on the same shelf?
Air inlet or outlet is blocked?
Wrong settings?
Not enough space for ventilation on the right & left side?
Noisy
Appliance is not placed on a flat surface?
Appliance touches a wall?
Loose or missing parts?
9
Trouble Shooting

Note: The following indicates normal operation
1) When the appliance is working, sounds like running water may occur when
refrigerants are circulating.
2) Condensation may occur on the surface of the cooler, LED lighting, door etc. at high
temperature or high humidity. This is normal and harmless and will not affect the
performance. Please wipe with soft cloth.
Warning:
Refrigerants and materials such as foam are flammable. Please follow recommendations for
maintenance, installation and use. Follow local regulations for disposal.
10
Trouble Shooting

●
Information & tips
Waste disposal
●
●
●
●
●
●
●
●
Covers are used to protect electric appliancesduring transport and
every part of the material is recycled material.
Corrugated paperboard (made from recycled paper)
Polystyrene block (foam fluoride-free polystyrene)
Plastic film, bag (polystyrene)
Packing string (polystyrene)
Never let children play with packaging materials, plastic film may cause
suffocation.
Transport packaging materials to public environmental collection depots.
Refrigerator waste still contains many valuable raw materials and the
product should therefore be taken to a recycling centre.
The appliance must be disposed of properly: unplug the power cord before
disposing of the cooler. Destroy the locking mechanism, to avoid playing
children get locked in.
Before discarding the appliance, the cooling circulation system
must be checked for damage to ensure that the cooler is not
leaking oil.
For information on location and opening hours of recycling centres,please
consult your relevant local authority.
11

3
●
Warning!
●It is prohibited to place the appliance in environments with elevated explosion risk, in locations with a
risk of leakage of corrosive and/or flammable gas or where the appliance could be exposed to damages.
Ground conductors must not be connected to gas pipelines, water mains, lightning conductors or
telephone wires. This may involve a risk of electric shock.
●
The power cable must not be extended without prior approval of a specialist. The appliance must not
share sockets with other appliances - this may cause a short circuit or damage to the electronic
components.
●
This product does not contain any spare parts, please do not disassemble.The refrigerant used in this
●
Refrigerants and foam materials are flammable materials - please be careful during
handling, installation and transport. Used product must be recycled by specialised
companies and must not be discarded with household waste or similar.
product is combustible, only authorised professionals may repair the machine. Incorrectly carried out
repairs can lead to a risk of fire or explosion. If the cooler is faulty, contact a qualified technician.
●This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
●This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made
by children without supervision.
●If the power cord is damaged, it must be replaced by the manufacturer, the manufacturer's service
representative or a similar authorised person in order to avoid a hazard. 12

WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage
WARNING: Make sure that the power cable is not pinched, bent or damaged when placing the cooler.
The plug must be accessible when the product is installed.
●
●
compartments of the appliance, unless they are of the type recommended by the manufacturer.
●
●
●
●
DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:
●
* Take off the doors.
* Leave the shelves in place so that children cannot easily climb inside.
●This appliance is intended to be used in household environments and similar applications such as:
ostaff areas in shops, offices and other working environments;
ofarm houses and by guests in hotels, motels and similar residential environments;
obed and breakfast establishments;
ocatering establishments and similar non-retail environments.
●Once the appliance has been installed, there must be at least 5 cm of free space for heat dissipation
at the sides and back of the appliance. It is not allowed to store flammable products in the appliance.
●Do not carry or lift the appliance by holding the front or the back. Tilt the appliance from the right or
left side when it is in an upright position.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies on the back of the
appliance.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
B.63.03021 13
Customer Service: [email protected]
●WARNING: Make sure that no ventilation openings (in the appliance enclosure or inside the appliance)
are clogged or blocked.
●WARNING: Mechanical devices or methods other than those recommended by the manufacturer shall
not be used to accelerate defrosting.

Innehåll
Produktintroduktion......
Produktstandarder..........
Beståndsdelar.................
Installation..............
Säkerhetsinstruktioner.......
Inställningar........
Användning........
Felsökning..........
１
１
２
３
4
5
6
7
8
Tack för att du köpt våra produkter, läs
noggrant igenom bruksanvisningen och
förvara manualen ordentligt för att
underlätta din referens vid senare tillfälle.
SW-63
Användarmanual
Dryckeskylare
Lindström & Sondén AB
Havsbadsvägen 1 262 63 Ängelholm, Sverige
SV
Underhåll........

Produktintroduktion och S tandarder
1
1. För att garantera produktens kvalitet använder produkten avancerad kyl- och tillverkningsteknik.
Utöver det används strikta omfattande upptäcktstekniker och en rad importerad utrustning.
2. Högkvalitativa kompressorer används för att möjliggöra ett stort temperaturspann. Låg
energiförbrukning.
3. Kylens insida och utsida är gjorda i rostfritt stål och därför korrosionsbeständiga och hållbara.
4. Genomskinlig, härdad glasdörr med LED-ljus.
5. Kylen är utrustad med en roll bond förångare som möjliggör snabbare kylning.
6. Dörrens transparenta glas förhindrar condensation och ger bra syn på kylens innehåll.
7. Alla produkter innehar godkännandena CCC GS CE CB ETL RoHs osv.
8. Kylen är avsedd för privat och kommersiellt bruk.

Vi förbehåller oss rätten att ändra produkten. Utseendet på enheterna som du köper kan skilja sig
något från bruksanvisningen, men det påverkar inte apparatens prestanda och användning.
2

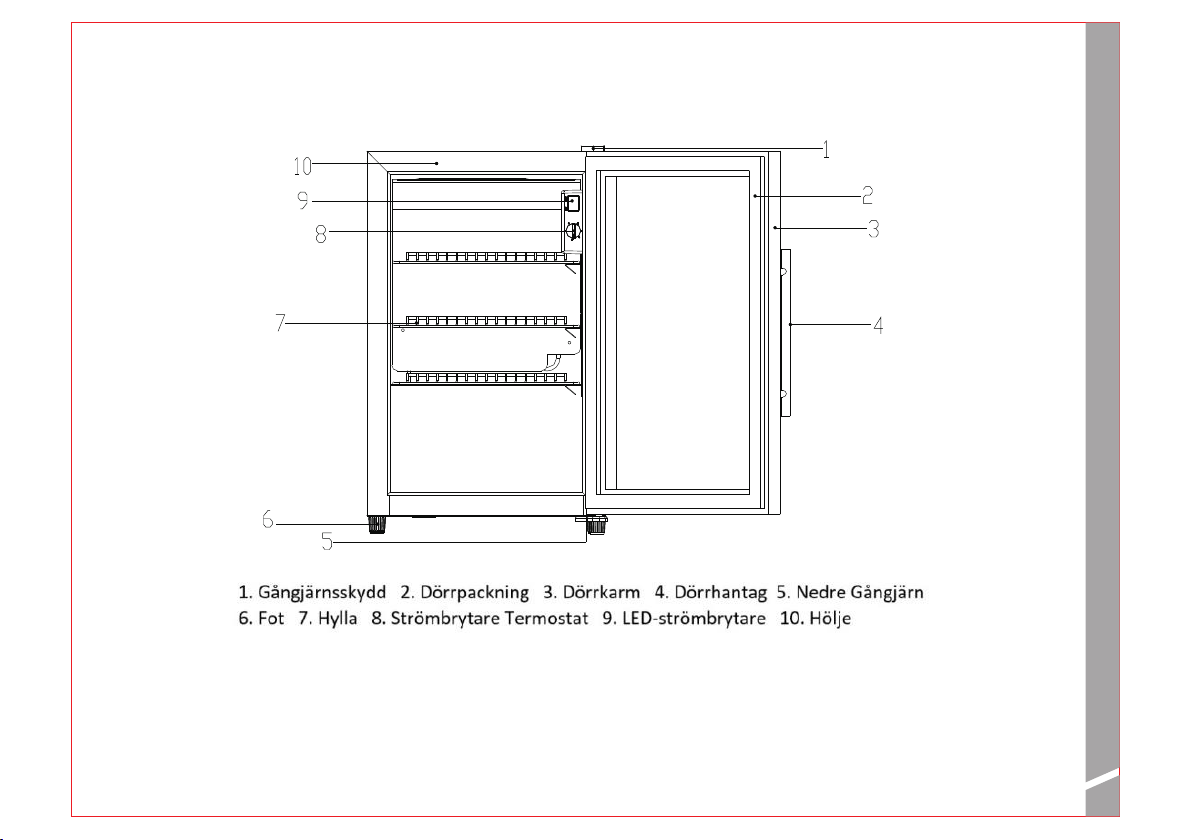

Beståndsdelar

3
Installation
Stäng av apparaten och dra ur kontakten
Vid problem med kompressorn får lutningen inte överstiga 45°
Hantera varsamt, dörren är gjord i glas.
Ta bort förpackningsmaterialet och placera kylen på en
jämn och fast yta.
Tryck inte på glasdörren ifall glaset spricker.
Transport
Förflyttning av apparaten
Placera kylen på en plats med bra ventilation.
Installation
Töm kylen
Vid flytt av apparaten, var god och töm kylen på
allt innehåll.
Vid strömavbrott eller bortkoppling från kontakten,
vänligen sätt i kontakten igen efter 5 min.
Vid strömavbrott
5 min.
Ventilation

1. Dra tillbaka dörrtätningen bakom handtaget
2. Skruva i skruvar i de förborrade hålen.
3. Sätt dit tätningsringarna.
4. Montera handtaget.
5. Dra åt skruvarna och tryck tillbaka dörrtätningen.
4
Montera handtag

Förvara inte i närheten av brandfarliga produkter
Brandfarliga och explosiva ämnen får inte förvaras i
närheten av kylen. Kylen får inte placeras nära farliga
varor.
Skada inte nätsladden och eluttaget
Undvika att vidröra strömkabeln. Detta kan leda till
strömläcka och även brand.
Brandfarliga vätskor får inte sprayas nära kylen
Spraya inte brännbara och explosiva vätskor såsom
oljefärg i närheten av kylen.
Ska utrustas med specialuttag och säkring
Vid normal drift ska spänningen vara i enlighet med
typskylten och eluttaget ska ha en säker jordledning.
Koppla inte flera apparater på ett eluttag
Det kan leda till överhettning och även brand.
Placera inte elektriska apparater i kylen
Placera inte elektriska apparater i kylen. Detta kan leda
till faror.
5
Säkerhetsinstruktioner
