Mytee 7300-SLA Air Hog Plus Technical manual

1
Instructions for
7300-SLA Air Hog™ Plus
13655 Stowe Dr., Poway, Ca. 92064
Model #
Serial #
Form # ADP-7300
4-14
Please read before use.
Register your product
at http://www.mytee.
com/support/register
Set up p. 3
General information p. 9
Parts & pricing p. 12

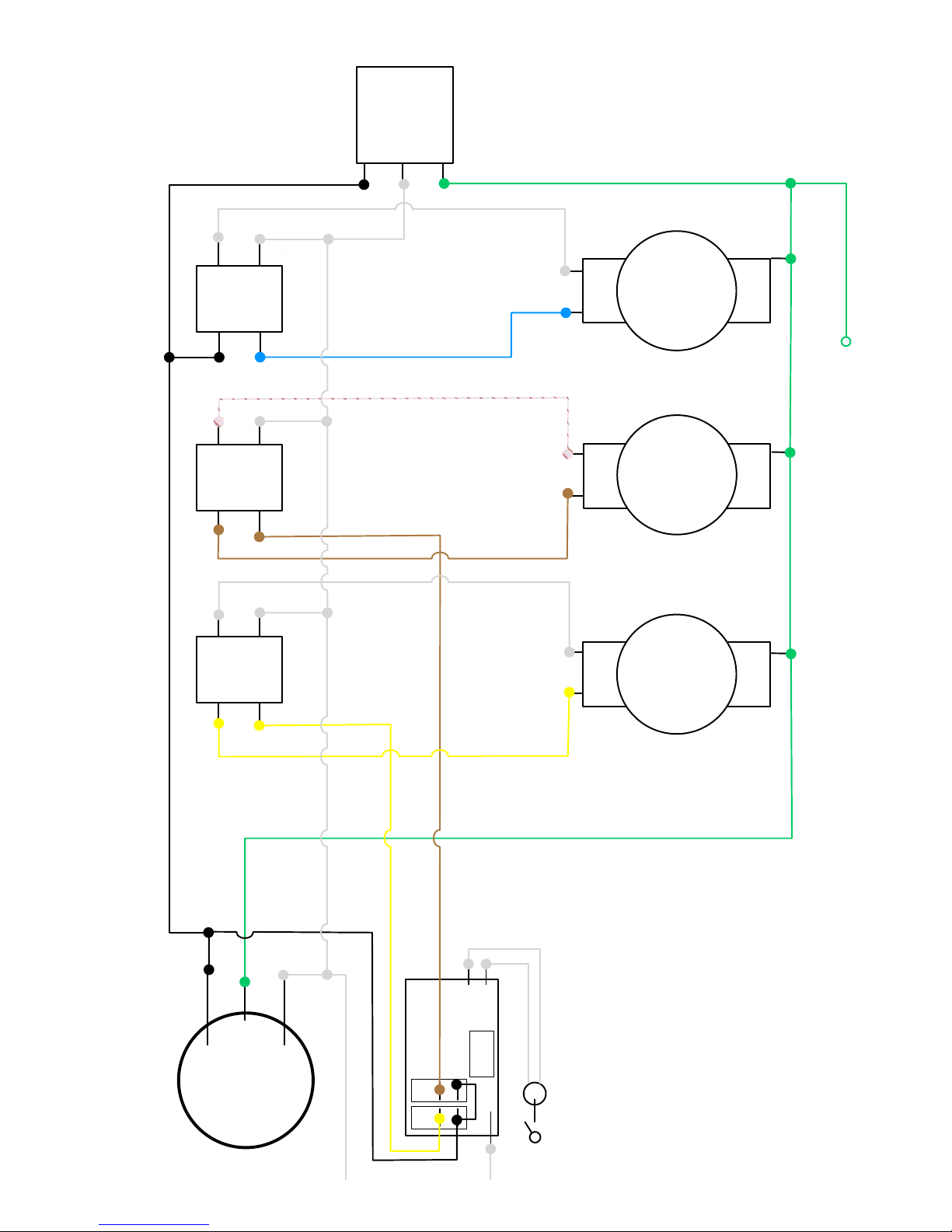

Wiring diagram p. 14

2

3
REPLACING HOSE CUFFS WITH CUFF-LYNX™
Once you receive your Air Hog™ Plus, you will need to replace the
cuffs on your vacuum hose. To remove old cuffs, twist clock-wise.
To attach either male, female or reducer Cuff-lynx™ to vacuum
hose, twist counter clock-wise.
Twist clock-wise to remove standard cuffs.
Twist counter clock-wise to attach Cuff-Lynx™ to vac. hose.
7300-SLA ACCESSORIES
FILTERS
G008 - Pack of Piglet™
lters
H136 - Coupler Swivel,
2” male x 2” female vac hose
H110 - Coupler Swivel,
2” female x 2” female vac hose
H141 - Reducer,
2” female x 1.5” female vac hose
7300-SLA BACK7300-SLA FRONT
1. Clear “T” handle lid
2. Lint Hog™ lter housing
3. Base
4. 3” locking casters
5. Cooling fan
1
2
6. Recovery tank
7. Lift handle
8. 2” Male Cuff-Lynx™
starter
3
5
7300-SLA AIR HOG™ PLUS
4
7
9. Lint Hog™ cap
10. Lint Hog™ lter
11. Switch plate
12. Vents
13. Dual cords
8
14. Pump-out
15. Cuff-Lynx™ plugs
16. Lift handle
9
6
14
15
16
10
11
13
12

4
7300-SLA POWER CORD
Plug the power cord into a 20A grounded wall outlet to use
vacuum 1, vacuum 2 and pump-out.
PIGLET FILTER & MESH FILTER
When the Lint Hog™ mesh lter lls up or you notice a change
in performance, empty the unit, clean the mesh lter and replace
Piglet™. Insert lter back in the Lint Hog™.
To remove lter.
To insert lter.
Insert one of the Piglet™ lters over the mesh lter opening for
added protection. Once Piglet™ is added, insert mesh lter within
the Lint-Hog™.
7300-SLA AIR HOG™ PLUS
A vacuum hose attaches to the Lint Hog™ vacuum port in the front
of the machine, using its male Cuff-Lynx™ connection. You will
need a Cuff-Lynx™ coupler or reducer to attach the vacuum hose
to the Air Hog™ Plus.
7300-SLA VACUUM HOSE CONNECTION
7300-SLA SWITCHES
Located on the side of the Air Hog™ Plus, are the vacuum
switches and pump-out switch. For vacuums, use vacuum
switches. Turn on the pump-out switch when using the
pump-out feature.
Pump
out
Vac 1 Vac 2

5
7300-SLA REAR VACUUM PLUGS
Two vacuum plugs are located in the back. The top and bottom
rear plugs, depending on how they are capped, allow the Air
Hog™ Plus to be used as a stand-alone extractor, a ow-through
booster connected to another machine, or an in-line pump-out
unit. They also seal the Air Hog™ Plus vacuum tank.
7300-SLA AIR HOG™ PLUS
7300-SLA CLEANING OF LINT HOG™, VAC STACK
& PUMP-OUT FILTER
To clean the Lint Hog™ lter, twist off the cap and remove the
stainless steel mesh lter and rinse with water. Do not strike unit
against hard surface to remove debris, damage may result.
Remove top lid for access to vacuum stack and pump-out mesh
lters. Check often for debris build up. To clean, rinse with water
and put back.
Lint Hog™
lter
Pump-out
lter
Vacuum
stack lter
Cap both plugs to be
used as a stand
alone extractor
Cap top plug to use as
a ow through booster
7300-SLA ELECTRONIC FLOAT SWITCH
7300-SLA PUMP-OUT
Attach a garden hose to the back hose inlet to pump dirty water
from the tank. To use the pump-out, turn on the pump-out switch
located on the side of the machine. When the pump-out is not
in use, make sure the cap is on and securely tightened to
prevent leaks.
Drain
The Air Hog™ Plus features an electronic oat switch inside the
recovery tank. When the switch is activated by rising water in
the recovery tank, the vacuum motors will automatically shut off.
This will help to prevent water from being sucked into the vacuum
stacks and damaging the motors.
Electronic
shut-off
switch
prevents water
from getting
into the
vacuum stack.
Cap bottom plug
to used as booster
with pump-out
VAC STACK

6
7300-SLA AIR HOG™ PLUS

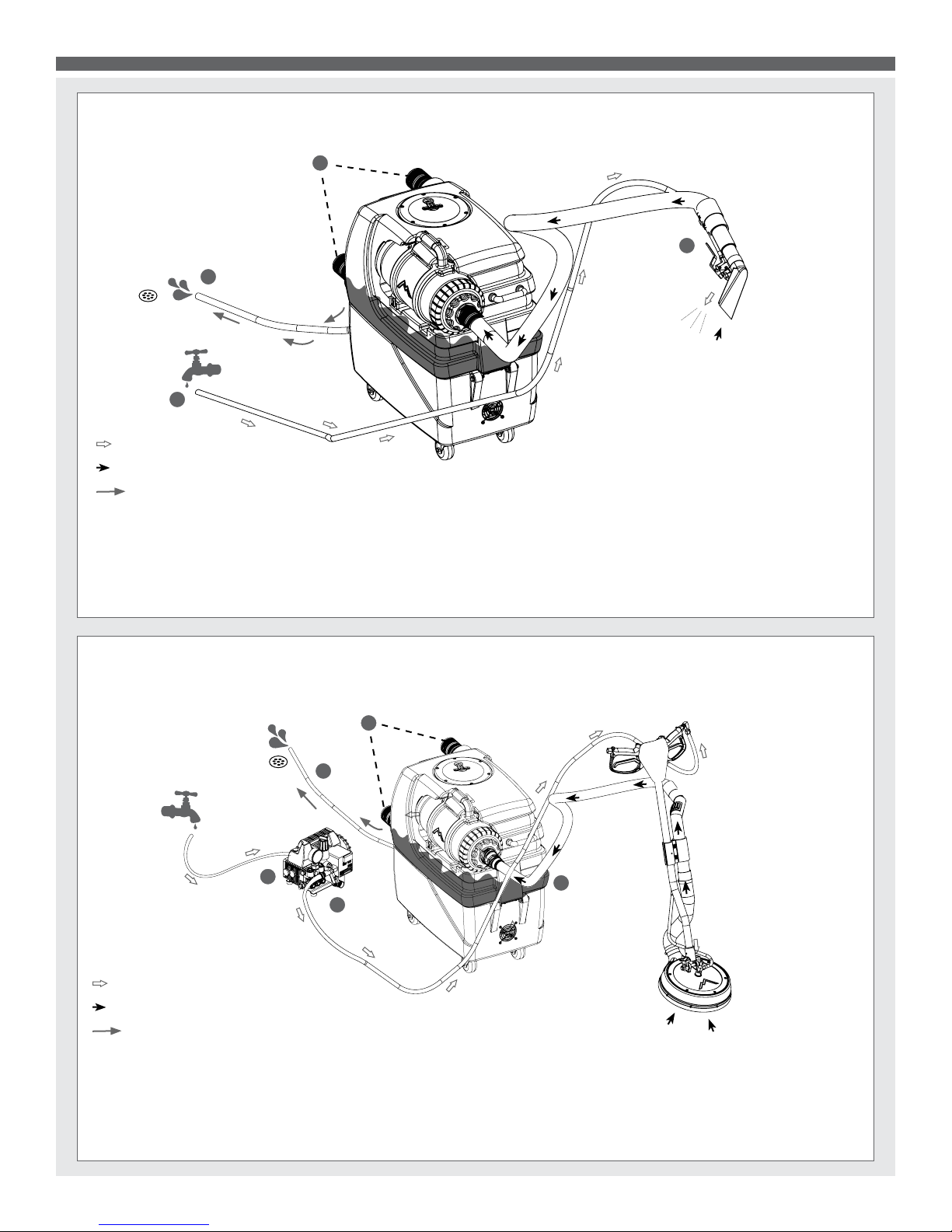

1. USING THE AIR HOG™ PLUS AS A STAND-ALONE LOW-PRESSURE EXTRACTOR
A. Connect one end of a solution hose to a faucet, and the other end to a cleaning tool. B. Connect a vacuum hose to the Air Hog™ Plus
front vacuum port, and to an accessory such as an upholstery tool. C. Cap both rear vacuum plugs. D. Let the tank ll until vacuum is
stopped by the electronic oat switch, or use the optional pump-out feature by attaching a garden hose to the Air Hog™ Plus back hose
outlet. Dirty water will automatically be pumped out. When the pump-out is not in use, make sure the cap is on and securely tightened to
prevent leaks.
2. USING THE AIR HOG™ PLUS AS A STAND-ALONE HIGH-PRESSURE EXTRACTOR
A. Connect a pressure washer (#1), purchased separately, to a water source such as a faucet. B. Connect solution hose from a pressure
washer to a cleaning tool, bypassing the Air Hog™ Plus. Connect one end of the vacuum hose to the front of the Air Hog™ Plus and the other
end to an attachment such as a Spinner® (#2), purchased separately. C. Cap both rear vacuum plugs. D. Use the optional pump-out by
attaching a garden hose to the back hose outlet and turning the pump switch on. When the pump-out is not in use, make sure the cap is on
and securely tightened to prevent leaks. Water will rise until the electronic oat switch is activated.
A
B
D
Drain
Dirty water recovery
Solution ow
Pump-out system
* Hoses & upholstery tool not included with Air Hog™ Plus
Dirty water recovery
Solution ow
Pump-out system
* Hoses, Spinner® & pressure washer not included with Air Hog™
Drain
A
B
D
#2
#1
B
C
C

7
Dirty water recovery
Solution ow
Pump-out system
Base extractor airow
* Hoses, wand & extractor not included with Air Hog™ Plus
3. USING THE AIR HOG™ PLUS AS A BOOSTER WITH PUMP-OUT
The optional pump-out can be used in conjunction with a second, larger extractor (#1), which will be used as a pressure source.
A. Connect a vacuum hose from the Air Hog™ Plus rear top plug to the large extractor’s vacuum inlet. Connect solution hose to the larger
extractor (#1) and your cleaning tool’s QD, a wand for example. Keep the bottom rear vacuum plug capped. B. Attach a vacuum hose to
the wand’s inlet and Air Hog™ Plus front vacuum port. C. To use the pump-out system, connect a garden hose to the back hose outlet.
Turn on the pump-out switch, and dirty water will be automatically pumped out of the machine.
4. USING THE AIR HOG™ PLUS AS A BOOSTER AND PASS-THROUGH EXTRACTOR
The Air Hog™ Plus (#2) can be used as a pass-through extractor and to boost the airow of a second, larger extractor (#1) by
increasing its CFM by 230. A. To use the larger extractor (#1) as a fresh water source and recovery tank, connect a vacuum hose to your
large extractor and the rear bottom plug of your Air Hog™ Plus. Then connect a solution hose from your larger extractor to the QD of your
cleaning tool (#2). B. Keep the top rear plug capped. C. Clean water will travel from the larger extractor through the cleaning tool to the
cleaning surface, and dirty water will be drawn through the Air Hog™ Plus into the main extractor’s recovery tank.
* Hoses, wand & extractor not included with Air Hog™
Dirty water recovery
Solution ow
Drain
Vac/sol hose typically 50 ft.
A
B
C
#2
#1
Vac/sol hose typically 50 ft.
AC
#2
#1
7300-SLA AIR HOG™ PLUS
A
B

8

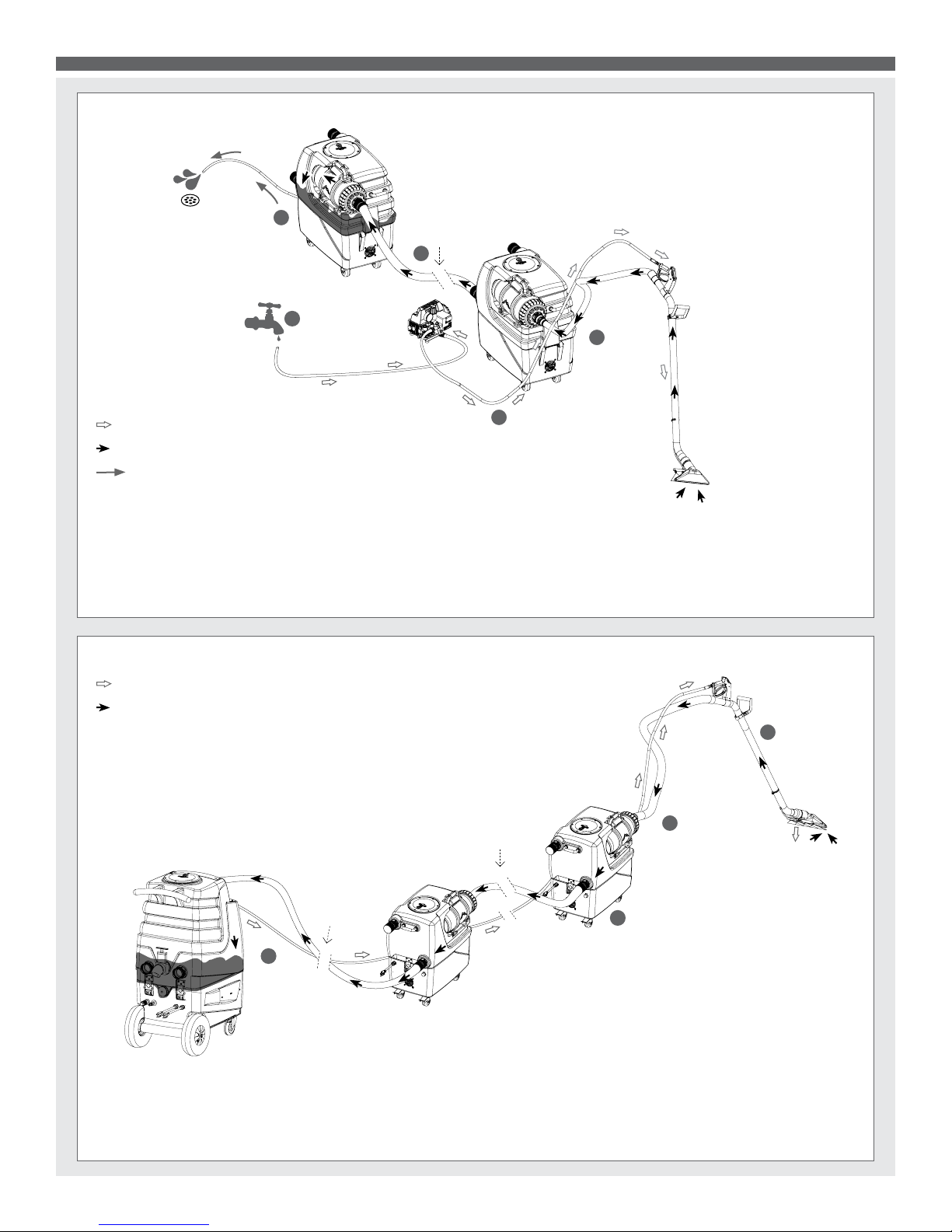

5. USE THE AIR HOG™ PLUS AS A “DAISY CHAIN” WITH PUMP-OUT FEATURE
The Air Hog™ Plus (#1 & #2) can be connected by hoses as a “daisy chain”. Each unit will increase the total CFM by 230. A. To
connect two Air Hog™ Pluses along with a cleaning wand, connect one end of a garden hose to a faucet, the other end to a pressure washer.
B. Using a solution hose, attach the male QD to a pressure washer and female QD to your cleaning tool. C. Add a second Air Hog™ to the
daisy chain by connecting a vacuum hose from the front vacuum port of the #2 unit to the bottom rear vacuum port of the #1 unit. D. Attach
the wand’s vacuum hose to the front vacuum port and QD of the #1 Air Hog™ Plus. E. Attach a garden hose to the back hose inlet of the
#2 Air Hog™ Plus. Turn on the pump-out switch to the #2 Air Hog™ Plus. Dirty water will be pumped out of the machine.
6. CREATE A “DAISY CHAIN” USING TWO AIR HOG™ PLUS UNITS AND A LARGE EXTRACTOR
A. To operate using this set-up, use the large extractor as a fresh water source and recovery tank, connect a vacuum hose to the large
extractor and the Air Hog™ Plus’ (#1) rear bottom plug. B. Add an additional Air Hog™ Plus (#2) to the daisy chain by attaching a
vacuum hose from the #1 Air Hog™ Plus to the #2 unit’s bottom rear plug. C. Connect a vacuum hose from the front vacuum port of the
#2 machine to the cleaning tool. D. To attach a wand, connect a solution hose to the large extractor. Connect a vacuum hose to the front
vacuum port of the #2 Air Hog™ Plus. Clean water will travel from the large extractor through the wand to the cleaning surface, and dirty
water will be drawn into the large extractor’s recovery tank.
Dirty water recovery
Solution ow
Pump-out system
* Hoses, wand & pressure washer not included with Air Hog™ Plus
Drain
* Hoses, wand & extractor not included with Air Hog™ Plus
Dirty water recovery
Solution ow
E
#2
#1
Vac/sol hose
typically 50 ft.
Vac/sol hose
typically 50 ft.
D
A
B
C
A
B
C
Large extractor
#1
#2
7300-SLA AIR HOG™ PLUS
Vac/sol hose
typically 50 ft.
D

9
Dear Customer:
Congratulations on the purchase of your new 7300-SLA Air Hog™ Plus. As you are
already aware, the scene of the equipment world is becoming more high tech, and
we at Mytee Products Inc. strive to keep you on the cutting edge with superior quality
and technology.
Keep in mind that the Air Hog™ Plus is a high performance machine, so neglect or
abuse will cause unnecessary damage and void the warranty. However, with simple
maintenance the 7300-SLA Air Hog™ Plus will give quality performance for many
years to come.
If warranty questions arise, please consult user manual or get in touch with your
distributor. If you have questions about maintenance, replacing parts or ordering
parts, please call an authorized Mytee Products Inc. Service Center. To see an
updated list, visit our website at www.mytee.com
Before you begin using, please read your manual thoroughly.
Sincerely,
Mytee Customer Care Dept.
Grounding Instructions
This machine must be grounded. If it should malfunction or breakdown, grounding
provides a path of least resistance for electrical shock. This machine is equipped
with a cord having an equipment-grounding conductor and grounding plug. The plug
must be plugged into an appropriate outlet that is properly installed in accordance
with all local code and ordinances. Do not remove ground pin; if missing, replace
plug before use.
Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualied electrician or service person if you are in
doubt as to whether the outlet is properly grounded. Do not modify the plug provided
with the machine. If it will not t the outlet, have a proper outlet installed by a
qualied electrician.

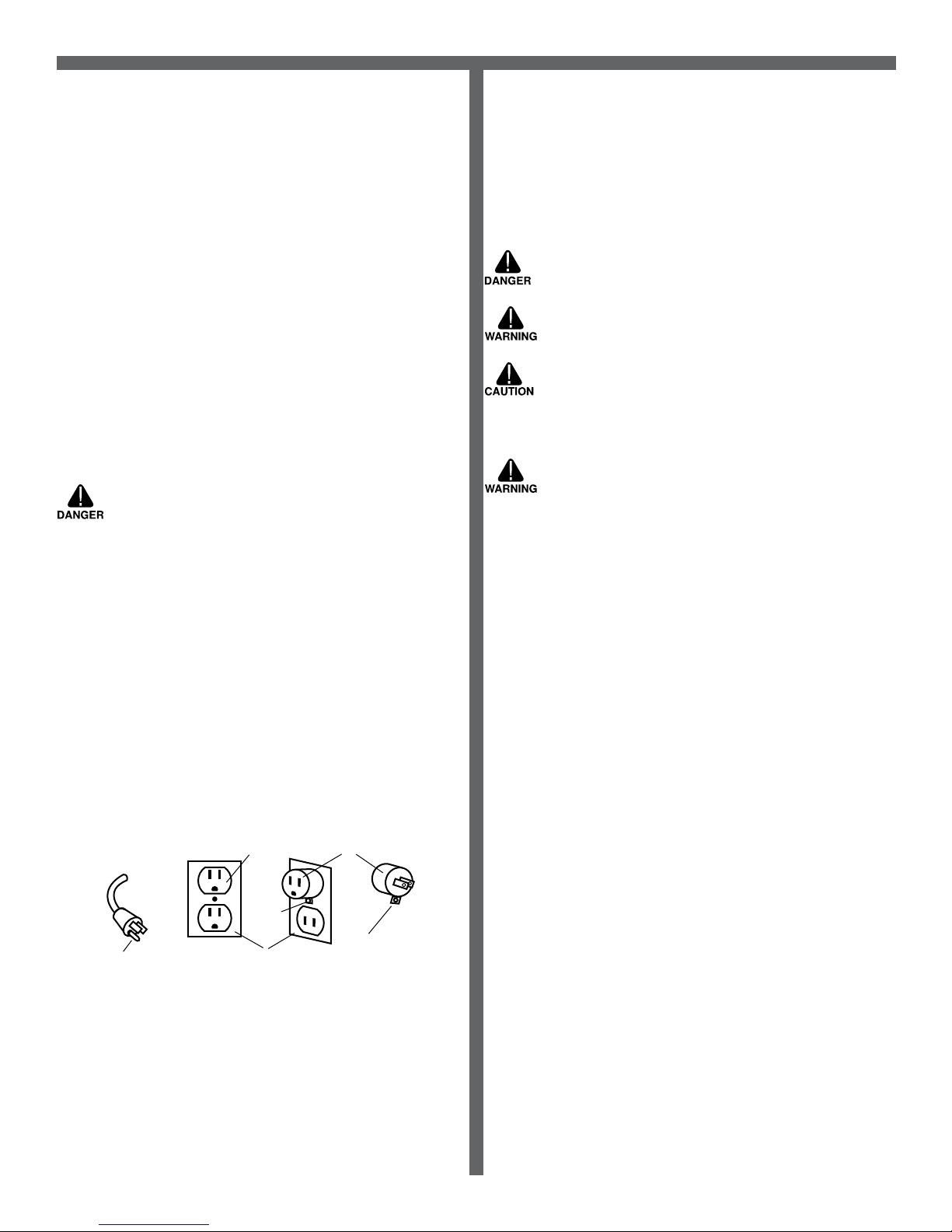

This appliance is for use on a nominal 120-volt circuit, and has a grounding plug
that looks like the plug illustrated in Figure 1 below. A temporary adapter illustrated
in Figures 2 and 3 may be used~to connect this plug to a 2-pole receptacle as
shown in Figure 2 if a properly grounded outlet is not available. The temporary
adapter should be used only until a properly grounded outlet (Figure 1) can be
installed by a qualied electrician. The green colored rigid ear, tab or the like
extending from the adapter must be connected to a permanent ground such as a
properly grounded outlet box cover. Whenever the adapter is used, it must be held
in place by a metal screw. Grounding adapters are not approved for use in Canada.
Replace the plug if the grounding pin is damaged or broken.
The Green (or GreenYellow) wire in the cord is the grounding wire. When replacing
a plug, this wire must be attached to the grounding pin only.
Please note for America use only
Parts and Service
Repairs, when required, should be performed by Mytee service personnel or Mytee
authorized Service Center using Mytee original replacement parts and accessories.
Call Mytee for repair parts or service. Please specify the model and serial number
when discussing your machine.
Name Plate
The model and serial number of your machine are shown on the name plate located
on the back of the machine. This information is needed when ordering repair parts
for the machine. Use the space provided on the front cover to note the model and
serial number of your machine for future reference.
Unpacking the Machine
When the machine is delivered, carefully inspect the shipping carton and the
machine for damage. If damage is evident, save the shipping carton so that it can
be inspected by the carrier that delivered it. Contact the carrier immediately to le a
freight damage claim.
Caution and Warnings
Symbols
Mytee uses the symbols below to signal potentially dangerous conditions. Always
read this information carefully and take the necessary steps to protect personnel
and property.
Is used to warn of immediate hazards that will cause severe personal injury or death.
Is used to call attention to a situation that could cause severe personal injury.
Is used to call attention to a situation that could cause minor personal injury or
damage to the machine or other property. When using an electrical appliance, basic
precautions should always be followed, including the following: Read all instructions
before using this machine. This product is intended for commercial use only.
To reduce the risk of re, electrical shock, or injury:
1. Read all instructions before using equipment.
2. Use only as described in this manual. Use only manufacturer’s recommended
attachments.
3. Always unplug power cord from electrical outlet before attempting any adjustments
or repairs.
4. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
5. Do not pull or carry by cord. Do not close a door on cord or pull cord around sharp
edges or corners.
6. Do not run appliance over cord. Keep cord away from heated surfaces.
7. Do not use with damaged cord or plug. If cord is damaged, repair immediately.
8. Do not use outdoors or on wet surfaces and or standing water.
9. Always unplug or disconnect the appliance from power supply when not in use.
10. Do not allow to be used as a toy. Close attention is necessary when used by or
near children.
11. Do not use in areas where ammable or combustible material may be present.
12. Do not leave the unit exposed to harsh weather elements. Temperatures below
freezing may damage components and void warranty.
13. Use only the appropriate handles to move and lift unit. Do not use any other parts
of this machine for this purpose.
14. Keep hair, loose clothing, ngers, and all parts of the body away from all
openings and moving parts.
15. Use extra care when using on stairs.
16. To reduce the risk of re or electric shock, do not use this machine with a
solid-state speed control device.
17. The voltage and frequency indicated on the name plate must correspond to the
wall receptacle supply voltage.
18. When cleaning and servicing the machine, local or national regulations may apply
to the safe disposal of liquids which may contain: chemicals, grease, oil, acid,
alkalines, or other dangerous liquids.
19. Do not leave operating unattended.
Pre-Operation
1. Remove furniture and other items from the area you are going to clean.
2. Vacuum area and remove debris.
3. Protect cabinets, walls and painted surfaces with drop cloths or plastic.
4. Inspect power cord for damage.
Operating Instructions
1. Plug into two separate circuit 20-amp, grounded circuits. Non GFI recommended.
2. When using the vacuum, turn on the vacuum switch.
3. When using the pump-out, turn on the pump-out switch.
4. When using a wand or other vacuum attachment, or using the Air Hog™ Plug as
a standalone extractor, connect the vacuum hose to the front vacuum port in the
on-board Lint Hog™ lter. A Mytee Cuff-Lynx™ coupler or reducer will be needed.
5. Connect the vacuum hose to the Air Hog™ Plus vacuum inlet.
6. When using the auto pump-out, attach a garden hose to the hose outlet, located
on the back of the unit.
Figure 1
Grounding Pin
Grounded Outlet
Grounded Outlet Box
Adapter
Tab for Grounding
Screw
Metal
Screw
Figure 2 Figure 3
GENERAL INFORMATION

10
7. If auto pump-out is not used, let the tank ll until the electronic oat switch stops
the tank from lling. Empty tank.
8. When using with other machines, connect vacuum hose to one of two back
vacuum ports (depending on usage), and solution hose from your base extractor to
your cleaning tool.
After Use
1. Unplug.
2. Empty solution tank, if needed, rinse with clean water and dry.
3. Clean internal lters:
Pump-out lter - Remove lid on top of tank. Reach into tank and twist off pump-out
lter using a counter-clockwise motion. Rinse and dry, replace and close lid.
Vacuum stack lter - Remove lid on top of tank. Reach into vacuum stack and
remove round, mesh lter. Rinse and dry, replace and close lid.
4. Clean external Lint Hog™ lter on top of tank. Twist off housing lid. Remove stain-
less steel lter. Rinse to clean, dry and replace. Note: Do not strike unit against hard
surface to remove debris. Damage may result.
5. Store in a clean, dry place.
Maintenance Schedule
Maintenance item Daily Once a week
Clean and inspect tank.
Check power cords.
Clean with all-purpose cleaner and cloth.
Clean Lint Hog™ lter
Flush with Mytee® System Maintainer to dissolve
normal chemical build-up.
Clean with compressed air.
Clean pump-out & vacuum stack lters
Inspect for water leaks and loose hardware.
x
x
x
x
x
x
x
x
Trouble Shooting
There is no power.
1. Make sure the machine is plugged into the proper outlet.
2. Check the circuit breaker and reset. Other items should not run on the same circuit
as the machine. The outlet circuit must be a minimum of 20-amps.
3. Check switch. If it is damaged, replace with OEM part.
4. Replace or repair loose wires.
5. Replace motor if damaged.
Pump-out does not work properly.
1. If lters are clogged, remove and rinse with clean water.
2. Check pump-out wiring. It may need to be reconnected.
3. Check pump-out switch, it may need to be replaced with OEM part.
Vacuum motor does not work properly.
1. Check to see that all vacuum hoses are tightly connected.
2. Check vacuum port caps in back to make sure they are tightened.
3. Insure vacuum lid is tightened.
4. Check that the electronic shut-off switch is in the operating position.
5. If electronic shut-off switch is activated (pointing 45º), empty tank of all water.
6. Check to see if rear plugs are tight and secure.
Water is leaking.
1. Make sure unit is unplugged before servicing.
2. If foam is coming out of the recovery tank, use a low foaming detergent and/or
defoaming agent.
3. Check to make sure debris has not been sucked through vacuum stack into the
motor. Pre-vacuuming prevents this situation.
4. If a vacuum hose is leaking, make sure Cuff-Lynx™ and Lint Hog™are securely
tightened.
5. Check hose ttings.
6. Insure all brass ttings are tightened.
FAQs
Q – What does the Air Hog™ Plus weigh and what are the dimensions?
A – Weight is 79 lbs. and dimensions are 32.5” x 17.5” x 30.5”.
Q – What comes standard with the Air Hog™ Plus?
A – Lint Hog™ debris lter, internal stainless steel lter, built-in Cuff-Lynx™ hose
connections, 25’ power cord, roto-molded polyethylene body, 6” non-marking
wheels, 2” non-marking casters. Also includes the following additional Cuff-Lynx™
hose connections:
· Part No. H136 – 2” male swivel coupler, connects to 2” female vacuum hose.
· Part No. H141 – 2” female reducer, connects to 1 ½” female vacuum hose.
· Part No. H110 – 2” female swivel coupler, connects to 2” female vacuum hose.
Q – Where do I plug in the machine?
A – Two separate 20-amp grounded curcuits are required.
Q – What machines are recommended for use with the Air Hog™ Plus?
A – The Air Hog™ Plus can be used to boost the CFM of any extractor with a single
3-stage or higher vacuum motor, including Mytee’s® M-Series™, HP, Contractor’s
Special™, Speedster®, and Breeze™ models. Can also be used with a pressure
washer for increased water lift.
Warranty
Mytee Limited Warranty Policy
Mytee Products, Inc. endeavors to provide high quality products and product support
to its customers and therefore backs up all of its new products purchased from Mytee
Products Inc. (Mytee) or any authorized Mytee distributor/service center with this
limited warranty.
This limited warranty begins on the date of the customer purchase and is valid and
available to the original purchaser only. Mytee products are for commercial use only
and are not intended for personal, family or household uses.
HOWEVER, OTHER THAN SET FORTH HEREIN, MYTEE GIVES NO WARRANTY,
EXPRESS OR IMPLIED, AS TO DESCRIPTION, QUALITY, MERCHANTABILITY,
FITNESS FOR ANY PARTICULAR PURPOSE, PRODUCTIVENESS, INFRINGE-
MENT, OR OTHER MATTER, OF ANY GOODS WHICH MYTEE SHALL SUPPLY.
THERE ARE NO WARRANTIES, WHICH EXTEND BEYOND THE DESCRIPTION
ON THE FACE HEREOF. MYTEE SHALL IN NO WAY BE RESPONSIBLE FOR THE
PROPER USE AND APPLICATION OF THE GOODS. MYTEE NEITHER ASSUMES
NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR MYTEE ANY OTHER
LIABILITY IN CONNECTION WITH THE SALE OF MYTEES GOODS. THIS LIM-
ITED WARRANTY POLICY MAY BE CHANGED OR WITHDRAWN BY MYTEE AT
ANY TIME WITHOUT NOTICE.
90-DAY PARTS AND LABOR LIMITED WARRANTY: Mytee will cover parts and labor
on all components for 90 days from the date of original purchase. This warranty cov-
ers the cost of replacement and labor only, and does not cover shipping costs.
WEAR PARTS 90-DAY LIMITED WARRANTY: Mytee will replace all wear parts for
90 days from the date of original purchase. Wear parts are items which wear out as a
result of usage or the passage of time and are consumed despite attempts to main-
tain them, such as gaskets, wheels, brass, cords, wires, electrical terminals, hoses,
switches, thermostats, plastisol parts, lters, bearings, brushes, solenoids, O-rings,
bulbs, heating elements, castors, or other parts deemed wear items in Mytees sole
discretion. This warranty covers the cost of replacement only and does not cover
shipping or labor costs.
1-YEAR MAJOR COMPONENTS WARRANTY: Mytee warrants that pumps, vacuum
and oor machine motors, and heaters are covered for a one (1) year limited war-
ranty from the date of original purchase. This warranty does not apply and is void if
the pump, vacuum motor, or heater has worn brush motors, water damage, chemical
build-up, chemical damage, or evidence of abuse, neglect or tampering. This warran-
ty covers the cost of replacement only, and does not cover shipping or labor costs.
HOUSING LIFETIME LIMITED WARRANTY: Mytee warrants that all rotationally
molded housing and tanks will be free from manufacturing defects, defects in work-
manship, and defects in material for the life of the part. Replacement cost does not
include the cost of shipping or labor.
LIMITATION OF DAMAGES: THE REMEDY OF REPLACEMENT OR REPAIR
OF ANY DEFECTIVE GOODS SHALL BE THE EXCLUSIVE REMEDY UNDER
ANY WARRANTY MADE BY MYTEE, WHETHER EXPRESS OR IMPLIED. IN NO
EVENT SHALL MYTEE BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES, PROPERTY DAMAGES, OR PERSONAL INJURIES.
All limited warranties are void for, and Mytee does not warrant in any way, any prod-
uct that evidences misapplication, improper installation, abuse, lack of maintenance,
negligence in use or care, abnormal use, alteration of design, use of incompatible
or corrosive chemicals, use in a rental service, and/or servicing, installation of parts,
or repairs by anyone other than Mytee or a Mytee authorized distributor or service
center. Mytee may make changes in products it manufactures and markets at any
time; these changes are made without obligation to change, retrot, or upgrade any
product previously sold or manufactured.
Mytee has no obligation to honor the limited warranties set forth herein unless the
original purchaser, promptly upon discovering the warranty claim and prior to continu-
ing to use the product, contacts Mytee or a Mytee authorized distributor or service
center to describe the claim and to receive and follow instructions for documenting
and resolving the claim. In addition, the purchaser must provide the product to which
the claim applies to Mytee or a Mytee authorized distributor or service center for a
thorough inspection.
GENERAL INFORMATION

11
If any provision or portion of this limited warranty policy is found to be unenforceable,
then the remaining provisions and portions shall remain valid and enforceable. If
any provision or portion of this limited warranty policy is found to be limited by law,
then that provision or portion shall be construed to make it effective within the bounds
of law. For example, if there are legal limitations on the duration of warranties, the
warranties made herein shall be construed to have the minimum duration required
by law, or, if there are legal limitations of exclusion of remedies, the exclusions
made herein shall be construed to apply to the fullest extent possible without
violating the law.
The validity, construction and performance of this warranty policy shall be governed
by the laws of the State of California, without respect to conicts of laws principles.
The exclusive jurisdiction of any legal action arising from or related to this warranty
policy shall be in the State of California and no legal action shall be commenced
elsewhere.
Return Material Authorization Procedure
It is the responsibility of any Authorized Service Center (ASC) or distributor with
written authorization to ensure the customer’s equipment is repaired as soon as
possible. Only Mytee Products Inc. or it’s authorized dealers with written authoriza-
tion, service centers, and agents may make warranty repairs on these products. All
others do so at their own risk and expense.
The Distributor must follow Mytee Products, Inc. standard RMA procedure:
1. When a repair falls within the warranty time period for a piece of equipment, the
distributor will ll out a RMA/warranty claim form. This form will act as a repair order
to replace any defective parts.
2. All defective parts must be returned to Mytee Products, Inc. with the RMA/claim
form for evaluation at the customer’s expense. This shipping is non-refundable. All
warranty claims are subject to an evaluation by Mytee Products, Inc. to determine if
warranty will be approved. Any credit for repair and/or parts will only be issued upon
evaluation and approval from Mytee Products, Inc.
3. When warranty is approved, the distributor’s account will be credited for the
replacement part(s). Mytee Products, Inc. will ship the warranted replacement part(s)
to the distributor prepaid. If warranty is denied the distributor’s account will not be
credited for any parts sent for this claim.
GENERAL INFORMATION

12
Part prices are subject to change.Order parts at: www.mytee.com/products/7300-s-air-hog-plus-vacuum-booster
7300-SLA AIR HOG™ PLUS PARTS & PRICING
ITEMS NOT SHOWN
PART NO.
DESCRIPTION
QTY.
MSRP
H141
Cu-Lynx, 2" to 1.5" reducer
1
$3.99 ea
G008
piglet lter
1
$6.29 pak
G076
lter bag, 3.5" metal O-ring, mesh bag
1
$4.99 ea
H110
Cu-Lynx, 2" hose x 2" fem swivel Cu-Lynx
1
$3.99 ea
H136
Cu-Lynx, 2" hose x 2" male swivel Cu-Lynx
1
$3.99 ea
E530
power cord, ext, 50', 12/3 black
1
$74.99 ea
AD127
stop sign, register your product
1
n/a
ADM-7300
manual, tm vacuum booster
1
n/a
ITEM
NO.
PART NO.
DESCRIPTION
QTY.
MSRP
1
H135
Cu-Lynx, 2" m cu x 2" mpt
1
$3.99 ea
2
P561
cap, 6", threaded, w/ 2" npt
1
$23.99 ea
3
G031
gasket, 3.25" i.d. x 5.88" o.d.
1
$6.99 ea
4
H359
basket, strainer, 4.5 DIA x 12.5
1
$36.99 ea
5
H231
screw, 10-32 x 1" phil pan head, s/s
4
$0.99 ea
6
H081
lower bracket, tm booster
2
$1.99 ea
7
P563A
body, lint hog, new style
1
$34.99 ea
8
G004-A
gasket, vac motor - Mytee Lite
3
$6.99 ea
9
P567
adapter, pvc, 2" fslip x 2" mpt
1
$4.99 ea
10
A926
elbow, inlet assembly 2"
1
$15.99 ea
11
H230
screw, 10-32 x 1/2" phil pan head, s/s 13
$0.99 ea
12
H082
upper bracket, tm booster
1
$2.99 ea
13
E373
level switch, vacuum shut-o, rear threads
1
$8.99 ea
14
P680
elbow, pvc 1/2" fmt x 1/2" fms
1
$2.00 ea
15
P677-5
pipe, pvc, 1/2" x 20'
1
$1.99 ft
16
P572
adapter, pvc, 1/2" fslp x 1/2" mpt
1
$7.99 ea
17
P679
adapter, pvc, 1/2" fpt x s
1
$3.99 ea
18
H210
washer, 1/4" at, s/s
18
$0.99 ea
19
H213
washer, 1/4" lock, s/s
2
$0.99 ea
20
H201
bolt, 1/4-20 x 1/2", hex head, zinc
2
$0.99 ea
21
H216
nut, lock, 1/4-20, nylon insert, s/s
14
$0.99 ea
22
H333
mesh lter, auto dump, 1/2" npt
1
$12.99 ea
23
B210
bushing, brass, 1/2"mpt x 3/8" fpt, hex
1
$2.49 ea
24
H299
washer, 11/16"id x 1-1/2"od x .075, s/s
4
$0.99 ea
25
B216
nipple, brass, 3/8" x close
1
$1.99 ea
26
B236
elbow, brass, 90 deg, 1/2" barb x 3/8" fpt
1
$14.49 ea
27
P684
adaptor, pvc 2, fmsl x fmt
1
$6.99 ea
28
P682-9
pipe, pvc, 2" 1
$7.99/ft
29
P683
elbow, 45 deg, 2" pvc
1
$8.99 ea
30
G021
screen, mesh lter, 2-3/8" dia
1
$4.99 ea
31
G022 lter, foam, 2-3/8" x 1"
1
$2.99 ea
32
H316
bolt, 1/4x1-1/2", hex head zinc
2
$0.99 ea
33
H379
bracket, front, small
1
$3.99 ea
34
P537
tank, truckmount booster
1 $215.00 ea
35
H124
Cu-Lynx, 2" mpt x 2" female cu
3
$3.99 ea
36
H121
cu-lynx, 2" plug
2
$3.99 ea
37
H768
bolt, 1/4-20 x 3/4" serrated hex ange, zinc
14
$0.99 ea
38
H211
washer, 1/4"id x 1"od, at, s/s
4
$0.99 ea
39
G052
washer, buna 1-1/8" od x 3/16" id
4
$1.99 ea
40
H485
handle, breeze and dx
2
$6.99 ea
41
G091
gasket, 7", vac lid
1
$11.99 ea
42
G090
lid, vac tank, clear, 7"
1
$36.99 ea
43
H304
screw, #8 x 5/8 phil oval, s/s
6
$0.99 ea
44
PH615-25
sol hose, 1/2", 3045psi, black
1
$8.99 ft
45
C381
pump out, 115v
1 $187.49 ea
46
H273
nut, kep, #10-32 zinc
14
$0.99 ea
47
H185
screw, 10-32 x 1-1/4", phil at full thread, black oxide
4
$0.99 ea
48
PH615-8
sol hose, 1/2", 3045psi, black
1
$8.99 ft
49
B173
ferrule, 1/2", brass
4
$0.99 ea
50
B132
adapter, brass, 1/2" barb x 1/2" mpt
1
$9.49 ea
51
B270
coupling, 3/4" fpt x 1/2" fpt
1
$14.99 ea
52
B271
bushing, hex, 3/8" mpt x 1/2" fpt
1
$6.99 ea
ITEM
NO.
PART NO.
DESCRIPTION
QTY.
MSRP
53
B205B
QD, 1/2" npt x 3/4" mgh, pump-out
1
$3.99 ea
54
B204
qd, 3/4" female x female garden hose
1
$9.99 ea
55
B221
plug, brass, 3/4", garden hose 1
13.99 ea
56
H194
coupler, 2" dia x 2.5" length, s/s
1
$10.00 ea
57
H020
nut, lock, 2", steel
1
$4.99 ea
58
H486
latch, front
1
$13.99 ea
59
E512B
light, indicator, 125v (amber)
1
$9.99 ea
60
E550
power cord, pigtail, 30", 12/3, black
1
$11.49 ea
61
H220
tting, strain relief, cord
1
$3.19 ea
62
H221
nut, lock, 1/2" steel
1
$1.99 ea
63
G068
bumper, 7/8" x 1/4" head 1
$1.99 ea
64
P571
base, tm booster
1 $164.99 ea
65
E564
controller, circuit light
1
$62.99 ea
66
H186
screw, 10-32 x 3/4, phil at full thread
4 $0.99
67
H636
plate, switch,8070, hp60, 7300
1
$6.99 ea
68
H389
screw, 10-32 x 1/2" SHCS, alloy 1
$0.99 ea
69
E515
switch, rocker, 2 position
3
$13.99 ea
70
E370
controller, water level, dual pump or vac
1
$94.99 ea
71
C317
fan, cooling, 115V
1
$21.49 ea
72
H343
screw, 10 x 5/8" hex head, zinc
12
$0.99 ea
73
H296
guard, cooling fan, wire
3
$2.99 ea
74
H342
bolt, 1/4-20 x 1" hex head, s/s 8
$0.99 ea
75
H667
caster, 3", Black Hub, Gray Tread
2
$14.99 ea
76
H227
axle, 15.60" x .50" dia
1
$9.99 ea
77
H239
wheel, 8"
2
$28.99 ea
78
H042
c-clip, 12mm, external
2
$0.99 ea
79
H253
plate, dual manifold, 9" x 13"
1
$14.99 ea
80
PH628-11
vac hose, 2", black, wire reinforced
3
$8.99 ft
81
H501
vac support, 3 stage, 4-1/16"
6
$4.99 ea
82
C302LA
vac motor, 3 stage, low amp
2 $139.99 ea
83
P685
inlet, 2"
1
$10.99 ea
84
H217
clamp, hose, 2-1/4 dia
5
$1.49 ea
85
H544
cu hose, 2 X 2, wire reinforced
1
$12.49 ea
86
H202
bolt, 1/4x20x3/4" hex head
6
$0.99 ea
87
P735
manifold, single vac, no gasket
2
$14.99 ea
D
C
B
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
7300-SLA
SHEET 1 OF 3
Booster, TM
2/2014
OD
SCALE: 1:32
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
CHECKED
DRAWN
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MYTEE PRODUCTS, INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MYTEE PRODUCTS, INC. IS PROHIBITED.
A
DO NOT
SCALE DRAWING
858-679-1191
mytee
PRODUCTS, INC.
M.LaBarbera

13
7300-SLA AIR HOG™ PLUS PARTS & PRICING
9
1
2
3
4
5
6
7
8
11
12
22
23
24
24
25
26
27 28
29 30
31
34
35
36
37
38
39
40
41 42
43
20
19
18
21
18
32
33
13
14 15
16 17
45
44
47
46
18
48
50
51
52
24
53
54
55
56
57
35
58
11
59 60 61 62
74
75
64
70
69
68
11
67
46
79
8
21
37
80
81
82 83
84
85
86
87
63
37
72
to lter
thru B236
26
to pump-out
"IN"
thru PH615-25
44
to garden
hose thru
B270
51
18
21
76
77
78
10
71
66
46
46
65 66
73
80
80
49
to pump-out
"OUT"
thu B132
50
D
C
B
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
7300-SLA
SHEET 2 OF 3
Booster, TM
2/2014
OD
SCALE: 1:32
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
CHECKED
DRAWN
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MYTEE PRODUCTS, INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MYTEE PRODUCTS, INC. IS PROHIBITED.
A
DO NOT
SCALE DRAWING
858-679-1191
mytee
PRODUCTS, INC.
M.LaBarbera

14
7300-SLA AIR HOG™ PLUS WIRING DIAGRAM
7300-SLA
115 Volt System
L1 L2
G
VAC 1
L2
L1
G
VAC 2
L2
L1
G
Pump
Out
L2
L1
G
E-515
115V
relays
Float
Switch
C-302LA C-381
#E-370
E-515 E-515
C-302LA
4/11/2014
Ground to
Metal Plate
Cooling
Fan
C-317

15
NOTES

16
Mytee Products Inc.
13655 Stowe Dr.
Poway, Ca. 92064
www.mytee.com
© 2014 Mytee Products Inc.
Printed in the U.S.A.
NOTES
