NAD M27 User manual

NAD
SERVICE MANUAL
M27
SEVEN
CHANEL
M27 SEVEN CHANEL AMPLIFIER
AMPLIFIER

TABLE OF CONTENTS
DESCRIPTION P A G E
SERVICE CAUTION…………………………………………………………....3-4
SPECIFICATIONS………………………………………………………….... 5

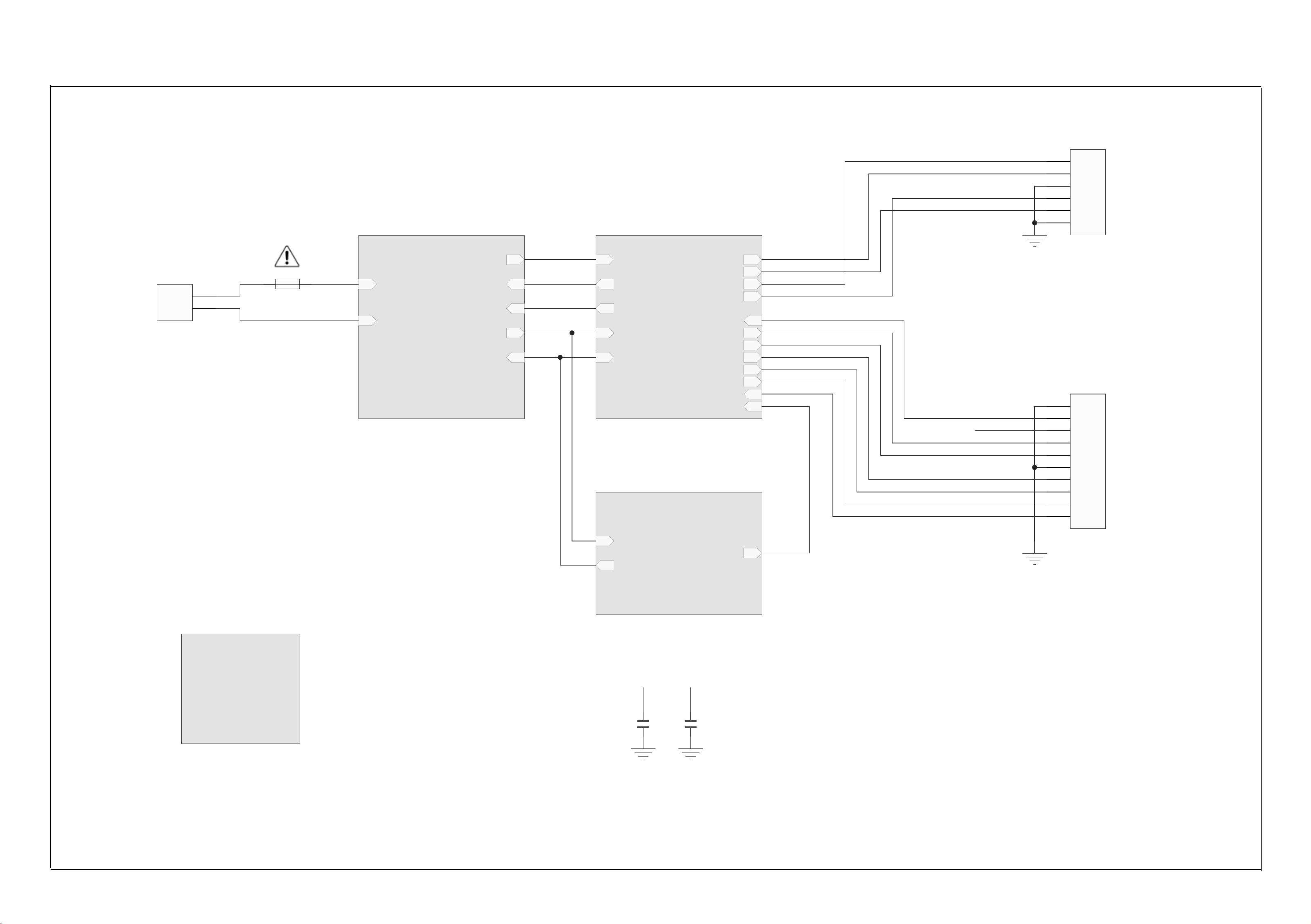

WIRING DIAGRAM…………………………………………………………….....6
BLOCK DIAGRAM…………………………………………………….. ….......7-9
………………………………………………..…......12-25
PCB LAYOUT………………………………………………………………..26-33
ELECTRICAL PARTS LIST…………………………………………... 95-43...
EXPLODED VIEW………………………………………………………….60-63
EXPLODED VIEW PARTS LIST……………………………………………....64
CIRCUIT DIAGRAMS
TROUBLE SHOOTING A GUIDE…………………......................................10
TROUBLE SHOOTING B GUIDE…………………......................................11

3
SUBJECT: GRAPHIC SYMBOLS
PRODUCT SAFETY SERVICING GUIDELINES FOR AUDIO PRODUCTS
A.C. VOLTMETER
GOOD EARTH GROUND
SUCH AS THE WATER
PIPE. CONDUIT. ETC
PLACE THIS PROBE
ON EACH EXPOSED
METAL PART
CAUTION : DO NOT ATTEMPT TO MODIFY THIS
PRODUCT IN ANY WAY, NEVER PERFORM CUSTOM-
IZED INSTALLATIONS WITHOUT MANUFACTURER’S
APPROVAL. UNAUTHORIZED MODIFICATIONS WILL
NOT ONLY VOID THE WARRANTY, BUT MAY LEAD TO
YOUR BEING LIABLE FOR ANY RESULTING PROP-
ERTY DAMAGE OR USER INJURY.
SERVICE WORK SHOULD BE PERFORMED ONLY
AFTER YOU ARE THOROUGHLY FAMILIAR WITH ALL
OF THE FOLLOWING SAFETY CHECKS AND SERVIC-
ING GUIDELINES. TO DO OTHERWISE,INCREASES
THE RISK OF POTENTIAL HAZARDS AND INJURY TO
THE USER.
WHILE SERVICING, USE AN ISOLATION TRANS-
FORMER FOR PROTECTION FROM A.C. LINESHOCK.
SAFETY CHECKS
AFTER THE ORIGINAL SERVICE PROBLEM HAS
BEEN CORRCTED. A CHECK SHOULD BE MADE OF
THE FOLLOWING.
SUBJECT : FIRE & SHOCK HAZARD
1.BE SURE THAT ALL COMPONENTS ARE POSI-
TIONED IN SUCH A WAY AS TO AVOID POSSIBILITY
OF ADJACENT COMPONENT SHORTS.THIS IS ESPE-
CIALLY IMPORTANT ON THOSE MODULES WHICH
ARE TRANSPORTED TO AND FROM THE REPAIR
SHOP.
2. NEVER RELEASE A REPAIR UNLESS ALL PROTEC-
TIVE DEVICES SUCH AS INSULATORS, BARRIERS,
COVERS, SHIELDS, STRAIN RELIEFS, POWER
SUPPLY CORDS, AND OTHER HARDWARE HAVE-
BEEN REINSTALLED PER ORIGINAL DESIGN. BE
SURE THAT THE SAFETY PURPOSE OF THE POLAR-
IZED LINE PLUG HAS NOT BEEN DEFEATED.
3. SOLDERING MUST BE INSPECTED TO DISCOVER
POSSIBLE COLD SOLDER JOINTS, SOLDER
SPLASHES OR SHARP SOLDER POINTS. BE CER-
TAIN TO REMOVEALL LOOSE FOREIGN PARTICLES.
4. CHECK FOR PHYSICAL EVIDENCE OF DAMAGE
OR DETERIORATION TO PARTS AND COMPONENTS.
FOR FRAYED LEADS, DAMAGED INSULATION
(INCLUDING A.C. CORD). AND REPLACE IF NECES-
5. NO LEAD OR COMPONENT SHOULD TOUCH A
RECIVING TUBE OR A RESISTOR RATED AT 1 WATT
OR MORE. LEAD TENSION AROUND PROTRUNING
METAL SURFACES MUST BE AVOIDED.
6. ALL CRITICAL COMPONENTS SUCH AS FUSES,
FLAMEPROOF RESISTORS, CAPACITORS, ETC.
MUST BE REPLACED WITH EXACT FACTORY TYPES,
DO NOT USE REPLACEMENT COMPONENTS OTHER
THAN THOSE SPECIFIED OR MAKE UNRECOM-
MENDED CIRCUIT MODIFICATIONS.
7. AFTER RE-ASSEMBLY OF THE SET ALWAYS PER-
FORM AN A.C. LEAKAGE TEST ON ALL EXPOSED
METALLIC PARTS OF THE CABINET, (THE CHANNEL
SELECTOR KNOB,ANTENNATERMINALS. HANDLE
AND SCREWS) TO BE SURE THE SET IS SAFE TO
OPERATE WITHOUT DANGER OF ELECTRICAL
SHOCK. DO NOT USE A LINE ISOLATION TRANS-
FORMER DURING THIS TEST USE AN A.C. VOLTME-
TER, HAVING 5000 OHMS PER VOLT OR MORE SEN-
SITIVITY, IN THE FOLLOWING MANNER; CONNECT A
1500 OHM 10 WATT RESISTOR, PARALLELED BY A
.15 MFD. 150.V A.C TYPE CAPACITOR BETWEEN A
KNOWN GOOD EARTH GROUND (WATER PIPE,
CONDUIT,ETC.) AND THE EXPOSED METALLIC
PARTS, ONE AT A TIME. MEASURE THE A.C. VOLT-
AGE ACROSS THE COMBINATION OF 1500OHM
RESISTORAND .15 MFD CAPACITOR. REVERSE THE
A.C. PLUG AND REPEAT A.C. VOLTAGE MEASURE-
MENTS FOR EACH EXPOSED METALLIC PART. VOLT-
AGE MEASURED MUST NOT EXCEED 75 VOLTS
R.M.S. THIS CORRESPONDS TO 0.5 MILLIAMP A.C
ANY VALUE EXCEEDING THIS LIMIT CONSTITUTES A
POTENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED IMMEDIATELY.
THE LIGHTNING FLASH WITH APROWHEAD SYMBOL. WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED
TOALERT THE SERVICE PERSONNEL TO THE PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE”
THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TOALERT THE SERVICE
PERSONNEL TO THE PRESENCE OF IMPORTANT SAFETY INFORMATION IN SERVICE LITERATURE.

SERVICING PRECAUTIONS
CAUTION:Before servicing the Stereo amplifier covered by
this service data and its supplements and addends, read and
follow the SAFETY PRECAUTIONS. NOTE: if unforeseen
circumstances create conflict between the following servicing
precautions and any of the safety precautions in this publication,
always follow the safety precautions.
Remember Safety First:
General Servicing Precautions
1.Always unplug the Stereo amplifier AC power cord from the
AC power source before:
(1) Removing or reinstalling any component, circuit board,
module, or any other assembly.
(2) Disconnecting or reconnecting any internal electrical
plug or other electrical connection.
(3) Connecting a test substitute in parallel with an electrolytic
capacitor.
Caution: A wrong part substitute or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.
2.Do not spray chemicals on or near this Stereo amplifier or
any of its assemblies.
3.Unless specified otherwise in this service data, clean
electrical contacts by applying an appropriate contact
cleaning solution to the contacts with a pipe cleaner,
cottontipped swab, or comparable soft applicator.
Unless specified otherwise in this service data, lubrication
of contacts is not required.
4.Do not defeat any plug/socket B+ voltage interlocks with
which instruments covered by this service manual might be
equipped.
5.Do not apply AC power to this Stereo amplifier and/or any
of its electrical assemblies unless all solid-state device heat
sinks are correctly installed.
6.Always connect test instrument ground lead to the
appropriate ground before connecting the test instrument
positive lead. Always remove the test instrument ground lead
last.
Insulation Checking Procedure
Disconnect the attachment plug from the AC outlet and turn the
power on. Connect an insulation resistance meter (500V) to the
blades of the attachment plug. The insulation resistance
between each blade of the attachment plug and accessible
conductive parts (Note 1) should be more than 1 M-ohm.
Note 1: Accessible Conductive Parts including Metal panels,
Input terminals, Earphone jacks, etc.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged
easily by static electricity. Such components commonly are
called Electrostatically Sensitive (ES) Devices. Examples of
typical Es devices are integrated circuits and some field effect
transistors and semiconductor chip components.
The following techniques should be used to help reduce the
incidence of component damage caused by static electricity.
1.Immediately before handing any semiconductor component
or semiconductor-equipped assembly, drain off any
electrostatic charge on your body by touching a known earth
ground. Alternatively, obtain and wear a commercially
available discharging wrist strap device, which should be
removed for potential shock reason prior to applying power to
the unit under test.
2.After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3.Use only a grounded-tip soldering iron to solder or unsolder
ES devices.
4.Use only an antistatic solder removal device. Some solder
removal devices not classified a “anti-static” can generate
electrical charges sufficient to damage ES devices.
5.Do not use freonpropelled chemicals. These can generate
electrical charge sufficient to damage ES devices.
6.Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum
foil, or comparable conductive material).
7.Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective
material to the chassis or circuit assembly into which the
device will be installed.
Caution: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.
8.Minimize bodily motions when handing unpackaged
replacement ES devices. (Normally harmless motion such as
the brushing together of your clothes fabric or the lifting of
your foot from a carpeted floor can generate static electricity
sufficient to damage an ES device.)
4

SPECIFICATIONS
FRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ
5
** Gross dimensions include feet, buttons and rear panel terminals.
*** Non-metric measurements are approximate. NAD Electronics will not assume any liability for errors being made by retailers, custom
installers, cabinet makers, or other end users based on information contained in this document.
Note: Installers should allow a minimum clearance of 55mm for wire/cable management.
M27
Continuous output power into 8 Ω and 4 Ω ≥180W (ref. rated THD, 20Hz-20kHz, all channels driven)
THD +N (250mW to rated power, CCIF IMD, DIM 100) ≤0.005% (ref. 20Hz - 20kHz)
IHF Dynamic Power 8 Ohms
4 Ohms
2 Ohms
320W
700W
650W
Signal/Noise Ratio, A-weighted >98dB (ref. 1W)
>120dB (ref. rated power)
Damping Factor >750dB (ref. 8 Ω, 50Hz and 1kHz)
Frequency Response -2.5dB at 3Hz and 100kHz
Input Impedance RCA
XLR 47kΩ C=100pF
220kΩ C=100pF
Input Sensitivity 1.3V (ref. rated power)
Time to Standby Mode at no input signal ≤30 minutes
Voltage Gain 29dB
GENERAL
Rated Power 1600W (120V 60Hz, 230V 50Hz)
Standby Power <0.5W
Idle Power <90W
Unit Dimension (WxHxD) - Gross* 435 x 156 x 380mm
17 1/8 x 6 3/16 x 15 inches**
Net weight 14.1kg (31.1lb)
Shipping weight 20.4kg (45lb)

6

7
OP
LME49720
CMR
TL072
DCservo
TL072
OP
LME49720
Hypex
NC400OEMModule
Micro controller
IIC/SPI/GPIO
PIC18F26K20
LED
TOUCH
TRIGGER
IIC
Analog Input
unbalanced
balanced
100-120VAC
220-240VAC STBPSU
5V
MAIN PSU
+/-VB
+/-VDR
+/-VAUX
LDO
AC
ENABLE
3V3
Regulated supply
LM317/LM337
+/-17.5V Regulated supply
LM317/LM337
+/-14.5V
Clippingcontroler
OPA2134
Relay
Current sensor
TL084CN
STB
Audio senseon/off
3.5mm
CY8CMBR2044
CHANNEL 1/7
Block diagram

MCU BOARD
PIC18F26K20
8
Instruction
Decode and
Control
PORTA
PORTB
PORTC
RA4/T0CKI/C1OUT
RA5/AN4/SS/HLVDIN/C2OUT
RB0/INT0/FLT0/AN12
RC0/T1OSO/T13CKI
RC1/T1OSI/CCP2(1)
RC2/CCP1
RC3/SCK/SCL
RC4/SDI/SDA
RC5/SDO
RC6/TX/CK
RC7/RX/DT
RA3/AN3/VREF+
RA2/AN2/VREF-/CVREF
RA1/AN1
RA0/AN0
RB1/INT1/AN10
DataLatch
Data Memory
AddressLatch
Data Address<12>
12
Access
BSR FSR0
FSR1
FSR2
inc/dec
logic
Address
412 4
PCH PCL
PCLATH
8
31-Level Stack
Program Counter
PRODLPRODH
8 x 8 Multiply
8
BITOP 8
8
ALU<8>
20
8
8
Table Pointer<21>
inc/dec logic
21
8
Data Bus<8>
Table Latch
8
IR
12
3
ROM Latch
RB2/INT2/AN8
RB3/AN9/CCP2(1)
PCLATU
PCU
OSC2/CLKOUT(3)/RA6
Note 1: CCP2 is multiplexed with RC1 when Configuration bit CCP2MX is set, or RB3 when CCP2MX is not set.
2: RE3 is only available when MCLR functionality is disabled.
3: OSC1/CLKIN and OSC2/CLKOUT are only available in select oscillator modes and when these pins are not being used as digital I/O.
Refer to Section 2.0 “Oscillator Module (With Fail-Safe Clock Monitor)” for additional information.
RB4/KBI0/AN11
RB5/KBI1/PGM
RB6/KBI2/PGC
RB7/KBI3/PGD
EUSARTComparator MSSP 10-bit
ADC
Timer2Timer1 Timer3Timer0
CCP2
HLVD
ECCP1
BOR Data
EEPROM
W
Instruction Bus <16>
STKPTR Bank
8
State machine
control signals
Decode
8
8
Power-up
Timer
Oscillator
Start-up Timer
Power-on
Reset
Watchdog
Timer
OSC1(3)
OSC2(3)
VDD,
Brown-out
Reset
Internal
Oscillator
Fail-Safe
Clock Monitor
Precision
Reference
Band Gap
VSS
MCLR(2)
Block
LFINTOSC
Oscillator
16 MHz
Oscillator
Single-Supply
Programming
In-Circuit
Debugger
T1OSO
OSC1/CLKIN(3)/RA7
T1OSI
PORTE
MCLR/VPP/RE3(2)
FVR
FVR
FVR
CVREF
Address Latch
ProgramMemory
(8/16/32/64Kbytes)
Data Latch

CLOCK
OSCILLATOR
5.85 V
4.9 V
SOURCE
(S)
S
R
Q
DC MAX
BYPASS/
MULTI-FUNCTION
(BP/M)
+
-
VILIMIT
FAULT
PRESENT
CURRENT LIMIT
COMPARATOR
ENABLE
LEADING
EDGE
BLANKING
THERMAL
SHUTDOWN
+
-
DRAIN
(D)
REGULATOR
5.85 V
BYPASS PIN
UNDER-VOLTAGE
1.0 V + VT
ENABLE/
UNDER-
VOLTAGE
(EN/UV)
Q
115 μA 25 μALINE UNDER-VOLTAGE
RESET
AUTO-
RESTART
COUNTER
JITTER
1.0 V
6.4 V
BYPASS
CAPACITOR
SELECT AND
CURRENT
LIMIT STATE
MACHINE
OVP
LATCH
SMPS STB BOARD
TNY274
9

TROUBLESHOOTING A GUIDE
10
YES
Check STB board
CheckLEDboard
5V RIGHT?
check IC301 circuitNONO
Logo Amber LEDon?
No Power or Power shuts off
immediately
5VL RIGHT?
NO Check L104 C175 C176
YES
Check Q110 Q111 Q114 Q115 Q116 circuit
Change LEDboard
YES
NO
B
Touch Power key
Logo led turn white?
YES
change STB board
CheckPWMsignal
YES
Logo led turn off?
Logo led turn red?
YES
NO
YES
CheckPSUboard
+/-VB +/-VAUX +/-VDR RIGHT?
NO Check STB board
STB 3V RIGHT?
YES
Change PSUBoard
Check U1 U5 PWMcircuit
NO
Check STB Board:Q301 K301 circuit
Check MCUboard:Q131 circuit
YES
CheckRegulated Supply Board
VPPVPI+/-17.5V +/-VDRRIGHT? NO
CheckRegulated Supply Board
Check Q123 Q124 circuit
YES
Check U104,
Change MCUboard
Check LEDcontrol signal

TROUBLESHOOTING B GUIDE
11
B
Finish
Rear panel led show green?
YES
NO led turn off?Rear panel led show red? NO
YES
Check D500 U505 circuit,
YES
Check Q500 Q502 Q508 circuit
Change NC400 OEMBOARD
Apply 1khz sinewave to DUT
Amplifier output correct?
YES
NO INCINHsignal correct?
YES
Change NC400 OEMBOARD
check+/-14.5V,5V Right?
NO checkQ505 Q506 Circuit NO change AMPboard
YES
checkU500 U501 U502 U503 Circuit
change AMPboard
checkQ503 Q504 Circuit

1.MCU BOARD
12
CIRCUIT DIAGRAM
XM100
HOLE
C162 22N
R282 100R
GND
XM101
HOLE
C163 22N
R283 100R
GND
3V3S
C138
22u/ 6v3
C139
100N
GND
MCLR/VPP/RE3
1
RA0/AN0/C12IN0-
2
RA1/AN1/C12IN1-
3
RA2
4
RA3
5
RA4
6
RA5/HLVDIN
7
VSS
8
OSC1/CLKIN/RA7
9
OSC2/CLKOUT/RA6
10
RC0
11
RC1
12
RC2
13
RC3/SCK/SCL
14 RC4/SDI/SDA 15
RC5/SDO 16
RC6/TX/CK 17
RC7/RX/DT 18
VSS 19
VDD 20
RB0/INT0/FLT0/AN12 21
RB1/INT1 22
RB2/INT2 23
RB3/AN9 24
RB4/KBI0 25
RB5/KBI1/PGM 26
RB6//KBI2/PGC 27
RB7/KBI3/PGD 28
U105
PIC18F26K20
GND C137
NC
R216 22k
R208 10k
R210 33k
GND
VHP1
C133
100N
D119
3V6
3V3S
GND
GND
R238 100R
R220 100R
R197
100
R
PGDATA
PGCLK
MCLR
RXD
TXD
GND
3V3S
1
2
3
4
P109
Header 4
R268
100R R269
100R
C152
100n
L103
FB
GND
C147
100N
GND
RXD
TXD
MCLR
3V3S
GND
PGCLK
PGDATA
1
2
3
4
5
CON103
ICSP
R214
10K
NMOSI
q1
1
q2
2
q3
3
q4
4
q5
5
q6
6
q7
7
gnd
8q'h 9
/sclr 10
sck 11
rck12
/g 13
ser 14
q0 15
vcc 16
U104
74HC595
GND
C136
100N
GND
3V3D
3V3D
NCK0
R209B 100R
R209D 100R
R209C 100R
R209A 100R
R213B 100R
R213C 100R
R213D 100R
R213A 100R
3V3S
SH/LD
1
CLK
2
E
3
F
4
G
5
H
6
QH 7
GND
8
QH 9
SER
10
A
11
B
12
C
13
D
14
CLK INH
15
VCC 16
U103
HC165
R190A
10k
GND
3V3D
C120
100n
GND
3V3D
C121
100N
3V3D GND
R190B
10k
R190C
10k
R190D
10k
NCK1
GND
R189A
10k
R189B
10k
R189C
10k
R189D
10k
q1
1
q2
2
q3
3
q4
4
q5
5
q6
6
q7
7
gnd
8q'h 9
/sclr 10
sck 11
rck12
/g 13
ser 14
q0 15
vcc 16
U106
74HC595
GND
C141
100N
GND
3V3D
3V3D
R230B 100R
R230D 100R
R230C 100R
R230A 100R
R237B 100R
R237C 100R
R237D 100R
R237A 100R
NCS2
GND
C140
100N
NCS1
R226
100R R222 100R
R219 100R
R225 100R
R228 100R
R231 100R
R235 100R
NMOSI
NMIS O
NCK0
NCK1
NMIS O
NCS2
NCS1
12 34 56 78 910 1112 1314 1516 1718 1920 2122 2324 2526 2728 2930 3132 3334 3536
P100 TO AMP board A
VPPi
VPNi
SCL-a
SDA-a
R126 0R
R123 0R
R128 0R
R130
0R
GPOa0
R133
0R
GND
VDR-
VDR+
+17.5V
-17.5V
R131
0R
R135
0R AudioS
5VS
VCLIP0
b
e c
Q105
DTC114EKA
D124
ss12
G1
OUT 2
IN 3
O
4
U108
ASM1117-3.3
C155
100n
C158
100n
5VS
3V3S
C151
22u/6V3
3V3S
GND
L102
742792662
C159
10n
R241
10k
R239
10K
Q135
DTC114EKA
GND
G
D
S
Q132
APM2313
5VS 5VD
C146
1N
GND
GND
5VEN
L101
742792662
G1
OUT 2
IN 3
O
4
U107
ASM1117-3.3
C153 100n
C157
100n
3V3D
C150
22u/6V3
3V3D
GND
C154 22u/ 6V3
5VD
GND
R121 0R GND
C101
10N C102
10N
GNDGND
R119 0R
R120 0R
12 34 56 78 910 1112 1314 1516 1718 1920 2122 2324 2526 2728 2930 3132 3334 3536
P101 TO AMP board A
VPPi
VPNi
SCL-a
SDA-a
R169 0R
R168 0R
R170 0R
R172
0R
GPOa1
R177
0R
GPOb1
GND
VDR-
VDR+
+17.5V
-17.5V
R174
0R
GPI1
R178
0R AudioS
5VS
VCLIP1
R165 3K9 GND
C108
10N
C109
10N
GNDGND
R158 0R
R161 0R
12 34 56 78 910 1112 1314 1516 1718 1920 2122 2324 2526 2728 2930 3132 3334 3536
P102
TO AMP board A
VPPi
VPNi
SCL-a
SDA-a
R193 0R
R192 0R
R194 0R
R196
0R
GPOa2
R199
0R
GPOb2
GND
VDR-
VDR+
+17.5V
-17.5V
R198
0R
GPI2
R200
0R AudioS
5VS
VCLIP2
R188 10K GND
C118
10N
C119
10N
GNDGND
R184
0R
R187
0R
12 34 56 78 910 1112 1314 1516 1718 1920 2122 2324 2526 2728 2930 3132 3334 3536
P104
TO AMP board A
VPPi
VPNi
SCL-b
SDA-b
R218 0R
R217 0R
R221 0R
R224
0R
GPOa3
R234
0R
GPOb3
GND
VDR-
VDR+
+17.5V
-17.5V
R227
0R
GPI3
R236
0R AudioS
5VS
VCLIP3
R215 18K GND
C134
10N
C135
10N
GNDGND
R211 0R
R212 0R
12 34 56 78 910 1112 1314 1516 1718 1920 2122 2324 2526 2728 2930 3132 3334 3536
P106 TO AMP board A
VPPi
VPNi
SCL-b
SDA-b
R252 0R
R251 0R
R253 0R
R254
0R
GPOa4
R256
0R
GPOb4
GND
VDR-
VDR+
+17.5V
-17.5V
R255
0R
GPI4
R257
0R AudioS
5VS
VCLIP4
R248 27k GND
C144
10N
C145
10N
GNDGND
R246 0R
R247 0R
12 34 56 78 910 1112 1314 1516 1718 1920 2122 2324 2526 2728 2930 3132 3334 3536
P108
TO AMP board A
VPPi
VPNi
SCL-c
SDA-c
R276 0R
R275 0R
R277 0R
R278
0R
GPOa5
R280
0R
GPOb5
GND
VDR-
VDR+
+17.5V
-17.5V
R279
0R
GPI5
R281
0R AudioS
5VS
VCLIP5
R274 47K GND
C160
10N
C161
10N
GNDGND
R272 0R
R273 0R
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
P107
TO AMP board A
VPPi
VPNi
SCL-c
SDA-c R262
0R
R261
0R
R263
0R
R266 0R
GPOa6
R270
0R
GPOb6
GND
VDR-
VDR+
+17.5V
-17.5V
R267 0R GPI6
R271
0R
AudioS
5VS
VCLIP6
R260
82K
GND
C149
10N C148
10N
GND GND
R258
0R R259
0R
GPOa0
GPOb0
GPOa1
GPOb1
GPOa2
GPOb2
GPOa3
GPOb3
GPOa4
GPOb4
GPOa5
GPOb5
GPOa6
GPOb6
GPI0
GPI1
GPI2
GPI3
GPI4
GPI5
GPI6
GPI7
D112
4V7 D113 4V7
GND GND D114
4V7 GND
D115
4V7 D116 4V7
GND GND D117
4V7 GND
D120
4V7 D121 4V7
GND GND D122
4V7 GND
D125
4V7 D126 4V7
GND GND D127
4V7 GND
D131
4V7 D132 4V7
GND GND D133
4V7 GND
D128
4V7 D129 4V7
GND GND D130
4V7 GND
AD105
4V7 D106 4V7
GND GND D107
4V7 GND
1
2
3
4
5
6
P105
From PSU
VDR-
VDR+
VPP
VPNi
GND
GND
PS_EN
+17.5V
-17.5V
nFATAL
OVL
nAMPON
AMPOFF
OVL
nAMPON
1
2
3
4
8
7
6
5
FB100
100M/600R
R229 100R
R232 100R
R233 100R
R223 100R STBY
Q131
DTA114
R186
100
3V3S
R240 0R
R244 0R
SDA
SCL
R201 10k
R202
0R
GND
VAUXa
C125
100N
D118
3V6
GND
3V3S GND
R139
100R
C107
2N2
R141
100R
R144
2.5mR
R173
22K
R179
22K
D110
15V
R180
7K5
GND
C115
10n
R164
47K
C114
1U
2
3
1
U102A
TL084
6
5
7
U102B
TL084
C112
470N
R152
330K R153 330K
GND
R151
10K
R167
10K
GND
Q117
2SA1312
Q118
2SC3324
R160
47K
R171
10K
R175
5K1
GND
-17.5V
13
12
14
U102C
TL084
R163
6K8
R176
1K
GND
R136
200R R137
200R R138
200R R140
200R
R159
200R R162
200R R166
200R
VCLIP0
VCLIP1
VCLIP2
VCLIP3
VCLIP4
VCLIP5
VCLIP6
9
10
8
U102D
TL084
R157
10K
VPNi
VPNi
VPP
GND
GND
411
U102E
TL084
-17.5V
+17.5V
C116
2N2
C117
2N2
GND
2
31
U100A
LM324
6
57
U100B
LM324
13
12 14
U100C
LM324 9
10 8
U100D
LM324
R101
47K
R100
1K
R112
5K6 R113 5K6
Q104
2SA1312
5VA
R122
5K1
GND
R111
100K
R115
15K
R125
15K
R129
100K GND
5VS
R114
10R
C103
10U
GND
5VA
R116
100K
R127
100K
C105
10U
GND
5VA
R117
100K
GND
AudioS
5VA
4
11
U100E
LM324
GND
11
2
2
C104
100N R124
100R
AudioSa
D123
4V7 C143
100N
GND
POWER_ON
A-LED
R245 100R
AUDIO SENSE
CLIPPINGCONTROL
R203
0R
VHP1
DEBUG
TRIGIN
R285
47KJ
TRIGON_OFF
a1
1gnd
2a2
3y2 4
vcc 5
y1 6
U109
NC7WZ17
3V3S
C164
100n
R289
120R
GND
R286
120R
R290
10R
AMP MODULE1AMP MODULE2AMP MODULE3AMP MODULE4AMP MODULE5AMP MODULE6
AMP MODULE7
C113
10U/35V
C156
470U/6V3
C142
220U/10V
D135
ISS352
D137
ISS352
D134
ISS352
D136
ISS352
D111
ISS352
D101
ISS352
D104
ISS352
D109
ISS352
1
2
3
4
5
6
7
8
9
10
P103
FROM regulatedsupply
GND
VPPi
VPNi
GND
VPPi
VPNi
GND
VPPi
VPNi
GND
VPPi
VPNi
GND
VPPi
VPNi
GND
VPPi
VPNi
GND
VPPi
VPNi
VPPi
XM102
HOLE
C166
22N
R291
100R
GND
D140
ISS352
D139
ISS352
XM103
HOLE
C167
22N
R292
100R
GND
D141
ISS352
D142
ISS352
GPI0
GPOb0
+17.5V-17.5V
+17.5V-17.5V
+17.5V-17.5V
+17.5V-17.5V
+17.5V
-17.5V
+17.5V
-17.5V
+17.5V-17.5V
GND
GND
GND
GND
GND
GND
GND
XM104
HOLE
C168
22N
R293
100R
GND
D146
ISS352
D147
ISS352
XM105
HOLE
C169
22N
R294
100R
GND
D148
ISS352
D149
ISS352
Rt RT1
NTC(NC)
R185
10K
+17.5V
NC 1
SCL0 2
SDA0 3 SDA1
6
SCL1
7
VCC
8
GND 4 EN
5
U110
PCA9515
NC 1
SCL0 2
SDA0 3 SDA1
6
SCL1
7
VCC
8
GND 4 EN
5
U111
PCA9515
NC 1
SCL0 2
SDA0 3 SDA1
6
SCL1
7
VCC
8
GND 4 EN
5
U112
PCA9515
C170
100N GND
3V3D
R107
10K
R108
10K
R109 10K R110 10K
R302 10K
R303 10K R304 10K R305 10K
R306 10K
R307 10K
R308 10K
3V3D
GND
SDA
SCLSCL-a
SDA-a
C171
100N GND
3V3D
GND
SDA
SCL
SDA-b
SCL-b
C172
100N GND
3V3D
SCL-c
SDA-c
GND
SDA
SCL
PWM-LED
W/R-LED
R309
10K
Q120
FMMT593TA
R326
120K R328
4K3
12
3
D154
BAV99
GND
VPPi
R327
120K
R329
10K
D155
3V6
C173
100N
D158
4v7
GND
1
2
3
P112
FROM STB
GND
5VS
W/R-L ED
A-LED
1 2 3
4
5
6
7 8
CON106
5VS
GND
STB_EN
i dl i ng 0V 1
4
3
2
7
6
5
JP100
1
4
3
2
7
6
5
JP101 1
4
3
2
7
6
5
JP102
VPPi
R325
33K
1
2
3
4
P111
R331 10K R330 10K
32
41
Q113
BCV62B
D159
4v7
D160
4v7
R319
1K5
PWM-LED
3V3D
C124
100N
C129
100N
GND
C187
NC
C188
NC
R332
6K8 R333
10K
TP1
C100
0.22u/16v
R350
47KJ
G101
PESDNC3D5VB
GND

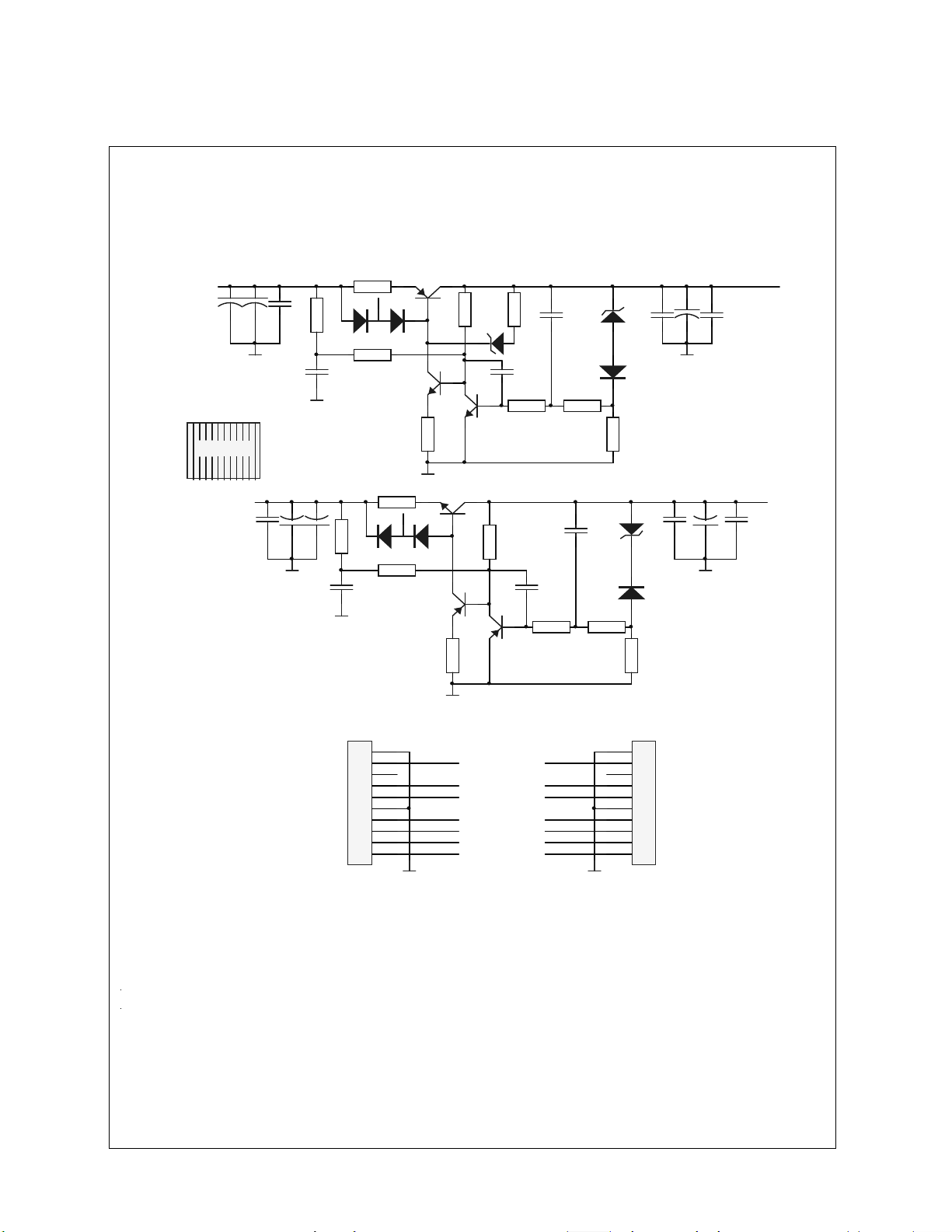

2. REGULATED SUPPLY BOARD
13
Heatsink
HS1
C122 100N
C132 100N
C126
220U
C127 220U
C128
220U
C130 220U
C131
220U
C123 220U
Q123
C2690
Q121
BC846B
Q122
BC846B
R323
0.47
R336
470
R341
3K9
R332
22k
R333
22k
R339
680
R338
680
D168
16V
GND
+17.5VVAUX+
Q125
BC856B
Q126
BC856B
Q124
A1220
R324
0.47
R337
470
R342 3K9
R340
680
R334
22k
R335
22k
GND
-17.5VVAUX-
GND
GND
C183
10U
C182
1U
C180
10U
C177
10U
C181
1U
1 2
3
D162 BAV99
12
3
D163 BAV99
GND
C184
10U
GND
GND
GND
GND
PS_EN
VAUX+
VAUX-
nFATAL
OVL
nAMPON
AMPOFF
1
2
3
4
5
6
7
8
9
10
P113
FROM PSU
GND
PS_EN
nFATAL
OVL
nAMPON
AMPOFF
1
2
3
4
5
6
7
8
9
10
P114
FROM PSU
Fr om SMPSTo MCU boar d
+17.5V
-17.5V
C185
100N
C186
100N
D169
16V
R346
680
R347
680
R348
680
C178
47P
C179
47P
R349
10K
D170
15V
D166
CD4148WP
D167
CD4148WP

XM500
HOLE
C527
22N
R554
100R
GND
XM501
HOLE
C528
22N
R555
100R
GND
XM502
HOLE
C536
22N
R578
100R
GND
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
P500
AMPMODULE
NC
NC
VPP VPP
GND
GND
GND GND
GND
GND
VPN VPN
VDR
OUTC
OUTC OUTC
OUTC
OUTCFBC
FBH OUTH
OUTH
OUTH
OUTH
OUTH
VSN VSP
GND
INH
I NC
OPT nAMPON
CLIP SCPIND
SDA/RDY SCL/nFAL
J500
RCA
J502
XLR3F
R522
100R
R517
47K
C524
10n
R531
47K
GND
GND
INPUT
C503
10U/16V
C501
220P
C509
220P
R506
100R
R536
100R
4
6
5RL500B
R516
220K
R530
220K
GND
2
31
U500A
LME49720
6
57
U500B
LME49720
R523
845R
R520
2K43
R527 2K43
R511
47K
C500
100P
C512
100P
GND
R508
4K75
R534
4K75
R521
10K
R529
10K
6
57
U502B
TL072
R518
10K
R514
10K
13
2
R524
500R
R513 4K64
R532 4K64
R525
392R
R507
12K
R538
12K
C505
10U/16V
C504
100N
C506
100N
R515
10K
R528
10K
8
4
U501C
LME49720
2
3
1
U502A
TL072
R512
220K
R533
220K
C508
1U
C502
1U
R510
47K
R535
47K
GND GND
6
57
U501B
LME49720
2
31
U501A
LME49720
R509
4K75
R537
4K75
R526
470K
INC
INH
7 8
SET
RESET
RL500C
1
3
2
RL500A
GND
Q505
2SC1815
GND
Q506
2SC1815
Q503
2SA1015 Q504 2SA1015
5V
R575
6K8
R557
10K
R556
10K
R543
10R
C525
220U/10V
GND
R564
6K8
2
3
1
S500Source
5V
R568
22K
R573
22K
GND
R569
47K
R574
47K
C531
10U
C534
10U
SEBAL
C529
10n
R558
2.2MEG
R546
2.2MEG R547 680K
R559
680K
8
4
U504C
MCP6002
2
31
U504A
MCP6002
6
57
U504BMCP60
0 2
C526
1U
R552
10K R553 330K
R560
100k
R562
100k
C530
10U
GND GND
5V
R550
5K6
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
P502
TO
Mother board
C507
10N 200V
C511
10N 200V
VPPi
VPNi
SCL
SDA
R563
0R
R561
0R
IIC add
R566
NC
GPO0
R570
0R
GPO1
GNDC
VDR-
VDR+
+17 . 5 V -17 . 5V
GND
+14 . 5V
-14 . 5V
IN
3
ADJ
1
OUT 2
U505
LM317M
IN
2
ADJ 1
OUT 3
U506
LM337M
R576
309R
R581
316R
R580
3K24
R577
3K24
R572
3R3
R582
3R3
C532
100U/25V
C551
100U/25V
C533
100nZ C538
10U/25V
C547
10U/25V
C539
100nZ
C548
100nZ
C552
100nZ
C540
10U/25V
C543
10U/25V
+17 . 5V
-17 . 5V
R567
NC
GPI
R571
0R
AudioS
5VS
6
5
7
U503B
OPA2134
84
U503C
OPA2134
2
3
1
U503A
OPA2134
5VS
GND
5V
L502
BMB2A0600RS2
C545
10U/10V
GND
C544
10U/10V
R545
4K7
R544
10K2
R549
10K2
R548
10K2
R542
5k
R540
4K12
C556
10U/10V
GND
GND
+14 . 5V
-14 . 5V
R541
10R
R551
10R
C518
47U/25V
C557
100nZ
C523
100nZ
C522
47U/25V
GND
VCL +
VCL -
VCL+
VCL-
8
4
U500C
LME49720
C514
100U/25V
C515
100nZ
C541
10N
250V
C517
100U/25V
C519
100nZ
GND
+14 . 5V
-14 . 5V
C510
10U/25V
C513
10U/25V
GND
-14.5V +14 . 5V
GND
VDR-
VDR+
VPPi
VPNi
L501
744302015
C549
10N
250V
L503
744302015
C535
100U/100V
C542
330n/ 200V
C550
330n/ 200V
VPP
VPN
VPP
VPP
GND
GND
VPN
VPN
GND
+14 . 5V
R500
6K8
b
e c
Q501
DTC114EKA
Q502
DTC114EKA
GND GND
R502
33K
R504
10K
b
b
ee c
c
Q500
DTA114
+14 . 5V
R539
10K
R503
10K
R505
1K
VCLIP
5V
GND
JP500
COPPER
BAR
GNDC GND
C521
1U
XM503
HOLE
C537
22N
R579
100R
GND
84
U502C
TL072
C516
100nZ
C520
100nZ
GND
L506
L507
L504
L505
C553
10N
200v
C554
10N
200vGNDGND
+14 . 5V
-14 . 5V
R519
NC
R583
NC
C555
10U/25V
GND
K1
K2 A
D500
REDGREEN
D502
1
S S352
D503
1SS352
C558
100P 1 4
2 3
T500
1 4
2 3
T501
GNDC
VPNi
VPPi
GND
OUTC
OUTH
C546
100U/100V
C559
100U/100V
C562
100U/100V
C560
100U/100V C561 100U/100V
C563
100U/100V C564 100U/100V XM533
HOLE
C565
22N
R501
100R
GND
XM534
HOLE
C566
22N
R584
100R
GND
D5 0 1
1SS352
D513
1SS352
D512
1SS352
D514
1SS352
D508
1SS352
D509
1SS352
D510
1SS352
D511
1SS352
D504
1SS352
D505
1SS352
D506
1SS352
D507
1SS352
C568
1U/25V
C567
1U/25VGND
GND
GNDC
R585 0R
R565
NC
GND
D515
NC
GND
17-01001-12
22-01626-00
R586
100R
R587
4.7MEG
GND
R588
10R
R589
10R
b
b
ee c
cQ508
DTA114
+14 . 5V
R590
10K
D516
1SS352
Over cur re nt in di cat i on
C569
100n
GND
R593
13K
1CN501
SP-
1CN502
SP+
R594
1K2
C570
1n8
m2 2 6 . 2 v
m2 7
6 . 5 v
bi as
R595
1K
D518
4v7
D519
4v7
TP2
C571
10U/10V
GND
3.AMP BOARD
14

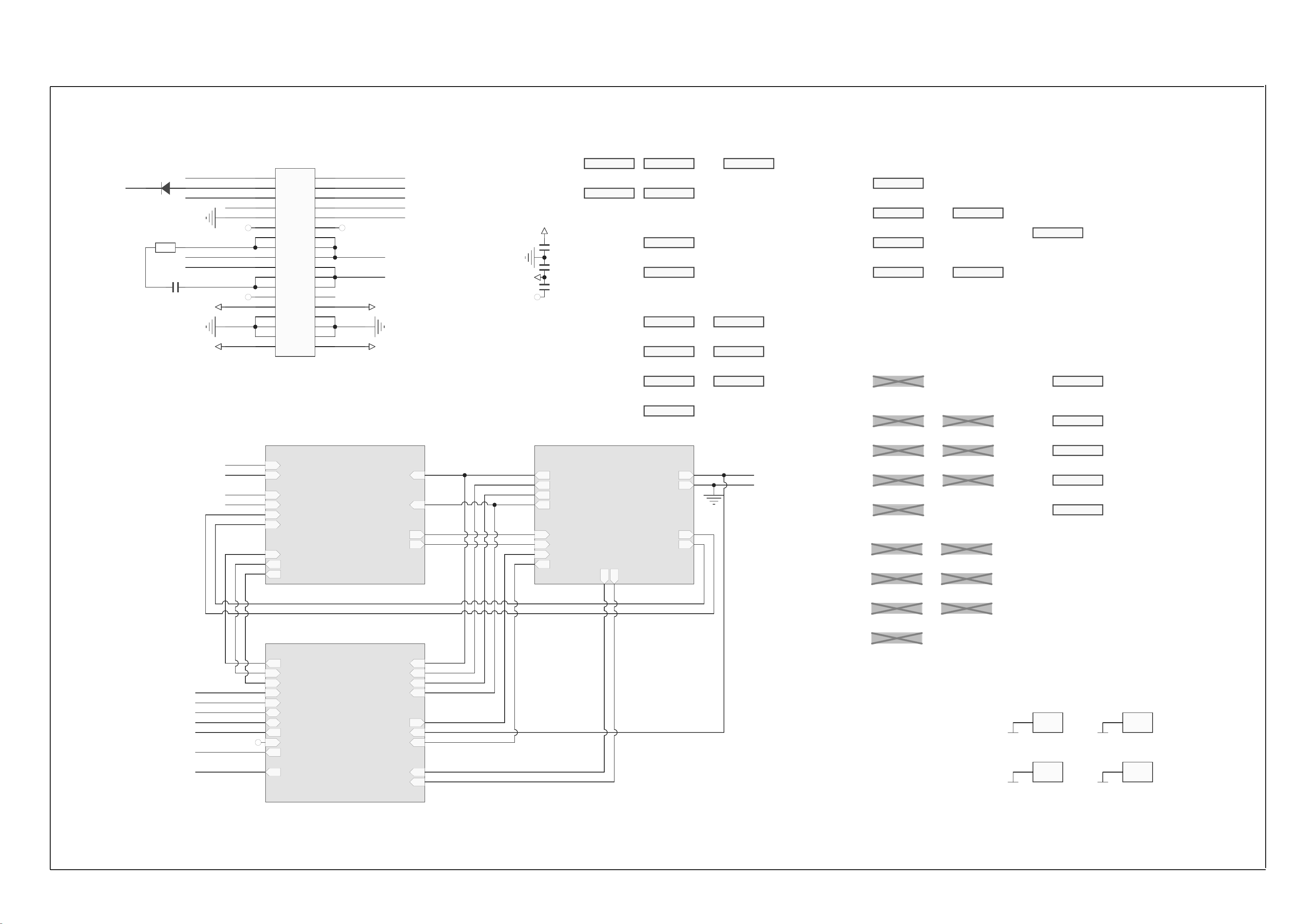

4.NC400 OEM BOARD(1/4)
15
+ISENSE+
+ISENSE-
CTRLH
CTRLL
SCCP
-ISENSE-
-ISENSE+
OUTH
OUTC
FBLH
FBLC
VSW
LSENSE+ LSENSE-
Power Stage
CTRLH
CTRLC
INH
INC
FBH
FBC
ENABLE
PSRR+
PSRR-
FBLH
FBLC
CLIPPOS
CLIPNEG
Modulator
C1
100n
C2
100n
+VB
-VB
GND
+VB
GND
C3
4n7
R1
4R7
SCL/nFATAL
A0/nAMPON
INB+
INB-
FBH
FBC
OUTH
OUTC
1
J1
Mounting
Hole
GND
1
J2
Mounting
Hole
GND
1
J5
Mounting
Hole
GND
1
J4
Mounting
Hole
GND
FBC
FBH
ENABLE
-HVPS
+HVPS
+ISENSE
-ISENSE
SCCP
VOUT
VDR_EXT
SDA/READY
SCL/nFATAL
A0/nAMPON
SCCPIND VSW
A1/OPTION
LSENSE+
LSENSE-
IOUT
CLIPPOS
CLIPNEG
CLIPIND
Control
NC400OEM
V0.1
-
Sheet 4 -
uP.SchDoc
+Vop
-Vop
VDR_EXT
VDR_EXT
C4
100n
VDR_EXT
GND
Mechanical
Screw
insulator
M3
Mechanical
Screw
insulator
M3
SDA/READY
SCCPIND
A1/OPTION
SCL/nFATAL
A0/nAMPON
SDA/READYSCCPIND
A1/OPTION
1 2
3 4
56
78
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
J3
CON_2x18MH
+VB
GNDGND
-VB -VB
OUTCOUTC
OUTHOUTH
-BNI+BNI
CLIP
CLIP
IOUT
IOUT
D29
BAS316
Mechanical
Spacer
ALU
Spacer
3.5x6.3x5mm ALU Hansong
Mechanical
Spacer
ALUSpacer
3.5x6x4.5mm ALU Hansong
Mechanical
Spacer
ALU 3.5
Mechanical
Spacer ALU
3.5
Spacer
3.5x6x7.3mm ALU Hansong
Mechanical
Spacer
ALU
3.5
Mechanical
Spacer
ALU 3.5
Mechanical
Spacer
ALU 3.5
Mechanical
TO126
Mechanical
SILPAD_TO220
Mechanical
SILPAD_TO220
Mechanical
M3x16
Mechanical
M3x16
Mechanical
M3x16
Mechanical
M3x16
Mechanical
Assembly
Mechanical
Bare
PCB
Mechanical
Hsink
SGG8L6W2H0T1
Mechanical
Hsink
SAA6L8W0H2T1
Mechanical
M3
Mechanical
M3
Mechanical
M3
Mechanical
M3
Mechanical
M3
Mechanical
M3
Mechanical
M3
Mechanical
M3x16
Mechanical
M3x16
Mechanical
M3x16
Mechanical
M3x16
Mechanical
M3x16
Mechanical
M3x16
Mechanical
M3x16
Mechanical
M3 Mechanical
M3
Mechanical
M3 Mechanical M3
Mechanical
M3 Mechanical M3
Mechanical
M3

4.NC400 OEM BOARD(2/4)
16
+ISENSE+
+ISENSE-
CTRLH
CTRLL
SCCP
-ISENSE-
-ISENSE+
OUTH
C18
150p
R15
12R
T6 BC817W
T3B
MBT3906
D3
BAS316
R17
1k
T3A
MBT3906
12
3D4
BAV70W
R11
470R
R10
10k
C29
150p
R35
12R
T1
BC817W
D11
BAS316
R37
1k
12
3
D12
BAV70W
R31
470R
R30
10k
L6
1u/8A
GND
GND
GND
1 2
3
D1
BAV99W
12
3
D7
BAV99W
C31
470n
T10
BC846BW
C34
470n
D14
5V6
R29
10k
L4
600R/0.2A
R24
2R2
12
3
D9
BAW56WT7
BC856BW
R39
1k
R34
1k
C32
470n
C22
470n
C21
220uR18
33k
+VB
-VB
VDR
R9
2.5m
R42
2.5m
+PS
-PS
TUOWSV
12
3
D8
BAV99W
12
3
D2
BAV99WC17
15p
C28
18p
T2
FDP42AN15
T8
FDP42AN15
T4
BC807W
T11 BC807W
T5
BF622
D6
15V
VDR
R12
220R
R32
220R
R22
6R8
C24
330p
GND
L3
10u
GND
L1
1u/8A
R23
4R7
C23
4n7
GND
OUTC
L5
33n
L2
33n
R13
2R2
R33
2R2
R16
100k
R36
100k
C19
470n
C30
470n
D5
2V4
D13
2V4
R8
33k
1
J8
Mounting
Hole
GND
1
J9
Mounting
Hole
GND
R41
1R
R7
1R
C16
100n
GND
C33
100n
GND
C25
680nC26
680nC27 680n
C11
100u
GND
C12
100u
GND
C13
100u
GND
C14
100u
GND
C10
100u
GND
C36
100u
GND
C37
100u
GND
C38
100u
GND
C39
100u
GND
C40
100u
C9
100n
R6
1R
C8
100n
R5
1R
C7
100n
R4
1R
C6
100n
R3
1R
C5
100n
R2
1R
C45
100n
R47
1R
C44
100n
R46
1R
C43
100n
R45
1R
C42
100n
R44
1R
C41
100n
R43
1R
GNDGNDGNDGNDGND
T13
BC846BW
T12
MMBT5401
R38
1k
R40
2k2
GND
D10
5V6
R26
1R R27 1R R28 1R
R19
1R R20 1R R21 1R
FBLH
FBLC
T9A
MBT3906
T9B
MBT3906
C15
22u
GND
C35
22u
GND
R25
1M VSW
R14
10R
GND
C20
100p
LSENSE+
LSENSE-
C76
100n
R144
1R
C18 L2 R15:NC
T1T6:fmmt618;T4T11fmmt718
T2,T8:FDP52N20
C29 L5 R35 :NC
0.5W

4.NC400 OEM BOARD(3/4)
17
CTRLH
CTRLC
INH
INC
FBH
FBC
ENABLE
R48
220R
GND
T19B
BC846S
T19A
BC846S
R83
560R
R87
1k R88
1k R89
560R
T22
BC846BW
R95
4k7
R69
560R
R73
560R
R67
2k7R68
2k7
R81
270R
R82
270R
T21
BC846BW
T18A
BC846S
T18B
BC846S
R90
120R
C49
100n
-VB
VDR
T15B
BCM856S
T15A
BCM856S
R71
47k
R66
47k
GNDGND
R70
10k
C51
100n
PSRR+ PSRR-
R51
100k
R93
47R
R94
82R
T16A
BC856S
T17B
BC856S
T16B
BC856ST17A
BC856S
+Vop
R64
47R
R58
1k2
R75
1k2
R57
1k2
R74
1k2
R52
10k
R84
10k
R63
1k5
R72
1k5
R77
1k5
R60
1k5
R56
2k7
R80
2k7
R50
3k
R85
3k
R49
820R
R86
820R
C47
1n8C48 1n8
C52
1n8C53
1n8
R76
47k
R59
47k
R65
1k8
GND
C50
2n2
R78
360kR79
360k
R62
360k
R61
360k
GND
R92
200R
T14A
BC856S
T14B
BC856S
T26
BC846BW
T28
BC856BW
R99
100R
T30
BCV61B
T24
BCV62B
D16
3V3
D18
3V3
+Vop
-Vop
J10
Jumper
R55
1k
R96
10k
R102
10k
T20B
BCM856S
T20A
BCM856S
R54
6k8
R53
6k8
-Vop
FBLH
FBLC
C46
560p
C54
560p
+Vop
-Vop
T25
BC856BW
T29
BC846BW
D15
BAS316
R101
10k
R98
10k
D19
BAS316
GND
CLIPPOS
3
21
84
V+
V-
U1A
NE5532
T23
BC856BW
GND
R91
4k7
CLIPNEG
R97
22k
R100
22k
C67
1n
C75
1n
R103
1k
R128
1k
MMST5401

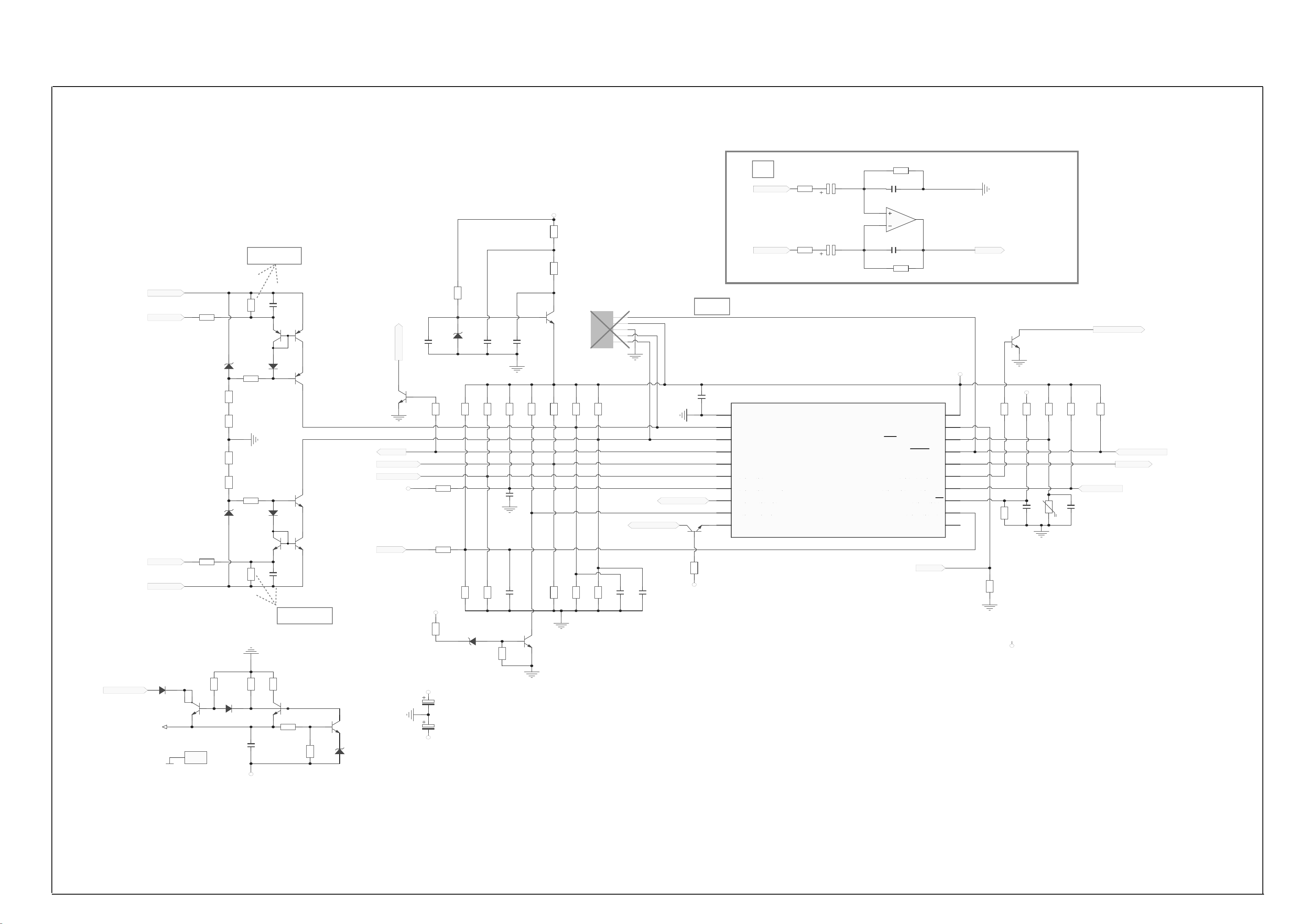

4.NC400 OEM BOARD(4/4)
18
-HVPS
+HVPS
+ISENSE
-ISENSE
T32
BCV62B
T37
BCV61B
D21
12V
D23
12V
D22
BAS316
D24
BAS316
T33
MMBT5401
T35
MMBT5551
R113
150k
R131
150k
R112
82R
R135
82R
R111
390R
R137
330R
C59
10n
C68
10n
R114
10k
R125
10k
R129
10k
R126
10k
GND
C74
470n
VDR
-VB
D27
5V6
R148
68R
T40
BD139
1
J12
Mounting
Hole
GND
T41
BC846BW
GND
R149
18k
R150
13k
VDR_EXT
T39
BCP56
D26
BAS316
R146
47kR147
47k
D25
BAS316 C72
22u
C73
22u
GND
+Vop
-Vop
ENABLE
SCCP
SDA/READY
SCL/nFATAL
A0/nAMPON
A1/OPTION
VSW
VOUT
R142
1k2
R119
8k2
R143
1k8
R120
2k2
GND
RA4/AN3/T1G/OSC2/CLKOUT3
VDD1
RA5/T1CKI/OSC1/CLKIN 2
RA3/MCLR/VPP 4
RC5/CCP1/P1A 5
RC4/C2OUT/P1B6
RC3/AN7/C12IN3-/P1C7
RC6/AN8/SS 8
RC7/AN9/SDO9
RB7/TX/CK 10 RB6/SCK/SCL
11
RB5/AN11/RX/DT
12
RB4/AN10/SDI/SDA
13
RC2/AN6/C12IN2-/P1D
14
RC1/AN5/C12IN-
15
RC0/AN4/C2IN+
16
RA2/AN2/T0CKI/INT/C1OUT
17
RA1/AN1/C12IN0-/VREF/ICSPCLK
18
RA0/AN0/C1IN+/ICSPDAT/ULPWU
19
Vss
20
R
A4/AN3/T1
G
/
OSC
2/
C
LK
OU
T
V
DD
R
A5/T1
C
KI/
OSC
1/
C
LKIN
R
A3/M
C
LR/
V
PP
R
C
5/
CC
P1/P1
A
R
C
4/
C
2
OU
T/P1
B
RC3
/
AN7
/
C12IN3-
/
P1
C
RC6/AN8/S
S
R
C7
/
AN9
/
SD
O
RB7/TX/CKRB6/SCK/SCL
RB5/AN11 /RX/DT
RB4/AN10/SDI/SD A
RC2/AN6 /C12IN2- /P1D
RC1/AN5/ C12IN -
RC0/AN4/ C2IN +
RA2/AN2/T0 CKI/INT/ C1OUT
RA1/AN1/ C12IN0-/ V REF/I CSPCLK
RA0/AN0/ C1IN+/I CSPDAT/ ULPWU
Vss
U2
PIC16F690
GND
1
2
3
4
5
J11
CON_1x5MV
GND
C70
100p
C71
100p
3VPIC
R134
1M
C69
1u
GND
R138
100k
R116
27k
R139
27k
+VB
-VB
-VB
C63
2u2
T31
BC846BW
D20
3V9 C62
2u2
GND
R109
330R
R106
330R
+Vop
C61
2u2
C60
2u2
R123
27k
VOUT
R133
390k
R130
390k
R117
10k
R140
10k
R132
10kC65
100p
C64
10n
C66
10n
GND
R122
1k8
T36
BC846BW
R136
4k7
3VPIC
R115
1k
T34
BC846BW
GND
SCCPIND
R110
2k2
R124
27k
R118
10k
R141
10k
LSENSE+
LSENSE-IOUT
5
67
U1B
NE5532
C56
1n5
R105
2k4
C55
10u
R104
10M
R107
2k4
C57
10u
C58
1n5
R108
10M
GND
D28
10VT42
BC846BW
R152
10k
R153
10k
+Vop
GND
CLIPPOS
CLIPNEG
R127
10k
CLIPIND
R121
1k
T38
BC846BW
R151
12k
R145
12k
Not
placed
R111 NC
R137 NC
NC
Reset

trig in
C165
100N
R2 8 7
10 K J
R2 8 8
6k 8
D138
4v7
232
gnd
5
1
4
2
3
J 10 1A 17 - 0 2 0 01-5 5
R284
4 7 0 R 232
gnd
1
PB 1
1
PB 2
2 1
SW 1
SW (T OUCH
)
1
2
3
4
P110
TO
M A IN
Whi t e l e d b r i g ht n e s s ADJ
L100
FB
1
2
3
4
CON10
1
L105
FB
5V L
C17 6
2U2
C17 5
1 0 0 N
DGND
W/R-L ED
A -L ED
L104
FB
1
2
3
4
5
6
7
8
CO N 107
5V S
DGND
1
2
3
4
CON108
5V S
touch
on
PWM -L ED
3V 3D
GPO 1
1
GPO 0
2
TOGGL E/FS S
3
DEL A Y
4
CS0
5
CS1
6
V SS
7
CS2
8
ARST 9
CS3 10
X RES 11
SCA N R/ SL EEP 12
V D D 13
G PO 3 14
CM O D 15
G PO 2 16
U101
CY 8CM BR 2044
C111
10 0 N
C110
10 U
V CC
GN D
R132
0
R318
0
R154
0
GN D
GN DGND GN D
R311
0
GN D
GN D
C174
2
. 2NF
GN D
CS0
R118
10K
R155
560
GN D
GPO
GPO
5V L
R312
220R
Q 110
DTC114EKA
Q 10 9
D TC114EKA
DGND
DGND
12
D 103
AMBER
12
D 150
RE D
R104
220R
Q 111
DTC114EKA
DGND
12
D 102 W H IT E
W/R-L ED
LED
I nd i c at o r
R320
750
12
D 156 W H IT E
12
D 157 W H IT E
R322
750
R321
750
PW M -L ED
R102
4K 7
Q 112
DTC114EKA
DGND
3V 3D
Q 115
DTC114 EKA
Q114
DTA 114
DGND
A -L ED
R103
4K 7 5V L
Q 116
DTC114 EKA
DGND
R348
220R
12
D 164 RE D
R347
220R
12
D 163 RE D
LED
Trigger TOUCH
5..LED&TRIGGER&TOUCH BOARD
19

6.SMPS BOARD(1/5)
20
12
J1
JST_B2P3_VH
ACDET
PVAUX
PSVAUX
PVBUS
L
NPVSTART
Sheet2 -Input
Voltage Selection.SchDoc
PVBUS
PVAUX
ACDET +VB
-VB
-VDR
+VDR
+VAUX
-VAUX
nFATAL
nAMPON
+5VSB
AMPOFF
PSEN
PSVAUX OVL
PVSTART
Sheet4 -
Main SMPS.SchDoc
PVBUS
PSVAUX +5VSB
Sheet3
- StandbySMPS.SchDoc
1
2
3
4
5
6
J2
B06P-VL
S
1
2
3
4
5
6
7
8
9
10
J3
B10B-EH-A
S
+5VSB
+5VSB
Sheet7
-Mechanical.SchDoc
S
C36
100n
S
C35
100n
MH1MH2
F1
T12AH
