SERVICE MANUAL
S570
S570
DVD / VCD / CD
PLAYER
DVD / VCD / CD
PLAYER
DRAFT DATE: 1 DEC, 2003
1-4
PRPDUCT SAFETY SERVICING GUIDELINES FOR VIDEO PRODUCTS
CAUTION: DO NOT ATTEMPT TO MODIFY THIS PRODUCT IN
ANYWAY. NEVER PERFORM CUSTOMINIZED INSTALLATIONS
WITHOUT MANUFACTURER’ S APPROVAL. UNAUTHORIZED
MODIFICATIONS WILL NOT ONLY VOID THE WARRANTY, BUT MAY
LEAD TO YOUR BEING LIABLE FOR ANY RESULTING PROPERTY
DAMAGE OR USER INURY.
SERVICE WORK SHOULD BE PERFORMED ONLY AFTER YOU ARE
THOROUGHLY FAMILIAR WITH ALL OF THE FOLOWING SAFETY
CHECKS AND SERVICING GUIDELINS. TO DO OTHERWISE,
INCREASES THE RISK OF POTENTIAL HAZARDS AND INJURY TO
THE USER.
WHILE SERVICING, USE AN ISOLATION TRANSFORMER FOR
PROTECTION FROM A.C. LINE SHOCK.
SAFETY CHECKS
AFTER THE ORIGINAL SERVICE PROBLEM HAS BEEN CORRCTED,
A CHECK SHOULD BE MADE OF THE FOLLOWING.
SUBJECT: FIRE &SHOCK HAZARD
1. BE SURE THAT ALL COMPONENTS ARE POSITIONED IN SUCH A
WAY AS TO AVOID POSSIBILITY OF ADJACENT COMPONET SHORTS.
THIS IS ESPECIALLY IMPORTANT ON THOSE MODULES WHICH ARE
TRANSPORTED TO AND FROM THE REPAIR SHOP.
2. NEVER RELEASE A REPAIR UNLESS ALL PROTECTIVE DEVICES
SUCH AS INSULATORS, BARRIERS, COVERS, SHIELDS, STRAIN
RELIEFS, POWER SUPPLY CORDS, AND OTHER HARDWARE HAVE
BEEN REINSTALLED PERORIGINAL DESIGN. BE SURE THAT THE
SAFETY PURPOSE OF THE POLARIZED LINE PLUG HAS NOT BEEN
DEFEATED.
3. SOLDERING MUST BE INSPECTED TO DISVCOVER POSSIBLE
COLD SOLDER JOINTS, SOLDER SPLASHES OR SHARP SOLDER
POINTS. BE CERTAIN TO REMOVE ALL LOOSE FOREIGN PARTICLES.
4. CHECK FOR PHYSICAL EVIDENCE OF DAMAGE OR
DETERRIORATION TO PARTS AND COMPONENTS. FOR FRAYED
LEADS, DAMAGED INSULATION (INCLUDING A.C. CORD).AND
REPLACE IF NECESSARY FOLLOW ORIGINAL LAYOUT, LEAD
LENGTH AND DRESS.
5. NO LEAD OR COMPONENT SHOULD TOUCH A RECIVING TUBE
OR A RESISTOR RATED AT 1 WATT OR MORE. LEAD TENSION
AROUD PROTRUNING METAL SURFACES MUST BE AVOIDED.
6. ALL CRITICAL COMPONENTS SUCH AS FUSES, FLAMEPRO OF
RESISTORS, CAPAICTORS, ETC. MUST BE REPLACED WITH EXACT
FACTORY TYPES. DO NOT USE REPLACEMENT COMPONETS
OTHER THAN THOSE SPECIFIED OR MAKE UNRECOMMENDED
CIRCUIT MODIFICATIONS.
7. AFTER RE-ASSEMBLY OF THE SET ALWAYS PERFORM AN A.C.
LEAKAGE TEST ON ALL EXPOSED METALLIC PARTS OF THE
CABINET, (THE CHANNEL SELECTOR KNOB, ANTENNA TERMINALS.
HANDLE ADN SCREWS) TO BE SURE THE SET IS SAFET TO
OPERATE WITHOUT DANGER OF ELECTRICAL SHOCK. DO NOT USE
A LINE ISOLATION TRANSFORMER DURING THIS TEST USE AN A.C.
VOLTMETER, HAVING 5000 OHMS PER VOLT OR MORE SENSITIVITY,

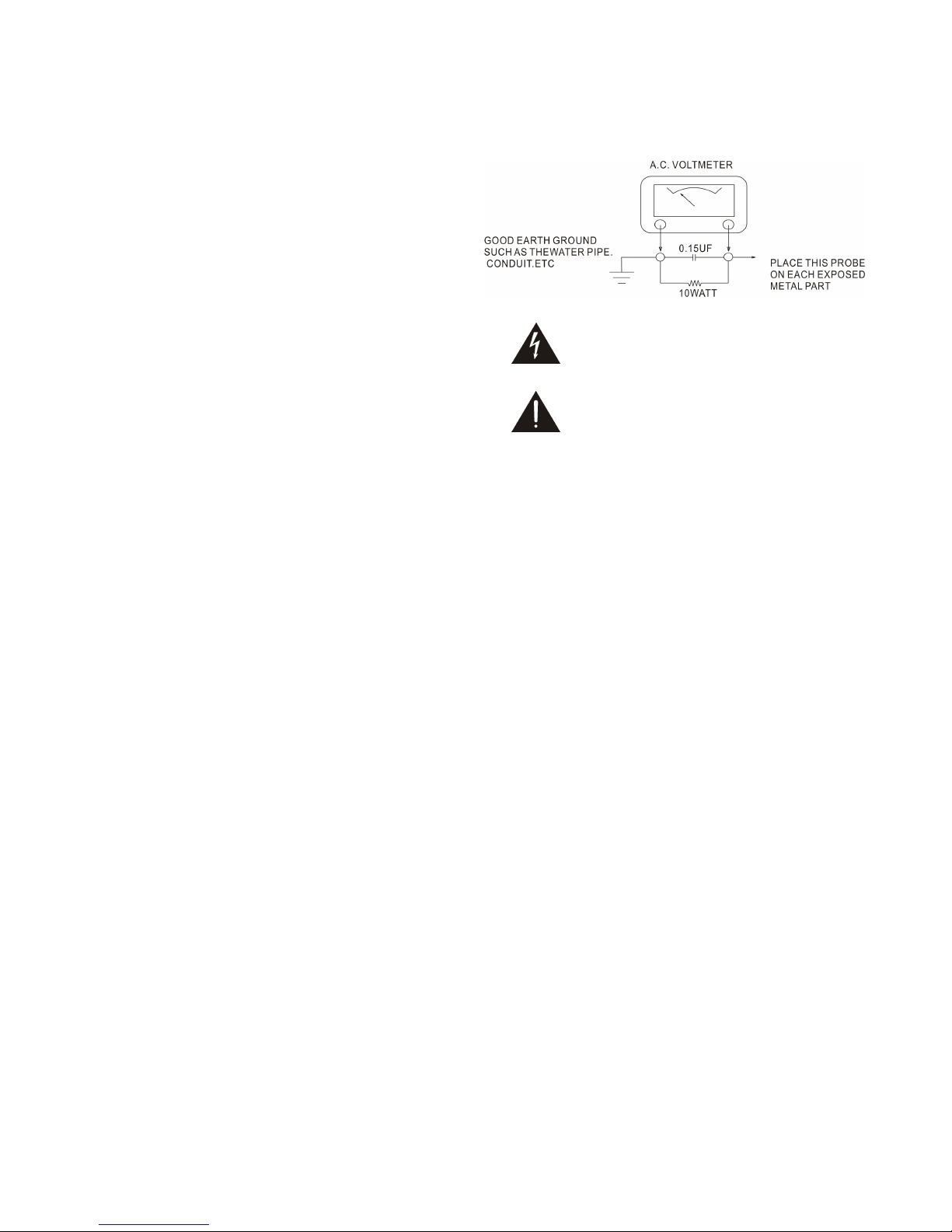

IN THE FOLLOWING MANNER; CONNECT A 1500OHM 10 WATT
RESISTOR, PARALLELED BY A. 15 MFD, 150.V A.C. TYPE CAPACITOR
BETWEEN A KNOWN GOOD EARTH GROUND (WATER PIPE,
CONDUIT, ETC.) AND THE EXPPOSED METALLIC PARTS, ONE AT A
TIME.
MEASURE THE A.C. VOLTAGE ACROSS THE COMBINATION OF 1500
OHM RESISTOR AND .15 MFD CAPACITOR.
REVERSE THE A.C. PLUG AND REPEAT A. C. VOLTAGE
MEASUREMENTS FOR EACH EXPOSED METALLIC PART.
VOLTAGE MEASURE MUST NOT EXCEED 75 VOLTS R.M.S. THIS
CORRESPONDS TO 0.5 MILLIAMP A.C. ANY VALUE EXCEEDING THIS
LIMIT CONSTITUTED A POTENTIAL SHOCK HAZARD AND MUST BE
CORRECTED IMMEDIATELY.
SUBJECT: GRAPHIC SYMBOLS
SUBJECT: TIPS ON PROPER INSTALLATION
1. NEVER INSTALL ANY PRODUCT IN A CLOSED-IN RECESS,
CUBBYHOLE OR CLOSELY FITTING SHELF SPACE. OVER OR
CLOSE TO HEAT DUCT, OR IN THE PATH OF HEATED AIR
FLOW.
2. AVOID CONDITIONS OF HIGH HUMIDITY SUCH AS:
OUTDOOR PATIO INSTALLATIONS WHERE DEW IS A FACTOR,
NEAR STEAM RADIATORS WHERE STEAM LEAKAGE IS
FACTOR, ETC.
3. AVOID PALCEMNET WHERE DRAPERIES MAY OBSTRUCT
REAR VENTING. THE CUSTOMER SHOULD ALSO AVOID THE
USE OF DECORATIVE SCARVES OR OTHER COVERINGS
WHICH MIGHT OBSTRUCT VENTILATION.
4. WALL AND SHELF MOUNTED INSTALLATIONS USING A
COMMERCIAL MOUNTING KIT. MUST FOLLOW THE FACTORY
APPROVED MOUNTING INSTRUCTIONS A PRODUCT
MOUNTED TO A SHELF OR PLATFORM MUST RETAIN ITS
ORIGINAL FEET (OR THE EQUIVALENT THICKNESS IN
SPACERS) TO PROVIDE ADEQUATE AIP FLOW ACROSS THE
BOTTOM, BOLTS OR SCREWS USED FOR FASTENERS MUST
NOT TOUCH ANY PARTS OR WIRING. PERFORM LEAKAGE
TEST ON CUSTOMIZED INSTALLATIONS.
5. CAUTION CUSTOMERS AGNINST THE MOUNTING OF A
PRDUCT ON SLOPING SHELF OR TILTED POSITION, UNLESS
THE PRODUCT IS PROPERLY SECURED.
6. A PRODUCT ON A ROLL-ABOUT CART SHOULD BE STABLE
ON ITS MOUNTING TO THE CART. CAUTION THE CUSTOMER
ON THE HAZARDS OF TRYING TO ROLL A CART WITH SMALL
CASTERS ACROSS THRESHOLDS OR DEEP POLE CARPETS.
7. CAUTION CUSTOMERS AGAINST THE USE OF A CART OR
STAAND WHICH HAS NOT BEEN LISTED BY UNDERWRITERS
LABORATORIES, INC. FOR USE WITH THEIR SPECIFIC
MODEL OF THELVISION RECEIVER OR GENERICALLY
APPROVED FOR USE WITH T.V.’S OF THE SAME OR LARGER
SCREEEN SIZE.
8. CAUTION CUSTOMERS AGAINST THE USE OF EXTENSION
CORDS, EXPLAIN THAT A FOREST OF EXTENSIONS
SPROUTING FROM A SINGAL OUTLET CAN LEAD TO
DISASTROUS CONSEQUENCES TO HOME AND FAMILY.
THE LIGHTNING FASH WITH ARROWHEAD SYMBOL, WITHIN AN
EQUILATE
RAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE”
WITHIN THE
PRODUCT’
S ENCLOSURE THAT MAY BE OF SUFFCIENT MAGNITUDE TO
CONSTITUTE A RISK OF ELECTRIC SHOCK.
THE EXCELAMATION POINT WITHIN AN EQUILATERAL TRIANGLE
IS
INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORANT
OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE APPLIANCE.
1-5
SERVICING PRECAUTIONS
CAUTION:
Before servicing the DVD player covered by this service
data and its supplements and addends, read and follow
the SAFETY PRECAUTIONS. NOTE: if unforeseen
circumstances create conflict between the following
servicing precautions and any of the safety precautions in
this publications, always follow the safety precautions.
Remembers Safety First:
General Servicing Precautions
1. Always unplug the DVD player AC power cord from the AC
power source before:
(1) Removing or reinstalling any component, circuit board,
module, or any other assembly.
(2) Disconnection or reconnecting any internal electrical
plug or other electrical connection.
(3) Connection a test substitute in parallel with an
electrolytic capacitor.
Caution:A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.
2. Do not spray chemicals on or near this DVD player or
any of its assemblies.
3. Unless specified otherwise in this service data, clean
electrical contacts by applying an appropriate contact
cleaning solution to the contacts with a pipe cleaner,
cottontipped swab, or comparable soft applicator.
Unless specified otherwise in this service data, lubrication
of contacts is not required.
4. Do not defeat any plug/socket B+ voltage interlocks
with which instruments covered by this service manual
might be equipped.
5. Do not apply AC power to this DVD player and/or any
of its electrical assemblies unless all solid-state device
heat sinks are correctly installed.
6. Always connect test instrument ground lead to the
appropriate ground before connection the test instrument
positive lead. Always remove the test instrument ground
lead last.
Insulation Checking Procedure
Disconnect the attachment plug from the AC outlet and
turn the power on. Connect an insulation resistance
meter (500V) to the blade of the attachment plug. The
insulation resistance between each blade of the
attachment plug and accessible conductive parts (Note 1)
should be more than 1M-ohm.
Note 1: Accessible Conductive Parts including Metal
panels, Input terminals, Earphone jacks, etc.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged
easily by static electricity. Such components commonly are
called Electrostatically Sensitive (ES) Devices. Examples of
typical Es devices are integrated circuits and some field
effect transistors and semiconductor chip components.
The following techniques should be used to help reduce the
incidence of component damage caused by static electricity.
1.Immediately before handing any semiconductor
component or semiconductor equipped assembly, drain
off any electrostatic charge on your body by touching a
known earth ground. Alternatively, obtain and wear a
commercially available discharging wrist strap device,
which should be removed for potential shock reasons
prior to applying power to the unit under test.
2.After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such
an aluminum foil, to prevent electrostatic charge buildup
or exposure of the assembly.
3.Use only a grounded-tip soldering iron to solder or
unsolder ES devices.
4.Use only an antistatic solder removal device. Some
solder removal devices not classified an “antistati c” can
generate electric charges sufficient to damage ES
devices.
5.Do not use freonpropelled chemicals. These can
generate electrical charge sufficient to damage ES
devices.
6.Do not remove a replacement ES device from its protect
tive package until immediately before you are ready to
install it. (Most replacement ES devices are packaged
with leads electrically shorted together by conductive
foam, aluminum foil, or comparable conductive material).
7.Immediately before removing the protective material
from the leads of a replacement ES device, touch the
protective material to the chassis or circuit assembly into
which the device will be installed.
Caution: Be sure no power is applied to the chassis or
circuit, and observe all other safety precautions.
8.Minimize bodily motions when handing unpackaged
replacement ES devices. (Normally harmless motion
such as the brushing together of your clothes fabric or
the lifting of your foot from a carpeted floor can generate
static electricity sufficient to damage an ES device.)
1-6
SPECIFICATIONS
DVD VIDEO PLAYER
POWER SUPPLY……………………………………………… AC 230V,50Hz (EUR)/120V,60Hz(US/CANADA)
Power consumption…………………………………………. 30W
External dimensions………………………………………… 435×80×280mm
Weight (net)…………………………………………………… 4.6kg
Signal system…………………………………………………. PAL (EUR)/NTSC (USA/CANADA)
Laser……………………………………………………………. Semiconductor laser, wavelength 650nm
Frequency range(digital audio)…………………………….. 2Hz to 22kHz
Signal-to-noise………………………………………………… More than 102dB(A-WEIGHTED)
Audio dynamic ……………………………………………….. More than 92dB
Harmonic distortion………………………………………….. 0.008%
Operating conditions…………………………………………. Temperature: 41°to 95°, operation status: Horizontal
OUTPUTS
Video output …………………………………………………… 1.0V (p-p), 75Ù, negative sync., RCA jack×1
S-video output…………………………………………………. (Y) 1.0V (P-P), 75Ù,negative sync., Mini DIN 4pin×1
(C) 0.286V (P-P), 75Ù
Component Video output …………………………………… (Y)1.0V (P-P), 75Ù,negative sync.,
(Cb Cr) 0.5V (P-P), 75Ù
Scart Video output…………………………………………….. (CVBS)1.0V(P-P) ,75Ù,negative sync.,
(R GB)0.7V(P-P),75Ù
Audio output(digital audio) ………………………………….. 0.5V(p-p) 75Ù, RCA jack×1
Audio output(analog audio) …………………………………. 2.0Vrms(1kHz, 0dB), RCA jack×1

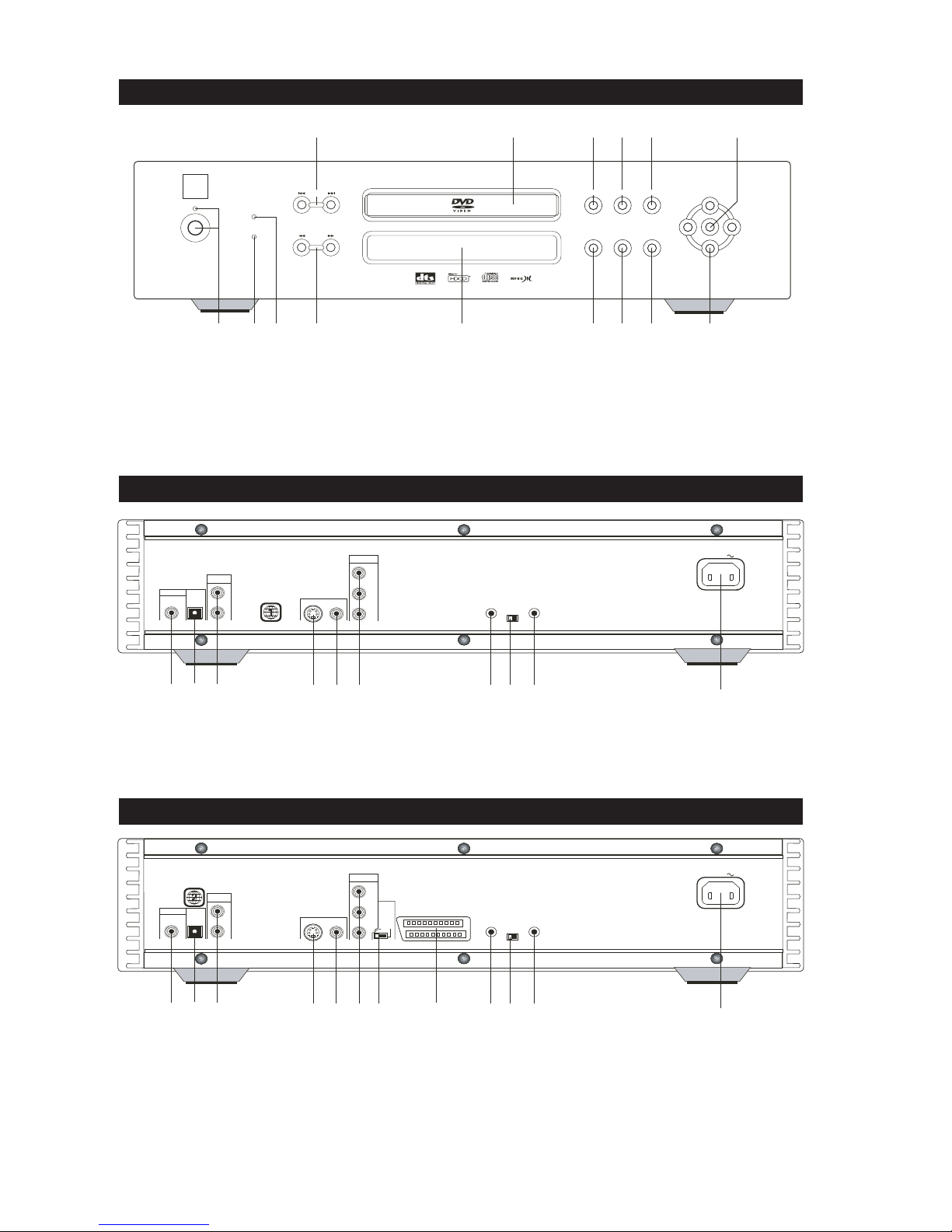

1Power button and on/standby/off indicator
2PROGRESSIVE SCAN indicator
3DVD tray
4PLAY button
5PAUSE buttons
6SKIP buttons
7MENU button
8SELECT/navigation buttons
9HDCD indicator
10 Display window
11 OPEN/CLOSE button
12 STOP button
13 SCAN buttons
14 PROGRESSIVE SCAN button
FRONT PANEL
Identification of Controls
1DIGITAL OUT COAX Jack
2DIGITAL OUT OPTICAL (With Dust Protection Cap) Jack
3MIXED AUDIO OUT (L & R) Jacks
4S-VIDEO OUT Jack
5VIDEO OUT Jack
6COMPONENT VIDEO OUT Jacks
7+12V TRIGGER IN Jack
8AUTO TRIGGER ON-OFF Switch
9EXT. IR IN Jack
10 Power cord
REAR PANEL (NORTH AMERICAN VERSION)
1DIGITAL OUT COAX Jack
2DIGITAL OUT OPTICAL (With Dust Protection Cap) Jack
3MIXED AUDIO OUT (L & R) Jacks
4S-VIDEO OUT Jack
5Composite VIDEO OUT Jack
6COMPONENT VIDEO OUT Jacks
7VIDEO OUTPUT S-VIDEO-SCART/RGB Switch
8SCART/RGB OUT Jack
912V TRIGGER IN jack
10 AUTO TRIGGER ON-OFF Switch
11 EXT. IR IN Jack
12 Power cord socket
REAR PANEL (EUROPEAN VERSION)
SCAN
PROGRESSIVE
SCAN
DVD Player S570
PROGRESSIVE
SCAN
NA
D
OPEN/CLOSE STOP
HDCD
Multichannel
1
19
6
2
3
13
45 78
10 11 12 8
14
SKIP
PLAY MENU
PAUSE
OPTICAL
DIGITAL OUT
COAXIAL
MIXED
AUDIO OUT
VIDEO OUT S VIDEO
R
AUTO
TRIGGER
+12V TRIGGER IN EXT. IR IN
ON OFF
AC IN
COMPONENT
VIDEO OUT
Y
Cb/
Pb
Cr/
Pr
1234
5
88
8 9
710
6
SCART/RGB
OUT
SCART/RGB
S-VIDEO
VIDEO
OUTPUT
OPTICAL
DIGITAL OUT
COAXIAL
MIXED
AUDIO OUT
VIDEO OUT S VIDEO
L
R
AUTO
TRIGGER
+12V TRIGGER IN EXT. IR IN
ON OFF
AC IN
COMPONENT
VIDEO OUT
Y
Cb/
Pb
Cr/
Pr
123457810 11
912
6
1DVD indicator
2VCD indicator
3PBC indicator for VCD
4MP3 indicator
5DTS indicator
6DOLBY DIGITAL indicator
7ANGLE indicator
8PROGram indicator
9TITLE Indicator
10 CHAPTER Indicator
11 Operating status indicator
12 Playback indicator
13 Pause indicator
14 Repeat playback mode indicators
15 Total playing time display
16 Title/track number display
17 Chapter number display
18 L R indicator
DISPLAY WINDOW
REMOTE CONTROL
1POWERON, POWEROFF
2SETUP
3Transport control keys OPEN/CLOSE, STOP,PAUSE, STEP,PLAY,SKIP,
SCAN,SLOW
4ENTER and navigation buttons
5RETURN
6TITLE, MENU
7DISPLAY
8CLEAR
9PROGRAM
10 REPEAT
11 REPEATA-B
12 AUDIO
13 SUBTITLE
14 ANGLE
15 Numerical buttons
16 DIMMER
17 MARKER, SEARC H
18 ZOOM
19 RANDOM
SCAN
2
5
8
4
7
3
6
9
0
1
MENU
RTN
DISP
TITLE
E NT E R
DV D 4
ANG LE
ON O F F
SUBTITLE
AUDI O
S LO W
SETUP
RPT A-B
REPEAT
RANDOM
SEARCH
MARKER
CL EA R
PR OGRA MZO OM
OPEN/CLOS E
STOP
PAUSE /STE P
PL A Y
DIMM ER
SKIP SKIP
C013
S005
C006
C005
C004
C001
F006
F005
F004
S001
F010
F008
F007
F009
S014
F011
S003
S002
F014
F012
S002
S004 C002
S010
C009
C008
C010
S012
S013
C015
C012
C011
S002
S002
F013
S008
C003
S004
R002
S011
C007
S006
S007
S009
C014
S008
R001
S002
S010
T001
F001
F002
F003
EXPLODED VIEW
REF.NO. PART NO. DESCRIPTION Qty. REF.NO. PART NO. DESCRIPTION Qty.
C001 67-017014-0 Base Cover 1 F009 66-017004-0 IR Bracket 1
C002 67-017005-0 Left Side Panel 1 F010 23-56119-00 VFD 1
C003 67-017006-0 Right Side Panel 1 F011 75-017002-0 Display Bracket 1
C004 01-57004-01 SMPS PCB with components 1 F012 01-57003-01 Control PCB with Components 1
C005 70-009002-0 Heatsink 1 1 F013 66-017002-0 FPP Shielding Plate 1
C006 70-017001-1 Heatsink 2 1 F014 11-01201-01 Power Switch 1
C007 18-57015-00 R Core Transformer(C Version) 1 R001 67-017002-0 Rear Panel (C Version) 1
18-57015-01 R Core Transformer(AH Version) 1 67-017008-0 Rear Panel (AH Version) 1
C008 16-57004-02 Analog PS PCB with components 1 R002 17-07002-00 AC Inlet, 3516-T1C02, for C and 1
C009 01-57002-20 Audio/Video PCB with Components (C) 1 AH Verion 1
01-57001-10 Audio/Video PCB with Components (AH) 1
C010 66-009005-0 Scart Bracket(C Version) 1 T001 67-017003-0 Top Cover 1
C011 01-56202-20 Decoder PCB with components (C) 1
01-56202-10 Decoder PCB with components (AH) S001 61-063505-1 Machine Screw (MF3X5) 3
C012 66-017001-1 DVD Loading Support 1 S002 61-023106-2 Self Taping Screw (STB3X6) 26
C013 36-00021-00 Mechanism 1 S003 61-023208-1 Self Taping Screw (BTB3X8) 8
C014 66-017005-0 Loader Cover 1 S004 61-223510-0 Hex Head Screw (M3X10) 8
C015 83-017001-0 Foot 4 S005 61-223506-0 Hex Head Screw (M3X6) 4
S006 63-010316-0 Pan Washer (Φ3）4
F001 67-017001-1 FASCIA 1 S007 61-023505-1 Machine Screw (MB3X5) 4
F002 74-017001-0 Powerbutton 1 S008 61-023206-1 Self Taping Screw (BTB3X6) 10
F003 74-017002-0 Inputbutton 15 S009 61-023108-1 Self Taping Screw (STB3X8) 6
F004 33-50360-00 LED, Blue 3 S010 61-223508-0 Hex Head Screw (M3X8) 6
F005 75-017004-0 LED Spacer 3 S011 61-063508-1 Machine Screw (MF3X8) 2
F006 67-017007-0 DVD Tray Door 1 S012 61-013017-0 Bolt 2
F007 75-017003-0 Lid Clamp 1 S013 63-131015-0 Rubber Washer 2
F008 76-017001-0 VFD window 1 S014 63-010303-0 Washer (Φ3 X0.3mm）3
EXPLODED VIEW PARTS LIST
Proprietary information for servicing purposes only.
The information herein may not be used commercially without the prior written agreement
of NAD International, Toronto, Canada.
04
03
02
08
07
04
05
06
01
09
01. 90-002001-0 EPE Fascia Cover 1
02. 90-001003-0 AC Cord Polybag 1
03. 90-001001-0 Polybag 1
04. 89-002001-0 Polyfoam End Cap 2
05. 30-23200-00 Batteries 2
06. 30-15600-00 Remote Control 1
07. 30-45600-01 IM 1(Eng. Starts)l 1
08. 90-009001-1 Manual Polybag 1
09. 88-009001-0 Carton Box C Version
1
Ref. No. Part No. Description Q'TY
30-45600-02 IM 2(Spa. Starts) 1
88-009002-0 Carton Box AH Version 1
2-18
IC BLOCK DIAGRAMS & SIGNAL DESCRIPTION
1. U5 (V8601VWA DVD DSP)
SIGNAL DESCRIPTION
Signal I/O Pins Description
Front End
DSYNC I213 DVD parallel mode Sector Sync
DREQ O214 DVD parallel mode Data Request
DCLK I215 Data sampling clock
DSTB I216 Parallel mode Data Valid, serial mode Left/Right Clock
DVD[7:0]I*DVD drive parallel data port, pins: 217, 219-223, 225, 226
External I/O
PCS0 O193 Peripheral chip select 0, generally used for enabling the program store ROM/FLASH
XIO[14:1] BProgrammable general purpose I/O also used as peripheral chip select, interrupt, PWM output and other system
signals, pins: 195, 197-200, 202-203, 205-209, 211
SDRAM
MD[31:0] B*SDRAM data bus, pins: 227, 229, 231, 232, 234, 235, 236, 238, 239, 240, 2, 3, 5, 7, 8, 9, 43, 45
46, 48, 50, 51, 52, 54, 55, 56, 58, 59, 60, 61, 63, 64
MA[11:0] O*SDRAM address bus, pins: 12, 13, 15, 16, 18, 20, 21, 25, 26, 28, 29, 30
MA[13:12] O32-33 SDRAM address bus, reserved for pin compatibility with 64Mbit SDRAM
MCLK O22 SDRAM clock
CKE O24 SDRAM Clock Enable
CS0-O35 SDRAM primary bank chip select
CS1-O66 SDRAM extension bank chip select
RAS-O37 SDRAM command bit
CAS-O38 SDRAM command bit
WE-O39 SDRAM command bit
DQM[3:0]-O11, 41,42, 65 SDRAM data byte enables
Host Interface
AD[31:0] B*P multiplexed address/data bus, pins: 136-139, 141-144, 146, 148-153, 155, 157, 158, 163-168, 172-176, 78-180
LA[3:0] B184-187 Latched Address [3:0]
ALE B183 Address Latch Enable
RD-B189 Read
ACK-B161 Programmable WAIT-/ACK-/RDY-control
SCLK O160 External bus clock used for programmable host bus peripherals
PWE[3:0]-B*Byte write enable for FLASH, EEPROM, SRAM or peripherals, pins: 145, 156, 170, 182
Slave Mode
LHLD I191 Bus Hold Request from external master in slave mode
LHLDA O190 Bus Hold Acknowledge in slave mode
2-19
Signal Type Pins Description
Comm Ports
UART1
RXD1 I83 UART1 serial data input from external serial device, used for IR receive / can be used as GPIO
SSP1
SSPCLK1/CTS1-B87 SSP1 clock or UART1 Clear to Send signal / can be used as GPIO
SSPOUT1/DTR1-B86 SSP1 data out or UART1 Data Terminal Ready signal / can be used as GPIO
SSPIN1/BAUD1 B84 SSP1 data in or 16X clock for USART function in UART1 / can be used as GPIO
UART0
RXD0 I94 UART0 serial data input from external serial device / can be used as GPIO
TXD0 B93 UART0 serial data output to an external serial device / can be used as GPIO
RTS0 B96 UART0 request to send / can be used as GPIO
CTS0 B95 UART0 Clear to Send signal / can be used as GPIO
SSP0
SSPOUT0/DTR0 B92 SSP0 data out or UART0 Data Terminal Ready signal / can be used as GPIO
SSPIN0/BAUD0 B90 SSP0 data in or 16X clock for USART function in UART0 / can be used as GPIO
SSPCLK0/RTS1 B88 SSP0 clock or Request To Send function in UART1 / can be used as GPIO
System Interface
RSTP-I81 RESET_Power-from system, used to reset frequency synthesizer & rest of chip
SRST-O80 Active low RESET signal for peripheral reset
Video Interface
DAC0 O118 Video DAC0 output (Composite video; Chrominance output for S-Video)
DAC1 O114 Video DAC1 output (Luminance for S-Video and component; G output for SCART)
DAC2 O112 Video DAC2 output (Chrominance output for NTSC/PAL S-Video; Cb output for component; Blue output for
SCART)
DAC3 O110 Video DAC3 output (A second composite video; Cr output for component; Red output for SCART)
IOM O111 Cascaded DAC differential output used to dump current into external resistor for power
VREF I116 Input voltage reference (1.2V typ) for output DACs
RSET O119 Current setting resistor of output DACs
COMP O120 Compensation capacitor connection
VddDAC P108 DAC Digital Power/1.8V
VssDAC P109 DAC Digital Ground
Vaa3 P113 DAC Analog Power/3.3V
NC (Vaa) -117 Unused (was Vaa = 2.5V on NDV8501 device, can be connected to 1.8V without problem)
Vssa P115 DAC Analog Ground
2-20
Signal Type Pins Description
Video Port
VIO[7:0] B126-131
133-134
Bidirectional digital video port data bus / can be used as GPIO
HSYNC B124 Bidirectional HSYNC signal for devices that do not use EAV/SAV codes / can be used as GPIO
VSYNC B123 Bidirectional VSYNC signal for devices that do not use EAV/SAV codes / can be used as GPIO
VIOCLK B122 VCLK input/output for Video I/O Port function
Audio Interface
AOUT0 O74 Serial audio output data to audio DAC for Left & Right channels / can be used as GPIO
AOUT1 O73 Serial audio output data to audio DAC for Center & LFE channels / can be used as GPIO
AOUT2 O72 Serial audio output data to audio DAC for Surround Left & Right channels / can be used as GPIO
AOUT3 O71 Serial audio output data to audio DAC for Left & Right channels for down-mixed stereo / can be used as GPIO
SPDIF O68 S/PDIF digital audio output
ACLK O78 Audio interface serial data clock, common clock for DACs & ADC
PCMCLK O76 Audio DAC PCM sampling clock frequency, common clock for DACs & ADC / can be used as GPIO
LRCLK O79 Left/Right Channel clock, common clock for DACs & ADC
AIN I70 Digital audio input for digital micro / can be used as GPIO
Clock Signals
CXI I98 Crystal Input pin for on-chip oscillator or system input clock
CXO O99 Crystal Output pin for on-chip oscillator
OSCVdd P101 Oscillator Power (1.8V)
OSCVss P100 Oscillator Ground
MVCKVdd P102 Main & Video Clock PLL Power (3.3V)
MVCKVss P104 Main & Video Clock PLL Ground
ACLKVdd P107 Audio clock PLL Power (3.3V)
ACLKVss P105 Audio clock PLL Ground
Test
SCEN I103 Scan Chain test enable
SCMD I106 Scan Chain test mode
PWR & GND
VDD P*Core Power =1.8V, pins: 4, 34, 77, 89, 135, 159, 192, 212
Vss P*Core & Ring Ground, pins: 17, 47, 69, 85, 121, 171, 201, 230
VDDIO P*I/O Pad power = 3.3V, pins: 1, 10, 19, 27, 36, 44, 53, 62, 75, 91, 125, 140, 154, 169, 181, 196, 210, 224, 233
VSSIO P*I/O Pad ground, pins: 6, 14, 23, 31, 40, 49, 57, 67, 82, 97, 132, 147, 162, 177, 188, 204, 218, 228, 237
2-21
BLOCK DIAGRAM
PIN CONNECTIONS
1180
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
208
207
206
205
204
203
202
201
200
199
198
197
196
195
194
193
192
191
190
189
188
187
186
185
184
183
182
181
MD0
MD1
MD2
MD3
MD4
MD5
MD6
MD7
MD8
MD10
MD11
MD12
MD13
MD16
MD17
MD18
MD19
MD20
MD21
MD22
MD23
MD24
MD25
V
SSIO
MCLK
CS1-
CS0-
CAS-
DQM0
RAS-
MA0
MA1
MA3
MA4
MA5
MA6
MA7
MA8
MA9
MA10
MA11
Vssa
IOM
LA0
LA1
LA2
LA3
AD31
AD30
AD29
AD28
AD27
AD26
AD25
AD24
AD23
AD22
AD20
AD21
AD19
AD18
AD17
AD16
AD15
AD14
AD13
AD12
AD11
AD10
AD9
AD8
AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0
SCLK
PWE2-
PWE3-
PWE0-
PWE1-
DAC1
NC
COMP
RSET
DAC2
DAC0
VREF
Vss
DAC
Vdd
DAC
SRST-
RSTP-
RXD1
SSPCLK0
SSPCLK1
SSPOUT1
SSPIN1
RXD0
TXD0
RTS0-
CTS0-
SSPOUT0
SSPIN0
CXO
CXI
MVCKVdd
MVCKVss
OSCVdd
OSCVss
VIOCLK
LRCLK
PCMCLK
ACLK
AOUT3
AOUT2
AOUT1
AOUT0
DCLK
DVD7
DSTB
XIO11
XIO10
XIO9
DQM1
DQM2
ALE
ACK
NDV8601
WE-
RD-
SPDIF
AIN
105
106
107
108
109
110
111
112
113
114
116
117
118
119
120
115
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
240
232
233
234
235
236
237
238
239
3
2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
179
178
177
176
175
174
173
172
171
170
169
168
167
166
165
164
163
162
161
160
159
158
157
156
155
154
153
152
151
150
149
148
147
146
145
144
143
142
141
140
139
138
137
136
135
134
133
132
131
130
129
128
127
126
125
124
123
122
121
V
DDIO
V
SSIO
V
DDIO
MA2
V
SS
DQM3
MD31
V
SSIO
V
DDIO
MD30
MD29
MD28
MD27
MD26
V
SSIO
V
SS
V
DDIO
V
SSIO
V
DDIO
V
SSIO
V
DD
V
DDIO
V
DD
V
SSIO
V
DDIO
VSSIO
VDDIO
VSS
VDD
VSSIO
VDDIO
VSSIO
VDDIO
DVD6
DVD5
DVD4
DVD3
VSSIO
DVD2
DVD1
DVD0
VDDIO
VSS
VDD
DREQ
DSYNC
VSSIO
VDDIO
XIO8
XIO7
XIO6
XIO5
XIO4
XIO3
XIO2
XIO1
PCS0
SCEN
SCMD
V
SS
V
DD
V
SSIO
V
DDIO
LHLD
LHLDA
V
DDIO
V
SS
V
SSIO
V
DD
V
DDIO
V
SSIO
V
DDIO
VSS
VDD
Vaa3
DAC3
ACLKVdd
ACLKVss
VDDIO
VSSIO
VSSIO
VDDIO
VIO0
VIO1
VIO2
VIO3
VIO4
VIO5
VIO6
VIO7
MA12
MA13
MD14
MD15
HSYNC
VSYNC
VDD
VSS
VDDIO
VSSIO
V
SSIO
MD9
CKE
XIO12
XIO13
XIO14
ELECTRICAL PARTS LIST
REF. NO. PART NO.
SWITCH MODE POWER SUPPLY BOARD
16-57004-01 Switch Mode Power Supply SMPS Raw PCB
01-57004-01 Switch Mode Power Supply SMPS PCB with components
DIODES
D400, D401, D402, D403 33-20104-00 FR104 Fast Recovery Rectifier Diode
D405, D406, D407 33-20203-00 HER203 Fast Recovery Rectifier Diode
D410 33-15109-01 5.1V 1/2W Zener Diode
D408 33-15609-01 5.6V 1/2W Zener Diode
B400 33-30162-00 DB105 Rectifier Bridge
TRANSISTORS
Q400, Q401, Q403,
Q404, Q405, Q406 31-01815-00 2SC1815-GR Transistor
Q407 31-01015-00 2SA1015-GR Transistor
RESISTORS
R404 07-20399-00 3.9Ω1/6W ±5% Metal Film Resistor
R405 07-20181-00 180Ω1/6W ±5% Metal Film Resistor
R433 07-20471-00 470Ω1/6W ±5% Metal Film Resistor
R408 07-20102-02 1KΩ1/6W ±5% Metal Film Resistor
R434 07-20222-00 2K2Ω1/6W ±5% Metal Film Resistor
R410 07-23301-00 3K3Ω1/6W ±1% Metal Film Resistor
R407 07-23601-00 3K6Ω1/6W ±1% Metal Film Resistor
R406 07-20392-02 3K9Ω1/6W ±5% Metal Film Resistor
R431, R432 07-20472-00 4K7Ω1/6W ±5% Metal Film Resistor
R415, R416, R417,
R418, R419, R420,
R421, R426, R427
07-20103-00 10KΩ1/6W ±5% Metal Film Resistor
R424, R425 07-20103-02 10KΩ1/6W ±5% Metal Film Resistor
R400, R401 07-20224-00 220KΩ1/6W ±5% Metal Film Resistor
R402 (07-20504-01) (500KΩNI) 1/6W ±5% Metal Film Resistor
R403 07-30563-02 56K 2W ±5% Metal Oxide Film Resistor
RT400 07-70050-00 5D-11 NTC
CAPACITORS
C412, C413 05-10461-07 100nF, CL23B 63V ±10% Polyester capacitor
C409, C410 05-10422-00 0.1uF, KNB1530 275V ±5% Polyester capacitor
C403, C404 05-22142-00 220PF 400V ±10% Ceramic Capacitor
C415 05-10313-01 10nF 1KV ±20% Ceramic Capacitor
C416 05-10113-00 100PF 1KV ±10% Ceramic Capacitor
C421 05-33242-00 3300PF 400V ±20% Ceramic Capacitor
C405, C406, C407 24-47361-00 47nF 63V ±20% Monolithic
C408, C423 06-47051-01 47uF, CD263X 50V ±20% Alu Electrolytic Capacitor
C428, C433 06-10111-03 100uF, CD263X 16V ±20% Alu Electrolytic Capacitor
C429, C432 06-10121-02 100uF, CD263X 25V ±20% Alu Electrolytic Capacitor
C400 06-10142-00 100uF, CD293 400V ±20% Alu Electrolytic Capacitor
C422 06-22111-05 220uF, CD263X 16V ±20% Alu Electrolytic Capacitor
C434 06-33111-02 330uF, CD263X 16V ±20% Alu Electrolytic Capacitor
C435 06-33121-00 330uF, CD263X 25V ±20% Alu Electrolytic Capacitor
C417, C418, C419 06-10221-01 1000uF, CD263X 25V ±20% Alu Electrolytic Capacitor
DESCRIPTION
ELECTRICAL PARTS LIST
REF. NO. PART NO.
INDUCTORS
L401, L403, L404 08-02220-01 Inductor
L400 22-00025-10 LCL-25A, 48mH Filte Inductor
FB403, FB404, FB405,
FB409, FB410, FB411 19-35980-00 FB Ferrite Bead
FB400, FB401, FB402,
FB406 19-35980-01 FB Ferrite Bead
ICS
U401 03-00817-00 PC817B Photocoupler
U402 03-00431-00 TL431 Regulator IC
U407 03-07805-10 KA78R05TU Regulator IC
U405 03-07809-10 KA78R09TU Regulator IC
U404 03-07833-10 KA78R33 Regulator IC
U400 03-50365-00 KA5M0365RYDTU Power Switch IC
FUSES
F401 31-00010-00 ICP N10 Protector IC
20-12202-00 T2AL/250V Fuse
FH400 20-20000-01 HF-003-1 Fuse Holder
TRANSFORMERS
T400 18-57030-00 BCK-08A10 Transformer
CONNECTORS
J409 13-22003-00 PH 2.0A-3A Connector
J406 13-22004-00 PH 2.0A-4A Connector
J404, J407, J408 13-22006-00 PH 2.0A-6A Connector
J400, J401, J402, J403 13-23903-01 Connector
OTHERS
W402, R412, R414 21-06500-00 L=5mm Links
D409 21-06650-00 L=6.5mm Links
W403, W404, W405,
W406, W407, W408,
R411, R413
21-06750-00 L=7.5mm Links
W401 21-10750-00 L=7.5mm Links
C420 21-06101-00 L=10mm Links
ANALOG POWER SUPPLYBOARD
16-57004-02 Analog Power Supply Board Analog PS Raw PCB
01-57004-02 Analog Power Supply Board Analog PS PCB with components
DIODES
B800 33-30162-00 DB105 Bridge
TRANSISTOR
Q801 31-01815-00 2SC1815-GR Transistor
Q802 31-01015-00 2SA1015-GR Transistor
Q800 31-00669-00 2SD669AWC Transistor
RESISTORS
R801, R802, R803, R804 07-20103-00 10KΩ1/6W ±5% Metal Film Resistor
DESCRIPTION
VH 3.96A-3Y1 (Remove the middle pin）
LGB-S0810-220K, 22uH
ELECTRICAL PARTS LIST
REF. NO. PART NO.
CAPACITORS
C800, C801, C803,
C804, C805 05-10461-07 100nF, CL23B 63V ±10% Polyester capacitor
C809, C810 06-33121-00 330uF, CD263 25V ±20% Alu Electrolytic Capacitor
C807, C808 06-33151-00 330uF, CD263 50V ±20% Alu Electrolytic Capacitor
C806 06-47151-00 470uF, CD263 50V ±20% Alu Electrolytic Capacitor
INDUCTORS
L800, L801 08-02220-01 Inductor
ICS
U801 03-07812-10 KA78R12 Regulator IC
U802 03-07912-00 Regulator IC
TRANSFORMERS
T401 18-57015-00 R20(C VERSION) R-Transformer
T401 18-57015-01 R20(AH VERSION) R-Transformer
CONNECTORS
J802 13-22003-00 PH 2.0A-3A Connector
J801 13-22004-00 PH 2.0A-4A Connector
J800 13-22005-00 PH 2.0A-5A Connector
OTHERS
R800 21-06500-00 L=5mm Links
CONTROL BOARD
16-57003-01 Control Control Raw PCB
01-57003-00 Control Control PCB with components
DIODES
D301, D302, D303,
D304, D305, D307 33-44148-03 1N4148 Switch Diode
D311, D313, D314 33-50360-00 RT3-6134B2S-B LED Blue
TRANSISTORS
Q300, Q301 31-01815-00 2SC1815-GR Transistor
RESISTORS
R306 07-20101-10 100Ω1/4W ±5% Metal Film Resistor
R300, R304 07-20102-10 1KΩ1/4W ±5% Metal Film Resistor
R319 07-20472-10 4K7Ω1/4W ±5% Metal Film Resistor
R303, R305, R308,
R309, R310, R311,
R313, R314, R315,
R316, R320, R321, R322
07-20103-10 10KΩ1/4W ±5% Metal Film Resistor
R302, R307 07-20473-10 47KΩ1/4W ±5% Metal Film Resistor
R301, R312, R317, R318 07-20471-10 470Ω1/4W ±5% Metal Film Resistor
CAPACITORS
C306, C307, C308,
C309, C310 24-10161-00 100PF 63V ±20% Monolithic
C303, C304, C305 24-10461-00 0.1uF 63V ±20% Monolithic
C301 06-10011-04 10uF, CD11E 16V ±20% ALU Electrolytic Capacitor
C302 06-10051-04 10uF, CD11E 50V ±20% ALU Electrolytic Capacitor
C311 06-22111-06 220uF, CD11E 10V ±20% ALU Electrolytic Capacitor
LGB-S0810-220K, 22uH
DESCRIPTION
LM7912/MC7912/KA7912
ELECTRICAL PARTS LIST
REF. NO. PART NO.
ICS
U301 23-56119-00 20U39119BAN VFD
U302 03-16312-01 UPD16312GB-3B4 VFD Driver IC
U302 or 03-00792-00 or S0792GB VFD Driver IC
U303 03-00038-00 HS0038B IR Sensor IC
SWITCHS
SW302
,
SW303
,
SW307, SW308,
SW309, SW310,
SW311, SW313,
SW314, SW315,
SW316, SW317,
SW319 SW320 SW322
11-04101-04 IT-1102-1260 Tact Switch
CONNECTORS
J303-J4 14-57008-00 L=80mm, 8Pin Connector
J301-J404 14-57006-00 L=80mm, 6Pin Connector
J304-J502 14-57006-11 L=300mm, 6Pin Connector
DECODE BOARD
16-56002-00 Decode Decode Raw PCB
01-57002-20 Decode(C Version) Decode PCB with components
01-57002-10 Decode(AH Version) Decode PCB with components
ICS
U13, U18 03-00800-01 Flash IC
U10, U15 03-00573-01 Logic Gate IC
U1 03-00541-01 Logic Gate IC
U6, U7 03-00574-01 Logic Gate IC
U22 03-65322-01 SDRAM IC
U2 03-00809-01 Regulator IC
U3 03-03965-01 Regulator IC
U5 03-08601-01 PANTARA-2 DECODER IC
U4 03-09346-01 EEPROM IC
MX29LV800BTC-90/ or
AM29LV800BB-90EC/or
AM29LV800BT-90EC
74LCX573MTC/ or
MC74LCX573DT
74VHCT541AMTC/ or
MC74VHCT541ADT
74VHCT574AMTC/ or
MC74VHCT574ADT
HY57V653220B7/ or
[HY57V651620B7]/ or
W986432DH-7
LM809M3-2.63
LP3965EMP-1.8
NDV8601VWA
NM93CS46LZEM8 or
93LC46B/SN
DESCRIPTION
ELECTRICAL PARTS LIST
REF. NO. PART NO.
CAPACITORS
C100-C110, C12, C121-
127, C20, C23, C30,
C35, C41, C42, C44-51,
C53-C65, C7, C76, C77,
C81, C88-C91, C84
26-10451-00 0603, 100nF（Y5V）50V +80%-
20% Cermatic Capacitor SMD
C14, C15, C16, C33 26-10251-00 0603, 1nF（X7R）50V ±10% Cermatic Capacitor SMD
C29 26-15051-00 0603, 15pF（NPO）50V ±5% Cermatic Capacitor SMD
C1, C4, C8, C13 26-20051-00 0603, 20pF （NPO）50V ±5% Cermatic Capacitor SMD
C28 26-27051-00 0603, 27pF（NPO）50V ±5% Cermatic Capacitor SMD
C67, C68, C69 26-47051-00 0603, 47pF（NPO）50V ±5% Cermatic Capacitor SMD
C6, C10, C19, C111 26-10151-00 0603, 100P（NPO）50V ±5% Cermatic Capacitor SMD
C5, C9, C18 26-15151-00 0603, 150PF（NPO）50V ±5% Cermatic Capacitor SMD
C3, C36, C37, C38, C39 26-22151-00 0603, 220PF（NPO）50V ±5% Cermatic Capacitor SMD
C2 26-33151-00 0603, 330PF（NPO）50V ±5% Cermatic Capacitor SMD
C52, C66, C86, C87 06-10060-01 10uF, CDVS 6.3V Alu Electrolytic Capacitor SMD
C31, C112 06-10160-01 100uF, CDVS 6.3V Alu Electrolytic Capacitor SMD
C114, C115, C128 06-10111-02 100uF, CA45 10V Tan Electrolytic Capacitor SMD
C25 06-47160-01 470uF, CDVS 6.3V Alu Electrolytic Capacitor SMD
INDUCTORS
L2, L3, L4 08-04109-00 CMI321611U1R0KT Inductor SMD
L1, L11, L12 08-04229-00 CMI321611U2R2KT Inductor SMD
L9 08-04100-01 CMI321611X100KT Inductor SMD
L6, L8 08-04119-00 CBG201209U110T 0805 Ferrite Bead
RESISTORS
R15, R17, R231, R232,
R233, R237, R62, R8,
R77, R92, R98
07-90000-00 0Ω0603 ±5% Resistor SMD
R19 07-90100-00 10Ω0603 ±5% Resistor SMD
R20, R26 07-90220-00 22Ω0603 ±5% Resistor SMD
R49, R50, R51 07-90470-00 47Ω0603 ±5% Resistor SMD
R78, R2, R3, R4, R5 07-90750-00 75Ω0603 ±5% Resistor SMD
R14 07-90331-00 330Ω0603 ±5% Resistor SMD
R32, R39 07-90152-00 1.5kΩ0603 ±5% Resistor SMD
R59 07-90332-00 3.3kΩ0603 ±5% Resistor SMD
R33-R35, R37, R38, R41
-
48, R93 07-90103-00 10kΩ0603 ±5% Resistor SMD
R10 07-90104-00 100kΩ0603 ±5% Resistor SMD
R96, R1 07-91500-00 150Ω0603 ±1% Resistor SMD
R18 07-91101-00 1.1kΩ0603 ±1% Resistor SMD
RP1, RP2, RP3, RP8,
RP9, RP10, RP11, RP12 07-90220-01 4×22ΩPACK RCML08W Resistor SMD
CONNECTORS
J4 13-22008-00 S8B-PH-SM3-TB Connector
J3 13-22007-00 S7B-PH-SM3-TB Connector
J2 13-21016-01 52207-1690 FFC/FPC Connector
J6 13-21024-01 52207-2490 FFC/FPC Connector
J16 13-21022-00 FFC/FPC Connector
CRYSTALS
Y1 04-12702-02 27.000MHZ CL=15P CRYSTAL SMD
DESCRIPTION
52610-2290 or 2434-22TD3
ELECTRICAL PARTS LIST
REF. NO. PART NO.
AUDIO BOARD
16-56001-00 Audio Audio Raw PCB
01-57001-20 Audio(C Version) Audio PCB with components
01-57001-10 Audio(AH Version) Audio PCB with components
DIODES
D601, D602 33-40054-01 Schottky Barrier Diode
D603 33-40054-00 BAT54S Schottky Barrier Diode
D605 33-44148-06 1N4148(C Version) Switch Diode
TRANSISTORS
Q601, Q602, Q603,
Q604, Q605, Q606,
Q607, Q608
31-02216-00 UN221600L Transistor
Q609, Q610, Q611 31-00710-00 2SB0710A0L Transistor
Q501 31-01015-00 2SA1015-GR Transistor
Q502 31-01815-00 2SC1815-GR Transistor
ICS
U608 03-05622-01 CLC5622IM IC, Video Amplifier
U608 or 03-04016-00 or MAX4016ESA IC, Video Amplifier
U607 03-05623-01 CLC5623IM IC, Video Amplifier
U607 or 03-04018-01 or MAX4018ESD IC, Video Amplifier
U610 03-02604-01 OPA2604AU IC, Opamp.
U609 03-08716-01 XWM8716EDS IC,DAC
U615 03-00337-01 LM337IMP IC, Regulator
U605, U612 03-01117-01 LM1117MP-5.0 IC, Regulator
U611 03-01117-02 LM1117MP-ADJ IC, Regulator
U613 03-03480-01 LM3480IM3-5.0 IC, Regulator
U614 03-00550-00 GP1FA550TZ Fiber Optic Transmitter
CAPACITORS
C638, C648-C651, C654,
C656-677, C705-C707,
C720, C730
26-10451-00 0603,100nF（Y5V）50V +80%-
20% Cermatic Capacitor SMD
C691, C692, C693 26-10251-00 0603, 1nF（X7R）50V ±10% Cermatic Capacitor SMD
C680- C689 26-20051-00 0603, 20pF（NPO）50V ±5% Cermatic Capacitor SMD
C703, C704, C709 26-10151-00 0603, 100PF（NPO）50V ±5% Cermatic Capacitor SMD
C701, C702, C726-C729 26-22151-00 0603, 220PF（NPO）50V ±5% Cermatic Capacitor SMD
C698, C700 26-39151-00 0603, 390PF（NPO）50V ±5% Cermatic Capacitor SMD
C678, C679, C715, C716 26-68151-00 0603, 680P（NPO）50V ±5% Cermatic Capacitor SMD
C607, C609, C615-C618,
C634-C637 06-10011-01 10UF, ELNA Series 16V Alu Electrolytic Capacitor
C711, C712 06-47011-01 47UF, ELNA Series 10V Alu Electrolytic Capacitor
C717, C718 06-47011-02 47UF, ELNA Series 10V ALu Electrolytic Bi-polar Capacitor
C690, C694-C697 06-47111-02 470UF, ELNA Series 10V Alu Electrolytic Capacitor
C719, C722, C723, C724 06-10111-01 CD110X, 100UF 16V ±20% Alu Electrolytic Capacitor
C710 06-47111-01 CD110X, 470UF 10V ±20% Alu Electrolytic Capacitor
C725 06-10260-00 CD110X, 1000UF 6.3V ±20% Alu Electrolytic Capacitor
INDUCTORS
L601, L602 08-04100-00 FHW1008IF100JST 1206 Inductor SMD
BAT54ACTor BAT54ALT1
DESCRIPTION
ELECTRICAL PARTS LIST
REF. NO. PART NO.
RESISTORS
R506, R508, R702,
R703, R608 07-90000-00 0Ω0603 ±5% Resistor SMD
FB602-FB613, FB625 07-90000-01 0Ω0805 ±5% Resistor SMD
R696, R697, R698 07-90220-00 22Ω0603 ±5% Resistor SMD
R500, R502 07-90101-00 100Ω0603 ±5% Resistor SMD
R710, R711 07-90111-00 110Ω0603 ±5% Resistor SMD
R610, R611, R706 07-90151-00 150Ω0603 ±5% Resistor SMD
R603, R604 07-90331-00 330Ω(C Version) 0603 ±5% Resistor SMD
R504, R507 07-90471-00 470Ω0603 ±5% Resistor SMD
R652-R656, R707 07-90681-00 680Ω0603 ±5% Resistor SMD
R616, R617 07-90102-00 1kΩ(C Version) 0603 ±5% Resistor SMD
R627, R628 07-90152-00 1.5kΩ0603 ±5% Resistor SMD
R501, R503, R510,
R631, R633, R639, R651 07-90103-00 10kΩ0603 ±5% Resistor SMD
R695 07-90104-00 100kΩ0603 ±5% Resistor SMD
R657, R658-R661, R663-
R666, R668, R670-R672, 07-97509-00 75Ω0603 ±1% Resistor SMD
R662, R667, R669 07-91000-00 100Ω(C Version) 0603 ±1% Resistor SMD
R705 07-92400-00 240Ω0603 ±1% Resistor SMD
R605, R673, R674, R680 07-94700-00 470Ω0603 ±1% Resistor SMD
R675-R679, R681-R684 07-95100-00 510Ω0603 ±1% Resistor SMD
R708 07-97200-00 720Ω0603 ±1% Resistor SMD
R686, R687 07-93321-00 3.32kΩ0603 ±1% Resistor SMD
R685, R688 07-93831-00 3.83kΩ0603 ±1% Resistor SMD
R693, R694 07-97501-00 7.5kΩ0603 ±1% Resistor SMD
R699, R609 07-94701-00 4.7kΩ0603 ±1% Resistor SMD
R689, R690-R692 07-91002-00 10kΩ0603 ±1% Resistor SMD
CONNECTORS
J608 13-21016-00 PD05-161 Connector
J612 13-21024-00 PD05-241 Connector
J501 17-07001-00 PY301-030-100 Phone Jack
J500 17-02001-01 ST-301-030-100 Stero Phone Jack
J610 17-04005-00 SW-2 Connector
J609 17-01001-01 DAV-8.4-14PB Connector RCA
J614 17-01001-02 DAV-8.4-14PB Connector RCA
J611 17-01002-02 DAV2-8.4-13PB Connector RCA
J607 17-01003-00 DAV3-8.4-13PB Connector RCA
J606 17-10021-00 D-21-3(C Version) Scart Connector
J503, J613 13-22004-00 2.0A-4A Connector
J502 13-22006-00 2.0A-6A Connector
SWITCHS
SW601, SW500(AH
VERSION) 11-05202-05 DPDT/SSH-22H03G4 SLIDE SWITCH
DESCRIPTION
Other manuals for S 570
1
Table of contents
Other NAD DVD Player manuals
