Naggura N'RUN Series User manual

N’RUN –– line
EN
Instruction Manual
N’RUN301 - N’RUN302 - N’RUN303 - N’RUN304 - N’RUN308
N’RUN–– line

1
Instruction
Manual
Instruction Manual
Naggura N’RUN301 - N’RUN302 - N’RUN303 - N’RUN304 - N’RUN308
Table of contents
1. Introduction
2. Use of the manual
3. Warranty
4. Liability
5. EC Declaration of conformity
6. Warnings and general instructions
7. Dimensions
8. Settings
Wheels
Gas piston levers
Peripheral Foot switch
Handlebar Support
Paper roll holder
Breather hole
Armrests
Heating
9. Maintenance
10. Troubleshooting
N’RUN

Introduction
CONGRATULATIONS! You took NAGGURA home!
Thank you for having acquired a NAGGURA product and for the trust shown in us.
We are sure that this treatment table will turn into the pillar of your work and will
more than fulfil your most demanding work requirements. NAGGURA’s experts are in
the lead of a project created with great devotion. Every single detail has been cared
to join technology, performance and design altogether in a single table. Our aim is
designing and manufacturing INTUITIVE, DYNAMIC and HI-TECH tables of a DARING
and UNIQUE design.
Thanks for your choice and start enjoying the NAGGURA experience.
2
Instruction
Manual
N’RUN

3
Instruction
Manual
Use of the manual
Please make sure that this instructions manual is always accessible to the personnel involved with the use of this equipment.
The manual describes the correct use of the dierent models and types.
Some texts and/or illustrations are not relevant to your Naggura couch since it depends on your product choice at the purchase time.
Warranty
Liability
The manufacturer cannot be held responsible for any consequences incurred by the user, the patient or by the couch itself as a result of e.g.
a. Misuses of the table.
b. Damages caused by a mishandling when unpacking the table, a negligence, a fortuitous event or natural wear of the product.
c. Handling or repairing without the Naggura technical service’s knowledge.
d. Upholstering carried by the customer.
e. Claims without invoice.
f. Power surges or inappropriate voltage connections.
g. Upholsteries stained or damaged caused by chemical or acid products.
After a period of 10 (ten) years after introduction of the couch (or any of its accessories), the manufacturer can no longer be held responsible for any
flaws in the couch or its accessories and he will no longer be obliged to supply any spare parts or accessories.
N’RUN
Weelko Barcelona, S.L. guarantees the material against manufacturing defects for 2 years from the delivery of the material. The invoice issued by
Weelko Barcelona S.L. will become the warranty certificate so it needs to be kept.

4
Instruction
Manual
EC Declaration of conformity
Naggura products are produced and marked in conformity with the directives hereby stated:
Low voltage: 2014/35/CE
Electromagnetic compatibility: 2014/30/CE
The N'RUN line has a guarantee of 2 years. The manufacturer will not be held responsible for the results of maintenance or repairs performed by
unauthorised persons. For further information on guarantee terms, please contact your distributor.
Warnings and general instructions
1. When you receive the order, check first whether the product has been damaged during transport. Report your dealer immediately about any
damage, defect or non-conformity with the order received.
2. Keep the packaging and store it during the first 20 days.
3. Read this manual carefully before using the equipment.
4. The maximum loading weight is 250 kg.
5. Do not place the hands in the moving parts of the treatment table when performing any electrical adjustment. The motor has a safety system with
brake which stops exerting strength when an obstacle is found. However, this safety device will not prevent the weight of the table section from going
down.
6. Guide the backrest section with the other hand when adjusting the backrest by gas levers.
7. Make sure that the unit is correctly plugged to an earth intake following the local and national electrical requirements and standards.
8. Although the treatment couch is equipped with wheels, it cannot be used for the transport of patients.
9. Keep the table out of high-humidity environments.
10. If the table gets wet accidentally, unplug the table immediately.
11. Naggura treatment tables are only meant to be used by professional personnel in physiotherapy, rehabilitation and massage fields. Avoid any use of
the equipment by unauthorised non-skilled personnel.

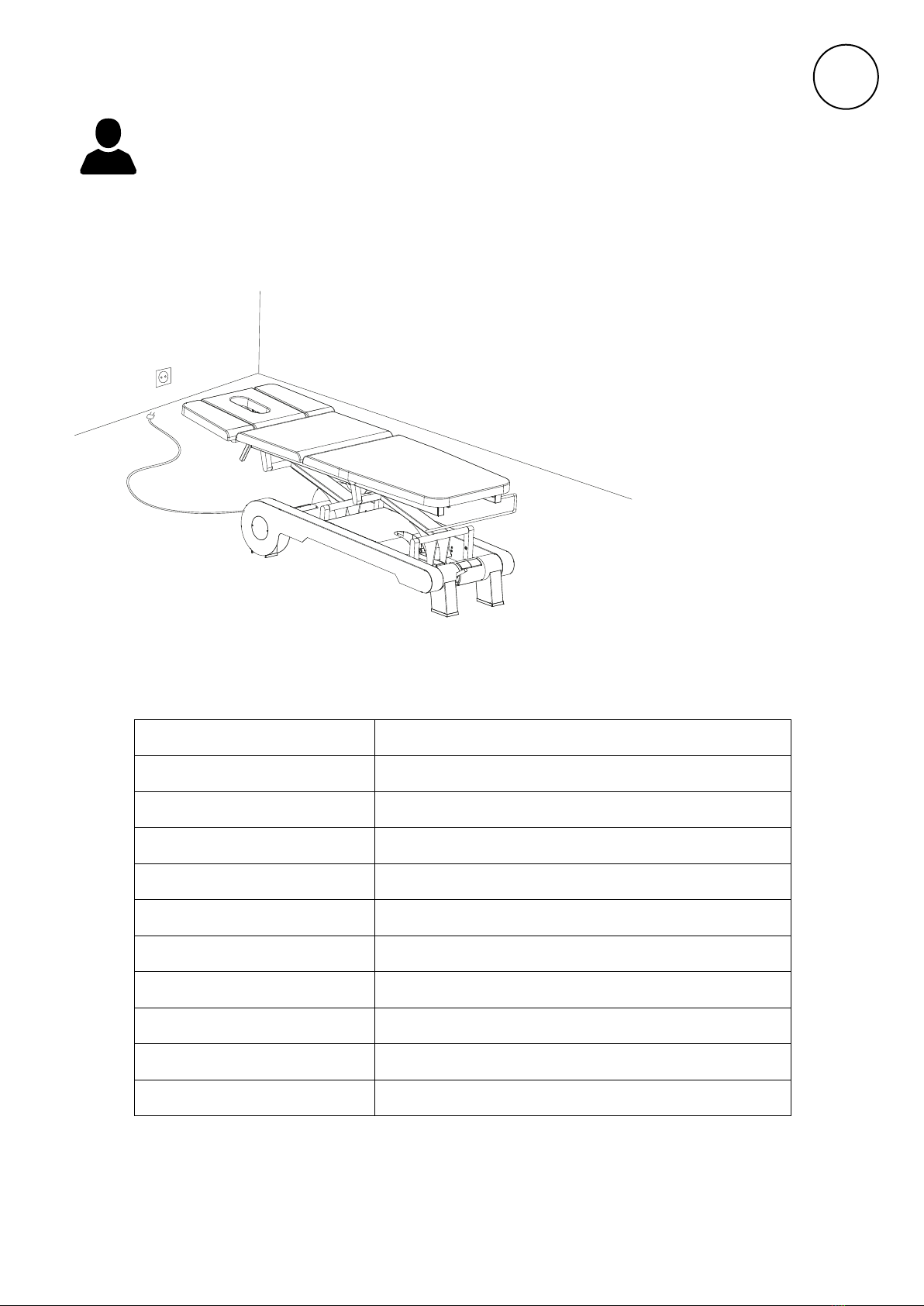

12. Place the table in a space with free access form the 4 sides. Do not place the table against the wall or against any obstacles.
13. Do not leave children unattended alone near the table.
14. Change the bed cover or protecting paper after each patient in order to guarantee the hygiene of the treatment.

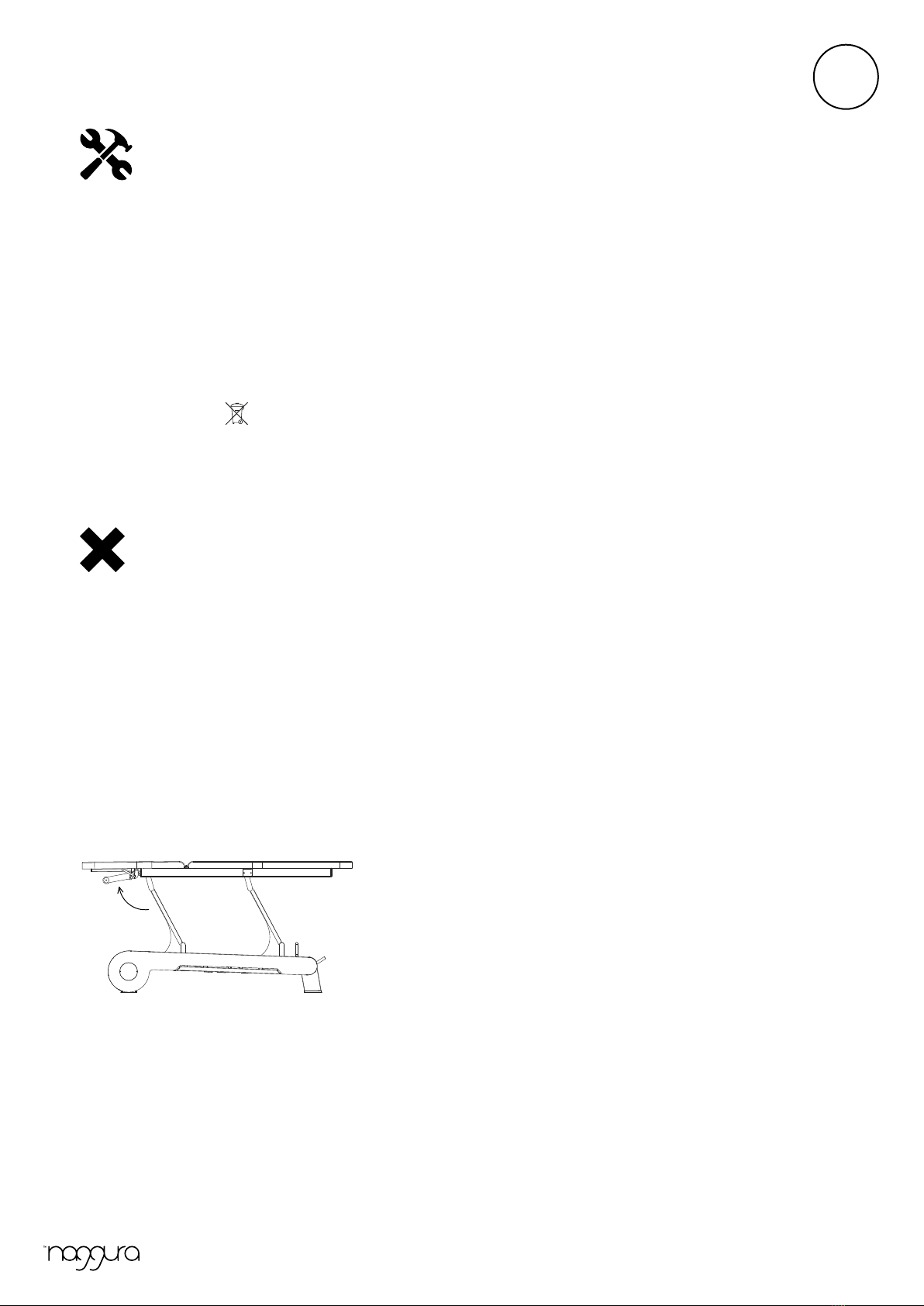

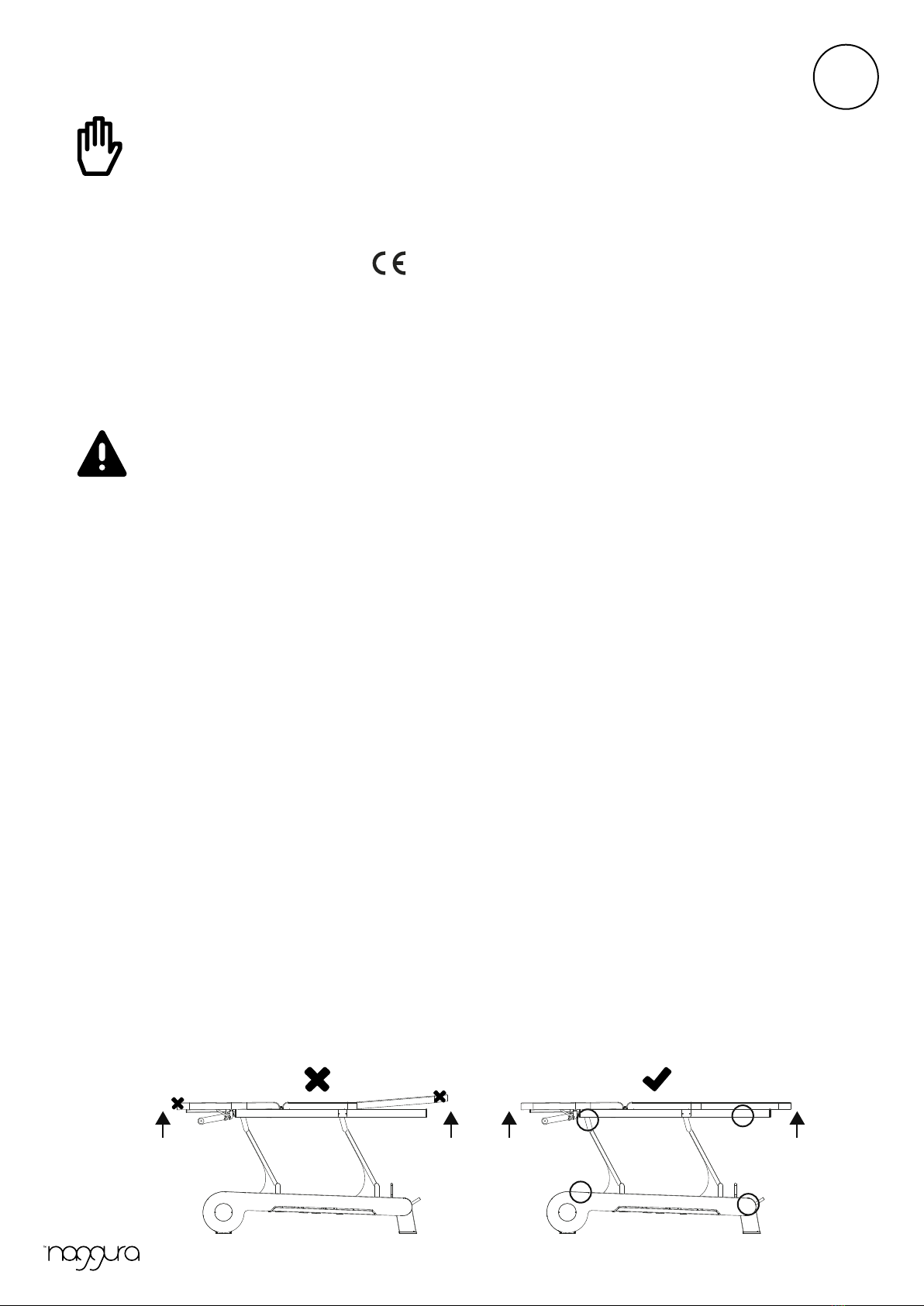

15. Whenever it is necessary to lift the bed, DO NOT take it by the upholstered section. You must take it by the structure, as it is shown in the pictures
below.
N’RUN

5
Instruction
Manual

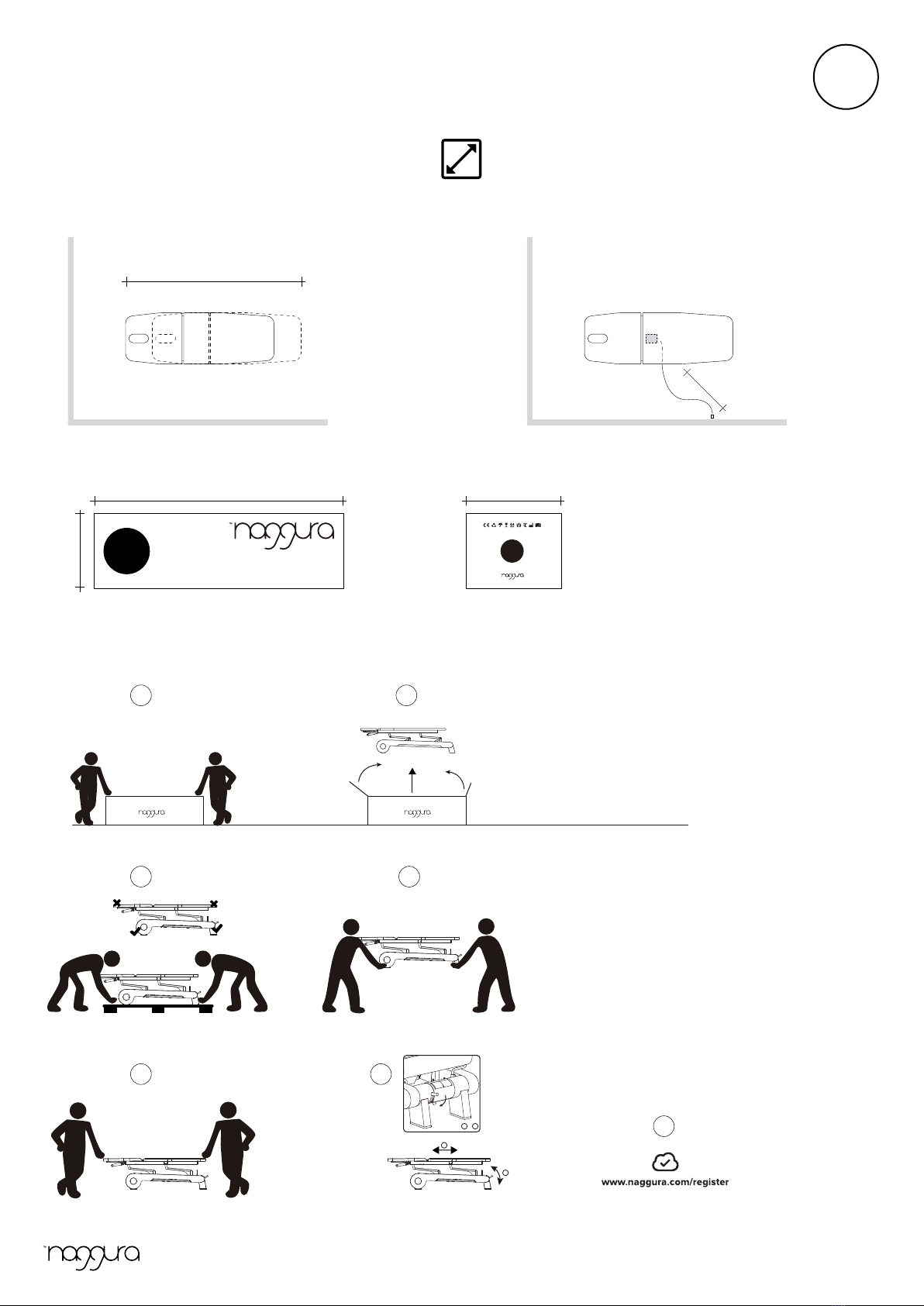

Product dimensions in movement (cm)
Pack dimensions (cm)
Handling and transport
Power cord lenght (cm)
300
control
box
206 72
63
1
N’RUN–– line
www.naggura.com
N’RUN
––
line
PHYSIOTHERAPY
TABLE
length + 23cm
N’RUN
21 &
1
2
3
5 6
7
4
2

6
2
8
1
1
3
3
10
3
4
5
Essential Settings
1. Wheel block./
unblocking system
2. Gas piston levers
3. Peripheral switch
4. Handlebar support
5. Paper roll holder
6. Folding armrest
7. Breather hole
8. Armrests
9. Heating
10. Safety Lock
Optional
6
57
1
1
2
Only N’RUN303
Instruction
Manual
7
N’RUN
2

Voltage and frequency input shall be AC 100-120, 50/60Hz or 220-240V, 50/60Hz. Plug the bed on the power supply properly as
shown below:
Power input
Specifications
Essential Settings
Instruction
Manual
N’RUN
Product size 196(+/- 23 cm with movement) x 68 x 55 / 95 cm
Package size 206 x 63 x72 cm
Highest position 95 cm
Lowest position 55 cm
Net weight 107 / 117 Kg
Gross weight 141 Kg
Power AC 100 – 120V, 50/60 Hz · AC 220 – 240V, 50/60 Hz
Max power 300W
Environment temperature 0 ºC - +40 ºC
Relative humidity 30% - 90%
Max weight supported 250 Kg
7
AC 100-240V, 50/60Hz.

N’RUN301
N’RUN302
N’RUN303
N’RUN304
N’RUN308

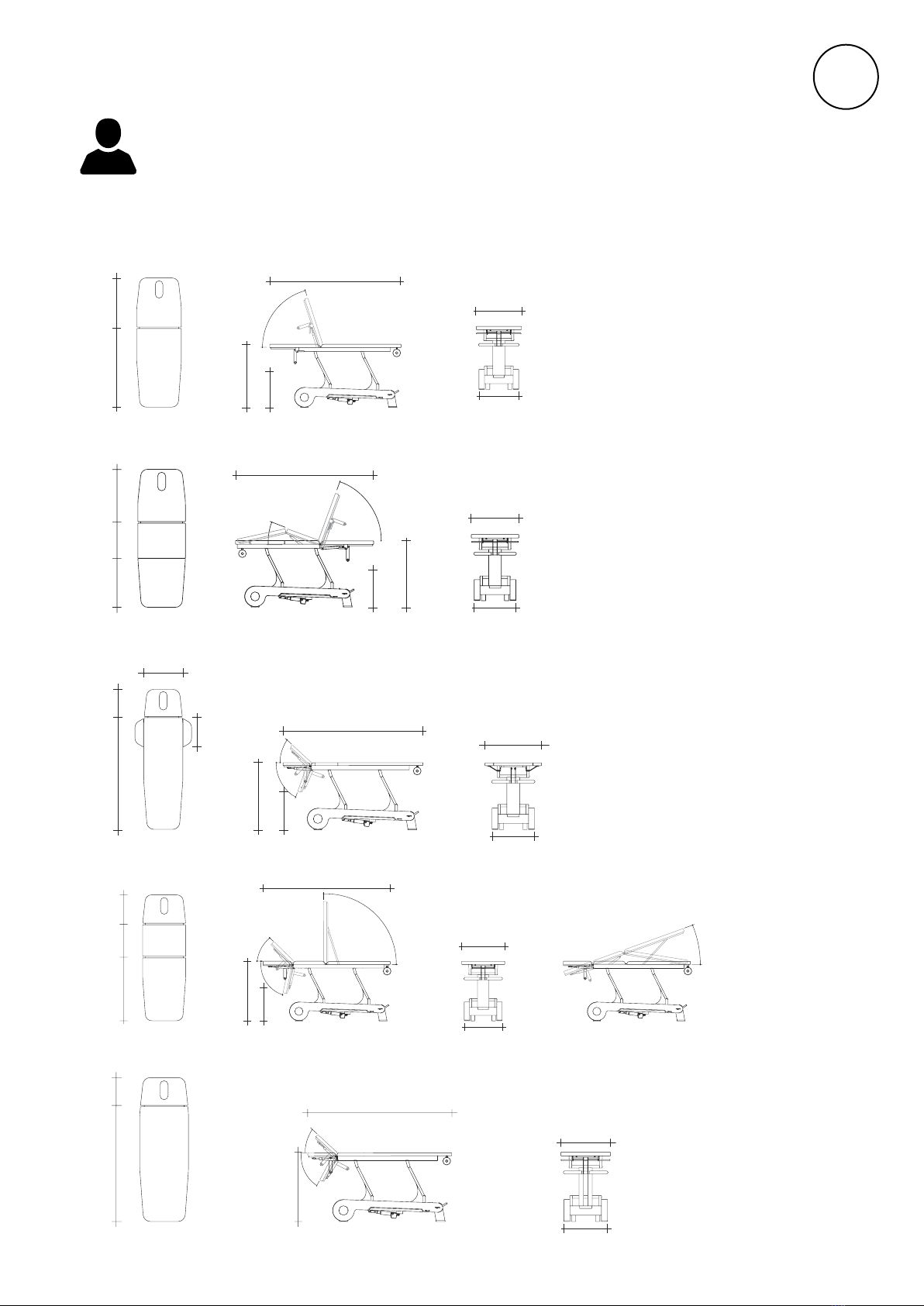

Product dimensions
Instruction
Manual
N’RUN
70º
55
95
120
68
60
196
73
118
73
49
200
50º
55
95
60
68
70
20º
55
95
35
45º
60
38
55
80
30º
196
153
60
45
100
54
95
68
80º
26º
196
30º
50
-45º
38
55
60
68
38
158
30º
45º
196
55/95
196
8

N’RUN302
N’RUN304
N’RUN301 / 303 / 308
9
Instruction
Manual
Section motors

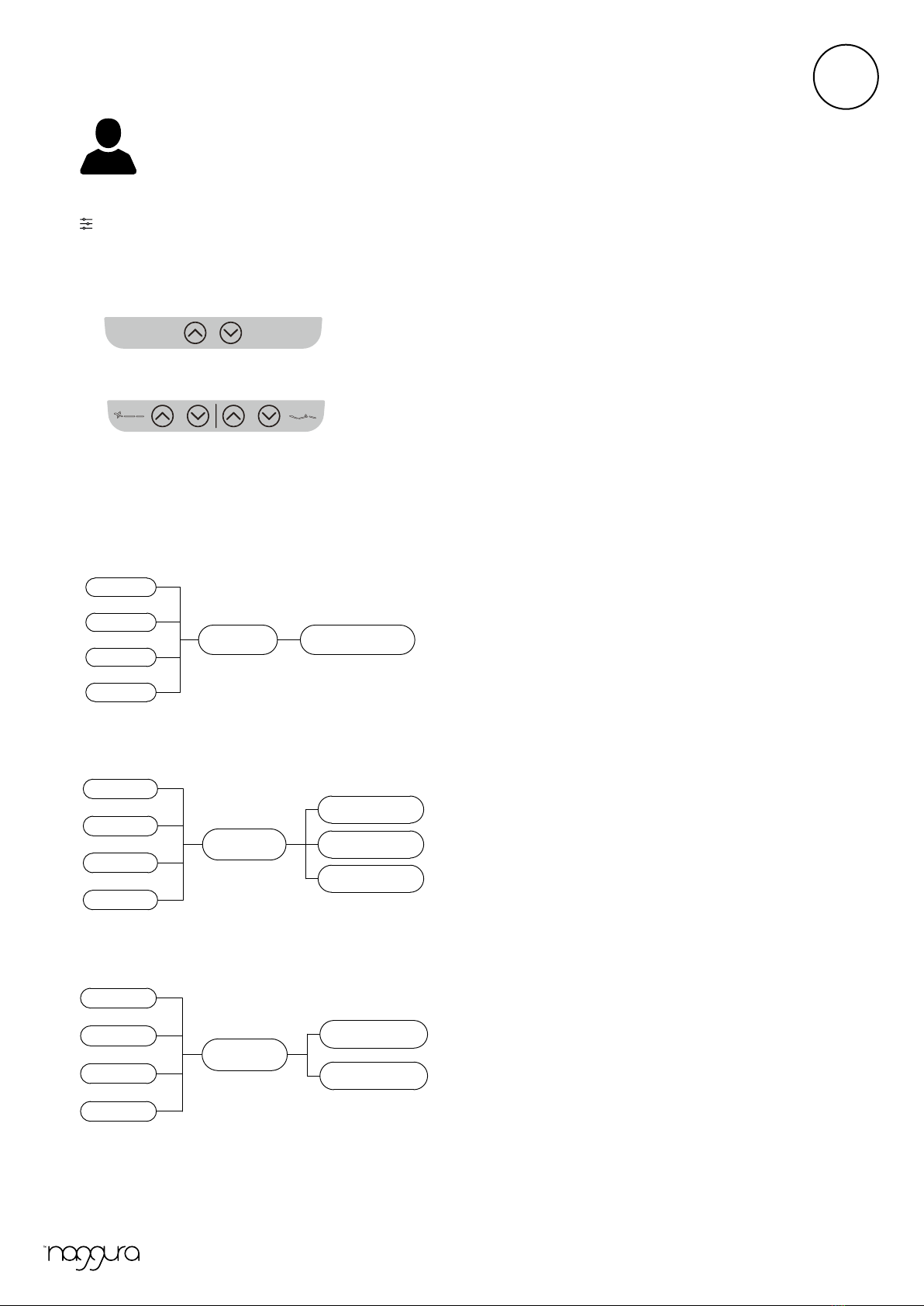

Circuit diagram
Essential Settings
Optional
N’RUN
If your table is equipped with more than one motor to adjust one of the sections, is possible to adjust them by the push button box
placed at both sides of the table. If a handcontroller is included, the motors can also be adjusted by the buttons on the handcontroller.
N’RUN304 button pannel for controlling middle section engine.
N’RUN302 button pannel for controlling head and middle section engines.
UP
head section
DOWN
middle section
Power
Button panel
Hand controller
Single control
program controller Whole bed lifting motor
(optional)
(optional)
Foot controller
Power
Button panel
Hand controller
Three control
program controller
Waist angle adjustment
motor
Whole bed lifting motor
Head angle adjustment
motor
(optional)
(optional)
Foot controller
Power
Button panel
Hand controller
Two control
program controller
Whole bed lifting motor
Waist angle adjustment
motor
(optional)
(optional)
Foot controller

The table can be locked or unlocked using the key on the base. If the key is in ON position, the table is unlocked and ready to use. If
the postion is OFF, the table is locked and the controls don’t work.
Safety lock 10
10
Instruction
Manual
Heating
Essential Settings
9
Optional
The tables may feature the optional heating. This feature is controlled by the side button panel in the top of the bed, and it allows to
switch on or o the heating system and also control the motors.
N’RUN

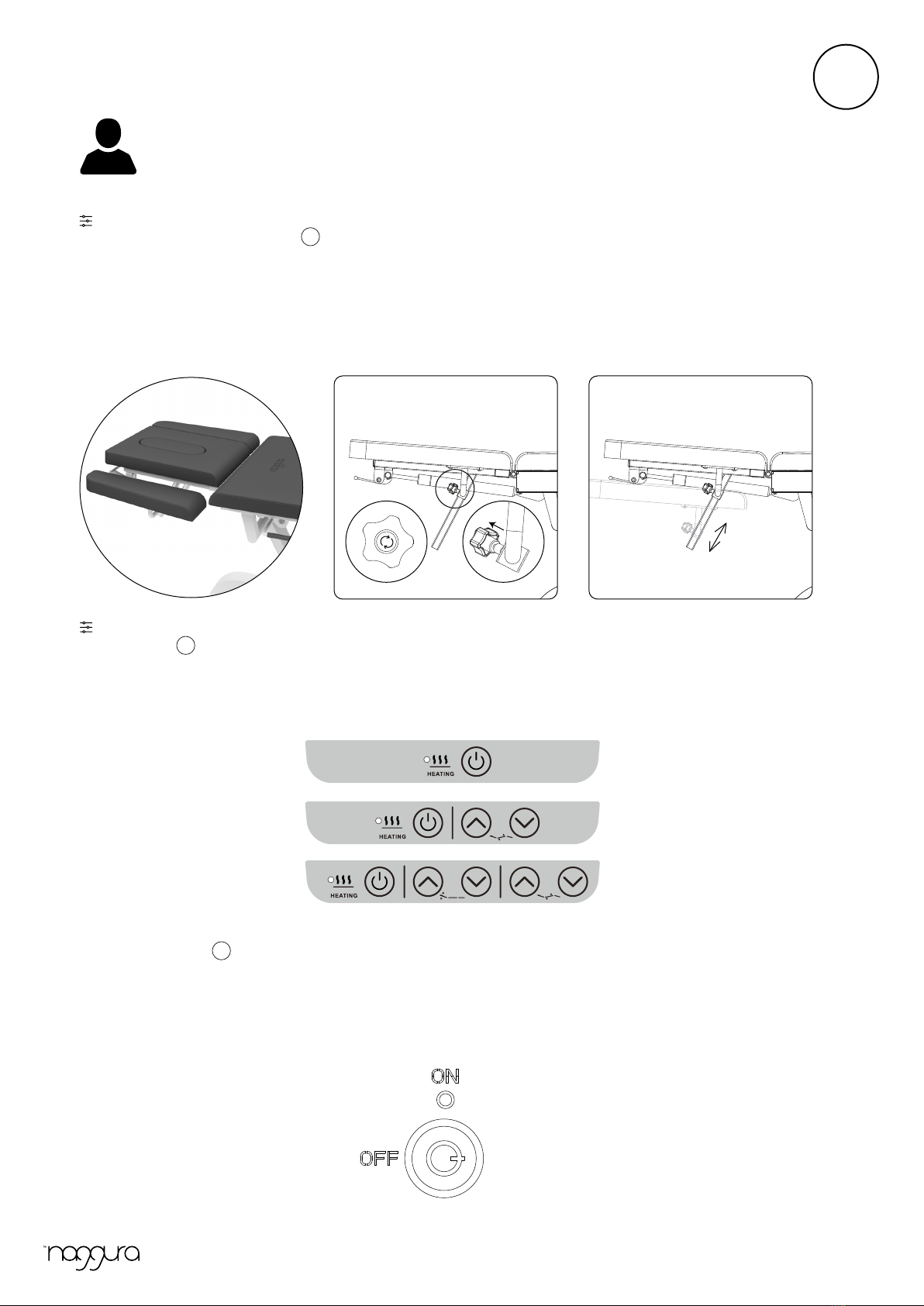

If your table is equipped with a head section with arms support (optional), you can adjust them as it is shown in the pictures below.
Unscrew the fixing knob to loosen the arm-blocking mechanism, slide the arm support down the bar to its place and tighten the knob
again to block it.
Armrests (only 304, 308) 8
Optional

11
Instruction
Manual
Maintenance
Cleaning
Clean the table frame using a damp white cloth, clear water and a domestic free-of-alcohol household cleaner. To clean
Spradling Permablock® upholstery, mix clear water with a mild soap, soak in water and remove excess of water. Next, rinse
with clear water and dry. Clean only in one direction. Before using any specific product, read the Spradling Care and
Cleaning guide to get more complete information. See the demo video in the Spradling website.
·Important: Lacquers, strong cleaners, xylene-based solutions, acetone or MEK cause immediate damage and contribute to the deterioration of
the material. The use of such cleaners is at the owner’s risk.
Maintenance
Naggura tables have been designed for an intensive use during long time thanks to its stability, reliability and durability.
However, we advise to keep the table in perfect conditions and make a correct use of it. Unplug the table if you will not use it
for a long period of time.
Environment information
If this symbol appears on electrical products or on its packaging, this means that they must be recycled properly. Please
ensure that you are well informed of the local rules and regulations regarding to the removal of equipment and accessories.
Troubleshooting
The top sections cannot be adjusted
The supporting gas springs might “stick” if the couch has not been used for a long time
• In such a case, push the corresponding lever with your hand, wait for a few seconds and pull the table section upwards with
the other hand.
The electric adjustments do not work properly
• Check the power cable for any damage.
• Check all the plugs and connections.
Persisting problems
If problems persist, please contact the dealer and provide the serial number and model of the table as they appear on the
backrest gaslift.
N’RUN

12
Our products are subject to
continuous technical improvements.
Naggura reserves the rightto
change ormodify the product and
contents without prior notice.

www.naggura.com
