Nagravision DMT 1761 User manual

Front Cover
LIVEWIRE OS
DIGITAL SET-TOP BOX USER MANUAL
Back Cover
CONTACT INFO
• <Mailing Address >
• <Phone Number>
• <Customer Service Phone Number and Address (If Different)>
• <Parent Company Affiliations (If Necessary)>
Important safety instructions
& FCC information
Safety

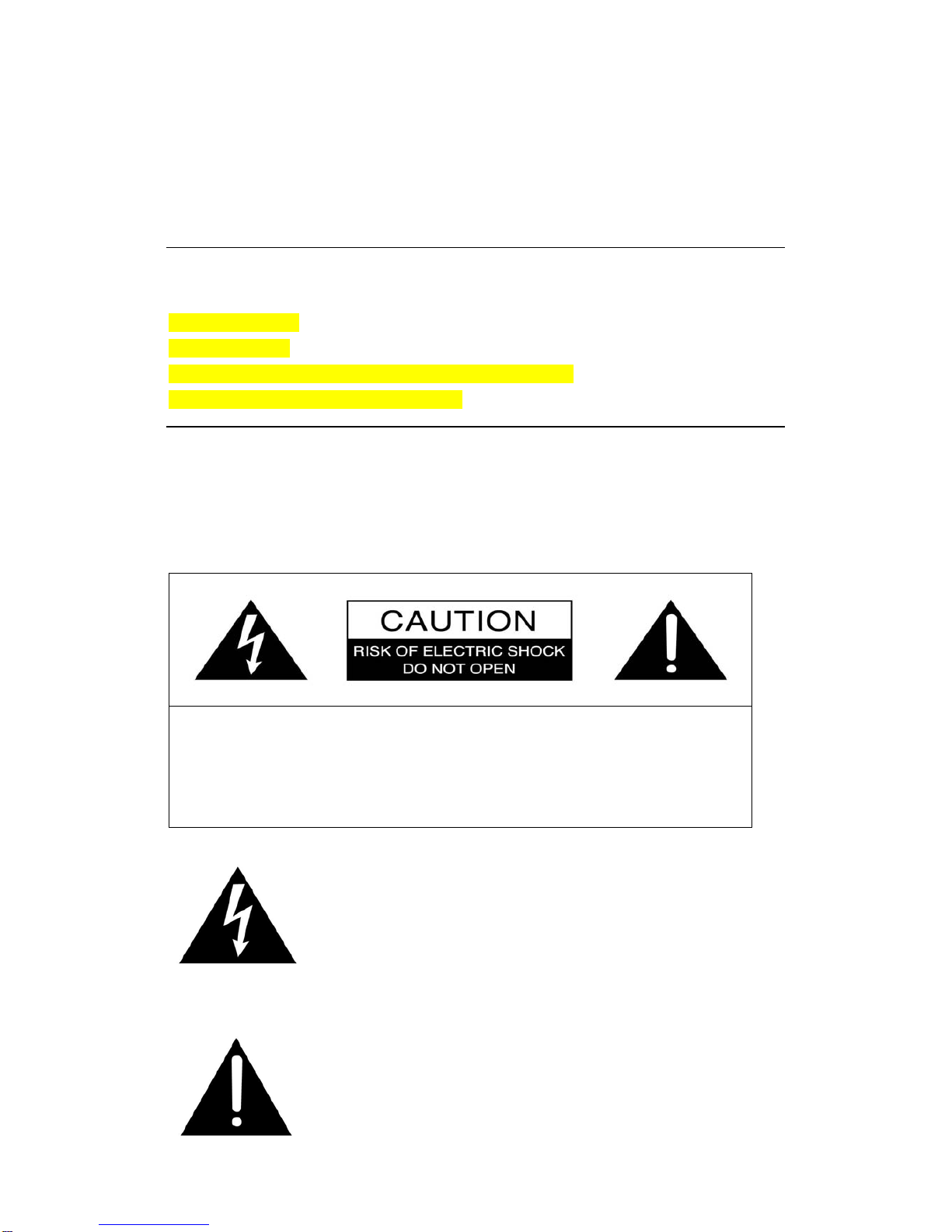

The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
The lighting flash with arrowhead symbol,
Within an equilateral triangle, is intended to alert the user
to the presence of un-insulated
“dangerous voltage” within the product’s enclosure that
may be of sufficient magnitude to constitute a risk of
electric shock to persons.
CAUTION :TO REDUCE THE RISK OF ELECTRIC SHOK
DO NOT REMOVE COVER(OR BACK)
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

FOR YOUR SAFETY
- The space around the receiver should be clear to allow for proper ventilation
of the receiver.
- Do not cover the receiver or place it on a unit that emits heat
- Use a damp soft cloth to clean the casing.
- Do not connect or disconnect cables when the receiver is plugged in.
- Do not remove the cover.
- Do not allow the unit to be exposed to hot, cold or humid conditions.
- Never allow liquids, spray or other materials to come into contact with the
inside of the receiver.
- Use only with the AC/DC Adaptor, Sunlin Electronics, Cat.No. SR689
WET LOCATION MARKING
Apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the apparatus.
Outdoor Use Marking
Warning: To prevent fire or electric shock, do not expose this appliance to rain or
moisture.
Cable System Installation Marking
Note to CATV System Installer:
This reminder is provided to call CATV system installer’s attention to Article
820-40 of the NEC that provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical
Polarized Attachment plug Marking
Caution : To prevent electric shock, match wide blade of plug to wide slot, fully
insert.
Date of Manufacture Marking
Location: Bottom enclosure

Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, install in accordance with the manufacturer’s
instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus(including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.

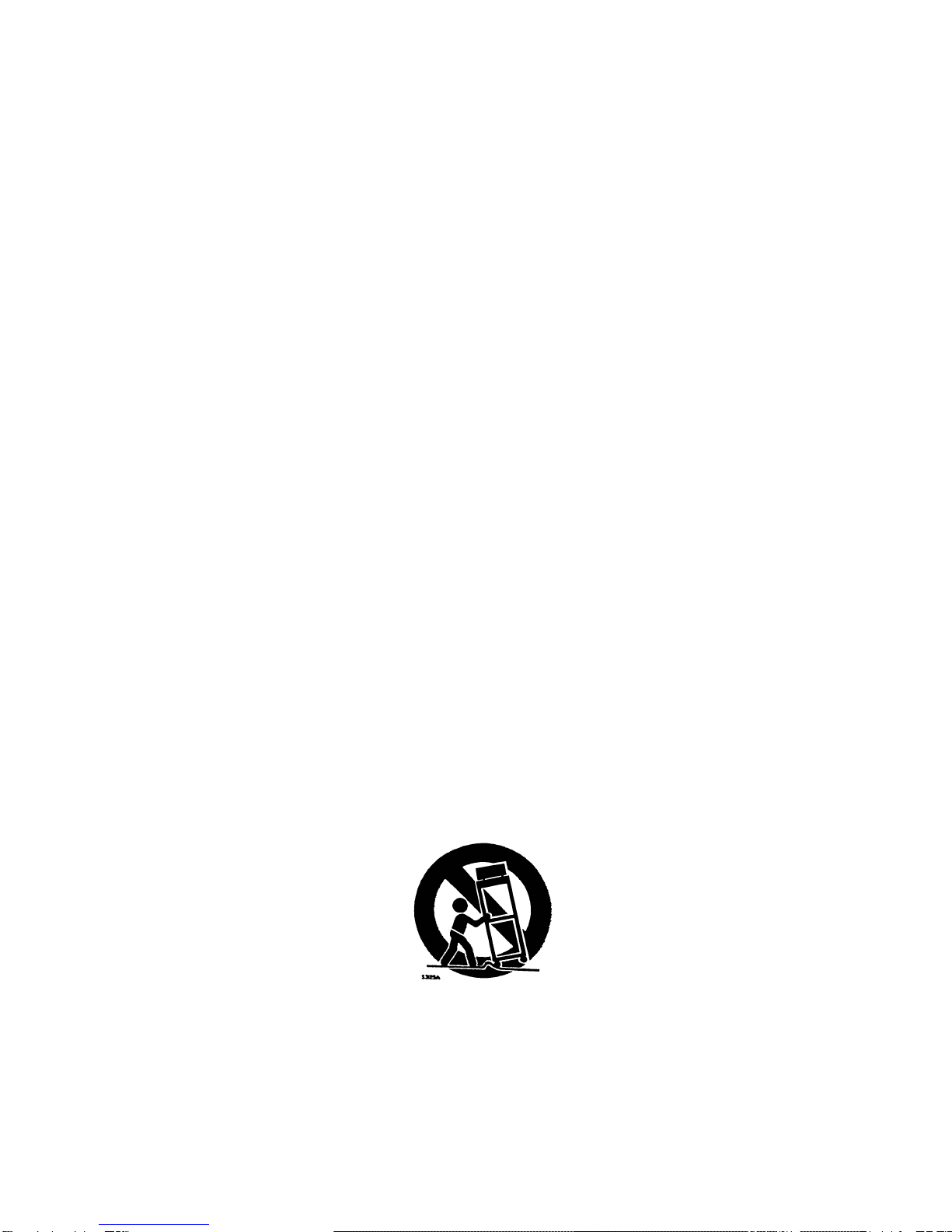

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus, when a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13) Unplug this apparatus during lighting storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any, such as power-supply cord or plug is damaged. Liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.

FCC INFORMATION
FCC ID : PFNDMT1761
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1 This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipmentoff and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
1 Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and Digital Set-Top Box.
3) Connect the equipment into an outlet on a circuit different from that to which the Digital Set-Top
Box is connected.
4) Consult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacturer could voidthe user’s authority to operate
the equipment under FCC rules.

MODEM Instructions
CAUTION -
To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord.
Note :
1. Both side shell peeled 6~7mm
2. To take up positions when insert the RJ11 6P2C
3. cable wording
(E216131 AWM 20251 26AWG VW-160℃150V ETERNAL WELL)

TABLE OF CONTENTS
1 YOUR DIGITAL SET-TOP BOX
1.1 Set-Top Box Details............................................4
1.2 Getting Started....................................................5
1.3 Front Panel..........................................................6
1.4 Rear Panel ..........................................................7
1.5 Universal Remote Control................................8-9
2 VIEW PROGRAMS
2.1 Program Information ....................................10-11
2.2 Program Navigation .....................................11-12
2.3 Program Guide.............................................12-16
2.4 Options..............................................................17
2.5 Ordering Pay-Per-View......................................18
3 MENU FEATURES
3.1 PPV Status........................................................19
3.2 Favorites/Themes.........................................20-21
3.3 Parental Controls..........................................22-23
3.4 Timers................................................................24
3.5 System Menu ...............................................25-28
4 TROUBLE SHOOTING
4.1 Onscreen Help ..................................................29
4.2 Message Screens ........................................30-31
4.3 Problem Solving...........................................32-33
4.4 Care and Maintenance.................................33-34
5 APPENDIX
Universal Remote Codes....................................35-37

Your Digital Set-Top Box
1.1 Set-Top Box Details
DMT 1761
System Software : LivewireTM Version 2.5 Developed by Nagravision Set-Top Solutions
Digital Video Broadcast (DVB)
Cable Standard ETS 300429 Compliant
Under Resale Agreements with Nagravision
KUDELSKI GROUP
User Manual v2.5.7 © 2006 NAGRAVISION. All Rights Reserved.
In order to provide you with the best user experience available, there will be periodic upgrades to the system software. The screen
examples used in this manual are for demonstration purposes only and are subject to change without notification and may not
accurately represent what you will see onscreen.
1.2 Getting Started
1. Connect the CABLE TV line from the wall to the back of your Digital Set-Top Box (CABLE IN).
2. Connect a COAX Cable (CABLE OUT TO TV/VCR) or RCA Cables (VIDEO OUT and AUDIO
OUT R-L) between the Digital Set-Top Box and your television.
3. Plug the (AC Power Cord) into the back of the Digital Set-Top Box and then into a convenient AC
power outlet. A surge protected power supply is recommended.
4. For optimum performance, it is recommended that you set the CHANNEL output switch on the
back of the Digital Set-Top Box to channel 4.
5. Remove the rear battery cover of your Universal Remote Control supplied with the Digital
Set-Top Box. Properly install the two “AAA” size batteries (supplied) into your Universal Remote
Control.
6. Turn-on your television using the POWER button on your TV.
If you have connected your Digital Set-Top Box using a COAX Cable, make sure your TV is
tuned to the correct input channel (Channel 4 is recommended).

If you have connected your Digital Set-Top Box using RCA Cables make sure your TV is set to
the proper Video Input Mode. (Example: Video 1, Video 2)
7. Using your Universal Remote Control, select the CABLE (CBL) button on the remote, then press
the POWER button.

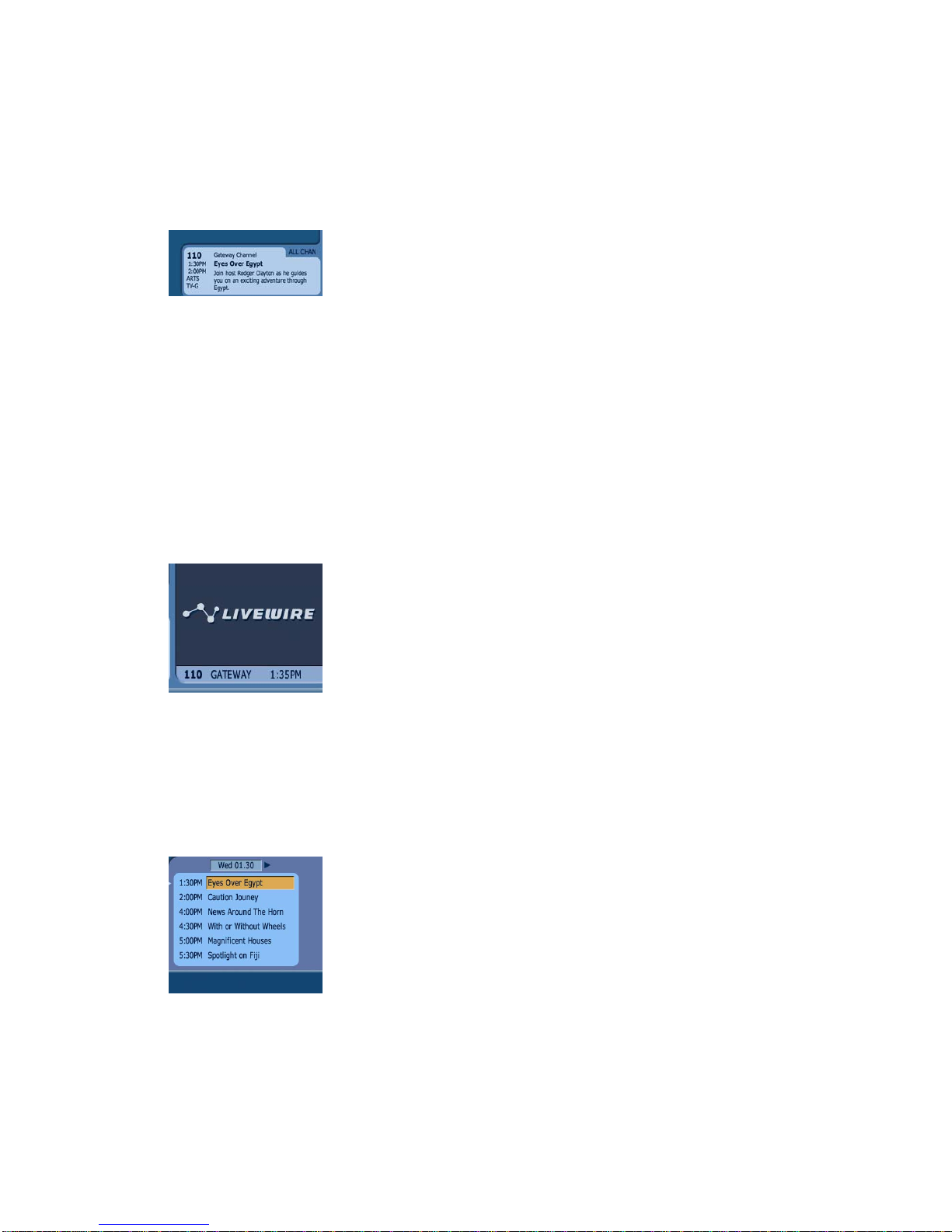

8. You should see the Livewire Start-Up Screen (Fig. 1) on the TV. Your Digital TV Software will
load and you are now ready to watch TV.
If you do not see the Livewire Start-Up Screen (Fig. 1) or live video, check your connections from
your TV and your cable source again.
If you still do notsee the Livewire Start-Up Screen (Fig.1) or live video, please refer to the Problem
Solving section (4.3) for the most common problems.
1.2 Front Panel
Smart Card Panel
Hidden Panel is behind Atlantic Digital Cable logo on the left front of your Digital Set-Top Box
LED Display
• Lights up Red when in Stand-By Mode
• Lights up Green when Power is on
Channel Up/Down Buttons
Navigates through the channel lineup
Volume Up/Down Buttons

Decreases or Increases the level of audio
Power Button
Switches Power On or into Stand-By Mode
1.3 Rear Panel
DC POWER
Power Supply Input
CABLE IN
RF Input
( Coax Cable) This is used to connect the cable from the wall to the Digital Set-Top Box.
ANT OUT
RF Output
(Coax Cable) When the Digital Set-Top Box is in Stand-By mode, this output can be connected to a
TV/VCR directly.
DIGITAL AUDIO OUT
SPDIF Output
(Black RCA Connector) Used with a home cinema receiver or amplifier.
VIDEO OUT
Video Output
(Yellow RCA Connector) connects into a TV or VCR.
AUDIO OUT (R-L)
Stereo Audio Outputs
(Red and White RCA Connectors) Right (Red) and Left (White) connect into a TV, VCR or Hi Fi.
S-VIDEO OUT
Composite S-Video Output
(S-Video Connector) S-Video out to S-Video into a TV or VCR.
CABLE OUT TO TV/VCR
RF Output
(Coax Cable) This can be used to connect to a TV or VCR using a Coax Cable to the Digital
Set-Top Box.
CH 4-CH 3
Switch
Selects TV Channel 3 or 4 as the output channel to your TV. For optimum performance, it is
recommended that you set the CHANNEL output switch on the back of the Digital Set-Top Box to
channel 4.

ANT IN
RF Input
(Coax Cable) This can be used to connect a TV antenna using a Coax Cable to the Digital Set-Top
Box. When the Digital Set-Top Box is in Stand-By Mode, the original signal can be displayed
through the Digital Set-Top Box and into your TV or VCR directly (bypass) using the ANT OUT
connector.

1.3 Universal Remote Control

POWER In CABLE MODE switches Power On or into Stand-By Mode. In all other modes turns the
power of that device On or Off.
CABLE Activates remote to control the Digital Set-Top Box (CABLE MODE).
TV Activates remote to control a TV (TV MODE).
VCR Activates remote to control a VCR (VCR MODE).
AUX Activates the remote to control an auxiliary device (AUXILIARY MODE).
0-9 Enters Channel Numbers and Passcode Numbers.
MENU Opens the MENU FEATURES screen of the MENU SYSTEM.
INFO Displays information about the current program in four different modes.
VOL+/- Increases or decreases volume levels.
GUIDE Displays the PROGRAM GUIDE.
CH+/- Selects the previous and next available channels.
ARROWS(Up & Down, Left, Right) While using the MENU SYSTEM and PROGRAM GUIDE, arrows
will move(Up, Down, the onscreen highlight up, down, left, or right. While in INFO MODE, arrows will
browse through the channel lineup and the next available program (Right). While inside a text window,
the Up and Down arrows will scroll through the charactersA-Z and numbers “0-9”. Use the Left and Right
arrows to navigate through the text window.
OK Confirms a selection. In SURF MODE displays the OPTION MENU.
FAV+ (Red) Rotates Favorite Lists betweenAll Channels, currently selected Theme and any of the
active Custom Favorite Lists.
HELP (Yellow) Displays the HELPAND INFORMATION for the current screen.
DONE (Blue) Automatically selects “DONE” onscreen and saves any changes you have made to the
current screen.
MUTE Cancels audio.
PAGE UP Scrolls one page up in the PROGRAM GUIDE and MENU SYSTEM.
LAST Switches between current and previous channel, or through all actively monitored programs.
In the MENU SYSTEM and PROGRAM GUIDE, LAST returns to the previous screen.
MUSIC Changes Channel Lineup to include only Digital Music Channels.
PAGE Scrolls one page down in the PROGRAM GUIDE and MENU SYSTEM.DOWN

EXIT Returns video to full screen from any INFO, MENU SYSTEM or PROGRAM GUIDE screen.
RECORD Sets a VCR to Record.
PAUSE Instructs a VCR, DVD or CD player to Pause.
PLAY Instructs a VCR, DVD or CD player to Play.
REWIND Instructs a VCR, DVD or CD player to Rewind.
STOP Instructs a VCR, DVD or CD player to Stop.
FAST FORWARD Instructs a VCR, DVD or CD player to Fast Forward.
2 View Programs
2.1 Program Information

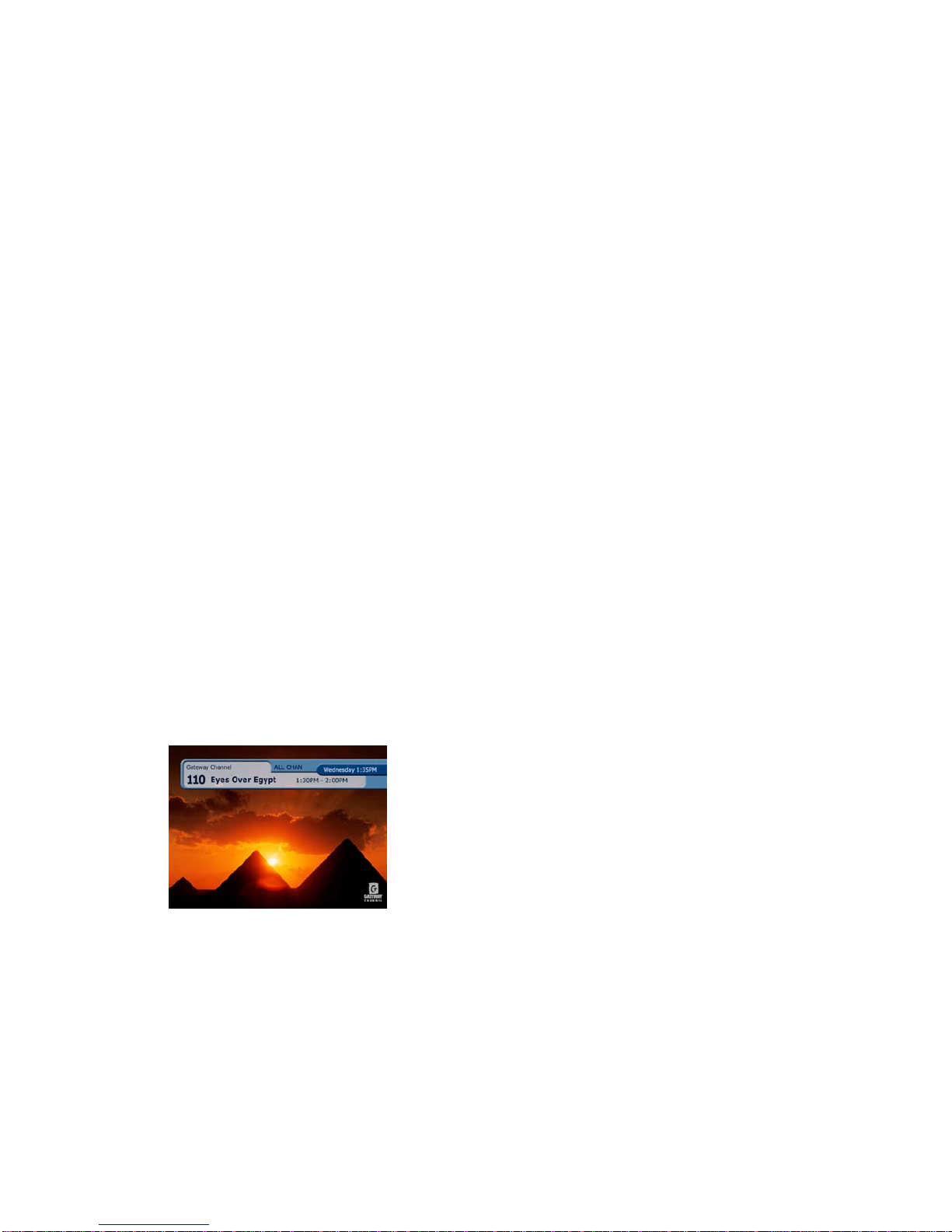

INFO MODE
You can view information about the current program by pressing the "Info" button on the remote
control. Each time you press the button, more information about the program will be displayed
onscreen. To exit INFO MODE, continue to press the “Info” button until the information screens
disappear, or press “EXIT” at any time.
INFO 1 MODE
Displays the following information:
• Channel Name
• Channel Number
• Program Name
• Current Date and Time

• Start and End Times
INFO 2 MODE
Displays the following information:
• Channel Name
• Channel Number
• Current Date and Time
• Program Start Time
• Program End Time
• Program Theme
(If Available)
• Program Rating
(If Available)
• Program Name
• Program Time Remaining
INFO 3 MODE
Displays all of INFO 2, plus:
• Program Description
• Transparent Window
2.2 Program Navigation
NAVIGATING INFO MODE

Use “CH +” or “CH -” to tune to the next or previous available channel.The screen will remain in the
INFO MODE you have selected. To exit INFO MODE, continue to press the “Info” button until the
information screens disappear, or press “EXIT” at any time.
NOTE: Even if you are not in INFO MODE, your screen will display information about the current
program each time you change the channel. This information will briefly remain onscreen and then
automatically disappear.
In any active INFO MODE you can use the “Up” and “Down” arrows on your remote to scroll
through the channel lineup and view program information without changing your current channel.
This way, you can evaluate what is on other channels without leaving your current program.
Use the “Right” arrow button to preview information for the next program on your current channel.
Use the “Up” and “Down” arrow buttons to scroll through the channel lineup for information on all
programs in the next time slot. Use the “Left” arrow button to return to the current time slot.
While viewing program information, press “OK” to select and tune to a program. If you select “OK”
for a program in the next time slot, your Digital Set-Top Box will tune immediately to that channel.
NOTE: You can use the Program Guide (Section 2.3) to set timers for future programs in advance.
With a timer set, your Digital Set-Top Box will automatically tune to that program when it becomes
available.
Use numbers “0-9” on your remote control to enter a specific channel number, and your Digital
Set-Top Box will tune to that channel after a brief delay. Press “OK” to tune to a channel manually,
without a delay.
2.3 Program Guide
USING THE PROGRAM GUIDE
Press “Guide” on your remote control to display a list of all available channels and their programs.
Use the arrow buttons to move the orange highlight onscreen and choose a program. Make a
selection by pressing “OK”.
Once you make a selection, you will be given a full description of the program and the following two
options: VIEW NOW for current programs or SET TIMER for future programs to view the program
when it becomes available.
UNDERSTANDING THE PROGRAM GUIDE

The Program Guide is divided into four sections.
The top left corner of your screen displays an INFO WINDOW that contains the following
information about the program that you have highlighted:
• Channel Number
• Program Start Time
• Program End Time
• Program Theme
• Program Rating (If Available)
• Channel Name
• Program Name
• Short Program Description
• Current Favorite List Name
The top right corner of your screen displays a VIDEO MONITOR of the tuned program, along with
the following information:
• Current Channel Number
• Current Short Channel Name
• Current Time
The LEFT COLUMN lets you scroll through the channels available in your current channel lineup
and displays all programs currently playing. The left column displays the following information:
• Current Date
• Channel Numbers
• Short Channel Names

• Current Program Names
The RIGHT COLUMN displays the upcoming programs available on the currently highlighted
channel.
Scroll down to show all the programs scheduled for the day or select DAY SHIFTER (see p.15) to
quickly jump ahead 24 hours. The right column displays the following information:
• Date of the Highlighted Program
• Program Start Times
• Program Names
NAVIGATING IN THE PROGRAM GUIDE
Each time you activate the Program Guide by pressing “Guide” on the remote control, it begins by
displaying the information about the current channel and program you are tuned to. Note that the
VIDEO MONITOR corresponds to the description in the top left INFO WINDOW.
Use the "Up" and "Down" arrows on your remote control to scroll through the channel lineup in the
LEFT COLUMN. The RIGHT COLUMN displays future programs available on the channel that you
have highlighted in the LEFT COLUMN.
Use the “Right" arrow on your remote control to browse inside the RIGHT COLUMN. Use the "Up"
and "Down" arrows to scroll through future programs. You can return to the LEFT COLUMN by
pressing the "Left" arrow at any time.
To scroll more quickly through the Channel Lineup, use the “Page Up” or “Page Down” button on
your remote control to scroll one page at a time.
You can also use the numbers “0-9” on your remote control to enter a specific channel number, and
the Program Guide will highlight that channel after a brief delay.
NOTE: Depending on program length, the RIGHT COLUMN may not immediately display all future
programs. However, when you move the cursor into the RIGHT COLUMN, your Digital Set-Top
Box will access and display all future program information. In some cases, the Digital Set-Top Box
will temporarily suspend the VIDEO MONITOR while accessing program information. Once the
data has been updated, video will return.

DAY SHIFTER
When you move the cursor inside the RIGHT COLUMN, the list will begin with the current program.
From this position, use the "Up" arrow on your remote control to start the DAY SHIFTER feature, or
press the “Last” button on your remote control to automatically highlight the DAY SHIFTER. Once
the current date is highlighted, use the "Right" arrow to skip ahead 24 hours from the current time.
Each time you press the "Right" button, the display will skip ahead another 24 hours. Use the “Left”
arrow to return to the current date.
At any time while using the DAY SHIFTER, use the "Down" arrow to browse through the programs
available that day.
NOTE: To return to the DAY SHIFTER feature once you have started browsing in the future
program list, you can select the “Last” button on your remote control. You can also start over by
returning to the LEFT COLUMN by pressing the “Left” arrow and return to the current day’s
programming.
TUNING TO CURRENT AND FUTURE PROGRAMS
At any time in the program guide, press "OK" on your remote control to display a full description of
the program you have highlighted.
If you select a CURRENT PROGRAM, you will be given the option to tune immediately to that
program. Choose "VIEW NOW" onscreen by pressing "OK" on your remote control.

If you select a FUTURE PROGRAM, you will be giventhe option to set a timer so that you can view
the program when it begins. Choose "SET TIMER" onscreen by pressing "OK" on your remote
control. A TIMER ICON will then appear next to the program for which you have set a timer. Your
TV will automatically tune to this program when it begins.
If you do not wish to view the current or future program, return to the Program Guide by pressing
"Last" on your remote control.
You can cancel a timer at any time. Highlight the program for which a timer has been set and press
"OK" on your remote control. You will then be given the option to cancel the timer for that program.
Choose "CANCEL" onscreen by pressing "OK" on your remote control.
2.4 Options
USING THE OPTIONS SCREEN
While viewing any program, you can access the OPTIONS screen directly by pressing “OK” on your
remote control. Available program options include: Additional Audio, Additional Video and
Subtitles.
TIP: You can use the blue “Done” button on your remote control to automatically select “DONE”
onscreen, without having to navigate to it.
Also, you can use the yellow “Help” button on your remote control to access the Help and
Information Screen for any page without having to navigate to the “HELP” button onscreen.
ADDITIONAL AUDIO AND VIDEO
If an additional audio and/or video feed is available for the program you are viewing, you will see
icons for ADDITIONAL AUDIO and/or ADDITIONAL VIDEO on the left side of the screen. Activate
the OPTIONS screen by pressing “OK” on your remote control. Then use the “Arrow” buttons on

your remote control to navigate and select the available option. Select “DONE” onscreen to activate
changes.
The changes will only affect your currently viewed program, and will default back to normal once
the program is complete.
TIP: Press the “FAV+”(Red) button on your remote control to rotate through your favorite lists.
When you activate this feature, you will switch between All Channels and if active, your currently
selected Theme and any of the eight Custom Favorite Lists. (Section 3.1)
2.5 Ordering Pay-Per-View

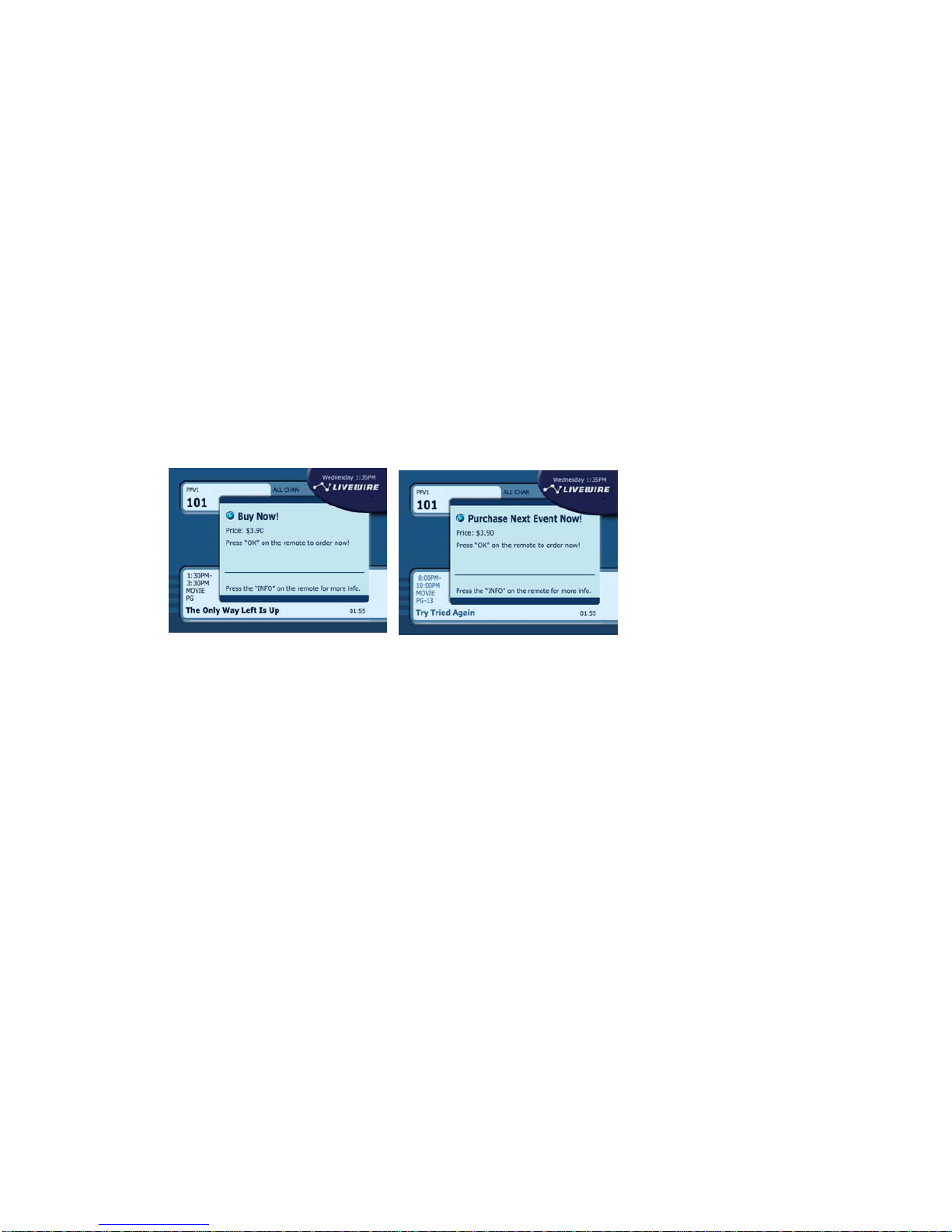

ORDERING PPV MOVIES
Your Digital Set-Top Box allows you to purchase pay-per-view events directly onscreen. When you
tune to a PPV Channel you will be asked to press "OK" to buy the program now. Once you confirm
your purchase, your account will be charged immediately and the program will be available at its
scheduled start time.
Also, you are able to purchase in advance the next available pay-per-view event at any time before
and up to 20 minutes after the start time. Press the "Right Arrow" on the remote to scroll to the next
event and you will be instructedon-screen to purchase the next event.
NOTE: Once the purchase windowof 20 minutes has expired you will only be shown the nextevent
available.
TIP: If you are considering purchasing a PPV Program at a future time or date, use the Program
Guide to set a timer by highlighting the future PPV Program and pressing “OK” on your remote
control. You will then be given the option to set a timer. Press “OK” on your remote control to
choose "SET TIMER" onscreen. Please note, this will only set a timer and NOT purchase the event.
3- Menu Features
