Nakanishi NSK FX65 User manual

Open
Close
1
2
Chuck Open
Chuck Close

3

1
ENGLISH
Class
CAUTION
NOTICE
Degree of Risk
Hazard that could result in light or moderate injury
or damage to the device if the safety instructions
are not correctly followed.
General product specification information
highlighted to avoid product malfunction and
performance reduction.
•ReadthisOperationManualbeforeusetofullyunderstandthe
productfunctionsandfileforfuturereference.
•Whenoperatingtheproductalwaysconsiderthesafetyofthe
patient.
•Thisproductdoesnotconsiderpatient’sage(exceptinfants),
gender,weightornationality.
•Thisproductdoesnotconsideroperator’sage(matureperson),
height,weight,gender,ornationality.
•Usersareresponsiblefortheoperationalcontrol,maintenance
andcontinualinspectionofthisproduct.
•Donotattempttodisassembletheproductnortamperwiththe
mechanismexceptasrecommendbyNSKinthisOperation
Manual.
•Donotallowanyimpactontotheproduct.Donotdropthe
product.
•Operatorsandallothersintheareamustweareyeprotectionand
amaskwhenoperatingthishandpiece.
CAUTION
1. User and Intended Use
User:QualifiedProfessionals
IntendedUse:DentalTreatment/DentalProsthetics(Cutting,Polishing)
2. Precautions for handling and operation
•Pleasereadtheseprecautionscarefullyanduseonlyasintendedor
instructed.
•Safetyinstructionsareintendedtoavoidpotentialhazardsthatcould
resultinpersonalinjuryordamagetothedevice.Safetyinstructions
areclassifiedasfollowsinaccordancewiththeseriousnessoftherisk.

2

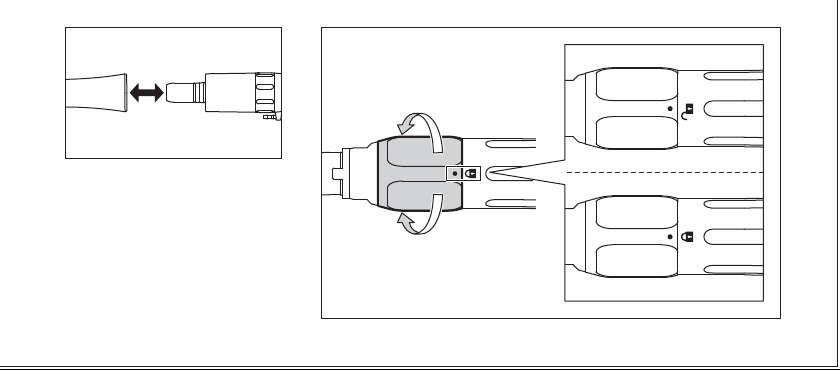

4. Insertion & Removal of the Bur
4-1 To Insert the Bur
1)TurntheBurLockRinginthedirectionofthe" "markuntilit
clicks.(Fig.2)
2)InserttheburfullyintothechuckthenturntheBurLockRinginthe
directionofthemark" "untilitclicks.
3)Testthattheburissecurebygentlypullingandpushingthebur.
•Shouldtheproductfunctionabnormally,ceaseoperation
immediatelyandcontactyourAuthorizedNSKDealer.
•Donotusehighacidwaterorsterilizingsolutionstowipe,immerse
orcleanthehandpiece.
•Theproductsaredeliveredinanon-sterileconditionandmustbe
autoclavedpriortouse.
•Performregularfunctionandmaintenancechecks.
•Iftheproductisnotusedforalongperiodcheckitisfunctioning
correctlybeforeusingonapatient.
•Toavoidclinicaldowntimeitisrecommendedthatasparebekept
onhandincaseofabreakdownduringsurgery.
•U.S.Federallawrestrictsthisdevicetosalebyorontheorderofa
licensedphysician.
3. Connection & Disconnection of the Handpiece and Motor
3-1 Connection

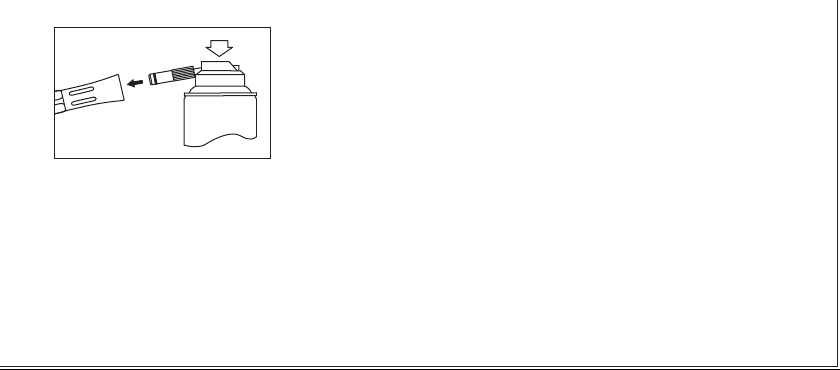

1)Connectthehandpiecedirecttothemotor. (Fig.1)
2)Makesurethehandpieceisfirmlyconnectedtothemotor.
3-2 Disconnection
Holdthemotorandthehandpieceseparatelyanddisconnectwith
care.
•Disconnectthehandpieceonlyafterthemotorhascompletely
stoppedrotating.
•ConnectONLYtoEtypemotors(ISO3964).
CAUTION
