Nakanishi NSK NLZ Endo User manual

ENGLISH
1
CAUTION
•This product is only for use with the “NLZ E” motor from NSK. Do not connect it to motors other than the NLZ E. Also, do not
use this product with modes other than the Rotary Endo Mode and Reciprocating Endo Mode of the NLZ E. Doing so may
exceed the allowed rotation speed, which can cause early gear deterioration, overheating, and damage to the file.
•When using the Reciprocating Endo Mode of the NLZ E, use a WaveOne®reciprocating file manufactured by the Dentsply
Sirona Group. WaveOne®is a registered trademark of Dentsply Sirona Inc.
1. User and Indications for Use
User: Dental professionals
Indications for Use:
The NLZ motor system is intended for use by dental professionals in the performance of dental restoration, prophylaxis and
endodontic procedures.
The NLZ Endo contra angle handpiece is intended for use by dental professionals in the performance of dental endodontic procedures .
C0563E001_NLZ_Endo_EN_180404.indd 1 2018/04/25 11:55:38

2
Class Degree of Risk
WARNING Hazard that could result in serious injury or damage to the device if the safety instructions are not
correctly followed.
CAUTION Hazard that could result in light or moderate injury or damage to the device if the safety instructions are
not correctly followed.
NOTICE General product specification information highlighted to avoid product malfunction and performance
reduction.
2. Precautions for Handling and Operation
Please read these precautions carefully and use only as intended or instructed.
Safety instructions are intended to avoid potential hazards that could result in personal injury or damage to the device. Safety
instructions are classified as follows in accordance with the seriousness of the risk.
C0563E001_NLZ_Endo_EN_180404.indd 2 2018/04/25 11:55:38

EN FR
3
WARNING
•Immediatelyafteratreatment(within1hour),performmaintenanceandthenstorethehandpiece.Failureto
properlymaintainthehandpiecemayleadtooverheating,causinginfection,burninjuriesorproductfailure.
(Referto“7.Post-useMaintenance”)
•Ifbloodinltratesinsideahandpiece,anautomatichandpiececleaningandlubricationsystemmaynot
totallycleantheinternalhandpiececomponentsandmayleadtobloodcoagulationinsidethehandpiece.
Coagulatedbloodmaycausehandpiecefailureandoverheating,causingburninjuries.Toavoidtherisk,NSK
recommendstoimmediatelylubricatethosehandpieceswithPANASPRAYPlus.

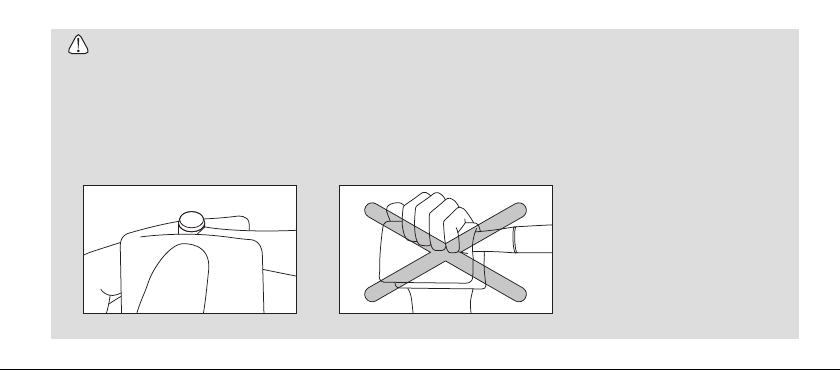

•DepressingthePushButtonwhilethehandpieceisinrotationmayleadtooverheating,causingburninjuries
orproductfailure.Avoidthepushbuttontocontactwithanyoraltissue.
•Keepanydebrisorotherforeignmaterialsawayfrominsidethegearorthehandpiece.Foreignmaterials
remaininginsidemayleadtooverheating,causingburninjuriesorotheraccidents.
•Ballbearings,intime,willbecomewornandwillrequirereplacement.Besuretoinspectthehandpiece
beforeuse(Referto“6.CheckingtheHandpieceBeforeEachUse”).Ifabnormalvibrationornoiseare
found,thebearingsorotherinternalpartsmayrequirereplacement.Damagedpartsmayleadtohandpiece
overheatingcausingburninjuries.Ifoverheatingissuspected,stopusingthehandpieceimmediatelyand
contactyourAuthorizedNSKDealer.
C0563E001_NLZ_Endo_EN_180404.indd 3 2018/04/25 11:55:38

4
CAUTION
•This product is only for use with the “NLZ E” motor from NSK. Do not connect it to motors other than the NLZ E.
Also, do not use this product with modes other than the Rotary Endo Mode and Reciprocating Endo Mode of the NLZ E.
Doing so may exceed the allowed rotation speed, which can cause premature gear deterioration, overheating, and damage to the file .
•When operating the product always consider patient safety.
•Users are responsible for the operational control, maintenance and continual inspection of this product.
•Prior to clinical use, inspect the handpiece. Check for vibration, noise and overheating. If any abnormalities are found, stop using
the handpiece immediately and contact your Authorized NSK Dealer. (Refer to “6. Checking the Handpiece Before Each Use” )
•Do not disassemble or alter the handpiece except as recommended by NSK in this Operation Manual.
•Do not allow any impact on to the product. Do not drop the product. Deformation may cause product failure.
•Operators and all others in the area must wear eye protection and a mask when operating this handpiece.
•Do not use files other than specified in “9. Specifications” as such burs may be accidentally released or break during rotation .
•When using the Reciprocating Endo Mode of the NLZ E, use a WaveOne®reciprocating file manufactured by the Dentsply Sirona Group.
•Do not use file with problems listed below as the bur may break, seize up or disengage from the chuck.
- Bent, deformed, worn, rusted, broken, deficient files.
- Files which is cracked on the edge or axis.
- Non-ISO (EN ISO) standard, or tampered files.
C0563E001_NLZ_Endo_EN_180404.indd 4 2018/04/25 11:55:38

EN FR
5
CAUTION
•Always keep the file shank of the file clean. Debris in the chuck could cause poor file concentricity or low chuck retention force .
•Always insert the file all the way into the chuck. If insertion is insufficient, premature failure of the handpiece head bearings,
or accidental release of the file, may occur.
•Do not exceed Max. File Length shown in “9. Specifications”.
•Do not exceed the file speed recommended by the file manufacturer.
•Always follow the instructions provided by the file manufacturer.
•Should the handpiece function abnormally during use, stop using the handpiece immediately and contact your Authorized NSK Dealer .
•Do not use the following fluids to wipe, immerse or clean the product; strong/super acid water, strong acid/alkaline
chemicals, chlorinecontaining solutions, solvents such as benzine or thinner.
•The handpiece is delivered in a non-sterile condition and perform steam sterilization prior to use.
•Perform regular function and maintenance checks. (Refer to “8. Periodical Maintenance Checks”)
•If the handpiece has not been used for a long period, rotate the handpiece and check for noise, vibration and overheating before use .
•To avoid clinical downtime it is recommended that a spare be kept on hand in case of a breakdown during treatment.
•U.S. Federal law restricts this device to be used by or on the order of a licensed dental professional.
C0563E001_NLZ_Endo_EN_180404.indd 5 2018/04/25 11:55:38

6
3. Accessory List
No. Part Name Quantity
1 E-Type Spray Nozzle 1
4. Connecting and Disconnecting the Handpiece from the Motor
4-1 Connecting
1) Insert the handpiece direct into the motor (Fig. 1).
2) Confirm that the handpiece is securely connected to the motor.
4-2 Disconnecting
Hold the motor and the handpiece, then pull apart. Fig. 1
Handpiece Motor
C0563E001_NLZ_Endo_EN_180404.indd 6 2018/04/25 11:55:38

EN FR
7
CAUTION
•This product is only for use with the “NLZ E” motor from NSK. Do not connect it to motors other than the NLZ E. Also, do
not use this product with modes other than the Rotary Endo Mode and Reciprocating Endo Mode of the NLZ E. Doing so may
exceed the allowed rotation speed, which can cause premature gear deterioration, overheating, and damage to the file.
•Do not connect or disconnect the handpiece until the motor has completely stopped.
C0563E001_NLZ_Endo_EN_180404.indd 7 2018/04/25 11:55:38

8
5. Inserting and Removing the File
5-1 Inserting the File (Fig. 2)
1) Insert the file until it is correctly secured in place.
2) Depress the Push Button and insert the file into the chuck until the file “notch”
mechanism engages. Release the button.
3) Confirm that the file is secure by gently pulling and pushing the file without
depressing the Push Button.
5-2 Removing the File (Fig. 3)
Depress the Push Button to open the chuck ( ) and, while the chuck is open,
remove the file ( ).
Fig. 2
Fig. 3
Push Button
D-shape
Push Button
C0563E001_NLZ_Endo_EN_180404.indd 8 2018/04/25 11:55:39

EN FR
9
CAUTION
•Do not use files other than specified in “9. Specifications” as such files may be accidentally released or break during rotation .
•When using the Reciprocating Endo Mode of the NLZ E, use a WaveOne
®
reciprocating file manufactured by the Dentsply Sirona Group.
•Do not use files with problems listed below as the file may break, seize up or disengage from the chuck.
- Bent, deformed, worn, rusted, broken, deficient file.
- File which is cracked on the edge or axis.
- Non-ISO (EN ISO) standard, or tampered file.
•Insert a sterilized file and always keep the file shank clean. When changing the file, make sure that the handpiece head is
clean. Debris in the chuck could cause infection, heating, poor file concentricity or low chuck retention force.
•Always insert the file all the way into the chuck. If insertion is insufficient, premature failure of the handpiece head bearings,
or accidental release of the file, may occur.
•Do not exceed Max. File Length shown in “9. Specifications ” .
•Always follow the instructions provided by the file manufacturer.
•Do not exceed the file speed recommended by the file manufacturer .
•Do not insert or remove the file until rotation has completely stopped.
•Do not apply excess pressure to the file as it may break or bend and become difficult to remove.
C0563E001_NLZ_Endo_EN_180404.indd 9 2018/04/25 11:55:39

10
6. Checking the Handpiece Before Each Use
Follow the check procedure below before use. If any abnormalities are found, stop using the
handpiece immediately and contact your Authorized NSK Dealer.
1) Check the Head Cap is firmly tightened.
2) Insert the file.
3) Set the rotation speed to 1,000 min
-1
(Rotary Endo Mode, gear ratio 6:1, 1,000 min
-1
)
and rotate the handpiece for about 1 minute. During rotation, check for abnormalities
such as abnormal rotation, vibration, noise .
4) After the handpiece rotation has completely stopped, touch the handpiece head to confirm
the head is NOT heating abnormally (Fig. 4) .
Fig. 4
CAUTION
•To avoid injury, keep your hands away from the file during rotation.
C0563E001_NLZ_Endo_EN_180404.indd 10 2018/04/25 11:55:39

EN FR
11
7. Post-use Maintenance
After each patient maintain the product as follows.
WARNING
•Immediatelyafteratreatment(within1hour),performmaintenanceandthenstorethehandpiece.
Failuretoproperlymaintainthehandpiecemaycauseinfection,productfailue,overheatingleading
burninjuries.
CAUTION
•Follow local rules, regulations, and guidelines regarding the reprocessing of devices.
•Perform the following cleaning and disinfecting quickly after treatment (within 1 hour) to remove any residue.
•Steam sterilization is recommended for the product. The validity of other sterilization methods (such as plasma sterilization
or EOG sterilization) is not confirmed.
C0563E001_NLZ_Endo_EN_180404.indd 11 2018/04/25 11:55:39

12
7-1 Cleaning at point-of use
1) Always wear protective gloves, a mask, and protective goggles for safety purposes and
to minimize the risk of infection (Fig. 5).

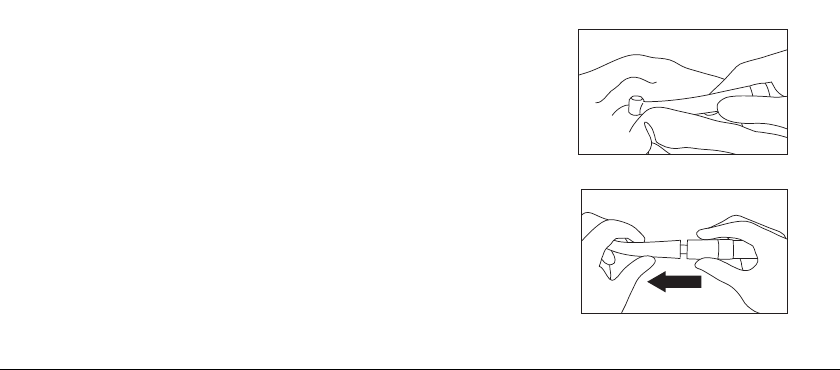

2) Remove the file (Fig. 6).
CAUTION
•Do not use the following fluids to wipe, immerse or clean the product; strong/super
acid water, strong acid/alkaline chemicals, chlorinecontaining solutions, solvents such
as benzine or thinner.
•Do not immerse the product in disinfectant or perform cleaning with an ultrasonic
washer. Doing so may cause product failure .
Fig. 5
Fig. 6
C0563E001_NLZ_Endo_EN_180404.indd 12 2018/04/25 11:55:39

EN FR
13
3)

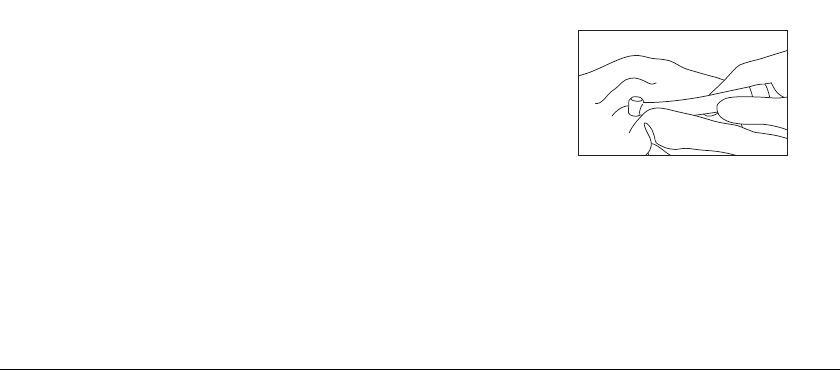

Wipe the exterior of the handpiece clean using a cloth moistened with disinfectant or
ethanol with a concentration of 60-90% (Fig. 7) .
When using disinfectant, follow the instructions given by the manufacturer of the
disinfectant.
Use a state-sanctioned disinfectant with proven bactericidal, fungicidal, and virucidal properties .
The following disinfectants can be used in the United States and Canada.
Example) CaviCide®, CaviWipes®(manufactured by Metrex)
CaviCide®and CaviWipes®are registered trademarks of Metrex Research, LLC.
4) Remove the handpiece from the motor (Fig. 8).
5) Carry the handpiece to the decontamination area .
Fig. 7
Fig. 8
C0563E001_NLZ_Endo_EN_180404.indd 13 2018/04/25 11:55:39

14
7-2 Cleaning, Disinfecting, and Drying
Perform cleaning, disinfecting, and drying using either the manual or automatic method.
Manual Method (Cleaning, Disinfecting, and Drying the Exterior)
1)

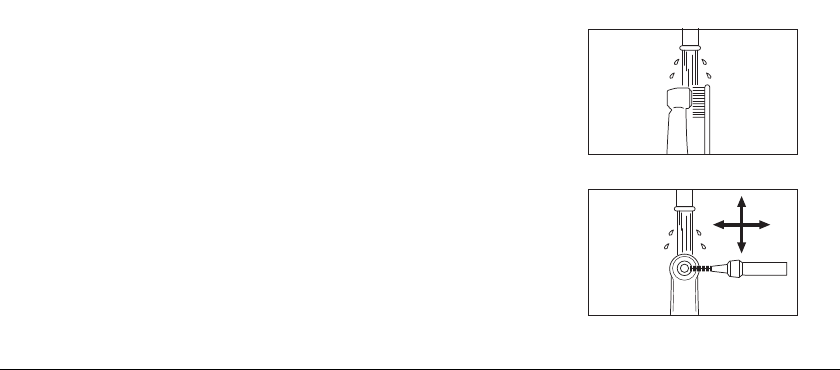

Clean the exterior of the handpiece under running water using a soft (non-metallic) brush
(Fig. 9, 10).
(Wash the whole exterior with a toothbrush for 15 seconds and around the bur insertion
hole for another 15 seconds with an interdental brush.) (Water temperature 38°C or less,
drinking water level of water quality recommended)
After cleaning the handpiece, confirm that it is clean under appropriate lighting
(500 lx or higher) .
If the handpiece is still dirty, repeat the procedure.
Fig. 10
Fig. 9
C0563E001_NLZ_Endo_EN_180404.indd 14 2018/04/25 11:55:40

EN FR
15
2)
Wipe the exterior of the handpiece clean using a cloth moistened with disinfectant or ethanol
with a concentration of 60-90% (Fig. 11).
When using disinfectant, follow the instructions given by the manufacturer of the disinfectant.
Use a state-sanctioned disinfectant with proven bactericidal, fungicidal, and virucidal properties .
The following disinfectants can be used in the United States and Canada.
Example) CaviCide
®
, CaviWipes
®
(manufactured by Metrex)
After cleaning and disinfecting, if the residual moisture is present, wipe off with dry cloth or

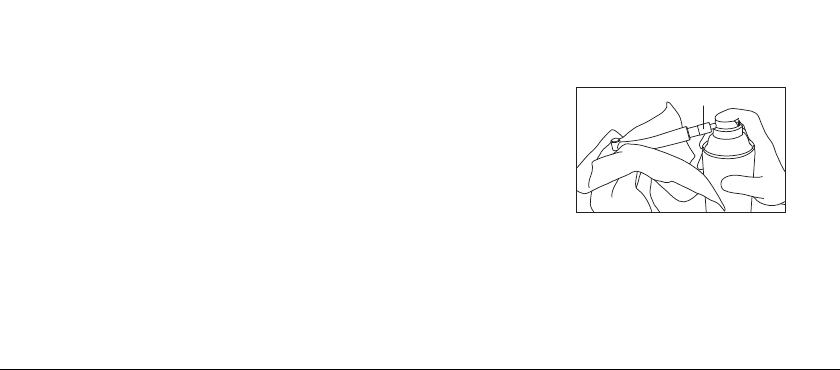

blow it off with compressed air until there is no moisture in the interior and exterior.
When blowing off with compressed air, cover the handpiece with cloth to prevent scattering of water.
Fig. 11
C0563E001_NLZ_Endo_EN_180404.indd 15 2018/04/25 11:55:40

16
Automatic Method (Cleaning, Disinfecting, and Drying the Exterior and Interior)
Use a washer-disinfector that conforms to ISO 15883-1 to perform cleaning, disinfecting, and drying.
When using a washer-disinfector, follow the instructions given by the manufacturer of the washer-disinfector.
Miele®VARIO-TD mode is recommended.
(VARIO-TD mode: prewash 20 °C, main wash 55 °C, rinse 20 °C, disinfection >90 °C, drying )
Miele®is registered trademarks of Miele & Cie. GmbH & Co..
*Wipe off a dirt on a part held by a handpiece holder using the cloth moistened with 60-90% ethanol or disinfectant.
After cleaning, disinfecting, and drying the handpiece, confirm that it is clean under appropriate lighting (500 lx or higher).
If the handpiece is still dirty, repeat the procedure.
CAUTION
•Quickly remove the handpiece from the washer -disinfector after the cleaning, disinfecting and drying cycle is complete (within 1 hour).
Failing to do so may cause corrosion .
•After washing with the washer -disinfector, prior to lubrication, dry the product until all internal moisture is completely removed.
Washer -disinfector moisture remaining inside the product could reduce the effect of lubrication and could cause corrosion inside of the product .
C0563E001_NLZ_Endo_EN_180404.indd 16 2018/04/25 11:55:40

EN FR
17
7-3 Cleaning and Lubrication
Perform cleaning and lubrication using either the manual or automatic method.
Manual Method (Cleaning and Lubricating the Interior)
1) Attach an E-Type Spray Nozzle to the nozzle of the PANA SPRAY Plus.
2) Shake the can 3 or 4 times, and insert the E-Type spray nozzle into the rear of the handpiece
while holding the head of the handpiece with a cloth etc..
3) Hold the handpiece, and spray for 2 or 3 seconds until oil comes out of the
handpiece tip (Fig. 12) .
Repeat lubrication until foreign material stops coming out of the tip .
Fig. 12
E-Type Spray Nozzle
C0563E001_NLZ_Endo_EN_180404.indd 17 2018/04/25 11:55:40

18
CAUTION
•Do not use sprays other than NSK PANA SPRAY Plus. Using sprays other than PANA SPRAY Plus may cause the handpiece to overheat .
•Hold the spray can upright.
•Firmly hold the handpiece to prevent it slipping when spray pressure is applied.
•Spray lubricant until it expels from the handpiece head.
•If you wish to purge excessive oil from inside the handpiece, rotate the handpiece for approx 15 seconds without a file.
During the rotation, do not depress the push button, especially when using absorbent cloth to prevent oil from scattering.
Depressing the push button during rotation may damage the chuck mechanism.
Fig. 13 Fig. 14
C0563E001_NLZ_Endo_EN_180404.indd 18 2018/04/25 11:55:40
