NAKTO 861-A User manual

NAKTO ELECTRIC BICYCLE
LCD display Control Panel Instruction
Model No：861-A
Working Voltage：DC24V or 36V（default） or 48V
wiring：
Red（D+）: hot
Black（GND）：Neutral
Blue（DS）：switch for controller
Yellow（DD+）：positive wire for light
Green（RX）:Communication receiving
White（TX）：Communication sending
expandable：PWM PAS level controlling by Voltage ,separate speed sensor

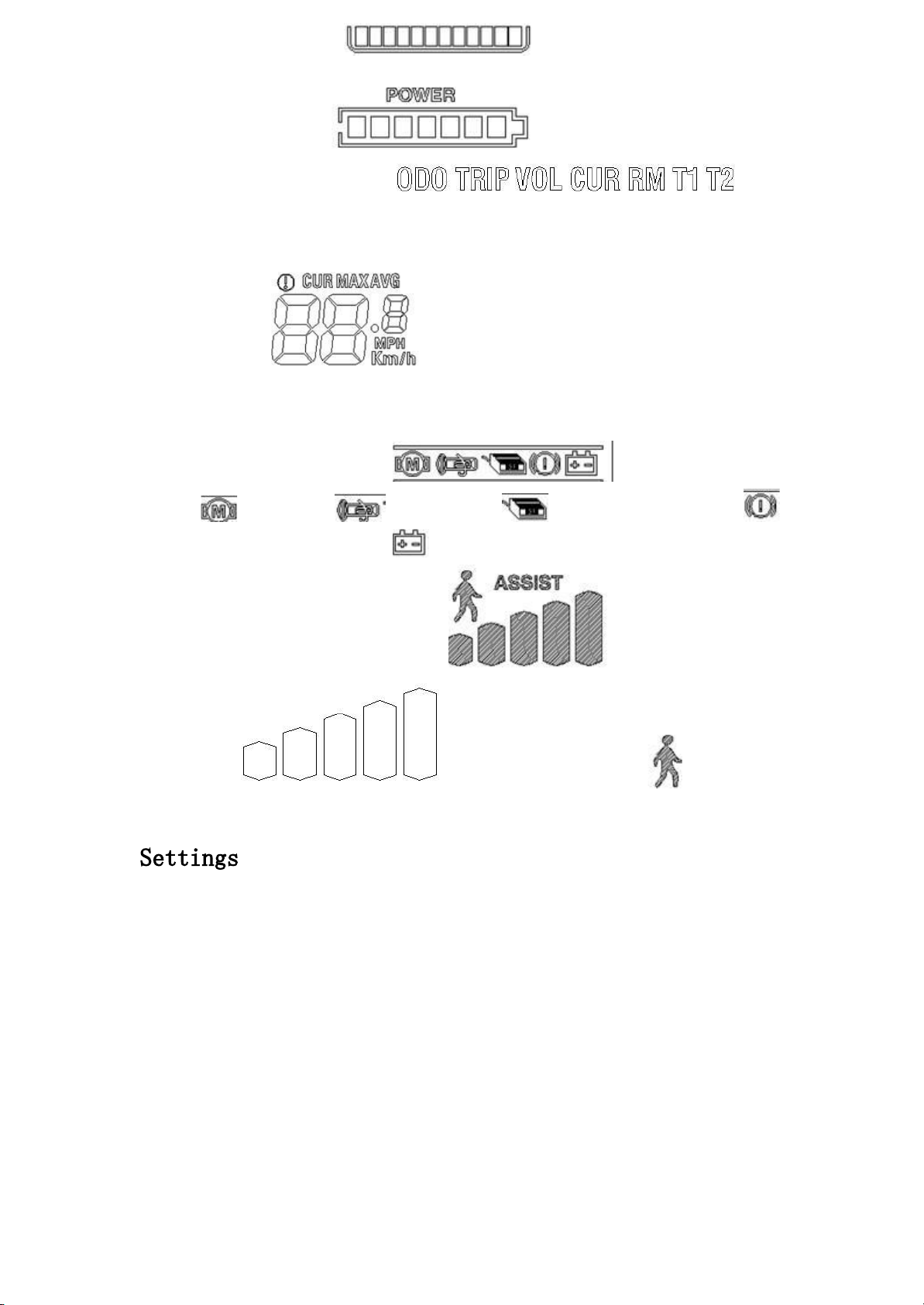

Introduction for display marks:
1. Head Light

2. Currency Level Status (need support with certain
model controlers)
3. Voltage Level Status
4. Multi-functional display Area
Total Trip “ODO”, Single Trip “TRIP”, Voltage “VOLT”, Currency “CURRENT”,
Remaining Travelling distance（need support by battery protection software）,
Remaining Travelling time “TIME”.
5. Digital Speed
Current speed “CUR”, Maximum speed“MAX”，Average speed“AVG”
Unit： MPH, KM/H
6.Malfunction Display Area
Motor 、Throttle 、Controller 、power switch brake
、under Voltage protection
7．PAS level status display area
PAS Level （Level 0-5）、Cruise
Settings
P01：Background lightness : 1dark，2 normal, 3lightest；
P02：Distant unit，0：KM；1：MILE；
P03：Battery Voltage：24V，36V，48V，default 36V；
P04：Sleeping time：0，unlimited； 1-60 minutes；
P05：PAS Level: 0: 3 levels model :
Level1: 2V， Level 2: 3V， Level 3: 4V；
1,: 5 levels model:
Level 1:2V(12MPH), Level 2: 2.5V(13.1MPH)，Level 3: 3V15.7(MPH)，
Level 4: 3.5V(16.3MPH)，Level 5:4V(19MPH);
P06: Wheel dismeter：Unit: inch；
P07: No of magnet steel for speed measurement： 1-100；
P08：Speed limit：Range 0-50 km/h，50 means no limit
P09：Setting for zero/none zero start: 0：zero start ；1：none zero

start；
P10：Powering Model settings:
0 : PAS(throttle disabled, output power is corresponding to PAS
levels)。
1 : Throttle(PAS disabled, output power is controlled by
throttle turning, top speed it corresponding to PAS level settings)。
2 : PAS & Throttle(In P9, the setting has to be 1)。
P11：PAS sensitivity： Range 1-24；
P12：PAS starting intensity：Range 0-5；
P13：Magnet steel model for PAS: 5，8，12 three models
P14：Currency limit for controller : Range：1-20A , default 12A
Buttons:
The buttons can be used with press or press and hold for 3 seconds
for the function to be activated.
1. Press to increase/decrease the PAS level to
control the top speed
Press and hold both buttons to enter/exit to settings.
2. Press:change between models in multi-functional area
display.
Press and hold to turn on and off LCD display
3. Press and hold this button to change the unit for speed.
4. Press to turn on/off the Headlight.
Press and hold to enter 4 MPH cruise model while the
E-bike is stand still. While the E-bike is running, press and hold to
enter the cruise model in current speed.
Press and hold to exit cruise model while it is in cruise model.
Change Settings:

Press and hold both buttons to enter into settings: +
Press to switch between settings, press to
increase the figures and to decrease the figures. Press
to reserve the settings. While finish setting, just leave it for 10 sec, it will exit
setting models.
