NAMI ELECTRIC BURN-E User manual
U S E R
M A N U A L
NAMI ELECTRIC
Table of contents
INTRODUCTION
Presentation
of
Nami
Electric
Before
starting
Overview
Elements
of
conduct
HOW TO TURN ON THE SCOOTER
Description
of
the
folding
system
How
to
fold
and
unfold
the
scooter
Assembly
of
the
scooter
Dashboard
power
supply
Maintenance
of
the
scooter
SAFETY INSTRUCTIONS AND WARNINGS
BATTERY
Loading
Storage
Warnings
DASHBOARD
Overview
Description
of
the
different
pictograms
Description
of
displayed
values
Settings
List
of
error
codes
Default
settings
1
2
5
6
7
8
TRAVELOGUE
Features of the BURN-E NAMI Electric scooter
3
4
New
Age
Mobility
Innovation
.
These
four
words
sum
up
NAMI
’
s
ambition
to
design
,
develop
and
manufacture
high
-
end
electric
mobility
vehicles
.
New
and
innovative
,
this
brand
was
created
in
2020
to
give
a
boost
to
the
electromobility
market
.
Power
,
reliability
,
design
.
We
have
redefined
the
criterias
for
the
mobility
of
tomorrow
.
W H O I S N A M I ?
You
are
about
to
explore
a
new
way
of
riding
on
two
wheels
with
your
NAMI
Burn
-
e
scooter
.
And
we
are
delighted
that
you
are
ready
to
live
this
experience
!
If
in
1915
,
in
New
York
,
we
climbed
on
the
Autoped
(
ancestor
of
the
scooter
)
to
avoid
gasoline
,
in
the
21st
century
,
the
electric
scooter
is
becoming
a
“
fun
”
way
to
get
around
and
which
makes
us
“
win
”
of
time
”
on
daily
trips
*.
Fast
,
solid
and
reliable
,
the
NAMI
brand
is
aimed
at
all
users
looking
for
new
sensations
in
urban
space
.
Before
you
get
started
,
here
are
some
useful
instructions
to
read
and
follow
to
get
the
most
out
of
your
Burn
-
e
'
s
features
.
When
opening
the
carton
,
please
inspect
the
contents
and
verify
that
all
of
the
following
are
present
:
-
Burn
-
e
scooter
-
2
chargers
2
.
8
A
-
tool
kit
To
unpack
the
product
,
please
remove
the
upper
protection
that
wraps
your
scooter
,
then
lift
it
by
holding
it
by
both
ends
of
the
frame
.
For
convenience
,
you
can
ask
a
second
person
to
help
you
.
Once
the
scooter
is
out
of
the
box
,
make
sure
the
kickstand
is
unfolded
.
Refer
to
page
xxx
to
bring
your
Burn
-
e
to
life
.
Before you begin
*Study carried out by 6t-bureau de recherche in 2019

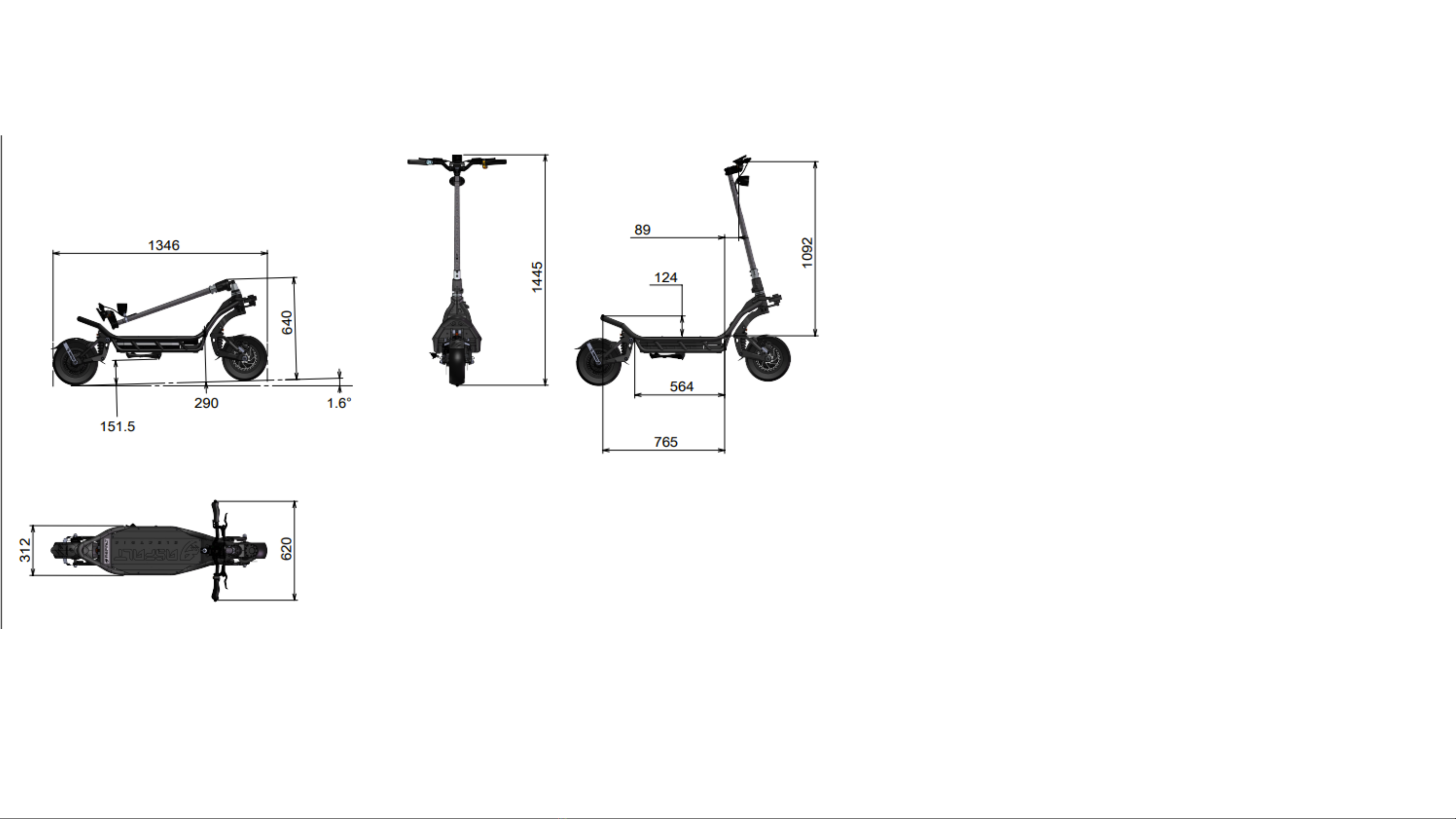

OVERVIEW
Length: 1346 mm
Width: 312 mm for the frame, 620 mm for the
handlebars
Height: 1445mm from the handlebars to the
ground, 640mm when folded to the ground
1090 mm from the handlebars to the bridge,
Ground clearance: 150 mm
Standing deck area: 564mm x 312mm, length
766mm, rear footrest included
Rake: 76
Tire size: 283mm when inflated
Suggested PSI: 50 on both tires
OVERVIEW
Length: 1346 mm
Width: 312 mm for the frame, 620 mm for the
handlebars
Height: 1445mm from the handlebars to the
ground, 640mm when folded to the ground
1090 mm from the handlebars to the bridge,
Ground clearance: 150 mm
Standing deck area: 564mm x 312mm, length
766mm, rear footrest included
Rake: 76
Tire size: 283mm when inflated
Suggested PSI: 50 on both tires
4
3
1
2
6
14
13
1211
10
9
7
5
Captions
1 - Honk
2 - Front light
3 - Dashboard
4 - Handlebar
5 - Steering column
8
6 - Lock system
7 - Folding system
8 - Suspension
9 - Wheel
10 - Steering arm
11 - Béquille
12 - Rear side light system + indicator
13 - Footrest
14 - Platform
15
15 - Charging port
16 - Brake disc
16
17 - Brake caliper
17
18 - Mudguard
18

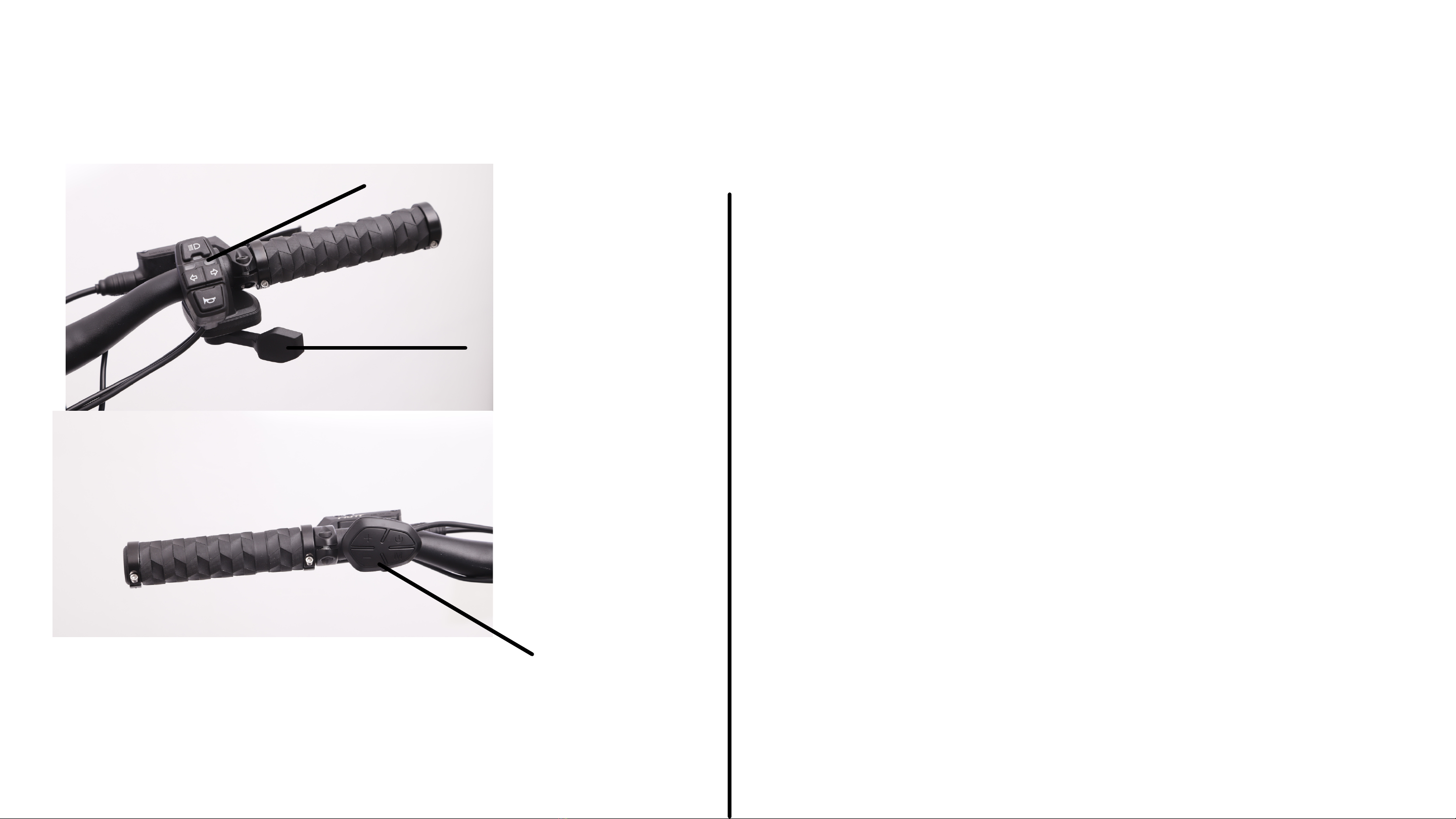

1 - Right switch
(Lights / Turn signals / Horn)
1
2 - Accelerator
3 - Left hand switch
(Power / Instrument panel adjustment system)
3
DRIVING ELEMENTS
2
4 - Rear brake lever (left)
455 - Front brake lever (right)
Votre texte de paragraphe
Technical specifics
Tableau Excel
HOW TO TURN ON THE SCOOTER
Description of the folding system
Folding
support
base
Folding
lock
Steering
column
base
Quick
release
HOW TO TURN ON THE SCOOTER
How to turn on the scooter

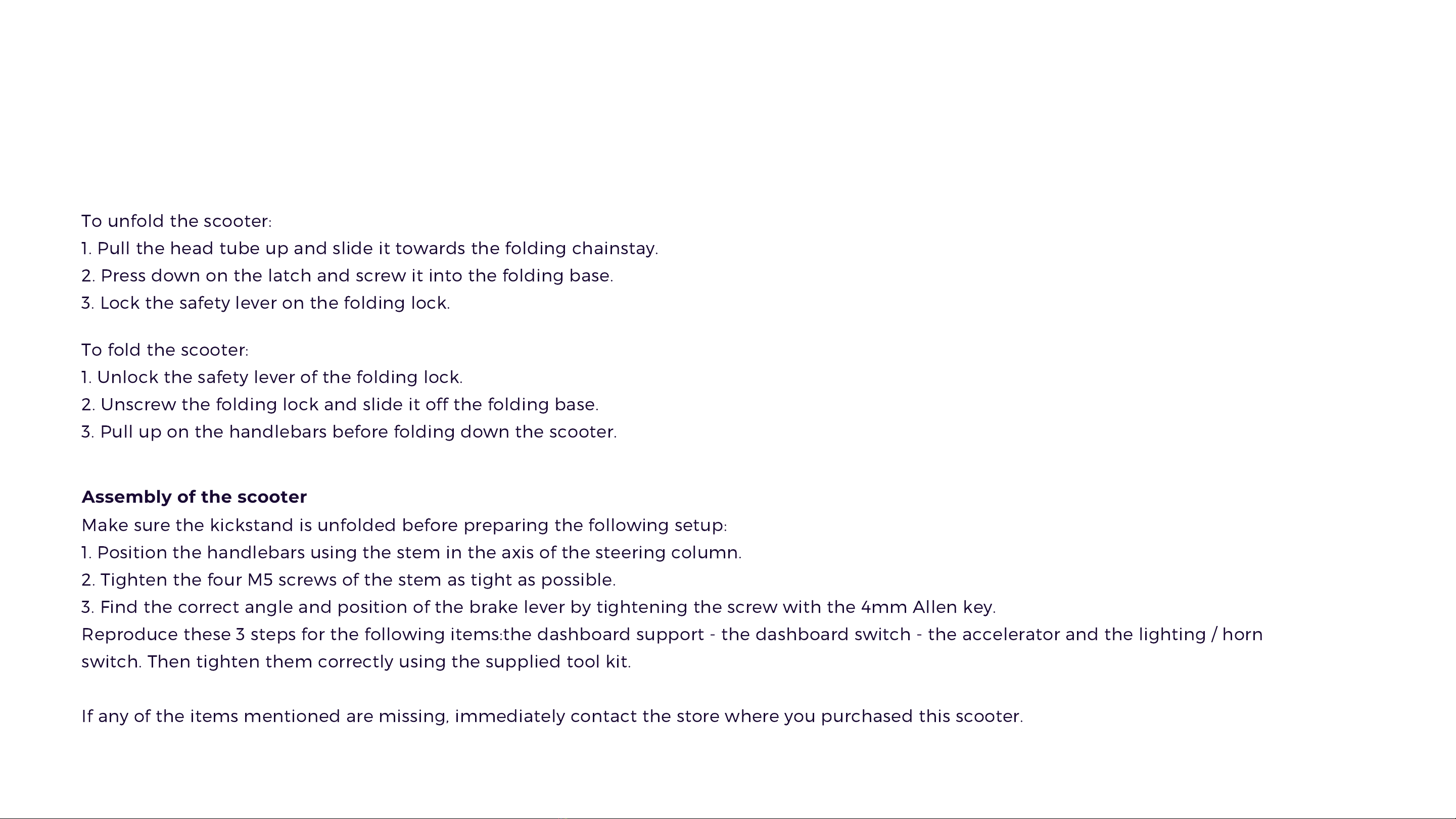

To
unfold
the
scooter
:
1
.
Pull
the
head
tube
up
and
slide
it
towards
the
folding
chainstay
.
2
.
Press
down
on
the
latch
and
screw
it
into
the
folding
base
.
3
.
Lock
the
safety
lever
on
the
folding
lock
.
To
fold
the
scooter
:
1
.
Unlock
the
safety
lever
of
the
folding
lock
.
2
.
Unscrew
the
folding
lock
and
slide
it
off
the
folding
base
.
3
.
Pull
up
on
the
handlebars
before
folding
down
the
scooter
.
Assembly of the scooter
Make
sure
the
kickstand
is
unfolded
before
preparing
the
following
setup
:
1
.
Position
the
handlebars
using
the
stem
in
the
axis
of
the
steering
column
.
2
.
Tighten
the
four
M5
screws
of
the
stem
as
tight
as
possible
.
3
.
Find
the
correct
angle
and
position
of
the
brake
lever
by
tightening
the
screw
with
the
4mm
Allen
key
.
Reproduce
these
3
steps
for
the
following
items
:
the
dashboard
support
-
the
dashboard
switch
-
the
accelerator
and
the
lighting
/
horn
switch
.
Then
tighten
them
correctly
using
the
supplied
tool
kit
.
If
any
of
the
items
mentioned
are
missing
,
immediately
contact
the
store
where
you
purchased
this
scooter
.
The
dashboard
is
delivered
with
a
control
unit
located
on
the
handlebar
with
4
buttons
:
Power button
:
press
for
1
second
to
start
Burn
-
e
,
To
change
the
value
in
section
B
,
press
once
.
Mode button
:
press
for
1
second
,
activate
the
USB
port
in
the
dashboard
so
that
the
PAS
pictogram
lights
up
.
Press
once
,
to
change
the
value
/
value
in
section
A
.
Press
twice
to
access
basic
settings
.
+ Button
:
press
for
1
second
to
activate
the
turbo
.
Press
once
to
change
driving
mode
- button
:
press
for
1
second
to
activate
the
cruise
control
.
Press
once
to
change
driving
mode
.
When
the
resettable
information
is
displayed
,
press
+
and
-
simultaneously
for
1
second
to
reset
the
value
.
Dashboard power supply

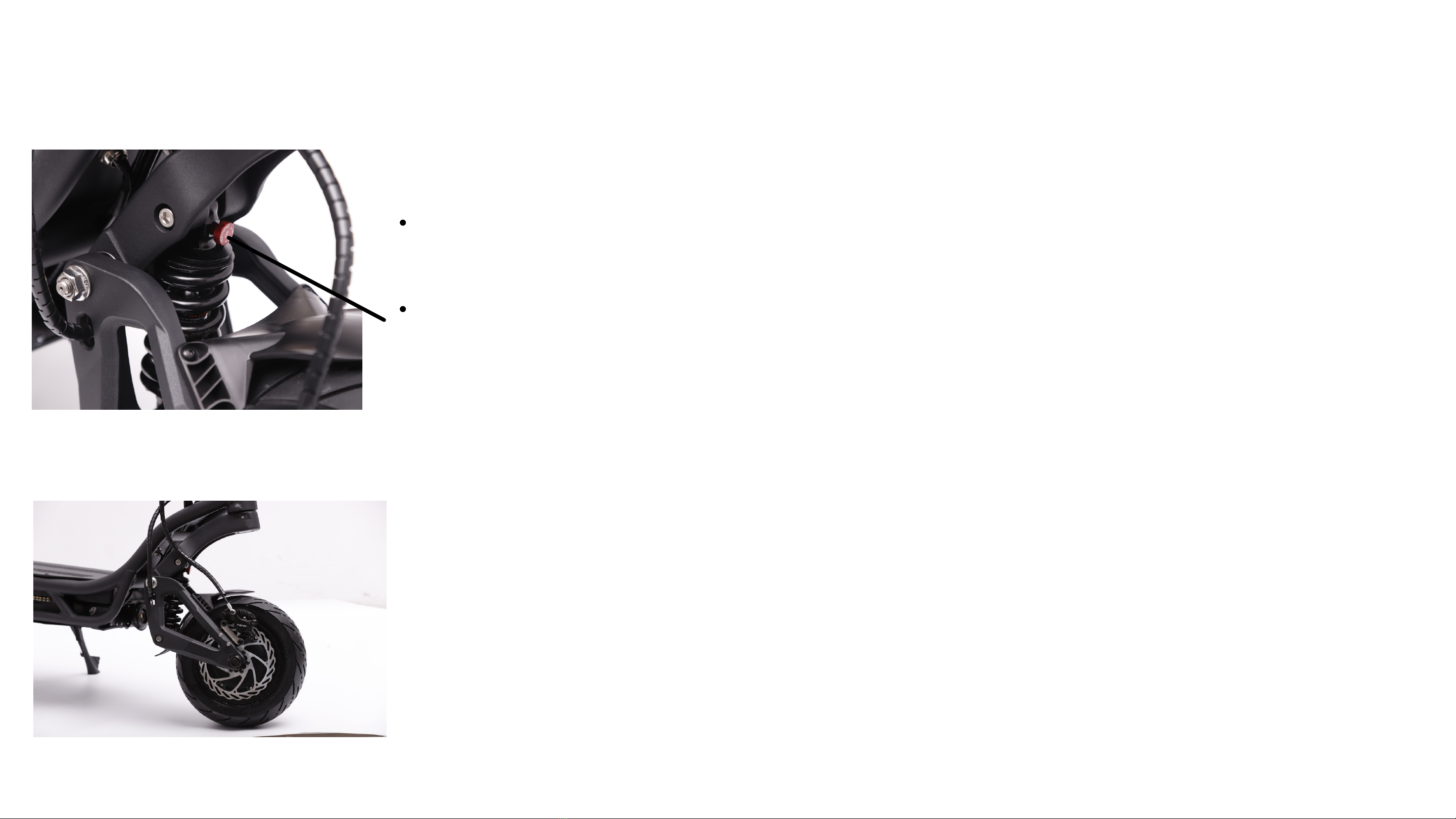

Preload adjustment: you can adjust it by the lock nut under the
suspension spring. Screw it in for more hardness when starting the
rebound, or unscrew it for less hardness when starting the rebound.
Rebound adjustment: use the red ring on the top of the spring (see
attached photo). It adjusts the speed at which hydraulic oil moves as
damping.
You can adjust in two different ways:
S refers to slower hydraulic displacement, which is more difficult felling.
F refers to a faster hydraulic displacement which means a feeling of solfter.
ZOOMER SUR LA VIS ROUGE
How to adjust the suspensions
Maintenance of the scooter
ZOOMER SUR LES FREINS
How to adjust the breaks
1) please check if the disc is well balanced
2) please check if the disc pad is in the well condition
with enough thickness to provide the braking power
needed
3) please adjust the brake pad postion via the two srews
on the caliper
IMG 9220
IMG 9169
Your
tires
are
fitted
with
pressure
valves
.
Use
them
to
re
-
inflate
your
tires
to
a
maximum
of
2
.
5
bars
.
Any
repair
must
be
carried
out
by
a
professional
and
/
or
official
distributor
of
the
NAMI
Electric
brand
.
Never
perform
maintenance
on
the
battery
while
it
is
on
or
charging
.
Clean
any
stains
from
your
scooter
with
a
damp
cloth
.
Do
not
use
alcohol
,
gasoline
,
kerosene
or
other
corrosive
and
volatile
chemical
cleaners
.
Do
not
wash
with
water
.
Make
sure
the
scooter
is
turned
off
and
unplugged
while
cleaning
and
that
no
drops
of
water
or
traces
of
moisture
enter
the
charging
port
.

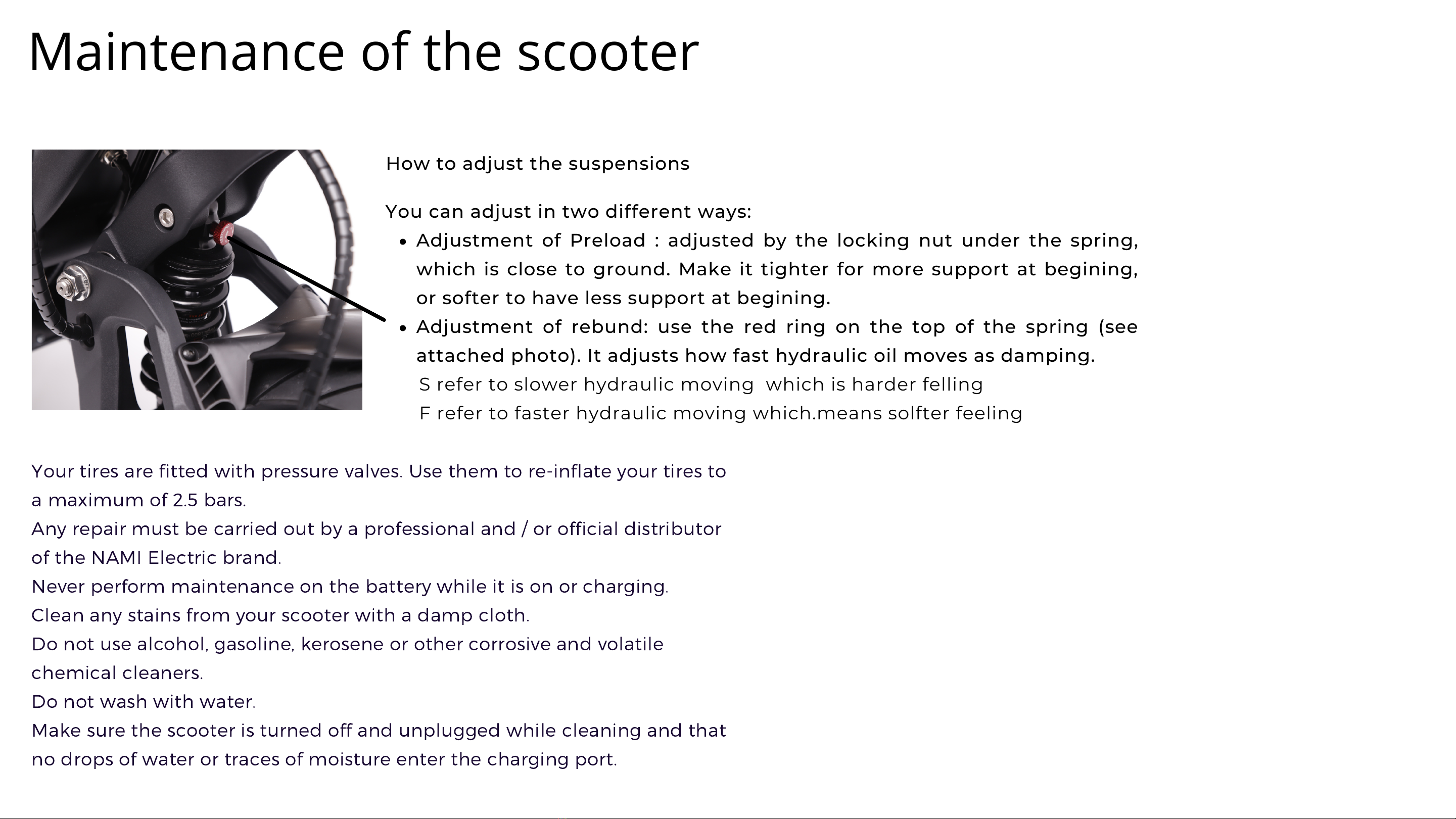

How to adjust the suspensions
Maintenance of the scooter
Adjustment of Preload : adjusted by the locking nut under the spring,
which is close to ground. Make it tighter for more support at begining,
or softer to have less support at begining.
Adjustment of rebund: use the red ring on the top of the spring (see
attached photo). It adjusts how fast hydraulic oil moves as damping.
You can adjust in two different ways:
S refer to slower hydraulic moving which is harder felling
F refer to faster hydraulic moving which.means solfter feeling
Safety instructions and warnings
3
.
For
your
safety
,
be
sure
to
wear
a
full
face
helmet
and
other
protective
gear
for
the
knees
,
elbows
,
hands
,
upper
body
.
Make
sure
you
have
the
right
shoes
for
riding
the
scooter
.
Wearing
shoes
at
all
times
is
compulsory
.
At
night
,
consider
wearing
retro
-
reflective
gear
and
any
signage
accessories
.
1
.
Please
comply
with
the
traffic
laws
and
related
regulations
of
the
country
in
which
you
are
driving
.
The
speed
of
the
scooter
is
limited
to
25km
/
h
.
The
use
of
new
electric
mobility
devices
is
subject
to
maximum
speed
.
Check
that
the
regulations
in
your
country
are
in
line
with
this
speed
limit
.
Any
modification
to
the
scooter
resulting
in
an
increase
in
the
maximum
speed
is
prohibited
,
and
will
void
your
entire
warranty
.
25
2
.
The
age
of
riding
an
electric
scooter
varies
by
country
.
Please
take
note
of
the
legislation
in
force
in
the
country
where
you
wish
to
drive
.
According
to
European
Standard
EN
17128
:
2020
,
the
user
must
be
at
least
12
years
old
4
.
Watch
out
for
the
rotating
parts
of
the
scooter
.
Pay
attention
to
the
position
of
your
body
and
your
clothing
when
driving
:
if
any
of
your
fabrics
curl
up
on
any
of
the
rotating
parts
of
the
vehicle
such
as
the
engine
,
disc
,
section
folding
,
suspension
or
front
/
rear
fork
this
can
cause
serious
injury
.
6
.
Do
not
ride
two
people
on
the
electric
scooter
.
NAMI
electric
vehicles
are
designed
for
one
person
.
5
.
Do
not
make
any
modifications
to
the
scooter
or
the
spare
parts
by
yourself
.
This
creates
a
risk
of
accident
and
malfunction
of
the
scooter
.
8
.
Watch
out
for
weather
conditions
:
watch
out
for
the
humidity
level
on
the
road
.
Burn
-
e
is
water
resistant
,
but
for
your
safety
and
to
ensure
the
life
of
your
vehicle
,
it
is
recommended
not
to
be
used
in
rainy
conditions
.
Do
not
immerse
the
scooter
in
water
.

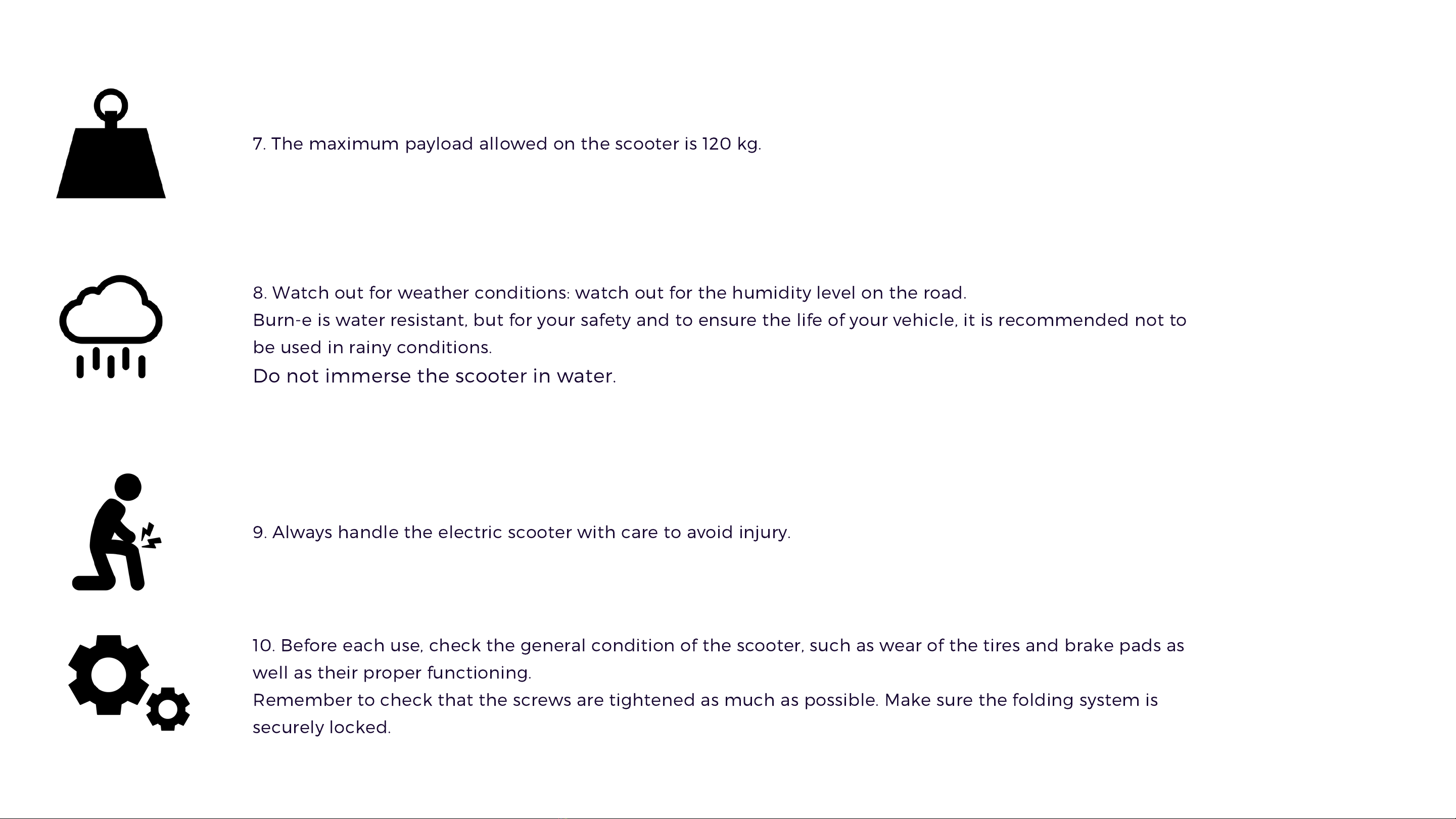

7
.
The
maximum
payload
allowed
on
the
scooter
is
120
kg
.
9
.
Always
handle
the
electric
scooter
with
care
to
avoid
injury
.
10
.
Before
each
use
,
check
the
general
condition
of
the
scooter
,
such
as
wear
of
the
tires
and
brake
pads
as
well
as
their
proper
functioning
.
Remember
to
check
that
the
screws
are
tightened
as
much
as
possible
.
Make
sure
the
folding
system
is
securely
locked
.
Do
not
ride
with
the
kickstand
down
.
Do
not
wear
earbuds
,
headphones
or
earphones
while
driving
.
Never
drive
under
the
influence
of
drugs
or
alcohol
.
Stay
in
control
of
your
actions
on
the
road
.
You
are
fully
responsible
for
physical
and
material
injuries
in
the
event
of
an
accident
.
Always
obey
the
laws
of
the
country
in
which
you
are
driving
.
Always
wear
a
helmet
and
other
body
protection
.
Drive
safely
.
Get
to
know
your
vehicle
and
practice
riding
the
electric
scooter
before
you
hit
the
road
.
Remember
to
select
the
driving
mode
that
suits
you
.
In
order
to
deal
with
sudden
situations
,
be
prepared
to
slow
down
by
holding
the
brake
at
all
times
.
Before
turning
,
consider
slowing
down
.
During
road
obstacles
,
be
sure
to
slow
down
.
Do
not
take
stony
paths
or
roads
in
poor
condition
.
Learn
how
to
use
the
front
brake
:
Most
of
the
braking
power
comes
from
the
front
brake
.
Be
careful
because
there
is
a
risk
of
burns
due
to
the
heat
of
the
engine
and
the
brakes
(
in
particular
the
brake
disc
and
its
caliper
)
after
use
.
Please
always
use
two
hands
to
hold
the
handlebars
and
pay
attention
to
road
conditions
as
well
as
traffic
conditions
.
11
.
Reminder of the precautions before driving:
Other manuals for BURN-E
1
Table of contents
Languages:
Other NAMI ELECTRIC Scooter manuals
