1 - GENERAL INFORMATION
1.1. Intended Use
The device is intended to be used in collective transportation vehicles. It is used to
reduce the potential presence of pathogens like bacteria, viruses and pollutants
including particles, VOC, NOX and odors. The intended use of the device is for
enclosed environments where prevention of potential air contamination is required.
The device does not perform a disinfection function of the air or the environment.
1.2. Applied Regulation
Directive (EU) 2014/35 (LVD) and Directive (EU) 2014/30 (EMC).
The device, in the configurations and variants presented, has been designed to
prevent the increments of the environment contamination due to contaminated air.
ATTENTION! the device is not intended for disinfection.
1.3. Description
BORA 250 is an air sanitization and purification device intended for indoor
environments. The device carries out the air sanitization and purification acting
during the air transit that crosses itself. The activity of sanitization and purification is
performed through the principle of photo-catalysis (based on WO3 photo-catalyzer)
and through the use of a support impregnated in a copper solution. BORA 250 does
not use any type of additional electrostatic filtration.
Thanks to the oxidation reactions and the products that derive from them by virtue
of the energizing activity resulting from the action of the catalyst, the air is sanitized
and purified by systematically eliminating the harmful agents present in it, such as:
▪Virus
▪SARS-CoV-2 (*)
▪Bacteria
▪Fungi
▪Molds
▪Volatile Organic Substances
▪Nitrogen Oxides
▪Bad odors
▪PM2,5 and PM10
(*): The inactivation of the infectious viral load SARS-CoV-2 was verified according
to tests performed at the viral pathogenesis and biosecurity laboratory of the San
Raffaele hospital in Milan. The test was performed in a liquid environment on a
circular shaped test object.

6
The device does not require the use of any type of biocidal chemical substance or
potentially harmful light sources and can therefore be operated safely in the
presence of people.
1.4. Symbology
Information requirement
This symbol identifies the presence of useful and general
information that alerts the user to a proper use of the device and
/or to the execution of specific actions.
Attention, refer to the user manual. Safety information.
Requirement for Proper Use
This symbol identifies information necessary for the correct use of
the device.
Possible electrical shock hazard.
Inappropriate use can cause injury or damage to the user.
Disconnect the power supply.
Keep away from flames or heat sources.
To make reading the manual comfortable and clear, the symbols used to manage
the important warnings for a correct and safe use of the device are shown below.

7
Keep away from moisture.
DO NOT Disassemble.
Indicates that the product is designed and manufactured according
to the essential safety requirements, in compliance with Directives
2014/35/UE (LVD) of the European Parliament and of the Council
of 26 February 2014 and 2014/30/UE (EMC) of the European
Parliament and of the Council of 26 February 2014.
1.5. General Warnings
Failure to comply with the warnings below as well as the rules and precautions
described in this user manual will result in the immediate forfeit of any warranty on
the BORA 250 device. FuEl S.r.l. is not responsible for any damage to persons or
property as a result of failure to comply with the rules or precautions listed below
and reported in this user manual.
FAILURES OR NEGLIGENCES IN FULFILLMENT OF THE
FOLLOWING INSTRUCTIONS MAY CAUSE DEVICE
MALFUNCTION, DAMAGE AND INJURY TO THE USER
DO NOT USE THE DEVICE UNTIL YOU HAVE READ AND
UNDERSTOOD EVERY DETAIL OF THIS USER MANUAL
NO MODIFICATION TO ANY PARTS OF THE DEVICE ARE
ALLOWED
THE USE OF THE DEVICE FOR PURPOSES OTHER THAN THOSE
INDICATED IN THIS USER MANUAL COULD EXPOSE THE USER
TO DANGER

8
▪This appliance is intended exclusively for use inside vehicles, cabins and
environments that are enclosed and sheltered from atmospheric agents. The
device can also be used in indoor environments such as shops, offices, hotels,
motels, bed & breakfasts, residential and similar enclosed spaces
▪Do not use the appliance outdoors, in areas with a high amount of dust or in
environments with extremely volatile materials that could clog the filters or
damage the motors
▪The appliance must be kept out of the reach of children
▪Make sure that the appliance does not come into contact with water or other
liquids
▪Do not obstruct the air passage grilles of the appliance with cloths, rags or
various similar objects during operation
▪Do not place device near furniture, furnishing accessories or walls that could
limit the air flow
▪Do not sit or lean on the product
▪Do not place objects on top of the product
▪Do not rest the product on unstable or inclined surfaces
▪Keep animals away from BORA and its power cable
▪Do not clean the surfaces of the product with petrol, thinners, chlorine or acid
detergents
▪This appliance is not a substitute for ventilation or cleaning equipment.
Therefore, it is recommended to keep the driver and passenger department
clean with vacuum cleaners or cleaning devices
▪Do not use BORA if it does not appear to be working properly. In this case, turn
off the appliance, disconnect the power supply and contact qualified personnel

9
1.6. Hazard Warnings
Do not insert any tools or fingers into the air
passage grilles.
Do not disassemble or remove components of
the appliance (the only exception is the filter tray
for regular maintenance of the dust filter).
Never immerse the plug, the electric cable,
the power supply and the appliance in water
or any other liquid.
Do not handle the plug or the device with wet
hands.
Do not use the appliance if flammable sprays,
insecticides or in places where oily residues or
chemical vapors are present.
Do not use the appliance in humid
environments, such as bathrooms, saunas,
tubs, sinks and swimming pools.
Keep away from heat sources such as
fireplaces, ovens, stoves and radiators.
Do not damage or tamper with the power
cord. It must be replaced by the manufacturer
or a qualified service technician in order to
prevent any risk.

10
COMPOSITION:
▪BORA 250 Device
Sanitizer
▪Remote Control for
vehicle dashboard
▪This "User and
Maintenance Manual"
1.7. Composition and Accessories
THE USE OF ELEMENTS THAT ARE NOT PART OF THE DEVICE
OR NOT SUPPLIED WITH THE DEVICE COULD AFFECT SAFETY
AND EFFECTIVENESS.
If you have not received all the items listed below, please
contact your dealer immediately.
2 - INSTALLATION
2.1. Installation Method
Open the package and remove the device by handling it on the sides. Open the
protective bag and remove the device, paying attention to the power cable.
THE INSTALLATION OF THE DEVICE MUST BE PERFORMED
ONLY BY MANUFACTURER’S TECHNICAL STAFF OR BY
ADEQUATELY QUALIFIED, SPECIALIZED AND TRAINED STAFF.
BEFORE PERFORMING THE INSTALLATION ALWAYS ENSURE
THAT THE BATTERY IS DISCONNECTED FROM VEHICLE'S
ELECTRICAL SYSTEM
THE ITEM IS INTENDED TO BE USED IN CLOSED
ENVIRONMENTS, THE ITEM MUST BE CONNECTED WITH THE
SUITABLE VOLTAGE (SEE THE "TECHNICAL FEATURES"
PARAGRAPH OF THIS MANUAL).

11
440 mm
165 mm
296 mm
The functional features
and dimensions of the
Device sanitizer (440 x296
x165 mm) make it
suitable to be installed on
a ceiling
2.2. Mammut
Installation
1. Prepare Device installation
space on ceiling, by
making the 4 holes
suitable for 4mm diameter
plugs, around the
perimeter of the hole with
the electrical connection
cables (BLUE, BROWN for
power supply and GREEN/
YELLOW for ground
connection). Apply the
rubber spacers between
the ceiling and the base
plate
The packaging elements must not be left within the reach of
children as they are potential sources of danger, but must be
disposed of in accordance with the regulations in force in the
appropriate containers for waste collection
Verify the integrity of the device. In case of obvious damage or doubts about the
integrity of the appliance, do not use the BORA 250 and contact professionally
qualified personnel.

12
2. Make sure that the power cables are inserted in the specific Fairlead
(as shown in the picture above). Connect Device to ceiling electrical
cables, by using 3 slots Electrical Mammut (NOT INCLUDED). BROWN
to BROWN wire, GREEN/YELLOW to GREEN/YELLOW wire and BLUE
to BLUE wire

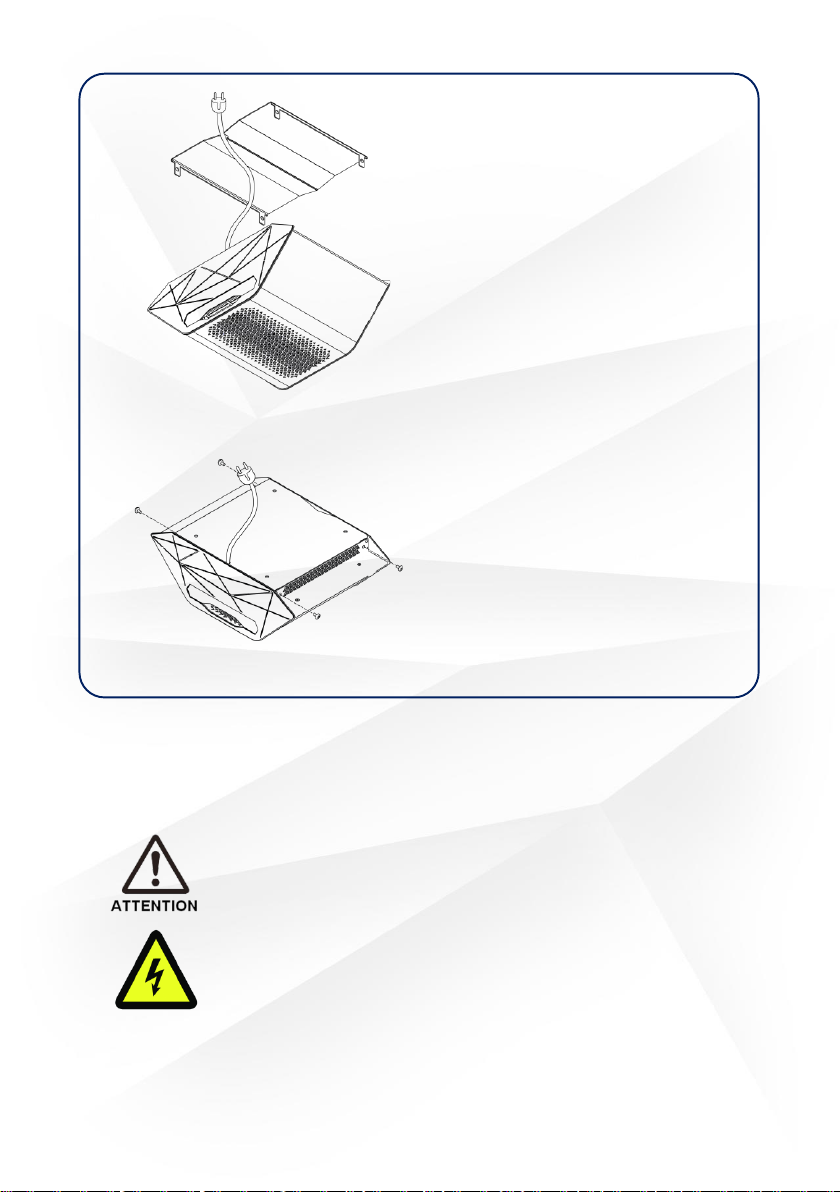

3. Place the Device on the
base plate, making sure
that the top-side fixing
holes between Device and
the base plate match.
Last, fix the product to the
base plate using the
appropriate screws
1. Prepare Device installation
space on ceiling, by
making the 4 holes
suitable for 4mm diameter
plugs. Make sure to be
close to a electrical socket
(Schuko Type). Apply the
rubber spacers between
the ceiling and the base
plate
2.3. Schuko Plug
Installation

13
2. Make sure that the power
cable is inserted in the
specific fairlead. Place the
Device on the base plate,
making sure that the top-
side fixing holes between
Device and the base plate
match
3. Last, fix the Device to the
base plate using the
appropriate screws
4. Plug Device to close
power supply socket
Before connecting the appliance to an electrical outlet,
check that the voltage and frequency values shown on the
label correspond to those of the electrical system.
In general, the use of adapters and / or extensions is not
recommended. If their use is essential, they must comply
with current safety standards and their current capacity
(Ampere) must not be less than the maximum of the
appliance.
2.4. Electrical Connection

14
3 - HOW TO USE

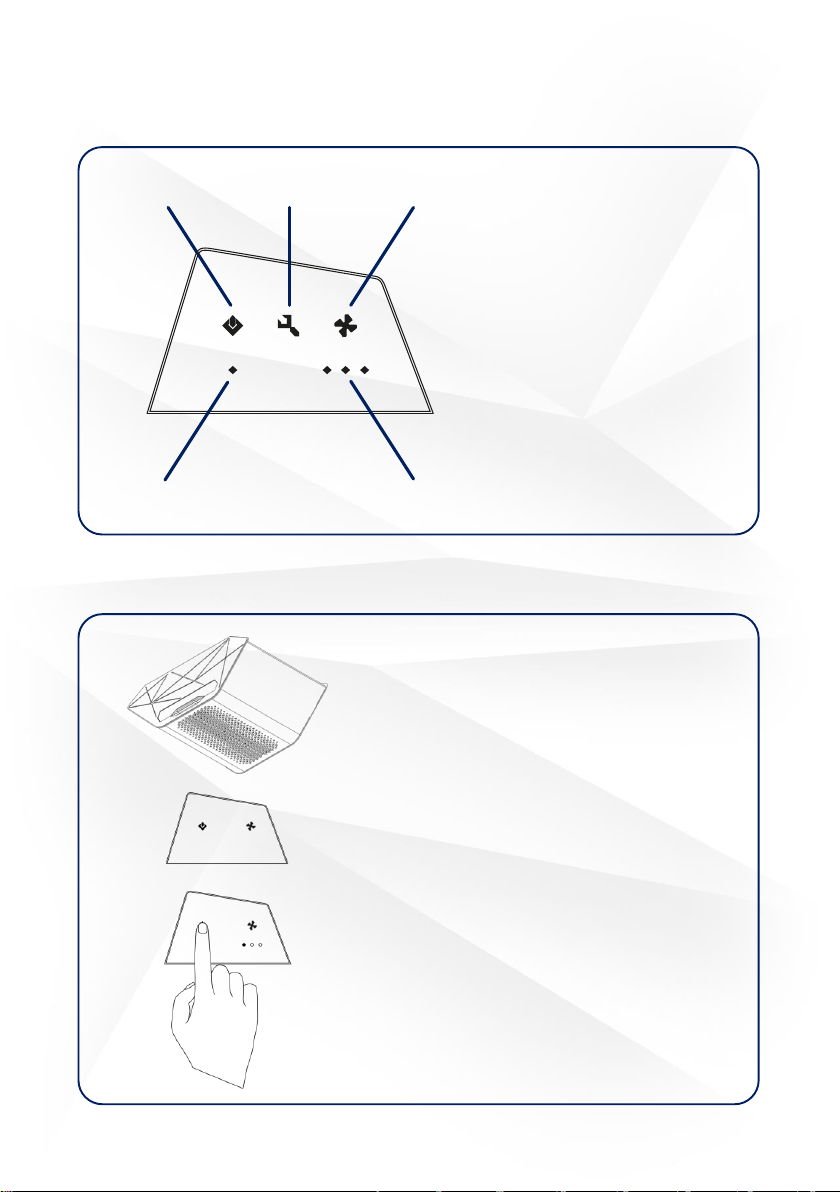

3.1. Control Panel
1. ON / OFF Button
Indicator
2. FILTER
MAINTENANCE
Indicator
3. Fan speed Button
Indicator
4. Power Indicator Light
5. FAN SPEED Indicator
Lights (3 Speeds)
3.2 Device Operation
21 3
4 5
Legend
1. Connect BORA 250 to
Vehicle power supply line
or to a Schuko socket (for
Schuko plug connection
type)
2. The control panel
illuminates the “ON/OFF”
and “FAN SPEED”
indicators
3. Press the “ON/OFF”
button to start the device
at minimum fan speed
(speed 1)

15
4. Press the “FAN SPEED"
button once to switch
from speed 1to speed 2
▪Press the "fan speed"
button again to switch
from speed 2to speed 3
▪The next time the button
is pressed, the fans will
run on speed 1
▪Pressing the button again
will repeat the cycle from
the beginning
5. after 2000 hours of
operation, “FILTER
MAINTENANCE KEYPAD
ICON” will illuminates.
Proceed with dust filter
regular maintenance, see
chapter 4 -
MAINTENANCE section.
4 - MAINTENANCE
4.1. Regular Maintenance –Dust Filter Cleaning / Replacement
After about 2000 hours of operation, it is necessary to clean or replace
the dust filter inside the appliance. When the "FILTER MAINTENANCE"
indicator illuminates, proceed as follows:
1. Switch off the device by
pressing the “ON/OFF”
button
For BORA 250 with Schuko
connection: Remove the
plug from the socket

16
2. Open the filter tray by pulling
the handle outwards. If the
device has not been switched
off, it will automatically switch
off when the drawer is opened
3. Pull out the filter tray and turn
it over. Carefully remove the
filter from the tray
4. Clean the filters under running
water. Let the filters dry and
make sure they are completely
dry before being repositioned
in the appliance
5. Insert the filter into the tray.
Carefully spread the filter into
its housing making sure that
there are no raised edges or
creases on the filter. Flip the
tray and slide it back into the
device
6. Slide the filter tray until it
reaches its closed position
NOTICE: if dust filter is
damaged, it must be replaced
with a new one (available on
request as spare part)

17
7. Switch on the device with the
“ON/ OFF” button
8. After cleaning/replacing the
filter, the maintenance
indicator will still be illuminated
9. Click simultaneously the
"FAN SPEED" and "ON/OFF"
buttons for two times
quickly.The fan speed
indicator LED will flash two
times and the maintenance
indicator will turn off
4.2. Extraordinary Maintenance
Any type of intervention, in the event of failure or restoration of functionality, is
considered to be part of extraordinary maintenance or repairs. These types of
interventions must be carried out only by FuEl S.r.l. service technician or by
personnel adequately qualified, specialized and trained for this kind of
maintenance.
ATTENTION: EXTRAORDINARY MAINTENANCE
INTERVENTIONS OR REPAIRS NOT AUTHORIZED BY FuEl
S.r.l. WILL BE CONSIDERED AS TAMPERING WITH THE
DEVICE. THE RESULT WILL IMMEDIATELY ELIMINATE THE
VALUE OF THE CE CERTIFICATION THAT WAS PREVIOUSLY
In the event that what is indicated in this section is not
respected, the validity of the CE marking will be forfeited. It
transfers all responsibility to the executor of the
unauthorized activities thus relieving the manufacturer of
liability for damage to people, property or the installation
environment.

18
This product falls within the scope of Directive 2002/96 / EC, also referred to as
WEEE, relating to waste from electrical and electronic equipment. The purpose of
the directive is to prevent, and therefore limit, the production of waste resulting
from such equipment and to promote its reuse, recycling and other forms of
recovery, in order to protect the environment and public health from possible
harmful effects. The crossed-out wheeled bin symbol indicates that the
product is subject to the provisions of the Directive: therefore, at the end of its life
cycle, it cannot be disposed of as mixed municipal waste, but must be delivered to
specialized collection facilities, as prescribed by local regulations or by the
distributor. The manufacturer, the importer and the distributor are responsible for
the collection and disposal, both in the event that these take place directly, and in
the event that they are carried out through a separate waste collection system.
Any clarification as well as any other information may in any case be provided by
the distributor / installer where this product was purchased or by the local waste
authority.
5 - DISPOSAL
INFORMATION FOR DISPOSAL OR RECYCLING AT THE END OF THE PRODUCT'S
LIFE CYCLE
(for countries belonging to the European Union)
6 - TECHNICAL FEATURES
The device must be powered at a mains voltage of 12-24V/dc. The device produces
white light at 6500°K. The device DOES NOT emit volatile substances or disperse
chemical agents in the air. Degree of protection IP21.
6.1. BORA 250
Maximum Power: 40Watt (at max fan speed)
Noise: 59 Decibel (at max fan speed)
Nominal Air Flow: 250 m3/h (at max fan speed)
Environmental
conditions
Temperature
Humidity
Atmospheric
pressure
Use
Storage /
transport
Storage /
transport
Storage /
transport
Use
Utilizzo
-10 / +50°C
-25 / +70°C
20/80% Rh without condensation
5/95% Rh without condensation
700 a 1020 hPa
500 a 1060 hPa (375-795 mm Hg)

19
7 - TROUBLE SHOOTING
DEVICE DOES NOT TURN ON
▪Verify that the device is correctly connected to the power supply
▪Verify that there is no power failure or voltage drop in the area
▪Verify that the remote-control functions properly
NO AIR COMES OUT FROM THE DEVICE
▪Check that the appliance is turned on
▪Check that the appliance air outlet grilles are free from obstructions
▪Check that the air intake grilles of the appliance are free from obstructions
DEVICE IS NOISY
▪Verify that the highest speed of the device is not selected
▪Check that the maintenance indicator is not on. If so, it will be necessary to
clean the filter as it could obstruct the correct passage of air (see chapter 4 -
Maintenance section)
▪Check that the air grilles are not blocked
DEVICE EMITS A BAD SMELL
▪Check that the maintenance indicator is not on. If so, it will be necessary to clean
the filter (see chapter 4 - Maintenance section)
▪Check that the air filter is clean
8 - STORAGE
This device is supplied in its box and in a cellophane bag. It is recommended to
open the packaging just before using the device. If it is necessary to store the
device whose packaging has already been opened, it is recommended to replace it
with a new one or to seal it, so that dust or moisture does not come into contact
with the device. In case of storage of the device even for a short period, make
sure that there are no sources of heat in the proximity, water and excessive
humidity. It is recommended to store the devices in a closed and sheltered
environment.

20
9 - LABELS

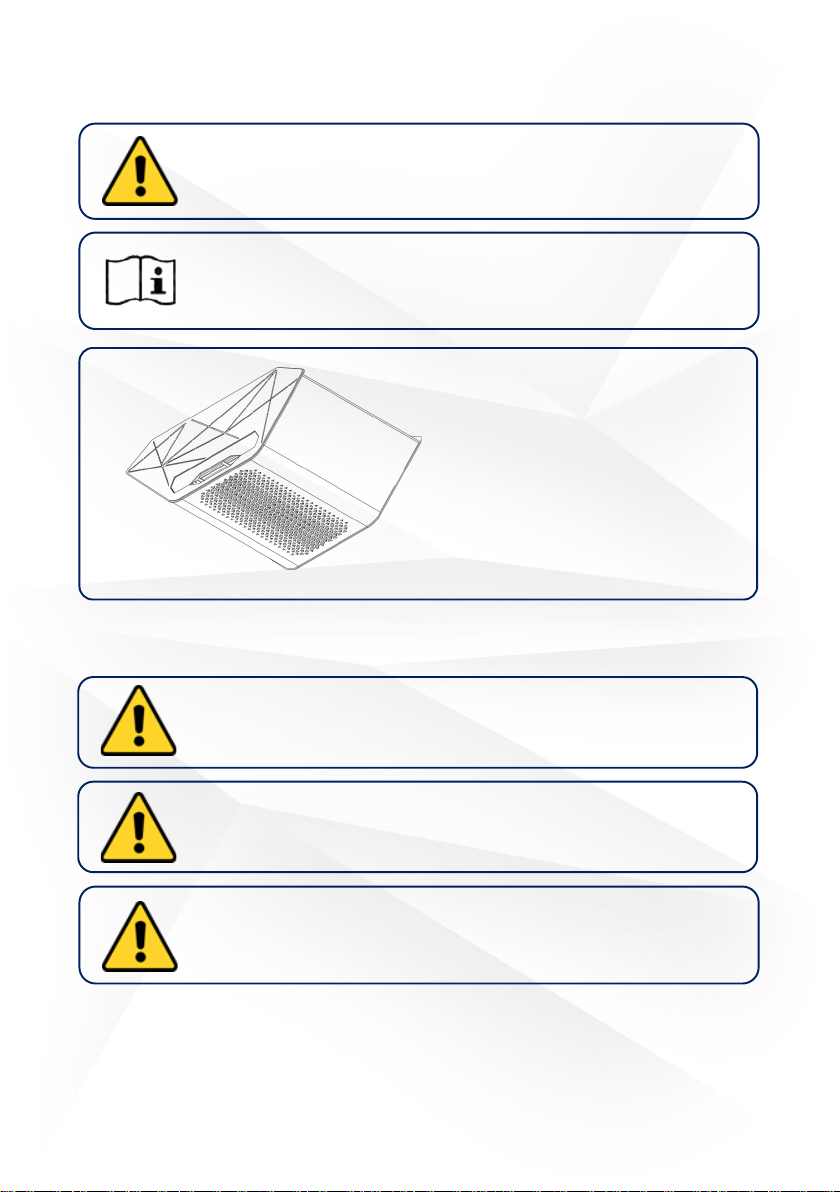

9.1. Device Plate Data
9.2. Symbols and Safety Labels
12-24Vdc, 40 watt
(Device Part Number)
(Device Serial Number)
Manufacturer Identification.
Year of Production Identification of the Device.
Device Part Number.
Device Serial Number.
Refer to User Manual.
