NANO HUB ESPERO 100 LIFT Operating instructions

1
ESPERO 100 LIFT
User and Maintenance Manual
Manuale d’uso e manutenzione
REV.12 –05/07/2021

2
USA
UK
THANK YOU FOR CHOOSING THE
ESPERO 100 LIFT
By purchasing the Air Sanitizer Device,
you demonstrate that you care about the
air quality of your environment,
showing respect for your health and the
health of those around you.

3
Disclaimer:
This document is the exclusive property of FuEl S.r.l. all rights
reserved. Any disclosure, reproduction or transfer of the
content to third parties is prohibited without the prior
authorization of the Company. FuEl S.r.l. disclaims any
responsibility for damage to persons or property due to
improper use of this product and failure to observe the
indications, warnings, instructions and precautions contained
in this user manual.
This user manual is provided only in paper format and must
always accompany the ESPERO 100 LIFT device.
ESPERO 100 LIFT is manufactured by:
FuEl S.r.l.
Via Rossini 7 -21020
Bodio Lomnago (VA) ITALY
e-mail: [email protected]

4
Summary
DISCLAIMER
1. GENERAL INFORMATION
1. Intended Use
2. Applied Regulation
3. Description
4. Symbology
5. General Warnings
6. Hazard Warnings
7. Composition and Accessories
2. INSTALLATION
1. Installation Method
2. Electrical Connection
3. HOW TO USE
1. Device Operation
4. MAINTENANCE
1. Regular Maintenance –Dust Filter
Cleaning / Replacement
2. Extraordinary Maintenance
5. DISPOSAL
6. TECHNICAL FEATURES
7. TROUBLE SHOOTING
8. STORAGE
9. LABELS
1. Device Plate data
2. Symbols and Safety Labels
5
5
5
5
6
7
9
10
10
10
13
13
13
15
15
17
17
18
18
19
19
19
20

5
1 - GENERAL INFORMATION
1.1. Intended Use
The device intended to be used in lifts/elevators and cabin environments for air
sanitization. It is used to reduce the potential presence of pathogens like bacteria,
viruses and pollutants including particles, VOC, NOX and odors. The intended use of
the device is for enclosed environments where prevention of potential air
contamination is required. The device does not perform a disinfection function of
the air or the environment.
1.2. Applied Regulation
Directive (EU) 2014/35 (LVD) and Directive (EU) 2014/30 (EMC).
The device, in the configurations and variants presented, has been designed to
prevent the increments of the environment contamination due to contaminated air.
ATTENTION! the device is not intended for disinfection.
1.3. Description
ESPERO 100 LIFT is an air sanitization and purification device intended for indoor
environments. The device carries out the air sanitization and purification acting
during the air transit that crosses itself. The activity of sanitization and purification is
performed through the principle of photo-catalysis (based on WO3 photo-catalyzer)
and through the use of a support impregnated in a copper solution. ESPERO 100
LIFT does not use any type of additional electrostatic filtration.
Thanks to the oxidation reactions and the products that derive from them by virtue
of the energizing activity resulting from the action of the catalyst, the air is sanitized
and purified by systematically eliminating the harmful agents present in it, such as:
▪Virus
▪SARS-CoV-2 (*)
▪Bacteria
▪Fungi
▪Molds
▪Volatile Organic Substances
▪Nitrogen Oxides
▪Bad odors
▪PM2,5 and PM10
(*): The inactivation of the infectious viral load SARS-CoV-2 was verified according
to tests performed at the viral pathogenesis and biosecurity laboratory of the San
Raffaele hospital in Milan. The test was performed in a liquid environment on a
circular shaped test object.

6
The device does not require the use of any type of biocidal chemical substance or
potentially harmful light sources and can therefore be operated safely in the
presence of people.
1.4. Symbology
Information requirement
This symbol identifies the presence of useful and general
information that alerts the user to a proper use of the device and
/or to the execution of specific actions.
Attention, refer to the user manual. Safety information.
Requirement for Proper Use
This symbol identifies information necessary for the correct use of
the device.
Possible electrical shock hazard.
Inappropriate use can cause injury or damage to the user.
Disconnect the power supply.
Keep away from flames or heat sources.
To make reading the manual comfortable and clear, the symbols used to manage
the important warnings for a correct and safe use of the device are shown below.

7
Keep away from moisture.
DO NOT Disassemble.
Indicates that the product is designed and manufactured according
to the essential safety requirements, in compliance with Directives
2014/35/UE (LVD) of the European Parliament and of the Council
of 26 February 2014 and 2014/30/UE (EMC) of the European
Parliament and of the Council of 26 February 2014.
1.5. General Warnings
Failure to comply with the warnings below as well as the rules and precautions
described in this user manual will result in the immediate forfeit of any warranty on
the ESPERO 100 LIFT device. FuEl S.r.l. is not responsible for any damage to
persons or property as a result of failure to comply with the rules or precautions
listed below and reported in this user manual.
FAILURES OR NEGLIGENCES IN FULFILLMENT OF THE
FOLLOWING INSTRUCTIONS MAY CAUSE DEVICE
MALFUNCTION, DAMAGE AND INJURY TO THE USER
DO NOT USE THE DEVICE UNTIL YOU HAVE READ AND
UNDERSTOOD EVERY DETAIL OF THIS USER MANUAL
NO MODIFICATION TO ANY PARTS OF THE DEVICE ARE
ALLOWED
THE USE OF THE DEVICE FOR PURPOSES OTHER THAN THOSE
INDICATED IN THIS USER MANUAL COULD EXPOSE THE USER
TO DANGER

8
▪This appliance is intended exclusively for use in environments that are enclosed
and sheltered from atmospheric agents. Specifically designed for cabin
environments as elevators/lifts
▪ESPERO 100 LIFT install, must be done by trained and competent staff
▪Do not use the appliance outdoors, in areas with a high amount of dust or in
environments with extremely volatile materials that could clog the filters or
damage the motors.
▪Make sure that the appliance does not come into contact with water or other
liquids.
▪Do not obstruct the air passage grilles of the appliance with cloths, rags or
various similar objects during operation.
▪Do not place device near furniture, furnishing accessories or walls that could
limit the air flow.
▪Do not sit or lean on the product.
▪Do not place objects on top of the product.
▪Do not rest the product on unstable or inclined surfaces.
▪Do not clean the surfaces of the product with petrol, thinners, chlorine or acid
detergents.
▪This appliance is not a substitute for ventilation or cleaning equipment.
Therefore, it is recommended to keep the rooms clean with vacuum cleaners or
cleaning devices.
▪Do not use ESPERO 100 LIFT if it does not appear to be working properly. In
this case, turn off the appliance, disconnect the power plug and contact
qualified

9
1.6. Hazard Warnings
Do not insert any tools or fingers into the air
passage grilles.
Do not disassemble or remove components of
the appliance (the only exception is the filter tray
for regular maintenance of the dust filter).
Never immerse the plug, the electric cable,
the power supply and the appliance in water
or any other liquid.
Do not handle the plug or the device with wet
hands.
Do not use the appliance if flammable sprays,
insecticides or in places where oily residues or
chemical vapors are present.
Do not use the appliance in humid
environments, such as bathrooms, saunas,
tubs, sinks and swimming pools.
Keep away from heat sources such as
fireplaces, ovens, stoves and radiators.
Do not damage or tamper with the power
cord. It must be replaced by the manufacturer
or a qualified service technician in order to
prevent any risk.

10
COMPOSITION:
▪ESPERO 100 LIFT Device
Sanitizer
▪Installation Kit (Screws
and T20 Tool Type)
▪This "User and
Maintenance Manual"
1.7. Composition and Accessories
THE USE OF ELEMENTS THAT ARE NOT PART OF THE DEVICE
OR NOT SUPPLIED WITH THE DEVICE COULD AFFECT SAFETY
AND EFFECTIVENESS.
If you have not received all the items listed below, please
contact your dealer immediately.
2 - INSTALLATION
2.1. Installation Method
Open the package and remove the device by handling it on the sides. Open the
protective bag and remove the device, paying attention to the power cable.
THE INSTALLATION OF THE DEVICE MUST BE PERFORMED
ONLY BY MANUFACTURER’S TECHNICAL STAFF OR BY
ADEQUATELY QUALIFIED, SPECIALIZED AND TRAINED STAFF.
BEFORE PERFORMING THE INSTALLATION OF THE DEVICE,
ALWAYS CHECK THAT THE POWER LINE IS DISCONNECTED.
THE ITEM IS INTENDED TO BE USED IN CLOSED
ENVIRONMENTS, THE ITEM MUST BE CONNECTED WITH THE
SUITABLE VOLTAGE (SEE THE "TECHNICAL FEATURES"
PARAGRAPH OF THIS MANUAL).

11
200 mm
180 mm
The dimensions of the
ESPERO 100 LIFT sanitizer
(200 x180 x125mm)
make it suitable to be
applied on lift side wall
1. Prepare ESPERO 100 LIFT
installation space on lift
side wall, by making 4
holes for M6 Threaded
Insert type screw
2. Once made 4 required
holes, place first bushings
then place fix plate and at
last insert 4 fix screws
The packaging elements must not be left within the reach of
children as they are potential sources of danger, but must be
disposed of in accordance with the regulations in force in the
appropriate containers for waste collection
Verify the integrity of the device. In case of obvious damage or doubts about the
integrity of the appliance, do not use the ESPERO 100 LIFT and contact
professionally qualified personnel.

12
3. Connect ESPERO 100 LIFT
to lift electrical system, 2
cables to power supply
(RED POSITIVE and
BLACK NEGATIVE), 1
GREEN+YELLOW Ground
Cable and the remaining 2
to RELAY (open and
potential free). Select
operative mode by
dedicated “Dip Switch”
4. Place ESPERO 100 LIFT
assembled body on fixed
wall plate, paying
attention to align the side
holes both on ESPERO 100
LIFT body and wall plate
5. Insert the fixing screws (6
TORX type screws) in
each side hole of the
ESPERO 100 LIFT. Use the
TORX T20 Tool supplied
6. ESPERO 100 LIFT
correctly installed on lift
side wall

13
Before connecting the appliance to an electrical outlet,
check that the voltage and frequency values shown on the
label correspond to those of the electrical system.
2 cables (BLACK/RED) connect to electrical input 24V/CC or
24V/AC
2 cables (WHITE) connect to Relay Open and Potential
Free (Relay that manage lift door opening/closing)
1 cable (GREEN+YELLOW) for ground connection
2.4. Electrical Connection
3 - HOW TO USE
3.1. Device Operation
▪Press the “ON/OFF”
button for at least 1
second to turn on the
device. Command
accepted will be confirmed
by ambient blue light
turning on (side segment)
ON/OFF Switch
ON
▪By sliding “S2 - 1/4”
switch, is possible to
choose between 2
different stand-by
modes
▪By sliding “S2 - 2/3”
switch, is possible to
manage fan max speed
timing
Dip Switch
The device works with a ON/OFF button and a group of 2 Dip-Switches placed
inside ESPERO 100 LIFT:

14
1. Connect the device to a
power supply. When the
device is powered (24
V/AC-DC) it reverts to the
stand-by mode and blue
LEDs will illuminate
“ON/OFF” button and side
segment
2. By pressing the “ON/OFF”
button once, the fans
switch on at minimum
speed, the side segment
blue backlight turns on.
Pressing a second time,
the device turns OFF
3. Fan Max Speed is
automatically regulated by
lift electric connection,
and type of setting on Dip
Switch selector. Below are
listed all the possible
combinations:
ON
Use the word “ON”
placed on Dip-Switch as
directional reference. Switch 4/1 Switch 3/2
Position 4 (closed)
device will turn on at
fan max. speed for all
the time when lift
RELAY will be open,
when lift RELAY close,
device will turn off.
Position 3 (extra
time) with this switch
OFF, device will work
with extra time settings
(approximately 120
sec.) after lift RELAY
close.
Position 1 (open) fan
speed max speed will
be managed by lift
RELAY closing. When
lift RELAY opens, fan
speed will be turned to
min. speed.
Position 2 (normal
time) with this switch
ON, device will work
with default time
settings, as indicated in
the left column.

15
4 - MAINTENANCE
4.1. Regular Maintenance –Dust Filter Cleaning / Replacement
The first time that the unit is powered on the unit will provide certain
indications for filter control. After the pre-established operating time of 6
months (4380h):
▪The RED LED will turn ON as a reminder, and the ESPERO 100 LIFT will
continue to work
It is necessary to clean or replace the air filter inside the device. Proceed as
follows:

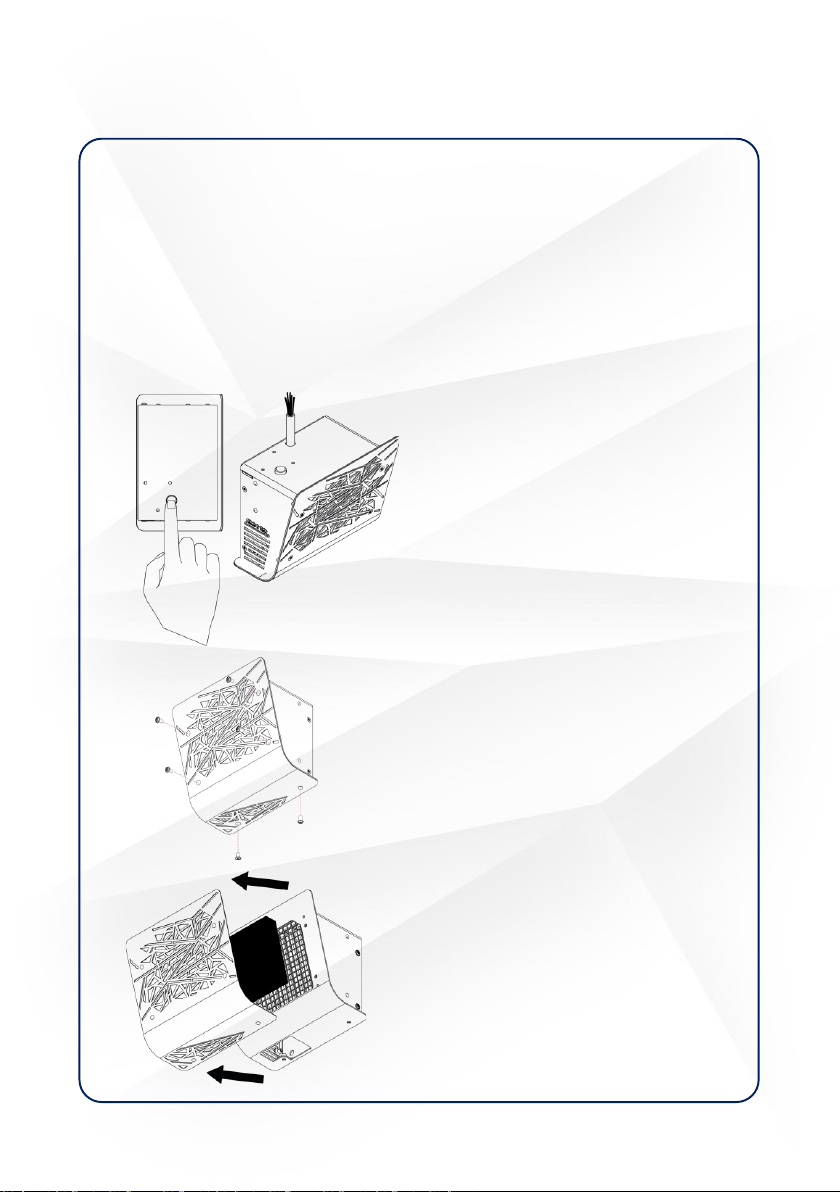

1. TURN OFF the device by
pressing for at least 1 sec.
the top side button
2. Access the filter by
removing the filter cover
plate. The cover is
attached to the base with
6 TORX type screws. Use
the TORX T20 Tool
supplied
3. Carefully remove front
plate and dust filter. Avoid
touching the protection
grid of the photocatalyst
module

16

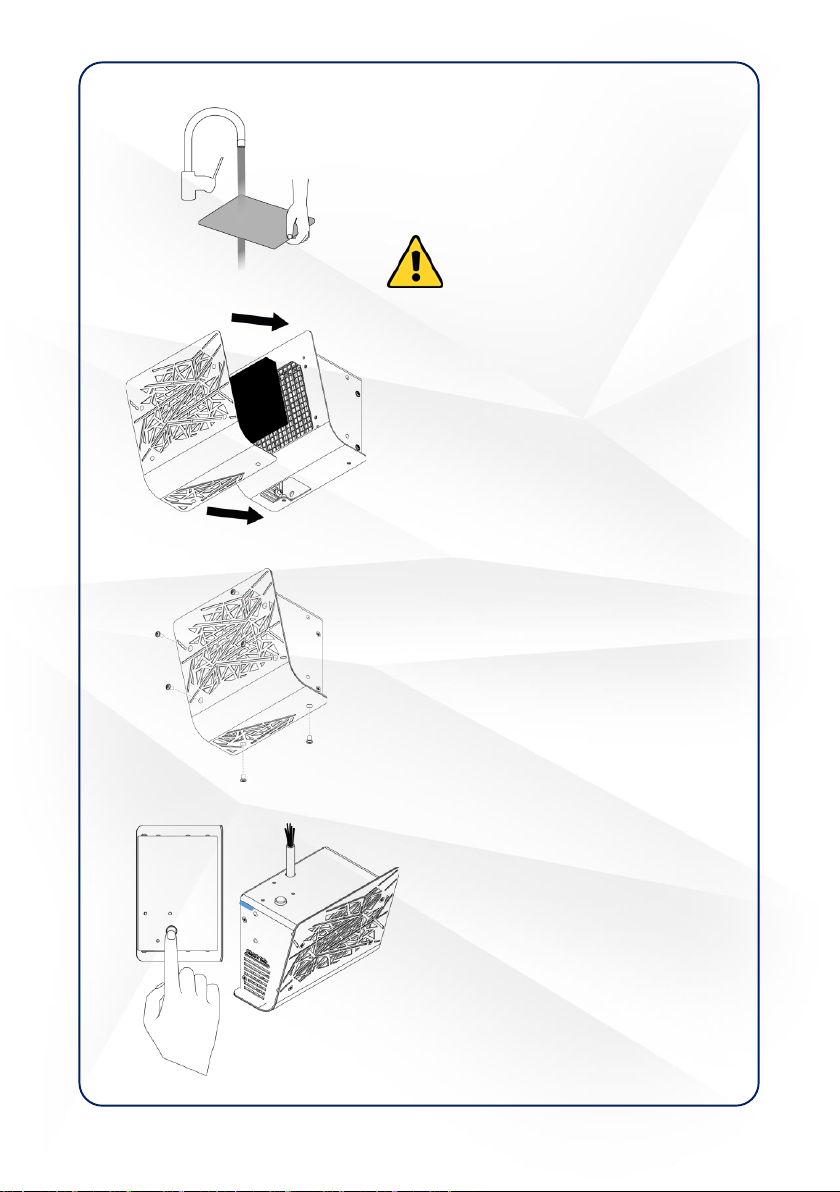

4. Clean the filters under running
water. Let the filters dry and
make sure they are completely
dry before being repositioned
in the appliance
5. Insert the filter and carefully
position it in the housing
making sure that the filter has
no raised edges or creases
6. Reposition the filter cover and
close it with 6 TORX type
screws. Use the TORX T20 Tool
supplied
7. TURN ON the device by
pressing the top side button
8. After filter cleaning, ESPERO
100 LIFT, a reset is needed.
Hold down the “ON/OFF”
button for at least 5
seconds
NOTICE: if dust filter is
damaged, it must be replaced
with a new one (available on
request as spare part)

17
4.2. Extraordinary Maintenance
Any type of intervention, in the event of failure or restoration of functionality, is
considered to be part of extraordinary maintenance or repairs. These types of
interventions must be carried out only by FuEl S.r.l. service technician or by
personnel adequately qualified, specialized and trained for this kind of
maintenance.
ATTENTION: EXTRAORDINARY MAINTENANCE
INTERVENTIONS OR REPAIRS NOT AUTHORIZED BY FuEl
S.r.l. WILL BE CONSIDERED AS TAMPERING WITH THE
DEVICE. THE RESULT WILL IMMEDIATELY ELIMINATE THE
VALUE OF THE CE CERTIFICATION THAT WAS PREVIOUSLY
In the event that what is indicated in this section is not
respected, the validity of the CE marking will be forfeited. It
transfers all responsibility to the executor of the
unauthorized activities thus relieving the manufacturer of
liability for damage to people, property or the installation
environment.
This product falls within the scope of Directive 2002/96 / EC, also referred to as
WEEE, relating to waste from electrical and electronic equipment. The purpose of
the directive is to prevent, and therefore limit, the production of waste resulting
from such equipment and to promote its reuse, recycling and other forms of
recovery, in order to protect the environment and public health from possible
harmful effects. The crossed-out wheeled bin symbol indicates that the
product is subject to the provisions of the Directive: therefore, at the end of its life
cycle, it cannot be disposed of as mixed municipal waste, but must be delivered to
specialized collection facilities, as prescribed by local regulations or by the
distributor. The manufacturer, the importer and the distributor are responsible for
the collection and disposal, both in the event that these take place directly, and in
the event that they are carried out through a separate waste collection system.
Any clarification as well as any other information may in any case be provided by
the distributor / installer where this product was purchased or by the local waste
authority.
5 - DISPOSAL
INFORMATION FOR DISPOSAL OR RECYCLING AT THE END OF THE PRODUCT'S
LIFE CYCLE
(for countries belonging to the European Union)

18
6 - TECHNICAL FEATURES
The device must be powered at a mains voltage of 24V/ac-dc frequency 47-63 Hz
(version for the European market). The device produces white light at 6500°K. The
device DOES NOT emit volatile substances or disperse chemical agents in the air.
Degree of protection IP21.
6.1. ESPERO 100 LIFT
Maximum Power: 18 Watt (at max fan speed)
Noise: 61 Decibel (at max fan speed)
Nominal Air Flow: 100 m3/h (at max fan speed)
Environmental
conditions
Temperature
Humidity
Atmospheric
pressure
Use
Storage /
transport
Storage /
transport
Storage /
transport
Use
Utilizzo
-10 / +50°C
-25 / +70°C
20/80% Rh without condensation
5/95% Rh without condensation
700 a 1020 hPa
500 a 1060 hPa (375-795 mm Hg)
7 - TROUBLE SHOOTING
DEVICE DOES NOT TURN ON
▪Verify that the device is correctly connected to the power supply
▪Verify that there is no power failure or voltage drop in the area
▪Verify that the remote-control functions properly
NO AIR COMES OUT FROM THE DEVICE
▪Check that the appliance is turned on
▪Check that the appliance air outlet grilles are free from obstructions
▪Check that the air intake grilles of the appliance are free from obstructions

19
(Device Part Number)
(Device Serial Number)
DEVICE IS NOISY
▪Verify that the highest speed of the device is not selected
▪Check that the maintenance indicator is not on. If so, it will be necessary to
clean the filter as it could obstruct the correct passage of air (see chapter 4 -
Maintenance section)
▪Check that the air grilles are not blocked
DEVICE EMITS A BAD SMELL
▪Check that the maintenance indicator is not on. If so, it will be necessary to clean
the filter (see chapter 4 - Maintenance section)
▪Check that the air filter is clean
8 - STORAGE
This device is supplied in its box and in a cellophane bag. It is recommended to
open the packaging just before using the device. If it is necessary to store the
device whose packaging has already been opened, it is recommended to replace it
with a new one or to seal it, so that dust or moisture does not come into contact
with the device. In case of storage of the device even for a short period, make
sure that there are no sources of heat in the proximity, water and excessive
humidity. It is recommended to store the devices in a closed and sheltered
environment.
9 - LABELS
9.1. Device Plate Data
24 Vac-dc, 47-63 Hz, 18 watt

20

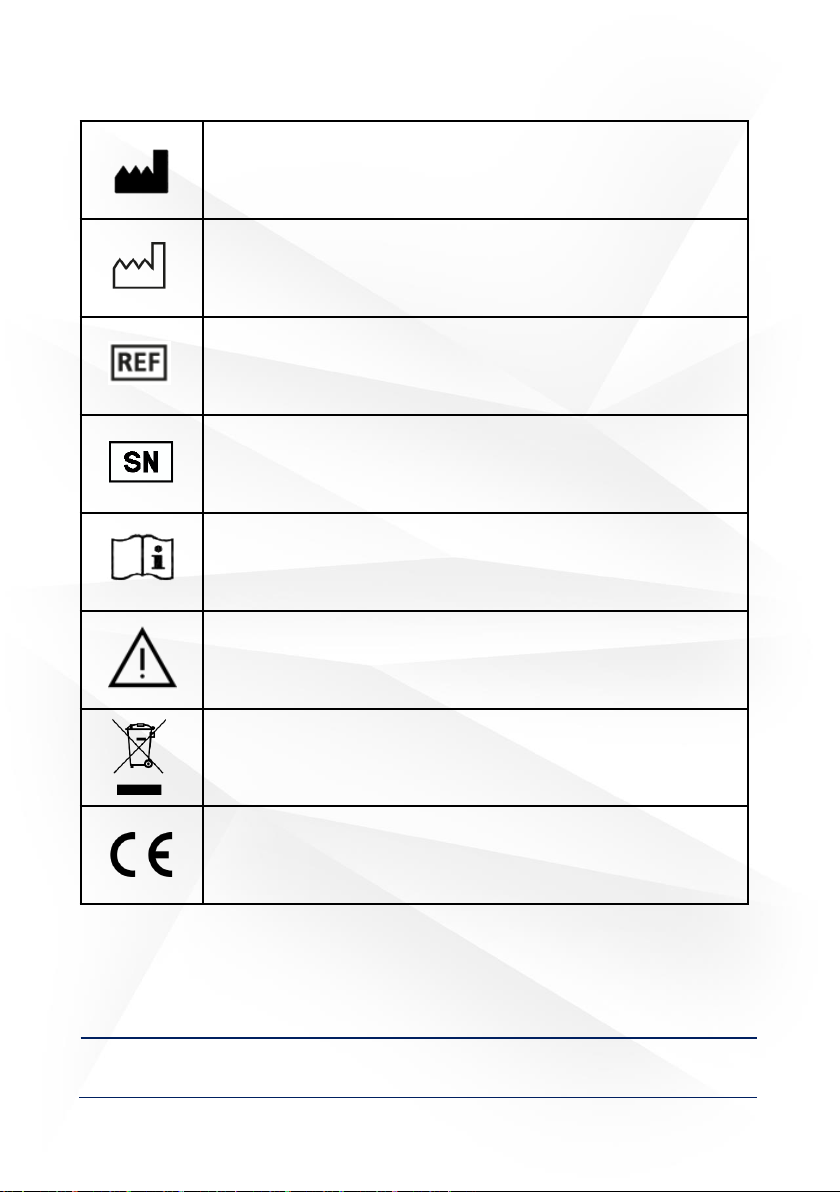

Manufacturer Identification.
Year of Production Identification of the Device.
Device Part Number.
Device Serial Number.
Refer to User Manual.
Attention, refer to user manual. Information related to safety.
Disposal according to WEEE Directive.
CE Mark.
9.2. Symbols and Safety Labels
Note:
