OPERATION AND INSTALLATION MANUAL
VOC level, temperature and humidity measuring sensor - VOCLESS
V2.6 Published on 2021-08-17
The main technical characteristics and benefits of VOCLESS sensor:










Compatible with LoRaWAN® specification 1.0.3;
Measures VOC (Volatile Organic Compounds) levels;
Measures temperature;
Measures humidity;
Measurements at regular intervals with integrated advanced intelligent (AI) computational algorithms;
Indoor use;
Easy to use and deploy;
Powered by batteries;
Data transmission up to 10 km;
Battery life is up to 9 years depending on settings and environmental conditions.
General information
The VOCLESS is advanced technology indoor sensor applied for the full sensing of VOC
(Volatile Organic Compounds) level, temperature and humidity. VOCLESS is enclosed in a
room sensor box and is designed to be wall mounted. VOCLESS is completely wireless
and powered by 3.6V AA lithium batteries. The integrated advanced intelligent (AI)
computational algorithm enables reliable capability of the measurement the magnitude
of the VOC, temperature and humidity. The data transmitted from the sensor is based on
Class A LoRaWAN® wireless network.
Applications
Indoor environment measuring;
Smart buildings;
Government buildings;
Public buildings;
Banks;
Industrial facilities;
Factories;
Product features
LoRaWAN communication;
Computational AI algorithm;
Indoor VOC sensor;
Indoor temperature sensor;
Indoor humidity sensor;
Configuration over the air;
Robust enclosure;
Auto self-calibration;

UAB “ Nano sensorics”
🎯Pakaunės g. 70, LT-47243 Kaunas
🌐www.nanosensorics.com
✉[email protected]m
Markings
One the back side of the senor there will be label indicating sensor name, serial number, production date and QR
code.
Installation and MAINTENANCE
Use a screwdriver to open the back cover as showed in the picture:
Use the lithium batteries type AA 3.6V (2 units) to install in the VOCLESS sensor as showed in the
picture:
Close the back cover as showed in the picture.
Screw with two appropriate screws to the wall as showed in the picture.

UAB “ Nano sensorics”
🎯Pakaunės g. 70, LT-47243 Kaunas
🌐www.nanosensorics.com
✉[email protected]m
Push button and LED indicator description:
Once batteries are installed or reset button will be pushed in the sensor, it will automatically
attempt to connect to the LoRaWAN network and the LED indicator will start to be blinking /
flashing for 15 seconds.
In case of the successful connection to the LoRaWAN network LED indicator will stay on for 3
seconds and LED indicator will stop flashing and go dark. This means sensor successfully connected
to the LoRaWAN network.
If the sensor will not connect on the initial try, it will attempt to connect to the LoRaWAN network
after 10 seconds, then after 60 seconds, then after 10 minutes, then after 1 hour, then after 24
hours till successful connection to the LoRaWAN network.
The sensor will restart by pressing the button on the sensor and it will attempt instantly to connect
the LoRaWAN network.
The VOCLESS sensor has to be installed reliably and with appropriate screws. The sensor must not be placed
near any air vents windows, door openings where the constant fresh air flow is possible. The sensor is not suitable
to be installed for the outdoor locations. The sensor cannot be stored at dusty or dirty areas with excess operation
and storage temperature. The sensor is not washable, paintable. The open holes of the case must not be blocked,
glued with any material. Do not throw the battery into a fire to prevent the battery from exploding. Damaged
batteries may also explode. All of the above suggestions apply equally to your device, battery and accessories.
The VOCLESS sensor is maintenance free except replacement of the batteries.
Calibration:
Factory calibrates the VOCLESS sensor when it is produced. The VOCLESS sensor is maintenance-free in indoor
environments due to the Nanosensorics integrated intelligent computational algorithms (AI) and Automatic
Correction and index algorithms. Those algorithms provide long term sensor measurement reliability and no
additional manual calibration is needed during lifetime of the device.
VOC measurement description:
Nanosensorics integrated advanced intelligent (AI) computational algorithm measures and evaluates
Volatile Organic Compounds (VOC) levels and automatically adapts its output to any indoor environment and maps
all VOC events to a VOC Index scale ranging from 1 to 500 VOC Index points (Figure below). The value 100 refers to
the average indoor gas composition over the past 24 h. While values between 100 and 500 indicate a deterioration,
values between 1 and 100 inform about improvement of the air quality. If the VOC levels are above 100 index, it is
recommended to ventilate, if the levels are above 250 index, heavy ventilation and purification of indoor air is
mandatory as soon as possible.

UAB “ Nano sensorics”
🎯Pakaunės g. 70, LT-47243 Kaunas
🌐www.nanosensorics.com
✉[email protected]m
VOC index level spectrum:
VOC level Interpretation example:
Regulations
UAB “Nano sensorics” is the company which develops and produce highly innovative sensors with
integrated intelligent computational algorithms (AI) enabling extremely low power data transmission. Declaration
of conformity Hereby, UAB „Nano sensorics“ declares that VOCLESS complies with the essential requirements and
other relevant provisions of Directive CEM 2014/30/UE, BT 2014/35/UE, RED 2014/53/UE, CE, RoHS
This document contains proprietary technical information which is the property of UAB „Nano sensorics“.
All information must not to be disclosed through any means is prohibited unless expressed, written consent of
authorized representative of UAB „Nano sensorics“ is obtained.
All information, including but not limited to the technical specification are subject to change without
notice. UAB „Nano sensorics“ reserves all rights to change, modify, update software, firmware, documentation
without any obligation to notify any individual or entity. In the event that any changes are made, the revised
Information shall be posted on this website, manuals, technical specification. Please check the latest information

UAB “ Nano sensorics”
🎯Pakaunės g. 70, LT-47243 Kaunas
🌐www.nanosensorics.com
✉[email protected]m
posted herein to inform yourself of any changes. Nano sensorics and Nano sensorics. All products, UAB “Nano
sensorics”names, logos, trademarks are property of UAB „Nano sensorics.

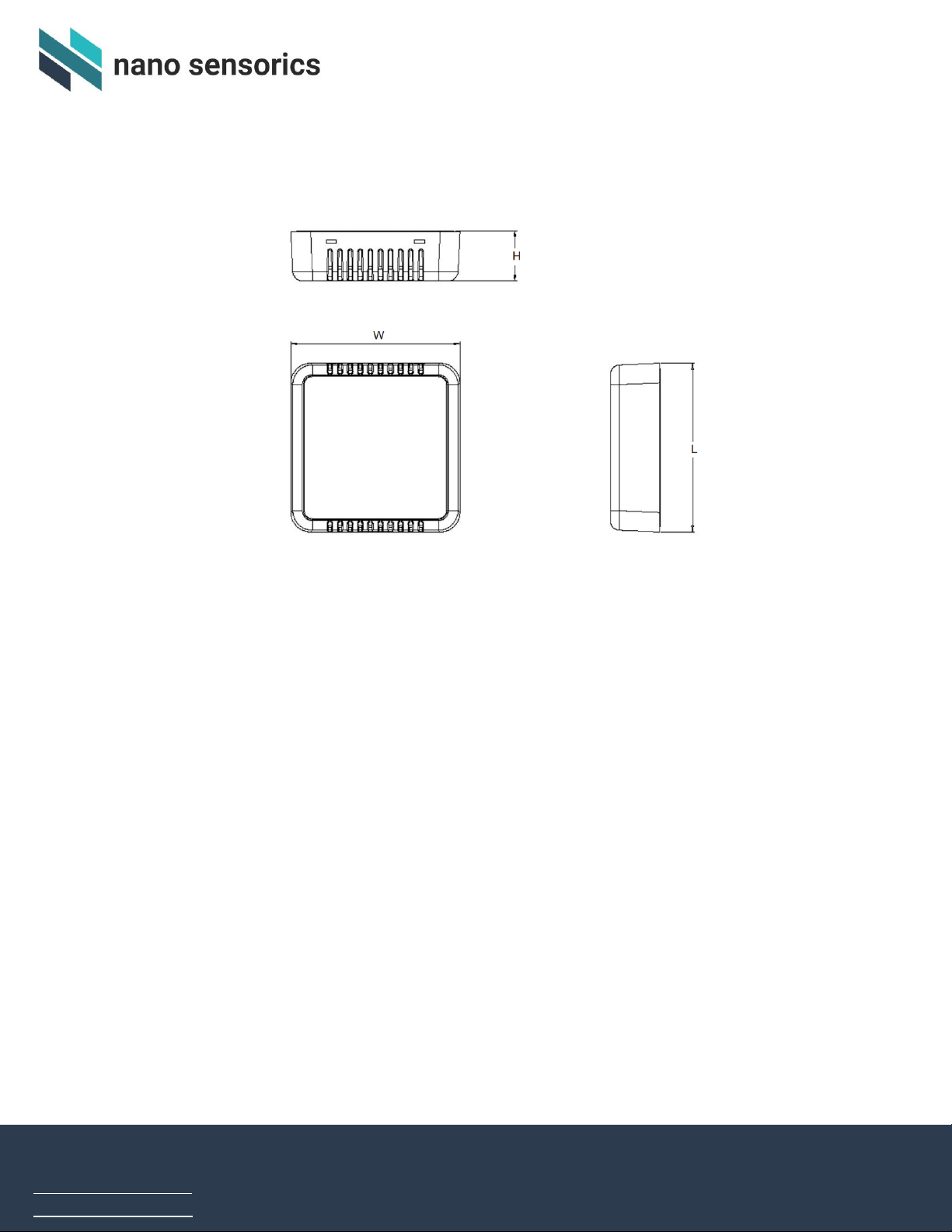

Sensor dimensions:
Important safety information
Read this manual before attempting to install the device. UAB „ Nano sensorics” will not accept
responsibility for any damage or injury resulting from not following the instructions in this manual.
The sensor is for indoor use;
Do not disassemble, crush, puncture, short internal circuits;
Remove batteries if the sensor is not used, discharged battery has to be removed from the battery sensor,
in this case left batteries might leak and damage the sensor;
Keep the battery or device dry and away from water or any liquid as it may cause a short circuit;
Replace batteries only with the same or equivalent type recommended by the manufacturer;
Discard used batteries according to the manufacturer’s instructions;
Do not bend, deform, shred, microwave, paint the sensors, or other hardware;
Do not insert external material into any opening on the sensors;
Disassembling or puncturing the battery (whether integrated or removable) can cause an explosion or fire;
Do not dry the sensors or battery with an external heat source such as a microwave oven or hairdryer;
Observe proper precautions when handling batteries. Batteries may leak or explode if improperly handled;
The sensor is not applied as a metrological, commercial accounting purposes and UAB „Nano sensorics“
will not be held liable for any damage which may result from inaccurate readings;
Do not use any detergent or alcohol to clean the device;
Clean gently with softly moisture cloth.
H: 25,5 mm
W: 86 mm
L: 86 mm

UAB “ Nano sensorics”
🎯Pakaunės g. 70, LT-47243 Kaunas
🌐www.nanosensorics.com
✉[email protected]m
Waste disposal
The sensor disposed according to the Waste Electrical and Electronic Equipment Directive, (WEEE Directive)
2012/19/EU. The sensor and its individual parts has to be disposed according to local
laws and regulations your product should be disposed of separately from household
waste and industrial waste. When this product reaches its end of life, you have to bring
the sensor, its components to the collection point designated by local authorities in
order to protect the environment and to reduce waste through recycling. The battery
must be disposed of separately.
Sensor technical details
Sensing characteristics
Temperature
-10 to 70 °C
Temperature
Accuracy
Max '+/-0.4°C@ -10°C－70°C
Humidity
0 to 90 % RH (non-condensing)
Humidity Accuracy
"+/-4%RH @20°C, >80% "+/-7%RH @20°C
VOC Index
ranging from 1 to 500 VOC Index points
VOC repeatability
<±5 of VOC Index points
Mechanical specification
Weight
85 g without battery
Dimensions
86 x 86 x 25,5 mm
Enclosure
Plastic ABS UL94-V0
Operation
Temperature
-10 to 50 °C
Sensor Power Supply
Battery Type and
voltage
2x3.6 V AA Lithium Battery ER14505 AA lithium batteries (3.6V2400mAh/section)
Expected Battery
Life
<9 years (Depending on configurations and environment)
Sensor logging Function
Sampling Interval
Configurable via downlink configuration, NFC configuration is optional
Data Upload
Interval
Configurable via downlink configuration, NFC configuration is optional
Radio / Wireless specification
Wireless
Technology
LoRaWAN® 1.0.3
Wireless Security
LoRaWAN® End-to-End encryption (AES)
LoRaWAN Device
Type
Class A End-device

UAB “ Nano sensorics”
🎯Pakaunės g. 70, LT-47243 Kaunas
🌐www.nanosensorics.com
✉[email protected]m
Supported
LoRaWAN®
features
OTAA, ABP, ADR, Adaptive Channel Setup
Supported
LoRaWAN®
regions
EU863 –870
Optional: US902 –928, EU863 –870, AU915 –928, EU433, RU864, IN865
Link Budget
137 dB (SF7) to 151 dB (SF12)
TX Power
14dBm±1dBm (Region specific)
Rx Sensitivity
132 dBm (LoRa, Spreading Factor=12, Bit Rate=293bps)
-118 dBm (FSK, Frequency deviation=5kHz, Bit Rate=1.2kbps)
Communication
range
10 km (line-of-sight, actual transmission distance depends on the environment)
Data sizes
Measurement
Data size
Elaboration
Temperature
2
MSB byte -128 to +128 C, LSB byte, value after decimal point 0 to 100
Humidity
1
One byte integer value (0 to 100%)
Battery
2
MSB byte represent Volts before decimal point , LSB byte represents two digits
after decimal point expressed as unsigned 2 byte value, first byte –integer
Volts, second byte –Volts (two digits after decimal point)
VOC
2
0 - 65535 BIN (Actual value 0 –500)
Transportation and Storage
Packed sensors may be transported in any type of covered vehicle. Equipment should be anchored reliably to avoid
shock and possibility to shift inside vehicle. Sensors should be protected against mechanical damage and shock. No
aggressive chemical substances should be stored together because of corrosion hazard.
Warranty
Manufacturer gives warranty that sensor parameters will meet the technical requirements, listed in the “Sensor
technical details” paragraph of this document, if transportation, installation, storage and operation conditions will
be followed. Warranty period is 1 year from manufacturing date, with additional possibility to extend it for
additional charge. Warranty apply, when device is used as intended and if there was no tampering done with the
device or other external damage done to the device from outside sources.
