Nanoleaf NL59-K-0003LW-9PK User manual

. ®
9 nonoleo~
Nanoleaf Lines
Smarter Kit
Quick Start Guide
~marter by Design
_J

Detailed Tutorials & Wartanty
go. nono leaf. me / mylines

What's in the Box
0 0
9x 9x 9x lx
Light
Mounting
Connector
Controller
Li nes
Connectors
Caps
Cap
0 4°
10x 1x
lx
Mounting
Processor & Power
Plates & Tape
Power Connector
Supply

Overview
0
[!I [!I
- • Design Inspiration
go.nanoleaf.me/inspiration

Important Installation Tips
Cleon your surface of dust. moisture and oil. Tape 1s NOT recommended for textured ,
porous. and ceiling surfaces (ie. wallpaper or brick walls) For ceiling installations, or to
learn how to use the screw mount opt i on • go to go.nonoleof. me /mylines
(
~
Before mounting, lay your design out
on a table and power ON to ensuro
everything 1s working.
~
\:I 3~ s
To secure your l ayout, pr.ss and push
each of the mounting c, nnectors
against the wall for 30 seconds.
ALL AT ONCE
CLOSEO·LOOP
AVOID
When mounting, grab a friend to h· lp1 For the
best result, mount your l ayout all at once Or for
larger layouts , mount 1n closed-loop sec·ons
(wangles ,hexagons, etc)

• ------
~ Nanoleaf App
~ Layout Ass i stant

0

-------
• Ap np• sr~;~
- - -
~ GETITO N
~ Google Play
- --
~
~3~s

Dismounting Your Lines
• •
•

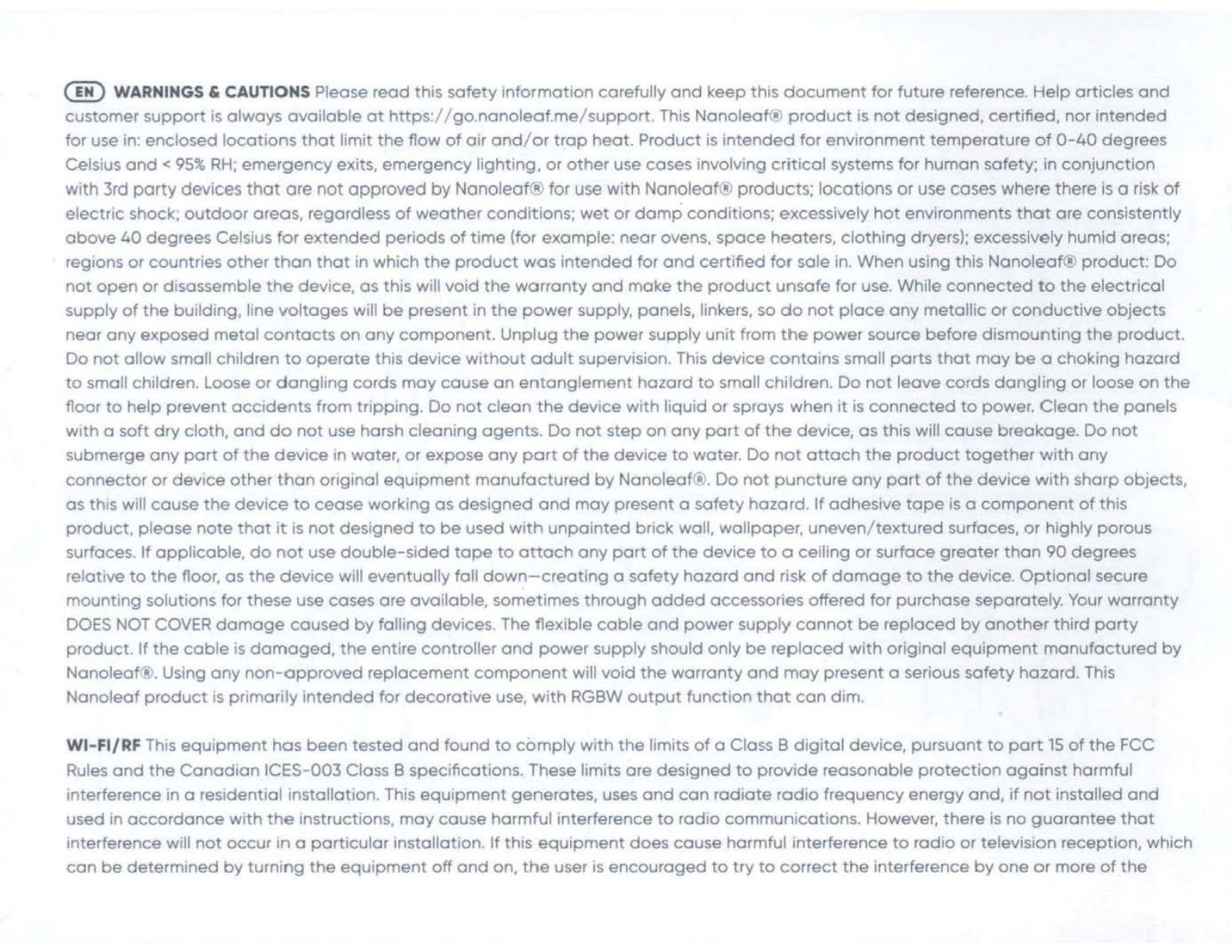

@ WARNINGS & CAUTIONS Please read this safety information carefully and keep this document for future reference. Help articles and
customer support is always ovolloble at https: // go . nonoleof.me/support. This Nonoleof <~ product is not designed, certified, nor intended
for use in: enclosed locations that limit the flow of air and / or trap heat. Product is intended for environment temperature of 0-40 degrees
Celsi us and< 95% RH ; emergency exits, emergency lighting, or other use cases involving critical systems for human safety; in conjunction
with 3rd party devices that are not approved by Nonoleof' 'R) foruse with Nanoleof !l products; locations or usecases where there is o risk of
electricshock: outdoor areas, regardless of weather conditions ; wet or damp conditions; excessively hot environments that are consistently
above 40 degrees Celsius for extended periods of time (for example· near ovens, space heaters, clothing dryers): excessively humid areas:
regions or countries other than that in which the product was intended for and certified for sole 1n. When using this Nanoleaf® product: Do
not open or disassemble the device, as this will void the warranty and make the product unsafe for use. While connected to the electrical
supply of the building, line voltages will be present in the power supply, panels, linkers, so do not place any metallic or conductive objects
near any exposed metal co.ntocts on any component. Unplug the power supply unit from the power source before dismounting the product.
Do not allow small children to operate this device without adult supervision. This device contains small ports that may be a choking hazard
to small children. Loose or dangling cords may cause an entanglement hazard to small children. Do not leave cords dangling or loose on the
floor to help prevent accidents from tripping. Do not clean the device with liquid or sprays when it is connected to power. Clean the panels
wi th o soft dry cloth, and do not use harsh cleaning agents. Do not step on any part of the device, as this will cause breakage. Do not
submerge any port of the device in water, or expose any port of the device to water . Do not attach the product together with any
connector or device other than original equipment manufactured by Nanoleof •'li'I. Do not puncture any port of the device with sharpobjects,
os th is will cause the device to cease working as designed and may presento safety hazard . If adhesive tape is a component of this
product, please note that It ls not designed to be used with unpainted brick wall, wallpaper , uneven/ textured surfaces, or highly porous
surfaces. If applicable , do not use double-sided tape to attach any port of the device too ceiling or surface greater than 90 degrees
relative to the floor, as the device will eventuallyfoll down-creating o safety hazard and risk of damage to the device. Optional secure
mount i ng solutions for these usecoses are available , sometimes through added accessories offered for purchase separately. Your warranty
DOES NOT COVER damage caused by falling devices. The flexible coble and power supply cannot be replaced by another third party
product. If the cob le is damaged, the entire controller and power supply should only be replaced with original equipment manufactured by
Nonoleof , ~. Using any non-approved replacement component will void the warranty and may present a serious safety hazard. This
Nonoleaf product is primarily intended for decorative use, with RGBW output function that can dim.
WI-Fl / RF This equ i pment has been tested and found to comply with the limits of a Class B digital device, pursuant to port 15 of the FCC
Rules and the Canadian ICES-003 Closs B specifications. These limits ore designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates , uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turni ng the equipment off and on, the user 1s encouraged to try to correct the interference by one or more of the

following measures: Reorient or relocate the receiving antenna: increase the seporotIon betwe en the equipment and receiver; connect the
equipment into on outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV
technician or visit https://go.nonoleof.me/support.
FREQUENCY RANGE
2.4GHz Wi-Fi. 2412-2462 MHz. Mox RF e.l.r.p power< 20 dBm
2.4GHz Radio: 2402-2480 MHz, Max RF e.i.r.p power<lO dBm
NFC: 13.56MHz, Mox RF e.i.r.p power O dBm
WARRANTY INFORMATION This product Is covered by a limited warranty from Nonoleat •: a two-year complimentary replacement of
defective hardware. For full details visit: https://go.nonoleof.me/worranty.
DISPOSAL OF YOUR OLD PRODUCT Your product is designed and manufactured with high quality materials and components,
which con be recycled and reused. When this crossed ·out wheelie bin symbol is attached to a product, it means that the product
is covered by European Directive 2012/19 'EU. Please find out about your local collection system for electrical and electronic
products. Please act according to your local rules and do not dispose of your old products with your normal household waste. The
correct disposal of your old product will help to prevent potential negative consequences tor the environment and human health.

Still Need Help?
go.nanoleaf.me / support
@ Besoin d'aide? go .nonoleof.me/ support
(ID lAun neces,ta ayuda? go nonoleof me / support

Models: NL59-K-0003LW ·9PK
Nl59-K-0003LW-9PK AMZ
Rating Input 120V AC 60Hz
Modela: Nl59-K··0O0SLW-9PK
NLS9·K· 0007LW-9PK
NL59-K-0016l W-9PK
NL59-K-0017LW-9PK
NLS9-K·0002LW-9PK·UK
NL59-K 6002LW-15PK-UK
Rating Input : 100 240V-, 50/60Hz
Nonoleaf Canada
#400 -100 Front Street Eost
Toronto, ON
MSA lEl, Conoda
Rated Power: 25W (9PK); 40W (15PK)
PSU Max Power: 48W
Color Temperature: 5700K·6300K+RGB
FCC ID ; 2AEWY-NLS9
IC : 20489-NLS9
Nanoleaf Europe SAS
11 Rue de Lourmel
75015 Paris
Nanoleaf Europe SAS
P/A 4 Eyes Ltd. Bay House, Cocks Hill,
Perronzabuloe, Cornwall TR6 OAT.
Unrted KingdomFrance
UK
CA
Manufacturer
NonoGrid limited
CE
t1301-483A Castle Peak Rood,
Kowloon, Hong Kong

Bil
@nanoleaf
@nanoleafofficial a11
/thenanoleaf
Learn more at
nanoleaf.me

Expand Your Design
with Expansion Packs
go .nanoleaf.me/lines
iOS Android
