Cooledge TILE Exterior R2 User manual

For detailed instructions, please refer to:
- EXT-0081: Cooledge TILE Exterior R2 Installation Guide
- EXT-0071: Cooledge Control Module User Guide
Cooledge Lighting Inc.
110–13551 Commerce Parkway
Richmond, BC V6V 2L1 Canada
Cooledge Lighting reserves the right to change
materials or modify the design of its product
without notification as part of the company’s
continuing product improvement program.
O [phone]
F [phone]
T [phone]
W cooledgelighting.com
5 Year Limited Warranty:
Parts and workmanship
5
5
Y
E
A
R
S
Y
S
T
E
M
W
A
R
R
A
N
T
Y
5
Y
E
A
R
S
Y
S
T
E
M
W
A
R
R
A
N
T
Y

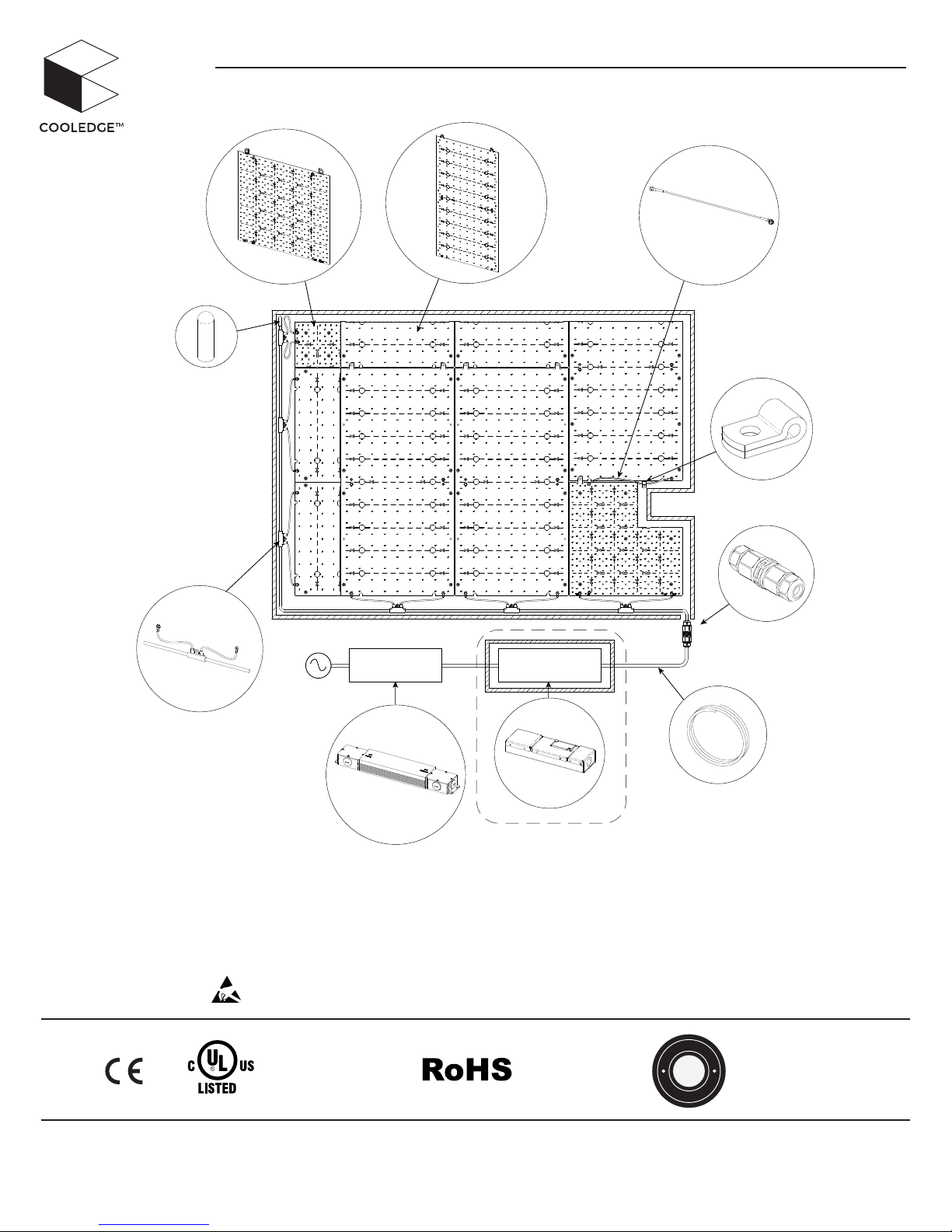

IP65
In Canada, TILE Exterior
must be installed within
an enclosure
Exterior TILE
Exterior Cutout TILE
Jumper Cable
Waterproof Cable
Splices
Cable Clamp
T-Cable
T-Cable
End Cap
Power Supply
Starter Cable
Control Module
Optional for TILE Exterior
Must be mounted in an IP rated
enclosure if installed outdoors
AC
Caution: Observe precautions for handling electrostatically sensitive devices.
COOLEDGE TILE EXTERIOR R2 QUICKSTART GUIDE
EXT-0080-R00-101518 (LTR) 1/5

INSTALL EXTERIOR TILE
PRE-CUT EXTERIOR TILES AND CUTOUTS TILES
1
2
Staple inside circles
(Max recommended
staple size = 1/2” or 12mm)
Install with screws
and plastic washers
(M4 or #8 screw)
Snap together to
connect light sheets
EXTERIOR TILEs CANNOT BE CUT.
Cutting of the TILEs will compromise the protective coating.
Each TILE is cut according to the submittal drawing in the
factory. Refer to the identification label on the back of each
TILE and job submittal for the installation location.
Electric staple gun
recommended.
or
11.8”
300 mm
Mount the TILE on a non conductive surface.
EXT-0080-R00-101518 (LTR) 2/5

INSTALL CUT-OUT TILE(S)
INSTALL T-CABLE AND CUT TO SIZE
INSTALL EXTERIOR CUTOUT TILE
4
5
AC Optional for TILE Exterior
Must be mounted in an IP rated
enclosure if installed outdoors
3
Power
Supply Control
Module
Install with screws and plastic washers.
Do not use staples on the Cut-out TILE.
Install with screws and plastic washers.
Do not use staples on the Cut-out TILE.
EXT-0080-R00-101518 (LTR) 3/5

DO NOT BEND SHEETS SHARPLY AROUND CORNERS
CONNECTOR TAB INSULATION SPLICE CONNECTOR INSTALLATION
1” (2.5cm) MINIMUM
BEND RADIUS
Cover any free hanging connector tabs
with insulating tape.
EXT-0080-R00-101518 (LTR) 4/5

STARTER KIT CONTENTS
CUT-OUT KIT CONTENTS
Cut Tile Reuse Jumper Cable (4) Splice Connector (2)
T-Cable End Cap (4)
Quick
Start
Guide
16 AWG (1.3mm2) Cable,
10ft (3m) Length
Cut-out TILE Jumper Cable(2)
Insulating Patches (2) Cable Clamp (2)
Cut-out TILEs will be pre-cut and may not
match the image shown.
*
Insulating Patches (12)
