nanoskin Evergreen EG-1002 User manual

EG - 1002
Instruction Manual
Micro-Particle Cleaning Gun

EG1002001
EG1002002
EG1002003
EG1002004
EG1002005
EG1002006
EG1002007
EG1002008
EG1002009
EG1002010
EG1002011
EG1002012
EG1002013
EG1002014
EG1002015
EG1002016
EG1002017
EG1002018
EG1002019
EG1002020
EG1002021
EG1002022
EG1002023
EG1002024
EG1002025
EG-1002 Micro-Particle Cleaning Gun
Ref
No
.
.Part No. Description
Q ty
Tool
'
/
Ref
No
.
.Part No. Description
Q ty
Tool
'
/
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
17
18
19
1
1
1
20 1
21 1
Housing
Weighted Tube Ass y'
Hose
Pin
Trigger
Screw
Spring
O Ring2×1-
Gasket
Tube Ass y'
Screw
Gasket
Valve Stem
Inner Tube Ass y'
1 4 PF( / " )
Bushing
Bottle
Air Reverse Switch Ass y'
22
23
24
25
1
1
1
1
Screw
Nozzle
Air Inlet
Screw
Air Inlet

Weighted Tube
Instruction Manual
Micro-Particle
Cleaning Gun
EG - 1002
Grip
Outlet
Cleans carpets, plastics, and upholstery interior. Blast cleaning solution into crevices
unable to reach by hand. Low moisture, atomizes cleaner and detergent into1~10μm.
Please use the micro-particle cleaning gun in the safe, and secure environment. Read
the direction for use carefully, before you use the cleaning gun.
Trigger / Handle:
Hold it, spraying the liquid;
release it, stop spraying the
liquid
ON/OFF Spray Control
Valve:
Swift Between the Spray/Liquid
Air Adjusting Valve:
Control the distance and
form of the spraying foam
Supplement of Liquid:
Open the cover by screwing in
clockwise direction, fill with liquid
, and fasten the cover.
●The pressure must be set between 0.5 to 0.8MPa; higher pressure (>0.8MPa)
may cause damage to the equipment and dangerous event.
● Use ONLY neutral liquid.
● Specially note that organic solvent even in neutral feature cannot be used,
because it contains enormous factors might cause deterioration
Installation/detaching
the bottle:
Please hold the bottle while installing
or detaching . It might cause the
breakdown as the joint part of the
valve comes off when an upper
T part is turning.
Air Pressure of 1.0MPa
or higher
Higher pressure (>0.8MPa) may
cause damages to the equipment
and creates dangerous event.
Please set knob from 0 and below
0.5.Please refer the left graph for
instruction of using1~2 MPa.
WarningNotice
Warning
1

Maintenance Methods / Tips
SPECIFICATION
Cleaning after use. Use water or other specialized chemical solution to clean
the spray tube, cone, and bottle. Preserve it at ventilated and dry place without
direct sun irradiation.
● Weighted tube, cone, and other accessories are consumables. The use life of the those consumables
may vary from the frequency of use, and user's habits.
● NEVER point the cleaning guns in the direct of human body, face, and eyes. Wear safety goggle and
respirator during the operation.
● TISI shall not be responsible for device damage caused by application of unoriginal accessories and
special consumables, or your own repair, parts replacement, and disassembly of the device. In such
case, even the device is still under limited warranty, such repair shall not be provided for free.
● In case of any abnormity or damage of the equipment during the use process, please terminate the
operation immediately.
3

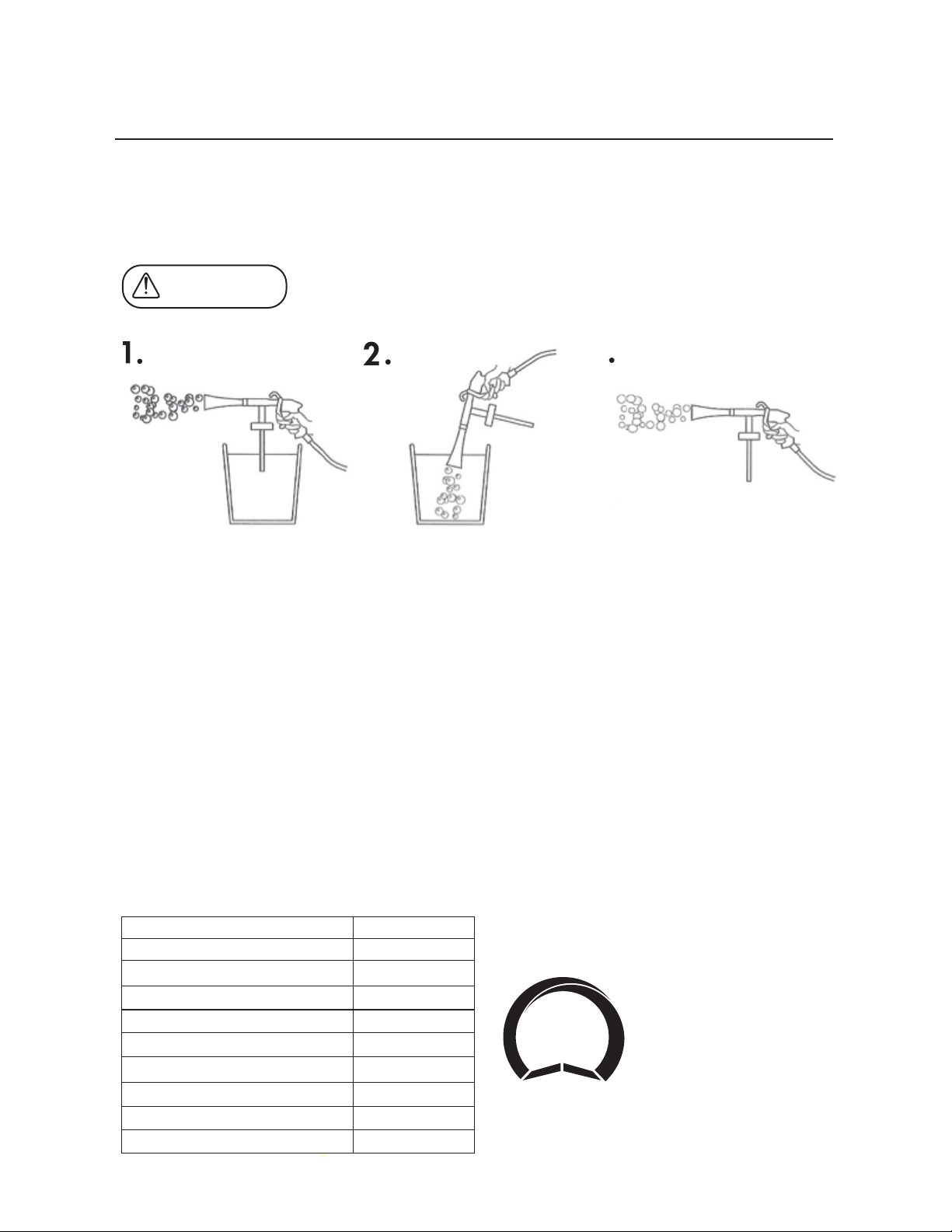

First, put clean water or
specialized solutions into tank.
Put the tube into tank, and
release pressure by triggering
the gun for 1~2 minutes
Next, put the cone part into
the tank, and release pres-
sure by triggering the gun for
1 minute. (Note: Special
acting requires for individual
tools, please refer to the
instruction for us for each
tools)
Third,triggering the gun in the air
for 1 to 2 minutes. Preserve it at
ventilated and dry place without
direct sun irradiation.
If the device is not cleaned after use, the solution will resort in the device, and
dust and bacteria will remain, which will seriously corrode the device and
greatly reduce the use life of the device.
Notice
2
Model No.
Dimension (mm)
Weight (kg)
Air Pressure (Psi)
Air Consumption (L/min)
Container (ml)
Detergent
Max. Spraying Volume (ml/min)
Working Temperature ( oC)
Air Inlet
EG-1002
W65 D280 H267
0.52
75~115
125 @72Psi
500
Neutral
45
10~50
1/4”
NANOSKIN CAR CARE PRODUCTS
Division of Total Import Solutions, Inc.
La Habra, CA 90631
Engineered in Japan
Designed in USA
Made in PRC
www.nanoskinusa.com
For Chemical Emergency: PERS – Day or Night
NORTH AMERICA :1-800-633-8253
INTERNATIONAL :1-801-629-0667
