Napoleon GPV GAS POWER VENT User manual

W415-1160 / 03.06.13
1
EN
GAS POWER
VENT (GPV)
INSTALLATION
INSTRUCTIONS
INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE APPLIANCE THIS TERMINAL IS SERVING.
CONSUMER: RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. THESE INSTRUCTIONS
ARE TO BE USED IN CONJUNCTION WITH THE APPLIANCE AND PVA INSTRUCTIONS.
CERTIFIED
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 4Y8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
ID[ZZZQDSROHRQILUHSODFHVFRPDVN#QDSROHRQRQFD
ZZZFRQWLQHQWDOILUHSODFHVFRPDVN#FRQWLQHQWDOILUHRQFD
CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS: ANSI Z21.88 CSA 2.33 FOR VENTED GAS FIREPLACE HEATERS
$1'$16,=&6$)259(17('*$6),5(3/$&(6
GENERAL INFORMATION
These Installation Instructions must be used in conjunction
with the appliance and appropriate PVA adapter kit Installation
Instructions. Clearances listed in these Instructions supersede
those in the appliance's Installation Instructions.
Power venting of direct vent appliances may result in the
reduction of efficiencies by as much as ten percent. Consider
this in making any venting and heating decisions in any
installation application.
SELECTING AND INSTALLING THE APPLIANCE
When selecting a gas appliance for use with the GPV, take into
consideration the various requirements and limitations in the
venting installation section for the following models:
Models Equipped with an Intermittent Pilot Ignition (I.P.I.)
It is recommended that the GPV be used with a gas appliance
equipped with an Intermittent Pilot Ignition (I.P.I.). Downward
vertical vent runs are permitted with an I.P.I. system. See
venting section in appropriate PVA Installation Instructions.
Models Equipped with Millivolt/ Standing Pilot
Downward vertical vent runs are not permitted with a standing
pilot system. See venting section in appropriate PVA Installation
Instructions.
INSTALLATION TO BE DONE BY A QUALIFIED INSTALLER
to conform with local codes. In absence of local codes install
to the current National Building Code in Canada or to regional
building codes in the United States. It must be electrically
connected and grounded in accordance with local codes. In
the absence of local codes, use the current CSA C22.1
CANADIAN ELECTRICAL CODE in Canada or the ANSI/NFPA
70 NATIONAL ELECTRIC CODE in the United States.
The GPV operates on 120 VAC 60 HZ electrical service which is
supplied at the firebox junction box.
The GPV is a Direct Vent Terminal
designed to allow installation of
gas appliances where typical vent
configurations cannot be achieved.

W415-1160 / 03.06.13
2
EN
NOTE: Changes, other than editorial, are denoted by a vertical line in the margin.
TABLE OF CONTENTS
1.0 VENTING 2
1.1 INSTALLATION OVERVIEW 3
1.2 VENT TERMINAL CLEARANCES 4
1.3 VENT LENGTHS 5
1.4 POWER VENT TERMINAL 5
1.4.1 TERMINAL INSTALLATION 5
1.4.2 POWER VENT INSTALLATION 6
1.4.3 INITIAL FIRING PROCEDURES 6
1.4.4 ELECTRICAL CONNECTION 7
1.4.5 HARD WIRING CONNECTION 7
1.4.6 RECEPTACLE WIRING DIAGRAM 7
1.4.7 ELECTRICAL BOX INSTALLATION 8
1.5 RESTRICTOR PLATE INSTALLATION 8
1.6 WIRING DIAGRAM AND INSTALLATION 8

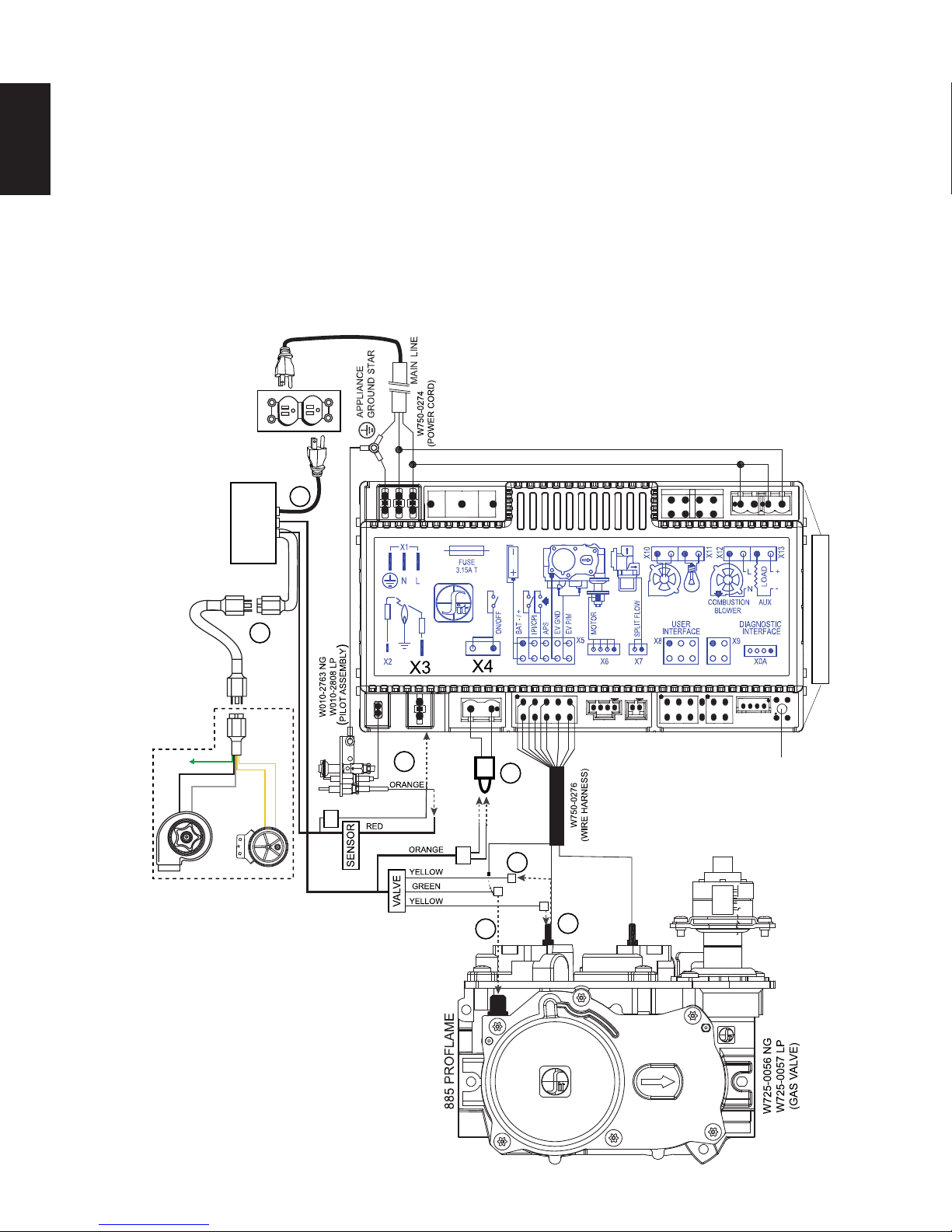

1.6.1 SIT IPI 885 PROFLAME 1 9

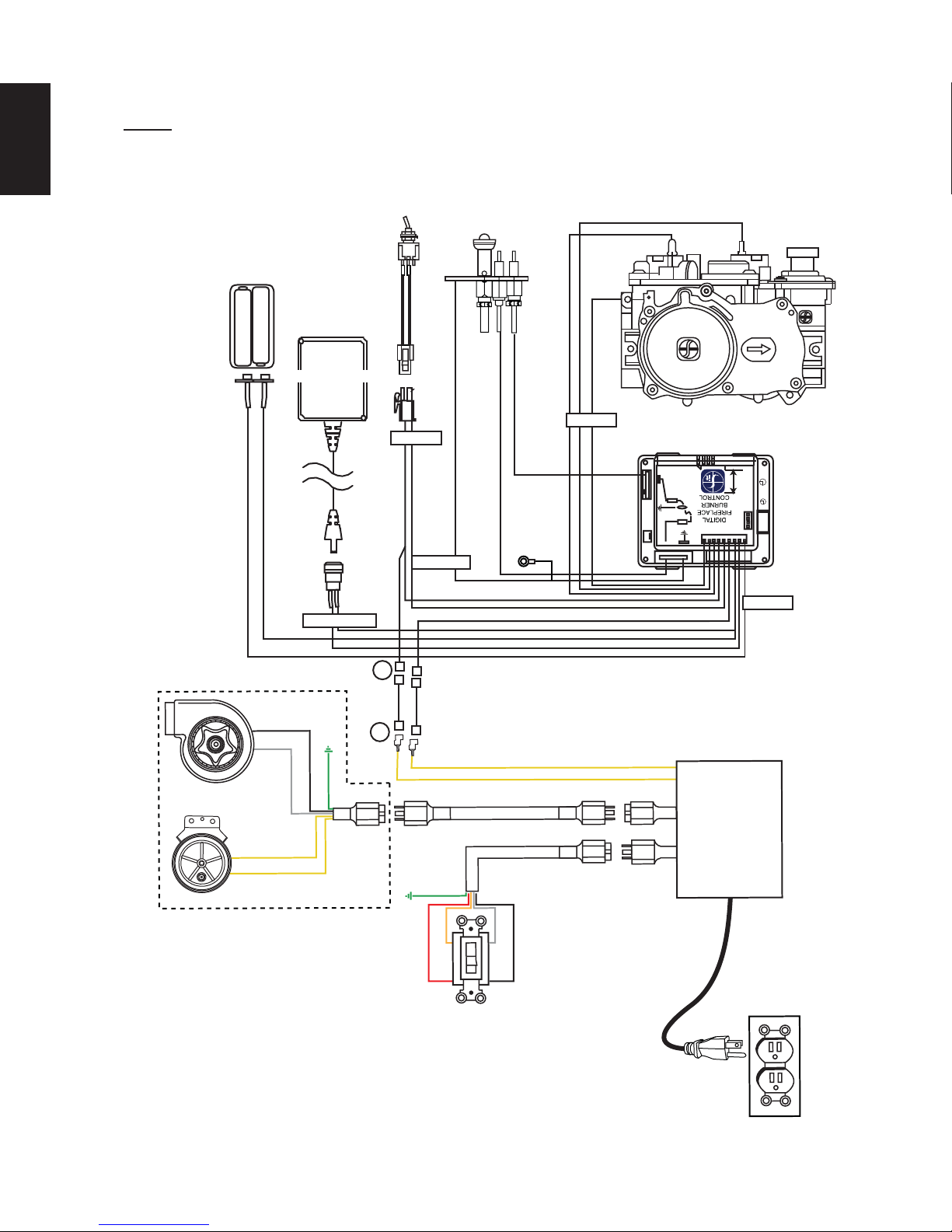

1.6.2 SIT IPI PROFLAME 2 10

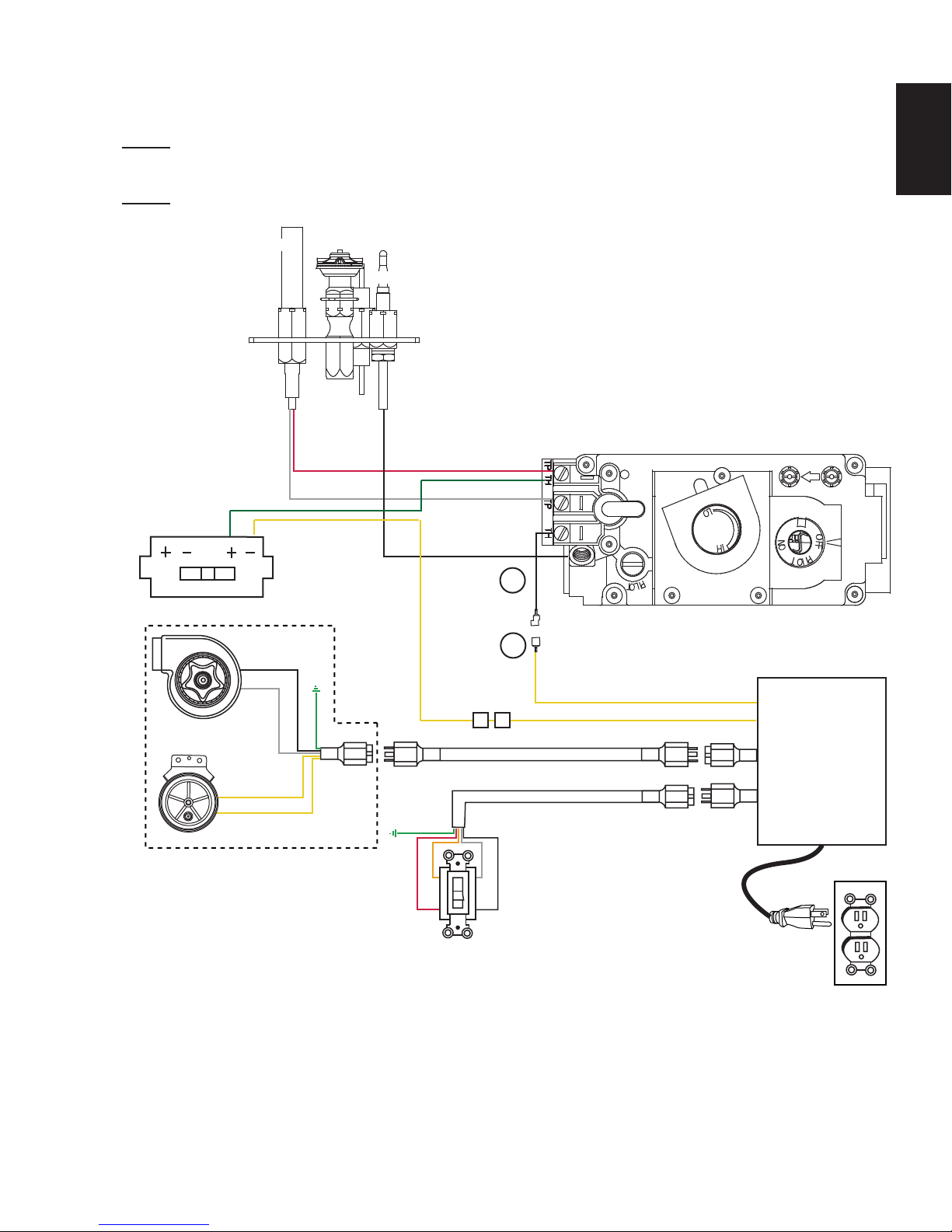

1.6.3 SIT MILLIVOLT 820 REQUIRING A DOUBLE POLE SWITCH 11

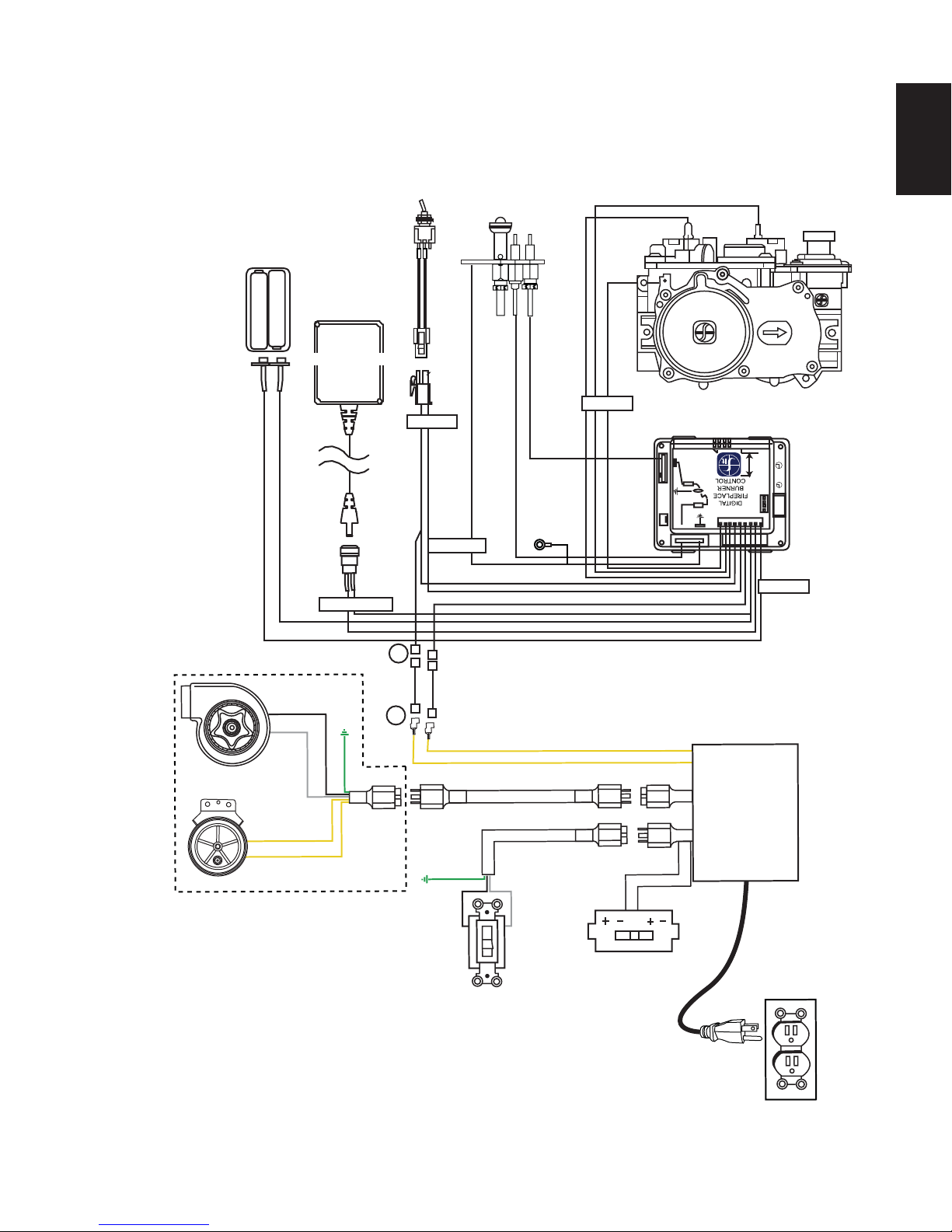

1.6.4 SIT MILLIVOLT 820 NOVA FOR SINGLE POLE SWITCH 12
1.6.5 SIT MILLIVOLT 820 NOVA REMOTE CONTROLLED SYSTEM REQUIRING A DOUBLE POLE SWITCH 13
1.6.6 SIT IPI 880/886 PROFLAME REQUIRING A DOUBLE POLE SWITCH 14
1.6.7 SIT IPI 880/886 FOR SINGLE POLE SWITCH 15
1.6.8 DEXEN IPI 6003-3V REQUIRING A DOUBLE POLE SWITCH 16
1.6.9 DEXEN IPI 6003-3V REQUIRING A SINGLE POLE SWITCH 17
2.0 ADJUSTMENTS 18
2.1 VENTURI ADJUSTMENTS 18

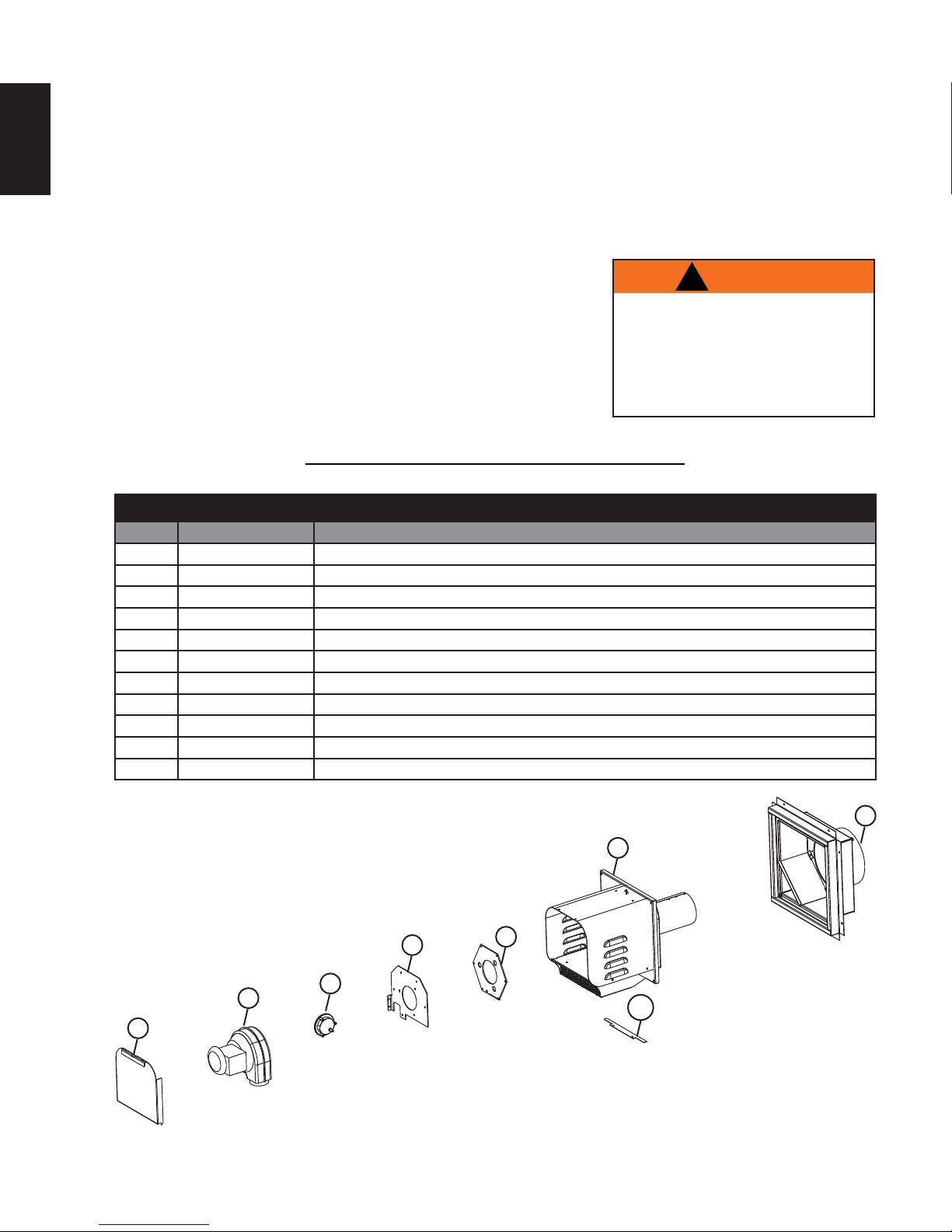

3.0 REPLACEMENTS 18
4.0 TROUBLESHOOTING 19

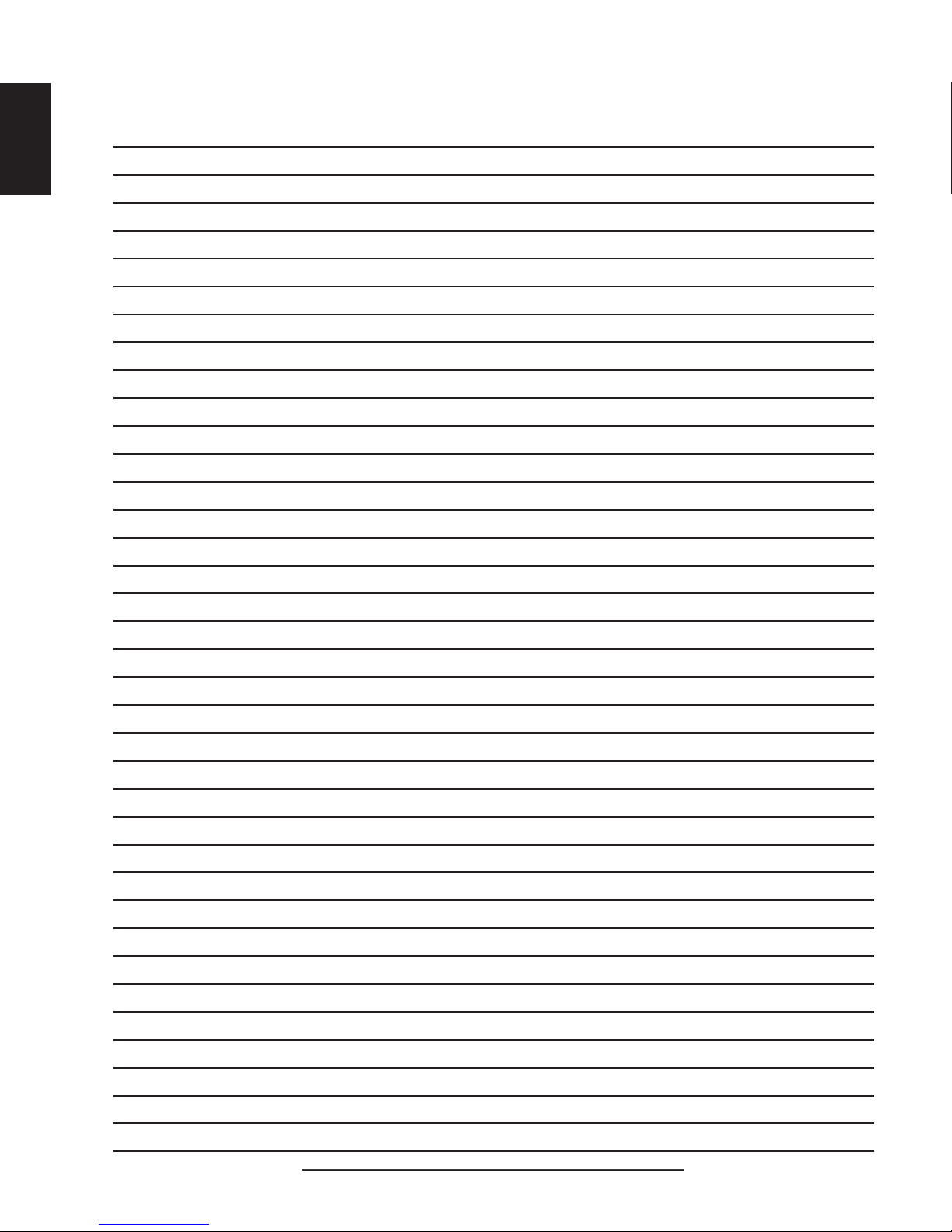

5.0 NOTES 20
1.0 VENTING
There are specific adaptors and venting requirements for each appliance, refer to your power vent adaptor
leaflet for more information.
For complete installation instructions refer to the following web sites:
Manufacturer Website
Napoleon - English http://www.napoleonfireplaces.com/Tech/installation_manuals/installations.html
Napoleon - French http://www.napoleonfoyers.com/Fireplaces/powervent.html
Continental http://www.continentalfireplaces.com/fireplaces/gas/powervent.html

W415-1160 / 03.06.13
3
EN
A typical vent
configuration
Reducer, refer to
power vent
adapter kit (PVA)
for specific vent-
ing instructions
where applicable.
Gas Power
Vent Terminal
Electrical Box
(velcro to base)
LHD50 Illustrated
Firestop
Spacer
Frame Assembly Terminal
Access
Cover
1.1 INSTALLATION OVERVIEW

W415-1160 / 03.06.13
4
EN
1.2 VENT TERMINAL CLEARANCES
INSTALLATIONS
CANADA U.S.A.
A12”
(304.8mm)
12”
(304.8mm) Clearance above grade, veranda porch, deck or balcony.
B12”
(304.8mm) Δ
9” (228.6mm)
ΔClearance to windows or doors that open.
C12”
(304.8mm)*
12”
(304.8mm)* Clearance to permanently closed windows.
D18”
(457.2mm)**
18”
(457.2mm)**
Vertical clearance to ventilated soffits located above the terminal within a horizontal distance of
2’ (0.6m) from the center line of the terminal.
E12”
(304.8mm)**
12”
(304.8mm)** Clearance to unventilated soffit.
F0” (0mm) 0” (0mm) Clearance to an outside corner wall.
G
0” (0mm) 0” (0mm) Clearance to an inside non-combustible corner wall or protruding non-combustible obstructions (chimney,
etc.).
2” (50.8mm) 2” (50.8mm) Clearance to an inside combustible corner wall or protruding combustible obstructions (vent chase,
etc.).
H3’ (0.9m) 3’ (0.9m)*** Clearance to each side of the center line extended above the meter / regulator assembly to a
maximum vertical distance of 15’ (4.6m).
I3’ (0.9m) 3’ (0.9m)*** Clearance to a service regulator vent outlet.
J12”
(304.8mm) 9” (228.6mm) Clearance to a non-mechanical air supply inlet to the building or a combustion air inlet to any other appliance.
K6’ (1.8m) 3’ (0.9m) Clearance to a mechanical air supply inlet.
L7’ (2.1m) ‡ 7’ (2.1m)*** Clearance above a paved sidewalk or paved driveway located on public property.
M12”
(304.8mm)††
12”
(304.8mm)*** Clearance under a veranda, porch or deck.
N12”
(304.8mm)
12”
(304.8mm) Clearance above the roof.
O2’ (0.6m) †* 2’ (0.6m) †* Clearance from an adjacent wall including neighbouring buildings.
P8’ (2.4m) 8’ (2.4m) Roof must be non-combustible without openings.
Q3’ (0.9m) 3’ (0.9m) See chart for wider wall dimensions.
R6’ (1.8m) 6’ (1.8m) See chart for deeper wall dimensions. The terminal shall not be installed on any wall that has an
opening between the terminal and the open side of the structure.
S12”
(304.8mm)
12”
(304.8mm) Clearance under a covered balcony
ΔThe terminal shall not be located less than 6 feet (1.8m) under a window that opens on a horizontal plane in a structure with three walls and a roof.
* Recommended to prevent condensation on windows and thermal breakage
** It is recommended to maximize the distance to vinyl clad soffits.
*** This is a recommended distance. For additional requirements check local codes.
‡ A vent shall not terminate where it may cause hazardous frost or ice accumulations on adjacent property surfaces..
†† Permitted only if the veranda, porch, or deck is fully open on a minimum of two sides beneath the floor.
†* Recommended to prevent recirculation of exhaust products. For additional requirements check local codes.
††* Permitted only if the balcony is fully open on a minimum of one side.
12.2D
R
QS
GP
COVERED BALCONY APPLICATIONS ††*
QMIN RMAX MAX
R
= 3 feet
(0.9m) = 2 x IHHW
(4.6m)
QACTUAL

W415-1160 / 03.06.13
5
EN
1.3 VENT LENGTHS
REFER TO POWER VENT ADAPTER KIT (PVA) FOR SPECIFIC VENTING INSTRUCTIONS.
NOTE: If equipped, ACS switch must be disabled if there is any downward venting. Downward venting is not
allowed with appliances that use standing pilots.
20.4A
A. Remove the electrical access plate from the frame assembly, then
remove the knock out from this plate.
B. Insert the wiring through the electrical access plate and engage the
conduit bushing. Re-secure this plate. NOTE: The GPV includes a
20 foot (6.1m) wire harness cable. If this cable does not reach
the appliance, then it may be cut and a splice added. These
connections must conform with local codes or, in the absence of
local codes, use the current CSA C22.1 Canadian Electrical Code in
Canada or the ANSI/NFPA 70 National Electrical Code in the United
States.
C. Remove terminal access cover, see “INSTALLATION OVERVIEW” for
location and route cable through terminal.
D. Assemble gas power vent terminal to frame assembly.
E. Connect the male and female connectors.
F. Replace terminal access cover.
NOTE: Where possible, it is strongly recommended to have an access panel inside the building for
servicing the unit.
This application occurs when venting through an exterior wall. Having determined the correct
height for the terminal location, cut and frame a hole in the exterior wall as illustrated to
accommodate the GPV.
DETERMINE
THE
CORRECT
HEIGHT
11 1/4”
(285.8mm)
ELECTRICAL
ACCESS PLATE TERMINAL
FEMALE
MOLEX
CONNECTOR
MALE MOLEX
CONNECTOR
10 1/4”
(260.4mm)
1.4 POWER VENT TERMINAL
1.4.1 TERMINAL INSTALLATION

W415-1160 / 03.06.13
6
EN

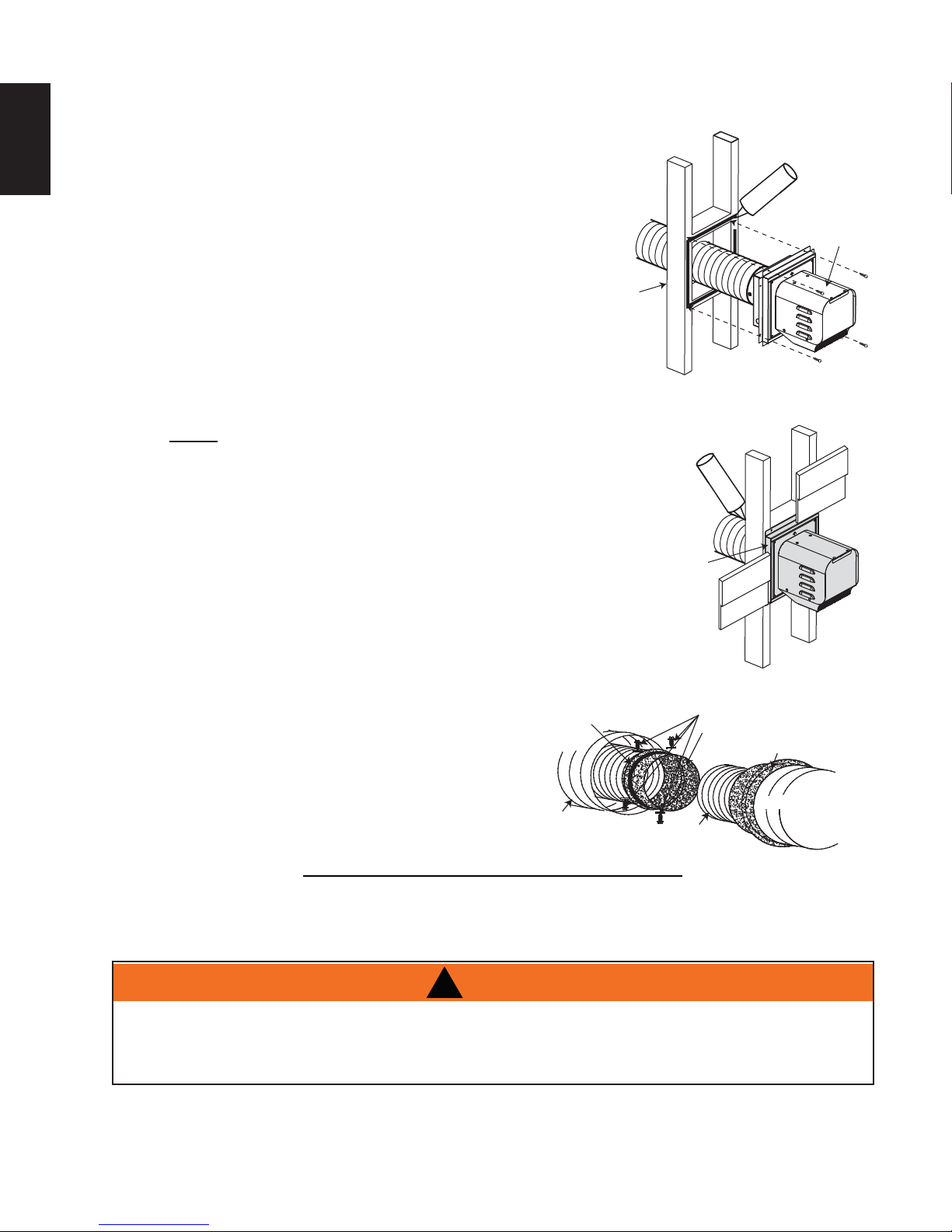

1.4.2 POWER VENT INSTALLATION
23.6A
A. Stretch the inner flex pipe to the required length taking
into account the additional length needed for the
finished wall surface. Slip the vent pipe a minimum of
3” (76.2mm) over the inner sleeve of the terminal and
secure with 3 #8 screws. Apply a heavy bead of the
high temperature sealant W573-0007 Mill Pac (not
supplied).
B. Using the outer flex pipe, slide over the outer
combustion air sleeve of the terminal and secure with
3 #8 screws. Seal using high temperature sealant
W573-0002 (not supplied).
C. Apply a bead of caulking (not supplied) to the framed
opening and secure the terminal. Ensure the arrows
stamped into the frame assembly are pointing upwards.
NOTE: For firestop spacer installation instructions, see PVA
kit or the appliance Installation Manual.
D. Route venting through framed opening and firestop spacer to the
appliance.
E. The terminal mounting plate may be recessed into the exterior
wall or siding no greater than the depth of its return flange.
F. If more vent pipe needs to be used to reach the appliance, couple
them together as illustrated. The vent system must be supported
approximately every 3 feet (0.9m) for both vertical and horizontal
runs. Use noncombustible strapping to maintain the minimum
clearance to combustibles.
G. Install the reducer (if required) or vent and
properly secure and seal to the unit using high
temperature sealant W573-0007 Mill Pac (not
supplied).
HI-TEMP
SEALANT
#8 X 1/2” SELF DRILLING
SCREWS & WASHERS
INNER COUPLER
OUTER COUPLER
OUTER
FLEX PIPE INNER
FLEX PIPE
OUTER
FLEX PIPE
TERMINAL
CAULKING
FIRESTOP
SPACER
#10 X 2”
SCREWS
HIGH
TEMPERATURE
SEALANT
RETURN
FLANGE
!
WARNING
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN
OUT WITH THE GLASS DOOR OPENED OR REMOVED. PURGE SHOULD BE PERFORMED BY A
QUALIFIED SERVICE TECHNICIAN. ASSURE THAT A CONTINUOUS GAS FLOW IS AT THE BURNER
BEFORE CLOSING THE DOOR. ENSURE ADEQUATE VENTILATION.
In some instances the system may not light pilot/burner with the door open/removed. Partially blocking the
exhaust flue collar will allow the safety pressure switch to activate and allow gas flow to the pilot during the
initial test firing.
1.4.3 INITIAL FIRING PROCEDURES

W415-1160 / 03.06.13
7
EN

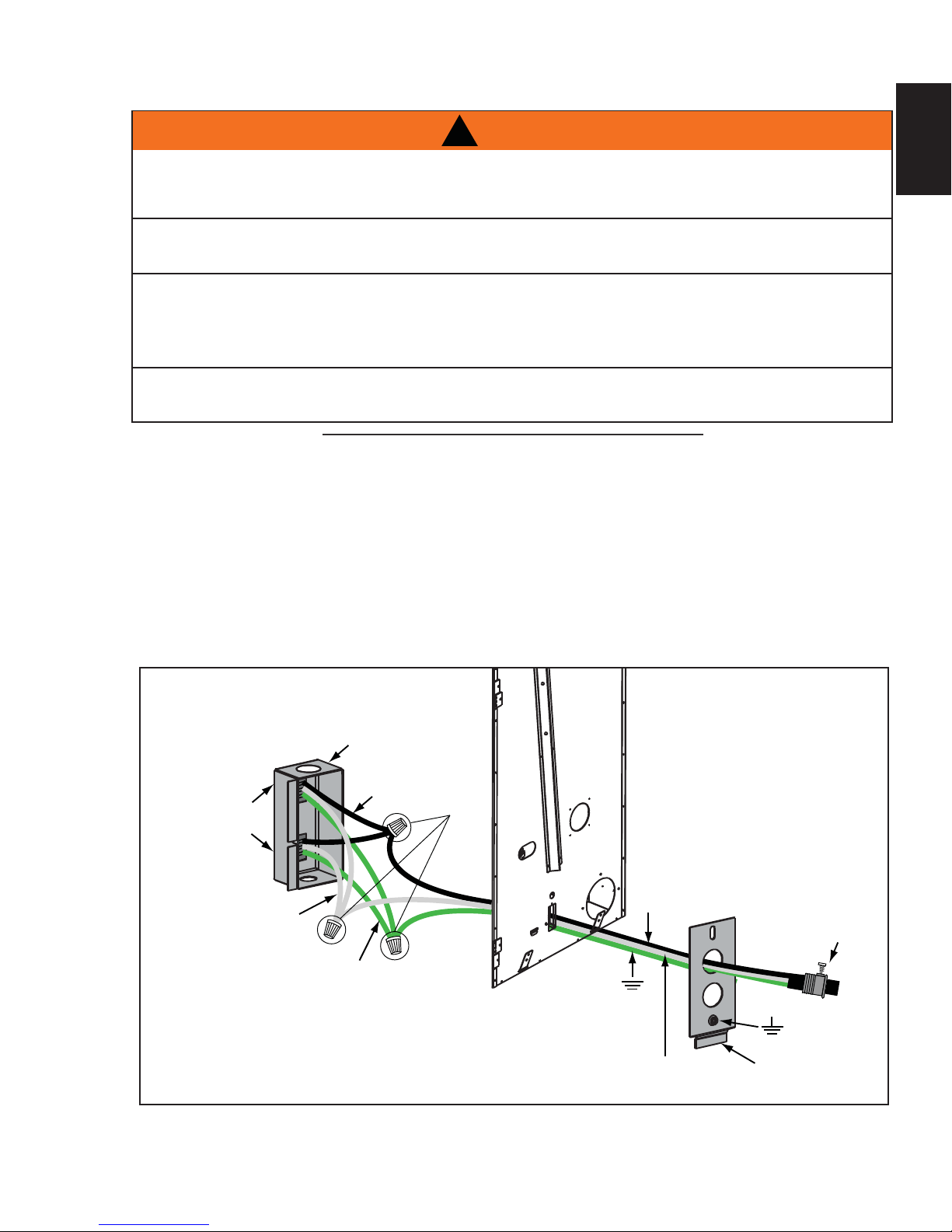

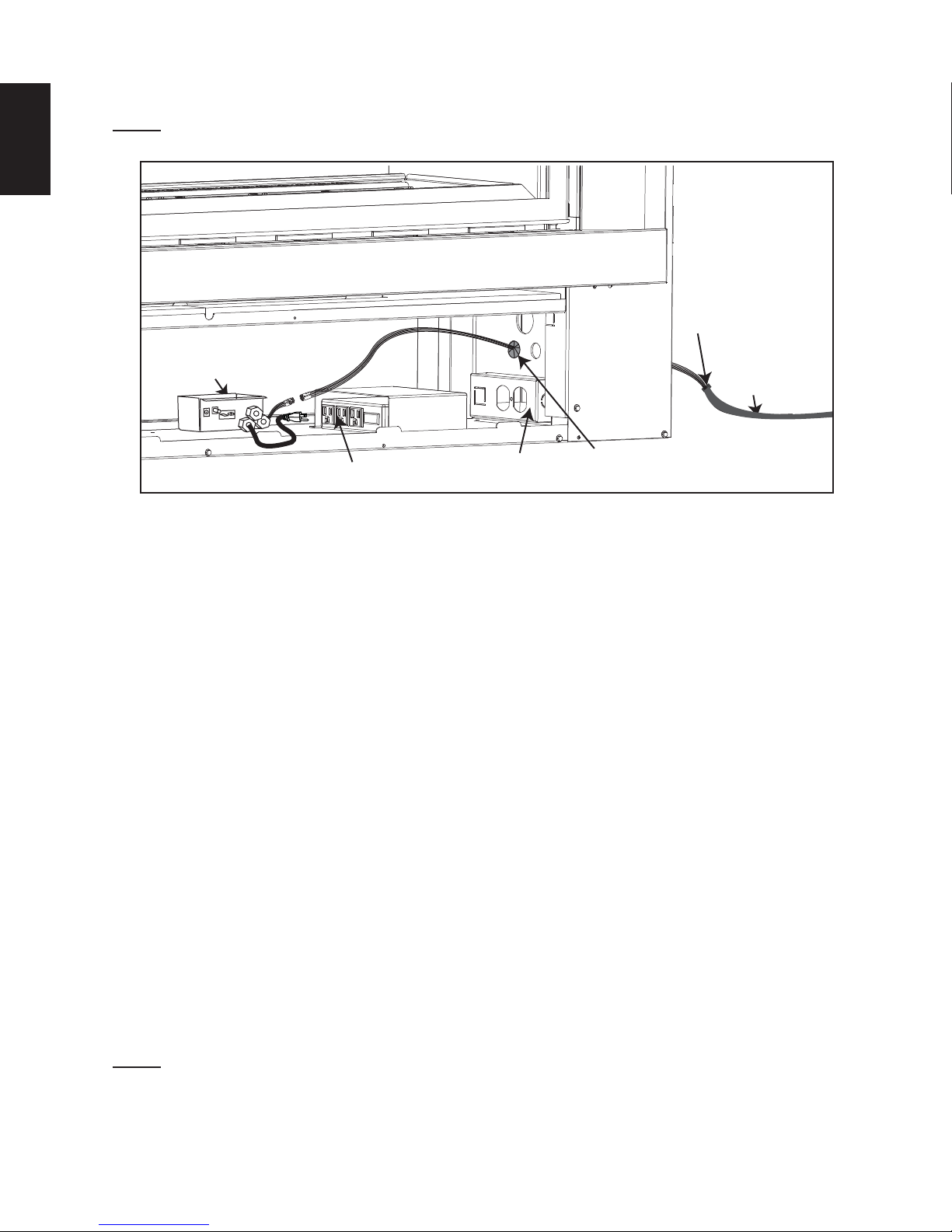

1.4.4 ELECTRICAL CONNECTION
!
WARNING
DO NOT USE THIS APPLIANCE IF ANY PART HAS BEEN UNDER WATER. CALL A QUALIFIED
SERVICE TECHNICIAN IMMEDIATELY TO HAVE THE APPLIANCE INSPECTED FOR DAMAGE TO THE
ELECTRICAL CIRCUIT.
RISK OF ELECTRICAL SHOCK OR EXPLOSION. DO NOT WIRE 110V TO THE VALVE OR TO THE
APPLIANCE WALL SWITCH. INCORRECT WIRING WILL DAMAGE CONTROLS.
ALL WIRING SHOULD BE DONE BY A QUALIFIED ELECTRICIAN AND SHALL BE IN COMPLIANCE
WITH LOCAL CODES. IN THE ABSENCE OF LOCAL CODES, USE THE CURRENT CSA22.1 CANADIAN
ELECTRIC CODE IN CANADA OR THE CURRENT NATIONAL ELECTRIC CODE ANSI/NFPA NO. 70 IN
THE UNITED STATES.
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RAN OUT,
WITH THE GLASS DOOR OPENED OR REMOVED.
69.2
It is necessary to hard wire this appliance.
Permanently framing the appliance with an enclosure, requires the appliance junction box to be hard wired.
This appliance must be electrically connected and grounded in accordance with local codes. In the absence
of local codes, use the current CSA C22.1 Canadian electrical code in Canada or the ANSI/NFPA 70-1996
national electrical code in the United States.
L1 (BLACK)
L2 (WHITE)
CABLE
CONNECTOR
ELECTRICAL
BOX COVER
GROUND
(GREEN) SCREW
ELECTRICAL BOX
WIRE
NUTS
(BLACK)
GROUND
(GREEN)
(WHITE)
3 PRONG
RECEPTACLE
1.4.5 HARD WIRING CONNECTION
1.4.6 RECEPTACLE WIRING DIAGRAM

W415-1160 / 03.06.13
8
EN
1.4.7 ELECTRICAL BOX INSTALLATION
NOTE: Before finishing in the appliance, the power vent must be installed.
A. Start by removing the pre-finishing access panel or opening lower louvre.
B. Position the Power Vent Control Module in a convenient location (not on top of the heat shield in the
LHD50) and Velcro it to the base of the appliance.
C. Slide the 20’ (6.1m) power vent cable through the right side of the appliance and connect the box
connector to the side panel, see “INSTALLATION OVERVIEW” section for illustration.
D. Feed the wires through the inside panel, slide the split bushing over the coated wires and snap into the
7/8” (22.2mm) hole to protect the wires as illustrated. Attach the connections as per the appropriate
wiring diagram. See “WIRING DIAGRAM AND INSTALLATION” section.
E. Plug the power vent control module into either the appliance junction box or the control module, if
equipped.
1.5 RESTRICTOR PLATE INSTALLATION
REFER TO PVA KIT FOR APPLIANCE SPECIFIC INSTRUCTIONS.
POWER VENT
CONTROL
MODULE
BX SNAP
BUSHING
20’ (6.1m)
POWER VENT
CABLE
SPLIT BUSHING
REQUIRED
CONTROL MODULE JUNCTION BOX
LHD50 ILLUSTRATED
1.6 WIRING DIAGRAM AND INSTALLATION
Connect the wiring to the power vent termination as outlined in the previous section, and connect the wiring
to the appliance as outlined in the schematic below. Ensure that the proper clearances are maintained for the
wiring and conduit. When installing the wiring it must never run above the vent run and it must be a minimum
1” (25.4mm) from all venting.
NOTE: The GPV includes a 20 foot (6.1m) wire harness. If this harness does not reach the appliance,
then it may be cut and a splice added. These connections must conform with local codes or, in the ab-
sence of local codes, use the current CSA C22.1 Canadian Electrical Code in Canada or the ANSI/NFPA
70 National Electrical Code in the United States.

W415-1160 / 03.06.13
9
EN
1.6.1 SIT IPI 885 PROFLAME 1
1. Disconnect the wires labeled ON/OFF (White/Green) and TH (Green). Reconnect them to the
corresponding male/female connectors on the Power vent control module.
2. Disconnect the two D/C (Red/Black) wires from each other and reconnect them to the corresponding
D/C connectors on the Power vent control module.
3. Disconnect the Orange wire from the gas valve and reconnect it to the Yellow wire (female connector)
from the Power vent control module.
4. Connect the remaining Yellow wire (male connector) from the Power vent control module to the tab on
the gas valve where the Orange wire was removed.
IPI Board
SPARK
ELECTRODE
FLAME
SENSOR
SIT Valve
Electronic Ignition
BLACK 3/16
CONNECTION
BLACK 1/8
CONNECTION
TUBE
GREEN
ORANGE
YELLOW / GREEN
YELLOW / GREEN
IPI / CPI (ACS)
SWITCH
RED / FCM-COM
BLUE
PINK
BLACK
WHITE / TPTH
BLACK / DC SUPPLY
RED / DC SUPPLY
GREY / FCM-COM
PURPLE / FCM-COM
COM
120 VOLT FAN AUX OUT
ORANGE / MOTOR
YELLOW / MOTOR
BLACK / MOTOR
BROWN / MOTOR
WHITE
Receiver
Control
Module
POWER
Pilot Assembly
GREEN / ON/OFF
BLACK
RED
IMPORTANT: IF USED, IT MUST BE CONNECTED TOA 6 VOLT BATTERY PACK, HOWEVER MUST NOT BE USED WHEN USING THE REMOTE CONTROL RECEIVER
PLUG
INTO
120 VOLT
Power
Vent
Control
Module
BLACK
WHITE
YELLOW
YELLOW
BLOWER
VAC SWITCH
GREEN
GPV Terminal
SPLIT FLOW
(IF INCLUDED
WITH APPLIANCE)
GREEN / TH
BLACK / DC SUPPLY
RED / DC SUPPLY
Pull connectors apart to connect to power vent
YELLOW
YELLOW
1
2
3
4
(MUST BE DISABLED IF THERE IS ANY DOWNWARD VENTING.)

W415-1160 / 03.06.13
10
EN
1.6.2 SIT IPI PROFLAME 2
RESET
BUTTON
NIGHT
LIGHT
BLOWER
W190-0048 (RECEIVER)
BLACK
WHITE
YELLOW
YELLOW
BLOWER
VAC SWITCH
GREEN
GPV Terminal
Appliance
Junction Box
MAIN ON/OFF
(JUMPER)
PILOT
BURNER
1
2
X4
X3
3
4
5
6
7
Power Vent
Control Module
(PVCM)
1. Disconnect the (yellow/green) ground wire from the valve and connect it to the (green) ground wire, with
piggy back connector, from the PVCM and then reconnect to the valve.
2. Disconnect the (orange) wire from the valve and connect it to the (yellow) wire, with male end, from the
PVCM.
3. Connect the other (yellow) wire from the PVCM to the valve.
4. Connect the wire harness from the GPV terminal to the harness from the PVCM.
5. Disconnect the MAIN ON/OFF (JUMPER) from "X4" and discard. Connect the (orange) wire from the
PVCM to the "X4" location on the receiver.
6. Disconnect the (orange) sensor wire from "X3" of the receiver and connect it to the (red) sensor wire from
the PVCM. Connect the (red) lead from the PVCM to "X3" of the receiver.
7. Plug in the power cord from the PVCM.

W415-1160 / 03.06.13
11
EN
1.6.3 SIT MILLIVOLT 820 REQUIRING A DOUBLE POLE SWITCH
PILOT
BURNER
THERMOCOUPLE
THERMOPILE
RED
WHITE
BLACK
WHITE
ORANGE
RED
YELLOW
YELLOW
GREEN
Pilot Assembly
SIT Millivolt Gas Valve
Double Pole
Switch
BLACK
WHITE
YELLOW
YELLOW
BLOWER
VAC SWITCH
GREEN
GPV Terminal
Power Vent
Control
Module
Appliance
Junction Box
JUMPER
2
1
NOTE: Must use double pole switch (supplied) or double pole thermostat (not supplied) with specific
power vent adaptor kit.
NOTE: Downward venting is not allowed with appliances that use a standing pilot.
1. Connect the jumper wires to tabs TP/TH and TH on the gas valve.
2. Connect the jumper wire to the two Yellow wires from the Power vent control module.
IMPORTANT: A RECEPTACLE MAY NEED TO BE INSTALLED AS A POWER SOURCE FOR THE GPV.

W415-1160 / 03.06.13
12
EN
1.6.4 SIT MILLIVOLT 820 NOVA FOR SINGLE POLE SWITCH
PILOT
BURNER
THERMOCOUPLE
THERMOPILE
RED
WHITE
BLACK
GREEN
Pilot Assembly
SIT Millivolt Gas Valve
Switch/Thermostat
(Not Supplied)
BLACK
WHITE
YELLOW
YELLOW
BLOWER
VAC SWITCH
GREEN
GPV Terminal
Power Vent
Control
Module
Appliance
Junction Box
WHITE
Remote
Receiver
(Not Supplied)
YELLOW
YELLOW
2
1
JUMPER
NOTE: Downward venting is not allowed with appliances that use standing pilots.
1. Disconnect one of the two wires from the receiver to the valve. Connect it to one of the yellow
wires from the power vent control module.
2. Connect a jumper wire to the valve where the receiver wire was disconnected and to the other yellow
wire from the power vent control module.

W415-1160 / 03.06.13
13
EN
PILOT
BURNER
THERMOCOUPLE
THERMOPILE
RED
WHITE
BLACK
WHITE
ORANGE
RED
YELLOW
YELLOW
GREEN
Pilot Assembly
SIT Millivolt Gas Valve
Double Pole
Switch
BLACK
WHITE
YELLOW
YELLOW
BLOWER
VAC SWITCH
GREEN
GPV Terminal
Power Vent
Control
Module
Appliance
Junction Box
JUMPER
2
1
Receiver
NOTE: Must use double pole switch (supplied) or double pole thermostat (not supplied) with specific
power vent adaptor kits.
NOTE: Downward venting is not allowed with appliances that use standing pilots.
1. Disconnect one of the two wires from the receiver to the valve. Connect it to one of the yellow
wires from the power vent control module.
2. Connect a jumper wire to the valve where the receiver wire was disconnected and to the other yellow
wire from the power vent control module.
1.6.5 SIT MILLIVOLT 820 NOVA REMOTE CONTROLLED SYSTEM REQUIRING A
DOUBLE POLE SWITCH

W415-1160 / 03.06.13
14
EN
1.6.6 SIT IPI 880/886 PROFLAME REQUIRING A DOUBLE POLE SWITCH
ACS/IPI
SWITCH
(OPTIONAL)
DC BACK-UP
(NOT ALLOWED
WITH GPV
INSTALLATION)
GROUND
DFC
VALVE
ORANGE GREEN
GROUND
EYELET
IPI / CPI
+
+
-
-
IPI BOARD
DC SUPPLY
TRANSFORMER
VALVE
ELECTRONIC
WHITE
BLACK
GREEN
ORANGE
RED
Appliance
Junction Box
BLACK
WHITE
YELLOW
YELLOW
BLOWER
VAC SWITCH
GREEN
GPV Terminal
YELLOW
YELLOW
JUMPER
2
1
IMPORTANT: A receptacle may need to be
installed as a power source for the GPV.
Power
Vent
Control
Module
Double Pole
Switch
NOTE: Must use double pole switch (supplied) or double pole thermostat (not supplied) with specific
power vent adaptor kit.
1. Connect the jumper wires to the wire labeled ON/OFF (Green/White) and the wire labelled TH (Green).
2. Connect the other end of the jumper wires to the Yellow wires from the Power vent control module.

W415-1160 / 03.06.13
15
EN
1.6.7 SIT IPI 880/886 FOR SINGLE POLE SWITCH
ACS/IPI
SWITCH
(OPTIONAL)
DC BACK-UP
(NOT ALLOWED
WITH GPV
INSTALLATION)
GROUND
DFC
VALVE
ORANGE GREEN
GROUND
EYELET
IPI / CPI
+
+
-
-
IPI BOARD
DC SUPPLY
TRANSFORMER
VALVE
ELECTRONIC
WHITE
BLACK
GREEN
Appliance
Junction Box
BLACK
WHITE
YELLOW
YELLOW
BLOWER
VAC SWITCH
GREEN
GPV Terminal
YELLOW
YELLOW
JUMPER
2
1
IMPORTANT: A receptacle may need to be
installed as a power source for the GPV.
Remote
Receiver
(not supplied)
Power
Vent
Control
Module
Switch/Thermostat
(not supplied)
1. Connect the jumper wires to the wire labeled ON/OFF (Green/White) and the wire labelled TH (Green).
2. Connect the other end of the jumper wires to the Yellow wires from the Power vent control module.

W415-1160 / 03.06.13
16
EN
NOTE: Must use double pole switch (supplied) or double pole thermostat (not supplied) with specific
power vent adaptor kit.
NOTE: Downward venting is not allowed with appliances that use a standing pilot.
1. Connect the Brown wires from the Ignition module to the yellow wires from the Power vent control
module.
Dexen Gas Valve
Ignition Module
Battery
Holder
Battery
Relay
ORANGE
YELLOW
GREEN
BLACK
ORANGE
BLUE
RED
BROWN
BROWN
BLUE
BLACK
YELLOW
YELLOW
BLACK
WHITE
ORANGE
RED
GREEN
Ignitor
Power
Vent
Control
Module
Appliance
Junction Box
BLACK
YELLOW
BLACK
WHITE
YELLOW
YELLOW
BLOWER
VAC SWITCH
GREEN
GPV Terminal
Double Pole
Switch
1
1.6.8 DEXEN IPI 6003-3V REQUIRING A DOUBLE POLE SWITCH
IMPORTANT: A receptacle may need to be installed as a power source for the GPV.

W415-1160 / 03.06.13
17
EN
1.6.9 DEXEN IPI 6003-3V REQUIRING A SINGLE POLE SWITCH
NOTE: Downward venting is not allowed with appliances that use a standing pilot.
1. Connect the Brown wires from the Ignition module to the yellow wires from the Power vent control
module.
Dexen Gas Valve
Ignition Module
Battery
Holder
Battery
Relay
ORANGE
YELLOW
GREEN
BLACK
ORANGE
BLUE
RED
BROWN
BROWN
BLUE
BLACK
YELLOW
YELLOW
WHITE
BLACK
GREEN
Ignitor
Power
Vent
Control
Module
Appliance
Junction Box
BLACK
YELLOW
BLACK
WHITE
YELLOW
YELLOW
BLOWER
VAC SWITCH
GREEN
GPV Terminal
Switch/Thermostat
(not supplied)
1
Remote
Receiver
(not supplied)

W415-1160 / 03.06.13
18
EN
2.0 ADJUSTMENTS
REFER TO PVA KIT FOR SPECIFIC APPLIANCE INSTRUCTIONS.
Contact your dealer or the factory for questions concerning prices and policies on replacement parts. Normally
all parts can be ordered through your Authorized dealer / distributor.
FOR WARRANTY REPLACEMENT PARTS, A PHOTOCOPY OF THE
ORIGINAL INVOICE WILL BE REQUIRED TO HONOUR THE CLAIM.
When ordering replacement parts always give the following information:
• Model & Serial Number of appliance
• Installation date of appliance
• Part number
• Description of part
• Finish
* IDENTIFIES ITEMS WHICH ARE NOT ILLUSTRATED. FOR FURTHER INFORMATION, CONTACT YOUR
AUTHORIZED DEALER. 41.1
FAILURE TO POSITION THE PARTS
IN ACCORDANCE WITH THIS
MANUAL OR FAILURE TO USE ONLY
PARTS SPECIFICALLY APPROVED
WITH THIS APPLIANCE MAY
RESULT IN PROPERTY DAMAGE OR
PERSONAL INJURY.
!
WARNING
COMPONENTS
REF GPV PART NO. DESCRIPTION
1 W062-0026 BLOWER
2 W660-0056 SWITCH, VACUUM
3* W750-0195 WIRE HARNESS, TERMINAL
4* W750-0209 20’ (9.1m) WIRE HARNESS CABLE FROM UNIT TO TERMINAL
5 W010-1924PW PEWTER MAIN BODY
6 W010-1925PW PEWTER FRAME
7 W290-0138 BLOWER GASKET
8 W500-0400 BLOWER MOUNTING PLATE
9 W200-0256PW PEWTER ACCESS COVER
10 W500-0419 DILUTION AIR PLATE
11* W345-0008 HOSE
2
1
9
87
10
5
6
2.1 VENTURI ADJUSTMENTS
3.0 REPLACEMENTS

W415-1160 / 03.06.13
19
EN
SYMPTOM PROBLEM TEST SOLUTION
Main burner flame is
a blue lazy transpar-
ent flame.
Leak in exhaust vent. - Check exhaust vent pipe and all connection seals.
Incorrect installation. - Refer to PVA kit for appliance specific restrictor.
Carbon is being
deposited on glass or
combustion chamber
surfaces.
Air shutter has become blocked
or incorrect setting.
- Ensure air shutter opening is free of lint or other
obstructions or has correct setting.
Flame is impinging on the logs
or combustion chamber.
- Check that the media is correctly positioned.
- Open air shutter to increase the primary air.
- Check the input rate: Check the manifold
pressure and orifice size as specified by the rating
plate values.
- Check that the door gasket is not broken or
missing and that the seal is tight.
- Check that both 4" (101.6mm) and 7" (177.8mm)
vent liners are free of holes and well sealed at all
joints.
- Check that the proper restrictor is used
White / Grey film
forms.
Sulphur from fuel is being de-
posited on glass, logs or com-
bustion chamber surfaces.
- Clean the glass with a gas appliance glass
cleaner. DO NOT CLEAN GLASS WHEN HOT.
- If deposits are not cleaned off regularly, the glass
may become permanently marked.
Exhaust fumes
smelled in room,
headaches.
Appliance is spilling. - Check door seal and relief flap seal.
- Check for proper restrictor.
- Check that the paint curing process is complete.
Main burner will not
light.
Main door is not installed. - Install main door.
Main burner flames
are very aggressive.
No restrictor. - Add restrictor.
- Remove restrictor plate on the power vent.
Main burner won’t
light.
Vacuum switch not activated. - Remove blockage. In really cold conditions, ice
buildup may occur on the terminal and should be
removed as required.
- Test vacuum switch and replace as required.
4.0 TROUBLESHOOTING
IMPORTANT: Prove all systems check before completely enclosing unit.
!
WARNING
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RAN OUT,
WITH THE GLASS DOOR OPEN OR REMOVED.
IN SOME INSTANCES THE SYSTEM MAY NOT LIGHT PILOT/BURNER WITH THE DOOR OPEN/
REMOVED. PARTIALLY BLOCKING THE EXHAUST FLUE COLLAR WILL ALLOW THE SAFETY
PRESSURE SWITCH TO ACTIVATE AND ALLOW GAS FLOW TO THE PILOT DURING THE INITIAL
TEST FIRING.

W415-1160 / 03.06.13
20
EN
44.1
5.0 NOTES
