Napoleon B35PTL User manual

EN
FR
PG
13
W415-2193 / B / 12.01.17
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE.
INSTALLATION AND
OPERATING INSTRUCTIONS
1.22E
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • www.napoleonfireplaces.com • [e-mail]
SAFETY INFORMATION
!WARNING
If the information in these instructions are
not followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbour’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
- Installation and service must be performed by a
qualified installer, service agency, or the supplier.
CERTIFIED FOR CANADA AND UNITED STATES USING ANSI/CSA METHODS.
$10.00
LA VITRE CHAUDE CAUSERA
DES BRÛLURES.
NE PAS TOUCHER LA VITRE
AVANT QU’ELLE AIT REFROIDI.
NE JAMAIS LAISSER LES
ENFANTS TOUCHER LA VITRE.
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
DANGER
!
AVERTISSEMENT
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
Une barriére conçu à réduire le risque de brûlures
causées par le verre chaud est fourni avec l’appareil
et sera installé pour la protection des enfants et
d’autres personnes à risque.
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certified kit is used.
Decorative Product: Not for use as a heating appliance.
Certified to Canadian and American National Standards: CSA 2.22 and ANSI Z21.50 for Vented Decorative Gas Appliances.
HDX35
Log Burner
Assembly
B35NTL
Natural Gas
B35PTL
Propane
FOR INDOOR USE ONLY

A. Remove the door.
TIP: After removing the top
2 spring latches, lift the door
upwards slightly to ease removal
of the bottom 2 spring latches.
B. Remove the 8 securing screws
and lift the plate up and out of the
appliance. Gasket will need to be
replaced if damaged.
A. Attach the burner assembly to the firebox
base with the 3 screws supplied.
This burner and log assembly are approved for use in the HDX35 gas fireplace only. They are not approved for
use as a stand alone appliance or in conjunction with any other appliance.
1.0 general information
2.0 installation
2.1 access panel
2.2 burner assembly
1.0 GENERAL INFORMATION 2
2.0 INSTALLATION 2
2.1 ACCESS PANEL 2
2.2 BURNER ASSEMBLY 2
2.3 BULKHEADS 3
2.4 HEARTH PANEL INSTALLATION 4
2.5 LOG PLACEMENT 5
2.6 CHARCOAL LUMPS 7
2.7 CHARCOAL EMBERS 7
2.8 VERMICULITE 7
2.9 GLOWING EMBERS 7
3.0 ADJUSTMENT 8
3.1 FLAME CHARACTERISTICS 8
3.2 VENTURI ADJUSTMENT 8
4.0 REPLACEMENTS 9
4.1 B35NTL LOG BURNER ASSEMBLY (NG) 10
4.2 B35PTL LOG BURNER ASSEMBLY (P) 11
INSIDE UNIT
OUTSIDE UNIT
2
W415-2193 / B / 12.01.17
EN
NOTE: Changes, other than editorial, are denoted by a line in the margin.
table of contents

NOTE: Bulkhead covers must be removed.
A. Connect the main burner gas flex line
and the pilot line to the gas fittings on the
bulkheads located under the valve access
opening. Care must be taken to ensure the
pilot line isn’t damaged, and that gas-tight
connections are made (FIG. 1).
B. Connect the pilot electrode lead to the
bulkhead matching the 3/16" flag with the
3/16" bulkhead spade. Do the same with the
1/4” spark lead to the 1/4” bulkhead spade
(FIG. 2).
C. Ensure the venturi tubes are over the orifice
before lighting (FIG. 3).
D. Check for gas leaks by brushing on a soap
and water solution. Do not use open flame.
E. After leak test has been performed, re-install
access panel with gasket.
2.3 bulkheads
NOTE: Bulkhead covers need to be removed.
A. Connect the main burner gas fl ex line
and the pilot line to the gas fi ttings on the
bulkheads located under the valve access
opening. Care must be taken to ensure the
pilot line isn’t damaged and ensuring gas
tight connections are made.
Main
Burner Gas
Connection
Pilot Tube
Gas Connection
Pilot
Electrode
Lead
Bulkhead
2.3 BULKHEADS
B. Connect the pilot electrode lead to the
bulkhead matching the 3/16" fl ag with the
3/16" bulkhead spade. Do the same with the
1/4” spark lead to the 1/4” bulkhead spade.
C. Ensure the venturi tubes are over the orifi ce
before lighting.
D. Check for gas leaks by brushing on a soap
and water solution. Do not use open fl ame.
E. After leak test has been performed, re-install
access panel with gasket.
3
W415-2193 / B / 12.21.16
EN
NOTE: Bulkhead covers need to be removed.
A. Connect the main burner gas fl ex line
and the pilot line to the gas fi ttings on the
bulkheads located under the valve access
opening. Care must be taken to ensure the
pilot line isn’t damaged and ensuring gas
tight connections are made.
Main
Burner Gas
Connection
Pilot Tube
Gas Connection
Pilot
Electrode
Lead
Bulkhead
2.3 BULKHEADS
B. Connect the pilot electrode lead to the
bulkhead matching the 3/16" fl ag with the
3/16" bulkhead spade. Do the same with the
1/4” spark lead to the 1/4” bulkhead spade.
C. Ensure the venturi tubes are over the orifi ce
before lighting.
D. Check for gas leaks by brushing on a soap
and water solution. Do not use open fl ame.
E. After leak test has been performed, re-install
access panel with gasket.
3
W415-2193 / B / 12.21.16
EN
FIG. 1
FIG. 2
FIG. 3
3
W415-2193 / B / 12.01.17
EN

The hearth panel is shipped separately from the appliance and is included with the mandatory brick panel kits.
Due to the brittle material of the panel, care must be taken not to bend or force the panel into place.
When shipped, the hearth panel range in varying shades of Sandstone / New Port. During initial use, the panels
will darken temporarily. The appearance of the panel will permanently lighten in color with use.
INSTALL HEARTH FLOOR PANELS ACCORDING TO THE INSTALLATION LEAFLET.
2.4 hearth panel installation
NOTE: It is recommended to remove the grate assembly prior to panel installation.
4
W415-2193 / B / 12.01.17
EN

Before placing the log set, ensure to cover the wiring on the right side of the burner with charcoal lumps.
Leave enough charcoal lumps to randomly fill the front of the logs. Charcoal lumps are not to be placed on
the burner.
2.5 log placement
A. Align the 2 notches on the bottom of
the bottom rear log (A) with the studs
located on the rear log support.
NOTE: Ensure the bottom rear log (A) is
behind the burner tube.
B. Align the 2 pins on the top of the
bottom rear log (A) with the 2 holes in
the bottom of the top rear log (B).
C. Align the 2 holes in the bottom of the
middle log (C) with the 2 studs located
on the front log support.
E. Align the 2 bottom notches of the front
right log (E) with the 4th and 5th grate
posts, ensuring the front right log (E)
lies flat. Do not cover any ports on the
burner.
Before placing the log set, ensure to cover the wiring on the right side of the burner with charcoal lumps.
Leave enough charcoal lumps to randomly fi ll the front of the logs. NOTE: Charcoal lumps are not to be
placed on the burner.

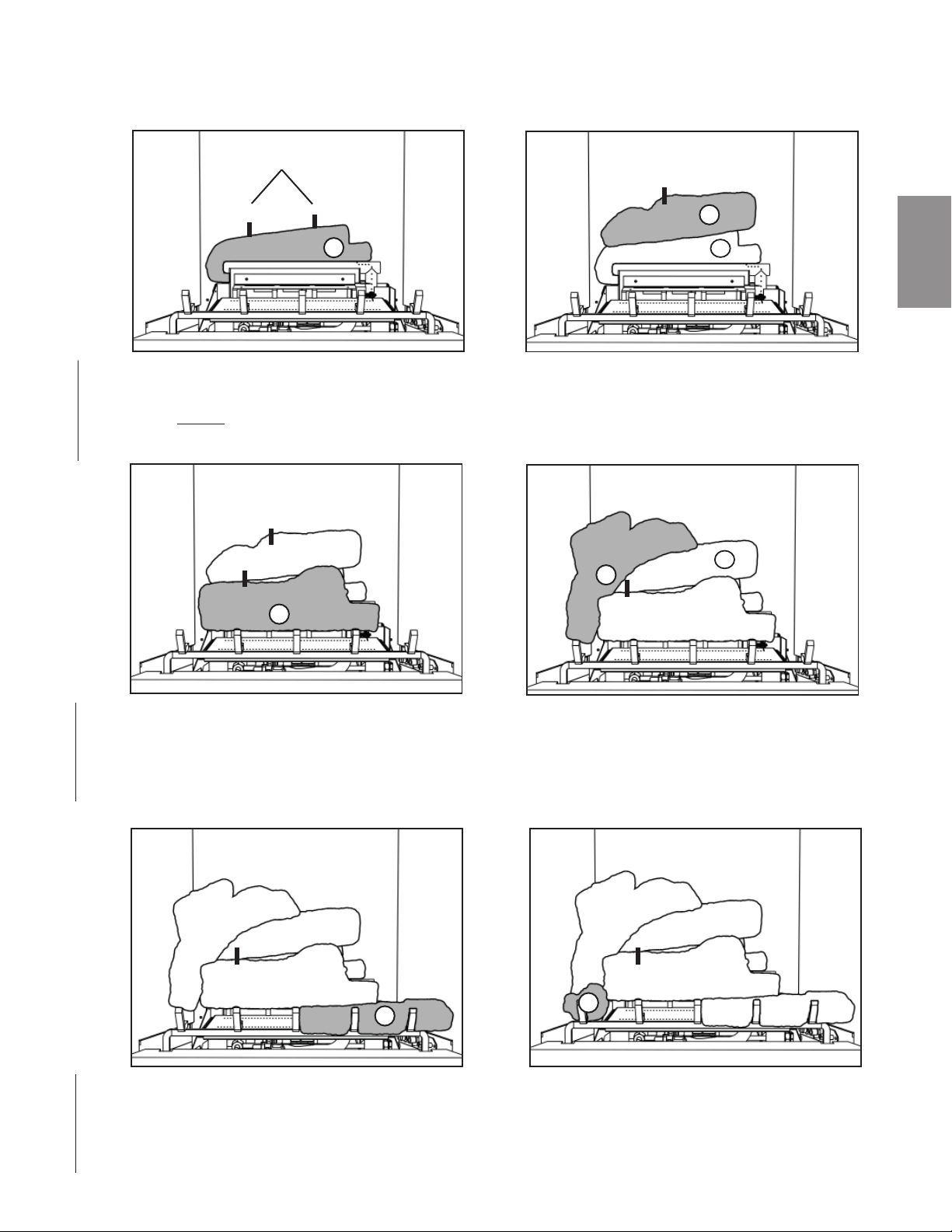

2.5 LOG PLACEMENT
A. Align the 2 holes in the bottom of the
bottom rear log with the studs located
on the rear log support.
B. Align the 2 pins in the bottom of the top
rear log with the holes in the top of the
bottom rear log.
C. Align the 2 holes in the bottom in the
middle log with the studs located on
the front log support.
D. Align the hole in the rear left log with the
left pin of the top rear log.
A
B
C
D
E. Line the notches in the bottom of the
front right log with the 4th and 5th grate
posts. Make sure not to cover any
ports.
F. Line the notch in the front left log with
the front left corner of the burner.
EF
5
W415-2193 / B / 12.21.16
EN
PINS
Before placing the log set, ensure to cover the wiring on the right side of the burner with charcoal lumps.
Leave enough charcoal lumps to randomly fi ll the front of the logs. NOTE: Charcoal lumps are not to be
placed on the burner.
2.5 LOG PLACEMENT
A. Align the 2 holes in the bottom of the
bottom rear log with the studs located
on the rear log support.
B. Align the 2 pins in the bottom of the top
rear log with the holes in the top of the
bottom rear log.
C. Align the 2 holes in the bottom in the
middle log with the studs located on
the front log support.
D. Align the hole in the rear left log with the
left pin of the top rear log.
A
B
C
D
E. Line the notches in the bottom of the
front right log with the 4th and 5th grate
posts. Make sure not to cover any
ports.
F. Line the notch in the front left log with
the front left corner of the burner.
EF
5
W415-2193 / B / 12.21.16
EN
PINS
Before placing the log set, ensure to cover the wiring on the right side of the burner with charcoal lumps.
Leave enough charcoal lumps to randomly fi ll the front of the logs. NOTE: Charcoal lumps are not to be
placed on the burner.
2.5 LOG PLACEMENT
A. Align the 2 holes in the bottom of the
bottom rear log with the studs located
on the rear log support.
B. Align the 2 pins in the bottom of the top
rear log with the holes in the top of the
bottom rear log.
C. Align the 2 holes in the bottom in the
middle log with the studs located on
the front log support.
D. Align the hole in the rear left log with the
left pin of the top rear log.
A
B
C
D
E. Line the notches in the bottom of the
front right log with the 4th and 5th grate
posts. Make sure not to cover any
ports.
F. Line the notch in the front left log with
the front left corner of the burner.
EF
5
W415-2193 / B / 12.21.16
EN
PINS
Before placing the log set, ensure to cover the wiring on the right side of the burner with charcoal lumps.
Leave enough charcoal lumps to randomly fi ll the front of the logs. NOTE: Charcoal lumps are not to be
placed on the burner.
2.5 LOG PLACEMENT
A. Align the 2 holes in the bottom of the
bottom rear log with the studs located
on the rear log support.
B. Align the 2 pins in the bottom of the top
rear log with the holes in the top of the
bottom rear log.
C. Align the 2 holes in the bottom in the
middle log with the studs located on
the front log support.
D. Align the hole in the rear left log with the
left pin of the top rear log.
A
B
C
D
E. Line the notches in the bottom of the
front right log with the 4th and 5th grate
posts. Make sure not to cover any
ports.
F. Line the notch in the front left log with
the front left corner of the burner.
EF
5
W415-2193 / B / 12.21.16
EN
PINS
Before placing the log set, ensure to cover the wiring on the right side of the burner with charcoal lumps.
Leave enough charcoal lumps to randomly fi ll the front of the logs. NOTE: Charcoal lumps are not to be
placed on the burner.
2.5 LOG PLACEMENT
A. Align the 2 holes in the bottom of the
bottom rear log with the studs located
on the rear log support.
B. Align the 2 pins in the bottom of the top
rear log with the holes in the top of the
bottom rear log.
C. Align the 2 holes in the bottom in the
middle log with the studs located on
the front log support.
D. Align the hole in the rear left log with the
left pin of the top rear log.
A
B
C
D
E. Line the notches in the bottom of the
front right log with the 4th and 5th grate
posts. Make sure not to cover any
ports.
F. Line the notch in the front left log with
the front left corner of the burner.
E
F
5
W415-2193 / B / 12.21.16
EN
PINS
D. Align the 1 hole in the bottom of the rear
left log (D) with the left pin on the top of
the top rear log (B). Ensure to rest the
rear left log (D) towards the front left
corner of the burner. Adjustments may
be needed to ensure correct placement.
F. Align the notch in the front left log (F)
with the 1st grate post, ensuring the
jagged edge faces forwards, and then
push it backwards slightly. Adjustments
may be needed to ensure correct
placement.
A
B
5
W415-2193 / B / 12.01.17
EN
Before placing the log set, ensure to cover the wiring on the right side of the burner with charcoal lumps.
Leave enough charcoal lumps to randomly fi ll the front of the logs. NOTE: Charcoal lumps are not to be
placed on the burner.
2.5 LOG PLACEMENT
A. Align the 2 holes in the bottom of the
bottom rear log with the studs located
on the rear log support.
B. Align the 2 pins in the bottom of the top
rear log with the holes in the top of the
bottom rear log.
C. Align the 2 holes in the bottom in the
middle log with the studs located on
the front log support.
D. Align the hole in the rear left log with the
left pin of the top rear log.
A
B
C
D
E. Line the notches in the bottom of the
front right log with the 4th and 5th grate
posts. Make sure not to cover any
ports.
F. Line the notch in the front left log with
the front left corner of the burner.
E
F
5
W415-2193 / B / 12.21.16
EN
PINS

G. Align the 2 holes located on the bottom
of the front left crossover log (G) with
the 2 studs on the left side of the burner.
Ensure to rest the front left crossover log
(G) on the front left log (F).
H. Align the 2 holes on the bottom of
the right middle log (H) with the 2
studs on the right side of the burner.
Adjustments may be needed to ensure
correct placement.
I. Place the top right log (I) on the notch
of the bottom rear log (A) and the notch
of the front right log (E). Ensure to push
the top right log (I) all the way back
against the rear panel.
J. Align the pin on the top of the top right
log (I) with the hole on the bottom of the
top middle log (J). Ensure to rest the top
middle log (J) on the top rear log (B).
L. Align the 1 pin on the top of the middle
log (C) with the hole on the bottom of the
middle crossover log (L). Ensure to rest
the middle crossover log (L) on the front
left crossover log (G).
G. Align the 2 holes located in the bottom
of the front left crossover log with the
2 studs on the left hand side of the
burner.
H. Align the 2 holes in the bottom of the
right middle log with the 2 studs on the
right hand side of the burner.
I. Place the top right log on the notches
in the bottom rear log and the front
right log pushing back against the rear
panel.
J. Align the hole and the pin in the right
crossover log with the hole in the top
right log.
K. Place the notch in the front charcoal
log over the second grate post. Make
sure not to cover any ports.
L. Align the pin in the bottom of the
middle crossover with the hole in the
middle of the middle log resting it on
the front left crossover log.
G
H
I
J
K
L
6
W415-2193 / B / 12.21.16
EN
G. Align the 2 holes located in the bottom
of the front left crossover log with the
2 studs on the left hand side of the
burner.
H. Align the 2 holes in the bottom of the
right middle log with the 2 studs on the
right hand side of the burner.
I. Place the top right log on the notches
in the bottom rear log and the front
right log pushing back against the rear
panel.
J. Align the hole and the pin in the right
crossover log with the hole in the top
right log.
K. Place the notch in the front charcoal
log over the second grate post. Make
sure not to cover any ports.
L. Align the pin in the bottom of the
middle crossover with the hole in the
middle of the middle log resting it on
the front left crossover log.
G
H
I
J
K
L
6
W415-2193 / B / 12.21.16
EN
G. Align the 2 holes located in the bottom
of the front left crossover log with the
2 studs on the left hand side of the
burner.
H. Align the 2 holes in the bottom of the
right middle log with the 2 studs on the
right hand side of the burner.
I. Place the top right log on the notches
in the bottom rear log and the front
right log pushing back against the rear
panel.
J. Align the hole and the pin in the right
crossover log with the hole in the top
right log.
K. Place the notch in the front charcoal
log over the second grate post. Make
sure not to cover any ports.
L. Align the pin in the bottom of the
middle crossover with the hole in the
middle of the middle log resting it on
the front left crossover log.
GH
I
J
K
L
6
W415-2193 / B / 12.21.16
EN
G. Align the 2 holes located in the bottom
of the front left crossover log with the
2 studs on the left hand side of the
burner.
H. Align the 2 holes in the bottom of the
right middle log with the 2 studs on the
right hand side of the burner.
I. Place the top right log on the notches
in the bottom rear log and the front
right log pushing back against the rear
panel.
J. Align the hole and the pin in the right
crossover log with the hole in the top
right log.
K. Place the notch in the front charcoal
log over the second grate post. Make
sure not to cover any ports.
L. Align the pin in the bottom of the
middle crossover with the hole in the
middle of the middle log resting it on
the front left crossover log.
GH
I
J
K
L
6
W415-2193 / B / 12.21.16
EN
G. Align the 2 holes located in the bottom
of the front left crossover log with the
2 studs on the left hand side of the
burner.
H. Align the 2 holes in the bottom of the
right middle log with the 2 studs on the
right hand side of the burner.
I. Place the top right log on the notches
in the bottom rear log and the front
right log pushing back against the rear
panel.
J. Align the hole and the pin in the right
crossover log with the hole in the top
right log.
K. Place the notch in the front charcoal
log over the second grate post. Make
sure not to cover any ports.
L. Align the pin in the bottom of the
middle crossover with the hole in the
middle of the middle log resting it on
the front left crossover log.
GH
I
J
K
L
6
W415-2193 / B / 12.21.16
EN
G. Align the 2 holes located in the bottom
of the front left crossover log with the
2 studs on the left hand side of the
burner.
H. Align the 2 holes in the bottom of the
right middle log with the 2 studs on the
right hand side of the burner.
I. Place the top right log on the notches
in the bottom rear log and the front
right log pushing back against the rear
panel.
J. Align the hole and the pin in the right
crossover log with the hole in the top
right log.
K. Place the notch in the front charcoal
log over the second grate post. Make
sure not to cover any ports.
L. Align the pin in the bottom of the
middle crossover with the hole in the
middle of the middle log resting it on
the front left crossover log.
GH
I
J
K
L
6
W415-2193 / B / 12.21.16
EN
K. Align the 1 bottom notch of the front
charcoal log (K) with the 2nd grate
post, ensuring the front charcoal log (K)
lies flat. Do not cover any ports on the
burner.
F
E
G
C
I
6
W415-2193 / B / 12.01.17
EN

2.6 charcoal lumps
34.1
Place the lumps in front of the logs in a realistic manner taking care not to block any of the burner ports.
!
WARNING
CHARCOAL EMBERS, VERMICULITE AND CHARCOAL LUMPS ARE NOT TO BE PLACED ON THE
BURNER.
2.7 charcoal embers
32.1
Randomly place the charcoal embers along the front and sides of the log support tray in a realistic manner.
Fine dust found in the bottom of the bag should not be used.
NOTE: Charcoal embers are not to be placed on the burner.
2.8 vermiculite
33.1
Sprinkle vermiculite around the charcoal embers.
NOTE: Vermiculite is not to be placed on the burner
2.9 glowing embers
Tear the embers into pieces and place along the front row of ports covering all of the burner area. Care should
be taken to shred the embers into thin, small irregular pieces as only the exposed edges of the fibre hairs will
glow. The ember material will only glow when exposed to direct flame; however, care should be taken to not
block the burner ports.
Blocked burner ports can cause an incorrect flame pattern, carbon deposits and delayed ignition. Phazer™
logs glow when exposed to direct flame. Use only certified “glowing embers” and Phazer™ logs available
from your authorized dealer.
7
W415-2193 / B / 12.01.17
EN

Air shutter openings, both burners
P F 7/16" R 1/4”
NG F 1/16" R 1/16”
3.0 adjustment
3.1 flame characteristics
3.2 venturi adjustment
This appliance has air shutters that have been factory set open according to
the chart below:
Regardless of venturi orientation, closing the air shutter will cause a more
yellow flame, but can lead to carbonization. Opening the air shutter will
cause a more blue flame, but can cause flame lifting from the burner ports.
The flame may not appear yellow immediately; allow 15 to 30 minutes for
the final flame colour to be established.
AIR SHUTTER ADJUSTMENT MUST ONLY BE DONE BY A QUALIFIED
INSTALLER!
AIR
SHUTTER
OPENING
VENTURI
BURNER
ORIFICE
49.2
DRAFT
It’s important to periodically perform a visual check of the pilot and burner fl ames. Compare them to the
illustration provided. If any fl ames appear abnormal call a service person.
3/8” - 1/2”
(9,5mm - 12,7mm)
FLAME MUST ENVELOP
UPPER 3/8” (9.5mm) TO 1/2”
(12.7mm) OF FLAME SENSOR
PILOT
BURNER
ELECTRODE
FLAME
SENSOR
LA FLAMME DOIT
ENVELOPPER LA PARTIE
SUPÉRIEURE DE LA SONDE
DE FLAMME DE 3/8” (9,5mm)
À 1/2” (12,7mm)
ÉLECTRODE
LA SONDE
DE FLAMME
VEILLEUSE
3/8” - 1/2”
(9.5mm - 12.7mm)
54.1B
8
W415-2193 / B / 12.01.17
EN

9
W415-2193 / B / 12.01.17
EN
4.0 replacements
41.1C
Contact your dealer for questions concerning prices and policies on replacement parts. Normally, all parts
can be ordered through your Authorized dealer / distributor.
FOR WARRANTY REPLACEMENT PARTS, A PHOTOCOPY OF THE ORIGINAL INVOICE WILL BE
REQUIRED TO HONOUR THE CLAIM.
When ordering replacement parts always give the following information:
• Model & Serial Number of appliance
• Installation date of appliance
• Part number
• Description of part
• Finish
PARTS, PART NUMBERS AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE.
PARTS IDENTIFIED AS STOCKED WILL BE DELIVERED WITHIN 2 TO 5 BUSINESS DAYS FOR MOST
DELIVERY DESTINATIONS.
PARTS NOT IDENTIFIED AS STOCKED WILL BE DELIVERED WITHIN A 2 TO 4 WEEK PERIOD, FOR
MOST CASES.
PARTS IDENTIFIED AS ‘SO’ ARE SPECIAL ORDER AND CAN TAKE UP TO 90 DAYS FOR DELIVERY.
FAILURE TO POSITION THE PARTS IN ACCORDANCE WITH THIS MANUAL OR FAILURE TO USE
ONLY PARTS SPECIFICALLY APPROVED WITH THIS APPLIANCE MAY RESULT IN PROPERTY
DAMAGE OR PERSONAL INJURY.
** THIS IS A FAST ACTING THERMOCOUPLE. IT IS AN INTEGRAL SAFETY COMPONENT. REPLACE ONLY WITH
A FAST ACTING THERMOCOUPLE SUPPLIED BY WOLF STEEL LTD.
!
WARNING
11
11
11
11
LOG, REAR TOP
LOG, MIDDLE
LOG, FRONT RIGHT
LOG, FRONT LEFT
LOG, FRONT LEFT CROSSOVER
2
10
3
LOG, REAR LEFT
4
11
11
5
11
6
7
LOG, RIGHT MIDDLE
LOG, TOP RIGHT
LOG, TOP MIDDLE
LOG, FRONT CHARCOAL
LOG, MIDDLE CROSSOVER
11
8
11
9
11
11
1
11
12
LOG, REAR BOTTOM
1
2
3
4
5
6
7
8
9
10
11
12
W135-0673
W135-0674
W135-0675
W135-0676
W135-0677
W135-0678
W135-0679
W135-0680
W135-0681
W135-0682
W135-0683
W135-0684
Ref. No. Part No. Description Stocked
Items may not appear exactly as illustrated.

4.1 B35NTL log burner assembly (NG)
10
W415-2193 / B / 12.01.17
EN
N255-0002
-SER
W432-0543
-SER
W450-0036
MANIFOLD
NUT, PAL 3/4”-16 UNF 2A
1 2
W010-3884-SER ASSY, GRATE Yes
Yes
Yes
Yes
Yes Yes
Yes
3 4 5
W100-0210-SER BURNER, COMPLETE
6
W010-3818-SER ASSY, PILOT HIGH TEMP 3-WAY
7
W080-1645-SER BRACKET, PILOT SHIELD
8
W010-3992-SER ASSY, TUBE BURNER WELDMENT
9
W456-0042
60° BURNER ORIFICE #42
5
4
3
7
2
6
9
1
8
Part No.Ref. No. Description Stocked
FITTING, UNION BULKHEAD
Items may not appear exactly as illustrated.
Yes

11
W415-2193 / B / 12.01.17
EN
N255-0002
-SER
W432-0543
-SER
W450-0036
MANIFOLD
NUT, PAL 3/4”-16 UNF 2A
5
4
3
7
2
6
9
1
8
1 2
W010-3884-SER ASSY, GRATE
3 4 5
W100-0210-SER BURNER, COMPLETE
6
W010-3818-SER ASSY, PILOT HIGH TEMP 3-WAY
7
W080-1645-SER BRACKET, PILOT SHIELD
8
W010-3992-SER ASSY, TUBE BURNER WELDMENT
9
W456-0054
60° BURNER ORIFICE #54
Yes Yes Yes Yes
Yes Yes
Yes
Ref. No. Part No. Description Stocked
Yes
FITTING, UNION BULKHEAD
Items may not appear exactly as illustrated.
4.2 B35PTL log burner assembly (P)

NAPOLEON CELEBRATING OVER 40 YEARS
OF HOME COMFORT PRODUCTS
7200, Route Transcanadienne, Montréal, Québec H4T 1A3
24 Napoleon Road, Barrie, Ontario, Canada L4M 0G8
214 Bayview Drive, Barrie, Ontario, Canada L4N 4Y8
103 Miller Drive, Crittenden, Kentucky, USA 41030
Phone: [phone]
napoleonproducts.com

15
W415-2193 / B / 12.01.17
FR
INSTALLATEUR : LAISSEZ CE MANUEL AVEC L’APPAREIL.
PROPRIÉTAIRE : CONSERVEZ CE MANUEL POUR CONSULTATION ULTÉRIEURE.
NE LAISSEZ PAS LES ENFANTS OU AUTRES INDIVIDUS À RISQUE SEULS À PROXIMITÉ DE L’APPAREIL.
1.22E
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
Téléphone 1 [phone] • www.napoleonfoyers.com • [email protected]
INSTRUCTIONS
D’INSTALLATION ET
D’OPÉRATION
10,00 $
LA VITRE CHAUDE CAUSERA
DES BRÛLURES.
NE PAS TOUCHER LA VITRE
AVANT QU’ELLE AIT REFROIDI.
NE JAMAIS LAISSER LES
ENFANTS TOUCHER LA VITRE.
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
DANGER
!
AVERTISSEMENT
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
Une barriére conçu à réduire le risque de brûlures
causées par le verre chaud est fourni avec l’appareil
et sera installé pour la protection des enfants et
d’autres personnes à risque.
CONSIGNES DE SÉCURITÉ
!
AVERTISSEMENT
- N’entreposez pas et n’utilisez pas d’essence ou autres
liquides et vapeurs inflammables à proximité de cet ap-
pareil ou tout autre appareil.
- QUE FAIRE SI VOUS DÉTECTEZ UNE ODEUR DE GAZ :
• N’allumez aucun appareil.
• Ne touchez à aucun interrupteur électrique; n’utilisez
aucun téléphone dans votre immeuble.
• Appelez immédiatement votre fournisseur de gaz
d’un téléphone voisin. Suivez ses instructions.
• Si vous ne pouvez pas rejoindre votre fournisseur de
gaz, appelez le service des incendies.
- L’installation et l’entretien doivent être faits par un
installateur qualifié, une agence d’entretien ou le
fournisseur.
Cet appareil peut être installé dans une maison
préfabriquée (mobile) déjà instalée à demeure si les
règlements locaux le permettent.
Cet appareil doit être utilisé uniquement avec le type de
gaz indiqué sur la plaque d’homologation. Cet appareil
ne peut être converti à d’autres gaz, sauf si une trousse
de conversion est utilisée.
Si ces instructions ne sont pas suivies à la
lettre, un incendie ou une explosion pourraient
s’ensuivre, causant des dommages matériels,
des blessures corporelles ou des pertes de vie.
Produit décoratif : Ne pas utiliser comme appareil
de chauffage.
SAFETY
BARRIER
APPROVED
BARRIER
English for Marketing
French for Marketing
R&D BCL’s
ÉCRAN DE
PROTECTION
ÉCRAN DE
PROTECTION
:
HOMOLOGUÉ SELON LES NORMES NATIONALES CANADIENNES ET AMÉRICAINES: CSA 2.22 ET ANSI Z21.50 POUR LES APPAREILS À GAZ DÉCORATIFS VENTILÉ.
HDX35
ASSEMBLAGE DE
BRÛLEUR POUR
BÛCHES
B35NTL
GAZ NATUREL
B35PTL
PROPANE

16
W415-2193 / B / 12.01.17
FR
A. Enlevez de la porte.
TRUC: Après avoir retiré
les 2 loquets supérieurs,
soulez la porte vers le haut
pour faciliter le retrait des 2
loquets inférieurs.
B. Enlevez le 8 vis de fixation
et soulevez la plaque et
hors de l’appareil. Joint
d’étanchéité être remplacé
s’il est endommagé.
A. Fixez le brûleur à la base de la chambrede
combustion à l’aide des 3 vis fournies.
Ce brûleur et cet assemblage de bûches sont approuvés pour utilisation dans l’appareil au gaz HDX35
seulement. Ils ne sont pas approuvés pour utilisation comme appareil autonome ou avec n’importe quel autre
appareil.
1.0 INFORMATION GÉNÉRALE
2.0 INSTALLATION
2.1 PANNEAU D’ACCÈS
2.2 ASSEMBLAGE DU BRÛLEUR
1.0 INFORMATION GÉNÉRALE 16
2.0 INSTALLATION 16
2.1 PANNEAU D’ACCÈS 16
2.2 ASSEMBLAGE DU BRÛLEUR 16
2.3 RACCORDS 17
2.4 INSTALLATION DES PANNEAUX DE PLANCHER 18
2.5 DISPOSITION DES BÛCHES 19
2.6 MORCEAUX DE CHARBON 21
2.7 BRAISES DE CHARBON 21
2.8 VERMICULITE 21
2.9 BRAISES INCANDESCENTES 21
3.0 RÉGLAGES 22
3.1 CARACTÉRISTIQUES DE LA FLAMME 22
3.2 RÉGLAGE DU VENTURI 22
4.0 RECHANGES 23
4.1 BRÛLEUR DE BÛCHES DU B35NTL (GN) 24
4.2 BRÛLEUR DE BÛCHES DU B35PTL (P) 25
INTÉRIEUR
EXTÉRIEUR
NOTE : Les modifications, autres qu’éditoriales, sont indiquées par une ligne verticale dans la marge.
TABLE DES MATIÈRES

17
W415-2193 / B / 12.01.17
FR
NOTE: Les couvercles des raccords doivent
être retirés.
A. Branchez les conduites de gaz flexibles et la
conduite de la veilleuse aux raccords de gaz
situés en dessous de l’ouverture d’accès de
la soupape. Usez de prudence pour vous
assurer de ne pas endommager la conduite
de la veilleuse et que les connexions de gaz
sont bien serrées (FIG. 1).
B. Branchez les fils d’électrode de la veilleuse
au raccord en faisant correspondre l’embout
femelle de 3/16” à l’embout mâle de 3/16”.
Faites de même avec le 1/4 “bougie à la 1/4”
cloison pelle (FIG. 2).
C. Assurez-vous que les tube de venturi est par
dessus les injecteur avant d’allumer (FIG. 3).
D. Vérifiez pour des fuites de gaz en appliquant
une solution d’eau savonneuse. N’utilisez
pas une flamme nue.
E. Après avoir vérifié pour les fuites,
réinstallez le panneau d’accès avec le joint
d’étanchéité.
2.3 RACCORDS
17
W415-2193 / A / 10.21.16
FR
NOTE: Les couvercles des raccords doivent
être retirés.
A. Branchez les conduites de gaz flexibles et la
conduite de la veilleuse aux raccords de gaz
situés en dessous de l’ouverture d’accès de
la soupape. Usez de prudence pour vous
assurer de ne pas endommager la conduite
de la veilleuse et que les connexions de gaz
sont bien serrées.
Raccords
de gaz
Raccord de
veilleuse
2.3 RACCORDS
B. Branchez les fils d’électrode de la veilleuse
au raccord en faisant correspondre l’embout
femelle de 3/16” à l’embout mâle de 3/16”.
Faites de même avec le 1/4 “bougie à la 1/4”
cloison pelle.
C. Assurez-vous que les tube de venturi est par
dessus les injecteur avant d’allumer.
Raccord
Fils
d’électrode
de veilleuse
D. Vérifiez pour des fuites de gaz en appliquant
une solution d’eau savonneuse. N’utilisez
pas une flamme nue.
E. Après avoir vérifié pour les fuites, réinstallez
le panneau d’accès avec le joint d’étanchéité.
17
W415-2193 / A / 10.21.16
FR
NOTE: Les couvercles des raccords doivent
être retirés.
A. Branchez les conduites de gaz flexibles et la
conduite de la veilleuse aux raccords de gaz
situés en dessous de l’ouverture d’accès de
la soupape. Usez de prudence pour vous
assurer de ne pas endommager la conduite
de la veilleuse et que les connexions de gaz
sont bien serrées.
Raccords
de gaz
Raccord de
veilleuse
2.3 RACCORDS
B. Branchez les fils d’électrode de la veilleuse
au raccord en faisant correspondre l’embout
femelle de 3/16” à l’embout mâle de 3/16”.
Faites de même avec le 1/4 “bougie à la 1/4”
cloison pelle.
C. Assurez-vous que les tube de venturi est par
dessus les injecteur avant d’allumer.
Raccord
Fils
d’électrode
de veilleuse
D. Vérifiez pour des fuites de gaz en appliquant
une solution d’eau savonneuse. N’utilisez
pas une flamme nue.
E. Après avoir vérifié pour les fuites, réinstallez
le panneau d’accès avec le joint d’étanchéité.
FIG. 1
FIG. 2
FIG. 3

18
W415-2193 / B / 12.01.17
FR
Les panneaux de plancher sont expédiés séparément de l’appareil et ils sont inclus avec l’assemblage du brûleur
et les bûches. En raison de la fragilité des panneaux, prenez grand soin de ne pas courber ou forcer les panneaux
pour les mettre en place. La couleur des panneaux expédiés varie de différentes teintes de grès. Lors de l’utilisation
initiale, les panneaux fonceront de façon temporaire, pour ensuite pâlir de façon permanente à l’usage.
POUR INSTALLER PANNEAUX DE PLANCHER, REPORTEZ-VOUS À LA INSTALLATION INSTRUCTIONS.
2.4 INSTALLATION DES PANNEAUX DE PLANCHER
NOTE: Nous vous suggérons de enlever l’ensemble de la grillage avant l’installation du panneau.

19
W415-2193 / B / 12.01.17
FR
2.5 DISPOSITION DES BÛCHES
A. Alignez les 2 encoches du dessous de la
bûche à fond arrière (A) avec les goujons
situés sur le support à bûches arrière.
NOTE: Assurez-vous que la bûche à
fond arrière (A) est derrière le tube du
brûleur.
B. Alignez les 2 épingles sur le dessus de la
bûche à fond arrière (A) avec les 2 trous du
dessous de la bûche arrière dessus (B).
C. Alignez les 2 trous du dessous de la
bûche centrale (C) sur les goujons situés
sur le support à bûches avant.
D. Alignez le 1 trou du dessous de la bûche arrière
gauche (D) avec l’épingle gauche sur le dessus
de la bûche arrière dessus (B). Assurez-vous
de rester la bûche arrière gauche (D) vers le
coin avant gauche du brûleur. Des ajustements
peuvent être nécessaires pour assurer un
placement correct.
E. Alignez les 2 encoches en dessous de la
bûche avant droite sur les quatrième et
cinquième barreaux du chenet, en assurant
que la bûche avant droit (E) est à plat. Prenez
soin de ne pas couvrir les orifices.
F. Alignez l’encoche dans la bûche avant gauche
(F) sur le premier barreaux du chenet, en
assurant que le bord dentelé est tourné vers
l’avant, puis la pousser légèrement en arrière.
Des ajustements peuvent être nécessaires pour
assurer un
placement correct.
Before placing the log set, ensure to cover the wiring on the right side of the burner with charcoal lumps.
Leave enough charcoal lumps to randomly fi ll the front of the logs. NOTE: Charcoal lumps are not to be
placed on the burner.
2.5 LOG PLACEMENT
A. Align the 2 holes in the bottom of the
bottom rear log with the studs located
on the rear log support.
B. Align the 2 pins in the bottom of the top
rear log with the holes in the top of the
bottom rear log.
C. Align the 2 holes in the bottom in the
middle log with the studs located on
the front log support.
D. Align the hole in the rear left log with the
left pin of the top rear log.
A
B
C
D
E. Line the notches in the bottom of the
front right log with the 4th and 5th grate
posts. Make sure not to cover any
ports.
F. Line the notch in the front left log with
the front left corner of the burner.
EF
5
W415-2193 / B / 12.21.16
EN
PINS
Before placing the log set, ensure to cover the wiring on the right side of the burner with charcoal lumps.
Leave enough charcoal lumps to randomly fi ll the front of the logs. NOTE: Charcoal lumps are not to be
placed on the burner.
2.5 LOG PLACEMENT
A. Align the 2 holes in the bottom of the
bottom rear log with the studs located
on the rear log support.
B. Align the 2 pins in the bottom of the top
rear log with the holes in the top of the
bottom rear log.
C. Align the 2 holes in the bottom in the
middle log with the studs located on
the front log support.
D. Align the hole in the rear left log with the
left pin of the top rear log.
A
B
C
D
E. Line the notches in the bottom of the
front right log with the 4th and 5th grate
posts. Make sure not to cover any
ports.
F. Line the notch in the front left log with
the front left corner of the burner.
EF
5
W415-2193 / B / 12.21.16
EN
PINS
Before placing the log set, ensure to cover the wiring on the right side of the burner with charcoal lumps.
Leave enough charcoal lumps to randomly fi ll the front of the logs. NOTE: Charcoal lumps are not to be
placed on the burner.
2.5 LOG PLACEMENT
A. Align the 2 holes in the bottom of the
bottom rear log with the studs located
on the rear log support.
B. Align the 2 pins in the bottom of the top
rear log with the holes in the top of the
bottom rear log.
C. Align the 2 holes in the bottom in the
middle log with the studs located on
the front log support.
D. Align the hole in the rear left log with the
left pin of the top rear log.
A
B
C
D
E. Line the notches in the bottom of the
front right log with the 4th and 5th grate
posts. Make sure not to cover any
ports.
F. Line the notch in the front left log with
the front left corner of the burner.
EF
5
W415-2193 / B / 12.21.16
EN
PINS
Before placing the log set, ensure to cover the wiring on the right side of the burner with charcoal lumps.
Leave enough charcoal lumps to randomly fi ll the front of the logs. NOTE: Charcoal lumps are not to be
placed on the burner.
2.5 LOG PLACEMENT
A. Align the 2 holes in the bottom of the
bottom rear log with the studs located
on the rear log support.
B. Align the 2 pins in the bottom of the top
rear log with the holes in the top of the
bottom rear log.
C. Align the 2 holes in the bottom in the
middle log with the studs located on
the front log support.
D. Align the hole in the rear left log with the
left pin of the top rear log.
A
B
C
D
E. Line the notches in the bottom of the
front right log with the 4th and 5th grate
posts. Make sure not to cover any
ports.
F. Line the notch in the front left log with
the front left corner of the burner.
EF
5
W415-2193 / B / 12.21.16
EN
PINS
Before placing the log set, ensure to cover the wiring on the right side of the burner with charcoal lumps.
Leave enough charcoal lumps to randomly fi ll the front of the logs. NOTE: Charcoal lumps are not to be
placed on the burner.
2.5 LOG PLACEMENT
A. Align the 2 holes in the bottom of the
bottom rear log with the studs located
on the rear log support.
B. Align the 2 pins in the bottom of the top
rear log with the holes in the top of the
bottom rear log.
C. Align the 2 holes in the bottom in the
middle log with the studs located on
the front log support.
D. Align the hole in the rear left log with the
left pin of the top rear log.
A
B
C
D
E. Line the notches in the bottom of the
front right log with the 4th and 5th grate
posts. Make sure not to cover any
ports.
F. Line the notch in the front left log with
the front left corner of the burner.
E
F
5
W415-2193 / B / 12.21.16
EN
PINS
Before placing the log set, ensure to cover the wiring on the right side of the burner with charcoal lumps.
Leave enough charcoal lumps to randomly fi ll the front of the logs. NOTE: Charcoal lumps are not to be
placed on the burner.
2.5 LOG PLACEMENT
A. Align the 2 holes in the bottom of the
bottom rear log with the studs located
on the rear log support.
B. Align the 2 pins in the bottom of the top
rear log with the holes in the top of the
bottom rear log.
C. Align the 2 holes in the bottom in the
middle log with the studs located on
the front log support.
D. Align the hole in the rear left log with the
left pin of the top rear log.
A
B
C
D
E. Line the notches in the bottom of the
front right log with the 4th and 5th grate
posts. Make sure not to cover any
ports.
F. Line the notch in the front left log with
the front left corner of the burner.
E
F
5
W415-2193 / B / 12.21.16
EN
PINS
Avant de placer l’ensemble de bûches, assurez-vous de courvrir le câblage sur le côté droit du brûleur avec
des morceaux de charbon de bois. Laissez suffisament de morceaux de charbon de bois poiur remplir aléa-
toirement l’avant des bûches. Ne placez pas de morceaux de charbon de bois sur le brûleur.
ÉPINGLES
A
B

20
W415-2193 / B / 12.01.17
FR
G. Alignez les 2 trous du dessous de la bûche
croisé avant gauche (G) sur les 2 goujons
situés à gauche du brûleur. Assurez-vous de
rester la bûche croisé avant gauche (G) sur
la bûche avant gauche (F).
H. Alignez les 2 trous du dessous de la bûche
centrale droit centrale (H) sur les 2 goujons
situés à droite du brûleur. Des ajustements
peuvent être nécessaires pour assurer un
placement correct.
I. Placez la bûche haute à droite (I) sur
l’encoche de la bûche à fond arrière (A)
et l’encoche de la bûche avant droite
(E). Assurez-vous de repousser la
bûche haute à droite (I) tout le long du
panneau arrière.
J. Alignez l’épingle sur le dessus de la bûche
haute à doit (I) avec le trou du dessous de
la bûche haute central (J). Assurez-vous de
rester le haut de la bûche haute central (J)
sur la bûche arrière dessus (B).
K. Alignez l’encoche de la bûche charbon
avant (K) avec le deuxième barreau du
chenet, en assurant que la bûche charbon
avant (K) est à plat. Prenez soin de ne
pas couvrir les orifices.
L. Alignez l’épingle sur le dessus de la bûche
centrale (C) avec le trou du dessous de la
bûche croisé centrale (L). Assurez-vous de
rester la bûche croisé centrale (L) sur la bûche
croisé avant gauche (G).
G. Align the 2 holes located in the bottom
of the front left crossover log with the
2 studs on the left hand side of the
burner.
H. Align the 2 holes in the bottom of the
right middle log with the 2 studs on the
right hand side of the burner.
I. Place the top right log on the notches
in the bottom rear log and the front
right log pushing back against the rear
panel.
J. Align the hole and the pin in the right
crossover log with the hole in the top
right log.
K. Place the notch in the front charcoal
log over the second grate post. Make
sure not to cover any ports.
L. Align the pin in the bottom of the
middle crossover with the hole in the
middle of the middle log resting it on
the front left crossover log.
G
H
I
J
K
L
6
W415-2193 / B / 12.21.16
EN
G. Align the 2 holes located in the bottom
of the front left crossover log with the
2 studs on the left hand side of the
burner.
H. Align the 2 holes in the bottom of the
right middle log with the 2 studs on the
right hand side of the burner.
I. Place the top right log on the notches
in the bottom rear log and the front
right log pushing back against the rear
panel.
J. Align the hole and the pin in the right
crossover log with the hole in the top
right log.
K. Place the notch in the front charcoal
log over the second grate post. Make
sure not to cover any ports.
L. Align the pin in the bottom of the
middle crossover with the hole in the
middle of the middle log resting it on
the front left crossover log.
G
H
I
J
K
L
6
W415-2193 / B / 12.21.16
EN
G. Align the 2 holes located in the bottom
of the front left crossover log with the
2 studs on the left hand side of the
burner.
H. Align the 2 holes in the bottom of the
right middle log with the 2 studs on the
right hand side of the burner.
I. Place the top right log on the notches
in the bottom rear log and the front
right log pushing back against the rear
panel.
J. Align the hole and the pin in the right
crossover log with the hole in the top
right log.
K. Place the notch in the front charcoal
log over the second grate post. Make
sure not to cover any ports.
L. Align the pin in the bottom of the
middle crossover with the hole in the
middle of the middle log resting it on
the front left crossover log.
GH
I
J
K
L
6
W415-2193 / B / 12.21.16
EN
G. Align the 2 holes located in the bottom
of the front left crossover log with the
2 studs on the left hand side of the
burner.
H. Align the 2 holes in the bottom of the
right middle log with the 2 studs on the
right hand side of the burner.
I. Place the top right log on the notches
in the bottom rear log and the front
right log pushing back against the rear
panel.
J. Align the hole and the pin in the right
crossover log with the hole in the top
right log.
K. Place the notch in the front charcoal
log over the second grate post. Make
sure not to cover any ports.
L. Align the pin in the bottom of the
middle crossover with the hole in the
middle of the middle log resting it on
the front left crossover log.
GH
I
J
K
L
6
W415-2193 / B / 12.21.16
EN
G. Align the 2 holes located in the bottom
of the front left crossover log with the
2 studs on the left hand side of the
burner.
H. Align the 2 holes in the bottom of the
right middle log with the 2 studs on the
right hand side of the burner.
I. Place the top right log on the notches
in the bottom rear log and the front
right log pushing back against the rear
panel.
J. Align the hole and the pin in the right
crossover log with the hole in the top
right log.
K. Place the notch in the front charcoal
log over the second grate post. Make
sure not to cover any ports.
L. Align the pin in the bottom of the
middle crossover with the hole in the
middle of the middle log resting it on
the front left crossover log.
GH
I
J
K
L
6
W415-2193 / B / 12.21.16
EN
G. Align the 2 holes located in the bottom
of the front left crossover log with the
2 studs on the left hand side of the
burner.
H. Align the 2 holes in the bottom of the
right middle log with the 2 studs on the
right hand side of the burner.
I. Place the top right log on the notches
in the bottom rear log and the front
right log pushing back against the rear
panel.
J. Align the hole and the pin in the right
crossover log with the hole in the top
right log.
K. Place the notch in the front charcoal
log over the second grate post. Make
sure not to cover any ports.
L. Align the pin in the bottom of the
middle crossover with the hole in the
middle of the middle log resting it on
the front left crossover log.
GH
I
J
K
L
6
W415-2193 / B / 12.21.16
EN
F
E
I
C
G

21
W415-2193 / B / 12.01.17
FR
2.6 MORCEAUX DE CHARBON
34.1
Placez les morceaux de charbon devant les bûches de façon réaliste. Prenez garde de ne pas bloquer les
orifices du brûleur.
!
AVERTISSEMENT
LES BRAISES DE CHARBON DE BOIS, LA VERMICULITE ET LES MORCEAUX DE CHARBON NE
DOIVENT PAS ÊTRE PLACÉS SUR LE BRÛLEUR.
2.7 BRAISES DE CHARBON
32.1
Éparpillez les braises à l’avant et sur les côtés du support à bûches de façon à créer un effet réaliste.
N’utilisez pas la fine poussière qui reste au fond du sac.
NOTE : Les braises de charbon de bois ne doivent pas être placées sur le brûleur.
2.8 VERMICULITE
33.1
Éparpillez la vermiculite autour des braises de charbon de bois.
NOTE : La vermiculite ne doit pas être placée sur le brûleur.
2.9 BRAISES INCANDESCENTES
Défaites les braises en morceaux, puis placez-les le long de la rangée avant des orifices de façon à recouvrir
la zone entière du brûleur. Prenez soin de mettre les braises en lambeaux minces et de forme irrégulière
puisque seules les parties exposées des fibres produiront de l’incandescence. Le matériel des braises ne
produira de lueur que lorsqu’il est exposé aux flammes directes; toutefois, prenez soin de ne pas obstruer les
orifices du brûleur.
Les orifices de brûleur obstrués peuvent produire un motif incorrect de flamme, des dépôts de carbone, et
un allumage retardé. Les bûches Phazer™ s’embrasent lorsqu’elles sont exposées à une flamme directe.
N’utilisez que des «braises incandescentes» et des bûches Phazer™ disponibles chez votre détaillant
autorisé.

22
W415-2193 / B / 12.01.17
FR
Ouvertures du volet d’air pour les deux brûleurs
P F 7/16" R 1/4”
GN F 1/16" R 1/16”
3.0 RÉGLAGES
3.1 CARACTÉRISTIQUES DE LA FLAMME
3.2 RÉGLAGE DU VENTURI
Il est important d’effectuer périodiquement une inspection visuelle de la fl amme de la veilleuse et du brûleur.
Comparez-les à ces illustrations. Si des fl ammes paraissent anormales, contactez un technicien de service.
54.2A
3/8” - 1/2”
(9,5mm - 12,7mm)
FLAME MUST ENVELOP
UPPER 3/8” (9.5mm) TO 1/2”
(12.7mm) OF FLAME SENSOR
PILOT
BURNER
ELECTRODE
FLAME
SENSOR
LA FLAMME DOIT
ENVELOPPER LA PARTIE
SUPÉRIEURE DE LA SONDE
DE FLAMME DE 3/8” (9,5mm)
À 1/2” (12,7mm)
ÉLECTRODE
LA SONDE
DE FLAMME
VEILLEUSE
3/8” - 1/2”
(9.5mm - 12.7mm)
L’ouverture du volet d’air a été préréglée en usine selon le tableau
ci-dessous :
Indépendamment de l’orientation du venturi, plus le volet est fermé,
plus la flamme est jaune et aura tendance à causer des dépôts de
carbone. Plus le volet est ouvert, plus la flamme est bleue et plus elle a
tendance à se détacher des orifices du brûleur. La flamme peut ne pas
être jaune immédiatement; allouez de 15 à 30 minutes pour que la
couleur finale de la flamme se stabilise.
LE RÉGLAGE DU VOLET D’AIR DOIT ÊTRE EXÉCUTÉ PAR UN
TECHNICIEN OU INSTALLATEUR QUALIFIÉ!
VENTURI
INJECTEUR
49.1
OUVERTURE
DU VOLET
D’AIR
