Napoleon TORCH GT8N User manual

1
W415-0794 / A / 06.08.10
CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS: CSA 2.22, ANSI Z21.50 FOR VENTED GAS FIREPLACE.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
INSTALLATION AND
OPERATING INSTRUCTIONS
1.2A
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 4Y8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • Fax [phone] • www.napoleonfireplaces.com • [email protected]
SAFETY INFORMATION
!WARNING
If the information in these instructions are
not followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbour’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
- Installation and service must be performed by a
qualified installer, service agency or the supplier.
CERTIFIED FOR CANADA AND UNITED STATES USING ANSI/CSA METHODS.
GT8N
NATURAL GAS
GT8P
PROPANE
$10.00

2
W415-0794 / A / 06.08.10
NOTE: Changes, other than editorial, are denoted by a line in the margin.
TABLE OF CONTENTS
1.0 INSTALLATION OVERVIEW 3
2.0 INTRODUCTION 4
2.1 DIMENSIONS 5
2.2 GENERAL INSTRUCTIONS 5
2.3 GENERAL INFORMATION 6
2.4 RATING PLATE INFORMATION 7
3.0 VENTING 8
3.1 VENTING LENGTHS AND COMPONENTS 8

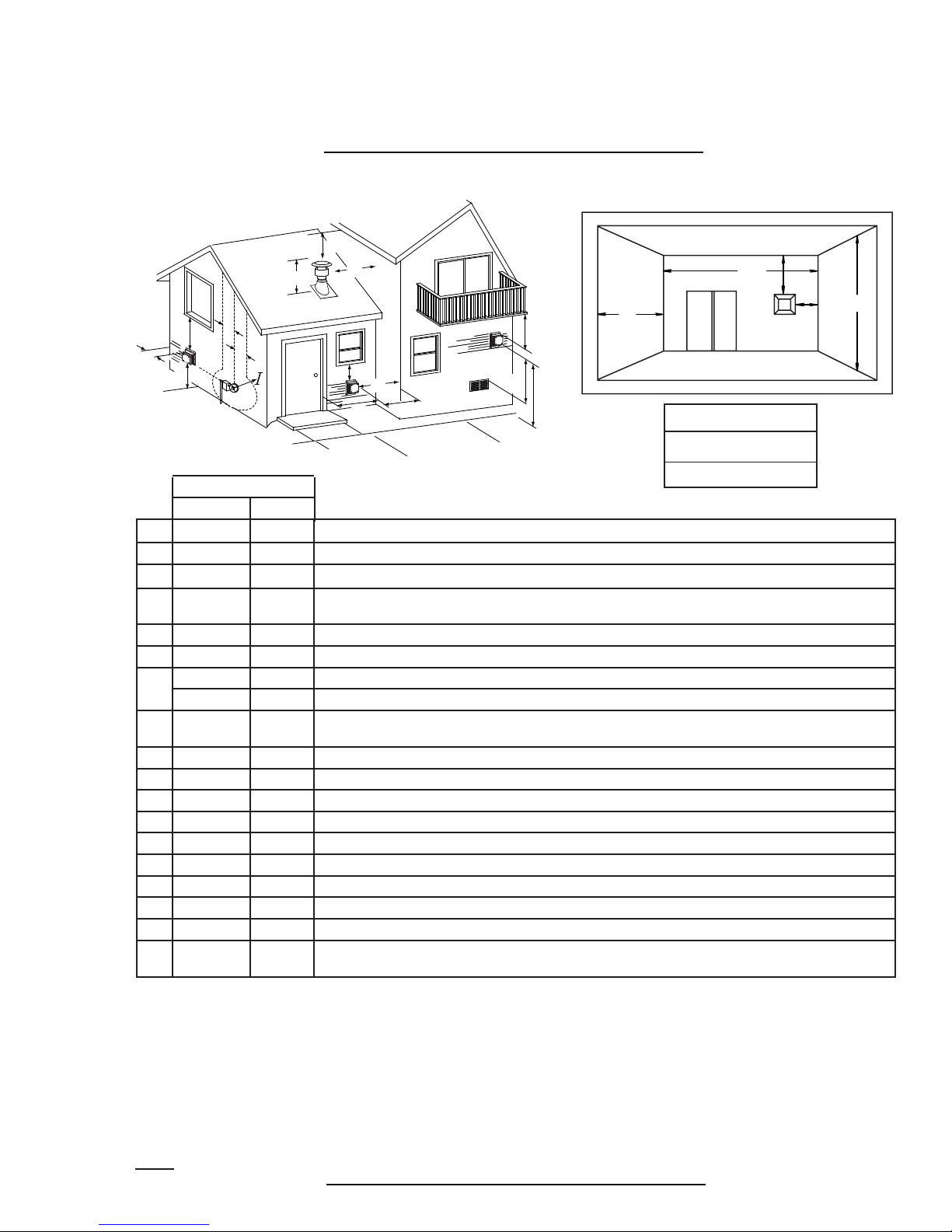

3.2 VENT TERMINAL CLEARANCES 9
3.3 HORIZONTAL TERMINATION 10
3.4 VERTICAL TERMINATION 11
4.0 INSTALLATION 12
4.1 WALL AND CEILING PROTECTION 12

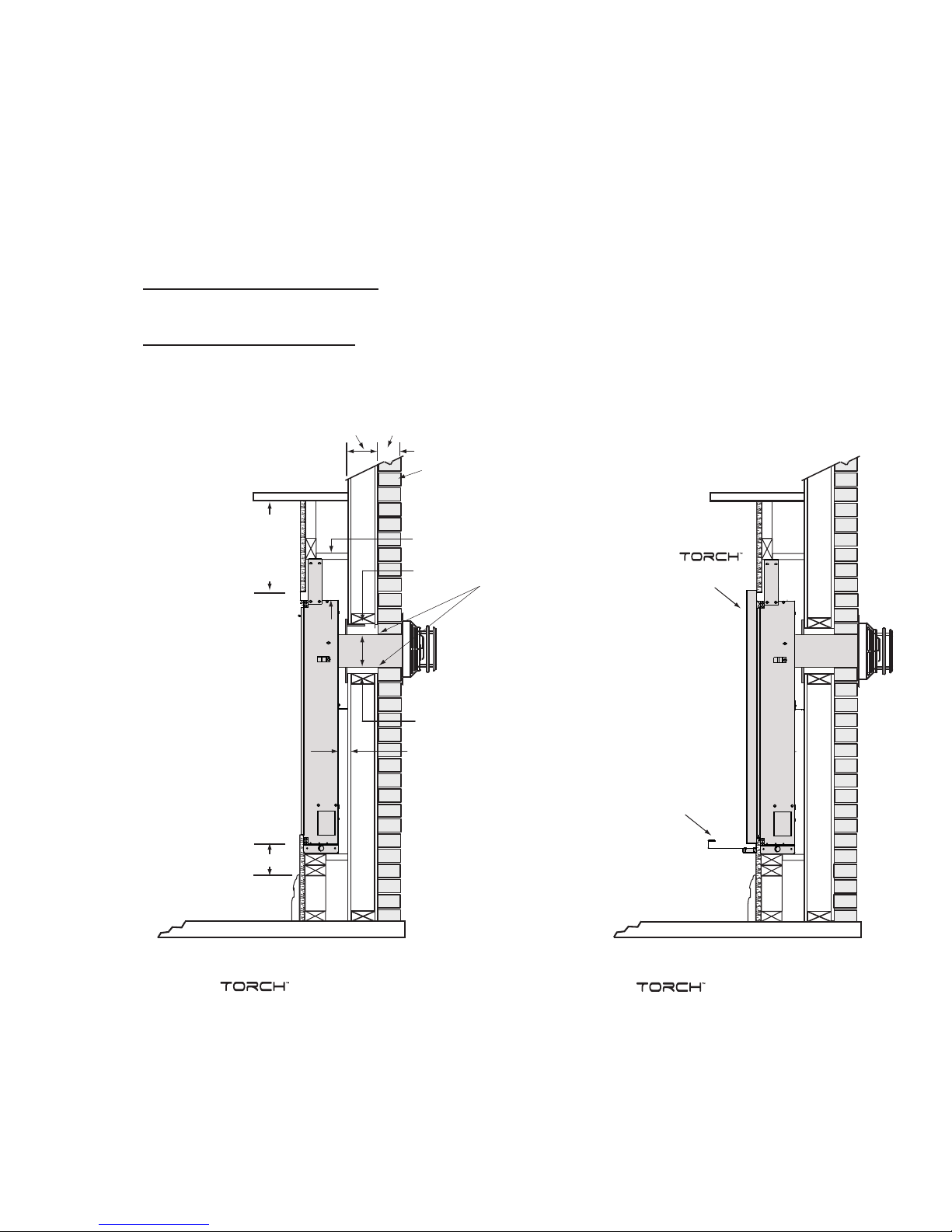

4.2 HORIZONTAL INSTALLATION 13
4.3 VERTICAL INSTALLATION 13
4.4 USING FLEXIBLE VENT COMPONENTS 14
4.4.1 HORIZONTAL AIR TERMINAL INSTALLATION 14

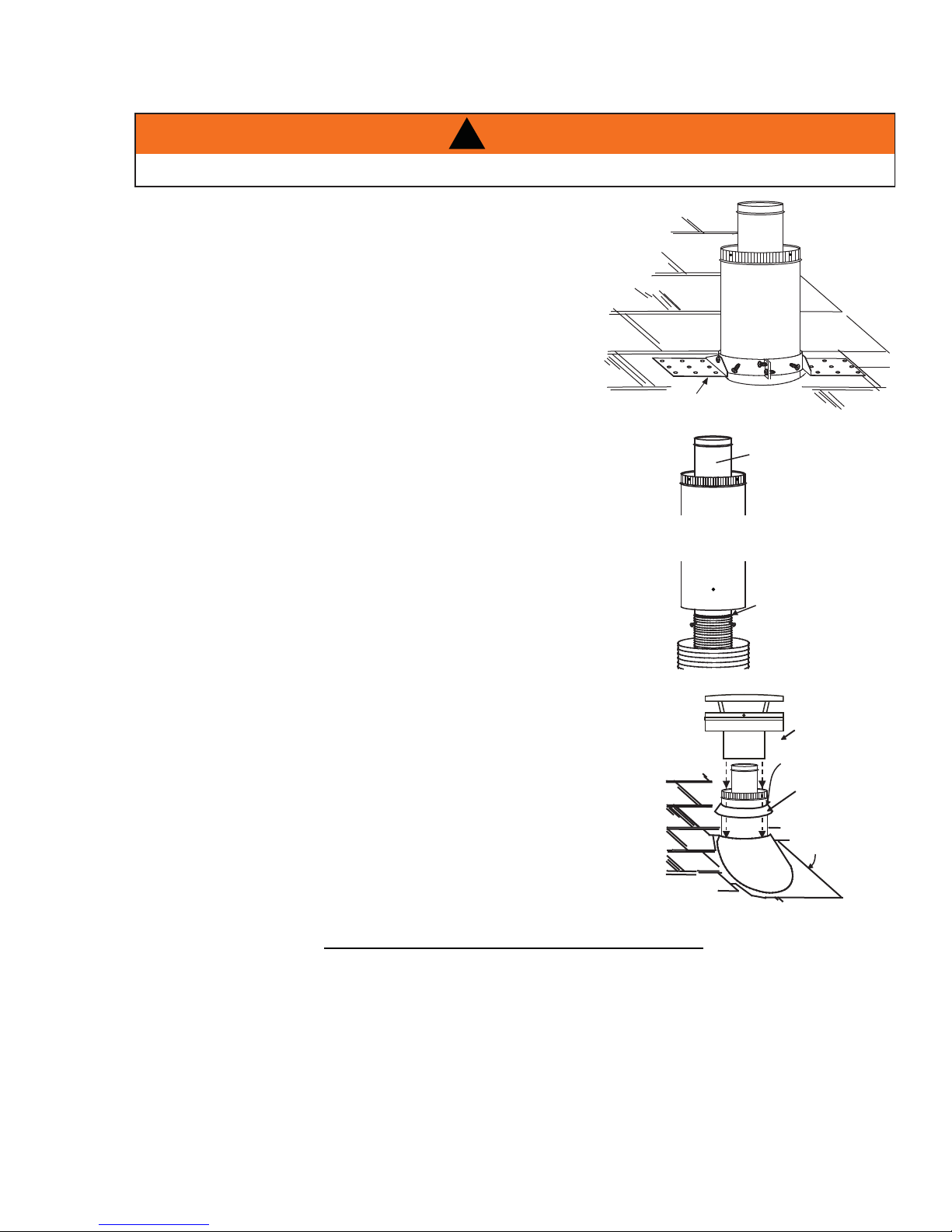

4.4.2 VERTICAL AIR TERMINAL INSTALLATION 15

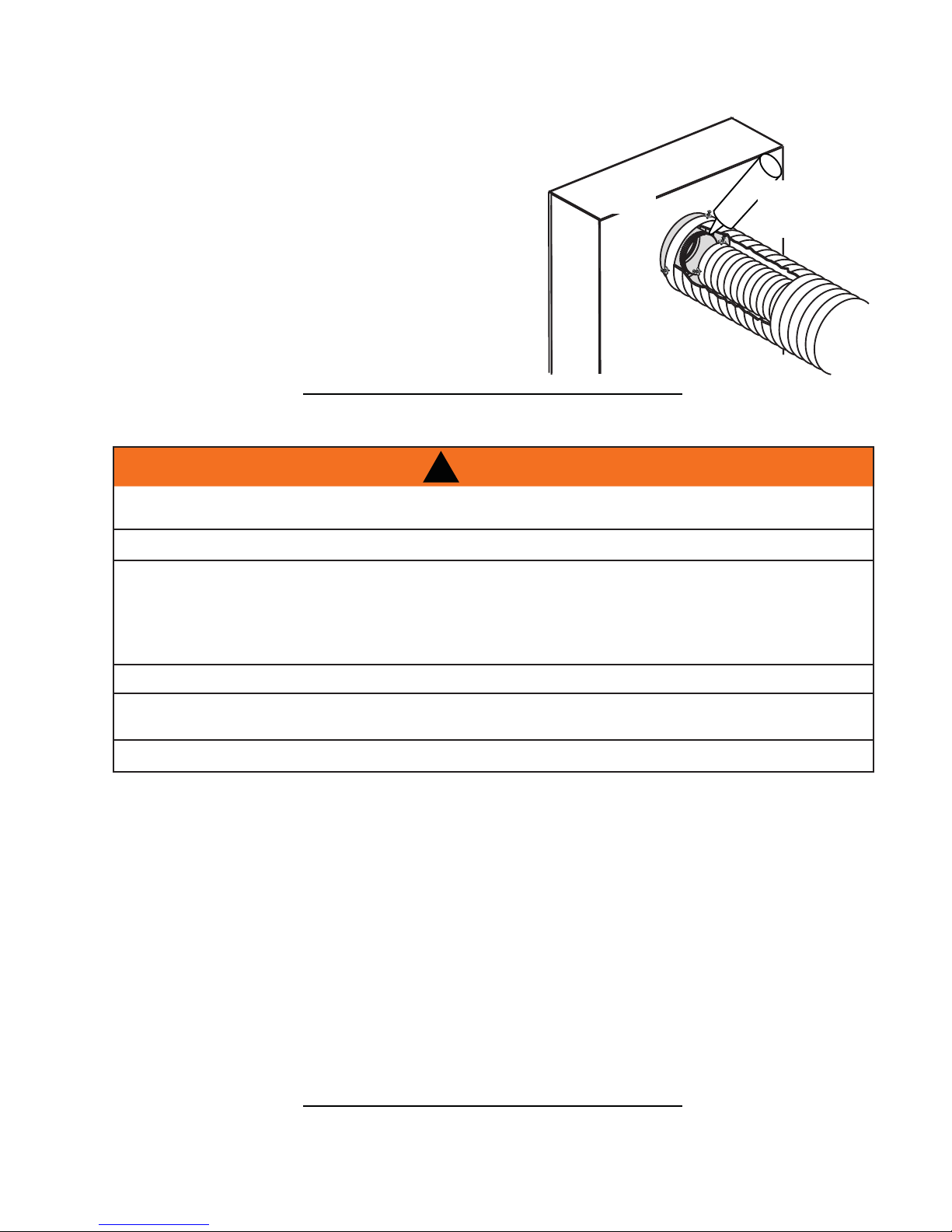

4.4.3 APPLIANCE VENT CONNECTION 16
4.5 GAS INSTALLATION 16
4.6 MOBILE HOME 17

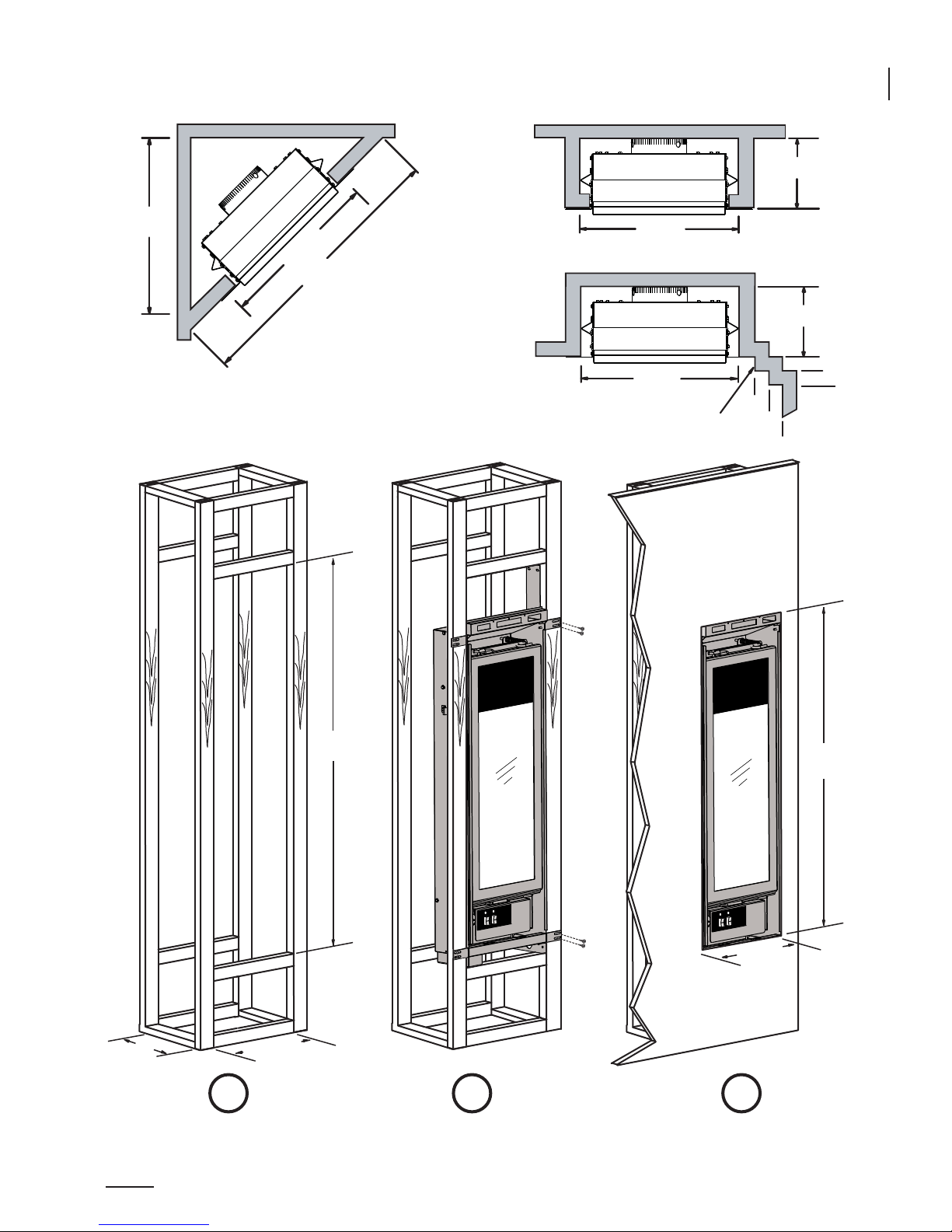

5.0 FRAMING 18
5.1 MINIMUM CLEARANCE TO COMBUSTIBLES 19
5.2 MINIMUM ENCLOSURE CLEARANCES 20
5.3 NAILING TAB INSTALLATION 21
5.4 STAND-OFF ASSEMBLY 21
6.0 FINISHING 22
6.1 MOUNTING CABINET INSTALLATION 22
6.2 DOOR REMOVAL 24
6.3 FRAME/FRONT INSTALLATION 25
6.4 ACCENT GLASS INSTALLATION 26
6.5 LK8 LIGHT INSTALLATION (OPTIONAL) 26
7.0 ELECTRICAL INFORMATION 27
7.1 HARD WIRING CONNECTION 27
8.0 OPERATION 28
9.0 ADJUSTMENTS 29
9.1 GAS PRESSURE ADJUSTMENT 29
9.2 VENTURI ADJUSTMENT 29
9.3 FLAME CHARACTERISTICS 29
10.0 MAINTENANCE 30
10.1 CARE OF GLASS 30
10.2 DOOR GLASS REPLACEMENT 31
11.0 REPLACEMENTS 32
12.0 TROUBLE SHOOTING 35
13.0 WARRANTY 37
14.0 SERVICE HISTORY 38

3
W415-0794 / A / 06.08.10
1.0 INSTALLATION OVERVIEW
Cabinet, see “MOUNTING
CABINET INSTALLATION”
section.
Door, see “DOOR
REMOVAL / INSTALLATION”
section.
Glass, see “GLASS
REMOVAL / INSTALLATION”
section.
Frame, see “FRAME /
FRONT INSTALLATION”
section.
Rating plate, see “RATING PLATE
INFORMATION” section.

4
W415-0794 / A / 06.08.10
3.1A
!
WARNING
• THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED.
• Do not operate appliance before reading and understanding operating instructions. Failure to operate
appliance according to operating instructions could cause fire or injury.
• Risk of fire or asphyxiation do not operate appliance with fixed glass removed.
• Do not connect 110 volts to the control valve.
• Risk of burns. The appliance should be turned off and cooled before servicing.
• Do not install damaged, incomplete or substitute components.
• Risk of cuts and abrasions. Wear protective gloves and safety glasses during installation. Sheet metal
edges may be sharp.
• Do not burn wood or other materials in this appliance.
• Young children should be carefully supervised when they are in the same room as the appliance.
Toddlers, young children and others may be susceptible to accidental contact burns. A physical barrier
is recommended if there are at risk individuals in the house. To restrict access to an appliance or stove,
install an adjustable safety gate to keep toddlers, young children and other at risk individuals out of the
room and away from hot surfaces.
• Clothing or other flammable material should not be placed on or near the appliance.
• Due to high temperatures, the appliance should be located out of traffic and away from furniture and
draperies.
• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot
surfaces.
• Even after the appliance is out, the glass and/or screen will remain hot for an extended period of time.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children
from hot surfaces. These screens and guards must be fastened to the floor.
• Any safety screen or guard removed for servicing must be replaced prior to operating the appliance.
• It is imperative that the control compartments, burners and circulating blower and its passageway in the
appliance and venting system are kept clean. The appliance and its venting system should be inspected
before use and at least annually by a qualified service person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding material, etc. The appliance area must be kept clear and
free from combustible materials, gasoline and other flammable vapors and liquids.
• Under no circumstances should this appliance be modified.
• This appliance must not be connected to a chimney flue pipe serving a separate solid fuel burning
appliance.
• Do not use this appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and to replace any part of the control system and any gas control
which has been under water.
• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass
should be done by a licensed or qualified service person.
• Do not strike or slam shut the appliance glass door.
• This appliance uses and requires a fast acting thermocouple. Replace only with a fast acting
thermocouple supplied by Wolf Steel Ltd.
• Pressure relief doors must be kept closed while the appliance is operating to prevent exhaust fumes
containing carbon monoxide, from entering into the home. Temperatures of the exhaust escaping
through these openings can also cause the surrounding combustible materials to overheat and catch
fire.
• Only doors / optional fronts certified with the unit are to be installed on the appliance.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As
with all plastic bags, these are not toys and should be kept away from children and infants.
• As with any combustion appliance, we recommend having your appliance regularly inspected and
serviced as well as having a Carbon Monoxide Detector installed in the same area to defend you and
your family against Carbon Monoxide.
• Ensure clearances to combustibles are maintained when building a mantel or shelves above the
appliance. Elevated temperatures can cause melting, deformation, discolouration or premature failure of
T.V. or other electronic components.
2.0 INTRODUCTION

5
W415-0794 / A / 06.08.10

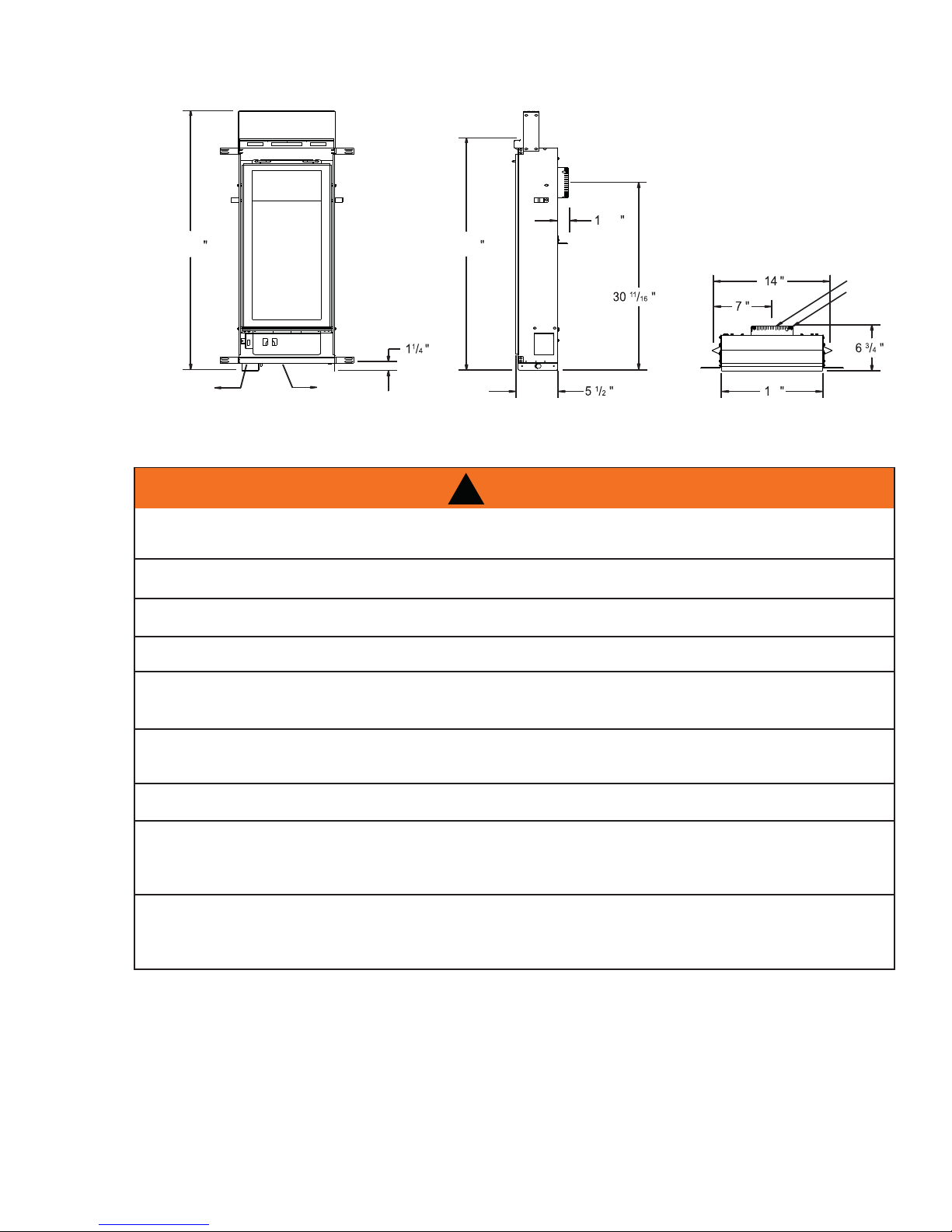

2.1 DIMENSIONS
2.2 GENERAL INSTRUCTIONS
THIS GAS APPLIANCE SHOULD BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to
conform with local codes. Installation practices vary from region to region and it is important to know the
specifics that apply to your area, for example in Massachusetts State:
• This product must be installed by a licensed plumber or gas fitter when installed within the commonwealth
of Massachusetts.
• The appliance damper must be removed or welded in the open position prior to installation of a appliance
insert or gas log.
• The appliance off valve must be a “T” handle gas cock.
• The flexible connector must not be longer than 36 inches.
• A Carbon Monoxide detector is required in all rooms containing gas fired appliances.
• The appliance is not approved for installation in a bedroom or bathroom unless the unit is a direct vent
sealed combustion product.
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RAN OUT,
WITH THE GLASS DOOR OPENED OR REMOVED.
PROVIDE ADEQUATE CLEARANCE FOR SERVICING AND OPERATING THE APPLIANCE.
PROVIDE ADEQUATE VENTILATION.
NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.
OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48” FROM THE
FRONT FACE OF THE UNIT.
SURFACES AROUND AND ESPECIALLY ABOVE THE APPLIANCE CAN BECOME HOT. AVOID CONTACT
WHEN THE APPLIANCE IS OPERATING.
FIRE RISK. EXPLOSION HAZARD.
HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE PRESSURE TESTING
GAS LINE AT TEST PRESSURES ABOVE 1/2 PSIG. CLOSE THE MANUAL SHUT-OFF VALVE BEFORE
PRESSURE TESTING GAS LINE AT TEST PRESSURES EQUAL TO OR LESS THAN 1/2 PSIG.
USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH THIS APPLIANCE.
USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, GAS COMPONENTS, VENTING
COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL VOID THE WARRANTY AND CERTIFICATION.
!
WARNING
3
/ 4
43
GAS LINE
ACCESS
ELECTRICAL
ACCESS
1
/ 4
3
/ 4
37
2
3" DIA.
5" DIA.

6
W415-0794 / A / 06.08.10
4.1
The installation must conform with local codes or, in
absence of local codes, the National Gas and Propane
Installation Code CSA B149.1 in Canada, or the National
Fuel Gas Code, ANSI Z223.1 / NFPA 54 in the United
States. Suitable for mobile home installation if installed in
accordance with the current standard CAN/CSA Z240MH
Series, for gas equipped mobile homes, in Canada or
A
NSI Z223.1 and NFPA 54 in the United States.
A
s long as the required clearance to combustibles is
maintained, the most desirable and beneficial location for an appliance is in the center of a building, thereby
allowing the most efficient use of the heat created. The location of windows, doors and the traffic flow in the
room where the appliance is to be located should be considered. If possible, you should choose a location
where the vent will pass through the house without cutting a floor or roof joist.
If the appliance is installed directly on carpeting, vinyl tile or other combustible material other than wood
flooring, the appliance shall be installed on a metal or wood panel extending the full width and depth.
If the optional fan or blower is installed, the junction box must be electrically connected and grounded in
accordance with local codes, use the current CSA C22.1 Canadian Electrical Code in Canada or the ANSI/
NFPA 70 National Electrical code in the United States.
We suggest that our gas
hearth products be installed
and serviced by professionals
who are certied in the U.S.
by the National Fireplace
Institute
® (NFI) as NFI Gas
Specialists
www.ncertied.org
2.3 GENERAL INFORMATION
* When the appliance is installed at elevations above 4,500ft, and in the absence of specific recommendations
from the local authority having jurisdiction, the certified high altitude input rating shall be reduced at the rate of
4% for each additional 1,000ft.
This appliance is approved for bathroom, bedroom and bed-sitting room installations and is suitable for mobile
home installation. The natural gas model can only be installed in a mobile home that is permanently positioned
on its site and fueled with natural gas. This appliance may be installed in an aftermarket permanently located,
manufactured (mobile) home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convert-
ible for use with other gases, unless a certified kit is used.
Expansion / contraction noises during heating up and cooling down cycles are normal and are to be expected.
RATES AND EFFICIENCIES
NATURAL GAS PROPANE GAS
Altitude 0 - 4,500* 0 - 4,500*
Maximum Input 6,000 6,000
Maximum Output 4,680 4,680
Efficiency 78% 78%
Minimum Inlet Gas Supply Pressure 4.5” Water Column 11” Water Column
Maximum Inlet Gas Supply Pressure 7” Water Column 13” Water Column
Manifold Pressure Under Flow Conditions 3.5” Water Column 10” Water Column
FOR YOUR SATISFACTION, THIS APPLIANCE HAS BEEN TEST-FIRED TO ASSURE ITS OPERATION
AND QUALITY!

7
W415-0794 / A / 06.08.10
2.4 RATING PLATE INFORMATION
CERTIFIED UNDER : CSA 2.22b-2009, ANSI 21.50b-2009 VENTED GAS FIREPLACE
DIRECT VENT GAS FIREPLACE.APPROVED FOR BEDROOM, BATHROOM AND BED SITTING ROOM INSTALLATION.
SUITABLE FOR MOBILE HOME INSTALLATION IF INSTALLED IN ACCORDANCE WITH THE CURRENT STANDARD CAN/CSA
Z240MH SERIES GAS EQUIPPED MOBILE HOMES. IN CANADA OR IN THE UNITED STATES THE MANUFACTURED HOME
CONSTRUCTION AND SAFETY STANDARD. TITLE 24 DFR, PART 3280. WHEN THIS US STANDARD IS NOT APPLICABLE USE
THE STANDARD FOR FIRE SAFETY CRITERIAFOR MANUFACTURED HOME INSTALLATIONS, SITESAND COMMUNITIES,
ANSI/NFPA 501A.
ALTITUDE
INPUT
ORIFICE
MANIFOLD PRESSURE: 3.5" WATER COLUMN
MINIMUM SUPPLY PRESSURE: 4.5" WATER COLUMN
MAXIMUM SUPPLY PRESSURE: 7.0" WATERCOLUMN
MANIFOLD PRESSURE: 10" WATER COLUMN
MINIMUM SUPPLY PRESSURE: 11" WATER COLUMN
MAXIMUM SUPPLY PRESSURE: 13" WATER COLUMN
0-4500FT(0-1370m)
6,000BTU/h
#69
0-4500FT(0-1370m)
6,000BTU/h
#56
CERTIFIED FOR CANADA AND USA
GT8N
MODEL
GT8P
MODEL
W385-0381 / D
GT8
VENTED GAS FIREPLACE NOT FOR USE WITH SOLID FUEL. FOR USE WITH GLASS
DOOR. CERTIFIED WITH THIS UNIT ONLY.
WARNING: DO NOT ADD ANY MATERIAL TO THE
APPLIANCE, WHICH WILL COME IN CONTACT WITH
THE FLAMES, OTHER THAN THAT SUPPLIED BY THE
MANUFACTURER WITH THE APPLIANCE.
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS
TOP 6” RECESSED DEPTH 7”
FLOOR 0” VENT TOP 2”
SIDES 0” VENT SIDES & BOTTOM 1“
BACK 1 1/2”
MINIMUM AND MAXIMUM HORIZONTAL VENT LENGTHS
ARE 4 INCHES AND 10 FEET RESPECTIVELY.
MINIMUM AND MAXIMUM VERTICAL VENT LENGTHS
ARE 36 INCHES AND 10 FEET RESPECTIVELY.
MADEIN CANADA
WOLF STEEL LTD, BARRIE, ON, CANADA
SERIALNUMBER:
THE APPLIANCE MUST BE VENTED USING THEAPPROPRIATE NAPOLEON VENT
KITS, SEE OWNERS INSTALLATION MANUAL FOR VENTING SPECIFICS. PROPER
REINSTALLATION AND RESEALING IS NECESSARYAFTER SERVICING THE
VENT-AIR INTAKE SYSTEM.
ELECTRICAL RATING: 115v 0.82AMP, 60HZ
REFERENCE #15901
TOP, SIDES & BACKAS PER ABOVE. FOR FINISHING
MATERIAL, SEE OWNERS MANUAL.
(NATURAL GAS) (PROPANE)
THIS APPLIANCE IS ONLY FOR USE WITH THE TYPE OF GAS INDICATED ON THE
RATING PLATE AND MY BE INSTALLED IN AN AFTERMARKET, PERMANENTLY
LOCATED, MANUFACTURED HOME (USA ONLY) OR MOBILE HOME WHERE NOT
PROHIBITED BY LOCAL CODES. SEE OWNER’S MANUAL FOR DETAILS. THIS
APPLIANCE IS NOT CONVERTIBLE FOR USE WITH OTHER GASES, UNLESS A
CERTIFIED KIT IS USED.
RATING LABEL LOCATION: THE RATING LABEL IS LOCATED UNDER THE CONTROL PANEL AND IS
CHAINED TO THE APPLIANCE. DO NOT REMOVE.
SAMPLE
SAMPLE
SAMPLE
AND BED SITTIN
ANCE WITH THE CUR
E UNITED STATES THE M
N THIS US STANDAR
NSTALLATIONS,
UDE
N
P
U
T
RIFICE
OLUM
COLUM
N
COLUM
N
MANIFOLD
NIMUM
SU
MAXIMUM
SUP
0-
D USA
L
L
GT
O
D
L
VENTED GAS FIREPLAC
D
OO
R. CERTIFIED W
ATER
H 7”
2”
TTOM 1“
ORIZONTAL VENT LENGTH
0 FEET RESPECTIVE
M VERTICAL VENT
T RESPECT
THE APPLIANCE
KITS, SEE OW
REINSTALLA
VENT-AI
.82AMP, 60HZ
VE. FOR FINISHING
NUAL.
(PRO
THIS A
RAT
L
For rating plate location, see “INSTALLATION OVERVIEW” section.
This illustration is for reference only. Refer to the rating plate on the appliance for accurate information.

8
W415-0794 / A / 06.08.10
3.0 VENTING
7.4
THIS APPLIANCE USES A 3” EXHAUST / 5” AIR INTAKE VENT PIPE SYSTEM.
Refer to the section applicable to your installation.
For safe and proper operation of the appliance follow the venting instruction exactly. Deviation from the
minimum vertical vent length can create difficulty in burner start-up and/or carboning. Under extreme vent
configurations, allow several minutes (5-15) for the flame to stabilize after ignition. Vent lengths that pass
through unheated spaces (attics, garages, crawl spaces) should be insulated with the insulation wrapped in
a protective sleeve to minimize condensation. Provide a means for visually checking the vent connection to
the appliance after the appliance is installed. Use a firestop, vent pipe shield or attic insulation shield when
penetrating interior walls, floor or ceiling.
NOTE: If for any reason the vent air intake system is disassembled; reinstall per the instructions
provided for the initial installation.
!
WARNING
RISK OF FIRE, MAINTAIN SPECIFIED AIR SPACE CLEARANCES TO VENT PIPE AND APPLIANCE.
IF VENTING IS INCLUDED WITH SPACERS THE VENT SYSTEM MUST BE SUPPORTED EVERY 3 FEET
FOR BOTH VERTICAL AND HORIZONTAL RUNS. USE SUPPORTS OR EQUIVALENT
NON-COMBUSTIBLE STRAPPING TO MAINTAIN THE REQUIRED CLEARANCE FROM
COMBUSTIBLES. USE WOLF STEEL LTD. SUPPORT RING ASSEMBLY W010-0370 OR EQUIVALENT
NON-COMBUSTIBLE STRAPPING TO MAINTAIN THE MINIMUM CLEARANCE TO COMBUSTIBLES
FOR BOTH VERTICAL AND HORIZONTAL RUNS. SPACERS ARE ATTACHED TO THE INNER PIPE AT
PREDETERMINED INTERVALS TO MAINTAIN AN EVEN AIR GAP TO THE OUTER PIPE. THIS GAP IS
REQUIRED FOR SAFE OPERATION. A SPACER IS REQUIRED AT THE START, MIDDLE AND END OF
EACH ELBOW TO ENSURE THIS GAP IS MAINTAINED. THESE SPACERS MUST NOT BE REMOVED.
3.1 VENTING LENGTHS AND COMPONENTS
The vent connection to the appliance can be viewed by removing the baffle from the top, inside of the firebox.
Use only Wolf Steel venting components. Minimum and maximum vent lengths, for both horizontal and
vertical installations, and air terminal locations for either system are set out in this manual and must be
adhered to. Use only Wolf Steel Ltd. flexible vent components with the Wolf Steel Ltd. GD179
termination kit. This appliance uses a 3” diameter exhaust and a 5” diameter intake coaxial vent system.
All outer pipe joints of these venting systems must be sealed using Red RTV and/or Mill Pac high temperature
sealant (not supplied) hereafter referred to as high temperature sealant W573-0002 (Red RTV) and the high
temperature sealant W573-0007 (Mill Pac).
For vent systems that provide seals on the inner exhaust flue, only the outer air intake joints must be sealed
using a red high temperature silicone (RTV). This same sealant may be used on both the inner exhaust and
outer intake vent pipe joints of all other approved vent systems except for the exhaust vent pipe connection to
the appliance flue collar which must be sealed using the black high temperature sealant Mill Pac.
With flexible venting, in conjunction with the GD178 wall terminal kit, use either the 5 foot vent kit GDT5 or
the 10 foot vent kit GDT10. These kits allow for extended horizontal venting of the appliance.
When using approved Wolf Steel venting components, use only the following termination kits: WALL
TERMINAL KIT GD178, or 1/12 TO 7/12 PITCH ROOF TERMINAL KIT GDT110, 8/12 TO 12/12 ROOF
TERMINAL KIT GDT111, FLAT ROOF TERMINAL KIT GDT112.
For optimum flame appearance and appliance performance, keep the vent length and number of
elbows to a minimum.
The air terminal must remain unobstructed at all times. Examine the air terminal at least once a year
to verify that it is unobstructed and undamaged.
Rigid and flexible venting systems must not be combined. Different venting manufacturer
components must not be combined.

9
W415-0794 / A / 06.08.10
These vent kits allow for either horizontal or vertical venting of the appliance. The maximum allowable
horizontal run is 7 feet. The maximum allowable vertical vent length is 19 ½ feet. The maximum number
of vent connections is two horizontally or three vertically (excluding the appliance and the air terminal
connections) when using flexible venting. 8.6
3.2 VENT TERMINAL CLEARANCES
INSTALLATIONS
CANADA U.S.A.
A12” 12” Clearance above grade, veranda porch, deck or balcony.
B12” Δ9” ΔClearance to windows or doors that open.
C12” * 12” * Clearance to permanently closed windows.
D18” ** 18” ** Vertical clearance to ventilated soffits located above the terminal within a horizontal distance of 2’ from
the centerline of the terminal.
E12” ** 12” ** Clearance to unventilated soffit.
F0” 0” Clearance to an outside corner wall.
G0” *** 0” *** Clearance to an inside non-combustible corner wall or protruding non-combustible obstructions (chimney, etc.).
2” *** 2” *** Clearance to an inside combustible corner wall or protruding combustible obstructions (vent chase, etc.).
H3’ 3’ **** Clearance to each side of the centerline extended above the meter / regulator assembly to a maximum
vertical distance of 15’.
I3’ 3’ **** Clearance to a service regulator vent outlet.
J12” 9” Clearance to a non-mechanical air supply inlet to the building or a combustion air inlet to any other appliance.
K6’ 3’ † Clearance to a mechanical air supply inlet.
L7’ ‡ 7’ **** Clearance above a paved sidewalk or paved driveway located on public property.
M12” †† 12” **** Clearance under a veranda, porch, deck or balcony.
N16” 16” Clearance above the roof.
O2’ †* 2’ †* Clearance from an adjacent wall including neighbouring buildings.
P8’ 8’ Roof must be non-combustible without openings.
Q3’ 3’ See chart for wider wall dimensions.
R6’ 6’ See chart for deeper wall dimensions. The terminal shall not be installed on any wall that has an open-
ing between the terminal and the open side of the structure.
ΔThe terminal shall not be located less than 6 feet under a window that opens on a horizontal plane in a structure with three walls and a roof.
* Recommended to prevent condensation on windows and thermal breakage
** it is recommended to use a heat shield and to maximize the distance to vinyl clad soffits.
*** The periscope requires a minimum 18 inches clearance from an inside corner.
**** This is a recommended distance. For additional requirements check local codes.
† 3 feet above if within 10 feet horizontally.
‡ A vent shall not terminate directly above a sidewalk or paved driveway that is located between two single family dwellings and serves both dwellings.
†† Permitted only if the veranda, porch, or deck is fully open on a minimum of two sides beneath the floor.
†* Recommended to prevent recirculation of exhaust products. For additional requirements check local codes.
B
BG
A
F
CH
H
L
K
J
M
N
DE
O
O
12.5A
NOTE: Clearances are in accordance with local installation codes and the requirements of the gas supplier.
R
QM
GP
COVERED BALCONY APPLICATIONS
QMIN
RMAX
MAX
R
= 3 feet
= 2 x
 feet
QACTUAL

10
W415-0794 / A / 06.08.10
3.3 HORIZONTAL TERMINATION
MIN MAX
Allowable 3” vent connections (excluding appliance and air terminal connections) N/A 1
Rise per foot (recommended) 1/4” N/A
Rise per foot (allowable) 0” N/A
Horizontal run (If vent run does not include vertical rise) 4” 24”
Horizontal run (if vent run includes vertical rise) 4” 7 FT
Vertical run
(* Immediately off the appliance, if 7 FT maximum horizontal run is required) 18”* 7 FT
01 2 3 4 5 6 7 8 9 10
10
9
8
7
6
5
4
3
2
1
1.5
HORIZONTAL VENT RUN PLUS OFFSET IN FEET (HT)
REQUIRED
VERTICAL
RISE IN
FEET (VT)
See graph to determine the required vertical rise VTfor the required horizontal rise HT.
4” MIN.
24” MAX.
8”
18” MINIMUM
MAXIMUM
HORIZONTAL 7 FT MAX.
4”
MIN.
8”
4”
MIN.
9 FT
MAX.
MAXIMUM
VERITICAL

11
W415-0794 / A / 06.08.10
24”
MIN.
MINIMUM
VERITICAL
4”
MIN.
24”
MIN.
MINIMUM
VERITICAL
MAXIMUM
HORIZONTAL
5 FT MAX.
15 FT
MAX.
4”
MIN.
MAXIMUM
VERTICAL
19 1/2 FT
MAX.
4”
MIN.
MIN MAX
Allowable 3” vent connections (excluding appliance and air terminal connections) N/A 2
Rise per foot (recommended) 1/4” N/A
Rise per foot (allowable) 0” N/A
Vertical run (when not venting horizontally) 24” 19 1/2 FT
Horizontal run 4” 5 FT
01 2 3 4 5 6 7 8 9 10
20
HORIZONTAL VENT RUN PLUS OFFSET IN FEET (HT)
REQUIRED
VERTICAL
RISE IN
FEET (VT)
18
16
14
12
10
8
6
4
2
19.5
15
1.33
See graph to determine the required vertical rise VTfor the required horizontal rise HT.
3.4 VERTICAL TERMINATION

12
W415-0794 / A / 06.08.10
4.0 INSTALLATION
4.1 WALL AND CEILING PROTECTION
For clearances to combustible materials from the vent pipe, see “FRAMING” section.
!
WARNING
FOR SAFE AND PROPER OPERATION OF THE APPLIANCE, FOLLOW THE VENTING INSTRUCTIONS
EXACTLY.
ALL INNER EXHAUST AND OUTER INTAKE VENT PIPE JOINTS MAY BE SEALED USING EITHER RED
RTV HIGH TEMP SILICONE SEALANT W573-0002 (NOT SUPPLIED) OR BLACK HIGH TEMP MILL PAC
W573-0007 (NOT SUPPLIED) WITH THE EXCEPTION OF THE APPLIANCE EXHAUST FLUE COLLAR
WHICH MUST BE SEALED USING MILL PAC.
IF USING PIPE CLAMPS TO CONNECT VENT COMPONENTS, 3 SCREWS MUST ALSO BE USED TO
ENSURE THE CONNECTION CANNOT SLIP OFF.
DO NOT CLAMP THE FLEXIBLE VENT PIPE.
RISK OF FIRE, EXPLOSION OR ASPHYXIATION. IMPROPER SUPPORT OF THE ENTIRE VENTING
SYSTEM MAY ALLOW VENT TO SAG AND SEPARATE. USE VENT RUN SUPPORTS AND CONNECT
VENT SECTIONS PER INSTALLATION INSTRUCTIONS.
RISK OF FIRE, DO NOT ALLOW LOOSE MATERIALS OR INSULATION TO TOUCH THE VENT PIPE.
REMOVE INSULATION TO ALLOW FOR THE INSTALLATION OF THE ATTIC SHIELD AND TO
MAINTAIN CLEARANCES TO COMBUSTIBLES.
68.2A
!
WARNING
DO NOT FILL THE SPACE BETWEEN THE VENT PIPE AND ENCLOSURE WITH ANY TYPE OF
MATERIAL. DO NOT PACK INSULATION OR COMBUSTIBLES BETWEEN CEILING FIRESTOPS.
ALWAYS MAINTAIN SPECIFIED CLEARANCES AROUND VENTING AND FIRESTOP SYSTEMS.
INSTALL WALL SHIELDS AND FIRESTOPS AS SPECIFIED. FAILURE TO KEEP INSULATION OR
OTHER MATERIALS AWAY FROM VENT PIPE MAY CAUSE FIRE.
70.1

13
W415-0794 / A / 06.08.10
4.2 HORIZONTAL INSTALLATION
This application occurs when venting through an exterior wall.
Having determined the correct height for the air terminal
location, cut and frame a hole in the exterior wall as
illustrated to accommodate the firestop assembly.
Dry fit the firestop assembly before proceeding to
ensure the brackets on the rear surface fit to the
inside surface of the horizontal framing.
The length of the vent shield may be cut shorter
for combustible walls that are less than 8 1/2” thick
but the vent shield must extend the full depth of the
combustible wall.
A
. Apply a bead of caulking (not supplied) around the corner edge of
the inside surface of the firestop assembly, fit the firestop
assembly to the hole and secure using the 4 screws (supplied in your
manual baggie).
B. Once the vent pipe is installed in its final position, apply high temperature sealant W573-0007 (not
supplied) between the pipe and the firestop.
DETERMINE
THE
CORRECT
HEIGHT
CAULKING
FIRESTOP
SPACER
VENT
SHIELD
FINISHING
MATERIAL
20.2
!
WARNING
THE FIRESTOP ASSEMBLY MUST BE INSTALLED WITH THE VENT SHIELD TO THE TOP.
TERMINALS MUST NOT BE RECESSED INTO A WALL OR SIDING MORE THAN THE DEPTH OF THE
RETURN FLANGE OF THE MOUNTING PLATE.
4.3 VERTICAL INSTALLATION
This application occurs when venting through a roof. Installation kits for
various roof pitches are available from your authorized dealer / distributor. See
accessories to order specific kits required.
A. Determine the air terminal location, cut and frame a square opening as
illustrated in the ceiling and the roof to provide the minimum 1“ clearance
between the vent pipe and any combustible material. Try to center the vent
pipe location midway between two joists to prevent having to cut them. Use
a plumb bob to line up the center of the openings. A vent pipe shield will
prevent any materials such as insulation, from filling up the 1” air space
around the pipe. Nail headers between the joist for extra support.
B. Apply a bead of caulking (not supplied) to the framework or to the Wolf
Steel vent pipe shield plate or equivalent (in the case of a finished ceiling),
and secure over the opening in the ceiling. A firestop must be placed on the
bottom of each framed opening in a roof or ceiling that the venting system passes
through. Apply a bead of caulking all around and place a firestop spacer over
the vent shield to restrict cold air from being drawn into the room or around the
fireplace. Ensure that both spacer and shield maintain the required clearance to
combustibles. Once the vent pipe is installed in its final position, apply sealant
between the pipe and the firestop assembly.
C. In the attic, slide the vent pipe collar down to cover up the open end of the shield and tighten.
This will prevent any materials, such as insulation, from filling up the 1” air space around the
pipe. 21.1
CAULKING
VENT PIPE
SHIELD
FIRESTOP
UNDERSIDE OF
JOIST
VENT
PIPE
COLLAR
VENT
PIPE
SHIELD
8” 8”

14
W415-0794 / A / 06.08.10
4.4 USING FLEXIBLE VENT COMPONENTS
For safe and proper operation of the appliance, follow the venting
instructions exactly.
All inner flex pipe and outer flex pipe joints may be sealed using high
temperature sealant W573-0002 (not supplied) or the high temperature
sealant W573-0007 Mill Pac (not supplied). However, the high temperature
sealant W573-0007 Mill Pac (not supplied) must be used on the joint
connecting the inner flex pipe and the exhaust flue collar.
Use only approved flexible vent pipe kits marked:
“Wolf Steel Approved Venting” as identified
by the stamp only on the outer flex pipe.
22.1
ELBOW
SPACERS
DO NOT ALLOW THE INNER FLEX PIPE TO BUNCH UP ON HORIZONTAL OR VERTICAL RUNS AND ELBOWS.
KEEP IT PULLED TIGHT.
SPACERS ARE ATTACHED TO THE INNER FLEX PIPE AT PREDETERMINED INTERVALS TO MAINTAIN AN EVEN
AIR GAP TO THE OUTER FLEX PIPE. THIS GAP IS REQUIRED FOR SAFE OPERATION. A SPACER IS REQUIRED
AT THE START, MIDDLE AND END OF EACH ELBOW TO ENSURE THIS GAP IS MAINTAINED. THESE SPACERS
MUST NOT BE REMOVED.
!
WARNING
4.4.1 HORIZONTAL AIR TERMINAL INSTALLATION
A. Stretch the inner flex pipe to the required length taking into
account the additional length needed for the finished wall
surface. Slip the vent pipe a minimum of 2” over the inner
sleeve of the air terminal and secure with 3 #8 screws. Apply
a heavy bead of the high temperature sealant W573-0007
Mill Pac (not supplied).
B. Using the outer flex pipe, slide over the outer combustion air
sleeve of the air terminal and secure with 3 #8 screws. Seal using
high temperature sealant W573-0002 (not supplied).
C. Insert the vent pipes through the firestop maintaining the required
clearance to combustibles. Holding the air terminal (lettering in an upright,
readable position), secure to the exterior wall and make
weather tight by sealing with caulking (not supplied).
D. If more vent pipe needs to be used to reach the fireplace,
couple them together as illustrated. The vent system must
be supported approximately every 3 feet for both vertical
and horizontal runs. Use noncombustible strapping to
maintain the minimum clearance to combustibles.
The air terminal mounting plate may be recessed into the
exterior wall or siding no greater than the depth of its return
flange. 23.8
I
NNER
F
L
E
X
P
IPE
1 1/2” OVERLAP
HIGH
TEMPERATURE
SEALANT
EXTERIOR
WALL
CAULKING
OUTER FLEX
PIPE
#10 X 2”
SCREWS
HI-TEMP
SEALANT
#8 X 1/2” SELF DRILLING
SCREWS & WASHERS
INNER COUPLER
OUTER COUPLER
OUTER
FLEX PIPE INNER
FLEX PIPE
OUTER
FLEX PIPE

15
W415-0794 / A / 06.08.10
4.4.2 VERTICAL AIR TERMINAL INSTALLATION
A. Fasten the roof support to the roof using the screws provided. The
roof support is optional. In this case the venting is to be adequately
supported using either an alternate method suitable to the authority
having jurisdiction or the optional roof support.
B. Stretch the inner flex pipe to the required length. Slip the
inner flex pipe a minimum of 2” over the inner pipe of the air
terminal connector and secure with 3 #8 screws. Seal using
a heavy bead of high temperature sealant W573-0007 (not
supplied).
C. Repeat using the outer flex pipe, using a heavy bead of high
temperature sealant W573-0002 (not supplied).
D. Thread the air terminal connector / vent pipe assembly down through the
roof. The air terminal must be positioned vertically and plumb. Attach the
air terminal connector to the roof support, ensuring that the top of the air
terminal is 16” above the highest point that it penetrates the roof.
E. Remove nails from the shingles, above and to the sides of the air
terminal connector. Place the flashing over the air terminal connector
leaving a min. 3/4” of the air terminal connector showing above the
top of the flashing. Slide the flashing underneath the sides and upper
edge of the shingles. Ensure that the air terminal connector is properly
centred within the flashing, giving a 3/4” margin all around. Fasten to
the roof. Do not nail through the lower portion of the flashing. Make
weather-tight by sealing with caulking. Where possible, cover the sides
and top edges of the flashing with roofing material.
F. Aligning the seams of the terminal and air terminal connector, place the
terminal over the air terminal connector making sure the vent pipe goes
into the hole in the terminal. Secure with the three screws provided.
G. Apply a heavy bead of weatherproof caulking 2” above the flashing.
Install the storm collar around the air terminal and slide down to the
caulking. Tighten to ensure that a weather-tight seal between the air
terminal and the collar is achieved.
H. If more vent pipe needs to be used to reach the appliance see “HORIZONTAL AIR
TERMINAL INSTALLATION” section. 24.3
ROOF SUPPORT
INNER FLEX PIPE
INNER PIPE
HIGH
TEMPERATURE
SEALANT
AIR
TERMINAL
CONNECTOR
OUTER FLEX PIPE
STORM
COLLAR
FLASHING
CAULKING
WEATHER
SEALANT
2”
AIR INLET
BASE
MAINTAIN A MINIMUM 2” SPACE BETWEEN THE AIR INLET BASE AND THE STORM COLLAR.
!
WARNING

16
W415-0794 / A / 06.08.10
4.4.3 APPLIANCE VENT CONNECTION
A. Install the inner flex pipe to the fireplace. Secure with
3 screws and flat washers. Seal the joint and screw
holes using the high temperature sealant W573-0007
(not supplied).
B. Install the outer flex pipe to the fireplace. Attach and
seal the joints using the high temperature sealant
W573-0002 (not supplied).
28.4
HIGH
TEMPERATURE
SEALANT
SCREWS
1 1/2” OVERLAP
4.5 GAS INSTALLATION
30.1A
Installation and servicing to be done by a qualified installer. Do not use open flame.
• Move the appliance into position and secure.
• If equipped with a flex connector the appliance is designed to accept a 1/2” gas supply. Without the
connector it is designed to accept a 3/8” gas supply. The appliance is equipped with a manual shut off
valve to turn off the gas supply to the appliance.
• Connect the gas supply in accordance to local codes. In the absence of local codes, install to the
current CAN/CSA-B149.1 Installation Code in Canada or to the current National Fuel Gas Code, ANSI
Z223.1 / NFPA 54 in the United States.
• When flexing any gas line, support the gas valve so that the lines are not bent or kinked.
• The gas line flex-connector should provide sufficient movement to permit shifting the burner assembly
on it’s side.
• Check for gas leaks by brushing on a soap and water solution.
!
WARNING
RISK OF FIRE, EXPLOSION OR ASPHYXIATION. ENSURE THERE ARE NO IGNITION SOURCES SUCH AS
SPARKS OR OPEN FLAMES.
SUPPORT GAS CONTROL WHEN ATTACHING GAS SUPPLY PIPE TO PREVENT DAMAGING GAS LINE.
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT
WITH THE GLASS DOOR OPENED OR REMOVED. PURGING OF THE GAS SUPPLY LINE SHOULD BE
PERFORMED BY A QUALIFIED SERVICE TECHNICIAN. ASSURE THAT A CONTINUOUS GAS FLOW IS AT
THE BURNER BEFORE CLOSING THE DOOR. ENSURE ADEQUATE VENTILATION. FOR GAS AND
ELECTRICAL LOCATIONS, SEE “DIMENSION” SECTION.
ALL GAS CONNECTIONS MUST BE CONTAINED WITHIN THE APPLIANCE WHEN COMPLETE.
HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE TESTING GAS
LINE AT TEST PRESSURES ABOVE 1/2 PSIG.
VALVE SETTINGS HAVE BEEN FACTORY SET, DO NOT CHANGE.
4.5.1
4.5.2
4.5.3
4.5.4
4.5.5
4.5.6

17
W415-0794 / A / 06.08.10
4.6 MOBILE HOME
This appliance is certified to be installed as an OEM (Original Equipment Manufacturer) installation in
a manufactured home or mobile home and must be installed in accordance with the manufacturer’s
instructions and the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in
the United States or the Mobile Home Standard, CAN/CSA Z240 MH Series, in Canada. This appliance is
only for use with the type(s) of gas indicated on the rating plate. A conversion kit is supplied with the mobile
home appliance.
29.3
This Mobile/Manufactured Home Listed appliance comes factory equipped with a means to secure the unit. For
mobile home installations, the appliance must be fastened in place. It is recommended that the appliance be
secured in all installations. Always turn off the pilot and the fuel supply at the source, prior to moving the mobile
home. After moving the mobile home and prior to lighting the appliance, ensure that the logs are positioned
correctly.
This appliance is certified to be installed in an aftermarket permanently located, manufactured (mobile)
home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a certified kit is used.
Conversion Kits
This appliance is field convertible between Natural Gas (NG) and Propane (LP).
To convert from one gas to another consult your Authorized dealer/distributor.

18
W415-0794 / A / 06.08.10
The has been designed to be installed mid-way up a wall. If installing this appliance close to the fin-
ished floor, the appliance must be raised a minimum of 2” (unobstructed) to allow for full rotation of the control
door. It is not necessary to install floor protection.
Although the appliance fits between studs, most jurisdictions will not allow a “hole” in the warm air envelope of
a residential structure. It is recommended to build either an interior or exterior chase with a minimum depth of
7”.
It is best to frame your appliance after it is positioned and the vent system is installed. Frame to local building
codes.
To install the appliance face flush with the finished surface, position the framework to accommodate the thick-
ness of the finished surface. Use 4 flat-head screws to secure the nailing tabs to the framing. Cover the nail-
ing tabs with your finishing material.
5.0 FRAMING
!
WARNING
RISK OF FIRE!
IN ORDER TO AVOID THE POSSIBILITY OF EXPOSED INSULATION OR VAPOUR BARRIER COMING
IN CONTACT WITH THE APPLIANCE BODY, IT IS RECOMMENDED THAT THE WALLS OF THE APPLI-
ANCE ENCLOSURE BE “FINISHED” (IE: DRYWALL / SHEETROCK), AS YOU WOULD FINISH ANY
OTHER OUTSIDE WALL OF A HOME. THIS WILL ENSURE THAT CLEARANCE TO COMBUSTIBLES IS
MAINTAINED WITHIN THE CAVITY.
DO NOT NOTCH THE FRAMING AROUND THE APPLIANCE STAND-OFFS. FAILURE TO MAINTAIN AIR
SPACE CLEARANCE MAY CAUSE OVER HEATING AND FIRE. PREVENT CONTACT WITH SAGGING
OR LOOSE INSULATION OR FRAMING AND OTHER COMBUSTIBLE MATERIALS. BLOCK OPENING
INTO THE CHASE TO PREVENT ENTRY OF BLOWN-IN INSULATION. MAKE SURE INSULATION AND
OTHER MATERIALS ARE SECURED.
WHEN CONSTRUCTING THE ENCLOSURE ALLOW FOR FINISHING MATERIAL THICKNESS TO MAIN-
TAIN CLEARANCES. FRAMING OR FINISHING MATERIAL CLOSER THAN THE MINIMUMS LISTED
MUST BE CONSTRUCTED ENTIRELY OF NON-COMBUSTIBLE MATERIALS. MATERIALS CONSISTING
ENTIRELY OF STEEL, IRON, BRICK, TILE, CONCRETE, SLATE, GLASS OR PLASTERS, OR ANY COM-
BINATION THEREOF ARE SUITABLE. MATERIALS THAT ARE REPORTED AS PASSING ASTM E 136,
STANDARD TEST METHOD FOR BEHAVIOUR OF MATERIALS IN A VERTICAL TUBE FURNACE AT
750°C AND UL763 SHALL BE CONSIDERED NON-COMBUSTIBLE MATERIALS.
MINIMUM CLEARANCE TO COMBUSTIBLES MUST BE MAINTAINED OR A SERIOUS FIRE HAZARD
COULD RESULT.
THE APPLIANCE REQUIRES A MINIMUM ENCLOSURE HEIGHT. MEASURE FROM THE APPLIANCE
BASE.
IF STEEL STUD FRAMING KITS WITH CEMENT BOARD ARE PROVIDED, THEY MUST BE INSTALLED.
71.1

19
W415-0794 / A / 06.08.10
Minimum clearance to combustible construction from appliance and vent surfaces:
Appliance framing: - 6” to top
- 0” to stand-offs
(Rear and sides)
Vent pipe*: - 2” top
- 1” sides and bottom
Recessed depth: - 7”
WITHOUT FRAME INSTALLED WITH FRAME INSTALLED
5.1 MINIMUM CLEARANCE TO COMBUSTIBLES
2” MIN.*
12” MIN. TO
COMBUSTIBLES
(to ceiling or mantle)
1 1/2” MIN.
* Any protruding
finishing material
installed in this space
(ie. baseboards) must
leave 2” of
unobstructed clearance
to allow for full rotation
of the control door.
COMBUSTIBLE NON-COMBUSTIBLE
2”
1”
0” IF
NON-COMBUSTIBLE
FINISHING IS USED
SUCH AS BRICK AND
STONE.
BRICK
6” MIN.
FRAME
CONTROL
DOOR (OPEN
POSITION)
* HORIZONTAL VENT SECTIONS: A minimum clearance of 1” at the bottom and sides and 2” at the top of the
vent pipe in all horizontal runs to combustibles is required. Use firestop spacer W010-1961 (supplied).
* VERTICAL VENT SECTIONS: A minimum of 1” all around the vent pipe on all vertical runs to combustibles
is required. Use firestop spacer W500-0358 (not supplied).

20
W415-0794 / A / 06.08.10
NOTE: Finished opening is smaller than the framed opening.
T
O
RC
H
T
M
44 1/4"
7" 14 1/2"
T
ORCH
TM
FRAMING OPENING
DIMENSIONS INSTALLATION FINISHING OPENING
DIMENSIONS
1 2 3
34 7/8"
11 5/8"
21 1/4"
14 1/2"
30”
INSIDE
CHASE
14 1/2"2"
14
1
/ 2 "
7"
OUTSIDE
CHASE
INTERIOR BUILT-OUT
EXTERIOR CHASE
4"6"
7"
2"4"
SIDE
WALL
PROTRUSION
5.2 MINIMUM ENCLOSURE CLEARANCES
