CERTIFIED TO THE CANADIAN AND AMERICAN NATIONAL STANDARDS:
CSA 2.22 AND ANSI Z21.50 FOR VENTED DECORATIVE GAS APPLIANCES
INSTALLER:
Leave this manual with the appliance
CONSUMER:
Retain this manual for future reference
ADD PRODUCT CODE HERE (TRADE GOTHIC LT STD FONT)
NATURAL GAS MODELS:
PROPANE GAS MODELS:
Product Name / Code
(MUST use title from Price Book)
ADD ____ ILLUSTRATED
ADD PRODUCT IMAGE
CSA /
INTERTEK
LOGO
SAFETY INFORMATION
- Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbour’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call
the fire department.
- Installation and service must be
performed by a qualified installer, service
agency, or the supplier.
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certified kit is used.
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
WARNING
!
ENGLISH
$10.00
FOR INDOOR USE ONLY
IF INSTALLATION + OPERATION, ADD SERIAL
NUMBER LABEL HERE
IF SEPARATE MANUALS, ADD “PLACE
BARCODE LABEL ON THE OWNER’S MANUAL”
INSTALLATION MANUAL
FOR INDOOR USE ONLY
FOR USE WITH VECTOR™ MODELS ONLY
LV38N/P-1 / LV38N/P2-1 / LV50N/P-2 / LV50N/P2-2 /
LV62N/P / LV62N/P2 / LV74N/P / LV74N/P2
(STANDARD ON ALL LUXURIA™ MODELS)
These installation instructions MUST be used in conjunction with the Vector™ installation manual.
Dynamic Heat Control™
air outlet opening
(Installation Option 2 illustrated)
CERTIFIED TO THE CANADIAN AND AMERICAN NATIONAL STANDARDS:
CSA 2.22 AND ANSI Z21.50 FOR VENTED DECORATIVE GAS APPLIANCES

W415-2373 / B / 04.30.21
EN
2
table of contents
The information throughout this manual is believed to be correct at the time of printing. Wolf Steel
Ltd. reserves the right to change or modify any information within this manual at any time without
notice. Changes, other than editorial, are denoted by a vertical line in the margin.
note:
!
WARNING:
This product can expose you to chemicals including chromium, which are
known to the State of California to cause cancer, and chemicals including toluene, which are
known to the State of California to cause birth defects or other reproductive harm.
For more information, go to www.P65Warnings.ca.gov.
1.0 general information 3
2.0 installation planning 4
2.1 installation option 1 - open enclosure (enclosure stops short of the ceiling) 5
2.2 installation option 2 - front opening 5
2.3 installation option 3 - rear opening 6
2.4 installation option 4 - open enclosure with hard combustible valance 7
3.0 appliance overview 8
4.0 Dynamic Heat Control™ installation 9
4.1 high limit switch installation 11
5.0 minimum framing dimensions 13

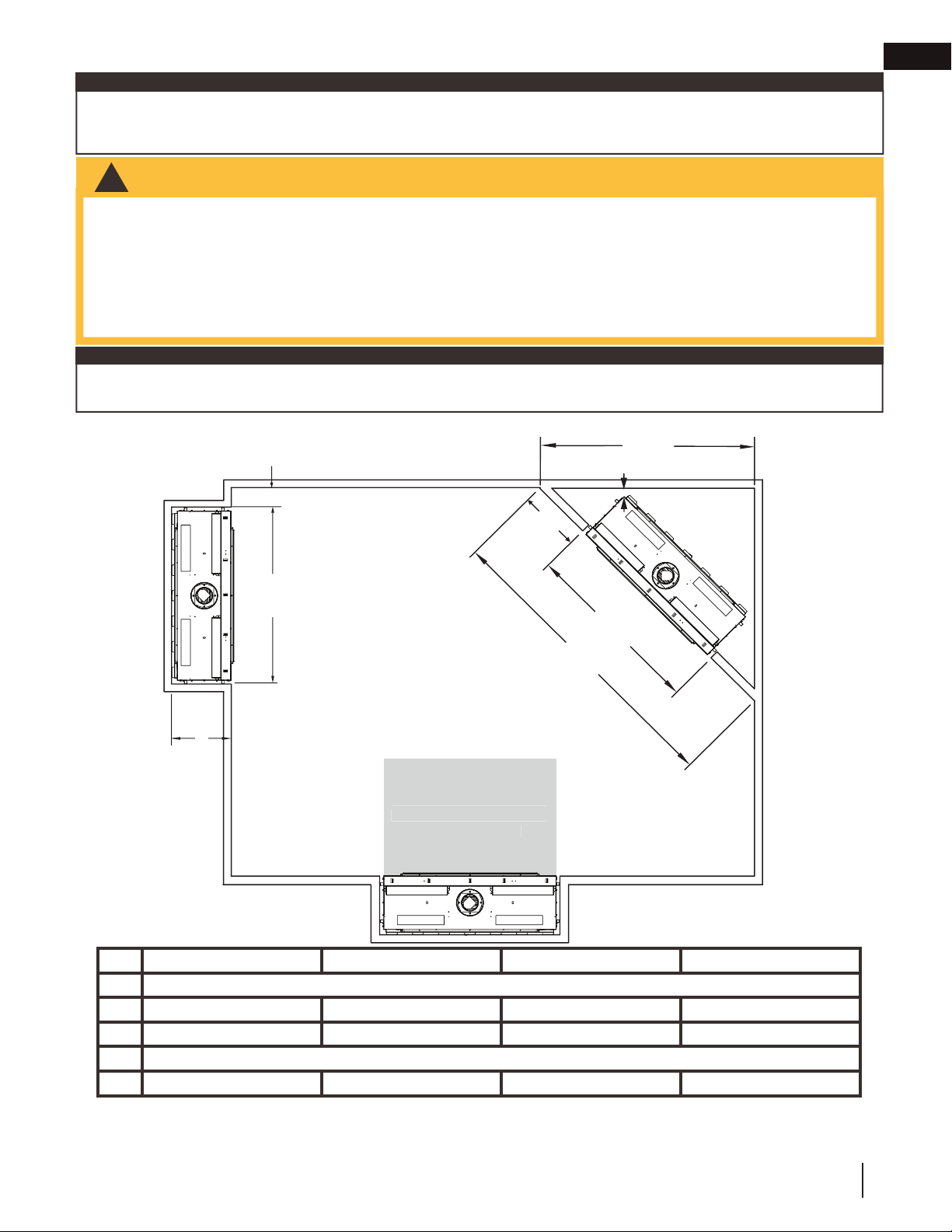

6.0 minimum clearance to combustible enclosures 14

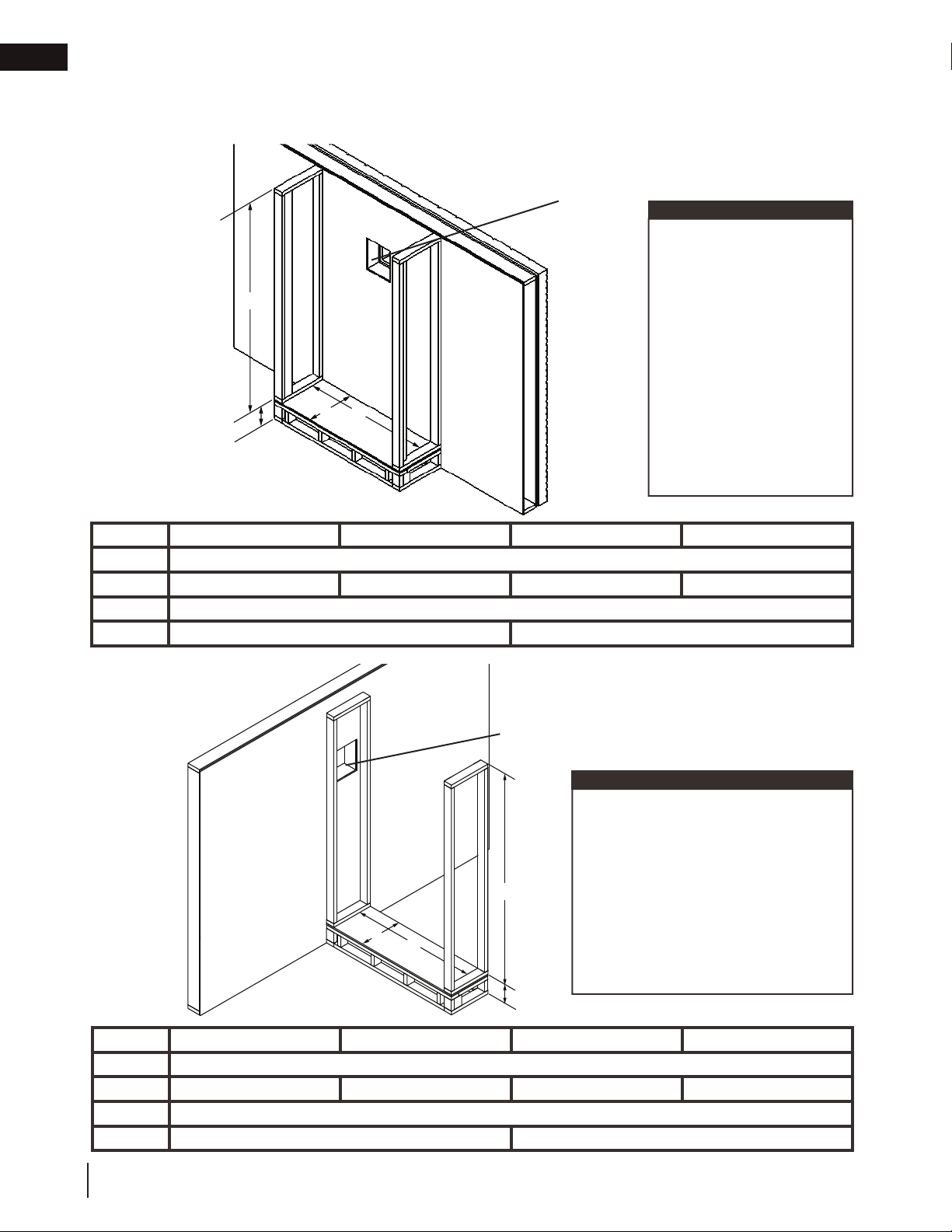

7.0 rough framing - before appliance installation 16

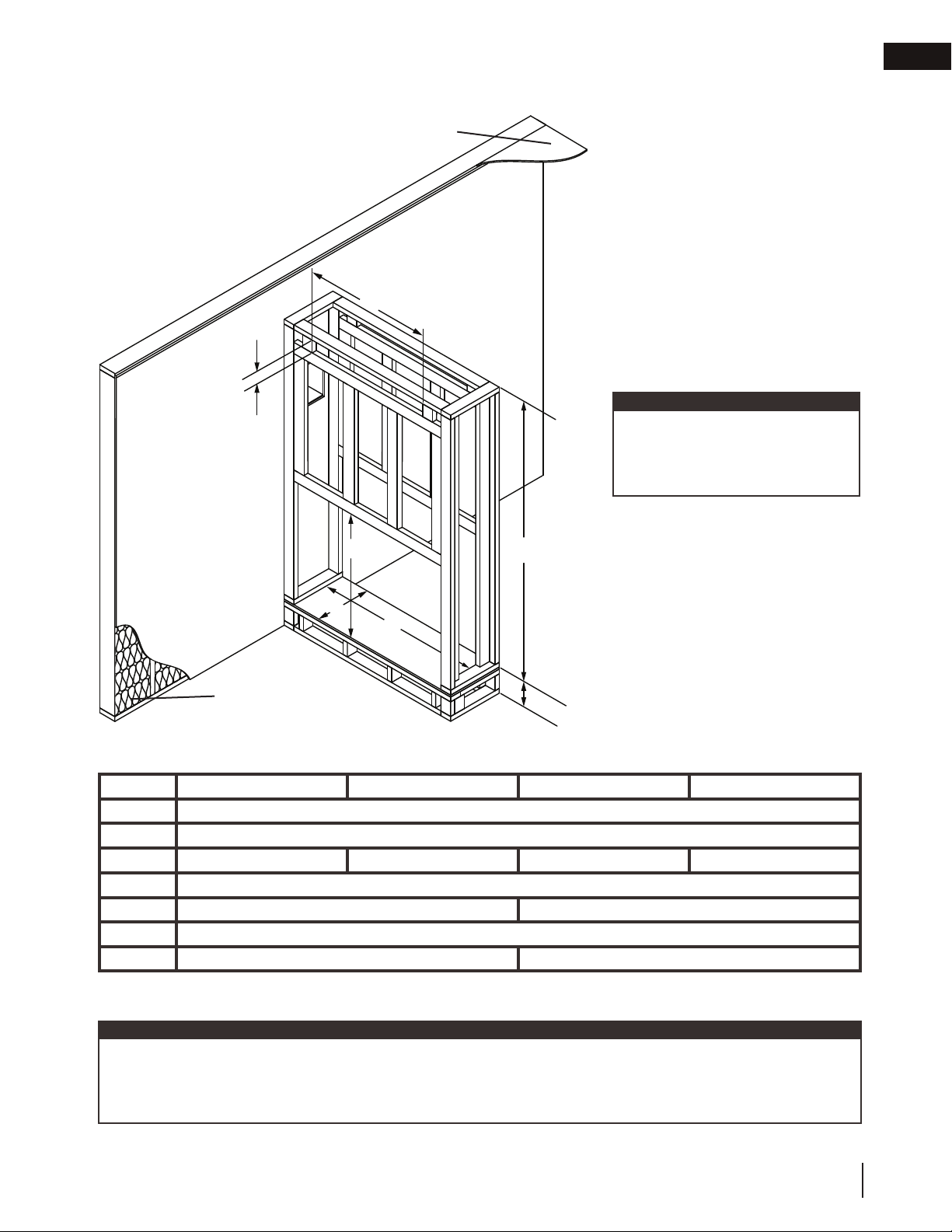

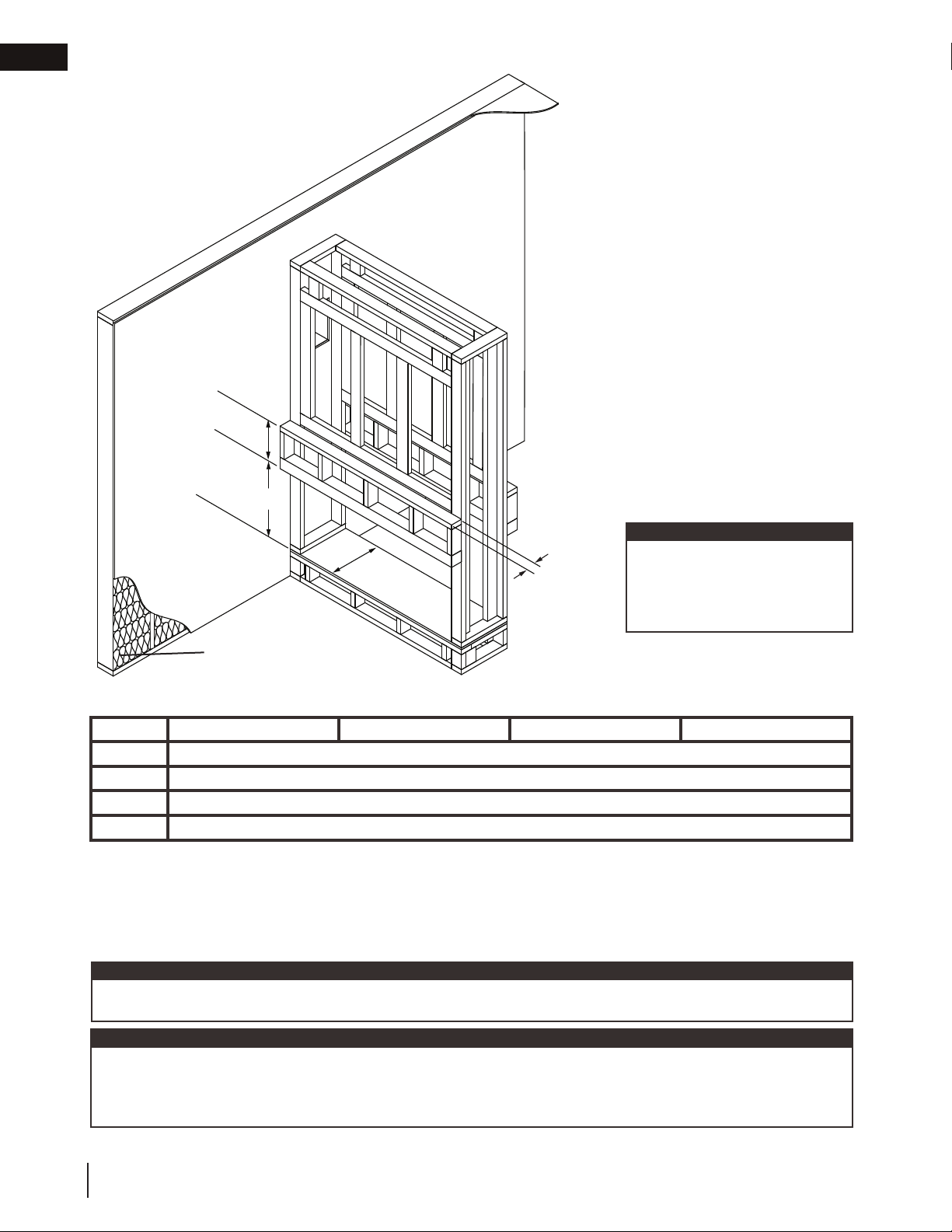

8.0 finish framing - after appliance installation 17
9.0 fastener placement restriction 22
10.0 finishing 23
10.1 enclosure design 24
10.2 optional trim finishing 25
11.0 minimum combustible mantel clearances 26
12.0 maximum protrusion 27
13.0 Dynamic Heat Control™ installation checklist 28

EN
W415-2373 / B / 04.30.21 3
general information
1.0 general information
!WARNING
•Dynamic Heat Control™ MUST be installed during the installation of the appliance BEFORE appliance venting and gas
are installed.
• Ensure the appliance is completely cool before starting installation.
• To avoid danger of suffocation keep the packaging bag away from babies and children. Do not use in cribs, bed, carriages,
or play pens. This bag is not a toy. Knot before throwing away.
Dynamic Heat Control™ is a system for man-
aging the heat produced by the appliance at and
around the fireplace. The purpose of the Dynamic
Heat Control™ is to move the heat away from
the fireplace to allow it to circulate more effectively
within the living space. By installing the Dynamic
Heat Control™ both the installer and the user gain
considerable benefits, see the following;
Installer:
• Ability to use combustible framing and finishing right up to the fireplace opening.*
• High temperatures above the front of the fireplace opening are significantly reduced eliminating potential degrading
to sensitive finish material (cracks or discoloration).
• No additional electrical, fans, ducts, or manifolds are required which keeps installation straightforward.
User:
• Heat is circulated more consistently throughout the living space increasing comfort in front of the fireplace.
• Increased “real world” efficiency as heat is moved into the room rather than retained inside the enclosure.
• Complete flexibility in selection of finish materials.
• Ability to place a TV, sound bar or artwork above the fireplace.**
The Dynamic Heat Control™ system relies on an optimized flow of air both through the appliance and the enclosure.
As such the installation of the Dynamic Heat Control™ system requires certain technical considerations when com-
pared to traditional fireplaces. Specifically, the Dynamic Heat Control™ requires the enclosure to be ventilated and
requires the installer to ensure that a minimum air outlet opening area is provided to allow heat to escape and circulate
at a prescribed minimum height and position. This must be carefully adhered to in the planning and the installation to
ensure the appliance functions safely and to minimize installation time.
*In most common installation configurations, some specific installations require special provisions.
See “minimum clearance to combustible enclosures” section for details. Ensure to strictly adhere to in-
structions.
** Always check appliance manufacturers’ recommendations to confirm suitability and any special
environmental limitations. For valuable or antique items, always refer to expert preservation instructions as
some items require specifically controlled temperature and/or humidity.
You will need: Included in this kit
Deflectors
High Limit Switch
Wire Harness
Bracket Screws

W415-2373 / B / 04.30.21
EN
4
installation planning
2.0 installation planning
!WARNING
• Do NOT cover or place any items in the Dynamic Heat Control™ air outlet. Failure to comply with these instructions will
create a fire hazard.
• Ensure air flow within the air passage is not restricted in any way with the exception of approved venting.
enclosure top
and/or ceiling
Dynamic
Heat
Control™ air
outlet opening
3”
Header
Standoff
Upper
Frame
Combustible
studding MUST
not be used past
the dotted line
Dynamic
Heat
Control™
air outlet
opening
Dynamic
Heat
Control™
air outlet
opening
Dynamic
Heat
Control™ air
outlet opening
No materials of any type
are permitted in this area
Air flow in the shaded area must not be restricted in any way with the exception of an approved appliance vent
system. No other items are allowed in this area.
Shaded framing must use non-combustible materials.No combustible materials allowed in this area or the space
between studs (i.e. no wiring, conduits, electrical bores, combustible framing members, AV equipment, finishing
brackets, framing, etc.)
*Restrictions also apply to see-thru when one or more recess is used.
Single-Sided Single-Sided
(Recessed)*
See-thru

EN
W415-2373 / B / 04.30.21 5
installation planning

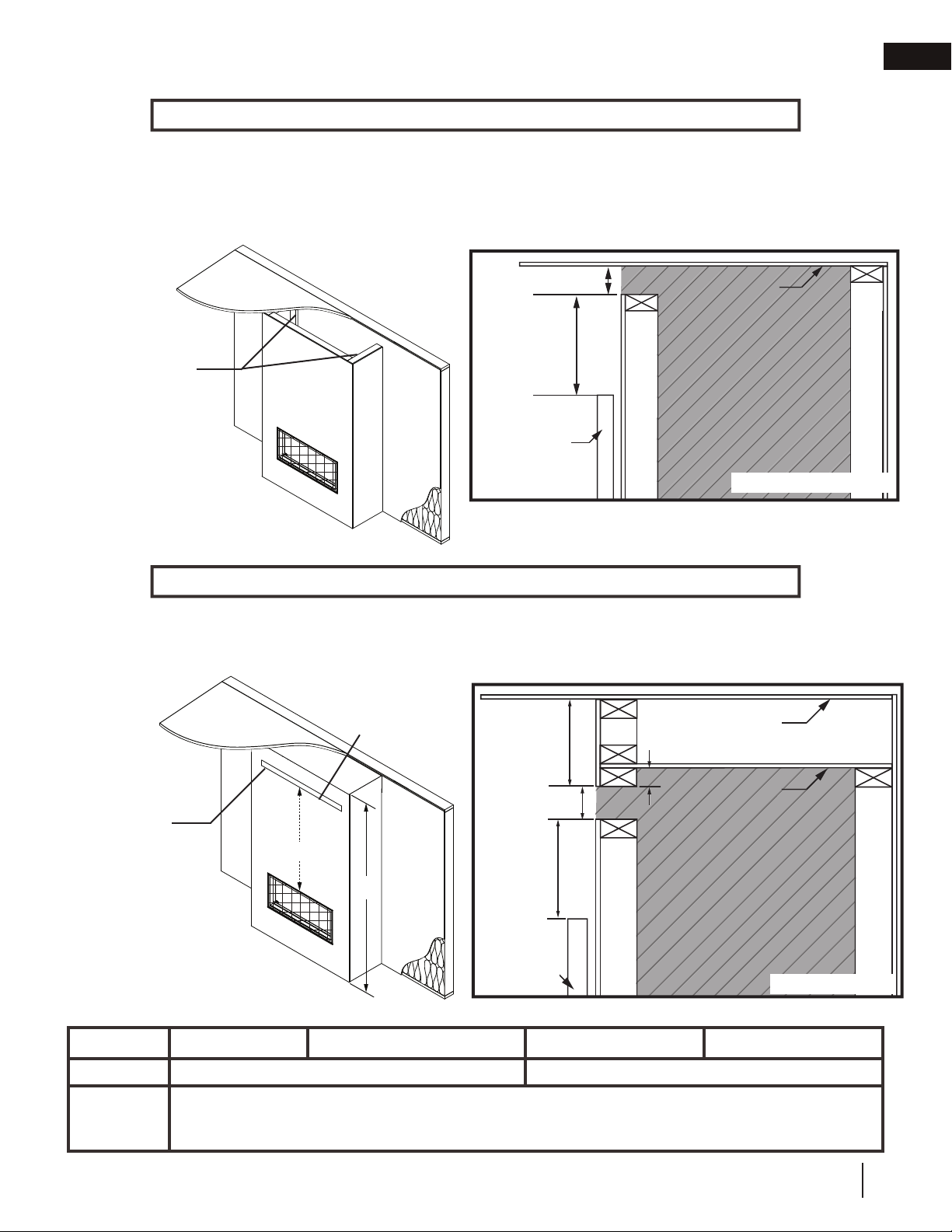

2.1 installation option 1 - open enclosure (enclosure stops short of the ceiling)
2.2 installation option 2 - front opening
NOT suitable for Dynamic Heat Control™ Plus
ceiling
2-4”
6” min.
DYNAMIC HEAT
CONTROL™ AIR
OUTLET OPEN-
ING IS HOT WHEN
APPLIANCE IS
OPERATING!
Air outlet opening
must be located out of reach of
the user. Air outlet must not be
restricted by furnishings or decor. RECOMMENDED
Wall mounted
object (picture
frame, appli-
ance, etc.)
Installation Option 1 (open enclosure) leaves a complete air outlet opening above the enclosure to provide the
necessary air circulation path for the Dynamic Heat Control™ system. This has been found to be well accepted
with respect to final appearance and offer minimal distraction. It also allows for efficient circulation of air within the
room. This option offers the simplest method for framing and installation. Limit the air outlet opening height to 4”
to reduce the risk of items inadvertly falling into the enclosure. The air outlet opening must extend around the
entire perimeter, or the entire front face of the enclosure, where the enclosure runs from wall to wall.
MINIMUM AIR OUTLET OPENING DIMENSIONS
LV38-1 LV50-2 LV62 LV74
(Q x R)* 80 sq. in. minimum (Q must be 2-3”) 160 sq. in. minimum (Q must be 2-3”)
SThis dimension is determined from the enclosure height (L) minus the distance to the top of the Dynamic
Heat Control™ air outlet opening (0”-1.5”), height of the air opening (2”-3”), and the distance from the
base of the appliance to the top of the appliance viewing area (25 11/16”).
*Free area. Any trim edging or finishing must not reduce or restrict minimum area. Grills, grates, louvres, or
other unapproved covers are not permitted and will cause a fire hazard.
Wall mounted
object (picture
frame, appli-
ance, etc.)
ceiling
enclosure top
must be installed
2-3”
0-1.5” Max.
6” min.
Air outlet opening is required to be
centered with the appliance.
ALTERNATIVE
(Q x R)*
DYNAMIC HEAT
CONTROL™ AIR
OUTLET OPEN-
ING IS HOT WHEN
APPLIANCE IS
OPERATING!
Front air outlet opening must
be located out of reach of the
user. Air outlet must not be
restricted by furnishings or
decor.
Installation Option 2 (front opening) requires an air outlet opening to be framed no more than 1.5” below the
enclosure top to avoid trapping heat in the upper areas and the air outlet opening centered on the appliance center.
Minimum air outlet opening dimensions must be followed. Framing the air outlet opening lower will overheat the
appliance, the enclosure, and finishing material.
S
L
2 1/2”
min.
Suitable for Dynamic Heat Control™ Plus

W415-2373 / B / 04.30.21
EN
6
installation planning
Air outlet opening is required to be centered with the appliance.
(Q x R)* AIR OUTLET
OPENING IS HOT
WHEN APPLIANCE
IS OPERATING!
Room 1
Room 2
Dynamic Heat
Control™ rear air
outlet opening must
be located out of
reach of the user.
Opening must not
be restricted by fur-
nishings or decor.
Installation Option 3 (rear opening) requires an air outlet opening to be framed no more than 1.5” below the
enclosure top to avoid trapping heat in the upper areas and centered on the appliance center. Minimum air outlet
opening dimension must be followed. The opening is required. Framing the rear opening lower will overheat
the appliance, the enclosure, and finishing material.
S
Wall mounted
object (picture
frame, appli-
ance, etc.)
Access
Side of
fireplace
Other
room
ceiling
enclosure top
must be installed 2-3”
0-1.5” Max.
6” min.
ALTERNATIVE
2 1/2”
min.
Increasing the air outlet opening will allow the appliance, the barrier, the temperatures on the surfaces above the fireplace opening, and
the enclosure be at cooler temperatures. It will also allow the air to circulate more effectively in the room. However, if the appliance
is equipped with the Dynamic Heat Control™ Plus, then the opening size must be 80 sq. in. for models LV38-1, LV50-2,
LVX38(-1), and LVX50(-1), or 160 sq. in. for models LV62, LV74, LVX62(-1), and LVX74(-1).
note:
2.3 installation option 3 - rear opening
!WARNING
•When using a rear air outlet opening,
it is critical that the adjoining room or
living spaces are in direct air communi-
cation (i.e. of an open plan configuration
or connected by a permanently open
doorway or archway). This prevents
the appliance from being in a negative
pressure more than that of the adjoining
room. Failure to follow these require-
ments can result in reversing the Dy-
namic Heat Control™ air flow and will
cause the appliance, safety barrier, and
finishing materials to overheat, creating
a fire hazard.
Suitable for Dynamic Heat Control™ Plus

EN
W415-2373 / B / 04.30.21 7
installation planning
2.4 installation option 4 - open enclosure with hard combustible valance
ceiling
4” min
air outlet opening
must be continuous
around enclosure top.
6” Max.
6” Min.
6” Min.
ALTERNATIVE
DYNAMIC HEAT
CONTROL™ AIR
OUTLET OPEN-
ING IS HOT WHEN
APPLIANCE IS
OPERATING!
Air outlet opening must be located out of reach of the user.
Air outlet must not be restricted by furnishings or decor.
Wall mounted object
(picture frame, appli-
ance, etc.)
ABSOLUTELY NO OBSTRUCTION OR RESTRICTION AL-
LOWED IN THE ENTIRE SHADED AREA WITH THE EXCEP-
TION OF APPROVED VENTING
Installation Option 4 (open enclosure with hard combustible valance) is similar to Installation Option 1 with the
addition of a hard combustible valance. Minimum opening dimensions and valance dimensions must be followed.
Restricting air movement within the valance area will overheat the appliance, the enclosure, and finishing
material.
See-thru appliances require front or rear air outlet opening. If desired, it can be installed with both front and rear air outlet openings
to allow heat to circulate in two rooms, however, it is recommended to install the air outlet opening at different heights that meet the
installation parameters for aesthetic purposes. For Dynamic Heat Control™ Plus, a second opening MUST NOT be installed.
note:
NOT suitable for Dynamic Heat Control™ Plus
Air outlet opening must be at least con-
tinuous around the top of the enclosure
for a valance to be permitted. Using
the minimum air outlet opening from
Installation Option 2 and Option 3
is not permitted and will overheat the
appliance.
note:

W415-2373 / B / 04.30.21
EN
8
installation planning
3.0 appliance overview
access side
SINGLE-SIDED INSTALLATION
fixed side
side view
top view
(frame and deflectors not shown)
pilot location
access side
For knockout plate removal (access
side only), see “Dynamic Heat
Control™ installation” section.
WARNING: DO NOT REMOVE
FROM FIXED SIDE
access
side
deflectors shown after installation
front frame
access side
SEE-THRU INSTALLATION
fixed side pilot location
pilot location
side view
fixed side
access side
front frame rear frame
deflectors
shown after
installation
top view
(frame and deflectors not shown)
pilot location
from viewing
area
pilot location
from viewing
area
access side
fixed side
The access side will have the pilot on the left side of the firebox from the viewing area.
note:
For knockout plate
removal (access side
only), see “Dynamic
Heat Control™
installation” section.

EN
W415-2373 / B / 04.30.21 9
Dynamic Heat Control™ installation
4.0 Dynamic Heat Control™ installation
1.) Remove fasteners securing front frame (and rear
frame for see-thru). Do not discard fasteners.
Before starting the Dynamic Heat Control™ installation, remove the safety barrier. Refer to “safety barrier
installation/removal” section in the appliance installation manual.
SINGLE-SIDED MODEL ILLUSTRATED
SINGLE-SIDED MODEL ILLUSTRATED
2.) Remove knockouts plates (FOR SINGLE-SIDED, ONLY REMOVE
THE TWO KNOCKOUTS PLATES ON THE ACCESS SIDE). Discard
knockout plates. Recommended: Use a flathead screwdriver or a
small pry bar and use prying motion to remove the knockout. Use
a brace such as a piece of wood under the prying tool to avoid distorting
the top
3.) Remove the fasteners securing the cover plates recessed below the knockout plates. For ease of removal, lift the panel from
below in front of the firebox door. Discard cover plates.
access side
access side
COVER PLATE
IMPORTANT:
Fire Hazard Warning: This step is crucial for your appliance to work properly. If
the knockout plates AND the cover plates are not removed from the access, the
appliance will overheat, the barrier will become excessively hot, and the high
limit switch will constantly trip.
Front Frame
Cover Plate

W415-2373 / B / 04.30.21
EN
10
Dynamic Heat Control™ installation
IMPORTANT:
It is recommended to install venting and vent heat shield(s) before refitting the
front, (and where applicable rear), frame for ease of access. It is critical for see-thru
appliances that ALL 4 knockout plates, ALL 4 cover plates are removed and ALL 4
deflectors are installed.
5.) Remove outer knockout fasteners. Do not discard
fasteners.
6.) Secure deflectors to the appliance with fasteners removed in
step 5 and supplied fasteners.
5.) Secure deflectors to the appliance with supplied fasteners as
shown.
FOR LV38-1 / LV62
FOR LV50-2 / LV74
6.) Re-install front frame using the fasteners removed in step 1. 7.) Re-install front frame using the fasteners previously used
in step 1.
4.) Bend the sides of the deflectors as shown.
a
b
!WARNING
•FOR SEE-THRU APPLIANCES, REPEAT STEPS WITH THE FIXED SIDE.

EN
W415-2373 / B / 04.30.21 11
Dynamic Heat Control™ installation
4.1 high limit switch installation
1.) Remove jumper plug from control board (marked “X4”)
and install plug with spade connectors to the control
board. Discard the original jumper plug.
Control Board
Wire Harness
Wire Harness
Plug with spade
connectors
“X4”
Bracket Install
Location
access side
!WARNING
•High Limit Switch installation is MANDATORY. Failure to correctly install will cause a fire hazard.

W415-2373 / B / 04.30.21
EN
12
Dynamic Heat Control™ installation
access side
3.) Insert the high limit switch into the bracket and secure
with two fasteners (supplied).
4.) Locate the existing wire harness in the upper left corner
of the firebox (as illustrated). Connect wires to the high limit
switch.
5.) Install high limit switch assembly to the bracket install location in the upper left hand corner of the
appliance. Secure high limit switch assembly with a supplied screw as shown.
After installing the Dynamic Heat Control™ system, ensure appliance is clean from dust, debris,
etc. before continuing with the appliance installation. Take precautions to ensure framing or
finishing dust and debris does not enter the air outlet openings or deflectors.
Check and clean appliance before operation.
Re-install safety barrier. Refer to “safety barrier installation / removal” in the appliance installation
manual.
IMPORTANT:

EN
W415-2373 / B / 04.30.21 13
Dynamic Heat Control™ installation
5.0 minimum framing dimensions
minimum framing dimensions
For heavier finishing materials such as marble, we recommend adding extra support to the frame. Ensure there is
adequate floor support for the appliance and finishing material.
note:
!WARNING
• Risk of fire!
• In order to avoid the possibility of exposed insulation or vapour barrier coming in contact with the appliance body, it is
recommended that the walls of the appliance enclosure be “finished” (i.e. drywall / sheetrock), as you would finish any
other outside wall of a home. This will ensure that clearance to combustibles is maintained within the cavity.
• Do not notch the framing around the appliance stand offs. Failure to maintain air space clearance may cause over heating
and fire. Prevent contact with sagging or loose insulation or framing and other combustible materials. Block opening into
the chase to prevent entry of blown-in insulation. Make sure insulation and other materials are secured.
• Minimum clearance to combustibles must be maintained or a serious fire hazard could result.
When using optional finishing accessories, the framing dimensions and finishing materials may differ from what is out-
lined in the section below; refer to the leaflet instructions supplied in the accessory kit for specific framing and finishing
specifications.
note:
D
o not
p
ut ob
j
ects in front
of the a
pp
liance
(
minimum
distance of 4 feet)
F
G
F
H
I
E
LV38-1 LV50-2 LV62 LV74
E20 1/8” (51.1cm)
F 53 13/16” (136.7cm) 65 13/16” (167.2cm) 77 13/16” (197.6cm) 89 13/16” (228.1cm)
G63 3/4” (162cm) 72 1/4” (183.5cm) 80 11/16” (205cm) 89 1/4” (226.6cm)
H18 3/16” (46.2cm)
I90 3/16” (229cm) 102 3/16” (259.5cm) 114 1/8” (289.9cm) 126 1/8” (320.4cm)
1” (2.54cm) min.
6” (15.2cm) min.

W415-2373 / B / 04.30.21
EN
14
minimum clearance to combustible enclosures6.0 minimum clearance to combustible enclosures
single-sided
3” [76mm] top (outside
of enclosure)
2” [51mm] sides /
bottom (outside of en-
closure)
6” [152mm] minimum
(inside enclosure)
0” to back standoffs
0” to bottom of the
appliance
0” to side standoffs
When passing through
a ceiling, use firestop
spacer W500-0028
(not supplied)
When passing through
a wall, use firestop
spacer assembly
W010-4178 (supplied)
0” to combustible
finishings such as brick
and stone. When using
non-combustible finish-
ings, only use firestop
spacer (W615-0162)
included in the firestop
assembly (W010-4178)
1” [25mm] minimum
all sides for sections
of vertical venting.
The LV series requires a minimum inside enclosure height, as illustrated (dimension L) measured from the bot-
tom of the appliance. For temperature requirements, this area must be left unobstructed. Some venting con-
figurations that require more vertical rise will require a larger enclosure to provide minimum vertical clearance
between vent pipes and combustibles.
note:
1/2” finishing flange
L
Ref LV38-1 LV50-2 LV62 LV74
L73” (185.4cm) 91” (231.1cm)
firestop spacer
(W615-0162)
minimum clearance
Horizontal vent sections: A minimum clearance of 3” (76mm) on the top outside of the enclosure and 2”
(51mm) on the sides and bottom outside of the enclosure all around the vent pipe on all horizontal runs to com-
bustibles is required. Horizontal vent sections within enclosures require a minimum clearance of 6”(152mm) at the
top of the vent pipe.
Vertical vent sections: A minimum of 1” (25mm) all around the vent pipe on all vertical runs to combustibles is
required except for clearances in appliances enclosures. Vertical vent sections within enclosures require a mini-
mum clearance of 1” (25mm) around the vent pipe.

EN
W415-2373 / B / 04.30.21 15
minimum clearance to combustible enclosures
see-thru
3” [76mm] top (out-
side of enclosure)
2” [51mm] sides /
bottom (outside of
enclosure)
6” [152mm] minimum
(inside enclosure)
0” to side standoffs
0” to base of the
appliance
When passing
through a
ceiling, use
firestop spacer
W500-0028 (not
supplied) When passing through
a wall, use firestop
spacer assembly
W010-4178 (supplied)
0” to non-combustible
finishing such as brick
and stone. When using
non-combustible finish-
ing, only use firestop
spacer (W615-0162)
included in the firestop
assembly (W010-4178)
1” [25mm] minimum all sides for
sections of vertical venting.
1/2” finishing flange
(4 sides)
SAFETY BARRIER
L
Ref LV38-1 LV50-2 LV62 LV74
L73” (185.4cm) 91” (231.1cm)
The LV series requires a minimum inside enclosure height, as illustrated (dimension L) measured from the bottom
of the appliance. For temperature requirements, this area must be left unobstructed. Some venting configura-
tions that require more vertical rise will require a larger enclosure to provide minimum vertical clearance between
vent pipes and combustibles.
note:
minimum clearance
firestop spacer
(W615-0162)
Horizontal vent sections: A minimum clearance of 3” (76mm) on the top outside of the enclosure and 2”
(51mm) on the sides and bottom outside of the enclosure all around the vent pipe on all horizontal runs to com-
bustibles is required. Horizontal vent sections within enclosures require a minimum clearance of 6”(152mm) at the
top of the vent pipe.
Vertical vent sections: A minimum of 1” (25mm) all around the vent pipe on all vertical runs to combustibles is
required except for clearances in appliances enclosures. Vertical vent sections within enclosures require a mini-
mum clearance of 1” (25mm) around the vent pipe.

W415-2373 / B / 04.30.21
EN
16
finish framing - after appliance installation
7.0 rough framing - before appliance installation
single-sided
see-thru
Before framing your appliance, determine vent requirements before deciding the final location of the appliance.
After rough framing, place the appliance in its final position. Also, see appliance manual for vent shield installation,
nailing tabs installation,electrical installation, gas installation, etc.
Ref LV38-1 LV50-2 LV62 LV74
E16 3/16” (41.1cm)
F53 13/16” (136.7cm) 65 13/16” (167.2cm) 77 13/16” (197.6cm) 89 13/16” (228.1cm)
JOptional - Appliance does not need to be elevated above floor
L73” (185.4cm) 91” (231.1cm)
Ref LV38-1 LV50-2 LV62 LV74
E20 1/8” (51.1cm)
F53 13/16” (136.7cm) 65 13/16” (167.2cm) 77 13/16” (197.6cm) 89 13/16” (228.1cm)
JOptional - Appliance does not need to be elevated above floor
L73” (185.4cm) 91” (231.1cm)
E
JF
EF
J
L
L
Before framing the appliance, ensure to install
the firestop first as it will not fit between the
studs if installed after framing.
Before framing the appliance, ensure to install
the firestop first.
note:
The LV series requires a
minimum enclosure height,
as illustrated (dimension L),
measured from the bot-
tom of the appliance. For
temperature requirements,
this area must be left un-
obstructed. Some venting
configurations that require
more vertical rise will require
a larger enclosure to provide
minimum vertical clearance
between vent pipes and
combustibles.
note:
The LV series requires a minimum
enclosure height, as illustrated (dimen-
sion L), measured from the bottom of
the appliance. For temperature require-
ments, this area must be left unob-
structed. Some venting configurations
that require more vertical rise will require
a larger enclosure to provide minimum
vertical clearance between vent pipes
and combustibles.

EN
W415-2373 / B / 04.30.21 17
finish framing - after appliance installation
8.0 finish framing - after appliance installation
single-sided flush
There are various methods to ventilate the enclosure. Refer to “installation planning” section. Only one option is
illustrated (Installation Option 2 - front opening).
Ref LV38-1 LV50-2 LV62 LV74
K39 15/16” (101.4cm)
E20 1/8” (51.1cm)
F53 13/16” (136.7cm) 65 13/16” (167.2cm) 77 13/16” (197.6cm) 89 13/16” (228.1cm)
JOptional - Appliance does not need to be elevated above floor
L73” (185.4cm) 91” (231.1cm)
Q* 2” min and 3” max
(Q x R)* 80 sq. in. 160 sq. in.
minimum framing
Drywall
Insulation
Ceiling
K
R
EF
J
LQ
Installation Option 2 illustrated (appliance not shown)
Finish framing must be built after
appliance has been placed in its
final position and venting
connected.
note:
* ONLY APPLICABLE TO OPTION 2 AND 3 - Opening must be centered in enclosure on appliance. Dimensions represent
finished sizes and where applicable should be adjusted to include finish material thickness.
The LV series requires a minimum
enclosure height, as illustrated
(dimension L), measured from
the bottom of the appliance. For
temperature requirements, this
area must be left unobstructed.
Some venting configurations
that require more vertical rise
will require a larger enclosure to
provide minimum vertical clear-
ance between vent pipes and
combustibles.
The appliance must be installed at this point of framing. Appliance is not shown to better illustrate framing.

W415-2373 / B / 04.30.21
EN
18
finish framing - after appliance installation
single-sided recessed
Ref LV38-1 LV50-2 LV62 LV74
K39 15/16” (101.4cm)
E20 1/8” (51.1cm)
F53 13/16” (136.7cm) 65 13/16” (167.2cm) 77 13/16” (197.6cm) 89 13/16” (228.1cm)
JOptional - Appliance does not need to be elevated above floor
L73” (185.4cm) 91” (231.1cm)
Q* 2” min and 3” max
(Q x R)* 80 sq. in. 160 sq. in.
M** 3” (76mm)
* ONLY APPLICABLE TO OPTION 2 AND 3 - Opening must be centered in enclosure on appliance. Dimensions represent
finished sizes and where applicable should be adjusted to include finish material thickness.
** Can only be increased to 4” max by building a protrusion.
Insulation
Drywall
Ceiling
K
R
E
F
J
L
M
Q
minimum framing
Finish framing must be built after
appliance has been placed in its
final position and venting
connected.
This configuration also
requires recess area to use
non-combustible facing due to
close proximity to vent.
note:
!WARNING
• Shaded components (finish framing) must be non-combustible materials.
Installation Option 2 illustrated (appliance not shown)
note:
The LV series requires a minimum enclosure height, as illustrated (dimension L), measured from the bottom of
the appliance. For temperature requirements, this area must be left unobstructed. Some venting configurations
that require more vertical rise will require a larger enclosure to provide minimum vertical clearance between vent
pipes and combustibles.

EN
W415-2373 / B / 04.30.21 19
finish framing - after appliance installation
Installation Option 2 illustrated
(appliance not shown)
Insulation
* ONLY APPLICABLE TO OPTION 2 AND 3 - Opening must be centered in enclosure on appliance. Dimensions represent
finished sizes and where applicable should be adjusted to include finish material thickness.
minimum framing
see-thru flush
Ref LV38-1 LV50-2 LV62 LV74
K39 15/16” (101.4cm)
E16 3/16” (41.1cm)
F53 13/16” (136.7cm) 65 13/16” (167.2cm) 77 13/16” (197.6cm) 89 13/16” (228.1cm)
JOptional - Appliance does not need to be elevated above floor
L73” (185.4cm) 91” (231.1cm)
Q* 2” min and 3” max
(Q x R)* 80 sq. in. 160 sq. in.
Ceiling
K
R
EF
J
L
Q
Drywall
Finish framing must be built after
appliance has been placed in its
final position and venting
connected.
note:
note:
The LV series requires a minimum enclosure height, as illustrated (dimension L), measured from the bottom of
the appliance. For temperature requirements, this area must be left unobstructed. Some venting configurations
that require more vertical rise will require a larger enclosure to provide minimum vertical clearance between vent
pipes and combustibles.

W415-2373 / B / 04.30.21
EN
20
finish framing - after appliance installation
see-thru built out
Ref LV38-1 LV50-2 LV62 LV74
E16 3/16” (41.1cm)
N* / ** 14 1/4” (36.2m)
O* 25 11/16 (65.2cm)
P* 4” (10.1cm) Max
N
O
P
minimum framing
E
Finish framing must be built
after appliance has been
placed in its final position and
venting connected.
When finished, protrusions must never encroach inside the appliance finishing flange as this will impede
the fitment of the safety barrier and safe operation. See “finishing” section in the installation manual.
note:
note:
Insulation
Drywall
Installation Option 2 illustrated
(appliance not shown)
* Finishing material must be considered with the protrusion (i.e. P includes framing and finish material). If desired,
side and bottom protrusions can be done with 4” (10.1cm) Max.
** This is a recommended minimum dimension when mounting heat-sensitive objects above the appliance, see
“finishing” and “minimum combustible mantel clearances” sections particularly when mounting electronic objects.
Otherwise, the built out section can be as minimal as desired.
note:
The LV series requires a minimum enclosure height, as illustrated (dimension L), measured from the bottom of
the appliance. For temperature requirements, this area must be left unobstructed. Some venting configurations
that require more vertical rise will require a larger enclosure to provide minimum vertical clearance between vent
pipes and combustibles.
