Napoleon Vector Series User manual

FRENCH PG. 79
W415-2034 / A / 10.18.19
ADD MANUAL TITLE
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • www.napoleon.com • [email protected]
CERTIFIED TO THE CANADIAN AND AMERICAN NATIONAL STANDARDS:
CSA 2.22 AND ANSI Z21.50 FOR VENTED DECORATIVE GAS APPLIANCES
INSTALLER:
Leave this manual with the appliance
CONSUMER:
Retain this manual for future reference
ADD PRODUCT CODE HERE (TRADE GOTHIC LT STD FONT)
NATURAL GAS MODELS:
PROPANE GAS MODELS:
Product Name / Code
(MUST use title from Price Book)
ADD ____ ILLUSTRATED
ADD PRODUCT IMAGE
CSA /
INTERTEK
LOGO
SAFETY INFORMATION
- Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbour’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call
the fire department.
- Installation and service must be
performed by a qualified installer, service
agency, or the supplier.
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certified kit is used.
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
WARNING
!
ENGLISH
$10.00
FOR INDOOR USE ONLY
IF INSTALLATION + OPERATION, ADD SERIAL
NUMBER LABEL HERE
IF SEPARATE MANUALS, ADD “PLACE
BARCODE LABEL ON THE OWNER’S MANUAL”
INSTALLATION MANUAL
LV38N-1 / LV50N-2 / LV62N / LV74N / LV38N2-1 / LV50N2-2 / LV62N2 / LV74N2
LV38P-1 / LV50P-2 / LV62P / LV74P / LV38P2-1 / LV50P2-2 / LV62P2 / LV74P2
Vector™ Series
(LV38-1 illustrated)
SAFETY BARRIER
THIS APPLIANCE IS SUITABLE FOR THE OPTIONAL DYNAMIC
HEAT CONTROL™ SYSTEM
(See Dynamic Heat Control™ installation manual)
CERTIFIED TO THE CANADIAN AND AMERICAN NATIONAL STANDARDS:
CSA 2.22 AND ANSI Z21.50 FOR VENTED DECORATIVE GAS APPLIANCES
FOR INDOOR USE ONLY
H
HEA
T CONT
T CONTR
OL
OL
TM
PATENT PENDING
PLACE BARCODE LABEL ON THE
OWNER’S MANUAL

W415-2034 / A / 10.18.19
EN
2
safety information
• This appliance is hot when operated and
can cause severe burns if contacted.
• Any changes or alterations to this
appliance or its controls can be
dangerous and is prohibited.
• Do not operate appliance before reading and
understanding operating instructions. Failure
to operate appliance according to operating
instructions could cause fire or injury.
• Ensure the glass door is opened or removed
when lighting the pilot for the first time and
when the gas supply has run out.
• Risk of fire or asphyxiation, do not operate
appliance with fixed glass removed and never
obstruct the front opening of the appliance.
• Do not connect 110 volts to the control valve,
with the exception of models; GSST8 and
GT8.
• Risk of burns. The appliance should be turned off and cooled before servicing.
• Do not install damaged, incomplete or substitute components.
• Risk of cuts and abrasions. Wear protective gloves, protective footwear, and safety glasses during
installation. Sheet metal edges may be sharp.
• Do not burn wood or other materials in this appliance.
• Provide adequate ventilation and combustion air. Provide adequate accessibility clearance for servicing
and operating the appliance.
• High pressure will damage valve. Disconnect gas supply piping before pressure testing gas line at
test pressures above 1/2 psig. Close the manual shut-off valve before pressure testing gas line at test
pressures equal to or less than 1/2 psig (35mb).
• The appliance must not be operated at temperatures below freezing (32°F / 0°C). Allow the appliance
to warm to above freezing prior to operation, with the exception of models; GSS36, GSS42; these
appliances are suitable for 0°F / -18°C.
• Children and adults should be alerted to hazards of high surface temperature and should stay
away to avoid burns or clothing ignition.
• Young children should be carefully supervised when they are in the same room as the
appliance. Toddlers, young children and others may be susceptible to accidental contact
burns. A physical barrier is recommended if there are at risk individuals in the house. To
restrict access to an appliance or stove, install an adjustable safety gate to keep toddlers,
young children and other at risk individuals out of the room and away from hot surfaces.
• Clothing or other flammable material should not be placed on or near the appliance.
• Due to high temperatures, the appliance should be located out of traffic and away from
furniture and draperies.
• Furniture or other objects must be kept a minimum of 4 feet (1.22m) away from the front of the appliance.
• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot
surfaces.
• Even after the appliance is off, it will remain hot for an extended period of time.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children
from hot surfaces. These screens and guards must be fastened to the floor.
• Any safety screen, guard or barrier removed for servicing the appliance, must be replaced prior
to operating the appliance.
• It is imperative that the control compartments, burners and circulating blower and its passageway in the
appliance and venting system are kept clean. The appliance and its venting system should be inspected
before use and at least annually by a qualified service person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding material, etc. The appliance area must be kept clear and
free from combustible materials, gasoline and other flammable vapors and liquids.
• If the appliance shuts off, do not re-light until you provide fresh air. If appliance keeps shutting off, have it
serviced. Keep burner and control compartment clean.
• Under no circumstances should this appliance be modified.
• Do not allow wind or fans to blow directly into the appliance. Avoid any drafts that alter burner flame
patterns.
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
DANGER
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and
shall be installed for the protection of children and other
at-risk individuals.
!WARNING

EN
W415-2034 / A / 10.18.19 3
safety information
!WARNING
• Do not use a blower insert, heat exchanger insert or other accessory not approved for use with this
appliance.
• This appliance must not be connected to a chimney flue pipe serving a separate solid fuel burning
appliance.
• Do not use this appliance if any part has been under water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of the control system and any gas control which has
been under water.
• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass
should be done by a licensed or qualified service person, if equipped.
• Do not strike or slam shut the appliance glass door, if equipped.
• Only doors / optional fronts certified with the appliance are to be installed on the appliance.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As
with all plastic bags, these are not toys and should be kept away from children and infants.
• Carbon or soot should not occur in a vent free appliance as it can distribute into the living area of your
home. If you notice any signs of carbon or soot, immediately turn off your appliance and arrange to have
it serviced by a qualified technician before operating it again.
• If equipped, the screen must be in place (closed) when the appliance is in operation.
• When equipped with pressure relief doors, they must be kept closed while the appliance is operating
to prevent exhaust fumes containing carbon monoxide, from entering into the home. Temperatures of
the exhaust escaping through these openings can also cause the surrounding combustible materials to
overheat and catch fire.
• Carbon monoxide poisoning may lead to death; early signs of carbon monoxide poisoning resemble the
flu, with headache, dizziness and/or nausea. If you have these signs, the appliance may not be working
properly. Get fresh air at once! Have appliance serviced. Some people; pregnant women, persons with
heart or lung disease, anemia, those under the influence of alcohol, those at high altitudes are more
affected by carbon monoxide than others. Failure to keep the primary air opening(s) of the burner(s) clean
may result in sooting and property damage.
• As with any combustion appliance, we recommend having your appliance regularly inspected and
serviced as well as having a Carbon Monoxide Detector installed in the same area to defend you and
your family against Carbon Monoxide (not applicable for outdoor appliances).
• Ensure clearances to combustibles are maintained when building a mantel or shelves above the
appliance. Elevated temperatures on the wall or in the air above the appliance can cause melting,
discolouration or damage to decorations, a TV or other electronic components.
• For appliances equipped with a safety barrier; if the barrier becomes damaged, the barrier
shall be replaced with the manufacturer’s barrier for this appliance.
• Installation and repair should be done by a qualified service person. It is imperative that control
compartments, burners and circulating air passageways of the appliance be kept clean.
• For outdoor products only: this appliance must not be installed indoors or within any structure that
prevents or inhibits the exhaust gases from dissipating in the outside atmosphere.
• If applicable, the millivolt version of this appliance uses and requires a fast acting thermocouple. Replace
only with a fast acting thermocouple supplied by Wolf Steel Ltd.
!
WARNING
!
Disconnect the appliance main gas valve/control
from the supply piping when pressure testing that
system at pressures in excess of 1/2 psi (3.5 kPa).
Isolate the appliance with it’s shut off valve during
any pressure testing of the supply piping at
pressures equal to or less than 1/2 psi (3.5 kPa).
FIRE RISK HAZARD / DELAYED IGNITION
High supply pressure will damage the valve / controls.
Add California Prop 65 warning
!
WARNING:
This product can expose you to chemicals including lead and lead compounds,
which are known to the State of California to cause cancer, and chemicals including carbon
monoxide, which are known to the State of California to cause birth defects or other reproduc-
tive harm. For more information, go to www.P65Warnings.ca.gov.

W415-2034 / A / 10.18.19
EN
4
table of contents
1.0 general information 5
1.1 rates and efficiencies 6
1.2 installation overview 7
1.3 rating plate/lighting instruction
location 9
1.4 mobile home installation 10
1.5 hardware list 10
1.6 lifting handles installation/removal 10
2.0 dimensions 11
2.1 single-sided 11
2.2 see-thru 12
3.0 minimum venting requirements 13
3.1 typical venting installation 15
3.2 minimum air terminal location
clearances 17
3.3 horizontal termination (natural gas) 18
3.4 vertical termination (natural gas) 21
3.5 all terminations (propane) LV38-1 22
3.6 all terminations (propane )
LV50-2 / 62 23
3.7 all terminations (propane) LV74 24
4.0 rough framing - before appliance
installation 25
4.1 minimum framing dimensions 26
4.1.1 minimum clearance to combustible
enclosures 27
5.0 venting installation 30
5.1 firestop spacer assembly 30
5.2 horizontal installation 32
5.3 vertical installation 32
5.4 using flexible vent components 33
5.4.1 horizontal air terminal installation 33
5.4.2 vertical air terminal installation 34
5.4.3 appliance vent connection 34
5.5 restricting vertical vents 35
5.5.1 LV38-1 / LV50-2 35
5.5.2 LV62 / LV74 35
5.6 vent shield installation 36
6.0 electrical information 37
6.1 hard wiring connection 37
6.2 receptacle wiring diagram 37
6.3 in the event of a power failure 37
6.4 battery holder/switch installation 38
6.5 initializing the battery holder/switch
for the first time 38
6.6 access panel 39
6.7 wiring diagram 40
6.8 eFIRE application controller 40
6.8.1 LV38-1 / LV50-2 wiring diagram 41
6.8.2 LV62 / LV74 wiring diagram 42
7.0 gas installation 43
8.0 operation 44
8.1 pilot-on-demand 45
9.0 nailing tab installation 46
10.0 finish framing - after appliance
installation 47
10.1 framing with non-combustibles 47
11.0 finishing 51
11.1 fastener placement restriction 51
11.2 finishing with non-combustibles 52
11.3 installing non-combustible board 54
11.4 minimum combustible mantel
clearances 55
11.5 TV mounting restrictions
(without DHC™) 56
11.6 safety barrier installation / removal 57
11.7 firebox glass door installation /
removal 57
11.8 media installation / removal 59
11.9 media tray removal 60
12.0 adjustments 61
12.1 restricting vertical vents 61
12.2 venturi adjustment 61
12.3 pilot burner adjustment 62
12.4 flame characteristics 62
13.0 maintenance 63
13.1 annual maintenance 64
13.2 control access 64
13.3 burner removal 65
13.4 valve removal 65
13.5 control module removal 66
13.6 LED replacement 67
13.7 glass / door replacement 68
13.8 care of glass 68
13.9 care of plated parts 68
14.0 replacement parts 69
14.1 overview 70
14.2 burner components 71
15.0 troubleshooting 73
16.0 warranty 76
17.0 notes 77
The information throughout this manual is believed to be correct at the time of printing. Wolf Steel Ltd. reserves
the right to change or modify any information within this manual at any time without notice. Changes, other than
editorial are denoted by a vertical line in the margin.
note:

EN
W415-2034 / A / 10.18.19 5
general information
Installer: please fill out appliance checklist in the
owner’s manual.
When the appliance is installed at elevations above 4,500ft (1372m), and in the absence of specific recommendations
from the local authority having jurisdiction, the certified high altitude input rating shall be reduced at the rate of 4% for each
additional 1,000ft (305m). Expansion / contraction noises during heating up and cooling down cycles are normal
and are to be expected. Change in flame appearance from “HI” to “LO” is more evident in natural gas than in
propane.
This appliance is approved for bathroom, bedroom and bed-sitting room installations and is certified for mobile
home installation.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a certified kit is used.
There is a switch that controls the function of the appliance. The battery holder/switch must be placed in the
middle position. If the switch is not placed in the middle position, the appliance will not work.
The protective wrap on plated parts is best removed when the assembly is at room temperature but this can
be improved if the assembly is warmed, using a hair dryer or similar heat source. The protective wrap must be
removed before operating the appliance.
This appliance is a decorative product. It is not a source of heat and not intended to burn solid fuel.
This appliance is equipped with a remote control and a wall switch, which requires batteries to be installed. The
remote takes 3 “AAA” batteries and the wall switch takes 4 “AA” batteries.
This appliance is suitable for use with Napoleon’s optional Dynamic Heat Control™ & Dynamic Heat Control™ Plus
systems. THIS MANUAL DOES NOT include detailed information relating to these optional systems. Framing and finishing
are NOT the same. For further details, refer to the Dynamic Heat Control™ installation manual provided with the kit before
starting installation.
note:
Batteries must be disposed of according to the local laws and regulations. Some batteries may be
recycled, and may be accepted for disposal at your local recycling center. Check with your
municipality for recycling instructions.
A barrier designed to reduce the risk of burns is provided with the appliance and must be installed. Never
operate the appliance without the barrier installed.
1.0 general information

W415-2034 / A / 10.18.19
EN
6
general information
1.1 rates and efficiencies
Natural Gas Propane
Min. Inlet Gas Supply
Pressure
4.5" w.c. (11mb) 11" w.c. (27mb) 4.5" w.c. (11mb) 11" w.c. (27mb)
Max. Inlet Gas Supply
Pressure
7"* w.c. (17mb) 13” w.c. (32mb) 13” w.c. (32mb) 13” w.c. (32mb).
Manifold Pressure (Under
Flow Conditions)
3.5” w.c. (9mb) 10” w.c. (25mb) 3.5 w.c. (9mb) 10” w.c. (25mb)
LV38-1 / LV50-2 / LV62 / LV74
Single-Sided See-thru
Appliance Type LV38N-1 LV38P-1 LV38N2-1 LV38P2-1
Fuel Type Natural Gas Propane Natural Gas Propane
Altitude (FT) 0-4,500
Max. Input (BTU/HR) 30,000 26,500 30,000 26,500
Min. Input (BTU/HR) 21,000 22,000 21,000 22,000
Single-Sided See-thru
Appliance Type LV50N-2 LV50P-2 LV50N2-2 LV50P2-2
Fuel Type Natural Gas Propane Natural Gas Propane
Altitude (FT) 0-4,500
Max. Input (BTU/HR) 36,000 31,500 36,000 31,500
Min. Input (BTU/HR) 25,000
Single-Sided See-thru
Appliance Type LV62N LV62P LV62N2 LV62P2
Fuel Type Natural Gas Propane Natural Gas Propane
Altitude (FT) 0-4,500
Max. Input (BTU/HR) 42,000 35,000 42,000 35,000
Min. Input (BTU/HR) 29,000 28,000 29,000 28,000
LV50-2
Single-Sided See-thru
Appliance Type LV74N LV74P LV74N2 LV74P2
Fuel Type Natural Gas Propane Natural Gas Propane
Altitude (FT) 0-4,500
Max. Input (BTU/HR) 48,000 41,500 48,000 41,500
Min. Input (BTU/HR) 30,000 33,000 30,000 33,000
LV38-1
LV62
LV74
*Maximum inlet pressure not to exceed 13” w.c. (32mb).

EN
W415-2034 / A / 10.18.19 7
general information
12 11 6
5
9
8473
Safety Barrier
1.2 installation overview
Recommended installation steps:
1. Determine venting requirements before deciding the final location of the appliance.
2. Plan out appliance enclosure, framing, fronts, accessories, etc.
3. Install rough framing (refer to “rough framing” section).
4. Place the appliance in its final position.
5. Install nailing tabs (refer to “nailing tab installation” section).
6. Install appliance venting (refer to “venting installation” section).
7. Install vent shield (refer to “vent shield installation” section).
8. Install all electrical wirings (refer to “electrical information” section).
9. Install gas lines (refer to “gas installation” section).
10. Test appliance.
11. Complete framing (refer to “finish framing” section).
12. Finishing (refer to “finishing” section).
13. Complete installation checklist in the owner’s manual and apply serial number to owner’s manual.
For Dynamic Heat Control™ installation steps, refer to the leaflet provided with the Dynamic Heat Control™ kit.
Start Dynamic Heat Control™ installation before step 3 (place the appliance in its final position)
note:

W415-2034 / A / 10.18.19
EN
8
general information
!WARNING
• Always light the pilot whether for the first time or if the gas supply has run out, with the glass door opened or
removed.
• Provide adequate clearance for servicing and operating the appliance.
• Provide adequate ventilation.
• Never obstruct the front opening of the appliance.
• Objects placed in front of the appliance must be kept a minimum of 48” (121.9cm) from the front face of the
appliance.
• Surfaces around and especially above the appliance can become hot. Avoid contact when appliance is
operating.
• Fire risk. Explosion hazard.
• High pressure will damage valve. Disconnect gas supply piping before pressure testing gas line at test
pressures above 1/2 PSIG. Close the manual shut-off valve before pressure testing gas line at test pressures
equal to or less than 1/2 PSIG (35mb).
• Use only Wolf Steel approved optional accessories and replacement parts with this appliance using non-listed
accessories (blowers, doors, louvres, trims, gas components, venting components, etc.) could result in a safety
hazard and will void the warranty and certification.
• The appliance must not be operated at temperatures below freezing (32ºF / 0ºC). Allow the appliance to warm,
to above freezing prior to operation.
• This appliance has been designed and certified for indoor use only.
THIS GAS APPLIANCE MUST BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to conform with local
codes. Installation practices vary from region to region and it is important to know the specifics that apply to your area, for
example in the state of Massachusetts:
• This product must be installed by a licensed plumber or gas fitter when installed within the commonwealth of
Massachusetts.
• The appliance damper must be removed or welded in the open position prior to installation of an appliance insert or gas
log.
• The appliance off valve must be a “T” handle gas cock.
• The flexible connector must not be longer than 36 inches (0.9m).
• A carbon monoxide detector is required in all rooms containing gas fired appliances.
• The appliance is not approved for installation in a bedroom or bathroom unless the unit is a direct vent sealed
combustion product.
The installation must conform with local codes or, in absence of local
codes, the National Gas and Propane Installation Code CSA B149.1
in Canada, or the National Fuel Gas Code, ANSI Z223.1 / NFPA 54
in the United States. Suitable for mobile home installation if installed
in accordance with the current standard CAN/CSA Z240MH Series,
for gas equipped mobile homes, in Canada or ANSI Z223.1 and
NFPA 54 in the United States.
The appliance and its individual shutoff valve must be disconnected
from the gas supply piping system during any pressure testing
of that system at test pressures in excess of 1/2 psig (35 mb).
The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any
pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (35 mb). When installed
with a blower or fan, the junction box must be electrically connected and grounded in accordance with local codes. In the
absence of local codes, use the current CSA C22.1 Canadian Electrical Code in Canada or the ANSI / NFPA 70 National
Electric Code in the United States. In the case where the blower is equipped with a power cord, it must be connected into a
properly grounded receptacle. The grounding prong must not be removed from the cord plug.
The following does not apply to inserts; as long as the required clearance to combustibles is maintained, the most desirable
and beneficial location for an appliance is in the center of a building, thereby allowing the most efficient use of the heat
created. The location of windows, doors and, the traffic flow in the room where the appliance is to be located should be
considered. If possible, you should choose a location where the vent will pass through the house without cutting a floor or
roof joist. If the appliance is installed directly on carpeting, vinyl tile or other combustible material other than wood flooring, the
appliance shall be installed on a metal or wood panel extending the full width and depth, unless otherwise tested.
We suggest that our gas
hearth products be installed
and serviced by professionals
who are certied in the U.S.
by the National Fireplace
Institute
® (NFI) as NFI Gas
Specialists
www.ncertied.org

EN
W415-2034 / A / 10.18.19 9
general information

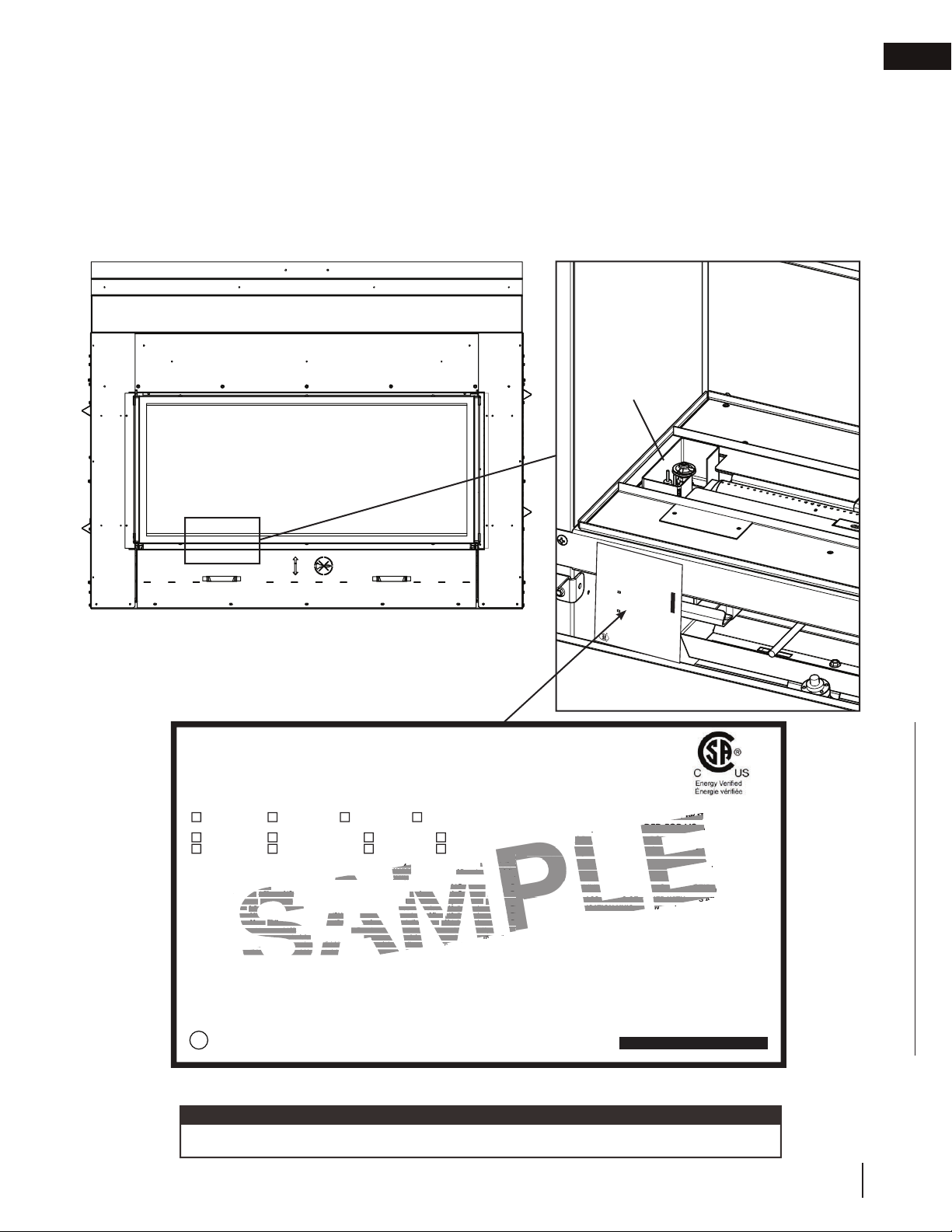

1.3 rating plate/lighting instruction location
Both the rating plate and lighting instructions are attached to a chain located on the left side of the control area
near the valve (access side). Remove the safety barrier and the control cover to gain access to the control area,
refer to the “safety barrier installation / removal” section for detailed removal instructions.
To replace, slide the instructions back into the control area and reinstall the safety barrier assembly.
This illustration is for reference only. Refer to the rating plate on the appliance for accurate information.
The rating plate must remain with the appliance at all times. It must not be removed.
note:
CERTIFIED UNDER / HOMOLOGUE SELON LES NORMES: CSA2.33b- 2008, ANSI Z21.88b- 2008 VENTED GAS FIREPLACE HEATER / APPAREIL DE CHAUFFAGEALIMENTÉ
AU GAZ ET VENTILÉ
VENTEDGAS FIREPLACE HEATER. APPROVED FOR BEDROOM, BATHROOM AND BED-SITTING ROOM INSTALLATION.SUITABLE FOR MOBILE HOME INSTALLATIONIF INSTALLED IN ACCORDANCE WITH THE
CURRENTSTANDARD CAN/CSA Z240MH SERIES GAS EQUIPPED MOBILE HOMES, IN CANADA OR IN THE UNITED STATESTHE MANUFACTURED HOME CONSTRUCTION AND SAFETY STANDARD, TITLE 24 CFR,
PART3280. WHEN THIS US STANDARD IS NOT APPLICABLE USE THE STANDARDFOR FIRE SAFETY CRITERIA FOR MANUFACTURED HOME INSTALLATIONS, SITESAND COMMUNITIES, ANSI / NFPA 501A.
FOYERDE CHAUFFAGE AU GAZ AVEC ÉVACUATION.HOMOLOGUÉ POUR INSTALLATION DANS UNE CHAMBRE À COUCHER, UNE SALLE DE BAIN ET UN STUDIO.APPROPRIÉ POUR INSTALLATION DANS UNE
MAISONMOBILE SI SON INSTALLATION CONFORME AUX EXIGENCES DE LA NORME CAN/CSA Z240MH SÉRIE DE MAISONS MOBILES ÉQUIPÉESAU GAZ, EN VIGUEUR AU CANADA OU AUX ÉTATS-UNISDE LA
NORMEDE SECURITÉ ET DE CONSTRUCTION DE MAISONS MANUFACTURÉES, TITRE 24 CFR, SECTION 3280. DANS LE CAS OU CETTE NORME D'ÉTATS-UNIS NE PEUT ÊTRE APPLIQUÉE, SE RÉFÉRERA LA NORME
RELATIVEAU CRITÈRE DE MESURES DE SÉCURITÉ CONTRE L'INCENDIE POUR LES INSTALLATIONSDANS LES MAISONS MANUFACTURÉS, LES SITES ET LES COMMUNAUTÉS, ANSI/NFPA 501A.
NOT FOR USE WITH
SOLID FUEL. FOR USE
WITH GLASS DOORS
CERTIFIED WITH THIS
UNIT ONLY.
WARNING
:
DONOT ADD ANY MATERIAL
TOTHE APPLIANCE, WHICH WILL COME
INCONTACT WITH THE FLAMES, OTHER
THANTHAT SUPPLIED BY THE
MANUFACTURERWITH THE APPLIANCE.
MINIMUM CLEARANCE TO
COMBUSTIBLE MATERIALS:
TOP 0”
FLOOR 0”
RECESSEDDEPTH ONE SIDED 23"
RECESSEDDEPTH SEE THRU 13.5”
FRAMING (NOT INCLUDING
FACE MATERIAL)
SIDES 0”
VENT 2"
BACK 0”
MANTLE 15"*
TOP,SIDES & BACK: PER STAND OFF SPACERSFOR FRAMING MATERIALS. FOR FINISHING MATERIALS
SEEOWNERS MANUAL
UN COMBUSTIBLE SOLIDE NE
DOIT PAS ÊTRÉ UTILISÉAVEC
CET APPAREIL. UTILISER AVEC
LES PORTES VITRÉES
HOMOLOGUÉES SEULEMENT
AVEC CETTE UNITÉ.
AVERTISSEMENT:
N'AJOUTEZPAS A
CETAPPAREIL AUCUN MATÉRIAU DEVANT
ENTREREN CONTACT AVEC LES FLAMMES
AUTREQUE CELUI QUI EST FOURNI AVEC
CETAPPAREIL PAR LE FABRICANT.
DÉGAGEMENTS MINIMAUX DES
MATÉRIAUXCOMBUSTIBLES:
DESSUS 0”
PROFONDEURD'ENCASTRÉ 25"
PLANCHER 0”
ÉVENT 2"
CÔTES 0”
MANTEAU 15"*
ARRIÉRE 0”
MADEIN CANADA / FABRIQUÉ AU CANADA
WOLF STEEL LTD.BARRIE,ONTARIO, CANADA
ALTITUDE/ ÉLÉVATION
INPUT/ ALIMENTATION
REDUCEDINPUT / ALIMENTATION RÉDUITE
ORIFICE/ INJECTEUR
MANIFOLDPRESSURE /
PRESSIONAU COLLECTEUR
MINIMUMSUPPLY PRESSURE /
PRESSIOND'ALIMENTATION MINIMALE
MAXIMUMSUPPLY PRESSURE /
PRESSIOND'ALIMENTATION MAXIMALE
0-4500FT(0-1370M)
30,000BTU/H
23,000BTU/H
#38
3.5"WATER COLUMN/D'UNE COLONNE D'EAU
4.5"WATER COLUMN/D'UNE COLONNE D'EAU
7.0"WATER COLUMN/D'UNE COLONNE D'EAU
0-4500FT(0-1370M)
30,000BTU/H
23,000BTU/H
#53
10"WATER COLUMN/D'UNE COLONNE D'EAU
11"WATER COLUMN/D'UNE COLONNE D'EAU
13"WATER COLUMN/ D'UNE COLONNE D'EAU
THEAPPLIANCE MUST BE VENTED USING THE APPROPRIATE
NAPOLEONVENT KITS. SEE OWNERS INSTALLATION MANUAL
FORVENTING SPECIFICS. PROPER REINSTALLATION AND
RESEALINGIS NECESSARY AFTER SERVICING THE VENT-AIR
INTAKESYSTEM.
L'APPAREILDOIT ÉVACUER SES GAZ EN UTILISANT L'ENSEMBLE
D'ÉVACUATIONPROPRE A NAPOLEON. RÉFÉRER AU MANUEL
D'INSTALLATIONDE PROPRIÉTAIRE POUR L'ÉVACUATION
PRÉCISE.IL EST IMPORTANT DE BIEN RÉINSTALLER ET
RESCELLERL'ÉVENT APRÈS AVOIR ASSURÉ LE MAINTIEN DU
SYSTÉMEDE PRISE D'AIR.
CLASSIFICATION:115V 0.82AMP, 60HZ
W385-2007
MODEL NATURAL GAS /
GAZ NATURAL
LHD50NT
MODEL PROPANE
LHD50PT
SERIAL NUMBER/NO. DE SÉRIE: LV50
ELECTRICALRATING: 115V 0.82AMP,60HZ
REFERENCE#
W/N 16131
*MAXIMUM HORIZONTAL EXTENSION / L'EXTENSION
HORIZONTALEMAXIMALE: 2".SEE INSTRUCTION MANUAL FOR GREATER EXTENSIONS.
SEEOWNER'S INSTRUCTION MANUAL FOR MINIMUM AND MAXIMUM VENT LENGTHS.
DESSUS,COTÉS & ARRIÈRE: SELON LES ESPACEURS DE DÉGAGEMENT POUR LES MATÉRIAUX D'OSSATURE
SELONLE MANUEL DE PROPRIÉTAIRE POUR LES MATÉRIAUX DE FINITION.
*L'EXTENSION HORIZONTALE MAXIMALE: 2". RÉFÉRER AU MANUEL D'INSTRUCTION POUR DES EXTENSIONS
PLUSGRANDES. RÉFÉRER AU MANUEL D'INSTALLATIONDE PROPRIÉTAIRE.
Pilot location
Rating plate
location
access side
Certified to Canadian and American National Standards: CSA 2.22-XXXX / ANSI Z21.50-XXXX for Vented Decorative Gas Appliances
Certifié selon les normes Nationales Canadiennes et Américaines: CSA 2.22-XXXX / ANSI Z21.50-XXXX pour les Appareils à gaz décoratif à évacuation
Direct vent, vented gas fireplaces. Approved for bedroom, bathroom and bed-sitting room installation. Suitable for mobile home installation, if installed in accordance with the current
standard CAN / CSA Z240MH Series gas equipped mobile homes in Canada, or, in the United States, the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part
3280. When this US Standard is not applicable, use the Standard for Fire Safety Criteria for Manufactured Home Installations, Sites and Communities, ANSI / NFPA 501A. This appliance
must be installed in accordance with local codes, if any; if none, follow the current ANSI Z223.1 or CSA B149. For use with barrier WXXX-XXXX. Follow installation instructions.
Foyer à gaz ventilé. Homologué pour installation dans une chambre à coucher, une salle de bain et un studio. Approprié pour installation dans une maison mobile si son installation
conforme aux exigences de la norme CAN / CSA Z240MH Séries de maisons mobile équipées au gaz en vigueur au Canada, ou, aux États-Unis selon la norme 24 CFR, Part 3280,
Manufactured Home Construction and Safety Standard. Dans le cas ou cette norme d’États-Unis n’est pas pertinentes, utiliser la norme NFPA 501A, Fire Safety Criteria for Manufactured
Home Installations, Sites and Communities. Installer l’appareil selon les codes ou règlements locaux ou, en l’absence de tels règlements, selon les codes d’installation ANSI Z223.1 ou
CSA B149 en vigueur. Utiliser uniquement avec l’écran WXXX-XXXX. Suivre les instructions d’installation.
9700539 (WSL) 4001658 (NAC) 4001657 (NGZ) 4001659 (WUSA)
WOLF STEEL LTD. 24 Napoleon Road, Barrie, ON, L4M 0G8 Canada
XXXX XXXX XXXX XXXX
MODEL / MODÈLE
Altitude
Input
Reduced Input
P4
Élévation
Alimentation
Alimentation Réduite
P4
Manifold Pressure: 3.5” w.c. (NG)
Minimum Supply Pressure: 4.5” w.c. (NG)
Maximum Supply Pressure: 7”* w.c. (NG)
Pression au Collecteur: 3,5” d’une colonne d’eau (GN)
Pression d’Alimentation Min.: 4,5” d’une colonne d’eau (GN)
Pression d’Alimentation Max.: 7” ** d’une colonne d’eau (GN)
** Maximum inlet pressure not to exceed 13”.
Manifold Pressure: 10” w.c. (P)
Minimum Supply Pressure: 11” w.c. (P)
Maximum Supply Pressure: 13”* w.c. (P)
Pression au Collecteur: 10” d’une colonne d’eau (P)
Pression d’Alimentation Min.: 11” d’une colonne d’eau (P)
Pression d’Alimentation Max.: 13” * d’une colonne d’eau (P)
** Pression d’alimentation maximale ne devait pas dépasser 13”.
0-XXXXft (0-XXXXm)
Minimum clearance to combustible materials:
Top, sides & back: per standoff spacers for framing and finishing
materials. For non-combustible framing and finishing materials,
see installation manual.
Top X”
Floor X”
Sides X”
Back X”
Vent top X”
Vent sides & bottom X”
Recessed depth X”
*** Mantel X” from appliance opening
Dégagements minimaux des matériaux combustibles:
Dessus, côtés et arrière: selon les espaceurs de dégagements
pour les matériaux d’ossature selon le manuel du propriétaire
pour les matériaux de finition.
Dessus X”
Plancher X“
Côtés X”
Arrière X“
Dessus du conduit d’évent X”
Côtés et dessous du conduit d’évent X”
Profondeur d’encastré une face X”
*** Tablette X” de l’ouverture de l’appareil
WARNING: Do not add any material to the appliance which will come in contact with the
flames, other than that supplied by the manufacturer with the appliance.
AVERTISSEMENT: N’ajoutez pas à cet appareil aucun matériau devant entretien
contact avec les flammes autre que celui qui est fourni avec cet appareil par le fabricant.
*** Maximum horizontal extension:
X”. See installation manual for
greater extensions, minimum vent
lengths and maximum vent lengths.
*** L’extension horizontale maximale: X”.
Référez au manuel d’installation pour des
extensions plus grandes, les longueurs
d’évacuation minimaux et maximum.
The appliance must be vented using the appropriate Napoleon vent kits. See installation
manual for venting specifications. Proper reinstallation and resealing is necessary after servicing
the vent-air intake system.
L’appareil doit être ventilé à l’aide de l’ensemble d’évacuation propre à Napoleon. Référez au
manuel d’installation pour les spécifications d’évacuation. Il est nécessaire de bien réinstaller et
resceller l’évacuation après avoir executer l’entretien du système de prise d’air.
Serial Number / N° de Série:
W385-XXXX
REFERENCE# 161746
XXXX
VENTED DECORATIVE GAS APPLIANCE: NOT A SOURCE OF
HEAT, NOT INTENDED FOR USE AS A HEATING
APPLIANCE, NOT FOR USE WITH SOLID FUEL.
APPAREIL À GAZ DÉCORATIF À ÉVACUATION: N’EST PAS
UNE SOURCE DE CHALEUR; N’EST PAS DESTINÉ À ÈTRE
UTILISÉ COMME UN APPAREIL DE CHAUFFAGE; NE
CONVIENT PAS AUX COMBUSTIBLES SOLIDES.
FOR USE WITH GLASS DOORS CERTIFIED WITH THIS APPLIANCE ONLY.
POUR UTILISATION UNIQUEMENT AVEC LES PORTES EN VERRE
CERTIFIÉES AVEC L’APPAREIL.
XX,XXX XX,XXX
XX,XXX XX,XXX
For natural gas when equipped with No. XX drill size orifice.
For propane when equipped with No. XX drill size orifice.
Convient au gaz naturel quand l’appareil est muni d’un injecteur de diamètre no. XX.
Convient au propane quand l’appareil est muni d’un injecteur de diamètre no. XX.
Electrical rating: 115V, 60HZ. Less than 12 amperes. Spécifications électriques: 115V, 60HZ. Moins de 12 ampère.
XX.X% XX.X%
XXXX XXXX XXXX XXXX
SAMPLE
É
lévatio
névation
Alim
e
ntati
onAlimentation
A
lim
e
ntati
o
n R
édu
it
eAlimentation Réduite
P
4
P4
w.c. (NG). (NG)
Pressure:
ure:
4
.5” w.c. (NG
)4.5” w.c. (NG)
Pressure:
ssure:
7
”* w.c.
(
N
G)7”* w.c. (NG)
teur:
ur:
3,5” d’une colonne d’eau (GN)
3,5” d’une colonne d’
ation Min.:
ion Min
4,5” d’une colonne d’eau
(G
N
)u (GN)
tion Max.:
ion Max.:
7” ** d’une colonne d’eau
(G
N
)7” ** d’une colonne d’eau (GN
sure not to exceed 13”.
re not to exceed 13”.
Manif
o
l
d
Pr
essu
r
e
:
old Pressure:
10” w.c.
(
P
).c. (P)
Minimum Su
pp
l
y
Pressure:
Minimum Supply Pressure:
11” w.c. (P
)11” w.c. (P)
Maximum
S
u
pp
l
y
Pressure:
Maximum Supply Pressure:
13”* w.c.
(
P
)13”* w.c. (P)
Pression au
C
ollecteur:
n au Collecteur:
10” d’une colonne d’eau (P
)0” d’une colonne d’eau (P)
Pr
ess
i
o
n
d
’Alim
e
ntati
o
n Min.:
Pression d’Alimentation Min.:
11” d’une colonne d’eau
(
P
)11” d’une colonne d’eau (P)
Pre
ss
ion d’Alimentation Max.:
ession d’Alimentation Max.:
13” * d’une colonne d’eau
(
P
)13” * d’une colonne d’eau (P)
** Pression d’alimentation maximale ne devait pas dépasser 13”.** Pression d’alimentation maximale ne devait pas dépasser 13”.
to combustible materials:mbustible materials:
standoff spacers for framing and finishingoff spacers for framing and finishin
bustible framing and finishing materials,bustible framing and finishing materials
Dégagements minimaux des matériaux combustibDégagements minimaux des matériaux combu
Dessus, côtés et arrière: selon les espaces, côtés et arrière: selon les esp
pour les matériaux d’oses matériaux d
ANCE: NOT
CE: NOT
AT, NOT INTENDED FOR USE ANDED FOR USE A
APPLIANCE, NOT FOR USE WITHAPPLIANCE, NOT FOR
APPAREIL À GAZ DÉCORATIF À ÉVACUATIOAPPAREIL À GAZ DÉCORATIF À ÉVACUATIO
UNE SOURCE DE CHALEUR; N’EST PAS DESUNE SOURCE DE CHALEUR; N’EST PAS D
UTILISÉ COMME UN APPAREIL DE CHAUTILISÉ COMME UN APPAREIL DE CHA
CONVIENT PAS AUX COMBUSTIBLEONVIENT PAS AUX COMBUSTIBLE
FOR USE WITH GLASS DOORS CERTIFIED WITH THIS APP
FOR USE WITH GLASS DOORS CERTIFIED WITH THIS AP
POUR UTILISATION UNIQUEMENT AVELISATION UNIQUEMENT
XX,XXXXX,XXX
XX,XXXXX,XXX
XX.X%XX.X%

W415-2034 / A / 10.18.19
EN
10
general information
note:
1.4 mobile home installation
1.5 hardware list
Description Quantity
1Hex Head Sheet Metal Screw 22
2Round Head Sheet Metal Screw 4
3Hex Head Sheet Metal Bolt 18
123
Only fasteners supplied with the appliance are illustrated.
This appliance must be installed in accordance with the manufacturer’s instructions and the Manufactured
Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the United States or the Mobile Home
Standard, CAN/CSA Z240 MH Series, in Canada. This appliance is only for use with the type(s) of gas
indicated on the rating plate.
This mobile/manufactured home listed appliance comes factory equipped with a means to secure the appliance. The
shipping brackets that secure the appliance to the pallet can be used to secure the appliance to the floor for mobile
home installation. For mobile home installations, the appliance must be secured.
This appliance is certified to be installed in an aftermarket permanently located, manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible
for use with other gases, unless a certified kit is used.
Conversion Kits
This appliance is field convertible between Natural Gas (NG) and Propane (P). To convert from one gas to another,
consult your Authorized dealer/distributor.
Remove 4 screws each side (8 total) then install the
lifting handles to the side of the appliance and secure
using 4 screws each side (8 total). Once the appliance
is in place remove the four screws from each handle to
the appliance. Discard the lifting handles.
1.6 lifting handles installation/removal
note:
The lifting handles MUST be removed prior to rough
framing the appliance.
Safety barrier
al

EN
W415-2034 / A / 10.18.19 11
dimensions
2.0 dimensions
2.1 single-sided
LV38-1 LV50-2 LV62 LV74
A
(Finishing Flange)
40 3/4”
(1035mm)
52 3/4”
(1340mm)
64 3/4”
(1645mm)
76 3/4”
(1949mm)
B 53 5/16”
(1354mm)
65 5/16”
(1659mm)
77 5/16”
(1964mm)
89 5/16”
(2269mm)
C57 5/16”
(1456mm)
69 5/16”
(1761mm)
81 5/16”
(2065mm)
93 5/16”
(2370mm)
41 3/16"
1046mm
7 1/16"
179mm
18 5/8"
473mm
3 1/8"
80mm
19 7/8"
1/2”
[12.7mm]
505mm
32 3/4"
832mm
39 11/16"
1008mm
8 1/16"
205mm
8 1/16"
205mm
Ø 8"
203mm
Ø 5"
127mm
A
B
C
SAFETY BARRIER
*
*Finishing flange depth (the finishing flange defines the perimeter of the fireplace opening.
Framing or finishing materials must NEVER encroach inside the finishing flange).
Base of air collar

W415-2034 / A / 10.18.19
EN
12
dimensions
LV38-1 LV50-2 LV62 LV74
A
(Finishing Flange)
40 3/4”
(1035mm)
52 3/4”
(1340mm)
64 3/4”
(1645mm)
76 3/4”
(1949mm)
B 53 5/16”
(1354mm)
65 5/16”
(1659mm)
77 5/16”
(1964mm)
89 5/16”
(2269mm)
C57 5/16”
(1456mm)
69 5/16”
(1761mm)
81 5/16”
(2065mm)
93 5/16”
(2370mm)
2.2 see-thru
41 3/16"
1046mm
7 1/16"
179mm
18 5/8"
473mm
3 1/8"
80mm
32 3/4"
832mm
39 11/16"
1008mm
16 3/16"
411mm
8 1/16"
205mm
8 1/16"
205mm
Ø 8"
203mm
Ø 5"
127mm
1/2"
[12.7mm] 1/2"
[12.7mm]
A
B
C
SAFETY BARRIER
**
*Finishing flange depth (the finishing flange defines the perimeter of the fireplace opening. Framing
or finishing materials must NEVER encroach inside the finishing flange).
Base of air collar

EN
W415-2034 / A / 10.18.19 13
minimum venting requirements
3.0 minimum venting requirements
!WARNING
• Risk of fire. Maintain specified air space clearances to vent pipe and appliance.
• The vent system must be supported every 3’(0.9m) for both vertical and horizontal runs. Use support ring
assembly W010-0067 or equivalent non-combustible strapping to maintain the minimum clearance to
combustibles for both vertical and horizontal runs. Spacers are attached to the inner pipe at predetermined
intervals to maintain an even air gap to the outer pipe. This gap is required for safe operation. A spacer is
required at the start, middle, and end of each elbow to ensure this gap is maintained. These spaces must
not be removed.
The vent terminal may be painted with high temperature paint to match exterior colours. Use an outdoor paint
suitable for 400°F (200°C). Application and performance of paint is the consumer’s responsibility. Spot testing is
recommended. Appliance should be off.
All vent measurements start at the base of the air collar of the appliance.
This appliance uses a 5” (127mm) exhaust / 8” (203.2mm) air intake vent pipe system. Refer to the
section applicable to your installation.
For safe and proper operation of the appliance follow the venting instructions exactly. Deviation from the
minimum vertical vent length can create difficulty in burner start-up and/or carboning. Under extreme vent
configurations, allow several minutes (5-15) for the flame to stabilize after ignition. Although not a requirement,
it is recommended for vent lengths that pass through unheated spaces (attics, garages, crawl spaces) be
insulated with the insulation wrapped in a protective sleeve to minimize condensation.
Provide a means for visually checking the vent connection to the appliance after the appliance is installed. Use a
firestop, vent pipe shield or attic insulation shield when penetrating interior walls, floor or ceiling.
If for any reason the vent air intake system is disassembled; reinstall per the instructions provided for the
initial installation.
This appliance must be installed with a continuous connection of exhaust and air intake vent pipes. Utilizing
alternate constructions, such as a chimney as part of the vent system, is not permitted.
note:
For ease of installation, the front frame can be removed. The front frame must be
reinstalled prior to installing the nailing tabs.
important:
Horizontal vent sections: A minimum clearance of 3” (76mm) on the top outside of the enclosure and 2”
(51mm) on the sides and bottom outside of the enclosure all around the vent pipe on all horizontal runs to com-
bustibles is required. Horizontal vent sections within enclosures require a minimum clearance of 6”(152mm) at the
top of the vent pipe.
Vertical vent sections: A minimum of 1” (25mm) all around the vent pipe on all vertical runs to combustibles is
required except for clearances in appliances enclosures. Vertical vent sections within enclosures require a mini-
mum clearance of 1” (25mm) around the vent pipe.

W415-2034 / A / 10.18.19
EN
14
minimum venting requirements
For vent systems that provide seals on the inner exhaust flue, only the outer air intake joints must be sealed using
a red high temperature silicone (RTV). This same sealant may be used on both the inner exhaust and outer
intake vent pipe joints of all other approved vent systems except for the exhaust vent pipe connection
to the appliance flue collar which must be sealed using the black high temperature sealant Mill Pac.
When using Wolf Steel venting components, use only approved Wolf Steel flexible components with the wall
terminal kit GD422R-2, or 1/12 to 7/12 pitch roof terminal kit GD410, 8/12 to 12/12 roof terminal kit GD411,
flat roof terminal kit GD412 or periscope kit GD401 (for wall penetration below grade). With flexible venting, in
conjunction with the various terminations, use either the 5 foot (1.5m) vent kit GD420 or the 10 foot (3.1m) vent
kit GD430.
For optimum flame appearance and appliance performance, keep the vent length and number of elbows to
a minimum.
Horizontal runs may have a 0” (0mm) rise per foot/meter however for optimum performance it is
recommended that all horizontal runs have a minimum 1/4” (21mm) rise per foot/meter using flexible
venting. For safe and proper operation of the appliance, follow the venting instructions exactly.
The air terminal must remain unobstructed at all times. Examine the air terminal at least once a year
to verify that it is unobstructed and undamaged.
Rigid and flexible venting systems must not be combined. Different venting manufacturer components
must not be combined.
These vent kits allow for either horizontal or vertical venting of the appliance. The maximum allowable
horizontal run is 20 feet (6.1m). The maximum allowable vertical vent length is 40 feet (12.2m). The maximum
number of vent connections is two horizontally or three vertically (excluding the appliance and the air terminal
connections) when using flexible venting.
A terminal shall not terminate directly above a sidewalk or paved driveway which is located between two single
family dwellings and serves both dwellings. Local codes or regulations may require different clearances.
Do not allow the inside liner to bunch up on horizontal or vertical runs and elbows. Keep it pulled tight. A 1¼”
(31.8mm) air gap all around between the inner liner and outer liner is required for safe operation.
Vent
Manufacturer
Starter Adapter Part
Number Supplier Website
Duravent W175-0170 Wolf Steel www.duravent.com
Amerivent 5DSC-N2 American Metal www.americanmetalproducts.com
Direct Temp 5DT-AA Selkirk www.selkirkcorp.com
SureSeal 5DNA Metal-Fab www.mtlfab.com
Use only Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent or Metal-Fab venting
components. Minimum and maximum vent lengths, for both horizontal and vertical installations, clearances from
vent pipes to combustibles and air terminal locations as set out in this manual apply to all vent systems and
must be adhered to. For Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent and Metal-Fab,
follow the installation procedure provided with the venting components. A starter adaptor must be used with the
following vent systems and may be purchased from the corresponding supplier:

EN
W415-2034 / A / 10.18.19 15
minimum venting requirements
LV38-1 LV50-2 LV62 LV74
D40” (101.6cm) 46 1/2” (118.1cm) N/A*
LV38-1 LV50-2 LV62 LV74
D40” (101.6cm) 46 1/2” (118.1cm) 52 1/2” (133.4cm) 58 1/2” (148.6cm)
30”
(76.2cm)
LV38-1 & LV50-2: 30” (76.2cm) min
LV62 & LV74N: 48” (121.9cm) min
LV74P: 58” (147.3cm) min LV38-1 & LV50-2: 62 3/4” (159.4cm)
min plus rise
LV62 & LV74N: 80 3/4” (205.1cm)
min plus rise
LV74P: 90 3/4” (230.5cm)
min plus rise
62 3/4"
(159.4cm)
18"
(45.7cm)
SINGLE-SIDED
SINGLE-SIDED
SEE-THRU
SEE-THRU
3.1 typical venting installation
minimum plus rise
maximum
minimum
base of
air collar
base of
air collar
D
maximum
special vent installation (periscope termination)
Use the periscope kit to locate the air termination above grade. The periscope must be installed so that when
final grading is completed, the bottom air slot is located a minimum 12” (30.5cm) above grade. The maximum
allowable vent length is 10’ (3m).
12"
(30.5cm)
minimum
to grade
30”
(76.2cm) min.
base of air collar
12"
(30.5cm)
minimum
to grade
base of air collar
LV38-1 & LV50-2: 30” (76.2cm) min
D
maximum
*Periscope cannot be used for the models indicated.

W415-2034 / A / 10.18.19
EN
16
minimum venting requirements
40 ft (12m)
maximum
6 ft (1.83m)
minimum
16" (40.6cm)
minimum
SINGLE-SIDED OR SEE-THRU
base of air collar
A 6’ (1.83m) minimum vertical rise is
considered the minimum practical dimen-
sion for the specific appliance enclosure
and a minimal building structure. However,
a greater minimum vertical rise may be
needed to suit the specific application con-
straints or local codes and / or regulatory
requirements.
note:

EN
W415-2034 / A / 10.18.19 17
minimum venting requirements
3.2 minimum air terminal location clearances
Covered balcony applications ††*
QMIN RMAX MAX
R
= 3 feet
(0.9m) = 2 x IHHW
(4.6m)
QACTUAL
R
QS
G
P
INSTALLATIONS
CANADA U.S.A.
A12” (30.5cm) 12” (30.5cm) Clearance above grade, veranda porch, deck or balcony.
B12” (30.5cm)Δ9” (229mm) ΔClearance to windows or doors that open.
C12” (30.5cm)* 12” (30.5cm)* Clearance to permanently closed windows.
D18”
(45.7cm)**
18”
(45.7cm)**
Vertical clearance to ventilated soffits located above the terminal within a horizontal distance of 2’ (0.6m)
from the center line of the terminal.
E12” (30.5cm)** 12” (30.5cm)** Clearance to unventilated soffit.
F0” (0mm) 0” (0mm) Clearance to an outside corner wall.
G0” (0mm)*** 0” (0mm)*** Clearance to an inside non-combustible corner wall or protruding non-combustible obstructions (chimney, etc.).
2” (51mm)*** 2” (51mm)*** Clearance to an inside combustible corner wall or protruding combustible obstructions (vent chase, etc.).
H3’(0.9m) 3’(0.9m)**** Clearance to each side of the center line extended above the meter / regulator assembly to a maximum
vertical distance of 15’ (4.6m).
I3’ (0.9m) 3’ (0.9m)**** Clearance to a service regulator vent outlet.
J12” (30.5cm) 9” (229mm) Clearance to a non-mechanical air supply inlet to the building or a combustion air inlet to any other appliance.
K6’ (1.8m) 3’ (0.9m) † Clearance to a mechanical air supply inlet.
L7’ (2.1m) ‡ 7’ (2.1m) **** Clearance above a paved sidewalk or paved driveway located on public property.
M12” (30.5cm)†† 12” (30.5cm)**** Clearance under a veranda, porch or deck.
N16” (40.6cm) 16” (40.6cm) Clearance above the roof.
O2’ (0.6m)†* 2’ (0.6m) †* Clearance from an adjacent wall including neighbouring buildings.
P8’ (2.4m) 8’ (2.4m) Roof must be non-combustible without openings.
Q3’ (0.9m) 3’ (0.9m) See chart for wider wall dimensions.
R6’ (1.8m) 6’ (1.8m) See chart for deeper wall dimensions. The terminal shall not be installed on any wall that has an opening
between the terminal and the open side of the structure.
S12” (30.5cm) 12” (30.5cm) Clearance under a covered balcony
Δ The terminal shall not be located less than 6 feet under a window that opens on a horizontal plane in a structure with three walls and a roof.
* Recommended to prevent condensation on windows and thermal breakage
** It is recommended to use a heat shield and to maximize the distance to vinyl clad soffits.
*** The periscope requires a minimum 18 inches clearance from an inside corner.
**** This is a recommended distance. For additional requirements, check local codes.
† 3 feet above if within 10 feet horizontally.
‡ A vent shall not terminate where it may cause hazardous frost or ice accumulations on adjacent property surfaces.
†† Permitted only if the veranda, porch, or deck is fully open on a minimum of two sides beneath the floor.
†* Recommended to prevent recirculation of exhaust products. For additional requirements, check local codes.
††* Permitted only if the balcony is fully open on a minimum of one side.
Clearances are to be in accordance with local
installation codes and the requirements of the gas
supplier. In their absence, clearances are to be as
listed above and are based on national codes.
note:
note:
Wall terminals are for illustration purposes only. Size and
shapes may vary.

W415-2034 / A / 10.18.19
EN
18
minimum venting requirements - natural gas
3.3 horizontal termination (natural gas)
0’
0’
Base of
air collar 10’
10’
15’
15’
20’ 25’
20’
30’
40’
5’
3 7/8’ (46 1/2”) max.
(LV50-2 see-thru)
1 1/2’
(18”)
max.*
2 1/2’
(30”) min.*
38 1/2’
(462”)
5’
1 elbow zone
1-2 elbow zone
1-3 elbow zone
1-4 elbow zone
1-5 elbow zone
1-6 elbow zone
H
V
V+H ≤ 40 ft. (For longer vent runs, a power
vent is required).
H ≤ 20 ft.
V + H are measured from the centre of vent
elbows. Elbows are considered as 90º.
Two 45º elbows = One 90º elbow.
3 3/8’ (40”) max.
(LV38-1 see-thru)
LV38-1 / LV50-2 / LV62 / LV74 SINGLE-SIDED
&
LV38-1 / LV50-2 SEE-THRU (NATURAL GAS ONLY)
*single-sided models
Refer to appliance
specific GPV/
PVA instructions
for other venting
configurations.

EN
W415-2034 / A / 10.18.19 19
minimum venting requirements - natural gas
0’
0’
Base of
air collar 10’
10’
15’
15’
20’ 25’
20’
30’
40’
5’
4 7/8’ (58 1/2”) max.
(LV74 see-thru)
1 1/2’
(18”)
4’
(48”) min.
5’
1 elbow zone
1-2 elbow zone
1-3 elbow zone
1-4 elbow zone
1-5 elbow zone
1-6 elbow zone
H
V
V+H ≤ 40 ft. (For longer vent runs, a power
vent is required).
H ≤ 20 ft.
V + H are measured from the centre of vent
elbows. Elbows are considered as 90º.
Two 45º elbows = One 90º elbow.
38 1/2’
(462”)
4 3/8’ (52 1/2”) max.
(LV62 see-thru)
LV62 / LV74 SEE-THRU (NATURAL GAS ONLY)
Refer to appliance
specific GPV/
PVA instructions
for other venting
configurations.

W415-2034 / A / 10.18.19
EN
20
minimum venting requirements example - natural gas
10’
10’
15’
15’
20’
20’
30’
40’
5’
5’
1-3 elbow zone
H
V
V1
V2
H2
H1
V=V
1 +V 2 = 8 ft
H=H
1 +H 2 = 10 ft
90°
90°
V1
V2
H1
H2
V and H are measured from the center of the vent elbows
This example represents a vent that has a maximum of three 90º elbows, a combined horizontal vent length (H ) of
10 feet and a combined vertical vent length (V) of 8 feet.
0’
0’
Base of
air collar
Base of
air collar
Since the vent is located in the dark shaded area, it is within the acceptable vent configuration
1-
3
elb
bo
b
w
z
w
zo
z
ne
n
V
V
V
2
2
2
H
H
H
2
H
H
H
1
4 3/4”
(57”)
(NATURAL GAS ONLY)
