Napoleon HD81-1 User manual

EN
FR
PG
55
W415-2201 / B/ 08.17.18
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE
INSTALLATION AND
OPERATING INSTRUCTIONS
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • Fax [phone] • www.napoleonfireplaces.com • [email protected]
1.28G
$10.00
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
DANGER
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
SAFETY INFORMATION
!WARNING
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbour’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
- Installation and service must be performed by a
qualified installer, service agency or the supplier.
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
certified kit is used.
If the information in these instructions
are not followed exactly, a fire or
explosion may result causing property
damage, personal injury or loss of life.
FOR INDOOR USE ONLY HD81NT-1
NATURAL GAS
HD81PT-1
PROPANE
CERTIFIED TO CANADIAN AND AMERICAN NATIONAL STANDARDS: ANSI Z21.50, CSA 2.22 FOR VENTED GAS FIREPLACES.
SAFETY BARRIER

2
W415-2201 / B/ 08.17.18
EN
TABLE OF CONTENTS
1.0 INSTALLATION OVERVIEW 3
2.0 INTRODUCTION 4
2.1 DIMENSIONS 5
2.2 GENERAL INSTRUCTIONS 6
2.3 GENERAL INFORMATION 7
2.4 RATING PLATE INFORMATION 8
3.0 VENTING 9
3.1 VENTING LENGTHS AND COMPONENTS 9
3.2 TYPICAL VENT INSTALLATION 10
3.3 VENT TERMINAL CLEARANCES 11
3.4 VENT APPLICATION FLOW CHART 12
3.5 DEFINITIONS 12
3.6 ELBOW VENT LENGTH VALUES 12
3.7 HORIZONTAL TERMINATION 13
3.8 VERTICAL TERMINATION 15
4.0 INSTALLATION 17
4.1 WALL AND CEILING PROTECTION 17
4.1.1 HORIZONTAL INSTALLATION 18
4.1.2 VERTICAL INSTALLATION 18
4.2 USING FLEXIBLE VENT COMPONENTS 19
4.2.1 HORIZONTAL AIR TERMINAL INSTALLATION 19
4.2.2 VERTICAL AIR TERMINAL INSTALLATION 20
4.2.3 APPLIANCE VENT CONNECTION 20
4.3 MOBILE HOME INSTALLATION 21
4.4 GAS INSTALLATION 21
5.0 FRAMING 22
5.1 MINIMUM CLEARANCES TO COMBUSTIBLES 24
5.2 HEARTH EXTENSION 24
5.3 STEEL STUD FRAMING KIT 25
5.3.1 INSIDE FRAME ASSEMBLY 25
5.3.2 ATTACH SIDE STUDS (LEGS) 26
5.3.3 ATTACH THE ASSEMBLED FRAME TO THE APPLIANCE 26
5.3.4 INSTALL CONCRETE BOARD SIDE AND CENTER PANELS 27
5.3.5 STEEL FRAMING KIT SIDE TWO 27
5.4 MINIMUM CLEARANCE TO COMBUSTIBLE ENCLOSURES 28
5.5 MINIMUM MANTEL CLEARANCES 30
6.0 FINISHING 31
6.1 SAFETY SCREEN REMOVAL / INSTALLATION 31
6.2 DOOR REMOVAL / INSTALLATION 32
6.3 BURNER INSTALLATION 32
6.4 NON-COMBUSTIBLE FACING MATERIAL 33
7.0 ELECTRICAL INFORMATION 34
7.1 HARD WIRING CONNECTION 34
7.2 OPTIONAL BLOWER INSTALLATION 34
7.3 WIRING DIAGRAM 35
7.4 RECEPTACLE WIRING DIAGRAM 36
7.5 REMOTE RECEIVER INSTALLATION 36
8.0 OPERATION 37
8.1 GENERAL TRANSMITTER LAYOUT 37
8.2 INITIALIZING THE TRANSMITTER/BATTERY HOLDER FOR THE FIRST TIME 37
8.3 TEMPERATURE DISPLAY 38
8.4 FLAME HEIGHT 38
8.5 NIGHT LIGHT DIMMER CONTROL 38
8.6 FAN SPEED 38
8.7 CONTINUOUS PILOT / INTERMITTENT PILOT (CPI / IPI) SELECTION 39
8.8 CHILD PROOF FUNCTION / KEY LOCK 39
8.9 LOW BATTERY / MANUAL BYPASS 39
8.10 SPLIT FLOW 39
9.0 OPERATING INSTRUCTIONS 40
10.0 ADJUSTMENT 41
10.1 PILOT BURNER ADJUSTMENT 41
10.2 FLAME CHARACTERISTICS 41
10.3 RESTRICTING VERTICAL VENTS 41
11.0 MAINTENANCE 42
11.1 ANNUAL MAINTENANCE 43
11.2 CONTROL ACCESS 44
11.2.1 INNER ACCESS PANEL 44
11.3 VALVE REMOVAL 44
11.4 NIGHT LIGHT™ 45
11.5 GLASS / DOOR REPLACEMENT 45
11.6 CARE OF GLASS 46
11.7 CARE OF PLATED PARTS 46
NOTE: The camera icon indicates video tutorials are available as additional reference,
visit http://mynapoleon.napoleonproducts.com/download/index/44/1

3
EN
W415-2201 / B/ 08.17.18
NOTE: Changes, other than editorial, are denoted by a vertical line in the margin.
1.0 INSTALLATION OVERVIEW
See the section
“FRAMING -
MINIMUM MANTEL
CLEARANCES”
See the section
“FRAMING - MINIMUM
CLEARANCE TO
COMBUSTIBLE
ENCLOSURES” for
drywall (or other
combustible material)”
See the section
“FRAMING”
Side
Wall
See the section
“VENTING - VENTING
LENGTHS AND AIR TERMINAL
LOCATIONS”
See the section
“FRAMING”
See the section
“FRAMING - MINIMUM
CLEARANCE TO
COMBUSTIBLE
ENSLOSURES” for
non-combustible
materials such as tile,
marble, granite, etc.
See the section
“CONTROL ACCESS”
for the control box.
See the section
“BURNER INSTALLATION”
SAFETY BARRIER
Batteries must be disposed of according to the local laws and regulations. Some batteries may be
recycled, and may be accepted for disposal at your local recycling center. Check with your municipality
for recycling instructions.
12.0 REPLACEMENTS 46
13.0 HD81-1 OVERVIEW 47
14.0 ACCESSORIES 48
15.0 TROUBLESHOOTING 49
16.0 WARRANTY 52
17.0 SERVICE HISTORY 53

4
W415-2201 / B/ 08.17.18
EN
3.2C
!
WARNING
• THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED.
• ANY CHANGES OR ALTERATIONS TO THIS APPLIANCE OR ITS CONTROLS CAN BE DANGEROUS AND IS
PROHIBITED.
• Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance
according to operating instructions could cause fire or injury.
• Risk of fire or asphyxiation do not operate appliance with fixed glass removed.
• Do not connect 110 volts to the control valve.
• Risk of burns. The appliance should be turned off and cooled before servicing.
• Do not install damaged, incomplete or substitute components.
• Risk of cuts and abrasions. Wear protective gloves and safety glasses during installation. Sheet metal edges may
be sharp.
• Do not burn wood or other materials in this appliance.
• Children and adults should be alerted to the hazards of high surface temperature and should stay away to
avoid burns or clothing ignition.
• Young children should be carefully supervised when they are in the same room as the appliance.
Toddlers, young children and others may be susceptible to accidental contact burns. A physical barrier
is recommended if there are at risk individuals in the house. To restrict access to an appliance, install an
adjustable safety gate to keep toddlers, young children and other at risk individuals out of the room and
away from hot surfaces.
• Clothing or other flammable material should not be placed on or near the appliance.
• Due to high temperatures, the appliance should be located out of traffic and away from furniture and
draperies.
• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot surfaces.
• Even after the appliance is out, the glass and/or screen will remain hot for an extended period of time.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from hot
surfaces. These screens and guards must be fastened to the floor.
• Any safety screen, guard or barrier removed for servicing the appliance, must be replaced prior to operating
the appliance.
• The appliance is a vented gas-fired appliance. Do not burn wood or other materials in the appliance
•It is imperative that the control compartments, burners and circulating blower and its passageway in the appliance
and venting system are kept clean. The appliance and its venting system should be inspected before use and at
least annually by a qualified service person. More frequent cleaning may be required due to excessive lint from
carpeting, bedding material, etc. The appliance area must be kept clear and free from combustible materials,
gasoline and other flammable vapors and liquids.
• Under no circumstances should this appliance be modified.
•This appliance must not be connected to a chimney flue pipe serving a separate solid fuel burning appliance.
• Do not use this appliance if any part has been under water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control system and any gas control which has been under
water.
• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass should be
done by a licensed or qualified service person.
•Do not strike or slam shut the appliance glass door.
• When equipped with pressure relief doors, they must be kept closed while the appliance is operating to prevent
exhaust fumes containing carbon monoxide, from entering into the home. Temperatures of the exhaust escaping
through these openings can also cause the surrounding combustible materials to overheat and catch fire.
• Only doors / optional fronts certified with the appliance are to be installed on the appliance.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As with all
plastic bags, these are not toys and should be kept away from children and infants.
•As with any combustion appliance, we recommend having your appliance regularly inspected and serviced as well
as having a Carbon Monoxide Detector installed in the same area to defend you and your family against Carbon
Monoxide.
• Ensure clearances to combustibles are maintained when building a mantel or shelves above the appliance.
Elevated temperatures on the wall or in the air above the appliance can cause melting, discolouration or damage of
decorations, a T.V. or other electronic components.
• A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and
shall be installed.
• If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this
appliance.
• Installation and repair should be done by a qualified service person. The appliance should be inspected
before use and at least annually by a professional service person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding material, etc. It is imperative that control compartments,
burners and circulating air passageways of the appliance be kept clean.
2.0 INTRODUCTION

5
EN
W415-2201 / B/ 08.17.18
49 1/4"
1252mm
33 7/16"
849mm
39 7/16"
1001mm
42 7/8"
1089mm
28 3/4"
730mm
54 1/4"
1378mm
8"
[203mm]
11"
[279mm]
2.1 DIMENSIONS
SAFETY SCREEN

6
EN
The optional heat circulating blower is supplied with a cord.
This appliance is equipped with a power back up control system. Therefore four 1.5 volt “AA” batteries are
required for the battery holder. Use alkaline batteries only. See “IN THE EVENT OF A POWER FAILURE”
section.
W415-2201 / B/ 08.17.18
4.1C
THIS GAS APPLIANCE SHOULD BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to
conform with local codes. Installation practices vary from region to region and it is important to know the
specifics that apply to your area, for example in Massachusetts State:
• This product must be installed by a licensed plumber or gas fitter when installed within the
commonwealth of Massachusetts.
• The appliance damper must be removed or welded in the open position prior to installation of an
appliance insert or gas log.
• The appliance off valve must be a “T” handle gas cock.
• The flexible connector must not be longer than 3 feet (0.9m).
• A Carbon Monoxide detector is required in all rooms containing gas fired appliances.
• The appliance is not approved for installation in a bedroom or bathroom unless the unit is a direct vent
sealed combustion product.
The installation must conform with local codes or, in
absence of local codes, the National Gas and Propane
Installation Code CSA B149.1 in Canada, or the National
Fuel Gas Code, ANSI Z223.1 / NFPA 54 in the United
States. Suitable for mobile home installation if installed
in accordance with the current standard CAN/CSA
Z240MH Series, for gas equipped mobile homes, in
Canada or ANSI Z223.1 and NFPA 54 in the United
States.
A
s long as the required clearance to combustibles is
maintained, the most desirable and beneficial location for an appliance is in the center of a building, thereby
allowing the most efficient use of the heat created. The location of windows, doors and the traffic flow in the
room where the appliance is to be located should be considered. If possible, you should choose a location
where the vent will pass through the house without cutting a floor or roof joist.
If the appliance is installed directly on carpeting, vinyl tile or other combustible material other than wood
flooring, the appliance shall be installed on a metal or wood panel extending the full width and depth.
Some appliances have optional fans or blowers. If an optional fan or blower is installed, the junction box must
be electrically connected and grounded in accordance with local codes, use the current CSA C22.1 Canadian
Electrical Code in Canada or the ANSI/NFPA 70 National Electrical code in the United States.
We suggest that our gas
hearth products be installed
and serviced by professionals
who are certied in the U.S.
by the National Fireplace
Institute
® (NFI) as NFI Gas
Specialists
www.ncertied.org
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT,
WITH THE GLASS DOOR OPENED OR REMOVED.
PROVIDE ADEQUATE CLEARANCE FOR SERVICING AND OPERATING THE APPLIANCE.
PROVIDE ADEQUATE VENTILATION.
NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.
OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48 INCHES
(121.9cm) FROM THE FRONT FACE OF THE APPLIANCE.
SURFACES AROUND AND ESPECIALLY ABOVE THE APPLIANCE CAN BECOME HOT. AVOID CONTACT
WHEN THE APPLIANCE IS OPERATING.
FIRE RISK. EXPLOSION HAZARD.
HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE PRESSURE TESTING GAS
LINE AT TEST PRESSURES ABOVE 1/2 PSIG. CLOSE THE MANUAL SHUT-OFF VALVE BEFORE PRESSURE
TESTING GAS LINE AT TEST PRESSURES EQUAL TO OR LESS THAN 1/2 PSIG (35mb).
USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH THIS APPLIANCE.
USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, GAS COMPONENTS, VENTING
COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL VOID THE WARRANTY AND CERTIFICATION.
THE APPLIANCE MUST NOT BE OPERATED AT TEMPERATURES BELOW FREEZING (32°F / 0°C).
ALLOW THE APPLIANCE TO WARM TO ABOVE FREEZING PRIOR TO OPERATION.
!
WARNING
2.2 GENERAL INSTRUCTIONS

7
EN
W415-2201 / B/ 08.17.18
This appliance is approved for bathroom, bedroom and bed-sitting room installations and is certified for
mobile home installation.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a certified kit is used.
When the appliance is installed at elevations above 4,500ft (1371m), and in the absence of specific
recommendations from the local authority having jurisdiction, the certified high altitude input rating shall be
reduced at the rate of 4% for each additional 1,000ft (305m).
The switch on the battery holder must be placed in the middle position. If this switch is not in this
position the appliance will not operate using the remote, see “REMOTE RECEIVER INSTALLATION” and
“CONTROL MODULE REMOVAL” section.
Expansion / contraction noises during heating up and cooling down cycles are normal and are to be
expected. Change in flame appearance from “HI” to “LO” is more evident in natural gas than in propane.
NOTE: The protective wrap on plated parts is best removed when the assembly is at room temperature
but this can be improved if the assembly is warmed, using a hair dryer or similar heat source.
This appliance is equipped with a remote control system, which requires batteries (supplied) to be installed.
The transmitter takes 3 “AAA” batteries and in the case of a power failure the battery back-up takes four
“AA” batteries.
2.3 GENERAL INFORMATION
FOR YOUR SATISFACTION, THIS APPLIANCE HAS BEEN TEST-FIRED TO ASSURE ITS OPERATION
AND QUALITY!
HD81-1
NG P
Altitude (FT) 0-4,500 0-4500
Max. Input (BTU/HR) 60,000 50,000
Max. Output Steady State (BTU/HR) 38,753 33,677
Efficiency (w/the fan on) 64% 68%
Min. Inlet Gas Supply Pressure 4.5" w.c. (11mb) 11" w.c. (27mb)
Max. Inlet Gas Supply Pressure 13" w.c. (32mb) 13" w.c. (32mb)
Manifold Pressure (Under Flow Conditions) 3.5" w.c. (9mb) 10" w.c. (25mb)
65%
HD81-1

8
W415-2201 / B/ 08.17.18
EN

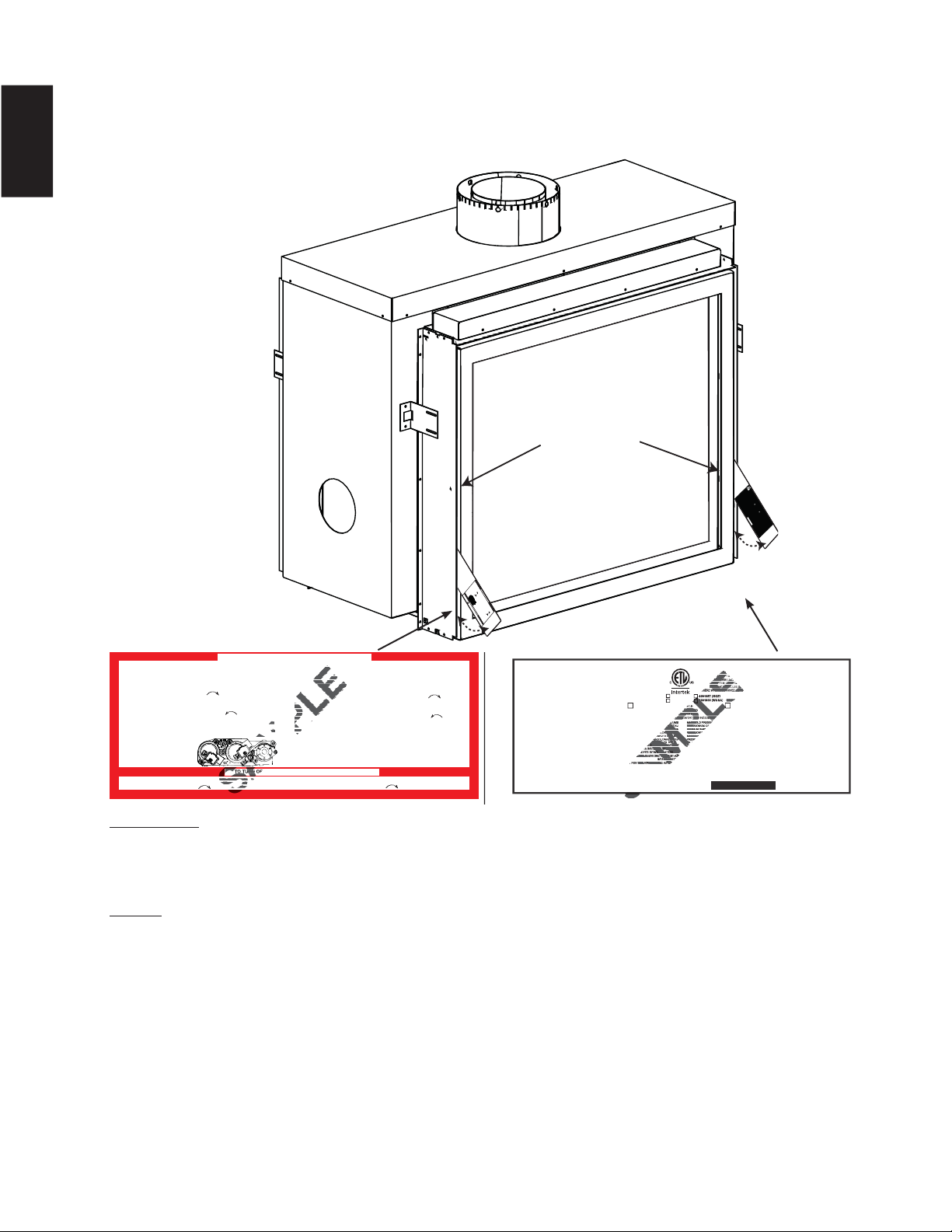

2.4 RATING PLATE INFORMATION
SIDE SPACERS
RATING
PLATE
LIGHTINGINSTRUCTIONS/INSTRUCTIONS D’ALLUMAGE
1.STOP!READTHEABOVESAFETYINFORMATIONONTHISLABEL.
2.REMOVETHEBATTERIESFROMTHETRANSMITTER.
3. TURNOFFELECTRICPOWERTOTHEFIREPLACE.
4.THISFIREPLACEISEQUIPPEDWITH ANIGNITION DEVICE WHICHAUTOMATICALLYLIGHTSTHEPILOT.
DONOTTRYTOLIGHTTHEPILOTBY HAND.
5.OPENTHEGLASSDOOR.
6.TURNMANUALSHUTOFFVALVECLOCKWISE TOOFF. LOCATEDBEHINDTHE ACCESS
PANEL.
7. WAITFIVE(5)MINUTESTOCLEAROUT ANYGAS.IF YOU SMELL GASINCLUDINGNEAR THEFLOOR,
STOP!FOLLOW“B”INTHEABOVESAFETYINFORMATIONONTHISLABEL.IFYOUDON’TSMELLGASGO
TOTHENEXTSTEP.
8.TURNMANUALSHUTOFFVALVECOUNTER-CLOCKWISE TOON.
9.CLOSETHEGLASSDOOR.
10.TURNONALLELECTRICPOWERTOTHEFIREPLACEANDRE-INSTALLBATTERIESINTOTHE
TRANSMITTER.
11. PUSHTHE“ON”BUTTON ON THETRANSMITTER. YOU SHOULDHEARAN AUDIBLEBEEPFROMTHE
RECEIVERWHICHINDICATESCOMMUNICATION.(REFERTOFIREPLACEOPERATIONSFOR REMOTE
ACTIVATION)
1.ARRÊTEZ!LISEZLESRECOMMANDATIONSDESÉCURITÉDECETTEÉTIQUETTE.
2.REMOVETHEBATTERIESFROMTHETRANSMITTER.
3.COUPEZL’ALIMENTATIONÉLECTRIQUEÀL’APPAREIL.
4.CETAPPAREILESTM
UNID’UNDISPOSITIFD’ALLUMAGEQUIALLUMELAVEILLEUSE AUTOMATI-
QUEMENT.N’ESSAYEZPASD’ALLUMERLAVEILLEUSEMANUELLEMENT.
5.OUVREZLAPORTEVITRÉE.
6.TOURNEZLASOUPAPEDESECTIONNEMENTMANUELLEVERSLADROITEÀ“OFF”.LO-
LO-
CATEDBEHINDTHEACCESSPANEL.
7.ATTENDEZCINQ(5)MINUTESPOURQUELEGAZPUISSES’ÉCHAPPER. SI VOUSDÉTECTEZUNE
ODEURDEGAZ,ARRÊTEZ!ETOBSERVEZL’ITEM“B”DESMESURESDESÉCURITÉ CI-DESSUS.
S’ILN’YAPASD’ODEURDEGAZ,PASSEZÀL’ÉTAPE SUIVANTE.
8.TOURNEZLASOUPAPEDESECTIONNEMENTMANUELLEVERSLAGAUCHEÀ “ON”.
9.FERMEZLAP
ORTEVITRÉE.
10. TOURNEZL’INTERRUPTEURDEL’APPAREILETL’INTERRUPTEURÀDISTANCEMURALÀ“ON”ET
REPLACEZLESPILES.
11.APPUYEZSURLEBOUTON«ON»DELATÉLÉCOMMANDE.VOUSDEVRIEZENTENDRE UN
«BIP» DURÉCEPTEURVOUS INDIQUANTQUELACOMMUNICATION ESTBONNE. (POUR
ACTIVERLERÉCEPTEUR,RÉFÉREZ-VOUSÀLASECTION FONCTIONNEMENTDUFOYER.)
1.COUPEZL’ALIMENTATIONÉLECTRIQUEAUFOYERSIUNTRAVAILD’ENTRETIENDOITSEFAIRE.
2.POURACCÉDERÀLASOUPAPED’ARRÊTMANUELLE,ENLEVEZLAPORTED’ACCÈSSITUÉEÀL’INTÉRIEURDUFOYER.
3. TOURNEZLASOUPAPED’ARRÊTMANUELLEVERSLADROITEÀ«OFF».NEFORCEZPAS.
TOTURNOFF GAS / INSTRUCTIONS POUR COUPER LE GAZ
1.TURNOFFALLELECTRICPOWERTOTHEFIREPLACEIFSERVICEISTOBEPERFORMED.
2.ACCESSDOORINSIDETHE FIREBOXMUSTBEREMOVEDTOACCESSTHEMANUALSHUTOFFVALVE.
3. TURNMANUALSHUTOFFVALVECLOCKWISETOOFF.DONOTFORCE.W385-0439/B
CERTIFIEDUNDER/HOMOLOGUE SELONLES NORMES: CSA2.33b-2008,ANSIZ21.88b- 2008 VENTEDGAS FIREPLACE HEATER / APPAREILDECHAUFFAGEALIMENTÉAUGAZ ET VENTILÉ
VENTEDGASFIREPLACEHEATER.APPROVEDFORBEDROOM,BATHROOMANDB
ED-SITTINGROOMINSTALLATION.SUITABLEFORMOBILEHOMEINSTALLATIONIFINSTALLEDINACCORDANCEWITHTHECURRENT STANDARD
CAN/CSAZ240MHSERIESGASEQUIPPEDMOBILEHOMES,INCANADAORIN THEUNITED STATESTHEM
A
NU
FACTUREDHOMECONSTRUCTIONANDSAFETYSTANDARD,TITLE24CFR,PART3280.WHENTHISUS STANDARDIS
NOTAPPLICABLEUSETHESTANDARDFORFIRESAFETYCRITERIAFOR MANUFACTUREDHOMEINSTALLATIONS,SITESANDCOMMUNITIES,ANSI /NFPA501A.
FOYERDECHAUFFAGEAUGAZ AVECÉVACUATION.HOMOLOGUÉPOURINSTALLATIONDANSUNECHAMBREÀCOUCHER, UNE SALLE DEBAIN ETUNSTUDIO.APPROPRIÉPOURINSTALLATION DANS UNEMAISONMOBILESI
SONINSTALLATIONCONFORMEAUXEXIGENCESDELANORMECAN/CSAZ240MHS
ÉRIEDEMAISONSMOBILESÉQUIPÉESAUGAZ,EN VIGUEURAU CANADAOU AUX ÉTATS-UNISDE LANORMEDE SECURITÉ ETDE
CONSTRUCTIONDEMAISONSMANUFACTURÉES,TITRE24CFR,SECTION 3280.DANS LE CAS OUCETTENORMED'ÉTATS-UNISNEPEUTÊTREAPPLIQUÉE,SE RÉFÉRER ALANORMERELATIVEAUCRITÈREDEMESURESDE
SÉCURITÉCONTREL'INCENDIEPOURLESINSTALLATIONSDANSLESMAISONS MANUFACTURÉS,LESSITES ETLES COMMUNAUTÉS,ANSI/NFPA501A.
NOTFORUSEWITHSOLIDFUEL.
FORUSEWITH GLASSDOORS
CERTIFIEDWITHTHISUNITONLY.
WARNING
:
DONOTADDANYMATERIALTO
THEAPPLIANCE,WHICHWILLCOME IN
CONTACTWITHTHEFLAMES,OTHERTHAN
THATSUPPLIEDBYTHEMANUFACTURER
WITHTHEAPPLIANCE.
MINIMUMCLEARANCETOCOMBUSTIBLE
MATERIALS:
TOP 0RECESSEDDEPTH25"
FLOOR 0 VENT2"
SIDES0 MANTLE15"*
BACK 0
TOP,SIDES&BACK:PERSTANDOFFSPACERS FOR
FRAMINGMATERIALS.FORFINISHINGMATERIALS
SEEOWNERSMANUAL
*MAXIMUMHORIZONTALEXTENSION/L'EXTENSION
HORIZONTALEMAXIMALE:2".SEEINSTRUCTION
MANUALFORGREATEREXTENSIONS.
SEEOWNER'SINSTRUCTIONMANUALFORMINIMUM
ANDMAXIMUMVENTLENGTHS.
UNCOMBUSTIBLESOLIDE NE DOIT
PASÊTRÉUTILISÉAVEC CET
APPAREIL.UTILISERAVECLES
PORTESVITRÉESHOMOLOGUÉES
SEULEMENTAVECCETTEUNITÉ.
AVERTISSEMENT:
N'AJOUTEZPASACET
APPAREILAUCUNMATÉRIAUDEVANTENTRER
ENCONTACTAVECLESFLAMMESAUTREQUE
CELUIQUIESTFOURNIAVECCET APPAREIL
PARLEFABRICANT.
DÉGAGEMENTSMINIMAUXDESMATÉRIAUX
COMBUSTIBLES:
DESSUS 0PROFONDEURD'E
NCASTRÉ25"
PLANCHER0 ÉVENT 2"
CÔTES0 MANTEAU15"*
ARRIÉRE0
DESSUS,COTÉS&ARRIÈRE:SELONLESESPACEURS
DEDÉGAGEMENTPOURLESMATÉRIAUXD'OSSATURE
SELONLEMANUELDEPROPRIÉTAIREPOURLES
MATÉRIAUXDEFINITION.
*L'EXTENSIONHORIZONTALEMAXIMALE:2".RÉFÉRER
AUMANUELD'INSTRUCTIONPOURDESEXTENSIONS
PLUSGRANDES.RÉFÉRERAUMANUELD'INSTALLATION
DEPROPRIÉTAIRE.
MADEINCANADA/FABRIQUÉAUCANADA
WOLFSTEELLTD.BARRIE,ONTARIO,CANADA
ALTITUDE/ÉLÉVATION
INPUT/ALIMENTATION
REDUCEDINPUT/ALIMENTATIONRÉDUITE
ORIFICE/INJECTEUR
MANIFOLDPRESSURE/
PRESSIONAUCOLLECTEUR
MINIMUMSUPPLYPRESSURE/
PRESSIOND'ALIMENTATIONMINIMALE
MAXIMUMSUPPLYPRESSURE/
PRESSIOND'ALIMENTATIONMAXIMALE
0-4500FT(0-1370M)
60,000BTU/H
22,000BTU/H
#35:LOGS,GLASS,BURNERS
3.5"WATERCOLUMN/D'UNECOLONNED'EAU
4.5"WATERCOLUMN/D'UNECOLONNED'EAU
7.0"WATERCOLUMN/D'UNECOLONNED'EAU
0-4500FT(0-1370M)
50,000B
TU/H
16,000BTU/H
#53:LOGS/
#52INSIDE#54OUTSIDEGLASS,BURNER
10"WATERCOLUMN/D'UNECOLONNED'EAU
11"WATERCOLUMN/D'UNECOLONNED'EAU
13"WATERCOLUMN/D'UNECOLONNED
'EAU
THEAPPLIANCEMUSTBEVENTEDUSINGTHE APPROPRIATE
NAPOLEONVENTKITS.SEEOWNERSINSTALLATIONMANUAL
FORVENTINGSPECIFICS.PROPERREINSTALLATIONAND
RESEALINGISNECESSARYAFTERSERVICINGTHEVENT-AIR
INTAKESYSTEM.
L'APPAREILDOITÉVACUERSESGAZENUTILISANTL'ENSEMBLE
D'ÉVACUATIONPROPREANAPOLEON.RÉFÉRERAUM
ANUEL
D'INSTALLATIONDEPROPRIÉTAIREPOURL'ÉVACUATION
PRÉCISE.ILESTIMPORTANTDEBIENR
ÉINSTALLERET
RESCELLERL'ÉVENTAPRÈSAVOIRASSURÉLEMAINTIENDU
SYSTÉMEDEPRISED'AIR.
CLASSIFICATION:115V0.82AMP,60HZ
W385-0419
MODELNATURALGAS/
GAZNATURAL
HD81NT
MODELPROPANE
HD81PT
SERIALNUMBER/NO.DE SÉRIE: HD81
ELECTRICALRATING:115V0.82AMP,60HZ
REFERENCE#
W/N16061
CONFORMS TO / CONFORME AUX: ANSI Z21.50-2014, CERTIFIED TO / CERTIFIE CSA2.22-2014 VENTED GAS FIREPLACE / FOYER À GAZ VENTILÉ.
NOT FOR USE WITH SOLID FUEL.
FOR USE WITH GLASS DOORS
CERTIFIED WITH THIS UNIT ONLY.
WARNING:DO NOT ADDANY MATERIAL TO
THE APPLIANCE, WHICH WILL COME IN
CONTACT WITH THE FLAMES, OTHER THAN
THAT SUPPLIED BY THE MANUFACTURER
WITH THE APPLIANCE.
MINIMUM CLEARANCE TO COMBUSTIBLE
MATERIALS:
TOP 0 RECESSED DEPTH 25"
FLOOR 0 VENT 2"
SIDES 0 MANTEL 16"*
BACK 0
TOP, SIDES & BACK: PER STAND OFF SPACERSFOR
FRAMING MATERIALS. FOR FINISHING MATERIALS
SEE OWNERS MANUAL
* MAXIMUM HORIZONTAL EXTENSION: 2”
SEE INSTRUCTION MANUAL FOR GREATER
EXTENSIONS.
SEE OWNER'S INSTRUCTION MANUAL FOR MINIMUM
AND MAXIMUM VENT LENGTHS.
UN COMBUSTIBLE SOLIDE NE DOIT
PAS ÊTRÉ UTILISÉAVEC CET
APPAREIL. UTILISERAVEC LES
PORTES VITRÉES HOMOLOGUÉES
SEULEMENT AVEC CETTE UNITÉ.
AVERTISSEMENT: N'AJOUTEZ PAS A CET
APPAREIL AUCUN MATÉRIAU DEVANT ENTRER
EN CONTACT AVEC LES FLAMMES AUTRE QUE
CELUI QUI EST FOURNI AVEC CETAPPAREIL
PAR LE FABRICANT.
DÉGAGEMENTS MINIMAUX DES MATÉRIAUX
COMBUSTIBLES:
DESSUS 0 PROFONDEUR D'ENCASTRÉ 25"
PLANCHER 0 ÉVENT 2"
CÔTES 0 MANTEAU 16" *
ARRIÉRE 0
DESSUS,COTÉS & ARRIÈRE: SELON LESESPACEURS
DEDÉGAGEMENT POUR LES MATÉRIAUXD'OSSATURE
SELONLE MANUEL DE PROPRIÉTAIRE POUR LES
MATÉRIAUXDEFINITION.
*L'EXTENSION HORIZONTALEMAXIMALE: 2". RÉFÉRER
AUMANUEL D'INSTRUCTION POUR DES EXTENSIONS
PLUSGRANDES. RÉFÉRER AU MANUEL D'INSTALLATION
DEPROPRIÉTAIRE.
WOLF STEEL LTD.
24 NAPOLEON ROAD, BARRIE. ONTARIO L4M 0G8 CANADA
THE APPLIANCE MUST BE VENTED USING THE APPROPRIATE
NAPOLEON VENT KITS. SEE OWNERS INSTALLATION MANUAL
FOR VENTING SPECIFICS. PROPER REINSTALLATION AND
RESEALING IS NECESSARY AFTER SERVICING THE VENT-AIR
INTAKE SYSTEM.
DECORATIVE PRODUCT: NOT FOR USE AS AHEATING APPLIANCE.
L'APPAREIL DOIT ÉVACUER SES GAZ EN UTILISANT L'ENSEMBLE
D'ÉVACUATION PROPRE A NAPOLEON. RÉFÉRER AU MANUEL
D'INSTALLATION DE PROPRIÉTAIRE POUR L'ÉVACUATION
PRÉCISE. IL EST IMPORTANT DE BIEN RÉINSTALLER ET
RESCELLER L'ÉVENT APRÈS AVOIR ASSURÉ LE MAINTIEN DU
SYSTÉME DE PRISE D'AIR.
PRODUIT DÉCORATIF: NE PAS UTILISER COMME APPAREIL DE
CHAUFFAGE.
CLASSIFICATION: 115V 0.82AMP, 60HZ W385-1991 / A
SERIAL NUMBER/NO. DE SÉRIE: HD81
ELECTRICAL RATING: 115V 0.82AMP, 60HZ
HD81NT MODEL/MODÈLE HD81PT
0-4500FT (0-1370M) ALTITUDE / ÉLÉVATION 0-4500FT (0-1370M)
60,000 BTU/H INPUT / ALIMENTATION 50,000 BTU/H
22,000 BTU/H REDUCED INPUT / ALIMENTATION RÉDUITE 16,000 BTU/H
MANIFOLD PRESSURE: 3.5" WATERCOLUMN MANIFOLD PRESSURE: 10" WATER COLUMN
PRESSION AU COLLECTEUR: 3.5" D'UNE COLONNE D'EAU PRESSION AU COLLECTEUR: 10" D'UNE COLONNE D'EAU
MINIMUM SUPPLY PRESSURE: 4.5" WATER COLUMN MINIMUM SUPPLY PRESSURE: 11"WATER COLUMN
PRESSION D'ALIMENTATION MINIMALE: 4.5" D'UNE COLONNE D'EAU PRESSION D'ALIMENTATIONMINIMALE: 11" D'UNE COLONNE D'EAU
MAXIMUM SUPPLY PRESSURE: 7.0" WATER COLUMN MAXIMUM SUPPLYPRESSURE: 13" WATER COLUMN
PRESSION D'ALIMENTATION MAXIMALE: 7.0" D'UNE COLONNE D'EAU PRESSION D'ALIMENTATIONMAXIMALE: 13" D'UNE COLONNE D'EAU
FOYER À GAZ VENTILÉ. HOMOLOGUÉ POUR INSTALLATIONDANS UNE CHAMBRE À COUCHER, UNE SALLE DE BAIN ET
UN STUDIO. APPROPRIÉ POUR INSTALLATION DANS UNE MAISON MOBILE SI SON INSTALLATION CONFORME AUX
EXIGENCES DE LA NORME CAN/CSA Z240MH SÉRIE DE MAISONS MOBILES ÉQUIPÉESAU GAZ, EN VIGUEUR AU CANADA
OU AUX ÉTATS-UNIS DE LA NORME DE SECURITÉ ET DE CONSTRUCTION DE MAISONS MANUFACTURÉES, TITRE 24 CFR,
SECTION 3280. DANS LE CAS OU CETTE NORME D'ÉTATS-UNISNE PEUT ÊTRE APPLIQUÉE, SE RÉFÉRER A LA NORME
RELATIVEAU CRITÈRE DE MESURES DE SÉCURITÉ CONTRE L'INCENDIE POUR LES INSTALLATIONS DANS LES MAISONS
MANUFACTURÉS, LES SITES ET LES COMMUNAUTÉS,ANSI/NFPA 501A. POUR UNE UTILISER SEULMENT AVEC
BARRIÈRE W010-3441. SUIVEZ LES INSTRUCTIONS D'INSTALLATIONSE TROUVENT DANS LE MANUEL D'INSTALLATION.
VENTED GAS FIREPLACE. APPROVED FOR BEDROOM, BATHROOMAND BED-SITTING ROOM INSTALLATION.
SUITABLE FOR MOBILE HOME INSTALLATION IF INSTALLED IN ACCORDANCE WITH THE CURRENT STANDARD
CAN/CSA Z240MH SERIES GAS EQUIPPED MOBILE HOMES, IN CANADA OR IN THE UNITED STATES THE MANUFAC-
TURED HOME CONSTRUCTION AND SAFETY STANDARD,TITLE 24 CFR, PART 3280. WHEN THIS US STANDARD IS
NOT APPLICABLE USE THE STANDARD FOR FIRE SAFETY CRITERIA FOR MANUFACTUREDHOME INSTALLATIONS,
SITES AND COMMUNITIES, ANSI / NFPA 501A. FOR USE ONLY WITH BARRIER W010-3441. FOLLOW THE INSTALLA-
TION INSTRUCTIONS LOCATED IN THE INSTALLATION MANUAL.
9700539 (WSL) 4001657 (NGZ)
4001658 (NAC) 4001659 (WUSA)
P4: 65% P4: 65%
PROPANE MODEL
NATURAL MODEL
WARNING: DO NOT TURN ON IF CHILDREN OR OTHERAT RISK INDIVIDUALS ARE NEAR THE FIREPLACE. AVERTISSEMENT : NE PAS ALLUMER SI DES ENFANTS OU D’AUTRES INDIVIDUS À RISQUE SONTÀ PROXMITÉ
DU FOYER.
1. STOP! READ THE ABOVE SAFETY INFORMATION ON THIS LABEL.
2. REMOVE THE BATTERIES FROM THE TRANSMITTER.
3. TURN OFF ELECTRIC POWER TO THE FIREPLACE.
4. THIS FIREPLACE IS EQUIPPED WITH AN IGNITION DEVICE WHICH AUTOMATICALLY LIGHTS
THE PILOT. DO NOTTRY TO LIGHTTHE PILOT BY HAND.
5. OPEN THE GLASS DOOR.
6. TURN MANUAL SHUTOFF VALVE CLOCKWISE TO OFF. LOCATED BEHIND THE
ACCESS PANEL.
7. WAIT FIVE (5) MINTUES TO CLEAR OUT ANYGAS. IF YOU SMELL GAS INCLUDING NEAR
THE FLOOR, STOP! FOLLOW “B’IN THE ABOVE SAFETYINFORMATION ON THIS LABEL. IF
YOU DON’T SMELL GAS, GO TO THE NEXTSTEP.
8. TURN MANUAL SHUTOFF VALVE COUNTER-CLOCKWISE TO ON.
9. CLOSE THE GLASS DOOR.
10. TURN ON ALLELECTRIC POWER TO THE FIREPLACEAND RE-INSTALLBATTERIES INTO
THE TRANSMITTER.
11. PUSH THE ”ON” BUTTON ON THE TRANSMITTER.YOU SHOULD HEAR ANAUDIBLE BEEP
FROM THE RECEIVER WHICH INDICATES COMMUNICATION. (REFER TO FIREPLACE
OPERATIONS FOR REMOTEACTIVATION).
1. ARRÊTEZ! LISEZ LES RECOMMENDATIONS DE SÉCURITÉ DE CETTE ÉTIQUETTE.
2. RETIREZ LES PILES DE LA TELECOMMANDE.
3. COUPEZ L’ALIMENTATION ÉLECTRIQUE À L‘APPAREIL.
4. CET APPAREILEST MUNI D’UN DISPOSITIF D‘ALLUMAGE QUI ALLUME LAVEILLEUSE
AUTOMATIQUEMENT. N’ESSAYEZ PAS D‘ALLUMER LAVEILLEUSE MANUELLEMENT.
5. OUVRE LA PORTE VITRÉE.
6. TOURNEZ LA SOUPAPE DE SECTIONNEMENT MANUELLE VERS LADROITE À “OFF”. SITUÉ
DERRIÈRE LE PANNEAU D’ACCÉS.
7. ATTENDEZ CINQ (5) MINUTES POUR QUE LE GAZ PUISSE S’ÉCHAPPER. SI VOUS DÉTECTEZ UNE
ODEUR DE GAS, ARRÊTEZ! ET OBSERVEZ L’ITEM “B” DES MESURES DE SÉCURITÉ CI-DESSUS. S’IL
N’Y APAS D’ODEUR DE GAZ, PASSEZ À L’ÉTAPE SUIVANTE.
8. TOURNEZ LA SOUPAPE DE SECTIONNEMENT MANUELLE VERS LAGAUCHE À “ON”.
9. FERMEZ LA PORTE VITRÉE.
10. TOURNEZ L’INTERRUPTEUR DE L’APPAREIL ET L‘INTERRUPTEUR À DISTANCE MURAL À “ON” ET
REPLACEZ LES PILES.
11. APPUYEZ SUR LE BOUTON «ON» DE LA TÉLÉCOMMANDE. VOUS DEVRIEZ ENTENDRE UN «BIP»
DU RÉCEPTEUR VOUS INDIQUANT QUE LA COMMUNICATION EST BONNE. (POUR ACTIVER LE
RÉCEPTEUR. RÉFÉREZ-VOUS À LA SECTION FONCTIONNEMENT DU FOYER).
LIGHTING INSTRUCTIONS / INSTRUCTIONS D’ALLUMAGE
TO TURN OFF GAS / INSTRUCTIONS POUR COUPER LE GAZ
1. TURN OFF ALL ELECTRIC POWERTO THE FIREPLACE IF SERVICE IS TO BE PERFORMED.
2. ACCESS DOOR INSIDE THE FIREBOX MUST BE REMOVED TOACCESS THE MAIN SHUTOFF VALVE.
3. TURN MANUAL SHUTOFF VALVE CLOCKWISE TO OFF. DO NOT FORCE.
1. COUPEZ L’ALIMENTATION ÉLECTRIQUE AU FOYER SI UN TRAVAILD’ENTRETIEN DOIT SE FAIRE.
2. POUR ACCÉDER À LASOUPAPE D’ARRÊT MANUELLE, ENLEVEZ LA PORTE D’ACCÈS SITUÉE À L’INTERIEUR DU FOYER.
3. TOURNEZ LASOUPAPE D’ARRÊTMANUELLE VERS LA DROITE À « OFF ». NE FORCEZ PAS.
C
W385-0439 / D
Both the rating plate and operating instructions are riveted to the bottom of the side spacers. There is a hole
in the bottom of each mounting plate to help with rotating the plate up.
S
SAMPLE
NG THE APPROPRIATE
TALLATION MANUAL
NSTALLATION AND
AFTER SERVICING THE VENT-AIR
AKE SYS
USEAS A HEATING APPLIA
L'A
LÉVATION
MENTATION
ALIMENTATION RÉDUITE
LE
MN
ANIFOL
NE D'E
PRESS
R COLUMN
MINIM
NNE D'EAU
PRESSIO
COLUMN
AXIMUM
NE COLONNE D'EAU
PRESS
ANORM
UNIS DE L
3280. DANS LE C
AU CRITÈRE DE MES
MANUFACTURÉS, LES SIT
W010-3441. SUIVEZ LES IN
4001657 (NGZ)
4001659 (WUSA)
L
L
P
5%
P4:
PROP
SAMPLE
S
NT
N
NTOTO
BLE BEEPEP
EPLACEEPLAC
ÊTEZ!TEZ!
LISEZ LELISEZ L
TIREZ LES PILES DTIREZ LES PILES
COUPEZ L’ALIMENTATIOUPEZ L’ALIMENTATIO
CET APPAREIL EST MUNI
PPAREIL EST MUNI
AUTOMATIQUEMENT. NTIQUEMENT. N
. OUVRE LA PORTE VITOUVRE LA PORTE VI
6. TOURNEZ LA SOUP. TOURNEZ LA SOU
DERRIÈRE LE PADERRIÈRE LE
7. ATTENDEZ CI7. ATTENDEZ C
ODEUR DEODEUR DE
N’Y A PAN’YA PA
8. TOUR8.
9. FER9.
10. T10.
11.1
SA
SA
SA
TO TURN
SERVICE IS TO BE PERFOR
RVICE IS TO BE PERFOR
O ACCESS THE MAIN SACCESS THE MAIN
. DO NOT FORCENOT FORCE
INSTALLER: It is your responsibility to check off the appropriate box on the rating plate according to
the model, venting and gas type of the appliance.
The illustration is for reference only. Refer to the rating plate on the appliance for accurate information.
NOTE: The rating plate must remain with the appliance at all times. It must not be removed.
A barrier designed to reduce the risk of burns from the hot viewing glass is provided with the appliance
and must be installed.

9
EN
W415-2201 / B/ 08.17.18
3.0 VENTING
3.1 VENTING LENGTHS AND COMPONENTS
For vent systems that provide seals on the inner exhaust flue, only the outer air intake joints must be sealed
using a red high temperature silicone (RTV). This same sealant may be used on both the inner exhaust and
outer intake vent pipe joints of all other approved vent systems except for the exhaust vent pipe connection to
the appliance flue collar which must be sealed using the black high temperature sealant Mill Pac.
When using Wolf Steel venting components, use only approved Wolf Steel flexible components with the
following termination kits: wall terminal kit GD822R, or 1/12 to 7/12 pitch roof terminal kit GD810, 8/12 to 12/12
roof terminal kit GD811 or flat roof terminal kit GD812. With flexible venting, in conjunction with the various
terminations, use either the 5 foot (1.5m) vent kit GD820 or the 10 foot (3m) vent kit GD830.
For optimum flame appearance and appliance performance, keep the vent length and number of elbows
to a minimum.
The air terminal must remain unobstructed at all times. Examine the air terminal at least once a year to
verify that it is unobstructed and undamaged.
The minimum allowable vertical vent length is 3 feet (0.9m) maximum allowable vertical vent length is 40 feet
(12m). The maximum number of allowable 8” (203mm) vent connections is three horizontally or vertically
(excluding the appliance and the air terminal connections).
When venting, the horizontal run must be kept to a minimum of 3 feet (0.9m) or a maximum of 20 feet (6m).
If a 20 foot (6m) horizontal run is required, the appliance must have a minimum vertical rise immediately off
the appliance of 4.8 feet (1.5m). When terminating vertically, the vertical rise is a minimum 3 feet (0.9m) and a
maximum 40 feet (12m) above the appliance.
For optimum performance, it is recommended that all horizontal runs have a minimum 1/4” (6mm)
rise per foot/meter. Provide a means for visually checking the vent connection to the appliance after
the appliance is installed. Do not allow the inside liner to bunch up on horizontal or vertical runs and
elbows. Keep it pulled tight. A 1 1/2” (38.1mm) air gap between the inner and outer liner all around is
required for safe operation. Use a firestop when penetrating interior walls, floor or ceiling.
This appliance uses 8” (203.2mm) exhaust / 11” (279mm) air intake vent pipe system.
Refer to the section applicable to your installation.
For safe and proper operation of the fireplace follow the venting instruction exactly. Deviation from the minimum
vertical vent length can create difficulty in burner start-up and/or carboning. Under extreme vent configurations,
allow several minutes (5-15) for the flame to stabilize after ignition. Provide a means for visually checking the vent
connection to the fireplace after the fireplace is installed. Use a firestop, vent pipe shield or attic insulation shield
when penetrating interior walls, floor or ceiling.
NOTE: If for any reason the vent air intake system is disassembled; reinstall per the instructions provided
for the initial installation.
!
WARNING
RISK OF FIRE, MAINTAIN SPECIFIED AIR SPACE CLEARANCES TO VENT PIPE AND APPLIANCE.
IF VENTING IS INCLUDED WITH SPACERS THE VENT SYSTEM MUST BE SUPPORTED EVERY 3FT
(0.9m) FOR BOTH VERTICAL AND HORIZONTAL RUNS. USE SUPPORTS OR EQUIVALENT
NON-COMBUSTIBLE STRAPPING TO MAINTAIN THE REQUIRED CLEARANCE FROM
COMBUSTIBLES. USE WOLF STEEL LTD. SUPPORT RING ASSEMBLY W010-0370 OR EQUIVALENT
NON-COMBUSTIBLE STRAPPING TO MAINTAIN THE MINIMUM CLEARANCE TO COMBUSTIBLES
FOR BOTH VERTICAL AND HORIZONTAL RUNS. SPACERS ARE ATTACHED TO THE INNER PIPE AT
PREDETERMINED INTERVALS TO MAINTAIN AN EVEN AIR GAP TO THE OUTER PIPE. THIS GAP IS
REQUIRED FOR SAFE OPERATION. A SPACER IS REQUIRED AT THE START, MIDDLE AND END OF
EACH ELBOW TO ENSURE THIS GAP IS MAINTAINED. THESE SPACERS MUST NOT BE REMOVED.

10
W415-2201 / B/ 08.17.18
EN
45.7
36″ (91cm)
MAXIMUM
24″ (61cm)
MIN.
66 7/8”
(170cm)
PLUS RISE *
16″ (40.6cm)
MINIMUM
40 FT (12m)
MAXIMUM
3 FT (0.9m)
MINIMUM
3.2 TYPICAL VENT INSTALLATION
Refer to “VENTING” section.
42 7/8″
(109cm)
42 7/8″
(109cm)

11
EN
W415-2201 / B/ 08.17.18
3.3 VENT TERMINAL CLEARANCES
INSTALLATIONS
CANADA U.S.A.
A12” (30.5cm) 12” (30.5cm) Clearance above grade, veranda porch, deck or balcony.
B12” (30.5cm)
Δ
9” (228.6mm)
Δ
Clearance to windows or doors that open.
C12” (30.5cm)* 12” (30.5cm)* Clearance to permanently closed windows.
D18” (45.7cm)** 18” (45.7cm)** Vertical clearance to ventilated soffits located above the terminal within a horizontal distance
of 2’ (0.6m) from the centerline of the terminal.
E12” (30.5cm)** 12” (30.5cm)** Clearance to unventilated soffit.
F0” (0mm) 0” (0mm) Clearance to an outside corner wall.
G
0” (0mm)*** 0” (0mm)*** Clearance to an inside non-combustible corner wall or protruding non-combustible obstructions
(chimney, etc.).
2” (50.8mm)*** 2” (50.8mm)*** Clearance to an inside combustible corner wall or protruding combustible obstructions (vent
chase, etc.).
H3’ (0.9m) 3’ (0.9m)**** Clearance to each side of the centerline extended above the meter / regulator assembly to a
maximum vertical distance of 15’ (4.6m).
I3’ (0.9m) 3’ (0.9m)**** Clearance to a service regulator vent outlet.
J12” (30.5cm) 9” (228.6mm) Clearance to a non-mechanical air supply inlet to the building or a combustion air inlet to any other
appliance.
K6’ (1.8m) 3’ (0.9m) Clearance to a mechanical air supply inlet.
L7’ (2.1m)‡ 7’ (2.1m)**** Clearance above a paved sidewalk or paved driveway located on public property.
M12” (30.5cm)†† 12” (30.5cm)**** Clearance under a veranda, porch, deck or balcony.
N16” (40.6cm) 16” (40.6cm) Clearance above the roof.
O2’ (0.61m)†* 2’ (0.61m)†* Clearance from an adjacent wall including neighbouring buildings.
P8’ (2.4m) 8’ (2.4m) Roof must be non-combustible without openings.
Q3’ (0.9m) 3’ (0.9m) See chart for wider wall dimensions.
R6’ (1.8m) 6’ (1.8m) See chart for deeper wall dimensions. The terminal shall not be installed on any wall that has
an opening between the terminal and the open side of the structure.
ΔThe terminal shall not be located less than 6 feet (1.8m) under a window that opens on a horizontal plane in a structure with three walls and a roof.
* Recommended to prevent condensation on windows and thermal breakage
** It is recommended to maximize the distance to vinyl clad soffits.
*** The periscope requires a minimum 18” (45,7cm) clearance from an inside corner.
**** This is a recommended distance. For additional requirements check local codes.
† 3 feet (0.91m) above if within 10 feet (3.1m) horizontally.
‡ A vent shall not terminate where it may cause hazardous frost or ice accumulations on adjacent property surfaces.
†† Permitted only if the veranda, porch, or deck is fully open on a minimum of two sides beneath the floor.
†* Recommended to prevent recirculation of exhaust products. For additional requirements check local codes.
12.3C
R
QM
GP
QMIN RMAX MAX
R
= 3 feet
(0.9m)
= 2 x IHHW
(4.6m)
QACTUAL

12
W415-2201 / B/ 08.17.18
EN
13.1A
TOP EXIT
Horizontal Termination Vertical Termination
Vertical rise is equal
to or greater than
the horizontal run
Vertical rise is less
than horizontal run
Vertical rise is equal
to or greater than
the horizontal run
Vertical rise is less
than horizontal run
Horizontal run +
vertical rise to
maximum of 40 feet
(12m)
Horizontal run +
vertical rise to
maximum of
24.75 feet (7.5m)
Horizontal run +
vertical rise to Horizontal run +
vertical rise to
4.2 times the
vertical rise equal to
or greater than the
horizontal run
3 times the vertical
rise equal to or
greater than the
horizontal run
maximum of 40 feet
(12m) maximum of 40 feet
(12m)
14.1
For the following symbols used in the venting calculations and examples are:
> - greater than
> - equal to or greater than
< - less than
< - equal to or less than
HT- total of both horizontal vent lengths (Hr) and offsets (Ho) in feet
HR- combined horizontal vent lengths in feet
HO- offset factor: .03 (total degrees of offset - 90°*) in feet
VT- combined vertical vent lengths in feet
15.1A
FEET INCHES MILLIMETERS
1° 0.03 0.5 12.7
15° 0.45 6.0 152.4
30° 0.9 11.0 279.4
45° 1.35 16.0 406.4
90°* 2.7 32.0 812.8
* The first 90° offset has a zero value and is shown in the formula as - 90°
3.4 VENT APPLICATION FLOW CHART
3.5 DEFINITIONS
3.6 ELBOW VENT LENGTH VALUES

13
EN
W415-2201 / B/ 08.17.18
16.1B
Simple venting configuration (only one 90° elbow)
(HT) < (VT)
For vent configurations requiring more than one 90° elbow, the following formulas apply:
Formula 1: HT< VT
Formula 2: HT+ VT< 40 feet (12.2m)
Example:
V1= 3 FT (0.9m)
V2= 8 FT (2.4m)
VT= V1+ V2= 3 FT (0.9m ) + 8 FT (2.4m) = 11 FT (3.4m)
H1= 2.5 FT (0.8m)
H2= 2 FT (0.6m)
HR= H1+ H2= 2.5 FT (0.8m) + 2 FT (0.6m) = 4.5 FT (1.4m)
HO= .03 (three 90° elbows - 90°) = .03 (270° - 90°) = 5.4 FT (1.7m)
HT= HR+ HO= 4.5 FT (1.4m) + 5.4 FT (1.6m) = 9.9 FT (3m)
HT+ VT= 9.9 FT (3m) + 11 FT (3.4m) = 20.9 FT (6.4m)
Formula 1: HT< VT
9.9 FT (3m) <11 FT (3.4m)
Formula 2: HT+ VT< 40 FT (12.2m)
20.9 FT (6.4m) < 40 FT (12.2m)
Since both formulas are met, this vent configuration is acceptable.
See graph to determine the required vertical
rise VTfor the required horizontal run HT.
The shaded area within the lines represents
acceptable values for HTand VT
02.5
(0.8) 5 (1.5) 7.5 (2.3) 10 (3.1) 12.5 (3.8) 15 (4.6)
40 (12.2)
10 (3.1)
20 (6.1)
30 (9.1)
17.5
(5.3) 20 (6.1)
39 (11.9)
REQUIRED
VERTICAL
RISE IN FEET
(METERS)VT
HORIZONTAL VENT RUN PLUS OFFSET IN
FEET (METERS) HT
90°
90°
90°
V1
V2
H1
H2
3.7 HORIZONTAL TERMINATION
02.5
(0.8)
5
(1.5)
7.5
(2.3)
10
(3.1)
12.5
(3.8)
15
(4.6)
40 (12.2)
10 (3.1)
20 (6.1)
30 (9.1)
17.5
(5.3)
20
(6.1)
39 (11.9)

14
W415-2201 / B/ 08.17.18
EN
(HT) > (VT)
Simple venting configuration (only one 90° elbow) See graph to determine the required vertical rise VTfor the
required horizontal run HT.
HORIZONTAL VENT RUN PLUS OFFSET IN FEET (METERS) HT
For vent configurations requiring more than one 90° elbow, the following formulas apply:
Formula 1: HT< 4.2 VT
Formula 2: HT+ VT < 24.75 feet (7.5 meters)
Example 2:
V1 = VT = 6 FT (1.8m)
H1 = 3 FT (0.9m)
H2 = 5 FT (1.5m)
HR = H1 + H2 = 3 FT (0.9m) + 5 FT (1.5m) = 8 FT (2.4m)
HO = .03 (two 90° elbows - 90°) = .03 (180° - 90°) = 2.7FT (0.8m)
HT =HR + HO = 8FT (2.4m) + 2.7FT (0.8m) = 10.7FT (3.3m)
HT + VT = 10.7FT (3.3m) + 6FT (1.8m) = 16.7FT (5.1m)
Formula 1: HT < 4.2 VT
4.2 VT =4.2FT (1.3m) x 6FT (1.8m) = 25.2FT (7.7m)
10.7FT (3.3m) < 25.2FT (7.7m)
Formula 2: HT + VT < 24.75 FT (7.5m)
16.7 FT (5.1m) < 24.75 FT (7.5m)
Since both formulas are met, this vent configuration is acceptable.
The shaded area within the lines represents acceptable
values for HT and VT
90°
V1
H1H2
90°
Example 3:
V1 = 4 FT (1.2m)
V2 = 1.5 FT (0.5m)
VT = V1 + V2 = 4FT (1.2m) + 1.5FT (0.5m) = 5.5FT (1.7m)
H1 = 2 FT (0.6m)
H2 = 1 FT (0.3m)
H3 = 1 FT (0.3m)
H4 = 1.5 FT (0.5m)
HR = H1 + H2 + H3 + H4= 2FT (0.6m) + 1FT (0.3m) + 1FT (0.3m) + 1.5FT (0.5m) = 5.5 FTFT (1.7m)
HO = .03 (four 90° elbows - 90°) = .03 (360° - 90°) = 8.1 FT (2.5m)
HT =HR + HO = 5.5 FT (1.7m) + 8.1 FT (2.5m) = 13.6 FT (4.2m)
HT + VT = 13.6 FT (4.2m) + 5.5 FT (1.7m) = 19.1 FT (5.8m)
Formula 1: HT < 4.2 VT
4.2 VT =4.2FT (1.3m) x 5.5FT (1.7m) = 23.1FT (7m)
13.6FT (4.2m) < 23.1FT (7m)
Formula 2: HT + VT < 24.75 FT (7.5m)
19.1FT (5.8m) < 24.75 (7.5m)
Since both formulas are met, this vent configuration is acceptable.
90°
90°
90° 90°
H1
H2
V1
V2
H3
H4
05
(1.5)
15
(4.6)
20 (6.1)
12.5
(3.8)
3
(0.9)
10
(6.1) 19.5
(5.9)
REQUIRED
VERTICAL RISE
IN INCHES
(CENTIMETERS) VT
150 (381)
147 (373)
100 (254)
57 (144)
50 (127)
24 (61)

15
EN
W415-2201 / B/ 08.17.18
(HT) < (VT)
Simple venting configurations. See graph to determine the required vertical rise VTfor the
required horizontal run HT.
REQUIRED
VERTICAL
RISE IN FEET
(METERS) VT
HORIZONTAL VENT RUN PLUS OFFSET IN FEET (METERS) HT
For vent configurations requiring one or more 90° elbows the following formulas apply:
Formula 1: HT< VT
Formula 2: HT+ VT < 40 feet (12.2m)
Example:
V1 = 5 FT (1.5m)
V2 = 6 FT (1.8m)
V3 = 10 FT (3.1m)
VT = V1 + V2 + V3 = 5FT (1.5m) + 6FT (1.8m) + 10FT (3.1m) = 21FT (6.4m)
H1 = 8 FT (2.4m)
H2 = 2.5 FT (0.8m)
HR = H1 + H2 = 8FT (2.4m) + 2.5FT (0.8m) = 10.5 FT (3.2m)
HO = .03 (four 90° elbows - 90°)
= .03 (360° - 90°) = 8.1 FT (2.5m)
HT = HR + HO = 10.5FT (3.2m) + 8.1FT (2.5m) = 18.6FT (5.7m)
HT + VT = 18.6FT (5.7m) + 21FT (6.4m) = 39.6FT (12.1m)
Formula 1: HT < VT
18.6FT (5.7m) < 21FT (6.4m)
Formula 2: HT + VT < 40 FT (12.19m)
39.6FT (12.1m) < 40FT (12.2m)
Since both formulas are met, this vent configuration is acceptable.
90°
V1
V2
H1
H2
The shaded area within the lines represents acceptable
values for HT and VT
90°
90°
90°
05
(1.5) 10 (3.1) 15 (4.6) 20 (6.1)
40 (12.2)
10 (3.1)
20 (6.1)
30 (9.1)
3 (0.9)
V3
18.1A
3.8 VERTICAL TERMINATION

16
W415-2201 / B/ 08.17.18
EN
(HT) > (VT)
Simple venting configurations. See graph to determine the required vertical rise VTfor the
required horizontal run HT.
REQUIRED
VERTICAL
RISE IN FEET
(METERS) VT
HORIZONTAL VENT RUN PLUS OFFSET IN FEET (METERS) HT
For vent configurations requiring more than two 90° elbows the following formulas apply:
Formula 1: HT< 3VT
Formula 2: HT+ VT < 40 feet (12.2m)
Example:
V1 = 2 FT (0.6m)
V2 = 1 FT (0.3m)
V3 = 1.5 FT (0.5m)
VT = V1+V2+V3= 2FT (0.6m) + 1FT (0.3m) + 1.5FT (0.5m) = 4.5FT (1.4m)
H1 = 6 FT (1.8m)
H2 = 2 FT (0.6m)
HR = H1 + H2 = 6FT (1.8m) + 2FT (0.6m) = 8 FT (2.4m)
HO = .03 (four 90° elbows - 90°)
= .03 (360° - 90°) = 8.1 FT (2.5m)
HT = HR + HO = 8FT (2.4m) + 8.1FT (2.5m) = 16.1FT (4.9m)
HT + VT = 16.1FT (4.9m) + 4.5FT (1.4m) = 20.6 FT (6.3m)
Formula 1: HT < 3VT
3VT = 3FT (0.9m) x 4.5FT (1.4m) = 13.5FT (4.1m)
16.1FT (4.9m) > 13.5FT (4.1m)
Since this formula is not met, this vent configuration is unacceptable.
Formula 2: HT + VT < 40 feet (12.2m)
20.6FT (6.3m) < 40 (12.2m)
Since only formula 2 is met, this vent configuration is unacceptable and a new appliance location or vent configuration
will need to be established to satisfy both formulas.
The shaded area within the lines represents acceptable
values for HT and VT
05
(1.5) 10 (3.1) 15 (4.6) 20 (6.1)
10 (3.1)
20 (6.1)
3 (0.9)
25
(7.6) 30 (9.1)
19 (5.8)
90°
V1V2
H1
H2
90°
90°
90°
V3
18.1_2B

17
EN
W415-2201 / B/ 08.17.18
For optimum performance it is recommended that all horizontal runs have a minimum of 1/4"(6.4mm) rise
per foot (0.9m) using flexible venting. For safe and proper operation of the appliance, follow the venting
instructions exactly.
For clearance to combustible materials from the vent pipe, see “FRAMING” section.
4.0 INSTALLATION
4.1 WALL AND CEILING PROTECTION
!
WARNING
ENSURE TO UNPACK ALL LOOSE MATERIALS FROM INSIDE THE FIREBOX PRIOR TO HOOKING UP
THE GAS AND ELECTRICAL SUPPLY.
IF YOUR APPLIANCE IS SUPPLIED WITH A REMOTE, ENSURE THE REMOTE RECEIVER IS IN THE
“OFF” POSITION PRIOR TO HOOKING UP THE GAS AND ELECTRICAL SUPPLY TO THE APPLIANCE.
FOR SAFE AND PROPER OPERATION OF THE APPLIANCE, FOLLOW THE VENTING INSTRUCTIONS
EXACTLY.
ALL EXHAUST AND INTAKE VENT PIPE JOINTS MUST BE SEALED USING RED RTV HIGH TEMP
SILICONE SEALANT (W573-0002) (NOT SUPPLIED) OR BLACK HIGH TEMP MILL PAC (W573-0007)
(NOT SUPPLIED) WITH THE EXCEPTION OF THE APPLIANCE EXHAUST FLUE COLLAR WHICH MUST
BE SEALED USING MILL PAC.
IF USING PIPE CLAMPS TO CONNECT VENT COMPONENTS, A MINIMUM OF 3 SCREWS MUST ALSO
BE USED TO ENSURE THE CONNECTION CANNOT SLIP OFF.
DO NOT CLAMP THE FLEXIBLE VENT PIPE.
RISK OF FIRE, EXPLOSION OR ASPHYXIATION. IMPROPER SUPPORT OF THE ENTIRE VENTING
SYSTEM MAY ALLOW VENT TO SAG AND SEPARATE. USE VENT RUN SUPPORTS AND CONNECT
VENT SECTIONS PER INSTALLATION INSTRUCTIONS.
RISK OF FIRE, DO NOT ALLOW LOOSE MATERIALS OR INSULATION TO TOUCH THE VENT PIPE.
REMOVE INSULATION TO ALLOW FOR THE INSTALLATION OF THE ATTIC SHIELD AND TO
MAINTAIN CLEARANCES TO COMBUSTIBLES.
68.2D
!
WARNING
DO NOT FILL THE SPACE BETWEEN THE VENT PIPE AND ENCLOSURE WITH ANY TYPE OF
MATERIAL. DO NOT PACK INSULATION OR COMBUSTIBLES BETWEEN CEILING FIRESTOPS.
ALWAYS MAINTAIN SPECIFIED CLEARANCES AROUND VENTING AND FIRESTOP SYSTEMS.
INSTALL WALL SHIELDS AND FIRESTOPS AS SPECIFIED. FAILURE TO KEEP INSULATION OR
OTHER MATERIALS AWAY FROM VENT PIPE MAY CAUSE FIRE.
70.1

18
W415-2201 / B/ 08.17.18
EN
This application occurs when venting through a roof. Installation kits for
various roof pitches are available from your authorized dealer / distributor.
See accessories to order specific kits required.
A. Determine the air terminal location, cut and frame a square opening as
illustrated in the ceiling and the roof to provide the minimum 1" (25mm)
clearance between the vent pipe and any combustible material. Try to
center the vent pipe location midway between two joists to prevent
having to cut them. Use a plumb bob to line up the center of the
openings. A vent pipe shield will prevent any materials such as
insulation, from filling up the 1" (25mm) air space around the pipe.
Nail headers between the joist for extra support.
B. Apply a bead of caulking (not supplied) to the framework or to the
Wolf Steel vent pipe shield plate or equivalent (in the case of a finished
ceiling), and secure over the opening in the ceiling. A firestop must be placed
on the bottom of each framed opening in a roof or ceiling that the venting
system passes through. Apply a bead of caulking all around and place a
firestop spacer over the vent shield to restrict cold air from being drawn into the
room or around the fireplace. Ensure that both spacer and shield maintain the required
clearance to combustibles. Once the vent pipe is installed in its final position, apply
Mill Pac sealant (W573-0007) (not supplied) or red RTV silicone (W573-0002) (not
supplied) between the pipe and the firestop assembly.
C. In the attic, slide the vent pipe collar down to cover up the open end of the shield and
tighten. This will prevent any materials, such as insulation, from filling up the 1" (25mm)
air space around the pipe. 21.1B
CAULKING
VENT PIPE
SHIELD
FIRESTOP
UNDERSIDE OF
JOIST
VENT
PIPE
COLLAR
VENT
PIPE
SHIELD
This application occurs when venting through an exterior wall.
Having determined the correct height for the air terminal
location, cut and frame a hole in the exterior wall as
illustrated to accommodate the firestop assembly.
Dry fit the firestop assembly before proceeding to
ensure the brackets on the rear surface fit to the
inside surface of the horizontal framing.
The length of the vent shield may be cut shorter
for combustible walls that are less than 8 1/2”
(215.9mm) thick but the vent shield must extend
the full depth of the combustible wall.
NOTE : Do not fill the air space between the firestop spacer and the
exterior wall with any type of insulating material (i.e., spray foam).
A. Apply a bead of caulking (not supplied) around the corner edge of
the inside surface of the firestop assembly, fit the firestop
assembly to the hole and secure using the 4 screws (supplied in your manual baggie).
B. Once the vent pipe is installed in its final position, apply red RTV silicone (W573-0002) (not supplied)
between the pipe and the firestop.
DETERMINE
THE
CORRECT
HEIGHT
FIRESTOP
SPACER
FINISHING
MATERIAL
CAULKING VENT
SHIELD
20.2C
!
WARNING
THE FIRESTOP ASSEMBLY MUST BE INSTALLED WITH THE VENT SHIELD TO THE TOP.
TERMINALS MUST NOT BE RECESSED INTO A WALL OR SIDING MORE THAN THE DEPTH OF THE
RETURN FLANGE OF THE MOUNTING PLATE.
4.1.1 HORIZONTAL INSTALLATION
4.1.2 VERTICAL INSTALLATION

19
EN
W415-2201 / B/ 08.17.18
A
.Stretch the inner flex pipe to the required length
taking into account the additional length needed for
the finished wall surface. Apply a heavy bead of the
Mill Pac sealant (W573-0007) (not supplied) to the
inner sleeve of the air terminal. Slip the vent pipe a
minimum of 2” (50.8mm) over the inner sleeve of the
air terminal and secure with 6 #8 screws.
B. Using the outer flex pipe, slide over the outer
combustion air sleeve of the air terminal and secure
with 6 #8 screws. Seal using Red RTV Silicone
(W573-0002) (not supplied).
C. Insert the vent pipes through the firestop maintaining
the required clearance to combustibles. Holding the
air terminal (lettering in an upright, readable position),
secure to the exterior wall and make weather tight by
sealing with caulking (not supplied).
D. If more vent pipe needs to be used to reach the fireplace,
couple them together as illustrated. The vent system must
be supported approximately every 3 feet (0.9 meters) for
both vertical and horizontal runs. Use noncombustible
strapping to maintain the minimum 1” (25.4mm) clearance
to combustibles.
The air terminal mounting plate may be recessed into the exterior wall or siding no greater than the
depth of its return flange. 23.4C
HI-TEMP
SEALANT
#8 X 1/2” SELF DRILLING
SCREWS
INNER COUPLER
OUTER COUPLER
OUTER
FLEX PIPE INNER
FLEX PIPE
OUTER
FLEX PIPE
CAULKING
SCREWS
#10x2" PIPE
OUTER FLEX
SEALANT
2" (50.8mm) OVERLAP
HI-TEMP
INNER FLEX
PIPE
4.2 USING FLEXIBLE VENT COMPONENTS
For safe and proper operation of the appliance, follow the venting
instructions exactly.
All inner flex pipe and outer flex pipe joints may be sealed using high
temperature red RTV silicone W573-0002 (not supplied) or the high
temperature sealant W573-0007 Mill Pac (not supplied). However, the high
temperature sealant W573-0007 Mill Pac (not supplied) must be used on
the joint connecting the inner flex pipe and the exhaust flue collar.
Use only approved flexible vent pipe kits marked:
“Wolf Steel Approved Venting” as identified by
the stamp only on the outer flex pipe.
22.1A
ELBOW
SPACERS
DO NOT ALLOW THE INNER FLEX PIPE TO BUNCH UP ON HORIZONTAL OR VERTICAL RUNS AND ELBOWS.
KEEP IT PULLED TIGHT.
SPACERS ARE ATTACHED TO THE INNER FLEX PIPE AT PREDETERMINED INTERVALS TO MAINTAIN AN EVEN
AIR GAP TO THE OUTER FLEX PIPE. THIS GAP IS REQUIRED FOR SAFE OPERATION. A SPACER IS REQUIRED
AT THE START, MIDDLE AND END OF EACH ELBOW TO ENSURE THIS GAP IS MAINTAINED. THESE SPACERS
MUST NOT BE REMOVED.
!
WARNING
4.2.1 HORIZONTAL AIR TERMINAL INSTALLATION

20
W415-2201 / B/ 08.17.18
EN
A
.Fasten the roof support to the roof using the screws provided. The
roof support is optional. In this case the venting is to be adequately
supported using either an alternate method suitable to the
authority having jurisdiction or the optional roof support.
B. Stretch the inner flex pipe to the required length. Slip the
inner flex pipe a minimum of 2” (51mm) over the inner pipe
of the air terminal connector and secure with a minimum of
3 #8 screws. Seal using a heavy bead of Mill Pac sealant
(W573-0007) (not supplied).
C. Repeat using the outer flex pipe, using a heavy bead
of red RTV silicone (W573-0002) (not supplied) and a
minimum of 3 #8 screws.
D. Thread the air terminal connector / vent pipe assembly down through
the roof. The air terminal must be positioned vertically and plumb.
Attach the air terminal connector to the roof support, ensuring that
the top of the air terminal is 16” (40.6cm) above the highest point
that it penetrates the roof.
E. Remove nails from the shingles, above and to the sides of the air
terminal connector. Place the flashing over the air terminal connector
leaving a min. 3/4” (19mm) of the air terminal connector showing
above the top of the flashing. Slide the flashing underneath the
sides and upper edge of the shingles. Ensure that the air terminal
connector is properly centered within the flashing, giving a 3/4”
(19mm) margin all around. Fasten to the roof. Do not nail through
the lower portion of the flashing. Make weather-tight by sealing with
caulking. Where possible, cover the sides and top edges of the
flashing with roofing material.
F. Aligning the seams of the terminal and air terminal connector,
place the terminal over the air terminal connector making sure
the vent pipe goes into the hole in the terminal. Secure with
the three screws provided.
G. Apply a heavy bead of weatherproof caulking 2” (51mm)
above the flashing. Install the storm collar around the air
terminal and slide down to the caulking. Tighten to ensure that
a weather-tight seal between the air terminal and the collar is
achieved.
H. If more vent pipe needs to be used to reach the appliance see
“HORIZONTAL AIR TERMINAL INSTALLATION” section. 24.1C
STORM COLLAR
FLASHING
CAULKING
WEATHER
SEALANT
2” (51mm) AIR INLET
BASE
ROOF SUPPORT
INNER FLEX PIPE
INNER PIPE
MILL PAC
SEALANT
(W572-0007)
AIR
TERMINAL
CONNECTOR
OUTER FLEX PIPE
MAINTAIN A MINIMUM 2” (51mm) SPACE BETWEEN THE AIR INLET BASE AND THE STORM COLLAR.
!
WARNING
4.2.2 VERTICAL AIR TERMINAL INSTALLATION
A
.Install the inner exhaust flue collar to the appliance. Secure
with a minimum of 3 #8 screws. Seal the joint and screw
holes using Mill Pac sealant (W573-0007) (not supplied).
B. Install the outer flex pipe to the appliance. Attach and seal
the joints using a red RTV silicone and a minimum of 3 #8
screws.
28.1D
2” (50.8mm)
OVERLAP
HIGH TEMP
SEALANT
#8 X 1/2”
SELF
DRILLING
SCREWS
4.2.3 APPLIANCE VENT CONNECTION
