Napoleon XIR3N User manual

1
W415-1033 / A / 10.12.11
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE.
INSTALLATION AND
OPERATING INSTRUCTIONS
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • Fax [phone] • www.napoleonfireplaces.com • [email protected]
1.36A
$10.00
CERTIFIED FOR CANADAAND UNITED STATES USINGANSI/CSA METHODS.
SAFETY INFORMATION
!WARNING
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbour’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
- Installation and service must be performed by a
qualified installer, service agency or the supplier.
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
certified kit is used.
If the information in these instructions
are not followed exactly, a fire or
explosion may result causing property
damage, personal injury or loss of life.
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
WARNING
CERTIFIED
CERTIFIED UNDER CANADIANAND AMERICAN NATIONAL STANDARDS: CSA 2.33, ANSI Z21.88 FOR VENTED GAS FIREPLACE HEATERS.
XIR3N / IR3N
NATURAL GAS
XIR3P /IR3P
PROPANE

2
W415-1033 / A / 10.12.11
TABLE OF CONTENTS
1.0 INSTALLATION OVERVIEW 3
2.0 INTRODUCTION 4
2.1 DIMENSIONS 5
2.2 MINIMUM CLEARANCE TO COMBUSTIBLES 5
2.3 GENERAL INSTRUCTIONS 5
2.4 GENERAL INFORMATION 6
2.5 RATING PLATE INFORMATION 7
3.0 INSTALLATION 8
3.1 LEVELLING THE APPLIANCE 8
3.2 CHIMNEY CONNECTION 9
3.3 GAS INSTALLATION 10
4.0 FINISHING 11
4.1 MINIMUM MANTEL CLEARANCES 11
4.2 DOOR REMOVALAND INSTALLATION 12
4.3 IR3 LOG PLACEMENT 13
4.4 XIR3 LOG PLACEMENT 14
4.5 OPTIONAL ROCK PLACEMENT 15
4.6 GLOWING EMBERS 15
4.7 LOGO PLACEMENT 15
4.8 ON/OFF SWITCH INSTALLATION (IR3 ONLY) 16
4.9 BATTERY INSTALLATION (XIR3 ONLY) 16
4.10 BATTERY INSTALLATION (IR3 ONLY) 16
5.0 ELECTRICAL INFORMATION 17
5.1 WIRING DIAGRAM (IR3) 17
5.2 WIRING DIAGRAM (XIR3) 18
6.0 OPERATION 19
6.1 OPERATING AND LIGHTING INSTRUCTIONS 19
6.2 XIR3 OPERATION 20
6.2.1 GENERAL TRANSMITTER LAYOUT 20
6.2.2 APPLIANCE OPERATION 20
6.2.3 HAND HELD REMOTE OPERATIONS 21
6.2.4 TEMPERATURE DISPLAY 21
6.2.5 ROOM THERMOSTAT 21
6.2.6 SMART THERMOSTAT 21
6.2.7 FLAME HEIGHT 22
6.2.8 CHILD PROOF FUNCTION 22
6.2.9 NIGHT LIGHT 22
6.2.10 LOW BATTERY / MANUAL BYPASS 23
6.2.11 IN THE EVENT OF A POWER FAILURE 23
6.2.12 CONTROL MODULE 23
6.2.13 SPLIT FLOW VALVE 23
6.2.14 TIMED BLOWER 24
6.3 IR3 OPERATION 24
6.3.1 ON/OFF SWITCH LOCATION 24
6.3.2 VALVE MANUAL HIGH/LOW ADJUSTMENT 24
6.4 ANTI CONDENSATION CONTROL SWITCH (OPTIONAL) 25
7.0 ADJUSTMENTS 26
7.1 PILOT BURNER ADJUSTMENT 26
7.2 VENTURI ADJUSTMENT 26
7.3 FLAME CHARACTERISTICS 27
8.0 MAINTENANCE 28
8.1 CARE OF GLASS 28
8.2 CARE OF PLATED PARTS 28
8.3 DOOR GLASS REPLACEMENT 29
8.4 BURNER REMOVAL 30
8.5 FCM REPLACEMENT 31
8.6 NIGHT LIGHT™ REPLACEMENT 31
8.7 VALVE TRAIN REPLACEMENT 32
9.0 REPLACEMENTS 33
10.0 TROUBLESHOOTING 37
11.0 WARRANTY 40
12.0 SERVICE HISTORY 41
NOTE: changes, other than editorial, are denoted by a vertical line in the margin.

3
W415-1033 / A / 10.12.11
Venting, see “INSTALLATION
- CHIMNEY CONNECTION”
section.
Rating Plate, see “RATING
PLATE INFORMATION”
section.
Logs, see “FINISHING - LOG
PLACEMENT” section. Batteries, see “BATTERY INSTAL-
LATION (IR3 only) section.
1.0 INSTALLATION OVERVIEW

4
W415-1033 / A / 10.12.11
2.0 INTRODUCTION
3.2B
!
WARNING
• THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED.
• ANY CHANGES OR ALTERATIONS TO THIS APPLIANCE OR ITS CONTROLS CAN BE DANGEROUS
AND IS PROHIBITED.
• Do not operate appliance before reading and understanding operating instructions. Failure to operate
appliance according to operating instructions could cause fire or injury.
• Risk of fire or asphyxiation do not operate appliance with fixed glass removed.
• Do not connect 110 volts to the control valve.
• Risk of burns. The appliance should be turned off and cooled before servicing.
• Do not install damaged, incomplete or substitute components.
• Risk of cuts and abrasions. Wear protective gloves and safety glasses during installation. Sheet metal edges
may be sharp.
• Do not burn wood or other materials in this appliance.
• Children and adults should be alerted to the hazards of high surface temperature and should stay away to
avoid burns or clothing ignition.
• Young children should be carefully supervised when they are in the same room as the appliance. Toddlers,
young children and others may be susceptible to accidental contact burns. A physical barrier is recommended
if there are at risk individuals in the house. To restrict access to an appliance, install an adjustable safety gate
to keep toddlers, young children and other at risk individuals out of the room and away from hot surfaces.
• Clothing or other flammable material should not be placed on or near the appliance.
• Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.
• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot surfaces.
• Even after the appliance is out, the glass and/or screen will remain hot for an extended period of time.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from hot
surfaces. These screens and guards must be fastened to the floor.
• Any safety screen or guard removed for servicing must be replaced prior to operating the appliance.
• The appliance is a vented gas-fired appliance. Do not burn wood or other materials in the appliance
• It is imperative that the control compartments, burners and circulating blower and its passageway in the
appliance and venting system are kept clean. The appliance and its venting system should be inspected
before use and at least annually by a qualified service person. More frequent cleaning may be required due
to excessive lint from carpeting, bedding material, etc. The appliance area must be kept clear and free from
combustible materials, gasoline and other flammable vapors and liquids.
• Under no circumstances should this appliance be modified.
• This appliance must not be connected to a chimney flue pipe serving a separate solid fuel burning appliance.
• Do not use this appliance if any part has been under water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control system and any gas control which has been under
water.
• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass
should be done by a licensed or qualified service person.
• Do not strike or slam shut the appliance glass door.
• When equipped with pressure relief doors, they must be kept closed while the appliance is operating to
prevent exhaust fumes containing carbon monoxide, from entering into the home. Temperatures of the exhaust
escaping through these openings can also cause the surrounding combustible materials to overheat and catch
fire.
• Only doors / optional fronts certified with the unit are to be installed on the appliance.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As with all
plastic bags, these are not toys and should be kept away from children and infants.
• As with any combustion appliance, we recommend having your appliance regularly inspected and serviced as
well as having a Carbon Monoxide Detector installed in the same area to defend you and your family against
Carbon Monoxide.
• Ensure clearances to combustibles are maintained when building a mantel or shelves above the appliance.
Elevated temperatures on the wall or in the air above the appliance can cause melting, discolouration or
damage of decorations, a T.V. or other electronic components.

5
W415-1033 / A / 10.12.11
2.1 DIMENSIONS
THIS GAS APPLIANCE SHOULD BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to
conform with local codes. Installation practices vary from region to region and it is important to know the
specifics that apply to your area, for example in Massachusetts State:
• This product must be installed by a licensed plumber or gas fitter when installed within the commonwealth
of Massachusetts.
• The appliance damper must be removed or welded in the open position prior to installation of a appliance
insert or gas log.
• The appliance off valve must be a “T” handle gas cock.
• The flexible connector must not be longer than 36 inches.
• ACarbon Monoxide detector is re
q
uired in all rooms containin
g
g
as fired a
pp
liances.
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT,
WITH THE GLASS DOOR OPENED OR REMOVED.
PROVIDE ADEQUATE CLEARANCE FOR SERVICING AND OPERATING THE APPLIANCE.
PROVIDE ADEQUATE VENTILATION.
NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.
OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48” FROM THE
FRONT FACE OF THE UNIT.
SURFACES AROUND AND ESPECIALLY ABOVE THE APPLIANCE CAN BECOME HOT. AVOID CONTACT
WHEN THE APPLIANCE IS OPERATING.
FIRE RISK. EXPLOSION HAZARD.
HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE PRESSURE TESTING GAS
LINE AT TEST PRESSURES ABOVE 1/2 PSIG. CLOSE THE MANUAL SHUT-OFF VALVE BEFORE PRESSURE
TESTING GAS LINE AT TEST PRESSURES EQUAL TO OR LESS THAN 1/2 PSIG.
USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH THIS APPLIANCE.
USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, GAS COMPONENTS, VENTING
COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL VOID THE WARRANTY AND CERTIFICATION.
!
WARNING
Thisappliancemustbe recessed into avented noncombustible wood-burning appliance(prefabricated or masonry)
only. The minimum appliance opening size in which the appliance is to be installed is:
HEIGHT 211/2" WIDTH 29" DEPTH *131/2"
The minimum allowable chimney flue size is 7" round.
*Add 4" for optional blower.
The minimum distance, from the bottom of a combustible mantel projecting 3" maximum from the wall to the
top of the appliance, is 14" (See MINIMUM MANTEL CLEARANCES section).
2.2 MINIMUM CLEARANCE TO COMBUSTIBLES
283/4”
295/8”
227/8”
131/4”
91/2”
171/2”
12”
91/2”
201/2”
21”
171/2”
2.3 GENERAL INSTRUCTIONS

6
W415-1033 / A / 10.12.11
2.4 GENERAL INFORMATION
4.1A
A
Carbon
Monoxide
detector
is
required
in
all
rooms
containing
gas
fi
red
appliances.
• The appliance is not approved for installation in a bedroom or bathroom unless the unit is a direct vent
sealed combustion product.
The installation must conform with local codes or, in
absence of local codes, the National Gas and Propane
Installation Code CSA B149.1 in Canada, or the National
Fuel Gas Code, ANSI Z223.1 / NFPA 54 in the United
States. Suitable for mobile home installation if installed in
accordance with the current standard CAN/CSA Z240MH
Series, for gas equipped mobile homes, in Canada or
A
NSI Z223.1 and NFPA 54 in the United States.
A
s long as the required clearance to combustibles is
maintained, the most desirable and beneficial location
for an appliance is in the center of a building, thereby
allowing the most efficient use of the heat created. The location of windows, doors and the traffic flow in the
room where the appliance is to be located should be considered. If possible, you should choose a location
where the vent will pass through the house without cutting a floor or roof joist.
If the appliance is installed directly on carpeting, vinyl tile or other combustible material other than wood
flooring, the appliance shall be installed on a metal or wood panel extending the full width and depth.
Some appliances have optional fans or blowers. If an optional fan or blower is installed, the junction box must
be electrically connected and grounded in accordance with local codes, use the current CSA C22.1 Canadian
Electrical Code in Canada or the ANSI/NFPA 70 National Electrical code in the United States.
We suggest that our gas
hearth products be installed
and serviced by professionals
who are certied in the U.S.
by the National Fireplace
Institute
® (NFI) as NFI Gas
Specialists
www.ncertied.org
FOR YOUR SATISFACTION, THIS APPLIANCE HAS BEEN TEST-FIRED TO ASSURE ITS OPERATION AND
QUALITY!
XIR3 IR3
NG LP NG LP
Altitude (FT) 0-4,500 0-4,500 0-4,500 0-4,500
Max. Input (BTU/HR) 31,000 31,000 24,000 24,000
Max. Output (BTU/HR) 24,800 24,800 18,480 18,480
Efficiency (w/the fan on) 80% 80% 77% 77%
A.F.U.E. (maximum value) 77% 77% 76% 76%
Min. Inlet Gas Supply Pressure 4.5" Water
Column 11" Water Column 4.5" Water Column 11" Water Column
Max. Inlet Gas Supply Pressure 7" Water
Column 13" Water Column 7" Water Column 13" Water Column
Manifold Pressure (Under Flow
Conditions) 3.5" Water Column 10" Water Column 3.5" Water Column 10" Water Column

7
W415-1033 / A / 10.12.11
When the appliance is installed at elevations above 4,500ft, and in the absence of specific recommendations
from the local authority having jurisdiction, the certified high altitude input rating shall be reduced at the rate of
4% for each additional 1,000ft. Expansion / contraction noises during heating up and cooling down cycles are
normal and to be expected.
This appliance is not approved for closet or recessed installations. It is approved for bathroom, bedroom and
bed-sitting room installations and is suitable for mobile homes. The natural gas model is suitable for installation
in a mobile home that is permanently positioned on its site and fuelled with natural gas.

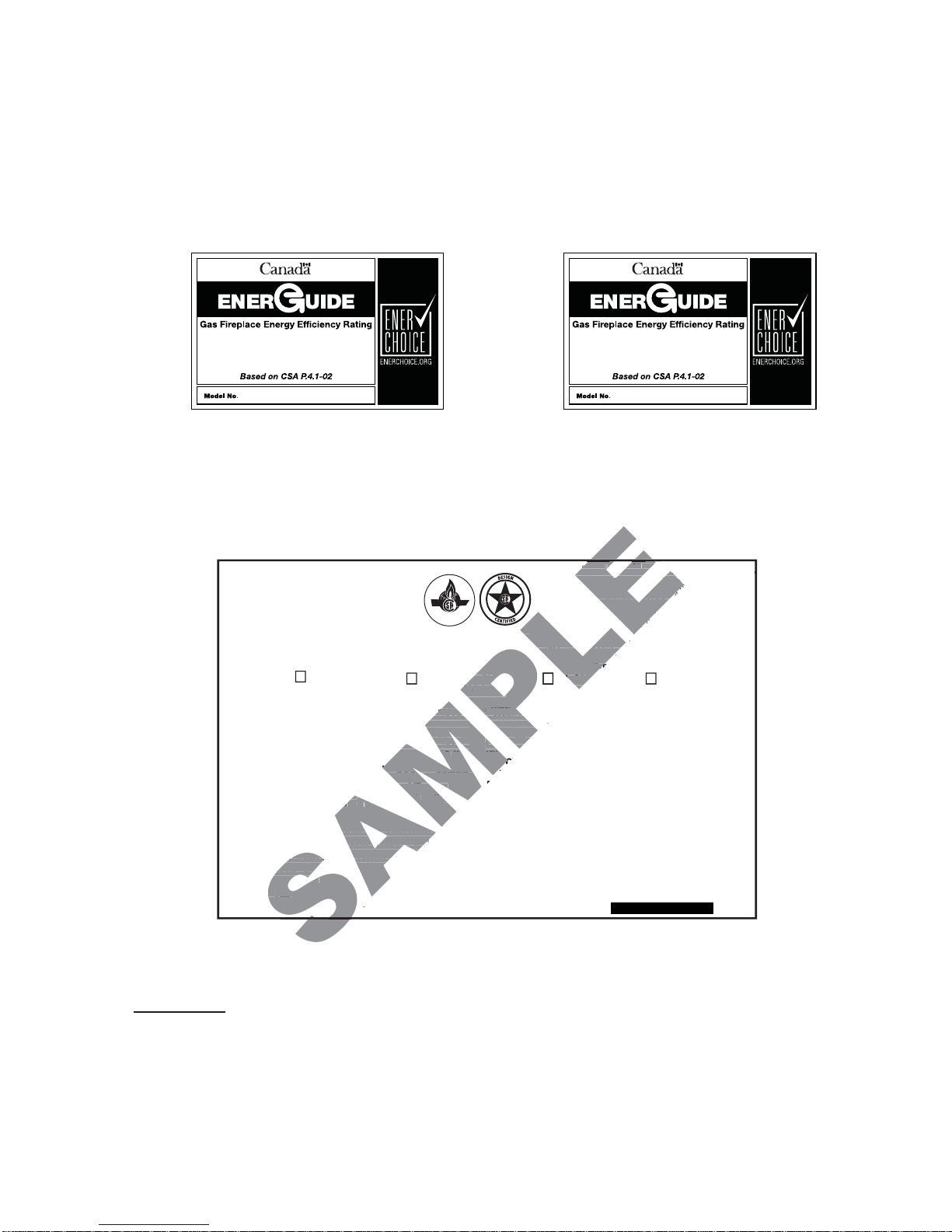

2.5 RATING PLATE INFORMATION
INSTALLER: It is your responsibility to check off the appropriate box on the rating plate according to
the model, venting and gas type of the appliance.
For rating plate location, see “INSTALLATION OVERVIEW” section.
This illustration is for reference only. Refer to the rating plate on the appliance for accurate information.
SERIAL NUMBER/NO. DE SERIE: XIR3/CXIR3
AVERTISSEMENT: N'A JOUTEZ PAS ACETAPPAREIL AUCUN MATERIAU DEVANT
ENTRER ENCONTACTAVEC LESFLAMMESAUTRE QUECELUI QUIESTFOURNIAVEC CET
APPAREIL PAR LE FABRICANT.
W385-0661
CERTIFIED FOR
CERTIFIEE POUR CANADA USA
XIR3N XIR3PCXIR3N CXIR3PMODEL
CERTIFIED
REFERENCE #161746
Natural Gas/Gaz Naturel Propane
CERTIFIED UNDER / HOMOLOGUÉ SELON LES NORMES: ANSI Z21.88b-2009, CSA2.22b-2009 VENTED GAS FIREPLACE / APPAREIL À GAZVENTILÉS.
WOLF STEEL LTD.
24 NAPOLEON ROAD, BARRIE. ONTARIO L4M 4Y8 CANADA
ELECTRICAL RATING: 115V 1.5AMP 60HZ
THE APPLIANCE MUSTBE VENTED USING THE APPROPRIATE WOLF STEEL VENT KITS. SEE
OWNER’S INSTALLATION MANUAL FOR VENTING SPECIFICS. PROPER REINSTALLATION AND
RESEALING IS NECESSARYAFTER SERVICING THE VENT-AIR INTAKE SYSTEM.
WARNING: FOR INSTALLATION INTO AVENTED NON-COMBUSTIBLE FIREPLACE ONLY. THE
MINIMUM FIREPLACE SIZE IS: HEIGHT 20.5”, DEPTH 13.25”, WIDTH 29”. THE MINIMUM INSIDE
FLUE SIZE IS 6”. THE MINIMUM DISTANCE FROM THE BOTTOM OF ACOMBUSTIBLE MANTEL
PROJECTING AMAXIMUM 3” FROM THE WALL TOTHE TOP OF THE UNITIS 12”. SEE OWNER’S
MANUAL FOR GREATER EXTENSIONS.
OPTIONAL FAN KIT - GZ550-KT, GD65.
CLASS : 115V, 1.5AMP, 60HZ
L’APPAREIL DOIT EVACUER SES GAZ EN UTILISANT L’ENSEMBLE D’EVACUATION PROPRE A WOLF STEEL.
REFERER AU MANUEL D’INSTALLATION DE PROPRIETAIRE POUR L’EVACUATION PRECISE. IL EST IMPORTANT DE
BIEN REINSTALLER ET RESCELLER L’EVENT APRES AVOIR ASSURE LE MAINTIEN DU SYSTEME DE PRISE D’AIR.
ATTENTION : POUR INSTALLATION DANS UN FOYER VENTILE EN MACONNERIE. LES DIMENSIONS MINIMUMS
SONT: HAUTER 19.75”, PROFONDEUR 13.25”, LARGEUR 29”. LE DIAMETRE INTERIEUR MINIMUM DE CONDUIT
D’EVACUATION EST DE 6”. LA DISTANCE MINIMALE, DU BAS DU MANTEAU COMBUSTIBLE FORMANT UNE
PROJECTION MAXIMALE DE 3” DU MUR AU DESSUS DE LA GARNITURE NORMALE EST 12”. REFERER AU MANUEL
D’INSTALLATION POUR DES EXTENSIONS PLUS GRANDES.
SOUFFLERIE OPTIONELLE
GZ550-KT, GD65.
4500FT (0-1370m) ALTITUDE/ELEVATION 4500FT (0-1370m)
31,000 BTU/h INPUT/ALIMENTATION 31,000 BTU/h
11,000 BTU/h REDUCED INPUT/ALIMENTATION REDUITE 16,000 BTU/h
MANIFOLD PRESSURE: 3.5” WATER COLUMN
PRESSION AU COLLECTEUR: 3.5” D’UNE COLONNE D’EAU
MINIMUM SUPPLY PRESSURE: 4.5” WATER COLUMN
PRESSION D’ALIMENTATION MINIMALE: 4.5” D’UNE COLONNE D’EAU
MAXIMUM SUPPLY PRESSURE: 7.0” WATER COLUMN
PERSSION D’ALIMENTATION MAXIMALE: 7.0” D’UNE COLONNE D’EAU
AFUE: 68.4%
MANIFOLD PRESSURE: 10” WATER COLUMN
PRESSION AU COLLECTEUR: 10” D’UNE COLONNE D’EAU
MINIMUM SUPPLY PRESSURE: 11” WATER COLUMN
PRESSION D’ALIMENTATION MINIMALE: 11” D’UNE COLONNE D’EAU
MAXIMUM SUPPLY PRESSURE: 13” WATER COLUMN
PERSSION D’ALIMENTATION MAXIMALE: 13” D’UNE COLONNE D’EAU
AFUE: 68.4%
THIS VENTED GAS FIREPLACE HEATER IS NOT FOR USE
WITH AIR FILTERS. FOR USE WITH GLASS DOORS CERTIFIED
FOR THIS UNIT ONLY. NOT FOR USE WITH SOLID FUEL.
CE FOYER À GAZ VENTILÉS NE DOIT PAS ÊTRE UTILISÉ
CONJOINTEMENT AVEC DES FILTRES À AIR. UTILISER AVEC LES
PORTES VITRÉES HOMOLOGUÉES AVEC CETTE UNITÉ SEULE-
MENT. UN COMBUSTIBLE SOLIDE NE DOIT PAS ETRE UTILISE
AVEC CET APPAREIL.
NE PAS ALLUMER SI DES ENFANTS OU D’AUTRES INDIVIDUS À RISQUE
SONT À PROXIMITÉ DU FOYER.APPAREILDE CHAUFFAGE À ÉVACUATION
DIRECTE. HOMOLOGUÉ POUR INSTALLATION DANS UNE CHAMBRE À
COUCHER, UNE SALLE DE BAIN ET UN STUDIO.APPROPRIÉ POUR
INSTALLATION DANS UNE MAISON MOBILE SI SON INSTALLATION EST
CONFORME AUX EXIGENCES DE LANORME CAN/CSA Z240MH SÉRIE DE
MAISONS MOBILES ÉQUIPÉES AU GAZ, EN VIGUEURAU CANADA, OU AUX
ÉTATS-UNIS, SELON LANORME DE SÉCURITÉ ET DE CONSTRUCTION DE
MAISONS MANUFACTURÉES,TITRE 24 CFR, SECTION 3280. DANS LE CAS
OÙ CETTE NORME DES ÉTATS-UNIS NE PEUT ÊTREAPPLIQUÉE, SE
RÉFÉRER À LA NORME RELATIVEAU CRITÈRE DE MESURES DE SÉCURITÉ
CONTRE L'INCENDIE POUR LES INSTALLATIONS DANS LES MAISONS
MANUFACTURÉES, LES SITES ETLES COMMUNAUTÉS, ANSI/NFPA 501A.
DO NOT TURN ON IF CHILDREN OR OTHERATRISK INDIVIDUALS
ARE NEAR THE FIREPLACE. DIRECT VENT GAS FIREPLACE
HEATER. SUITABLE FOR BEDROOM, BATHROOM AND BED-SITTING
ROOM INSTALLATION. SUITABLE FOR MOBILE HOME INSTALLATION
IF INSTALLED IN ACCORDANCE WITH THE CURRENT STANDARD
CAN/CSA Z240MH SERIES GAS EQUIPPED MOBILE HOMES, IN
CANADA OR INTHE UNITED STATES THE MANUFACTURED HOME
CONTRUCTION AND SAFETYSTANDARD, TITLE 24 CFR, PART 3280.
WHEN THIS US STANDARD IS NOT APPLICABLE USETHE
STANDARD FOR FIRE SAFETY CRITERIA FOR MANUFACTURED
HOME INSTALLATIONS, SITESAND COMMUNITIES, ANSI / NFPA
501A.
WARNING: DO NOTADD ANY MATERIALTO THE APPLIANCE THAT WILL COME IN
CONTACT WITHTHE FLAMES, OTHER THAN THAT SUPPLIED BY THE MANUFACTURER
WITH THE APPLIANCE.
A USA
SA
PL
X
IR
3
P
XIR3P
MODELODEL
SAMPLE
746
6
ProPro
REPLACEREPLACE
/
APPAREI
L/ APPAREIL
À GAZ VEÀ GA
EEL LTD.
L LTD.
ON ROAD, BARRIE. ONTARN ROAD, BARRIE. ONT
HZ
SING THEAPPROPRIATE WOLF STEELVENT KITHE APPROPRIATE WOLF STEEL VENT KI
FOR VENTING SPECIFICS. PROPER REINSTALLANG SPECIFICS. PROPER REINSTALL
TER SERVICING THE VENT-AIR INTAKE SYSTEM.THE VENT-AIR INTAKE SYSTEM
N INTOA VENTED NON-COMBUSTIBLE FIREPLACNON-COMBUSTIBLE FIREPLA
IS: HEIGHT 20.5”, DEPTH 13.25”, WIDTH 29”. THES: HEIGHT 20.5”, DEPTH 13.25”, WIDTH
NIMUM DISTANCE FROM THE BOTTOM OF ACOMNIMUM DISTANCE FROM THE BOTTOM O
MUM 3” FROM THE WALL TO THE TOP OF THE UNMUM 3” FROM THE WALL TO THE TOP OF
ATER EXTENSIONS.TER EXTENSIONS.
KIT - GZ550-KT, GD65.
T - GZ550-KT, GD65.
TUDE/ELEVATIONUDE/ELEVATI
4500F500
UT/ALIMENTATIONALIMENTATION
INPUT/ALIMENTATION REDUITENPUT/ALIMENTATION REDU
ER COLUMNER COLU
OLONNE D’EAULONNE D’EAU
WATER COLUMNWATER COLUMN
NE COLONNE D’EAUOLONNE D’EAU
:
7.0” WATER COLUMNTER COLUMN
D’UNE COLONNE D’EAUD’UNE COLONNE D’EAU
AFUE:FUE:
68.4
%68.4%
M
ANIFOLD PRESSURE
:MANIFOLD P
10”
PRESSION AU COLLECTPRESSION AU
MINIMUM SUPPLY PRENIMUM SUPPLY
PRESSION D’ALIMESSION D’ALIM
MAXIMUM SUPPLMAXIMUM SUPP
PERSSION D’APERSSION D’A
AFUE
:AFUE:
68.4%
R IS NOT FOR USER IS NOT FOR USE
GLASS DOORS CERTIFIEDSS DOORS CERTIFIED
SE WITH SOLID FUEL.SOLID FUEL.
CE FOYCE FO
CONCON
P
UMER SI DES ENFANTS OU D’AUTREMER SI DES ENFANTS OU D’AUTRE
ROXIMITÉ DU FOYER. APPAREIL DE CHAXIMITÉ DU FOYER. APPAREIL DE CHA
E. HOMOLOGUÉ POUR INSTALLATION DANS
OLOGUÉ POUR INSTALLATION DANS
CHER, UNE SALLE DE BAIN ET UN STUDIO.AALLE DE BAIN ET UN STUDIO.A
STALLATION DANS UNE MAISON MOBILE SI SUNE MAISON MOBILE SI S
CONFORME AUX EXIGENCES DE LANORMENCES DE LA NORME
MAISONS MOBILES ÉQUIPÉES AU GAZ, ENMAISONS MOBILES ÉQUIPÉES AU GAZ, EN
ÉTATS-UNIS, SELON LANORME DE SÉCÉTATS-UNIS, SELON LANORME DE SÉC
MAISONS MANUFACTURÉES,TITRE 2MAISONS MANUFACTURÉES,TITRE 2
OÙ CETTE NORME DES ÉTATS-UNISOÙ CETTE NORME DES ÉTATS-UNI
RÉFÉRER À LA NORME RELATIVERÉFÉRER À LANORME RELATIV
CONTRE L'INCENDIE POUR LECONTRE L'INCENDIE POUR LE
MANUFACTURÉES, LES SITEANUFACTURÉES, LES SIT
THEHE
APPLIAN
CEAP
THA
T
WI
LWIL
LL
CO
M
ECOME
I
N
ANN
THTH
AA
TT
AA
A
SU
PPLIED B
SUPP
Y
THE
MANUE MANU
FF
ACTURERACT
FFF
67.0%
XIR3
64.0%
IR3

8
W415-1033 / A / 10.12.11
3.0 INSTALLATION
3.1 LEVELLING THE APPLIANCE
68.4A
Clean out ashes from the inside of the wood-burning appliance. Make sure that the chimney and wood-burning
appliance are in a clean and sound condition and constructed of non-combustible materials. If necessary have
any repair work done by a qualified person before installing the insert. Remove the existing appliance damper
or lock into an open position.
Using screws, attach the appliance warning tag
to the inside of the firebox of the appliance into
which the insert is being installed.
The sheet-metal parts of the appliance, in which
the gas appliance insert is to be installed, must
not be cut.
If the wood-burning factory-built appliance has
no gas access hole(s) provided, an access hole of 1½ inch or less may be drilled through the lower sides or
bottom of the appliance in a proper workman like manner. This access hole must be plugged with non-combus-
tible insulation after the gas supply line has been installed.
Ensure that existing chimney cleanouts fit properly.
The refractory, glass doors, screen rails, screen mesh and log grates may be removed from the existing appli-
ance before installing the gas appliance insert.
Smoke shelves, shields and baffles may be removed if attached by mechanical fasteners.
The ventilation openings in the existing appliance may be obstructed by the backer plates, aluminium trim etc.
but these parts are not to be applied so as to have an airtight seal.
!
WARNING
RISK OF FIRE, MAINTAIN SPECIFIED AIR SPACE CLEARANCES TO VENT PIPE AND APPLIANCE.
W385-0199_B
WARNING: THIS FIREPLACE HAS BEEN CONVERTED FOR USE WITHAGAS FIREPLACE
INSERT ONLYAND CANNOT BE USED FOR BURNING WOOD OR SOLID FUELS UNLESSALL ORIGINAL
PARTS HAVE BEEN REPLACED AND THE FIREPLACE IS RE-APPROVED BY THEAUTHORITY HAVING
JURISDICTION.
ATTENTION: CE FOYER A ETE CONVERTI AFIN D’ETRE UTILISE SEULEMENT
COMME FOYER ENCASTRE AU GAZ ET NE PEUT ETRE UTILSE POUR BRULER DU BOIS OU
TOUTAUTRE COMBUSTIBLE SOLIDE, SANS QUE TOUTES LES PIECES ORIGINALESAIENT
ETE REMPLACEES ET QUE LE FOYER SOITAPPROUVE DE NOUVEAU PAR LES AUTORITES
AYANT JURIDICTION.
ADVERTENCIA: ESTA CHIMENEASE REMODELÓ PARA USARSE SOLO CON UNA
INSERCIÓN DE CHIMENEAA GAS Y NO PUEDE USARSE PARA QUEMAR MADERANI COMBUSTIBLES
SÓLIDOS, A MENOS QUE SE HAYAN REEMPLAZADO TODAS LAS PIEZAS ORIGINALES, YLAAUTORI-
DAD JURISDICCIONAL LA HAYA VUELTO AAPROBAR.
Move the appliance close to its final position. This appliance is equipped with levelling screws located on the
base. Level using the levelling screws. Levelling the appliance will eliminate rocking or excessive noise when
the fan is in operation. Once the appliance is level, move it partially into place to allow for all connections to be
made. It is not practical to level the appliance once it has been installed. Determine the required depth prior to
installing the appliance and adjust the levelling screws accordingly. 67.2

9
W415-1033 / A / 10.12.11
While the liners must be continuous from the appliance to the chimney cap, to
achieve the needed length, they may be coupled, using an approved coupler.
We recommend that exhaust vents that pass through unheated spaces,
such as tall exterior chimneys, be wrapped in a protective sleeve to minimize
condensation and reverse flow symptoms. See Trouble Shooting for details.
This appliance is approved for use with a 3" exhaust and air intake.
A. OUTSIDE: Slip the one end of a liner a minimum of 2" over the
sleeve of the air terminal. Secure using 3 screws. Then seal the
joint and screw heads with high temperature sealant. Repeat with
the other liner.
NOTE: We recommend that the other end of the exhaust liner be marked to eliminate the
exhaust liner being connected
to the intake collar at the
appliance.
B. Gently stretch the liners to the
required lengths and insert
into the chimney. Trim and fit
the flashing plate to suit the
chimney termination. Place
the air terminal onto the top
of the chimney. Make weather
tight by sealing with caulking
(not supplied). Fasten to the
chimney with screws and plugs
(not supplied).
C. INSIDE: Remove the securing
screw from the front of the vent
mounting plate. Pull the vent
mounting plate only, back into
the track, to the front stop. Start
the slider back into position. Re-
secure the screw. The appliance
may now be pushed into its final position inside the wood burning appliance, and the screw tightened
until the slider has been pulled tight to the front stop.
D. Route the flex liners through the slider. Attach and secure the liners to the vent mounting plate using
the same procedure as before, ensuring that the marked exhaust liner is attached to the exhaust collar.
FLASHING
PLATE
2” OVERLAP
SEALANT
HI-TEMP
INTAKE
EXHAUST
SECURING
SCREW
SLIDER
MOUNTING
PLATE
HIGH TEMP
SEALANT
2”
OVERLAP
3”
LINERS
EXHAUST
INTAKE
3.2 CHIMNEY CONNECTION
Chimney installation must conform to both national and local code requirements. The chimney must be lined
with one 3" diameter liner for intake and one 3" diameter liner for exhaust. The minimum and maximum vent
lengths are 10 and 35 feet respectively. Recommended kits come in 3 lengths:
2-3" DOUBLE PLY ALUMINUM LINER-INLET AND EXHAUST:
GDI-320KT VENT KIT 20FT
GDI-325KT VENT KIT 25 FT
GDI-335KT VENT KIT 35 FT

10
W415-1033 / A / 10.12.11
3.3 GAS INSTALLATION
30.1A
Installation and servicing to be done by a qualified installer.
A. Move the appliance into position and secure.
B. If equipped with a flex connector the appliance is designed to accept a 1/2” gas supply. Without the
connector it is designed to accept a 3/8” gas supply. The appliance is equipped with a manual shut off
valve to turn off the gas supply to the appliance.
C. Connect the gas supply in accordance to local codes. In the absence of local codes, install to the
current CAN/CSA-B149.1 Installation Code in Canada or to the current National Fuel Gas Code, ANSI
Z223.1 / NFPA 54 in the United States.
D. When flexing any gas line, support the gas valve so that the lines are not bent or kinked.
E. The gas line flex-connector should be installed to provide sufficient movement for shifting the burner
assembly on it’s side to aid with servicing components.
F. Check for gas leaks by brushing on a soap and water solution. Do not use open flame.
!
WARNING
RISK OF FIRE, EXPLOSION OR ASPHYXIATION. ENSURE THERE ARE NO IGNITION SOURCES SUCH AS
SPARKS OR OPEN FLAMES.
SUPPORT GAS CONTROL WHEN ATTACHING GAS SUPPLY PIPE TO PREVENT DAMAGING GAS LINE.
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT
WITH THE GLASS DOOR OPENED OR REMOVED. PURGING OF THE GAS SUPPLY LINE SHOULD BE
PERFORMED BY A QUALIFIED SERVICE TECHNICIAN. ASSURE THAT A CONTINUOUS GAS FLOW IS AT
THE BURNER BEFORE CLOSING THE DOOR. ENSURE ADEQUATE VENTILATION. FOR GAS AND
ELECTRICAL LOCATIONS, SEE “DIMENSION” SECTION.
ALL GAS CONNECTIONS MUST BE CONTAINED WITHIN THE APPLIANCE WHEN COMPLETE.
HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE TESTING GAS
LINE AT TEST PRESSURES ABOVE 1/2 PSIG.
VALVE SETTINGS HAVE BEEN FACTORY SET, DO NOT CHANGE.

11
W415-1033 / A / 10.12.11
4.0 FINISHING
Combustible mantel clearance can vary according to the mantel depth. Use the graph to help evaluate the
clearance needed. These same requirements apply to any combustibles protruding on either side of the
appliance.
3
14 5
4
MANTEL DEPTH
0
+
(
,
*
+
7
0
$
1
7
(
/
6
15
16
17
!
WARNING
RISK OF FIRE, MAINTAIN ALL SPECIFIED AIR SPACE CLEARANCES TO COMBUSTIBLES. FAILURE
TO COMPLY WITH THESE INSTRUCTIONS MAY CAUSE A FIRE OR CAUSE THE APPLIANCE TO
OVERHEAT. ENSURE ALL CLEARANCES (I.E. BACK, SIDE, TOP, VENT, MANTEL, FRONT, ETC.) ARE
CLEARLY MAINTAINED.
WHEN USING PAINT OR LACQUER TO FINISH THE MANTEL, THE PAINT OR LACQUER MUST BE
HEAT RESISTANT TO PREVENT DISCOLOURATION. 73.1
!
WARNING
RISK OF FIRE!
NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.
THE FRONT OF THE APPLIANCE MUST BE FINISHED WITH ANY NON-COMBUSTIBLE MATERIALS
SUCH AS BRICK, MARBLE, GRANITE, ETC., PROVIDED THAT THESE MATERIALS DO NOT GO
BELOW THE SPECIFIED DIMENSION AS ILLUSTRATED.
DO NOT STRIKE, SLAM OR SCRATCH GLASS. DO NOT OPERATE APPLIANCE WITH GLASS
REMOVED, CRACKED, BROKEN OR SCRATCHED.
FACING AND/OR FINISHING MATERIAL MUST NEVER OVERHANG INTO THE APPLIANCE OPENING.
72.1A
4.1 MINIMUM MANTEL CLEARANCES
14”
17”16”15”
6” MANTEL
5”
3”
4”
20
1
/
2
”

12
W415-1033 / A / 10.12.11
The optional front must be removed to allow the door to be opened
or closed. Release the top left and right door latches, located at the
top of the door. Tilt forward and lift from slots.
4.2 DOOR REMOVAL AND INSTALLATION
!
WARNING
GLASS MAY BE HOT, DO NOT TOUCH GLASS UNTIL COOLED.
THE DOOR LATCHES ARE PART OF A SAFETY SYSTEM AND MUST BE PROPERLY ENGAGED. DO
NOT OPERATE THE APPLIANCE WITH LATCHES DISENGAGED.
FACING AND/OR FINISHING MATERIALS MUST NOT INTERFERE WITH AIR FLOW THROUGH AIR
OPENINGS, LOUVRES OPENINGS, OPERATION OF LOUVRES OR DOORS OR ACCESS FOR
SERVICE. OBSERVE ALL CLEARANCES WHEN APPLYING COMBUSTIBLE MATERIALS.
BEFORE DOOR IS REMOVED TURN THE APPLIANCE OFF AND WAIT UNTIL APPLIANCE IS COOL TO
THE TOUCH. DOORS ARE HEAVY AND FRAGILE SO HANDLE WITH CARE.
75.1
DOOR LATCH

13
W415-1033 / A / 10.12.11
4.3 IR3 LOG PLACEMENT
!
WARNING
FAILURE TO POSITION THE LOGS IN ACCORDANCE WITH THESE DIAGRAMS OR FAILURE TO USE
ONLY LOGS SPECIFICALLY APPROVED WITH THIS APPLIANCE MAY RESULT IN PROPERTY
DAMAGE OR PERSONAL INJURY.
LOGS MUST BE PLACED IN THEIR EXACT LOCATION IN THE APPLIANCE. DO NOT MODIFY THE
PROPER LOG POSITIONS, SINCE APPLIANCE MAY NOT FUNCTION PROPERLY AND DELAYED
IGNITION MAY OCCUR.
THE LOGS ARE FRAGILE AND SHOULD BE HANDLED WITH CARE.
76.1A
E. Position the right charcoal strip
in front of the right middle log, lining
up the holes in the bottom with the
2 front right studs.
F. Position a pin (supplied) into the
left side hole of the rear log, move
the left crossover log into position,
lining up the top hole with the pin in
the rear log.
C. Place the right middle log into
position, lining up the two holes in
the bottom with the studs located on
the right side of the burner.
D. Position the left charcoal strip in
front of the left middle log, lining up
the holes in the bottom with the 2
front left studs.
PHAZERTM logs and glowing embers exclusive to Napoleon, provide a unique and realistic glowing effect that is
different in every installation. Take the time to carefully position the glowing embers for a maximum glowing effect.
Log colours may vary. During the initial use of the appliance, the colours will become more uniform as colour
pigments burn in during the heat activated curing process.
A. Place the rear log behind the left
and right log supports and ensure
that it's tight to the burner. Make sure
to centre the pilot in the notch.Adjust
the log supports tight to the log to
hold it in an upright position.
B. Place the left middle log into
position, lining up the two holes in
the bottom with the studs located
on the left side of the burner.
LOG SUPPORT
G. Position a pin into the right side
hole of the rear log, move the right
crossover log into position, lining
up the top hole with the pin in the
rear log.

14
W415-1033 / A / 10.12.11
4.4 XIR3 LOG PLACEMENT
LOG SUPPORT
PIN
G. Position the right charcoal strip
in front of the right front log, lining
up the 2 holes in the bottom with
the 2 front right studs.
H. Position a pin into the left side
hole of the left middle log, move
the left crossover log into position,
lining up the top hole with the pin.
C. Insert the right middle log end
onto the left log pin and place it
behind the right support. Adjust the
log supports tight to these logs to
hold them in an upright position and
ensure they are tight to the burner.
F. Position the left charcoal strip in
front of the left front log, lining up
the 2 holes in the bottom with the 2
front left studs.
A. Place the rear log into position
lining up the holes in the bottom
with the studs located at the rear of
the firebox. Ensure it is tight to the
burner.
B. Place the left middle log behind
the left log support. Insert a pin
(supplied) into the right end of the
log.
E. Place the right front log into
position, lining up the 2 holes in the
bottom with the studs located on
the right side of the burner.
D. Place the left front log into
position, lining up the 2 holes in the
bottom with the studs located on
the left side of the burner.
I. Position a pin into the right side
hole of the right middle log, move
the right crossover log into position,
lining up the top hole with the pin.

15
W415-1033 / A / 10.12.11
Tear the embers into pieces and place along the front row of ports covering all of the burner area in front of
the small logs. Care should be taken to shred the embers into thin, small irregular pieces as only the exposed
edges of the fibre hairs will glow. The ember material will only glow when exposed to direct flame;
however, care should be taken to not block the burner ports.
Blocked burner ports can cause an incorrect flame pattern, carbon deposits and delayed ignition. PHAZERTM
logs glow when exposed to direct flame. Use only certified "glowing embers" and PHAZERTM logs available
from your authorized dealer / distributor.
97.1
Remove the backing o
f
the logo supplied and place on the glass viewing door,
as indicated. ½"
½"
LOGO
4.5 OPTIONAL ROCK PLACEMENT
4.6 GLOWING EMBERS
4.7 LOGO PLACEMENT
Before beginning with the installation, remove the door and all burner media from the appliance including logs
and charcoal strips. Retain the glowing embers.
D. Reinstall the glowing embers over the burner.
E. Reinstall the door.
!
WARNING
REAL ROCKS MUST NOT BE USED IN THIS APPLIANCE. HEAT WILL CAUSE THEM TO EXPLODE
A. Sit the two rock clusters on top of the rear log support. Ensure the clusters are sitting flat.
B. Place the large notched rocks along the step behind the front burner as desired.
C. Place the remaining rocks around the burner as desired making sure not to cover any burner ports
(there are no set locations).

16
W415-1033 / A / 10.12.11
4.8 ON/OFF SWITCH INSTALLATION (IR3 ONLY)
Snap the ON/OFF switch into the slot located in the top right side of the surround. Run the two black wires
up the side of the surround, through the wire clips and connect to the switch terminals (see surround leaflet
instructions for details).
4.9 BATTERY INSTALLATION (XIR3 ONLY)
4 AAbatteries must be installed into the receiver before operation is
possible in the XIR3. The receiver is located in the bottom left corner of
the appliance.
If receiver removal is necessary, remove the left access panel from the front
of the appliance. Remove the 2 screws holding the receiver in place. Pull
the receiver through the access hole and replace.
RECEIVER
RECEIVER PLATE
SCREWS
4.10 BATTERY INSTALLATION (IR3 ONLY)
4 AAbatteries must be installed in to the DC battery pack before operation is possible in the IR3. The battery
pack is located in the bottom right corner of the appliance.
WIRE CLIPS

17
W415-1033 / A / 10.12.11
ON / OFF
SWITCH
(SUPPLIED
WITH TRIM)
DC BATTERY PACK
GROUND
DFC
VALVE
ORANGE GREEN
GROUND
EYELET
ON / OFF
DISCONNECT THESE
CONNECTORS TO THE
ON/OFF SWITCH AND
CONNECT TO
OPTIONAL
THERMOSTAT OR
REMOTE .
+
+
-
-
IPI BOARD
VALVE
ELECTRONIC
5.0 ELECTRICAL INFORMATION
5.1 WIRING DIAGRAM (IR3)
This appliance comes equipped with a battery pack. Install 4 AAbatteries into the holder that is connected to
the wire harness. Place near the front of the appliance for ease of changing batteries.
!
WARNING
DO NOT USE THIS APPLIANCE IF ANY PART HAS BEEN UNDER WATER. CALL A QUALIFIED
SERVICE TECHNICIAN IMMEDIATELY TO HAVE THE APPLIANCE INSPECTED FOR DAMAGE TO THE
ELECTRICAL CIRCUIT.
RISK OF ELECTRICAL SHOCK OR EXPLOSION. DO NOT WIRE 110V TO THE VALVE OR TO THE
APPLIANCE WALL SWITCH. INCORRECT WIRING WILL DAMAGE CONTROLS.
ALL WIRING SHOULD BE DONE BY A QUALIFIED ELECTRICIAN AND SHALL BE IN COMPLIANCE
WITH LOCAL CODES. IN THE ABSENCE OF LOCAL CODES, USE THE CURRENT CSA22.1 CANADIAN
ELECTRIC CODE IN CANADA OR THE CURRENT NATIONAL ELECTRIC CODE ANSI/NFPA NO. 70 IN
THE UNITED STATES.
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RAN OUT,
WITH THE GLASS DOOR OPENED OR REMOVED.
69.2

18
W415-1033 / A / 10.12.11
5.2 WIRING DIAGRAM (XIR3)
Wire Harness Assembly
IPI Board
Pilot
Ground
Wire
EI
Pilot
Spark Electrode Flame
Sensor
Valve
Electronic Modulation
120V OUT FAN AUX OUT
COM
POWER
ACS/IPI Switch
(OPTIONAL)
Receiver
Wire Harness
Control Module
Night Lights
Fan
(OPTIONAL)
Wire
Harness
Plug
This appliance comes equipped with a battery back-up. If this back-up is used, install 4 AAbatteries (not
supplied) into the receiver.

19
W415-1033 / A / 10.12.11
6.0 OPERATION
When lit for the first time, the appliance will emit a slight odour for a few hours. This is a normal temporary
condition caused by the "burn-in" of internal paints and lubricants used in the manufacturing process and
will not occur again. Simply open a window to sufficiently ventilate the room.After extended periods of non-
operation such as following a vacation or a warm weather season, the appliance may emit a slight odour for
a few hours. This is caused by dust particles in the heat exchanger burning off. Open a window to sufficiently
ventilate the room.
IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT
CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT WITH
THE GLASS DOOR OPENED OR REMOVED.
!
WARNING
6.1 OPERATING AND LIGHTING INSTRUCTIONS
OPERATING INSTRUCTIONS / INSTRUCTIONS D’OPERATION
FOR YOUR SAFETY READ BEFORE OPERATING / POUR VOTRE SÉCURITÉ LIRE AVANT DE FAIRE FONCTIONNER
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUC-
TIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT
CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR
LOSS OF LIFE.
INITIAL LIGHTING OF THE PILOT AND MAIN BURNERS
MUST BE DONE WITH THE GLASS DOOR OFF.
DO NOT CONNECT VALVE OR WALL SWITCH TO ELEC-
TRICITY. SEE INSTALLATION INSTRUCTIONS.
A. THIS FIREPLACE IS EQUIPPED WITH AN IGNITION DEVICE WHICH AUTOMATI-
CALLY LIGHTS THE PILOT. DO NOT TRY TO LIGHT BY HAND.
B. BEFORE OPERATING SMELL ALLAROUND THE FIREPLACE AREA FOR GAS
AND NEXT TO THE FLOOR BECAUSE SOME GAS IS HEAVIER THAN AIR AND WILL
SETTLE ON THE FLOOR.
WHAT TO DO IF YOU SMELL GAS:
TURN OFF ALL GAS TO THE FIREPLACE.
OPEN WINDOWS.
DO NOT TRY TO LIGHT ANY APPLIANCE.
DO NOT TOUCH ANY ELECTRIC SWITCHDO NOT USE ANY PHONE IN YOUR
BUILDING.
IMMEDIATELY CALL YOUR GAS SUPPLIER FROM A NEIGHBOUR¶S PHONE.
FOLLOW THE GAS SUPPLIER¶S INSTRUCTIONS.
IF YOU CANNOT REACH YOUR GAS SUPPLIER, CALL THE FIRE DEPARTMENT.
C. DO NOT TRY TO REPAIR ANY PART OF THIS ASSEMBLY. CALL A QUALIFIED
SERVICE TECHNICIAN. FORCE OR ATTEMPTED REPAIR MAY RESULT IN A FIRE
OR EXPLOSION.
D. DO NOT USE THIS FIREPLACE IF ANY PART HAS BEEN UNDER WATER.
IMMEDIATELY CALL A QUALIFIED SERVICE TECHNICIAN TO INSPECT THE
FIREPLACE AND REPLACE ANY PART OF THE CONTROL SYSTEM AND ANY GAS
CONTROL WHICH HAS BEEN UNDER WATER.
ATTENTION: SI CES INSTRUCTIONS NE SONT PAS OBSERVÉES A LA
LETTRE, UN FEU OU UNE EXPLOSION POURRAIT S¶ENSUIVRE
CAUSANT DES DOMMAGES A LA PROPRIETE, DES BLESSURES
CORPORELLES OU PERTE DE VIE.
L¶ALLUMAGE INITIAL DE LA VEITLLEUSE ET DU BRULEUR PRINCIPAL
DOIT SE FAIRE AVEC LA PORTE VITREE ENLEVEE.
NE RACCORDE=PAS LA SOUPAPE OU L¶INTERRUPTEUR MURALA
L¶ELECTRICITE.
CONSULTE=LES INSTRUCTIONS D¶INSTALLATION.
A. CET APPAREIL EST MUNI D¶UN DISPOSITIF D¶ALLUMAGE QUI ALLUME LA VEILLEUSE
AUTOMATIQUEMENT.
N¶ESSAYE=PAS D¶ALLUMER LA VEILLEUSE MANUELLEMENT.
B. AVANT D¶ALLUMER SENTE=L¶AIR AUTOUR DE L¶APPAREIL ET PRÊS DU PLANCHER (CERTAINS
GA=SONT PLUS LOURDS QUE L¶AIR ET SE DÉPOSERONT AU NIVEAU DU PLANCHER) POUR
DÉTECTER UNE FUITE POSSIBLE.
QUE FAIRE SI VOUS DÉTECTEZ UNE ODEUR DE GAZ:
COUPEZ L¶ALIMENTATION DE GAZ PRINCIPALE.
OUVREZ LES FENETRES.
N¶ALLUMEZ AUCUN APPAREIL.
NE TOUCHEZ PAS ¬AUCUN INTERRUPTEUR ÉLECTRIQUEN¶UTILISEZ AUCUN TÉLÉPHONE
DANS VOTRE IMMEUBLE.
APPELEZ IMMÉDIATEMENT VOTRE FOURNISSEUR DE GAZ D¶UN TÉLÉPHONE VOISIN ET SUIVEZ
SES INSTRUCTIONS.
SI VOUS NE POUVEZ PAS REJOINDRE VOTRE FOURNISSEUR DE GAZ, APPELEZ LE SERVICE
DES
INCENDIES.
C. N¶ESSAYEZ PAS DE RÉPARER AUCUNE PIÊCE DE CET ASSEMBLAGE. APPELEZ UN
TECHNICIEN QUALIFIÉ. FORCER OU TENTER DE RÉPARER L¶ASSEMBLAGE POURRAIT CAUSER
UN FEU OU UNE EXPLOSION.
D. N¶UTILISEZ PAS CET APPAREIL SI UN DE SES COMPOSANTS ¬ÉTÉ SUBMERGÉ. CONTACTEZ
IMMÉDIATEMENT UN TECHNICIEN DE SERVICE QUALIFIÉ POUR INSPECTER L¶APPAREIL ET
REMPLACER TOUT SYSTÊME DE CONTRÐLE DE GAZ TOUCHÉ PAR L¶EAU. W385-0460
LIGHTING INSTRUCTIONS / INSTRUCTIONS D’ALLUMAGE
1. STOP! READALL INFORMATION OF OPERATING AND LIGHTING
INSTRUCTIONS BEFORE PROCEEDING.
2. TURN OFF ELECTRIC POWER TO THE FIREPLACE.
3. THIS FIREPLACE IS EQUIPPED WITH AN IGNITION DEVICE WHICH
AUTOMATICALLY LIGHTS THE PILOT. DO NOT TRY TO LIGHT THE PILOT
BY HAND.
4. OPEN THE GLASS DOOR.
5. TURN MANUAL SHUTOFF VALVE CLOCKWISE TO OFF.
6. WAIT FIVE (5) MINUTES TO CLEAR OUTANY GAS. IF YOU SMELLGAS
INCLUDING NEAR THE FLOOR, STOP! FOLLOW “B” OF THE OPERATING
INSTRUCTIONS. IF YOU DON’T SMELLGAS GO TO THE NEXT STEP.
7. TURN MANUAL SHUTOFF VALVE COUNTER-CLOCKWISE TO ON.
8. CLOSE THE GLASS DOOR.
9. TURN ON ALL ELECTRIC POWER TO THE FIREPLACE.
10. TURN ON MAIN BURNER.
1. ARRÊTEZ! LISEZ TOUTES LES INSTRUCTIONS DE FONCTIONNEMENT
ET D’ALLUMAGE AVANT DE CONTINUER.
2. COUPEZ L’ALIMENTATION ÉLECTRIQUE À L’APPAREIL.
3. CETAPPAREIL EST MUNI D’UN DISPOSITIF D’ALLUMAGE QUIALLUME
LA VEILLEUSE AUTOMATIQUEMENT, N’ESSAYEZ PAS D’ALLUMER LA
VEILLEUSE MANUELLEMENT.
4. OUVREZ LA PORTE VITRÉE.
5. TOURNEZ LASOUPAPE DE SECTIONNEMENT MANUELLE VERS LA
DROITE A “OFF”.
6. ATTENDEZ CINQ (5) MINUTES POUR QUE LE GAZ PUISSE
S’ÉCHAPPER. SI VOUS DÉTECTEZ UNE ODEUR DE GAZ, ARRÊTEZ!
SUIVEZ « B » DANS LES INSTRUCTIONS DE FONCTIONNEMENT. S’IL
N’YA PAS D’ODEUR DE GAZ, PASSEZ À L’ÉTAPE SUIVANTE.
7. TOURNEZ LASOUPAPE DE SECTIONNEMENT MANUELLE VERS LA
GAUCHE A “ON”.
8. FERMEZ LA PORTE VITRÉE.
9. RÉTABLISSEZ L’ALIMENTATION ÉLECTRIQUEAU FOYER.
10. ALLUMEZ LE BRÛLEUR PRINCIPAL.
1. TURN OFF ALL ELECTRICAL POWERTO THE FIREPLACE IF SERVICE IS
TO BE PERFORMED.
2. TURN MANUAL SHUTOFF VALVE CLOCKWISE TO OFF. DO NOT
FORCE.
1. COUPEZ L’ALIMENTATION ÉLECTRIQUE AU FOYER SI UN TRAVAIL
D’ENTRETIEN DOIT SE FAIRE.
2. TOURNEZ LASOUPAPE D’ARRÉT MANUELLE VERS LA DROITE
À “OFF” NE FORCEZ PAS.
TO TURN OFF GAS / INSTRUCTIONS POUR COUPER LE GAZ

20
W415-1033 / A / 10.12.11
6.2 XIR3 OPERATION
IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT
CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT WITH
THE GLASS DOOR OPENED OR REMOVED.
!
WARNING
THERMOSTAT
OFF/ON/SMART
ROOM
TEMPERATURE
LOW BATTERY
ALARM
CHILD SAFETY
LOCK OUT
TRANSMISSION
AUX. OUTPUT
FANFLAME
TEMPERATURE SET POINT/ LEVEL/ STATUS
SPLIT VALVE
35.18
6.2.1 GENERAL TRANSMITTER LAYOUT
6.2.2 APPLIANCE OPERATION
A
. Install 4 AA batteries into the receiver battery bay as indicated on the battery cover
(
+
/
-
)
.
(O
nly required
as back up to household electricity).
B. Place the 3 position slider switch of the receiver in the “Remote” position.
C. Using the end of a paper clip, or other similar object, insert the end of the paper clip into the hole
marked “PRG” on the receiver front cover. The receiver will “beep” three (3) times to indicate that it is
ready to synchronize with the transmitter.
D. Install the 3 AAAbatteries in the transmitter battery bay, located on the base of the transmitter.
With the batteries already installed in the transmitter, push the “ON” button. The receiver will “beep”
four times to indicate the transmitter’s command is accepted and set to the particular code of that
transmitter. The system is now initialized.
35.2A
