Narada ACMEG AG12V50F User manual

Polymer Gel Standby Battery
(Front Access Design)
OPERATION MANUAL
Version 3.2
NARADA POWER SOURCE CO., LTD
Website: www.naradapower.com

Operation manual V3.2 for AcmeG series
- 2 -
Contents
Important Safety Instructions.......................................................................................................- 3 -
Chapter One Product Introduction...................................................................................- 4 -
1. Features...........................................................................................................................- 4 -
2. Main Application Fields..................................................................................................- 4 -
3. Types & Dimensions.......................................................................................................- 4 -
4. Dimension and Sketch Map............................................................................................- 5 -
AG12V180..........................................................................................................................- 6 -
5. Terminals Sketch Map.....................................................................................................- 7 -
Chapter Two Technical Characteristics............................................................................- 7 -
1. Charge Performance Curve.............................................................................................- 7 -
2. Internal Resistance and Short Circuit Current.................................................................- 7 -
3. Discharge data with constant current & constant power..........................................................- 9 -
Chapter Three Operation and Maintenance .....................................................................- 15 -
1. Operation Conditions....................................................................................................- 15 -
2. Capacity and Influencing Factors .................................................................................- 15 -
3. Ambient Temperature, Capacity and Life .....................................................................- 16 -
4. Charging Request..........................................................................................................- 19 -
5. Storage ..........................................................................................................................- 19 -
Chapter Four Maintenance...........................................................................................- 21 -
1. Regulated Maintenance.................................................................................................- 21 -
2. Precautions....................................................................................................................- 21 -
3. After-sales Service / Customer Service Hotline............................................................- 22 -

Operation manual V3.2 for AcmeG series
- 3 -
Important Safety Instructions
Please read this operation manual carefully. It offers very important safety
instructions, installation and operation guide, and ensure your equipment with best
performance and prolong the service life of your equipment.
·For the sake of your safety, please do not attempt to remove the components of
the battery. The maintenance of the battery can only be carried out by service
engineers specially trained by the principal.
·Considering the potential harm of the lead component to the health and
environment, the battery can be replaced only by the service center authorized
by the manufacturer. To replace the battery or maintenance equipment, please
call the after-sales service hotline for information of the nearest service center.
·Please check the local regulations on the correct way of dealing with battery
disposal or send the battery to the authorized service center for replacement.
·Battery replacement should be operated or supervised by engineers who are
experienced and aware of the preventive measures on the potential harm of the
battery.
·Warning - Do not smoke and refrain having fire near the battery.
·Warning - Do not use any organic solvent to clean the battery.
·Warning - Do not have fire near the battery or it may explode.
·Warning - Do not remove the components of the battery as it contains
electrolyte that may cause injury to the human body.
·Warning - Battery may cause short circuit. Please remove any watches and
jewelry during replacement of the battery, and operate with tools with insulated
materials.
Warning
Electricity
danger
Protecting your eye
Watch
Short-circuits
With adults custody
Read the
manual
Fire
forbidden
Circle use
Do not put
batteries into
dustbin
The product has past
the UL Safe
authentication

Operation manual V3.2 for AcmeG series
- 4 -
Chapter One Product Introduction
1. Features
1.1 Long life
using the polymer gel electrolyte
4BS paste technology
Special paste technology
Special patent grid alloy
1.2 Wide operational temperature range
Excellent charging and discharging ability at low temperature
Decline the water-loss at high temperature
1.3 Unique rack line dimension and design created by Narada in China
Long and narrow construction design with excellent heat dispersing
capability
Both positive and negative posts are along one side of the battery giving ease
of monitoring and maintenance
Flexible connectors that can fit according to each client’s requirement
Suitable for 19", 23" rack or cabinet
Patented gas collecting system
2. Main Application Fields
Telecom standby and cyclical applications
UPS system
Power system
Solar energy system
Emergency lighting system
3. Types & Dimensions
Table 1-1 Narada AcmeG Series Battery Specification
Type
Normal
Voltage
（V）
Rated
Capacity
C10(Ah)
Dimensions(mm)
WT
(kg)
L
W
H
AG12V50F
12
50
390
105
200
21.3
AG12V85F
12
85
390
105
270
31.5

Operation manual V3.2 for AcmeG series
- 5 -
AG12V100F
12
100
390
105
287
33.0
AG12V100A
12
100
390
105
287
33.0
AG12V100S
12
100
395
108
287
31.0
AG12V125F
12
125
558
125
270
46.0
AG12V150S
12
150
550
125
283
48.0
AG12V155F
12
155
558
125
270
52.5
AG12V170S
12
170
550
125
283
51.5
AG12V180
12
180
558
125
316
60.5
AG12V190
12
190
558
125
316
61.0
AG12V190S
12
190
558
125
316
59.2
AG12V200
12
200
558
125
316
61.0

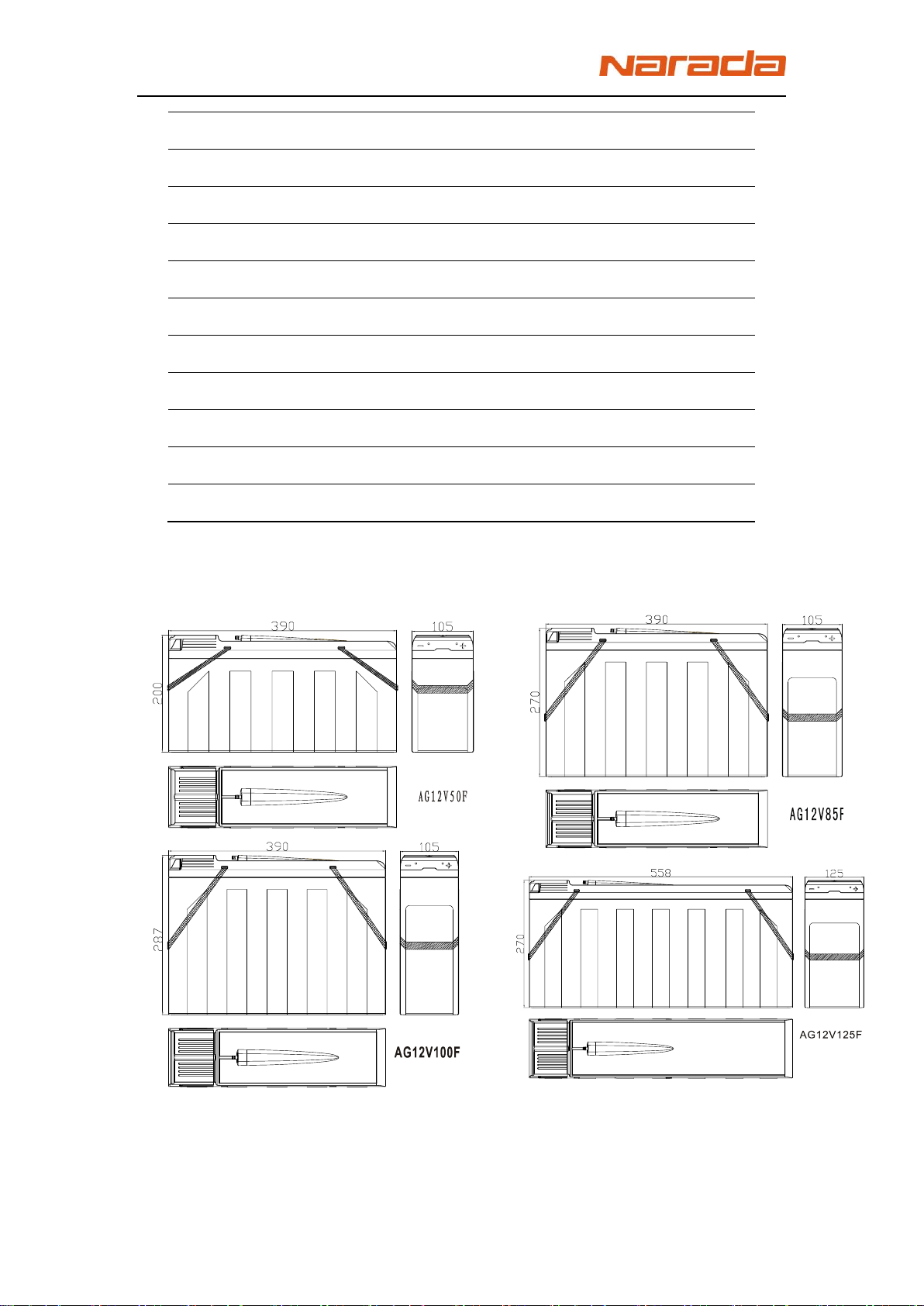

4. Dimension and Sketch Map
AG12V155F

Operation manual V3.2 for AcmeG series
- 6 -
AG12V180, AG12V190, AG12V200
AG12V100S
AG12V150S, AG12V170S
AG12V190S
558 [21.99]
316 [12.45]
125 [4.93]

Operation manual V3.2 for AcmeG series
- 7 -
5. Terminals Sketch Map
Chapter Two Technical Characteristics
1. Charge Performance Curve
Fig 2-1 Battery voltage vs discharge time curves at different current at 25ºC.
2. Internal Resistance and Short Circuit Current
The internal resistance of the battery is a dynamic nonlinear parameter that varies
continuously with the temperature and discharge state. The internal resistance is at its
lowest when the battery is fully charged. Table 2-1 shows the internal resistance and
short circuit current of Narada battery in fully charged state according to the
IEC60896 standard.

Operation manual V3.2 for AcmeG series
- 8 -
Table 2-1. Internal resistance and short circuit current (25ºC)
Type
Internal resistance (mΩ)
Short circuit current (A)
AG12V50F
8.94
1500
AG12V85F
6.52
1897
AG12V100F
6.36
1989
AG12V100S
5.52
2318
AG12V100A
6.59
1909
AG12V125F
5.76
2226
AG12V150S
5.19
2450
AG12V155F
4.30
2814
AG12V170S
4.65
2758
AG12V180
3.85
3280
AG12V190S
4.30
2978
Note: Short circuit current will decrease the voltage of the battery to 0V, and damage the internal components of
the battery.

3. Discharge data with constant current & constant power
Tab.2-1 Discharge data with constant current (A, 25℃)
AG12V50F
5min
15min
30min
45min
1h
2h
3h
4h
5h
6h
8h
10h
12h
20h
24h
1.60V/cell
187.0
100.5
61.1
44.2
35.7
20.5
14.9
11.7
9.86
8.46
6.49
5.30
4.53
2.84
2.37
1.67V/cell
175.6
96.9
60.1
43.8
35.5
20.4
14.6
11.6
9.81
8.41
6.44
5.25
4.52
2.81
2.35
1.70V/cell
174.0
95.3
59.0
43.5
35.3
20.2
14.5
11.6
9.65
8.30
6.44
5.25
4.47
2.81
2.35
1.75V/ cell
160.0
92.2
58.5
43.2
34.7
19.7
14.4
11.4
9.60
8.25
6.38
5.20
4.47
2.80
2.35
1.80V/ cell
143.5
86.0
55.9
41.4
33.9
19.5
14.3
11.4
9.39
8.10
6.33
5.14
4.44
2.77
2.34
1.83V/ cell
136.7
78.7
54.9
40.0
32.4
19.3
13.8
10.8
9.08
7.84
6.18
4.95
4.22
2.76
2.31
1.85V/ cell
127.9
76.7
51.1
38.5
31.4
18.6
13.4
10.7
8.87
7.63
5.97
4.91
4.17
2.71
2.28
AG12V85F
5min
15min
30min
45min
1h
2h
3h
4h
5h
6h
8h
10h
12h
20h
24h
1.60V/ cell
305.6
164.2
99.9
72.2
58.4
33.5
24.3
19.1
16.1
13.8
10.6
8.75
7.40
4.64
3.87
1.67V/ cell
287.0
158.3
98.2
71.6
58.1
33.3
23.9
19.0
16.0
13.7
10.5
8.66
7.39
4.60
3.84
1.70V/ cell
284.5
155.8
96.5
71.1
57.6
33.1
23.7
18.9
15.8
13.6
10.5
8.66
7.31
4.59
3.84
1.75V/ cell
261.6
150.7
95.7
70.6
56.8
32.2
23.5
18.6
15.7
13.5
10.4
8.58
7.31
4.58
3.84
1.80V/ cell
234.5
140.5
91.4
67.7
55.3
31.9
23.3
18.6
15.4
13.2
10.3
8.49
7.26
4.53
3.83
1.83V/ cell
223.5
128.7
89.7
65.4
52.9
31.5
22.5
17.7
14.8
12.8
10.1
8.18
6.90
4.52
3.77
1.85V/ cell
209.1
125.3
83.5
62.9
51.3
30.3
21.9
17.5
14.5
12.5
9.8
8.11
6.82
4.43
3.73
AG12V100F
5min
15min
30min
45min
1h
2h
3h
4h
5h
6h
8h
10h
12h
20h
24h
1.60V/ cell
359.6
193.2
117.5
85.0
68.7
39.4
28.6
22.4
19.0
16.3
12.5
10.29
8.71
5.46
4.55
1.67V/ cell
337.6
186.3
115.5
84.3
68.3
39.2
28.1
22.3
18.9
16.2
12.4
10.19
8.70
5.41
4.51

Operation manual V 3.2 for AcmeG series
- 10 -
1.70V/ cell
334.7
183.3
113.5
83.7
67.8
38.9
27.9
22.2
18.6
16.0
12.4
10.19
8.61
5.40
4.51
1.75V/ cell
307.8
177.3
112.5
83.1
66.8
37.9
27.6
21.9
18.5
15.9
12.3
10.09
8.61
5.39
4.51
1.80V/ cell
275.9
165.3
107.6
79.7
65.1
37.6
27.4
21.8
18.1
15.6
12.2
10.0
8.54
5.33
4.50
1.83V/ cell
262.9
151.4
105.6
77.0
62.2
37.1
26.5
20.8
17.5
15.1
11.9
9.62
8.11
5.32
4.43
1.85V/ cell
246.0
147.4
98.2
74.0
60.3
35.7
25.8
20.6
17.1
14.7
11.5
9.54
8.02
5.22
4.39
AG12V125F
5min
15min
30min
45min
1h
2h
3h
4h
5h
6h
8h
10h
12h
20h
24h
1.60V/ cell
409.4
220.0
133.8
96.7
78.2
44.8
32.6
26.4
23.2
19.9
15.4
12.7
10.88
6.82
5.69
1.67V/ cell
384.5
212.1
131.6
96.0
77.8
44.6
32.0
26.2
23.1
19.8
15.3
12.6
10.87
6.76
5.64
1.70V/ cell
381.1
208.7
129.3
95.3
77.2
44.3
31.8
26.1
22.7
19.6
15.3
12.6
10.76
6.75
5.64
1.75V/ cell
350.5
201.9
128.2
94.6
76.1
43.1
31.4
25.8
22.6
19.4
15.2
12.5
10.76
6.73
5.64
1.80V/ cell
314.2
188.3
122.5
90.7
74.1
42.8
31.2
25.7
22.1
19.1
15.1
12.4
10.67
6.66
5.63
1.83V/ cell
299.4
172.4
120.2
87.7
70.8
42.2
30.2
24.5
21.4
18.5
14.7
11.9
10.14
6.64
5.54
1.85V/ cell
280.1
167.9
111.8
84.3
68.7
40.6
29.4
24.2
20.9
18.0
14.2
11.8
10.03
6.52
5.49
AG12V155F
5min
15min
30min
45min
1h
2h
3h
4h
5h
6h
8h
10h
12h
20h
24h
1.60V/ cell
506.6
272.2
165.6
119.7
96.8
55.5
40.3
33.0
28.8
25.0
19.1
15.9
13.49
8.46
7.06
1.67V/ cell
475.7
262.4
162.8
118.7
96.2
55.2
39.6
32.9
28.7
24.8
19.0
15.7
13.48
8.38
7.00
1.70V/ cell
471.5
258.2
160.0
117.9
95.5
54.8
39.3
32.7
28.2
24.5
19.0
15.7
13.34
8.36
7.00
1.75V/ cell
433.6
249.8
158.6
117.0
94.1
53.4
38.9
32.3
28.0
24.3
18.8
15.6
13.34
8.35
7.00
1.80V/ cell
388.7
233.0
151.6
112.3
91.7
53.0
38.6
32.2
27.4
23.9
18.7
15.4
13.23
8.26
6.98
1.83V/ cell
370.5
213.3
148.8
108.5
87.7
52.3
37.4
30.7
26.5
23.1
18.2
14.8
12.58
8.24
6.87
1.85V/ cell
346.6
207.7
138.4
104.3
85.0
50.3
36.4
30.4
25.9
22.5
17.6
14.7
12.44
8.08
6.81
