Naruiger RG-120T User manual

RG-120-EN Manual V-1.01
Dongguan i-chime electronic co.，ltd 2010-2021
1

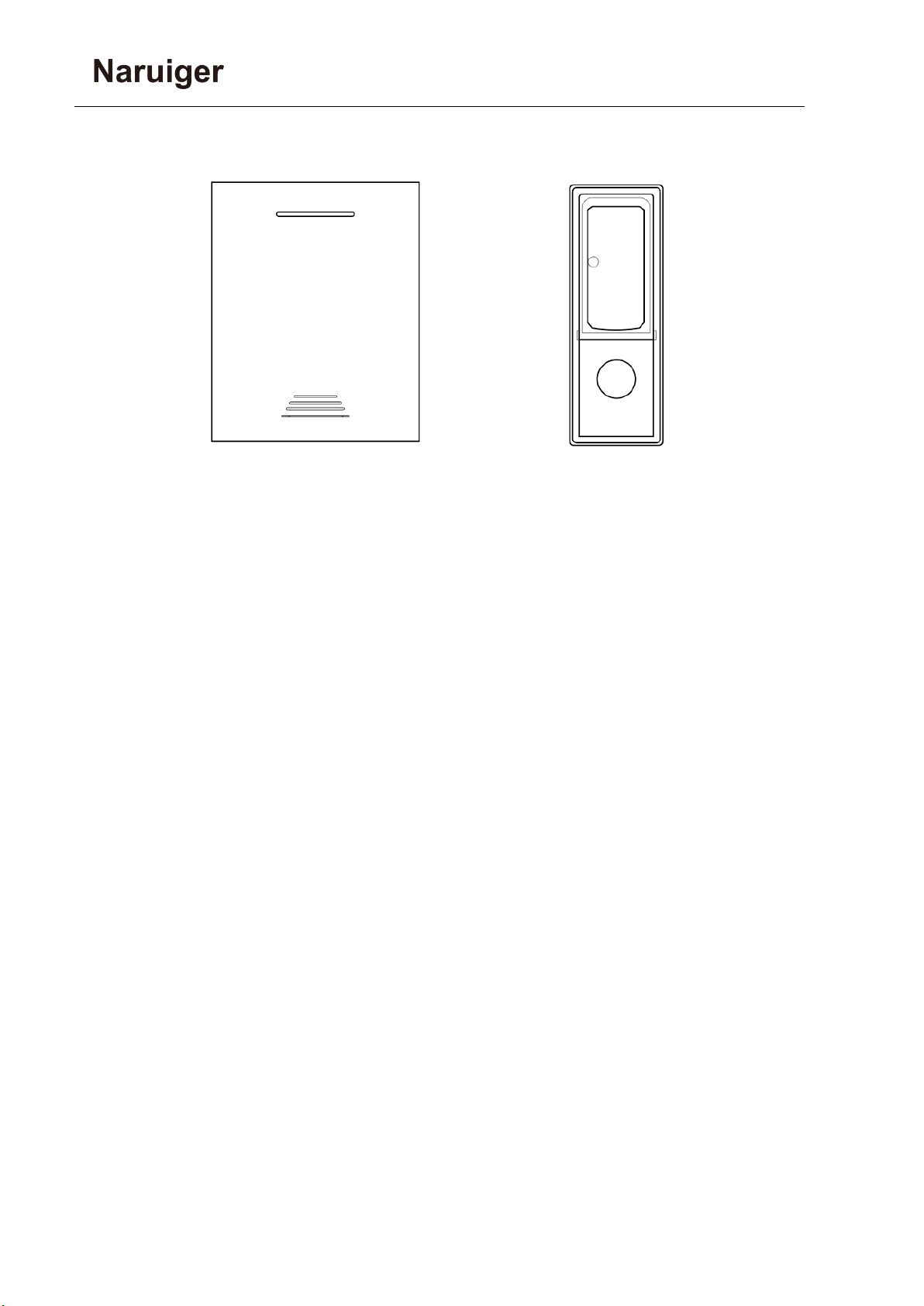

RG-120T DC doorbell
RG-120R RG-120T
Features
Power supply: RX 4.5V (AA1.5V x 3),TX 3V(AAA1.5 x 2)
Transmission range:200m（inroom 150m）.
Frequency: 433.92MHz ±150KHz Tolerance
Alarm mode：Music 48
Matching method: learning coding
Applications: Villas, hotels, apartments, office buildings, elderly and child care

RG-120-EN Manual V-1.01
Dongguan i-chime electronic co.，ltd 2010-2021
2
Important
information
Take the time to read this user manual before using this control switch module


Recycling your old device Your device is designed and manufactured with high
quality materials and components that can be recycled and reused.
If a product or its packaging has this symbol with a crossed-out wheeled container,
this means that it is under the CE 2002/96 directive.
inform your municipality about the selective classification system implemented for
electrical and electronic equipment.
Observe current regulations and do not throw your appliances in the trash, the
disposal of your old appliance in accordance with these regulations helps to prevent
possible negative consequences for the environment and health. Batteries should
not be thrown away with domestic garbage. Return them to a collection point for
used batteries.



The <recycling materials> symbol on the plastic packaging elements indicates that
these components are recyclable.
Do not throw them away as normal household garbage.
This symbol on the carton packaging means that the company that has put this
product on the market is financially involved in the selective collection of packaging.

RG-120-EN Manual V-1.01
Dongguan i-chime electronic co.，ltd 2010-2021
3
1.RG-001 Function diagram

RG-120-EN Manual V-1.01
Dongguan i-chime electronic co.，ltd 2010-2021
4
2 .Installation and configuration
2.1．first time to use

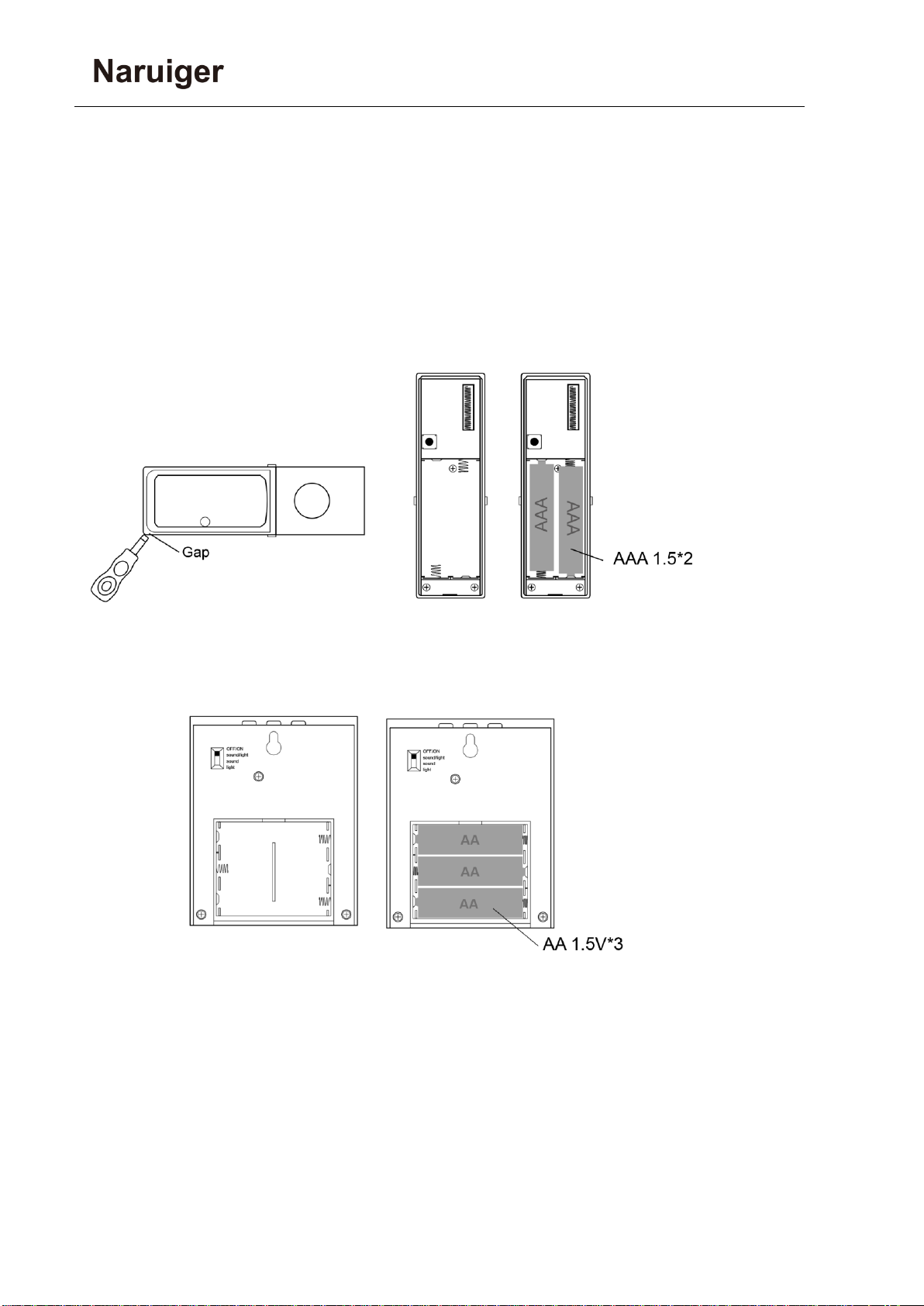

Open the RG-120R battery box, install AA1.5V×3, and then open the
RG-120T remote control battery box (rear cover) to install AAA1.5Vx2 batteries.
1.
.There is a notch on the top of the push button. Use the included screwdriver to pry up slightly.

RG-120-EN Manual V-1.01
Dongguan i-chime electronic co.，ltd 2010-2021
5
3.
The transparent cover can be removed and a business card can be inserted to let
visitors know that this is the doorbell of your home ,Fully show your personality
4.

RG-120-EN Manual V-1.01
Dongguan i-chime electronic co.，ltd 2010-2021
6
The transmitter button can be installed with double-sided stickers or
screws (included). The transmitter button adopts an awning design, which is
rainproof
Note:
Please install the transmitter button one meter above the ground;
Don’t install the transmitter button directly on the iron door, but on the wall
next to it, so as not to affect the distance of the remote control.
Don't install the transmitter button next to other electrical appliances.

RG-120-EN Manual V-1.01
Dongguan i-chime electronic co.，ltd 2010-2021
7
2.2 Reconfiguration of RG-120T and RG-120R。
Important note: The new factory RG-120T/R wireless doorbell
transceiver has been configured, so there is no need to re-configure.
You can skip this step.
2.2.1 Reconfiguration of RG-120T/R
2.2.1.1 After installing the battery, press and hold the CODE button of
the RG-120R for 5 seconds, the receiver LED indicator flashes (once per
second), the receiver enters the waiting configuration state, and then
quickly press the transmitter to match the receiver. When the RG-120R
LED indicator is off, the configuration is complete

RG-120-EN Manual V-1.01
Dongguan i-chime electronic co.，ltd 2010-2021
8
2.2.2 Reconfiguration of RG-120，Add second and third receivers
After installing the battery, press and hold the CODE button of the second
RG-120R (5 seconds), the receiver LED indicator flashes (once per second), the
receiver enters the waiting configuration state, then quickly press RG-120 T
button,to configure with the receiver. When the RG-120R LED indicator is off, the
second receiver configuration is complete. Repeat this step to complete the third
receiver configuration.

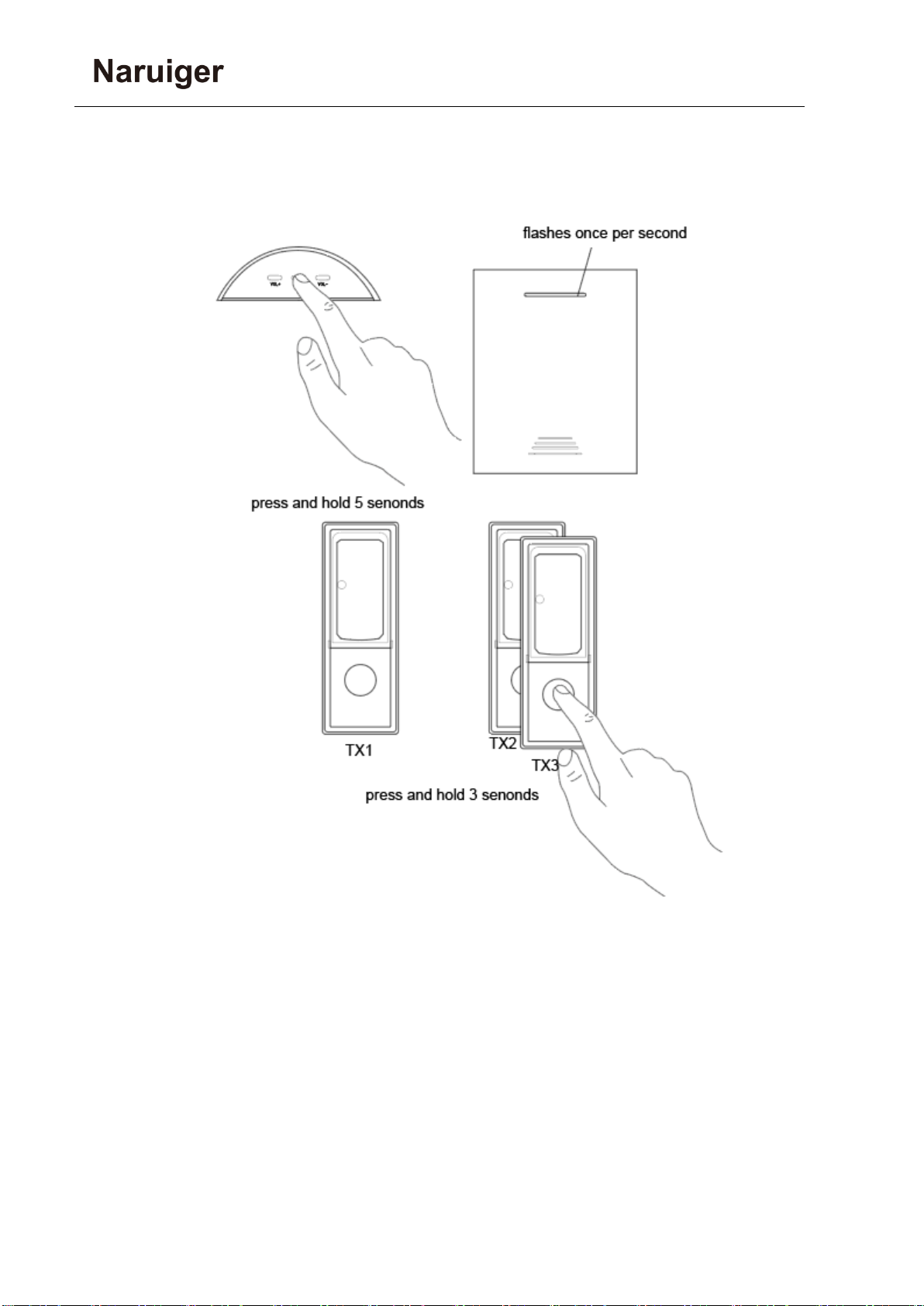

2.2.3 Reconfiguration of RG-120T/R，Add Second and third transmitter .
After installing the battery, press and hold the CODE button of the RG-120R for 5
seconds, the receiver LED indicator flashes (once per second), the receiver enters
the waiting configuration state, and then quickly press the second RG-120T
button ,to configure with the receiver. When the RG-120R LED indicator is off, the

RG-120-EN Manual V-1.01
Dongguan i-chime electronic co.，ltd 2010-2021
9
second transmitter configuration is completed . Repeat this step to complete the
third transmitter button

RG-120-EN Manual V-1.01
Dongguan i-chime electronic co.，ltd 2010-2021
10

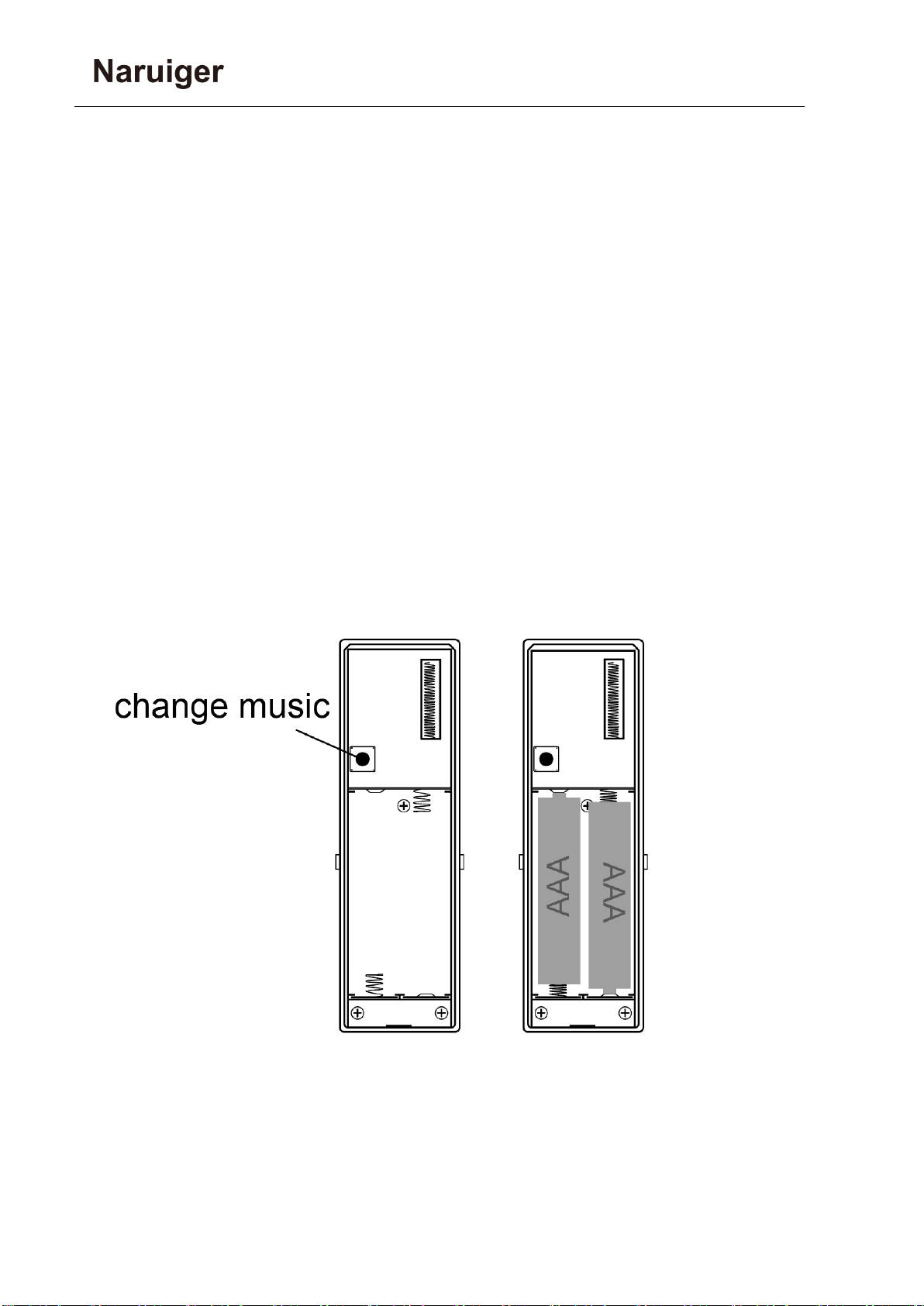

2.2.4 Reconfiguration of RG-120T/R，Change music
Open the back cover (battery box) of the RG-001T, and change the music
every time you press the button on the PCB, There are 48 types of music.( When
the song selection button is pressed for the first time, the original music will be
played, and when it is pressed again, it will switch to the next song.）
2.3.RG-120T/R low voltage reminder
If the RG-120T is not working, when the indicator light of the RG-001R
flashes (twice in 5 seconds), the receiver battery needs to be replaced.

RG-120-EN Manual V-1.01
Dongguan i-chime electronic co.，ltd 2010-2021
11
3 . Application
Villas, hotels, apartments

RG-120-EN Manual V-1.01
Dongguan i-chime electronic co.，ltd 2010-2021
12
office buildings

RG-120-EN Manual V-1.01
Dongguan i-chime electronic co.，ltd 2010-2021
13
4. Technical Details
Manufacturer
NARUIGER
Part Number
RG-120T & RG-120R
Item Weighjt
RG-120R:64g, RG-120T:46g
Dimensions
RX:1000*80*27mm, TX:90*30*223mm
Item moder number
RG-120T & RG-120R
Frequency
433.92MHz ±150KHz Tolerance
Power Supply
RX:4.5V(AAA 1.5V*3 ),TX: 3V(AA 1.5V*2)
Matching Method
Learning coding
Sound source
48 types
MODE
ON/OFF; Music
Working temperature
-10-60℃
Working humidity
<90%
Status indication:
LED light
Color
RED/GREEN
Meterial:
PC-100N
Certification
CE,RED 2014/53/EU
Installation Method
Double-sided tape
Item Package quantity
1PCS
Type of bulb
LED
Coverage
200 meters
Switch Style
Magnetic switch
Included Components
Magnetic switch and transmitter
Batteries Inccluded
TX:AAA*2 RX:AA*3
FCC ID
2AZSERG120T

RG-120-EN Manual V-1.01
Dongguan i-chime electronic co.，ltd 2010-2021
14
FCC COMPLIANCE STATEMENT:
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to this unit not expressly approved by the part responsible
for compliance could void the user’s authority to operate the equipment.
FCC Radiation Exposure Statement
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
