GETTING STARTED GUIDE
NI PXIe-7821R
R Series for PXI Express Digital RIO with Kintex-7 160T FPGA
Français Deutsch 日本語 한국어 简体中文
ni.com/manuals
This document explains how to install and configure the NI PXIe-7821R.
Safety Guidelines
Caution Do not operate the NI PXIe-7821R in a manner not specified in this user
manual. Product misuse can result in a hazard. You can compromise the safety
protection built into the product if the product is damaged in any way. If the product
is damaged, return it to National Instruments for repair.
Electromagnetic Compatibility Guidelines
This product was tested and complies with the regulatory requirements and limits for
electromagnetic compatibility (EMC) as stated in the product specifications. These

requirements and limits are designed to provide reasonable protection against harmful
interference when the product is operated in its intended operational electromagnetic
environment.
This product is intended for use in residential, commercial, and industrial locations. However,
harmful interference may occur in some installations or when the product is connected to a
peripheral device or a test object. To minimize interference with radio and television reception
and prevent unacceptable performance degradation, install and use this product in strict
accordance with the instructions in the product documentation.
Furthermore, any changes or modifications to the product not expressly approved by National
Instruments could void your authority to operate it under your local regulatory rules.
Caution To ensure the specified EMC performance, operate this product only with
shielded cables and accessories. Do not use unshielded cables or accessories unless
they are installed in a shielded enclosure with properly designed and shielded input/
output ports and connected to the product using a shielded cable. If unshielded
cables or accessories are not properly installed and shielded, the EMC specifications
for the product are no longer guaranteed.
Caution To ensure the specified EMC performance, install two (2) snap-on, ferrite
beads (777297-01) per connected I/O cable in accordance with the product
installation instructions.
Caution To ensure the specified EMC performance, the length of any cable
connected to the input port(s) must be no longer than 3 m (10 ft).
Unpacking the Kit
Caution To prevent electrostatic discharge (ESD) from damaging the device,
ground yourself using a grounding strap or by holding a grounded object, such as
your computer chassis.
1. Touch the antistatic package to a metal part of the computer chassis.
2. Remove the device from the package and inspect the device for loose components or any
other sign of damage.
Caution Never touch the exposed pins of connectors.
Notify NI if the device appears damaged in any way. Do not install a damaged device.
3. Unpack any other items and documentation from the kit.
Store the device in the antistatic package when the device is not in use.
Verifying the Kit Contents
Verify that the following components are in your kit.
2| ni.com | NI PXIe-7821R Getting Started Guide

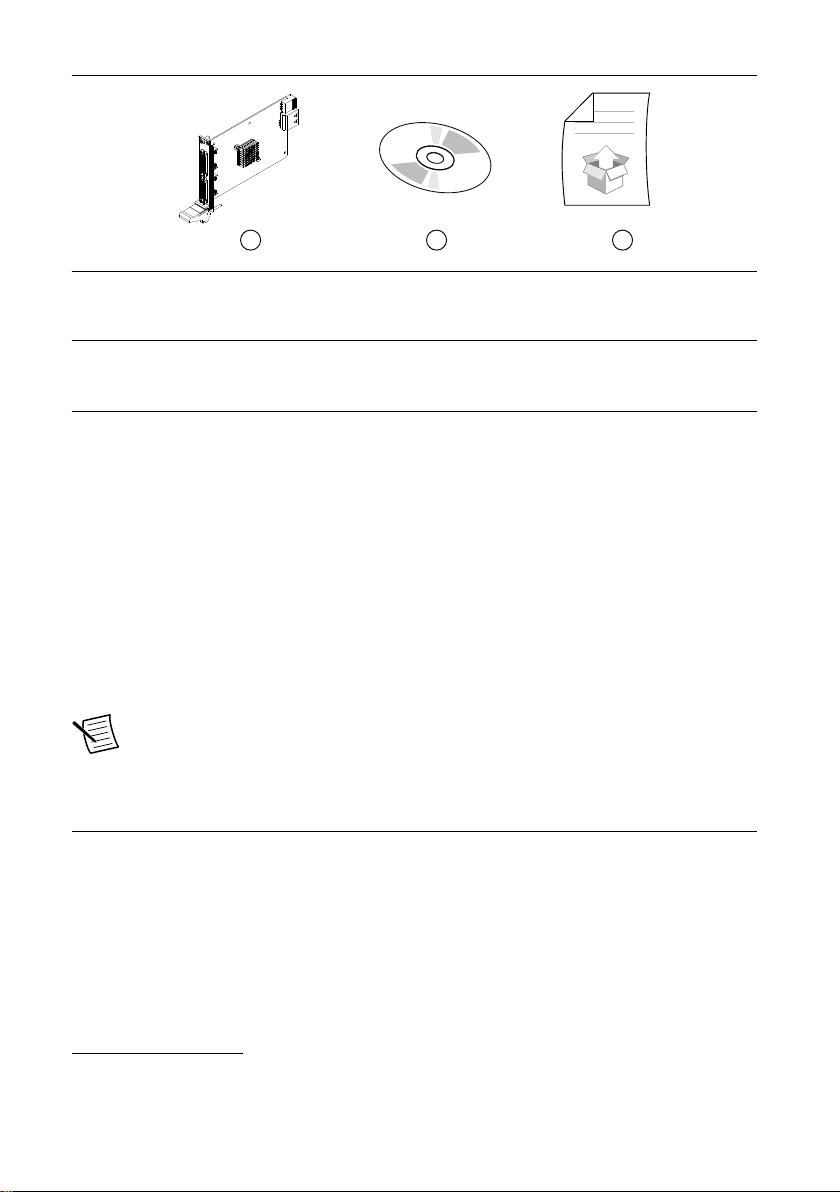

Figure 1. Kit Contents for the NI PXIe-7821R
3
2
1
1. Hardware
2. NI-RIO Media
3. Getting Started Guide
Preparing the Environment
Ensure that the environment in which you are using the NI PXIe-7821R meets the following
specifications.
............................................................................Operating temperature
(IEC 60068-2-1, IEC 60068-2-2)
0° C to 55° C
............................................................................Operating humidity
(IEC 60068-2-56)
10% RH to 90% RH, noncondensing
............................................................................Pollution degree 2
............................................................................Maximum altitude 2,000 m
Indoor use only.
Note Refer to the device datasheet on ni.com/manuals for complete specifications.
Installing Software on the Host Computer
Before using the NI PXIe-7821R, you must install the following application software and
device drivers on the host computer.
1. LabVIEW 2014 SP1 or later
2. LabVIEW Real-Time Module 2014 SP1 or later1
3. LabVIEW FPGA Module 2014 SP1 or later
4. NI-RIO Device Drivers February 2015 or later
1LabVIEW Real Time Module is only required if the R Series board is being used on a PXIe
controller with a real-time operating system.
NI PXIe-7821R Getting Started Guide | © National Instruments | 3

Visit ni.com/info and enter the Info Code softwareversion for minimum software support
information.
Installing the NI PXIe-7821R
Caution To prevent damage to the device caused by ESD or contamination, handle
the device using the edges or the metal bracket.
1. Ensure the AC power source is connected to the chassis before installing the modules.
The AC power cord grounds the chassis and protects it from electrical damage while you
install the modules.
2. Power off the chassis.
3. Inspect the slot pins on the chassis backplane for any bends or damage prior to
installation. Do not install a module if the backplane is damaged.
4. Remove the black plastic connectors from all the captive screws on the module front
panel.
5. Identify a supported slot in the chassis. The following figure shows the symbols that
indicate the slot types.
Figure 2. Chassis Compatibility Symbols
NI PXIe-1062Q
1
2
3
4
5
1. PXI Express System Controller Slot
2. PXI Peripheral Slot
3. PXI Express Hybrid Peripheral Slot
4. PXI Express System Timing Slot
5. PXI Express Peripheral Slot
NI PXIe-7821R modules can be placed in PXI Express peripheral slots, PXI Express
hybrid peripheral slots, or PXI Express system timing slots.
6. Touch any metal part of the chassis to discharge static electricity.
7. Ensure that the ejector handle is in the unlatched (downward) position.
8. Place the module edges into the module guides at the top and bottom of the chassis. Slide
the device into the slot until it is fully inserted.
4| ni.com | NI PXIe-7821R Getting Started Guide

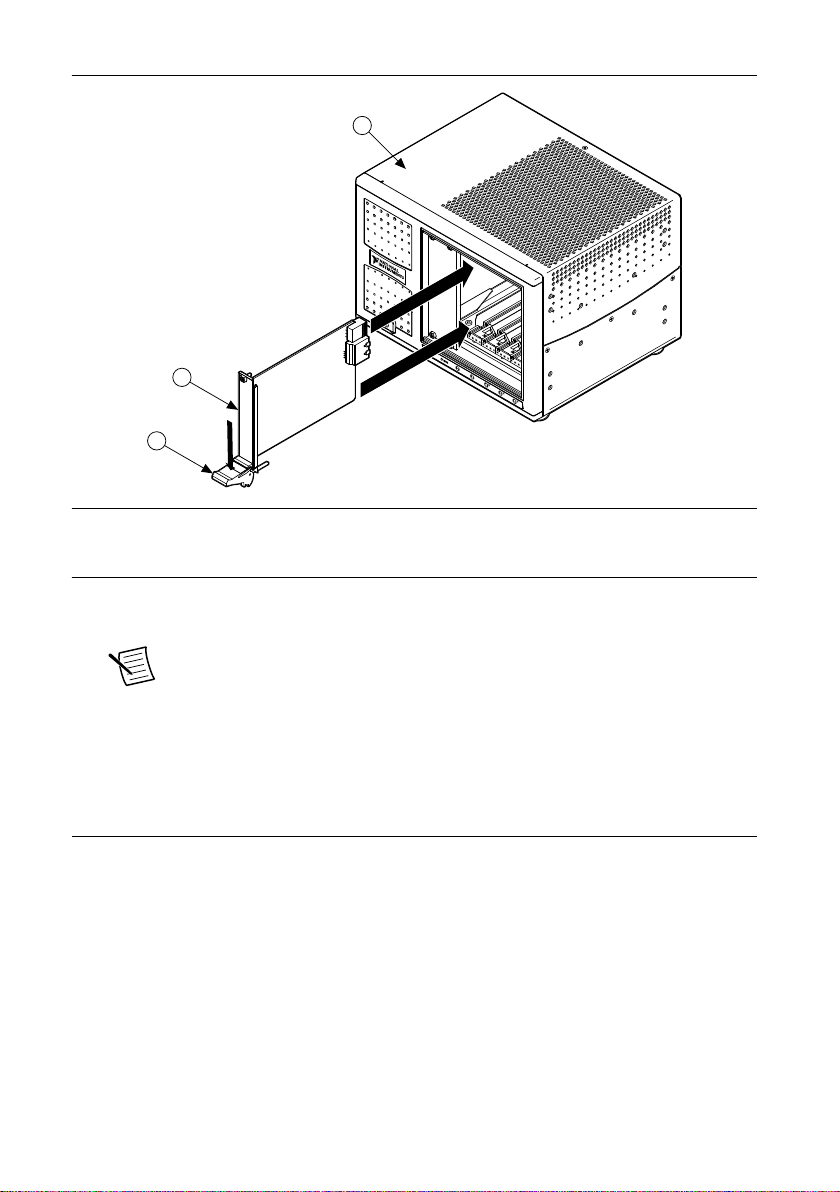

Figure 3. Module Installation
2
3
1
1. Chassis
2. Hardware
3. Ejector Handle in Down (Unlatched) Position
9. Latch the module in place by pulling up on the ejector handle.
10. Secure the device front panel to the chassis using the front-panel mounting screws.
Note Tightening the top and bottom mounting screws increases mechanical
stability and also electrically connects the front panel to the chassis, which can
improve the signal quality and electromagnetic performance.
11. Cover all empty slots using filler panels or slot blockers to maximize cooling air flow.
12. Power on the chassis.
Verifying Hardware Installation for Host Targets
You can verify that the system recognizes the NI PXIe-7821R by using Measurement &
Automation Explorer (MAX).
1. Launch MAX by navigating to Start»All Programs»National Instruments»MAX or by
clicking the MAX desktop icon.
2. Expand Devices and Interfaces.
3. Verify that the device appears under Devices and Interfaces.
If the device does not appear, press <F5> to refresh the view in MAX. If the device does
not appear after refreshing the view, visit ni.com/support for troubleshooting
information.
NI PXIe-7821R Getting Started Guide | © National Instruments | 5

Verifying Hardware Installation for Remote
Targets
You can verify that the system recognizes the NI PXIe-7821R by using Measurement &
Automation Explorer (MAX).
1. Launch MAX on the host computer.
2. Expand Remote Targets in the configuration tree and locate your system.
3. Install LabVIEW Real-Time Module 2014 SP1 and NI RIO Device Drivers February
2015 or later on your Remote Target.
a) Refer to the Installing Software on the Host Computer section for information about
installing software on the host.
b) Refer to the PXI Express Controllers User Manual at ni.com/manuals for
information on installing software on the target.
4. Under Remote Targets, find and expand Devices and Interfaces.
If the device does not appear, press <F5> to refresh the view in MAX. If the device does
not appear after refreshing the view, visit ni.com/support for troubleshooting
information.
Connecting the NI PXIe-7821R
NI recommends using the following cables and accessories with the NI PXIe-7821R:
• EMI suppression ferrites (777297-01)
• Shielded 68-Pin Connector Block for R Series DIO & HSDIO Products (782914-01)
• Shielded R Series High Speed Digital Cable, 1m (156166-01)
• Shielded R Series High Speed Digital Cable, 2m (156166-02)
Note NI is not liable for connections that exceed any of the maximum ratings of
input or output signals on the NI PXIe-7821R and on the computer chassis. Refer to
the NI PXIe-7821R Specifications, available at ni.com/manuals for the maximum
input and output ratings for each signal.
6| ni.com | NI PXIe-7821R Getting Started Guide

Table 1. NI PXIe-7821R Pinout
Pinout Signal Description
GND
DIO0
GND
External Clock x*
GND
DIO30
DIO28
GND
GND
DIO24
GND
DIO22
GND
DIO26
GND
DIO20
GND
DIO18
GND
DIO16
GND
DIO14
GND
DIO12
GND
DIO10
GND
DIO8
GND
DIO6
GND
DIO4
GND
DIO2
DIO31
GND
DIO29
GND
DIO27
GND
DIO25
GND
DIO23
GND
DIO21
GND
DIO19
GND
DIO17
GND
DIO15
GND
DIO13
GND
DIO11
GND
DIO9
GND
DIO7
GND
DIO5
GND
DIO3
GND
DIO1
GND
GND
GND
35 1
36 2
37 3
38 4
39 5
40 6
41 7
42 8
43 9
44 10
45 11
46 12
47 13
48 14
49 15
50 16
51 17
52 18
53 19
54 20
55 21
56 22
57 23
58 24
59 25
60 26
61 27
62 28
63 29
64 30
65 31
66 32
67 33
68 34
* xis the connector number.
External Clock xis an input only.
DIO <0...31> Digital I/O data through channels 0
through 31.
GND Ground reference for signals.
External Clock External clock input source that can be
used for source synchronous
acquisitions. The provided clock source
must be stable and glitch-free.
The NI PXIe-7821R is protected from overvoltage and overcurrent conditions. Refer to the
NI PXIe-7821R Specifications, available at ni.com/manuals, for more information on
overvoltage and overcurrent conditions.
NI PXIe-7821R Getting Started Guide | © National Instruments | 7

Digital I/O
The NI PXIe-7821R provides connections for 128 digital input/output (DIO) channels.
Connectors 0 through 3 each contain 32 high-speed DIO channels that can run up to 80 MHz
signal frequencies. Each connector has selectable logic levels that you can configure as 1.2 V,
1.5 V, 1.8 V, 2.5 V, or 3.3 V. You can configure each channel as input or output.
Figure 4. Connecting to the DIO Channels
NI PXIe-7821R
Power
FPGA
Connection
Accessory
DIO0
DIO1
DIO30
DIO31
Connector X (DIO)
1
2
1. High-speed signal frequencies up to 80 MHz with logic levels configured as 1.2 V, 1.5 V, 1.8 V, 2.5 V, or
3.3 V
2. LED
The DIO channels connect to the FPGA through protection circuitry, which has overvoltage
and undervoltage protection as well as overcurrent protection. Refer to the NI PXIe-7821R
Specifications for more information about the maximum voltage and current.
When the system powers on, the DIO channels are set as input low with pull-down resistors.
To set another power-on state, you can configure the NI PXIe-7821R to load a VI when the
system powers on. The VI can then set the DIO lines to any power-on state.
All the DIO channels on Connectors 0 through 3 are routed with a 50 Ω characteristic trace
impedance. Route all external circuitry with a similar impedance to ensure best signal quality.
NI recommends performing signal integrity measurements to test the affect of signal routing
with the cable and connection accessory for your application.
Installing Noise Suppression Ferrites
Caution To ensure the specified EMC performance, operate this product only with
shielded cables and accessories. Do not use unshielded cables or accessories unless
they are installed in a shielded enclosure with properly designed and shielded input/
output ports and connected to the product using a shielded cable. If unshielded
8| ni.com | NI PXIe-7821R Getting Started Guide

cables or accessories are not properly installed and shielded, the EMC specifications
for the product are no longer guaranteed.
Caution To ensure the specified EMC performance, install two (2) snap-on, ferrite
beads (777297-01) per connected I/O cable in accordance with the product
installation instructions.
Caution To ensure the specified EMC performance, the length of any cable
connected to the input port(s) must be no longer than 3 m (10 ft).
For each connected I/O cable, install two (2) snap-on, ferrite beads (777297-01), one on each
end of the cable, as close to the connector as practical.
Two (2) snap-on, ferrite beads (777297-01) are included in ach of the following recommended
cable kits:
• Shielded R Series High Speed Digital Cable, 1m (156166-01)
• Shielded R Series High Speed Digital Cable, 2m (156166-02)
For user-supplied cables, the ferrite beads can be ordered directly from NI by visiting ni.com/
info and entering RDIO2FERRITE.
Figure 5. Ferrite Installation
1
2
1. I/O cable
2. Ferrites
NI PXIe-7821R Getting Started Guide | © National Instruments | 9

Where to Go Next
Refer to the following figure for information about other product tasks and associated
resources for those tasks.
SUPPORT
Services
ni.com/services
NI Community
ni.com/community
Software Support
ni.com/info>swsupport
Support
ni.com/support
SOFTWAREHARDWARE
NI PXIe-7821R Specifications
ni.com/manuals
PXI Express Controller Documentation
ni.com/manuals
PXI Express Chassis Documentation
ni.com/manuals
Configuring a Project
NI-RIO Help
Learn LabVIEW Basics
ni.com/gettingstarted
NI R Series Examples
NI Example Finder
Where to Go for Support
The National Instruments Web site is your complete resource for technical support. At ni.com/
support you have access to everything from troubleshooting and application development self-
help resources to email and phone assistance from NI Application Engineers.
National Instruments corporate headquarters is located at 11500 North Mopac Expressway,
Austin, Texas, 78759-3504. National Instruments also has offices located around the world to
help address your support needs. For telephone support in the United States, create your
service request at ni.com/support and follow the calling instructions or dial 512 795 8248. For
telephone support outside the United States, visit the Worldwide Offices section of ni.com/
niglobal to access the branch office Web sites, which provide up-to-date contact information,
support phone numbers, email addresses, and current events.
10 | ni.com | NI PXIe-7821R Getting Started Guide

Refer to the NI Trademarks and Logo Guidelines at ni.com/trademarks for information on National Instruments trademarks.
Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents
covering National Instruments products/technology, refer to the appropriate location: Help»Patents in your software, the
patents.txt file on your media, or the National Instruments Patent Notice at ni.com/patents. You can find information about
end-user license agreements (EULAs) and third-party legal notices in the readme file for your NI product. Refer to the Export
Compliance Information at ni.com/legal/export-compliance for the National Instruments global trade compliance policy and
how to obtain relevant HTS codes, ECCNs, and other import/export data. NI MAKES NO EXPRESS OR IMPLIED WARRANTIES
AS TO THE ACCURACY OF THE INFORMATION CONTAINED HEREIN AND SHALL NOT BE LIABLE FOR ANY ERRORS.
U.S. Government Customers: The data contained in this manual was developed at private expense and is subject to the
applicable limited rights and restricted data rights as set forth in FAR 52.227-14, DFAR 252.227-7014, and DFAR 252.227-7015.
© 2015 National Instruments. All rights reserved.
376821A-01 Feb15
