National Products hummer hx User manual

AGES 3+
EN
N atio na l Products Ltd.
R oom 413- 415, Hous ton Centre,
63 M ody R oad, Tsim S ha Tsui East,
K ow loon, H ong K ong.
W W W . N P L 2 .C O M
i n fo @N P L 2 . c o m
MODEL NO.
0227
0226
0229
0228
(0226-0229)
Contents, colors and decorations may vary from those shown.
To reduce the risk of injury, adult supervision
is required. Never use on road ways, near
motor vehicles, on or near steep inclines or
steps, swimming pools or other bodies of
water. Always wear shoes, and never allow
more than one rider.
WARNING
Screws contain potentially
hazardous sharp points or
sharp edges. Adult assembly
required.
CAUTION
CHOKING HAZARD-Small parts.
Not for children under 3 yrs.
Please read entire manual before starting assembly.
Keep this manual along with your purchase receipt
for future reference.
OWNER’S MANUAL
12V BATTERY OPERATED RIDE ON
12V BATTERY OPERATED RIDE ON
GENERAL MOTORS TRADEMARKS USED UNDER LICENSE TO NATIONAL PRODUCTS LIMITED
99-1884-227369
TM
205mm (W) x 285mm (H)

1-909-594-4000 / 1-877-743-3899
All NPL® vehicles are covered by a ninety day warranty against defects in materials or
workmanship for ninety days from the date of purchase from an authorized retailer.
(The warranty and customer service contact in this manual only apply in the United States and Canada)
12

Important Information
Table of Contents
Limited Warranty
Important Information
Warning
Battery Warning
Battery Charging
Battery Care and Disposal
Parts List
Assembly
2
3
4
5
6
7
8
9-13
.................................................................................................
.......................................................................................................................
..........................................................................................................
...............................
..........................................................................
......................................................................................................................
..............................................................................................................
........................................................................................................
.......................................................................................
Operating your Vehicle
Trouble Shooting
14
15-17
Parts Diagram 18
...................................................................................................
.....................................................................................................
......................................................................................
.............. .....
3
Im portant Inform ation
1-909-594-4000 / 1-877-743-3899
12

Warn ing
To Prevent Serious Injuries
This product is for use by children
3 and up, and is not intended for children under 3
years due to lack of ability to operate safely.
Maximum weight 66 Ibs. ( kg). Maximum 1
rider at a time.
Do not leave children unattended. Adult
supervision required.
This package contains small pa s. Keep away
from the children until assembled.
Read manual for detailed safety information prior
to use.
Inspect product at regular intervals for wear or
loose hardware and tighten as required. Remove
from service if any abnormal conditions such as
cracks or breaks exist.
Check all coverings regularly to make sure
they are in place.
intended ages
of age
30
rt
Batteries can fall out and injure a child if the
vehicle tips over. Always use the battery
cover.
When the temperature falls below
outdoor use of this product is not recommended.
In extreme cold, plastic materials might lose
resilience and may become brittle and crack
upon impact. Store in a warmer and protected
place.
Do not operate the vehicle outdoors if it is
raining. Keep it in a dry area when not in use.
Disconnect the battery power supply when
the vehicle is not in use to prevent the children
driving the car without adult supervision.
Always make sure the seat is securely attached.
The charger and battery are not toys and must
be regularly examined for damage to the cord,
plug, enclosure and other parts.
In the event of damage, the damage or worn
part must not be used until replaced.
Never modify the electrical system. Use ofthe
wrong type battery or charger could cause a
fire or explosion.
The battery compartment and area under seat
are not storage areas. Storing other articles may
create a fire hazard. Do not store any articles
in or near motor compartment.
0°F(-18°C),
®
NPLOnly use the charger specified by .
Safe Driving Rules
Although most children can master the physical
driving skills to control the vehicles, they do not have
the mature judgment skills. Never let a child drive at
any time without adult supervision, and take the time
to carefully evaluate child’s skill levels and abilities
to operate the vehicle safely. Children can not always
recognize the hazards even after instruction. So teach
appropriate safety rules before allowing any child to
operate vehicle, and remember that THERE IS NO
SAFE SUBSTITUTE FOR DIRECT ADULT
SUPERVISON.
Restrict children to safe riding areas:
Teach and learn the safety first:
Always sit on the seat and wear shoes.
Maximum one rider at a time.
Do not operate in the street or near moving vehicles.
Do not operate near bodies of water, obstructions or
drop-offs.
Do not operate on sand, dirt or gravel.
Do not operate in the dark. Unexpected obstacles
could cause an accident.
Do not operate on inclines or steep slopes.
Do not operate near flammable vapors (e.g. gasoline,
paint thinner, acetone, liquid wax, etc.) Using the vehicle
near flammable liquids can or vapors could cause an
explosion or fire.
Do not place anything near moving parts such as
motors, gears or wheels. Rotating parts can snag
hair, fingers, etc., which may cause serious injury.
Away from swimming pools and other bodies of
water to prevent drowning.
Level ground to prevent tipovers and unintended
downhill motion.
Away from steps, hills, driveways, roads and alleys.
ADULT S UP E R VI S I ON R E QUI R E D.
MAK E S UR E CHILDR E N K NOW AND
FOLLOW THE S E R ULE S F OR S AF E
DR IVING.
Riding rule s :
4
Warning

12
1-909-594-4000 / 1-877-743-3899.
12

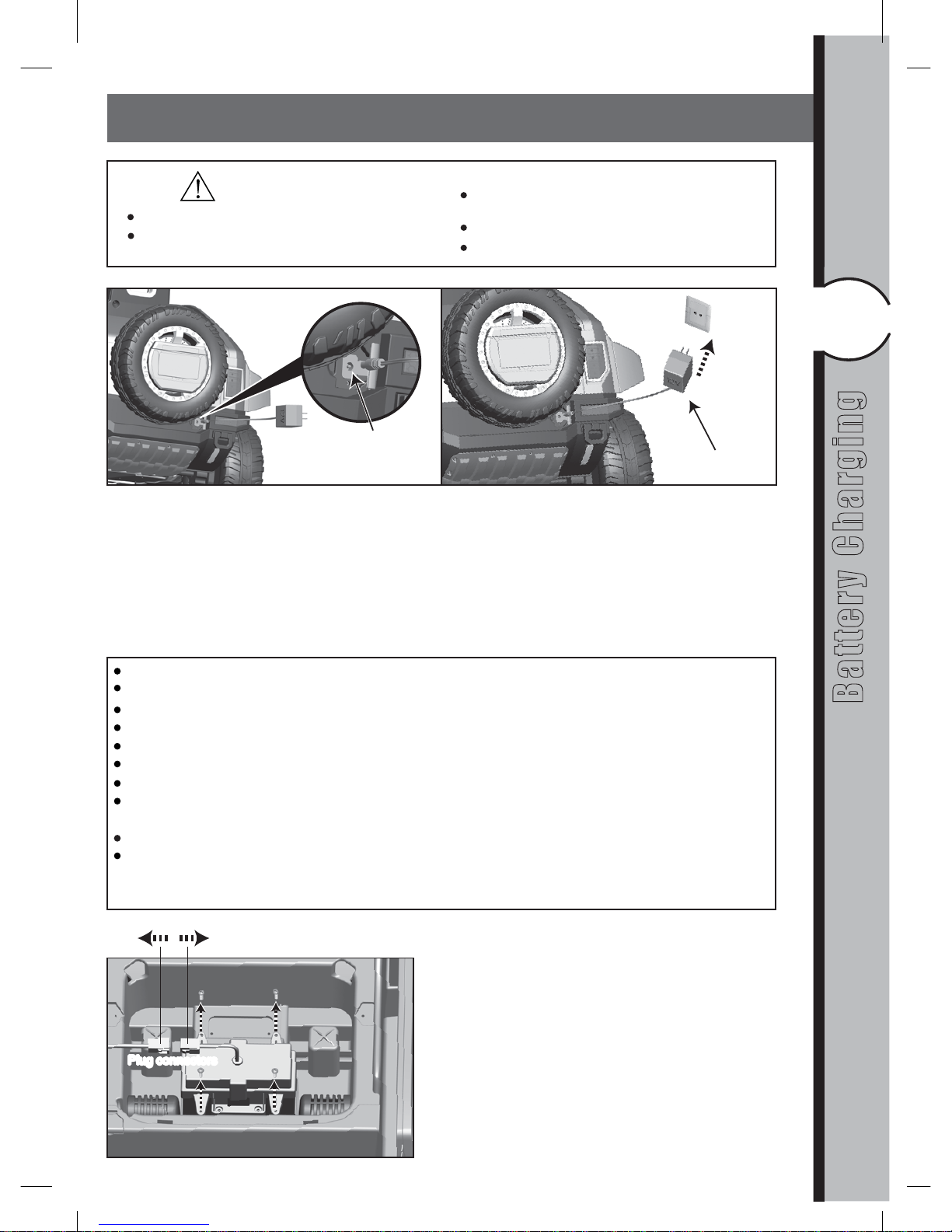

Battery Charging
Non-rechargeable batteries are not to be recharged.
Make sure the charger connector is matching with
the battery connector.
charger are in accordance with the wall outlet.
Make sure the brand, voltage and frequency of the
Batteries are to be inserted with the correct polarity.
The supply terminals are not to be short circuited.
CAUTION
6

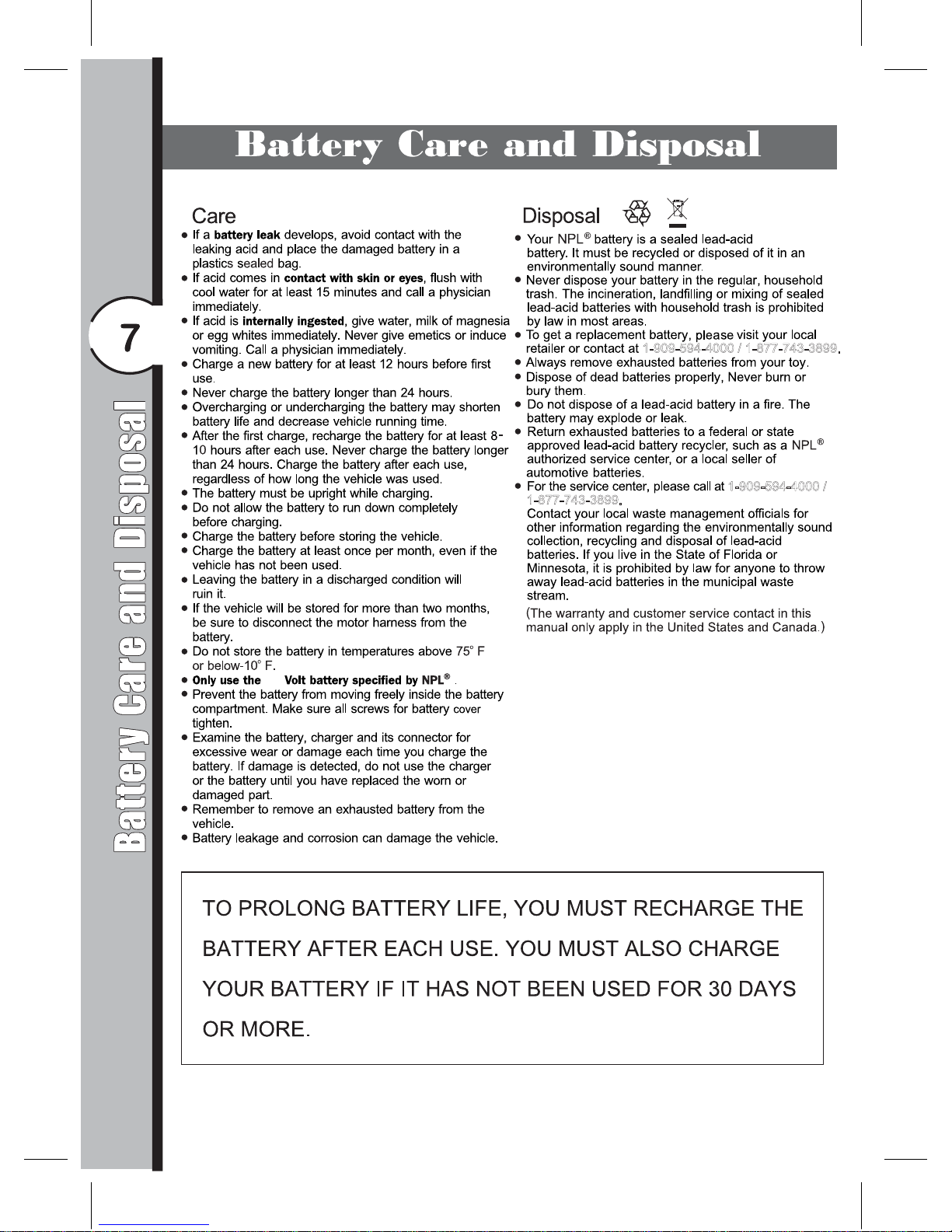

BatteryC harging
Once the battery is charged, disconnect the battery connector from the charger connector. Unplug the
charger from the wall outlet. The battery is now ready to be installed in your vehicle. Please see the follow ing
Battery Installation Section for detailed instructions on installing your vehicle:
Do not charge or store battery upside down . Charging produces explosive gases. Charge away from flames,
sparks and lit cigarettes. Charge in a well ventilated area.
Recharge the battery for at least 8-10 hours after each use of your vehicle.
Before first-time use, charge the battery for at least 12 hours. Never charge the battery longer than 24 hours.
Note: if power flow to the wall outlet is controlled by a switch , make sure the switch is "ON".
Plug the charger into a standard wal l outlet.
Plug the battery connector into the charger port.
Do not charge the battery longer than 24 hours.
®
Only u se the N PL 1 2 v olt c harger t o c harge y our N PL 1 2 v olt b atte ry.
®
The power indicator on the charger allows you to see that there is power from the wall outlet.
Charge the Battery
The first charge will take about 12 hours.
1. Open the battery charger port (located on the backside of near by).
2. Insert the battery charger connector into the charger port.
3. Plug the charger into a standard 120V wall outlet. Note: The charger may feel warm during charging.
This is normal and not a cause for concern.
4. After charging is complete (at least 8-10 hours, but not more than twenty four hours, with the first charge taking
about 12 hours) unplug the charger from the wall outlet and unplug the battery connector from the charger port.
Battery Replacement
1. Remove the screw on the back of the seats and
lift the seats out.
2. Disconnect the battery connectors.
3. Remove the four screws on the sides of the battery.
4. Carefully lift the battery out of the battery compartment.
Plug connectors
Plug connectors
Battery
charger
port Charger

12
1-909-594-4000 / 1-877-743-3899.
1-909-594-4000 /
1-877-743-3899.

Pin x 2Screw x 1
(Ø4 x 16mm)
Washer x 2
(Ø12 x 1.5mm)
Nut x 1
(5mm)
Screw x 2
(Ø4 x 12mm)
Rear window x 1
Spare tire x 1
Front window x 2 (L/R)
Window x 2 (L/R)
Pin x 4
Wheel cover x 4Recovery hook x 4 Screw x 1
(Ø5 x 35mm)
Body x 1 Steering wheel x 1 Side mirror 2 (L/R)x Seat x 1
Screwdriver
Please identify all parts before assembly and save all packaging material until assembly is completed to
ensure that no parts are discarded.
Metal parts have been coated with lubricant for protection during shipment. Wipe all metal parts with a
paper towel to remove any excess lubricant.
Parts List
8
Par tsList
For wheels:
Nut x 1
(5mm)
(Not included)
Tools needed: Spare parts:
Screw x 10
(Ø4 x 16mm)
Screw x 5
(Ø4 x 12mm)
Hood x 1
Charger x1 Manual x1
Manual
Washer x 6
Ø (12 x 1.5mm)
Rear drive wheel x 2
Windshield x 1Cover x 1
Front wheel x 2

Assembly
WARNING
Children can be harmed by small parts, sharp edges and sharp points in the vehicles
unassembled state, or by electrical items. Care should be taken in unpacking and assembling
the vehicle. Children should not handle parts, including the battery, or help in the assembly
of the vehicle.
9
Asse m b ly I
1
Attach recovery hooks on front bumper. Attach cover to license plate.
2
Slide the rear drive wheel with gear teeth
facing inward onto the rear axle. Line up
the gear teeth on the wheel with the
grooves on the gear box. Assemble all
the parts in sequence as picture shown.
Insert a pin to the hole of the front axle
and make it to “M” shape by a plier.
Repeat the process for the other side.
“Snap” a hubcap into the center.
Repeat the process for the other side.
Step 1
Step 2
Step 3
Rear drive wheel
3 4

Assembly
10
Asse mblyI I
“Snap” a hubcap into the center.
Repeat the process for the other side.
Step 1
Step 2
Step 3
Assemble all the parts in sequence as
picture shown. Insert a pin to the hole of
the front axle and make it to “M” shape by
a plier. Repeat the process for the other
side.
Front wheel
5 6
7
Insert the hood to the slots of main body.

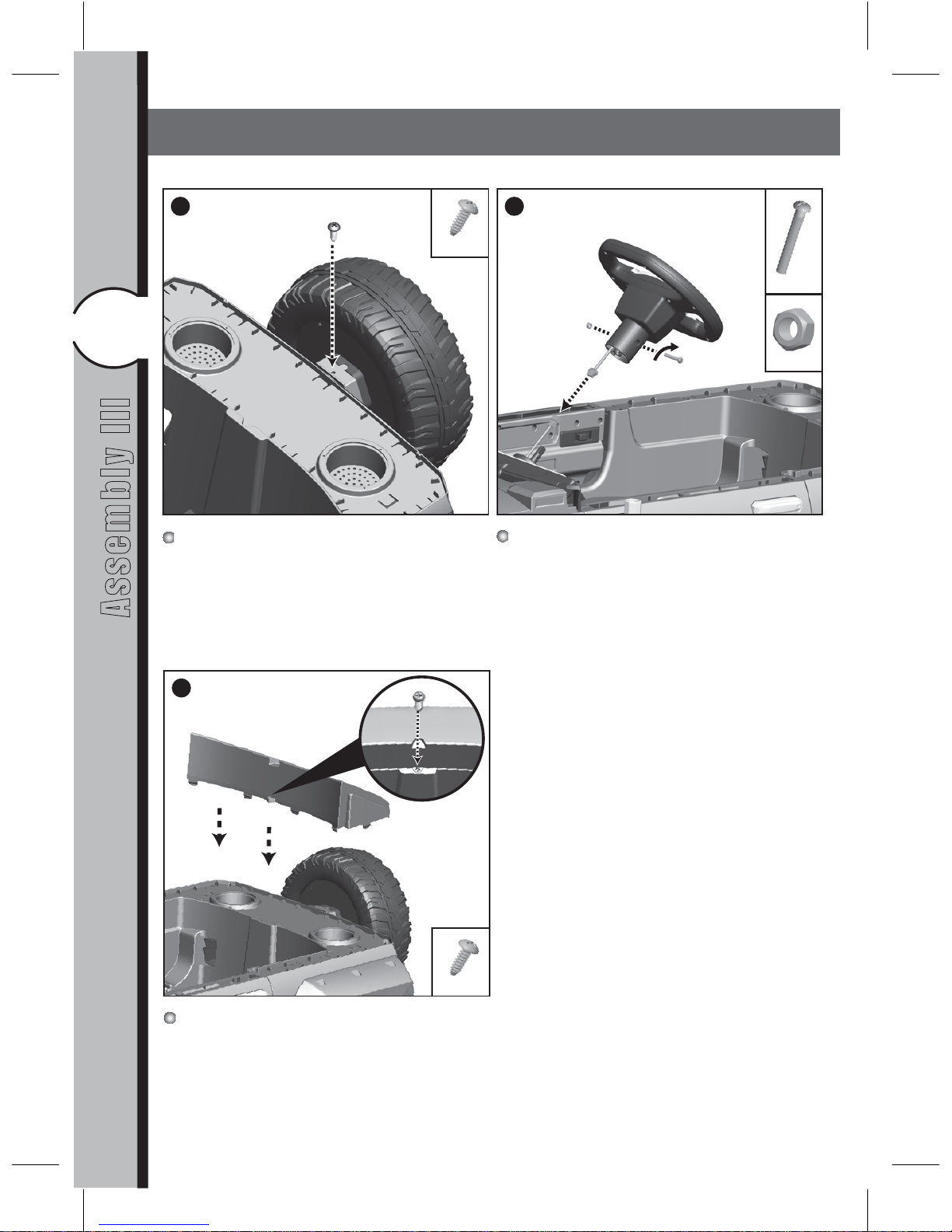

Assembly
11
Asse m blyIII
8
Attach the spare tire on the rear window
and fasten with 1 screw.
(Ø4x12mm)
10
(Ø4x12mm)
Insert the back lid to the slots of main body.
Fasten with one screw.
(Ø5x35mm)
9
Plug connectors. Place the steering wheel
onto the turning shaft and fasten it with
bolt and nut.
(5mm)

(Ø4x12mm)
11
Assembly
12
AssemblyIV
13
(Ø4x16mm)
Place the window on the door and fasten
with 4 screws.
Repeat process for the other side.
14
Attach rear side lid to the slots of main body.
Fasten with one screw.
Same procedures for the other side.
12
Insert the side mirror until you hear click
sound. Same procedures for the other side.
Attach windshield to the slots of main body.
Fasten with two screws on both sides.

Assembly
13
Asse m blyV
Connect the battery connectors
15 16
Plug connectorsPlug connectors
(Ø4x16mm)
17
Fasten with one screw.
Fasten with one screw. Same procedures
for the other side.
Attach seat to slots of main body.
(Ø4x12mm)

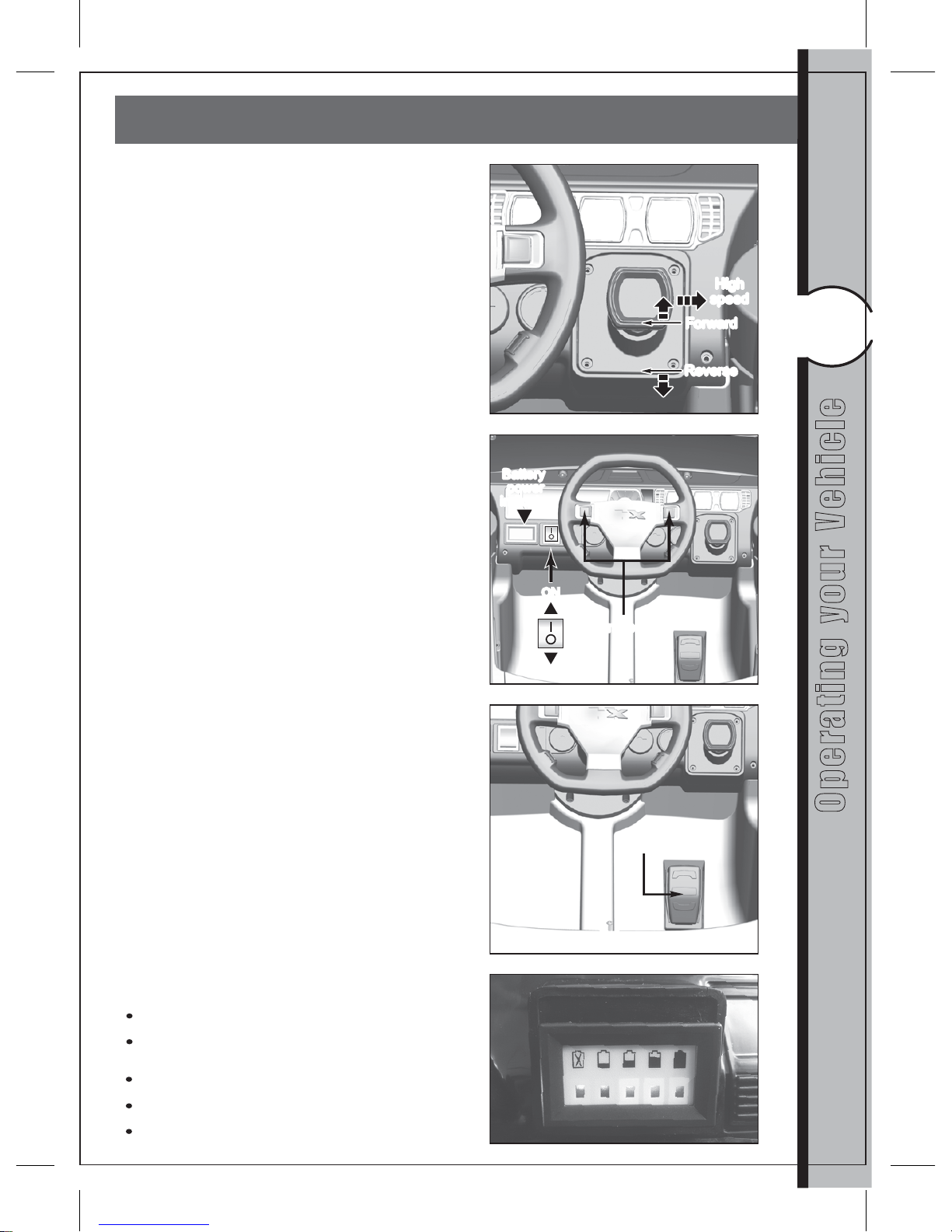

Operating your Vehicle
ReverseReverse
ForwardForward
AcceleratorAccelerator
High
speed
High
speed
Sound button
Sound button
Battery
power
indicator
Battery
power
indicator
14
Ope ra ti ngyour Ve h icl e
Stop
Vehicle will automatically stop after the accelerator is
released.
Sound effect
Press the buttons on the sides of the steering wheel.
Each button will make a different sound effect.
Forward
Push the shifter in position and press the
accelerator slowly.
downward
upward
Power switch
Switch button ON and OFF.
Vehicle to be driven at the higher speed (5 mph,
(8 kmh) maximum) as well as the the lower speed
(2.5 mph, (4 kmh) maximum).
Make sure your child can safely steer and operate
the vehicle and knows the rules for safe driving.
High speed
Low speed
Vehicle has been pre-set to operate at low speed
(2.5 mph, (4 kmh) maximum). Once your child
has mastered safe driving skills and understands
the Safe Driving Rules.
position and press thePush the shifter in
accelerator slowly.
Reverse
Safety device
AUTO POWER OFF. If the motor is overloaded for
any reason, including improper usage, an electrical
circuit breaker will automatically cut off the power,
then resume after the parts have cooled!
Maintenance
Clean with a dry, soft cloth only. Do not wash
with water or corrosive agents.
Store vehicle in a dry area when not in use,
since moisture could cause the metal
components and electrical parts to corrode.
Remember to charge the battery monthly while
the vehicle is not in regular use.
Check and tighten all screws and coverings
regularly.
Check all plastic parts for cracks. Replace as
necessary.
Battery Power Indicator
Turn on the power switch button to check the power
level of your battery:
Three green lights means the 12 volt battery is 100%
(fully) charged.
Two green lights means the 12 volt battery is 75%
charged.
One green lights means the 12 volt battery is 50%
charged.
Yellow lights means the 12 volt battery is 25% charged.
(We recommend recharged your battery for 8-10 hours)
Red light or no lights means the 12 volt battery needs
charging . Fully charge your battery for at least 8-10
hours.
ONON
OFF
OFF

1-909-594-4000 / 1-877-743-3899
switchesDamaged switch
30kg (66 lbs),
30kg (66 lbs).
8-10
15

16
12
12
30kg (66 lbs)
8-10
8-10

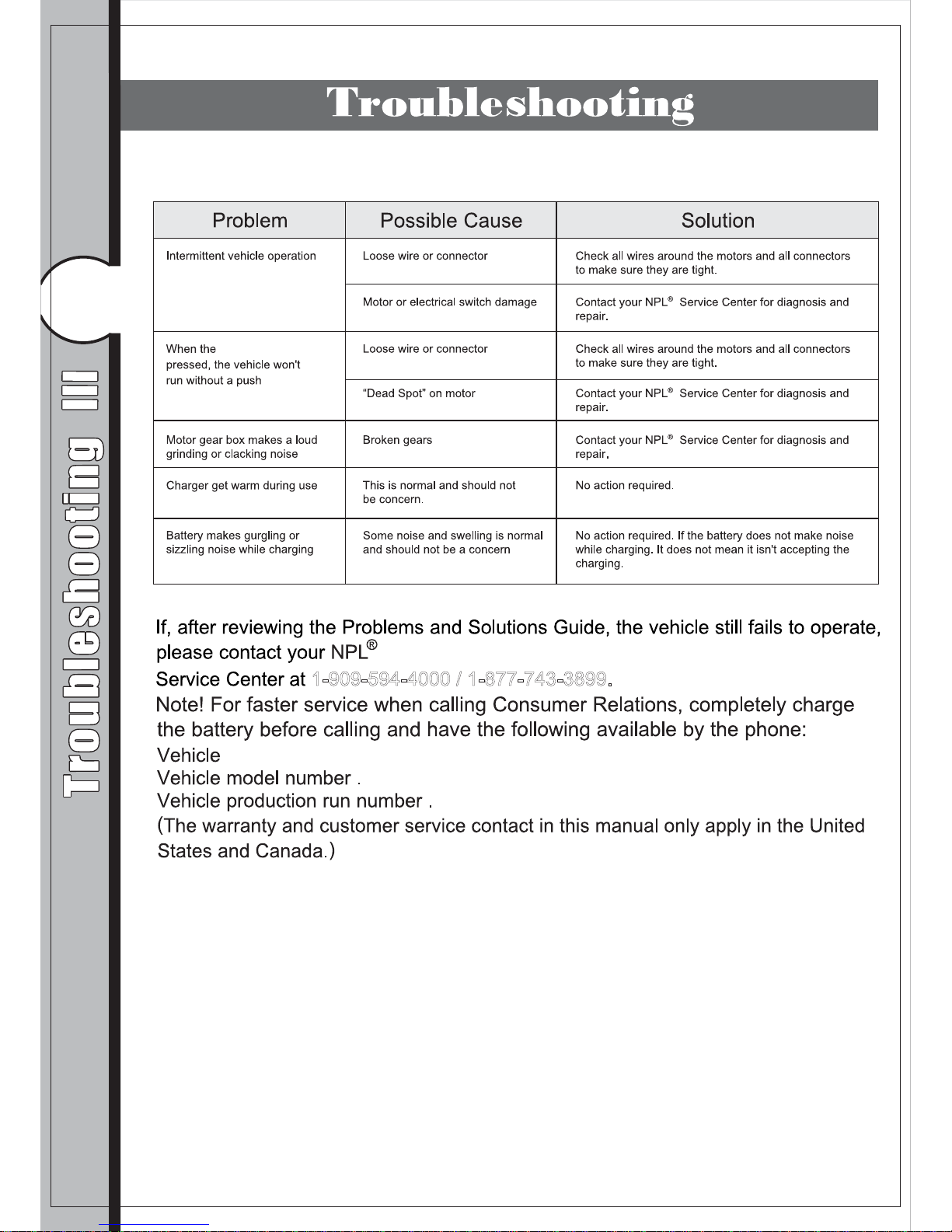

17
.
1-909-594-4000 / 1-877-743-3899.
accelerator is

18
Note: Some parts shown are assembled to both sides of the vehicle.
No. Part Quantity No. Part Quantity No. Part Quantity
1. Front bumper 1
2. Front grille 1
3. Steering column 1
4. Body 1
5. Hood 1
6. Wind shield 1
7. Dash board 1
8. Steering wheel 1
9. Seat 1
10. Spare tire 1
11. Rear window 1
12. Window (L/R) 2
13. Rear bumper 1
14. Rear drive wheel 2
15. Gear box (L/R) 2
16. Door (L/R) 2
17. Front window (L/R) 2
18. Side mirror (L/R) 2
19. Rear axle 1
20. Front wheel 2
21. Body side support (L/R) 2
22. Battery 1
23. Front end assembly 1

1-909-594-4000
1-877-743-3899
1-909-869-5945
WE ARE HERE TO HELP
DO NOT RETURN TO STORE
