Navig8r Navwatch-S10 User manual

USER MANUAL NAVWATCH-S10
1 | P a g e
Please read carefully before use
Note:This is a generic user manual which covers more than one model. You may notice
slightly different screen shots throughout this manual.

USER MANUAL NAVWATCH-S10
2 | P a g e
Table of Contents
Important safety instructions and precautions..................................................................... 3
Multi-Function Buttons...........................................................................................................4
Setting up the Charging Cradle...............................................................................................5
Charging your watch................................................................................................................6
Updating your time Zone........................................................................................................7
Setting up the Date and time..................................................................................................8
Scheduled GPS time updating / ARC (Automatic Regional Calibration)...........................9
Stopwatch..............................................................................................................................10
Lap timing (Last lap compared to current lap).................................................................10
Setting a memo......................................................................................................................12
Setting an hourly chime ........................................................................................................12
Navigation..............................................................................................................................13
Saving favourite position locations (PL) to memory - manually.....................................13
Navigating to a saved position location (PL)....................................................................13
Designation-free based tracking – Sports Mode .............................................................15
NAVWATCH-S10 Software (Track Star)................................................................................16
Installation – Hardware .....................................................................................................16
Importing track data records.............................................................................................17
Selecting a track (a data file).............................................................................................17
Exporting a track ................................................................................................................18
Merging tracks....................................................................................................................19
Edit a track..........................................................................................................................19
Saving favourite position locations (PL) to memory – via software...............................19
Information Tabs ...................................................................................................................21
Track Photos (Advanced Users)....................................................................................22
Change a track photo....................................................................................................24
Delete a track photo......................................................................................................24

USER MANUAL NAVWATCH-S10
3 | P a g e
Uploading to PicasaAnd Flicker...................................................................................24
Sports Diagram...................................................................................................................25
UTC Table...............................................................................................................................27
Specifications.........................................................................................................................31
Trouble Shooting / Q & A......................................................................................................32
IMPORTANT SAFETY INSTRUCTIONS AND PRECAUTIONS
- Read all instructions carefully before use.
- Retain manuals for future reference.
- Use this product only in the manner described.
-Only use a water-dampened soft-cloth to clean the surface of this product.
- Ensure the watch is notwetbefore pressing any of the function buttons. Water/ moisture can
easily be introduced inside the unit by pressing the buttons in this case,causing damage.
- If charging is required, it is recommended to thoroughly chargeelectronic devices for the first
time overnight.Subsequent charges can be as needed. During charging, or extended use, the
product may become warm.
- It is ideal to avoid continually running the battery flat before charging.
- There are no user serviceable parts in this product.
-Un-authorized attemptsto dismantleorrepair this product willvoid product warranty and
may resultin dangerous electric shock.
- Do not use this productif you are in controlof dangerous machinery.
- Remove anypower or data cords by pulling them fromthe plug and not the cord.
- Using this device near other electronic devices may cause interference.
- Keep this device away fromextended periods ofdirect sunlight or heat
- YourNAVWATCH-S10 is water proof at 5ATM / 50 meters. Itis suitable for most
shallow swimming but notfor diving and other deeper watersports.
WHAT’S IN THE BOX
1x NAVWATCH-S10, 1x Charging Cradle,1x Software CD, 1x USB cable, 1x UserManual
OPERATING SYSTEM REQUIREMENTS (FOR COMPUTER CONNECTION)
System: Windows XP SP2, Windows Vista, Windows 7 or higher
Processor: Pentium IIICPU 1GHz +, 1GB + free RAM, 500 MB + free space

USER MANUAL NAVWATCH-S10
4 | P a g e
MULTI-FUNCTION BUTTONS
MODE a. Press to confirm a selection or to return to the last screen
(from the time screen)
b. Press to toggle between Time Zone 1 (T1) and Time Zone 2 (T2)
(from the time screen)
c.
Press
and hold
to
entertime setup
for
T1
and
T2
(from the time screen)
LIGHT a. Press to turn on background light
(from the time screen)
b. Press and hold to turn on the background light
(from the GPS screen)
c. Press and hold for stopwatch
(from the time screen)
d. Press orpress and hold this button toselect next option orto increase values of selected item
(from the menu screen)
FUNCTION
a. Press to enter the menu screen
(from the time screen)
b. Press repeatedly to navigate through time settings
(from the time screen)
REC
a.
Press
this button
twice
to
view
location coordinates
and time
(from the time screen)
b. Press orand hold to update coordinates and time
(from the time screen)
c.
Press orpress and hold toselectlast option orto decrease values of
Selected item
(from the menu screen)
3
1
1
4
2
2
3
4

USER MANUAL NAVWATCH-S10
5 | P a g e
SETTING UP THE CHARGING CRADLE (OPTIONAL)
Note: The battery below is not supplied
with this product and is an optional extra.
Refer to the specification table below
for the correct Nokia battery model
number.
1. Slide one the battery compartment door.
2. Visually inspectthe battery lead and plug carefully beforeconnecting, then,
connect the battery lead to the cradle socket.
3. Close the battery compartment door.
Note: Use any USB power supply to supply voltage to the cradle eg.Mains adaptor
1
2
3

USER MANUAL NAVWATCH-S10
6 | P a g e
CHARGING YOUR WATCH
When a recharge is required:
1. Align the cradle with the
power switch facing towards you.
2. Carefully press the watch down
and slide the locking arminto
place until it clicks.
3. Turn the powerswitch on.
4. The yellow indicator lamp will appear
when the battery requires charging.
5. When charging is completed, the
indicatorlamp will change to green.
6. While removing the watch, be mindful
to hold the cradle firmly while pressing the
left-side release button.
Note: Check the cradle has enough power
for another re-charge by switching the
powerbutton on while not connected to
USB power and without the watch in place.
If the indicator lamp is green, there is
enough powerfor another charge. (used
whenoptionally battery is fitted)

USER MANUAL NAVWATCH-S10
7 | P a g e
Note: Through-out making your adjustments in the menu settings screens, this device
will default back to the main time screen if no buttons are pressed for 60 seconds.
UPDATING YOUR TIME ZONE
Note: This unit has 2 time zone settings. The main time zone is Zone1 (referred to here
on as T1).T1 is always symbolised by an abbreviated day name eg. SUN, MON etc. Time
zone 2 (referred to here on as T2) is symbolised only as T2.
1. Press and hold the MODE button
until the Day (abbreviation) starts flashing
between T1 (Time Zone 1 abbreviation)
andUTC. (or a + / - number. Eg. +3 or -10)
2. At this stage you need to input your
current time zone UTC (Coordinated
Universal Time) number. Refer to the UTC
time zone list later in the manual if
required. Use the LIGHT and REC buttons
to adjust this number to your time zone.
Hint: Press both LIGHT and REC buttons
together for rapid advance.
3. Once you have adjusted your T1
setting, press the MODE button again to
toggle to the T2 setting and adjust as
required (optional).Press the MODE
button again to returnto the main time
screen.
Note: Once you haveset your time zones and pressed the mode button to return to the
main time screen, use the mode button to toggle between the times in T1 and in T2.

USER MANUAL NAVWATCH-S10
8 | P a g e
SETTING UP THE DATE AND TIME
Following from the Time Zone setting,you now have two clocks that need to be set.
These are again, called T1 (day name) and T2.
Note 1: If your global location does not support time auto-update you may be required
to manually set the time.
GPS updating
1. Move outside to a location with clear line of sight to the sky. It is preferable to
be away from any surrounding buildings or structures that may inhibit the GPS
signal.
2. From the time screen, press and hold the REC button until
the date read out (not the time read out) disappears and
is replaced with 00 (two zeros). The screen will display the
letters GET. The device has now started searching for GPS
satellite signals.
3. As contact is made with each satellite this number 00 will
start to increase,to as much as 10-15 depending on your
area and conditions. Once the device has confirmed your
location co-ordinates, they will be momentarily displayed
on thescreen.
4. Your current location date and time will now be updated to your watch.
Note 1: You can re-view yourlocation co-ordinates by pressing the REC button (twice)
from the time screen. The first press will take you past a screen titled GET which shows
the last time and date your co-ordinates were updated. You can thenpress the MODE
button again to take you back to the time screen.)
Note 2: It is suggested that you remain still while this initial GPS satellite connection is
made.

USER MANUAL NAVWATCH-S10
9 | P a g e
Manual updating
1. The first step here is the same as the first step with setting
the time zone; press and hold the MODE button until the
Day / Time zone (abbreviation) digits starts flashing
between T1 (Time Zone 1 abbreviation) and UTC.
(or a + / - number. Eg. +3 or -10)
2. Then press the FUNCTION button. The year number will start flashing. Then use
the LIGHT button to either increase or the REC button to decrease this figure.
3. Press the FUNCTION button again to move to the next field, MONTHS, and use
the same LIGHT and REC buttons to eitherincrease or decrease this figure.
4. Repeat again tothe sections DAY, HOURS, MINUTE,SECOND, then finally you
have the option to turn ON or OFF DST (Day Light Savings time) accordingly.
5. Press the MODE button until you return back to the main time menu screen.
Note: Only the time for T1 can be set manually. There is an option to adjust fordaylight
savings for T2 only. This can be done by pressing the MODE after point 4 above. The T1
sign will then change to T2. Then press function to start to toggle to the DST field. Then
use the LIGHT and REC buttons to adjust, then finally the MODE button to confirm and
exit.

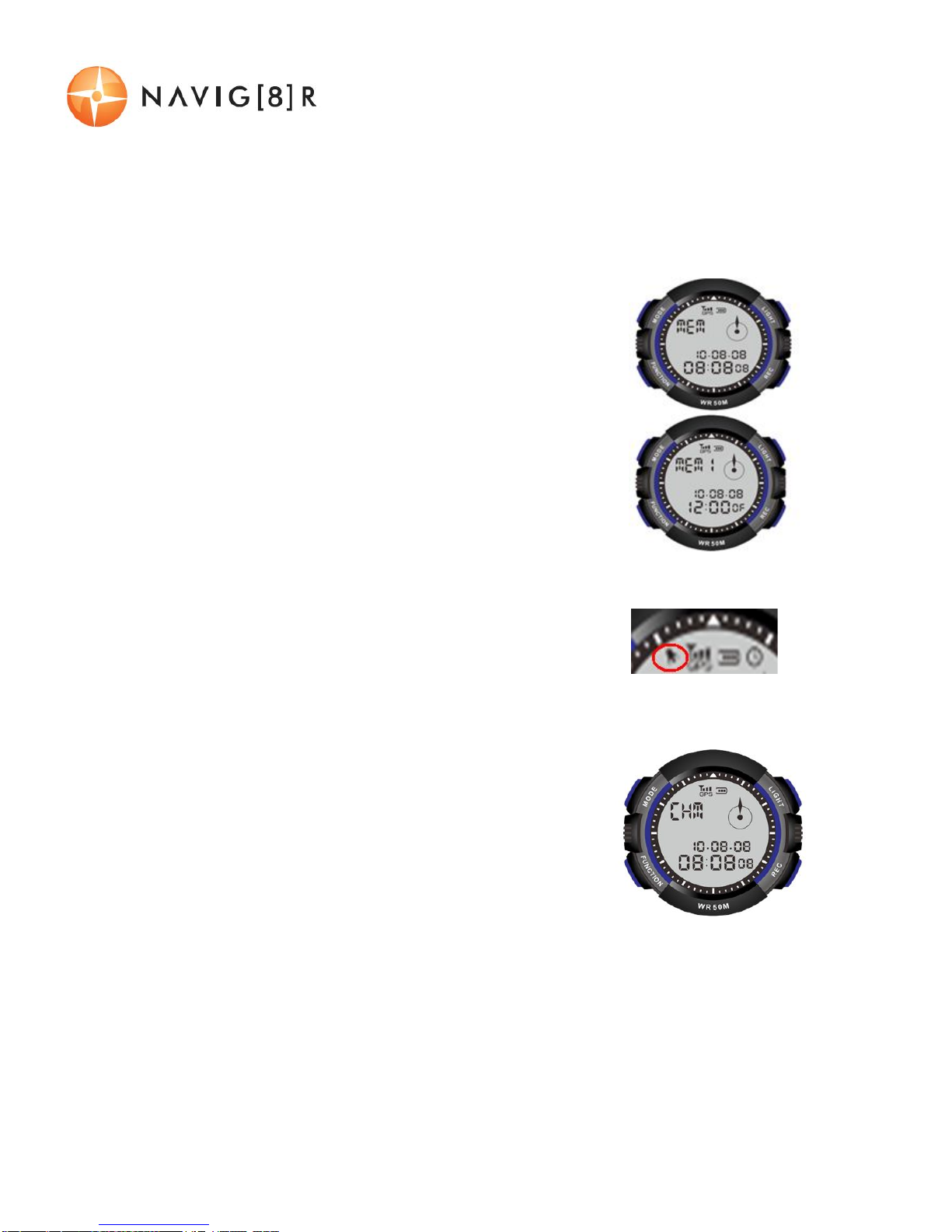

Scheduled GPS time updating / ARC (Automatic Regional Calibration)
1. To ensure you have accurate time for each day and in any time zone,simply set
your watch to automatically update itself at a given time each day.
2. Press the NAVIGATION button once and use the LIGHT
and REC buttons to toggle to ARC. Press the FUNCTION
button to enter this feature. ARC1 will then begin to
flash.
3. Press the FUNCTION button to begin setting up the
details forARC1 (T1 Time Zone).

USER MANUAL NAVWATCH-S10
10 | P a g e
4. Using a combination of the LIGHT andREC buttons to adjust time values and to
select whether to turn this feature ON or OFF.
5. Using the function button toggle to ARC1. While it is flashing, use the LIGHT and
REC buttons to move to ARC2 (T2) and adjust the same as described above.
6. Press the MODE to confirm and exit when finished.
Note: Press and hold the LIGHT and REC buttons to advance more quickly through
minutes and hours.
STOPWATCH
1. From thetime screen, press and hold the LIGHT
button until the digits SPWH (Sports Watch)appears.
Lap timing (Last lap compared to current lap)
1. Press the LIGHT button to begin the timer. The larger
timer digits will begin rolling.
2. Once a lap time has finished, press the LIGHT button again. The timer result will
then move to the above smaller timerdigit readout, while the larger timer read-
out resets to 0 (zero)and begins rolling again.
3. Each subsequent press of the LIGHT button will advance the lap number on the
screen.
Note: This device can store up to 10 entries. The stopwatch should be stopped and reset
if further records are needed.
4. Press the REC button once timing has finished.
5. To scroll through each timerrecord, then press the FUNCTION button repeatedly.
To reset the unit back to 0 (zero) and to clear the memory data press the LIGHT
again.
6. To return back the main time screen, press the MODE button.
Split timing (Last lap added to current lap)
1. Press the REC button to begin the timer. The larger timer digits will begin
rolling.
2. Once a lap time has finished, press the REC button again.The timer result will

USER MANUAL NAVWATCH-S10
11 | P a g e
then be added to any previous lap result asshown in theabove smaller timer
digit readout. The larger timer read-out will continue to roll.
3. Each subsequent press of the LIGHT button will advance the lap number on the
screen.
Note: This device can store up to 10 entries. The stopwatch should be stopped and reset
if further records are needed.
4. Press the LIGHT button once timing has finished.
5. To scroll through each timerrecord, press the FUNCTION button repeatedly.To
reset the unit back to 0 (zero) and to clear the memory data press the REC button
again.
6. To return back to the main time screen press the MODE button.
SETTING THE ALARM
1. From the time screen, press the FUNCTION button.
2. Usethe LIGHT (scroll up) or the REC (scrolldown)
buttons untilyou see the letters ALM (Alarm)
appear on the screen.
3. Press the FUNCTION button to enterthis feature. The
number 1 (one) will then appear next to ALM. Toggle
between alarm settings 1, 2 and 3 using the
LIGHT (scroll up) or the REC (scroll down) buttons to adjust the values.
4. Press the FUNCTION button to enter an individual alarm
time setting screen.
5. Use a combination ofthe FUNCTION button to move you through the alarm fields
and the LIGHT (scroll up) or the REC (scroll down) buttons to adjust the time
values. Finally choose whether to have this alarm turned ON orOFF.
Note: If an alarm is selected and turned on,a picture of a BELL
will appear at the top of the screen.

USER MANUAL NAVWATCH-S10
12 | P a g e
SETTING A MEMO
1. Setting a memo is much the same as setting an alarm, however in this feature,
you can select a specific date (as well as time) that an alarm will sound.
2. From the main timer screen,press the FUNCTION button.
3. Usethe LIGHT (scroll up) or the REC (scrolldown)
buttons untilyou see the letters MEM (Memo) appear
on the screen.
4. Press the FUNCTION button to enterthis feature.
The number 1 (one) will appear next to MEM. Toggle
between memosettings 1 and 2using the LIGHT (scroll
up) or the REC (scrolldown) buttons.
5. Use a combination ofthe FUNCTION button to move
you through the memo fields and the LIGHT (scroll
up) or the REC (scroll down) buttons to adjust the
memo time values. Finally choose whether to have this
memo turned ON orOFF.
Note: If a memo is selected and turned on, a picture of a BELL
will also appear at the top of the screen.
SETTING AN HOURLY CHIME
1. From the main time screen, press the FUNCTION
button.
2. Usethe LIGHT (scroll up) or the REC (scrolldown)
buttons untilyou see the letters CHM (Chime
Alarm) appears on the screen.
3. Press the FUNCTION button to enterthis feature.
4. Usethe LIGHT (scroll up) or the REC (scrolldown)
buttons to choose whether to have this chime turned ON or OFF.
5. Then use the MODE button to save your settings and to return tothe main time
screen.

USER MANUAL NAVWATCH-S10
13 | P a g e

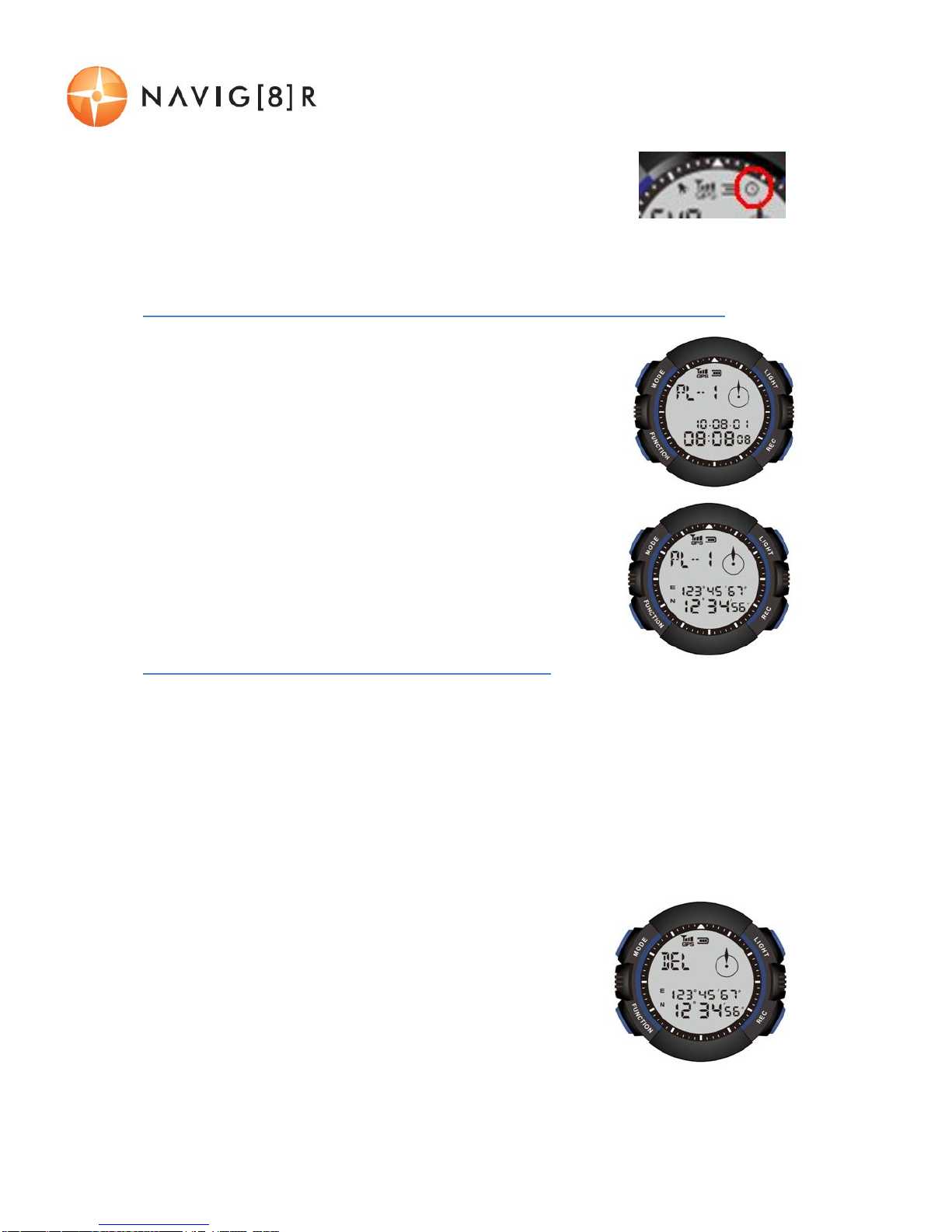

Note: If the hourly chime is turned on, a picture of a CLOCK
FACE will appear at the top of the screen.
NAVIGATION
Saving favourite position locations (PL) to memory - manually
1. From the main timer screen,press the FUNCTION
button twice. The letters PL--1 will then start flashing
on your screen.
2. Usethe LIGHT (scroll up) or the REC (scrolldown)
buttons to select between 9position locations then
press the FUNCTION to begin GPS sync to this
memory location. Once completed the co-ordinates
and will be flashed on the screen. The date and
time data will also be recorded.
Note: PL data can further be viewed and edited
using the supplied software.
Navigating to a saved position location (PL)
1. From the main timer screen,press the FUNCTION button twice.The letters PL--1
will then start flashing on your screen.
2. Usethe LIGHT (scroll up) or the REC (scrolldown) buttons to select between any
of the previous (up to) 9position locations.
Note: Each time a PL location is saved,date and time is also recorded and displayed on
each memory entry. You can also use the FUNCTION button to toggle between the co-
ordinate details.
3. Once a memory location has been selected, and
while the co-ordinates are displayed on the screen,
use the LIGHT (scroll up) or the REC (scrolldown)
buttons to select between the functions DEL
(Delete) and GOTO (Go to).

USER MANUAL NAVWATCH-S10
14 | P a g e
3.1 DEL: With the letters DEL on the screen, press the FUNCTION button to
advance to a confirmation page with the flashing letters YES. Press the
function button again to deletethis memory setting.

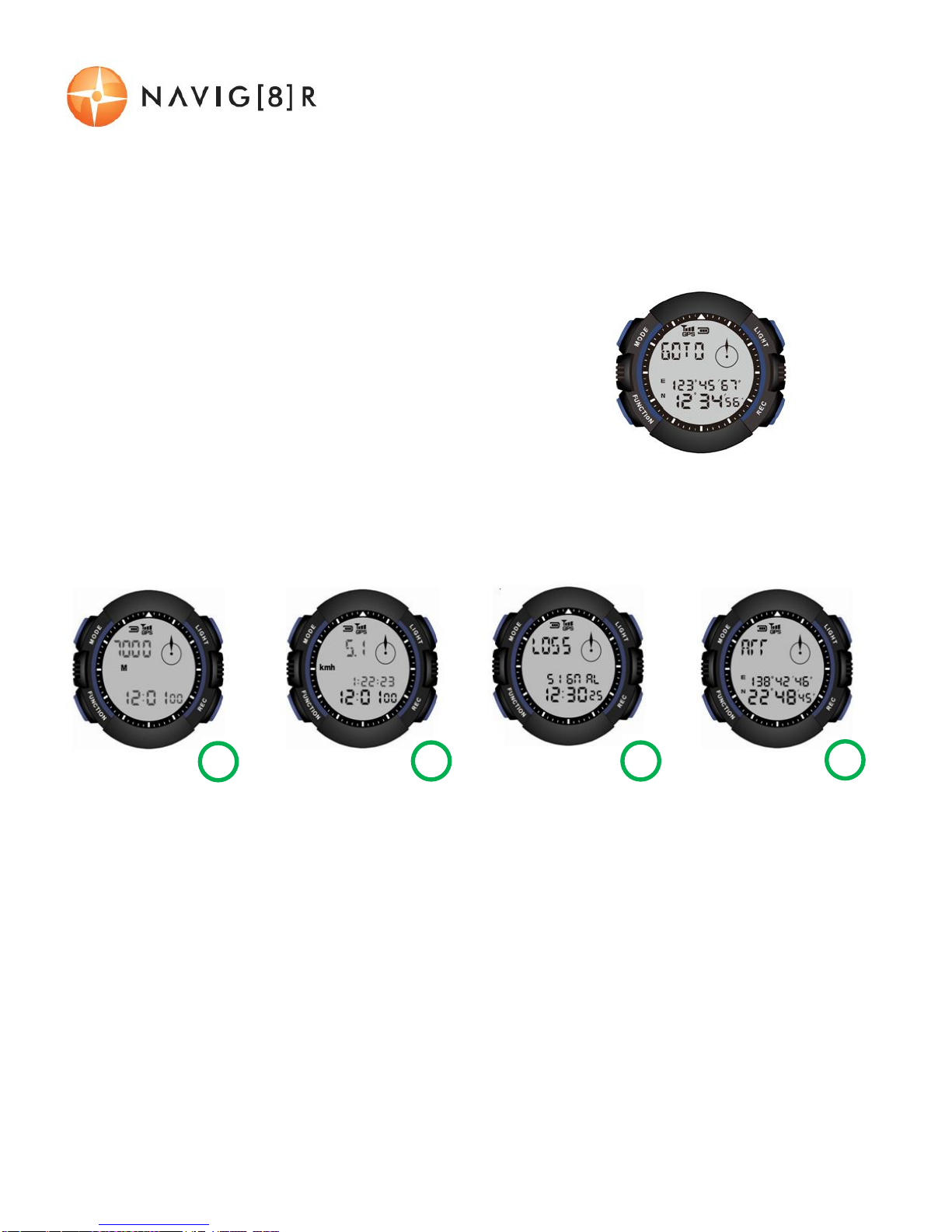

3.2 GOTO: With the letters GOTO on the screen,
press the FUNCTION button to confirm.The
title will then change to GET (get GPS data).
The unit will then compare the stored co-
ordinates to that of your current location.
3.2.1 Once the co-ordinates have been
calculated, the navigation screen will
be displayed. This screen displays a) the direction of the designation
and the distance between the two points, b) your current speed
(when you start moving), c) if signal is lost, and d) when your
destination is reached.
Note: If there is a signal interruption during this mode, the letters LOSS will appear on
the screen and an alarm will sound for 5 seconds. Pressing the buttons LIGHT, FUNCTION
or REC will stop the alarm sounding. Exit the navigation screen at any time by pressing
the MODE button. If no signal has been reached within 5 minutes, the navigation screen
will close and revert back to the main time screen.
a
b
c
d

USER MANUAL NAVWATCH-S10
15 | P a g e
Designation-free based tracking – Sports Mode
1. From the main time screen, press the FUNCTION button ONCE. The letters NAV
will begin to flash.
2. Usethe LIGHT and REC buttons to scrollthrough the screens; NAV,CHM, MEM,
ALM, SPT and ARC. The two unique screens in this menu view are SPT and ARC.
Press the FUNCTION button to select a feature (in this case we will discuss SPT
as the other features have been discussed previously).
Note: The otherfeatures are shared from the main menu as previously described and
are present here purely forconvenience. i.e. There are not 2
separate alarm system menus.
3. SPT: Once the GPS signal has been acquired, TR-XX
(where XX are numbers generated by default from
01 to 99) and START will appear. Press the
FUNCTION button to begin exercising / tracking.
4. You can use the LIGHT and REC buttons to scroll through information such as
your current speed, distance travelled altitude and your current GPS coordinates.
Note: If there is a signal interruption during this mode, the letters LOSS will appear on
the screen and an alarm willsound for 5 seconds. Pressing the buttons LIGHT, FUNCTION
orREC will stop the alarm sounding. Exit the navigation screen at any time by pressing
the MODE button. Ifno signal has been reached within 5 minutes,the navigation screen
will close and revert back to the main time screen.
4. Press the MODE button to stop tracking in sports mode. If no otherbuttons are
pressed, the screen will revert back to the main time screen after 3 minutes.

USER MANUAL NAVWATCH-S10
16 | P a g e
NAVWATCH-S10 SOFTWARE (TRACK STAR)
Installation - Software
1. Insert the CD into yourcomputer.
2. Click and open the TRACK STAR folderand click the icon called SetUp.exe.
Note: At this point, the software will check to see if “.NET framework” is installed.
Accordingly .NET willeither be installed orupgraded if yourcurrent version is older than
3.5 SP1.
3. Follow the on screen installation screens and choose the default or standard
settings where applicable.
4. Once the installation has been completed click the close button.
Installation – Hardware
1. Connect your watch to the charging cradle,noting not to force the watch and to
observe for correct orientation. Connect the USB cable to the cradle and then to
your computer. Your computer will typically signal when this/new hardware is
connected.
2. Run the TRACK STAR software and enter the product key numberfrom the CD
ROM package when prompted. (Typically an icon is loaded to your desktop)
3. You willthen be prompted foryour personalised information such as dateof
birth, height and weight. This data is later used to calculate your calorie
consumption. To ensure you get the most out of your NAVWATCH-S10 please
enterthis information in accurately.
Note: If no weight in entered into the field,
the calorie consumption will not work
correctly.

USER MANUAL NAVWATCH-S10
17 | P a g e
TRACK STAR
The main screen
Importing track data records
1. After connecting yourdevice as discussed above,click the IMPORT button.
Stored data file/s will then be transferred to yourcomputer in date order.
Note: It is recommended that the default track names are not changed to avoid naming
conflicts when using applications like Google Earth and potentially replacing files
accidentally.
Selecting a track (a data file)
1. There are two ways to select a track; by using a tick box mark, or highlighting a
file.
Note: Files are sorted in Year folders, then into sub-folders named in months.The final
file name by default has been date coded in shorthand format YYYY/MM/DD and time
HH:MM:SS .

USER MANUAL NAVWATCH-S10
18 | P a g e
Note 1: Marking a track allows you to choosemore than one track at a time. Actions like
“delete track”, “export track”, “combine tracks” can also be carried out simultaneously in
this way.
Note 2: Highlighting a track allows you to choose only one track at a time, which can be
used to carry out actions like “data diagram”,“view track” and “edit track”.
Exporting atrack
1. Highlight or Mark the selected tracks accordingly and press the EXPORT
button.
2. Choose the type of export file ie. KML, KMZ, GPK or CSV. (See the diagram below
for further file information.)

USER MANUAL NAVWATCH-S10
19 | P a g e
Merging tracks
1. Ifyou choose, individualtracks can be merged.Use the marking technique (tick
box) to select the files then press the MERGE button.
2. You willthen be prompted to
rename and re-categorise the
finished file.
3 Once finished click OK.
4. The merged file will appear
under the chosen name in the
file view explorer as discussed
below.
Note 1: You will be prompted with a
warning if the 2 files have been taken
more than 1 hour apart.
Note 2: Files with overlapping times
can not be merged.
Edit a track
1. Select the required track and click the EDIT button.
2. Adjust the file name and rename and re-categorise if required (as above) then
click OK.
Delete atrack
1. Simply mark the track/s and click the DELETE button.
Saving favourite position locations (PL) to memory – via software
1. Connect your watch to yourcomputer and press the MARK button.
2. The SET MARK screen will then open.
3. Use the search bar at the bottom of the screen to search for your location.
4. Once your location has been found, mark it using the right mouse button.
Note: Once the mark has been created, itcan be adjusted bysimply dragging and
dropping it using your mouse.

USER MANUAL NAVWATCH-S10
20 | P a g e
5. Using your mouse, you can then eitherdelete the tag or add information via the
edit option.
Note: The tag can also be deleted by selectingit in the co-ordinates list on the left hand
side of the screen.
6. The finished file can then be exported back to the watch using the EXPORT
button.
