NavLinkz RL2-SC14 User manual

Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14
Video-inserter
RL2-SC14
Compatible with
Volvo vehicles with Sensus Connect Infotainment and internet button
with 7 inch monitor
Video-inserter for front- and rear-view camera
and one additional video source
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
1 CVBS Video-input for after-market Video sources (e.g. USB-Player, DVB-T2 Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Picture-in-picture (PIP) mode combining after-market rear-view camera picture
with factory parking sensor graphic (not for all vehicles)
Video-in-motion in drive mode (ONLY for connected video-sources)
Video-inputs NTSC compatible

Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14
Page2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the compatibility of vehicle and accessories
1.3. Connectors –video interface
1.4. Dip-switch settings
1.4.1. Enabling the video input ”Front camera/Video IN 1” (dip 2)
1.4.2. Enabling the video input “Video IN 2” (dip3)
1.4.3. Rear-view camera setting (dip 5)
1.4.4. Activating the front camera input (dip 6)
1.4.5. Factory PDC setting (dip 8)
2. Installation
2.1. Place of installation
2.2. Connection schema
2.3. Connecting - PNP power / CAN cable
2.3.1. Exchange of Quadlock chambers
2.4. Analogue connecting - video-interface
2.5. Connection –picture signal cable
2.6. Connecting video sources
2.6.1. After-market rear-view camera
2.6.1.1. Case 1: CAN-box receives the reverse gear signal
2.6.1.2. Case 2: CAN-box does not receive the reverse gear signal
2.6.2. After-market front camera
2.6.3. Audio-insertion
2.7. Connecting video-interface and keypad
2.8. Picture settings
3. Interface operation
3.1. By infotainment buttons
3.2. By external keypad
4. Specifications
5. Frequently asked questions
6. Technical support

Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle’s software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation.
Technical knowledge is necessary for installation. The place of installation must be free of
moisture and away from heat sources.
1.1. Delivery contents
Take down the serial number of the interface and store this manual for support
purposes: ____________________

Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14
Page4
Requirements
Brand
Compatible vehicles
Compatible systems
Volvo
Vehicles since model year 2014
Sensus Connect with 7 inch monitor and
internet button.
Limitations
Video only The interface inserts ONLY video signals into the infotainment. For inserting
Audio signals either the possibly existing factory audio-AUX-input or a FM-
modulator can be used. If 2 audio sources shall be connected to the
infotainment, an additional electronic is necessary to switch them.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view camera is
only possible while the reverse gear is engaged. To delay the switch-back an
additional electronic part is required.
After market front camera The front camera will automatically be switched for 10 seconds after
disengaging the reverse gear. A manually front camera switching is possible by
external keypad.
Video input signal NTSC video sources compatible only.
1.2. Checking the compatibility of vehicle and accessories

Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14
Page5
1.3. Connectors –video interface
The video-interface converts the video signals of connected after-market sources in a factory
monitor compatible picture signal which is inserted in the factory monitor, by using separate
trigger options.
1.4. Dip-switch settings
Some settings must be selected by the dip-switches on the
video-interface. Dip position down is ON and position up is OFF.
*The front camera will automatically be switched for 10 seconds after disengaging the
reverse gear.
After each Dip-switch-change a power-reset of the Interface-box has to be performed!
See following chapters for detailed information.
Dip
Function
ON (down)
OFF (up)
1
No function
-
set to OFF
2
Front camera/Video IN 1 input
enabled
disabled
3
Video IN 2-input
enabled
disabled
4
No function
-
set to OFF
5
Rear-view cam type
after-market
factory or none
6
Front camera
enabled*
disabled
7
No function
set to OFF
8
Factory PDC
enabled
disabled

Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14
Page6
1.4.1.1. Enabling the video input ”Front camera/Video IN 1”(dip 2)
Only the enabled video inputs can be accessed when switching through the interface’s video
sources. It is recommended to enable only the required inputs for the disabled will be
skipped when switching through the video-interfaces inputs.
If an after-market front camera is connected and Dip-2 is activated, it can also be switched
by external keypad, in addition to the automatic switch-back.
1.4.1.2. Enabling the video input “Video IN 2” (dip3)
Only the enabled video inputs can be accessed when switching through the interface’s video
sources. It is recommended to enable only the required inputs for the disabled will be
skipped when switching through the video-interfaces inputs.
1.4.2. Rear-view camera setting (dip 5)
If set to OFF, the interface switches to factory picture while the reverse gear is engaged to
display factory rear-view camera.
If set to ON, the interface switches to its rear-view camera input „Camera-IN“ while the
reverse gear is engaged.
1.4.3. Activating the front camera input (dip 6)
If set to ON, the interface switches for 10 seconds from the rear-view camera input to the
front camera input after having disengaged the reverse gear.
If the front camera/V1 video input is activated by Dip-2, it is also possible to switch manually
from any picture mode to the front camera input, by pressing the button of the external
keypad (2-3 seconds).
1.4.4. Factory PDC settings (dip 8)
If set to ON while the reverse gage is enabled, the display shows a smaller reverse picture
and for that the factory PDC representation additionally appears on its right side. If set to
OFF while the reverse gage is enabled, the reverse picture will be shown in full size and the
PDC representation is disabled.
Note: Dip 1, 4und 7 are out of function and have to be set to OFF.

Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14
Page7
2. Installation
To install the interface, first switch off the ignition and disconnect the vehicle’s battery.
Please read the owner`s manual of the car, regarding the battery`s disconnection! If
required, enable the car`s Sleep-mode (hibernation mode)
In case the sleep-mode does not succeed, the disconnection of the battery can be done
with a resistor lead.
If the necessary stabilized power supply for the interface is not taken directly from the
battery, the chosen connection has to be checked for being constantly stabile.
The interface needs a permanent 12V source!
Note: Before a final installation, we recommend a test-run to ensure the compatibility of the
vehicle and the interface. Due to changes in the production of the vehicle manufacturer
there’s always a possibility of incompatibility.
2.1. Place of installation
The interface should be installed on the backside of the head unit.
Because in some cars the space available may be very limited, special care must be taken
with regard to cable crushing, etc.

Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14
Page8

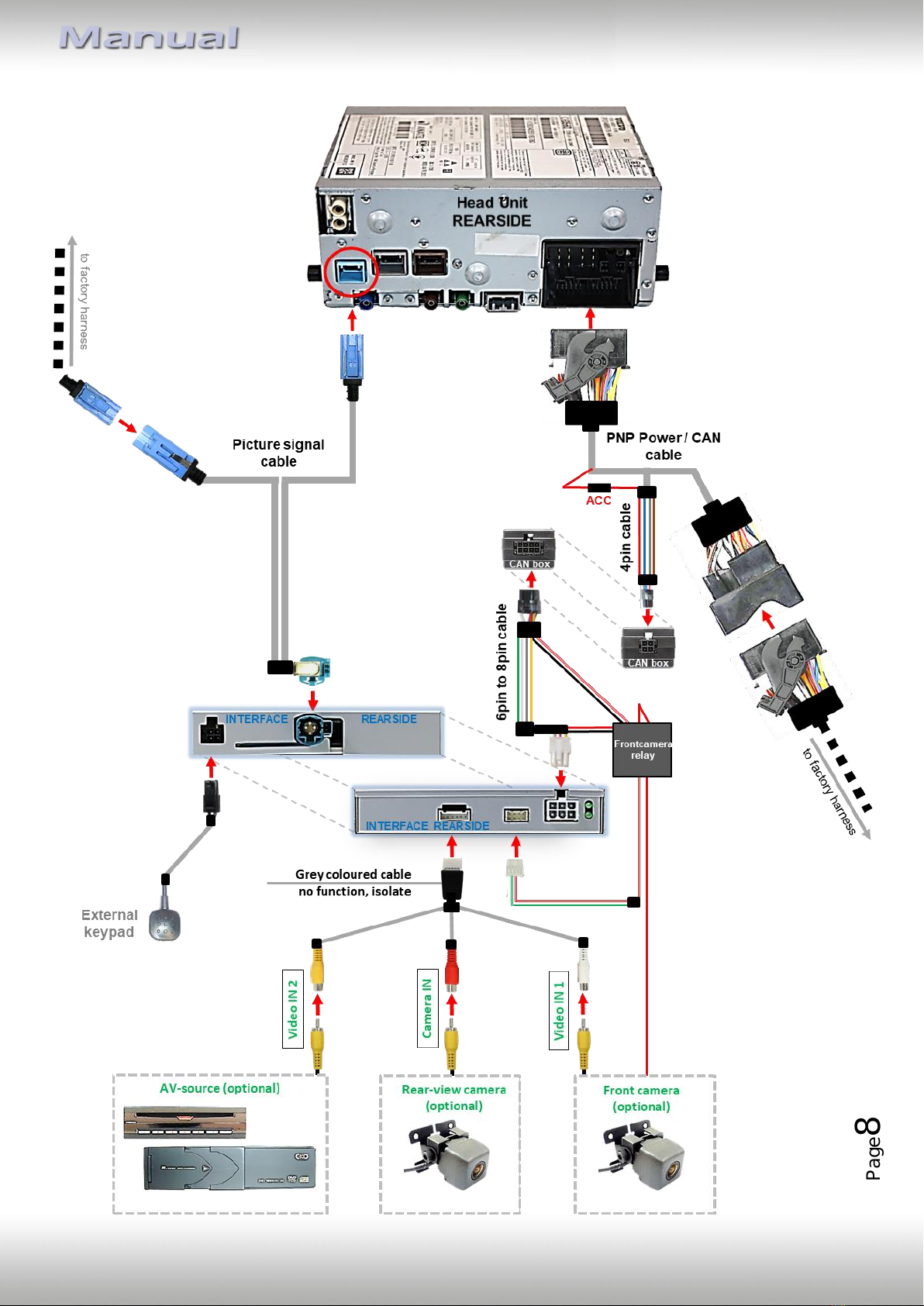

2.2. Connection schema

Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14
Page9
2.3. Connection - PNP Power / CAN cable
Connect the female 6pin connector of the 6pin to8pin cable to the interfaces’ 6pin connector and
connect the front camera relay’s 8pin connector to the interfaces’ 8pin connector.
Remove the female Quadlock connector of the vehicle harness from the rear-side of the
head-unit, clip-out chamber connectors A, B and the optical leads (see left picture and next
page) and connect this Quadlock connector to the male Quadlock connector of the PNP
Power / CAN cable.
Clip-in the previously clipped-out chamber connectors in the opposite Connect the opposite
female Quadlock connector of the PNP Power / CAN cable and connect this Quadlock
connector to the previously become free male Quadlock connector at the rear-side of the
head unit.

Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14
Page10

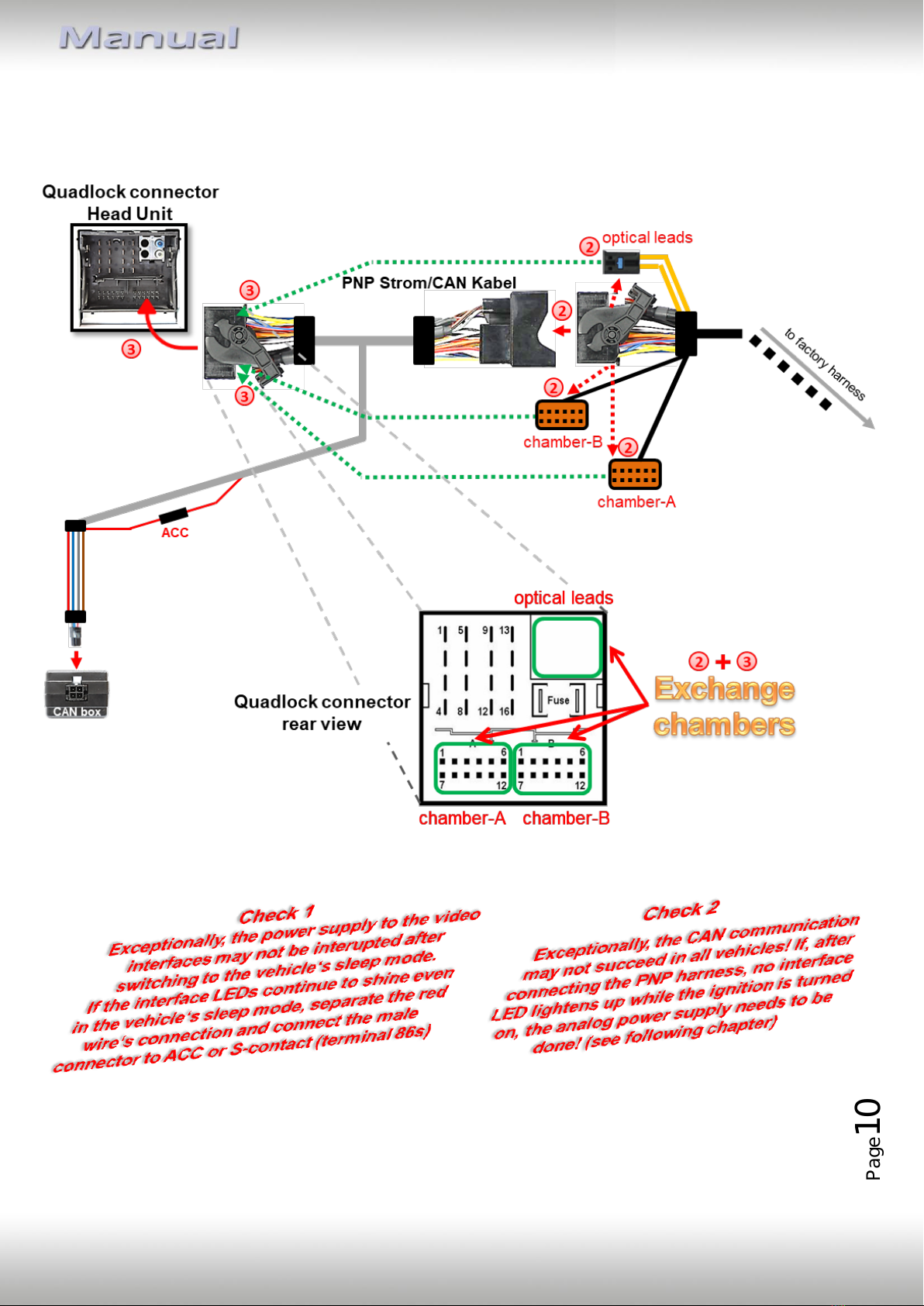

2.3.1. Exchange of Quadlock chambers

Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14
Page11
2.4. Analogue connecting - video-interface
If the communication between the CAN box and the vehicle’s CAN bus does not succeed (not
all vehicles are compatible), an analogue connection is required by connecting the 6pin to
8pin cable without the CAN box.
Connect the female 6pin connector of the 6pin to 8pin cable to the 6pin connector
of the video interface.
Connect the yellow, the red-white and the black wire of the 6pin to 8pin cable to
the vehicle’s power and ground.
Note: The connection of the green wire (Reverse signal) will be described in chapter “After-
market rear-view camera”. The white wire, can be used to switch the enabled video sources,
same as the keypad (see chapter “video interface-operation”). The grey wire stays
unconnected.

Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14
Page12

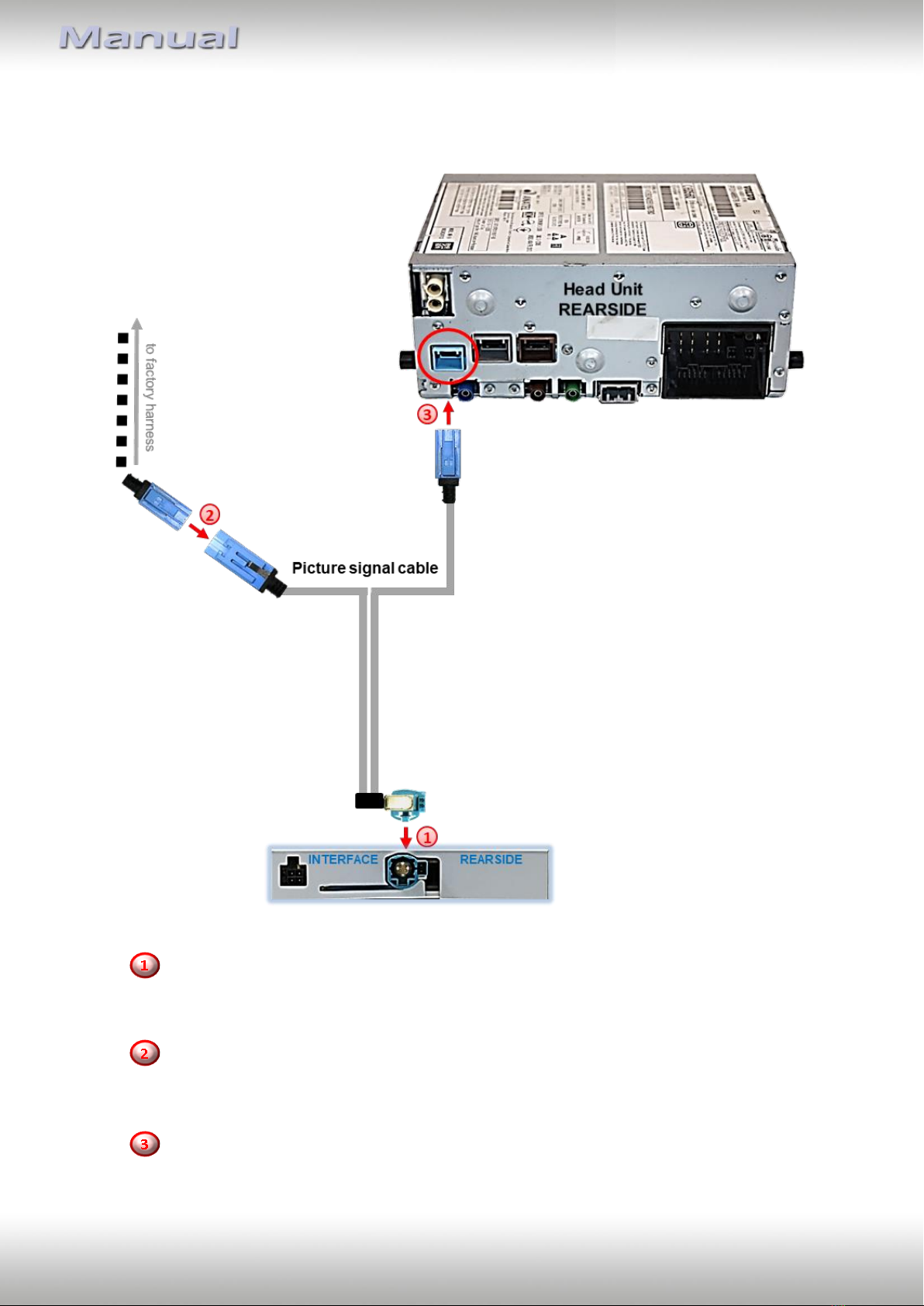

2.5. Connection –picture signal cable
Connect the waterblue coloured female HSD+2pin connector of the picture signal
cable to the male waterblue coloured HSD+2pin connector at the rear-side of the
interface.
Remove the male lightblue coloured GVIF connector from the rear-side of the head
unit and connect it to the female lightblue coloured GVIF connector of the picture
signal cable.
Connect the male lightblue coloured GVIF connector of the picture signal cable to the
female lightblue colored GVIF connector of the head unit.

Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14
Page13

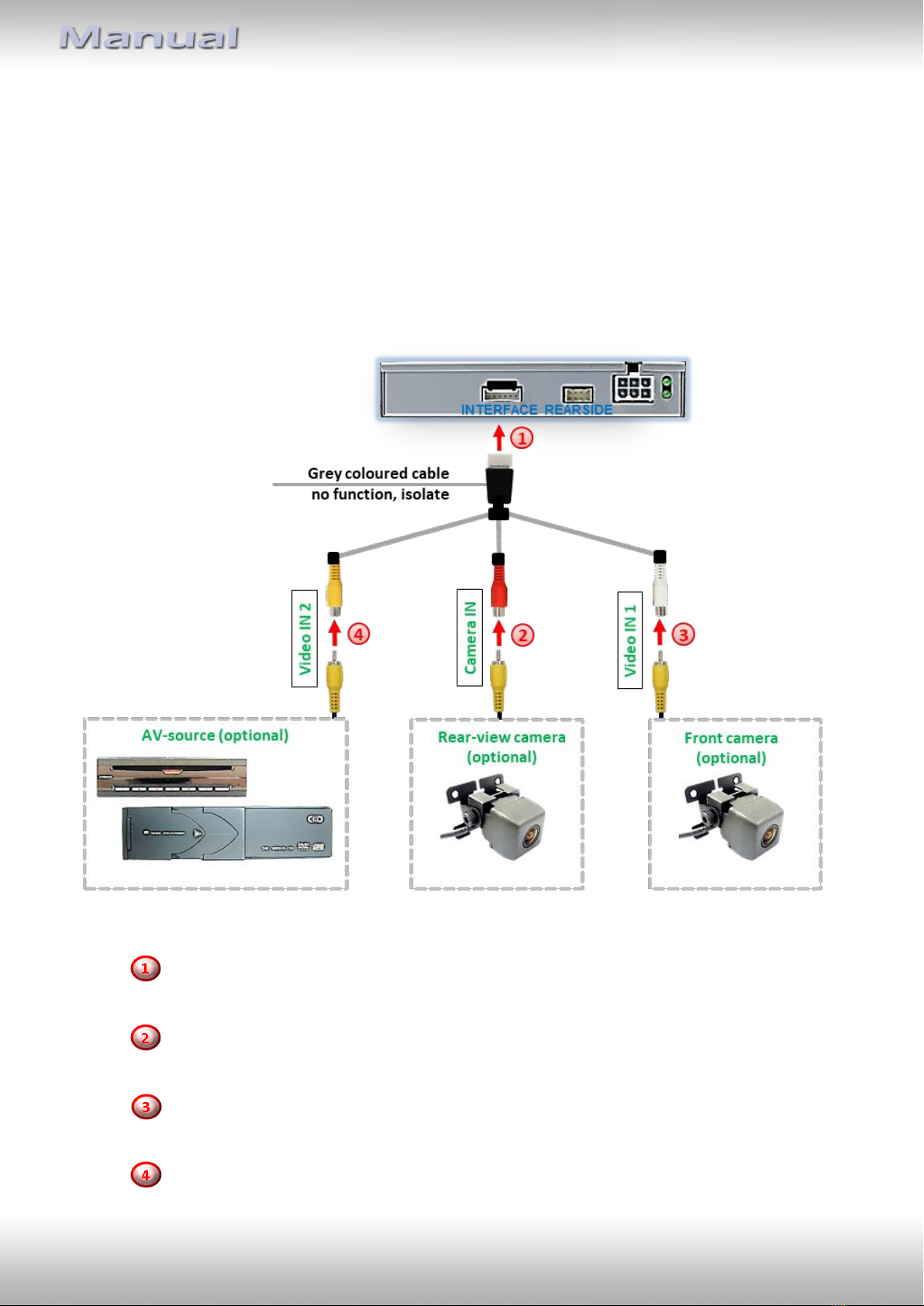

2.6. Connecting video sources
It is possible to connect an after-market rear-view camera, an after-market front camera and
one more after-market video source to the video-interface.
Note: Before the final installation, we recommend a test-run to ensure the compatibility of
the vehicle and the interface. Due to changes in the production of the vehicle
manufacturer there’s always a possibility of incompatibility.
Connect the female 6pin connector of the video cable to the male 6pin connector of
the video-interface.
Connect the video RCA connector of the rear-view camera to the female RCA
connector “Camera-IN” of the video cable.
Connect the video RCA connector of the front camera (or an additional video source)
to the female RCA connector “Video-IN 1” of the video cable.
Connect the video RCA connector of an additional video sources to the female RCA
connectors “Video IN 2”.

Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14
Page14

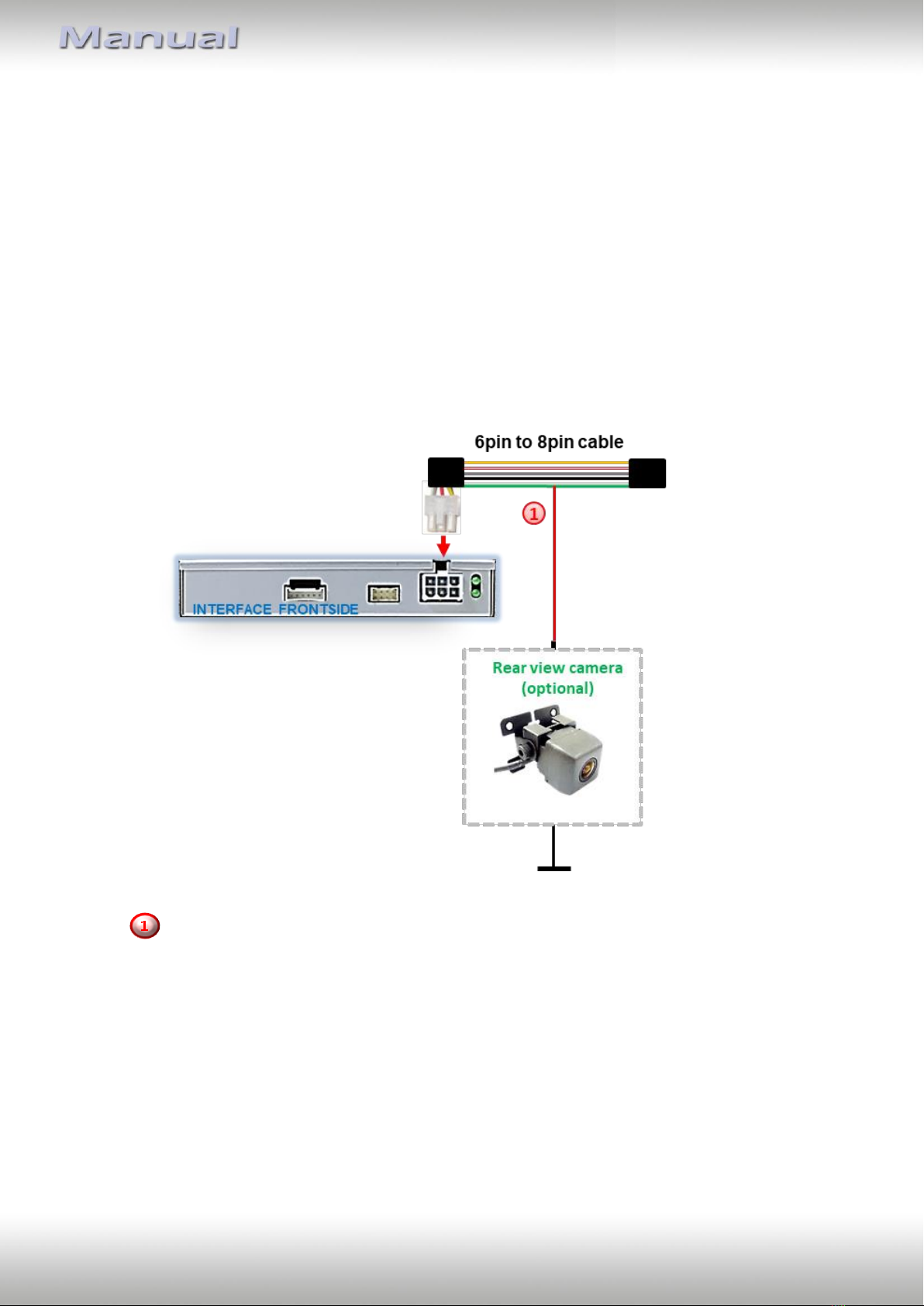

2.6.1. After-market rear-view camera
Some vehicles have a different reverse gear code on the CAN-bus which the included CAN-
box is not compatible with. In this case there are two different ways of installation. If the
CAN-box is able to detect an enabled vehicle’s reverse gear, the green wire of the 6pin to
8pin cable should carry +12V while the reverse gear is engaged.
Note: Do not forget to set dip5 of video-interface to ON before testing.
2.6.1.1. Case 1: CAN-box receives the reverse gear signal
If the CAN-bus box delivers +12V on the green wire of the 6pin to 8pin cable while reverse
gear is engaged, the video interface will automatically switch to the rear-view camera input
“CAMERA-IN”while the reverse gear is engaged.
Additionally, the +12V (max. 500mA) power supply for the rear-view camera can be
taken from the green wire of the 6pin to 8pin cable.

Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14
Page15
2.6.1.2. . Case 2: CAN-box does not receive the reverse gear signal
If the CAN-bus interface does not receive +12V on the green wire of the 6pin to 8pin cable
when reverse gear is engaged (not all vehicles are compatible) an external switching signal
from the reverse gear light is required. As the reverse gear light signal contains electronic
interference, a traditional open relay (e.g AC-RW-1230 with wiring AC-RS5) or filter (e.g. AC-
PNF-RVC) is required. Below schema shows the use of a relay (normally open).
Cut the green cable of the 6pin to 8pin cable close to the black 8pin connector and
isolate the shorter end of the green cable near to the 8pin connector (CAN-box side).
Connect the reverse gear light signal/power to coil terminal (85) and vehicle’s ground
to coil terminal (86) of relay.
Connect the rear-view camera power wire and the green wire (video interface side)
of the 6pin to 8pin cable both to output terminal (87) of the relay.
Connect permanent battery power to input terminal (30) of relay.
Note: If, due to a missing CAN communication, the 6pin to 8pin cable has been connected
the analogue way instead of the Can box, the green wire’s connection has also to be done as
shown in the picture above.

Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14
Page16
2.6.2. After-market front camera
The red coloured power supply output „Power for front“ which is coming from the
front camera relay can be used to power a front camera. If Dip 6 is set to ON, the
power supply output gives +12V (max 3A) when reverse gear is engaged incl. 10
seconds delay after reverse gear is disengaged.
Note: If the front camera/V1 video input „Video IN 1“ is activated by Dip-2, it is also possible
to switch manually from any picture mode to the front camera input, by pressing the button
of the external keypad (2-3 seconds).

Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14
Page17
2.6.3. Audio Insertion
This interface can only insert video signals into the factory infotainment. If an AV-source is
connected, audio insertion must be done by factory audio AUX input or FM-modulator. The
inserted video-signal can be activated simultaneously to each audio-mode of the factory
infotainment.
2.7. Connection Video Interface and external keypad
Connect the 4pin female connector of the external keypad to the male 4pin
connector of the video interface.
Note: Regardless if it’ll be used or not, the external keypad should always be connected! In
case of non-using, it should be invisibly hidden together with the video interface.

Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14
Page18
2.8. Picture settings
The picture settings are adjusted by the 3 buttons on the video-interface. Press the MENU
button to open the OSD settings menu or to switch to the next menu item. Press UP and
DOWN change the selected value. The buttons are embedded in the housing to avoid
accidental changes during or after installation. Picture settings have to be done separately
for AV1 and for AV2 while the corresponding input is selected and visible on the monitor.
AV2 and CAM share the same settings which must be adjusted in AV2.
Note: The OSD menu is only shown when a working video source is connected to the
selected video-input of the interface.
The following settings are available:
Contrast
Brightness
Saturation
Position H (horizontal)
Position V (vertical)
UI-CNT no function
IR-AV1 no function
IR-AV2 no function
Guide-L no function
Guide-R no function
Guide-CNTRL no function
PDC-H-POS PDC no function
AV1/2-MAIN no function

Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14
Page19
3. Interface operation
The interface’s keypad can be used to execute interface functions.
Short press keypad to switch the video-source.
Each repetition will switch to the next enabled input. Inputs which are not enabled are
skipped. If all inputs are activated by dip switch settings, the order is the following:
Factory video  Front camera (Video IN1)  Video source (Video IN2)  Factory video
Note: Additionally, the white wire of the 6pin cable can be used with a +5-12V pulse to
switch the video-sources.
4. Specifications
BATT/ACC range 7V - 25V
Stand-by power drain 30mA
Power consumption 240mA
Video input 0.7V - 1V
Video input formats NTSC
Temperature range -40°C to +85°C
Dimensions video-box 111 x 25 x 113 mm (W x H x D)
Dimensions CAN-box 73 x 22 x 30 mm (W x H x D)

Version 09.02.2023 HW: CAM(V31)9275&9276(V11) since serial-no. NA210400258 with frontcam input RL2-SC14
Page20
5. FAQ –Trouble shooting Interface functions
For any troubles which may occur, check the following table for a solution before requesting
support from your vendor.
Symptom
Reason
Possible solution
No picture/black
picture (factory
picture).
Not all connectors have been
reconnected to factory head-
unit or monitor after
installation.
Connect missing connectors.
No power on CAN-bus box (all
LED CAN-bus box are off).
Check power supply of CAN-bus box. Check CAN-bus
connection of CAN-bus box.
CAN-bus box connected to
CAN-bus in wrong place.
Refer to the manual where to connected to the CAN-
bus. If not mentioned, try another place to connect to
the CAN-bus.
No power on video-interface
(all LED video-interface are
off).
Check whether CAN-bus box delivers +12V ACC on red
wire output of 8pin to 6pin cable. If not cut wire and
supply ACC +12V directly to video-interface.
No picture/black
picture/white picture
(inserted picture) but
factory picture is OK.
No picture from video source.
Check on other monitor whether video source is OK.
No video-source connected to
the selected interface input.
Check settings dips 1 to 3 of video interface which
inputs are activated and switch to corresponding
input(s).
LVDS cables plugged in wrong
place.
Double-check whether order of LVDS cables is exactly
connected according to manual. Plugging into head-
unit does not work when the manual says to plug into
monitor and vice versa.
Wrong monitor settings of
video-interface.
Try different combinations of dips 7 and 8 of video-
interface. Unplug 6pin power after each change.
Inserted picture totally
wrong size or position.
Inserted picture double
or 4 times on monitor.
Inserted picture
distorted, flickering or
running vertically.
Video sources output set to
AUTO or MULTI which causes
a conflict with the interfaces
auto detection.
Set video source output fixed to PAL or NTSC. It is best
to set all video sources to the same standard.
If error occurs only after
source switching: Connected
sources are not set to the
same TV standard.
Set all video sources to the same standard.
Some interfaces can only
handle NTSC input.
Check manual whether there is a limitation to NTSC
mentioned. If yes, set source fixed to NTSC output.
Inserted picture b/w.
Inserted picture qual.
bad.
Picture settings have not been
adjusted.
Use the 3 buttons and the interface's OSD to adjust the
picture settings for the corresponding video input.
Inserted picture size
slightly wrong.
Inserted picture
position wrong.
Camera input picture
flickers.
Camera is being tested under
fluorescent light which shines
directly into the camera.
Test camera under natural light outside the garage.
Camera input picture is
bluish.
Protection sticker not
removed from camera lens.
Remove protection sticker from lens.
