NavLinkz RL1-MMI3G User manual

Version 04.08.2022 HW CAM(V31)/(V22) RL2-MMI3G
Video-inserter
RL1-MMI3G
Compatible with
Audi vehicles with
MMI3G basic/high, MMI3G+ basic/high infotainments
VW vehicles with
RNS850 infotainment and 4pin HSD LVDS connector
Video-inserter for rear-view camera
and two additional video sources
Product features
•Video-inserter for factory-infotainment systems
•2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner)
•CVBS Rear-view camera video-input
•Automatic switching to rear-view camera input on engagement of reverse gear
•Video-in-motion (ONLY for connected video-sources)
•Video-inputs PAL/NTSC compatible

Version 04.08.2022 HW CAM(V31)/(V22) RL2-MMI3G
Seite2
Contents
1. Prior to installation
1.1. …Delivery contents
1.2. Checking the compatibility of vehicle and accessories
1.3. Connectors –video interface
1.4. Dip-switch settings –video interface
1.4.1. …Enabling the interface’s video inputs (dip 2-3)
1.4.2. Rear-view camera setting (dip 5)
1.4.3. Monitor selection (dip 7-8)
2. Installation
2.1. Place of installation
2.2. Connection schema
2.3. Connection –6pin interface cable
2.4. Connection –picture signal cable
2.5. Connection –video sources´
2.5.1. After-market rear-view camera
2.6. Audio insertion
2.7. Connection - external keypad
2.8. Picture settings
3. Switching video sources
4. Specifications video-interface
5. Frequently asked questions
6. Technical support

Version 04.08.2022 HW CAM(V31)/(V22) RL2-MMI3G
Seite3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle’s software can cause malfunctions of the interface. If
available, we offer free software-updates for our interfaces for one year after purchase. To
receive a free update, the interface must be sent in at own cost. Labor cost for and other
expenses involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation.
Technical knowledge is necessary for installation. The place of installation must be free of
moisture and away from heat sources.
1.1. Delivery contents
Take down the serial number of the interface and store this manual for support
purposes: ____________________

Version 04.08.2022 HW CAM(V31)/(V22) RL2-MMI3G
Seite4
Requirements
Brand
Vehicles
Infotainment
Audi
A1 (8X) since 05/2010 til 10/2018
A4 (8K) since 05/2009 til 08/2015
A5 (8T) since 11/2008 til 06/2016
A6 (4F) since 08/2008 til 03/2011
A6 (4G) since 04/2011 til 09/2014
A7 (4G) since 07/2010 til 05/2014
A8 (4E) since 09/2008 til 03/2010
A8 (4H) since 03/2010 til 10/2017
Q3 (8U) 10/2011 –07/2018
Q5 (8R) since 11/2008 til 2017
Q7 (4L) since 05/2009 til 03/2015
MMI Navigation (Plus) -
MMI3G+, MMI3G High,
MMI3G Basic –
7inch or 8inch monitor
A1 (8X) since 05/2010
A6 (4F) since 08/2008 til 03/2011
A6 (4G) since 04/2011 til 05/2018
A7 (4G) since 07/2010 til 01/2018
Q3 (8U) 10/2011 –07/2018
Q7 (4L) since 05/2009 til 03/2015
MMI Radio/MMI Radio
Plus/MMI Navigation -
RMC/RMC_Cnct_Plus/
RMC_Cnct_Nav –
6.5inch monitor
VW
Touareg (7P) since model year 2011 til 06/2018
RNS850
Limitations
Video only The interface inserts ONLY video into the infotainment.
For sound use the possibly existing factory-audio-AUX-input, a
FM-modulator or the AUX-in interface AUX-110.
Factory OPS Display of an optical park display (OPS) isn’t possible if an
after-market rear-view camera is connected and reverse gear is
engaged. Acoustic signals are still existing.
Factory rear-view camera Automatic switch-back from inserted video to factory rear-view
camera only while reverse gear is engaged. To delay the switch-
back time, additional electronics is required.
1.2. Checking the compatibility of vehicle and accessories

Version 04.08.2022 HW CAM(V31)/(V22) RL2-MMI3G
Seite5
1.3. Connectors - Video-interface
The video-interface converts the video signals of connected after-market sources in a factory
monitor compatible picture signal which is inserted in the factory monitor, by using separate
trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and
converts them for the video interface.

Version 04.08.2022 HW CAM(V31)/(V22) RL2-MMI3G
Seite6
1.4. Dip-switch settings - video interface
Some settings must be selected by the dip-switches on the
video interface. Dip position down is ON and position up is OFF.
See following chapters for detailed information.
1.4.1. Enabling the interface’s video inputs (dip 2-3)
Only the enabled video inputs can be accessed when switching through the interface’s video
sources. It is recommended to enable only the required inputs for the disabled will be
skipped when switching through the video interfaces inputs.
1.4.2. Rear-view camera setting (dip 5)
If set to OFF, the interface switches to factory LVDS picture while the reverse gear is engaged
to display factory rear-view camera or factory optical park system picture.
If set to ON, the interface witches to its rear-view camera input CAM while the reverse gear
is engaged.
1.4.3. Monitor selection (dip 7-8)
Dips 7 and 8 customize the monitor-specific video settings which sometimes even vary
within head units of the same version, caused by different monitor specifications. It is
necessary to try all possible combinations of the 3 dips while a working video source is
connected to the chosen input of the interface. One of the combinations will show the best
picture size and quality (some may give no picture). It is possible to first hot plug through the
dip combinations. If there is no visible change of picture after trying all options, retry and
disconnect the 6pin plug of the video interface between every change of the dip setting.
Dip 1, 4 and 6 are out of function and have to be set to OFF.
After each Dip-switch-change a power-reset of the Video Interface has to be performed!
Dip
Function
ON (down)
OFF (up)
1
No function
-
set to OFF
2
CVBS AV1-input
enabled
disabled
3
CVBS AV2-input
enabled
disabled
4
No function
-
set to OFF
5
Rear-view cam type
after-market
factory or none
6
No function
set to OFF
7
Monitor specific
adjustments
Try all possible combinations of Dips 7 and 8 to receive
the best picture (quality and size)
8

Version 04.08.2022 HW CAM(V31)/(V22) RL2-MMI3G
Seite7
2. Installation
To install the interface, first switch off the ignition and disconnect the vehicle’s battery.
Please read the owner`s manual of the car, regarding the battery`s disconnection! If
required, enable the car`s Sleep-mode (hibernation mode)
In case the sleep-mode does not succeed, the disconnection of the battery can be done
with a resistor lead.
If the necessary stabilized power supply for the interface is not taken directly from the
battery, the chosen connection has to be checked for being constantly stabile.
The interface needs a permanent 12V source!
2.1. Place of installation
The interface shell be installed on the backside of the head-unit
(navigation computer/radio).

Version 04.08.2022 HW CAM(V31)/(V22) RL2-MMI3G
Seite8
2.2. Connection scheme

Version 04.08.2022 HW CAM(V31)/(V22) RL2-MMI3G
Seite9
2.3. Connection - 6pin interface cable
Connect the white female 6pin connector of the 6pin interface cable to the male 6pin
connector of the video interface.
Connect the green wire of the 6pin interface cable to +12V of the reverse gear signal.
(e.g. reversing light).
If desired, the white wire of the 6pin interface cable can be used alternatively to the
external button to switch the video sources (12V pulse for 2-3 seconds).
Connect the black wire of the 6pin interface cable to vehicle ground.
Connect the red wire of the 6pin interface cable to +12V ACC terminal 15.
Connect the yellow wire of the 6pin interface cable to +12V ACC (300mA).
Note: The connection of the green wire (Reverse signal) will be described in chapter “After-
market rear-view camera”. The white wire, can be used by +12V impulse to switch the
enabled video sources , same as the keypad (see chapter “video interface-operation”).

Version 04.08.2022 HW CAM(V31)/(V22) RL2-MMI3G
Seite10

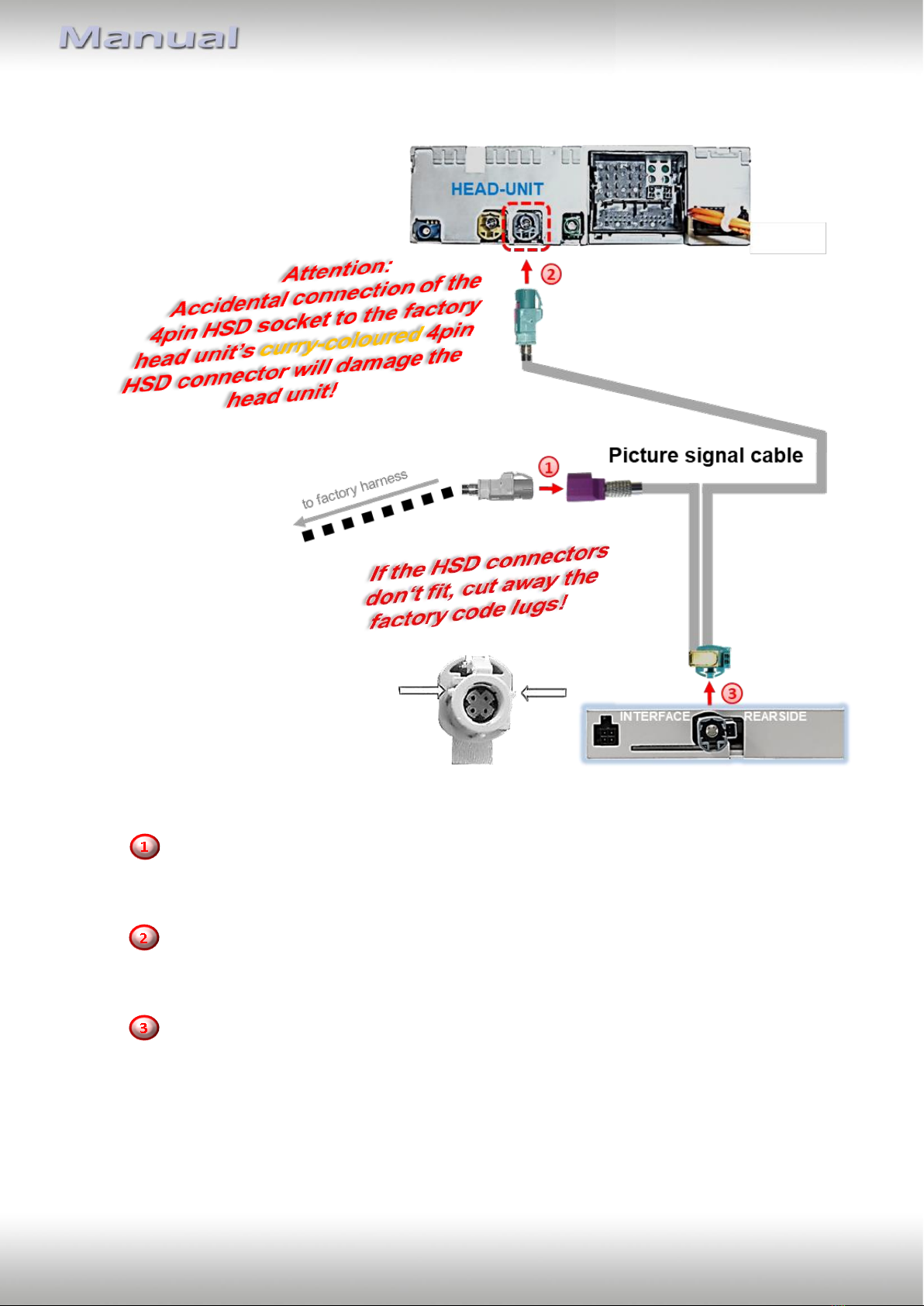

2.4. Connection –picture signal cable
Remove the grey (Depending on the head-unit, possibly also white or pink coloured!)
female 4pin HSD connector from the rearside of the factory head unit and connect it
to the aubergine colored male 4pin HSD connector of the picture signal cable.
Connect the waterblue colored female 4pin HSD connector of the picture signal cable
to the previously become free grey (Depending on the head-unit, possibly also white
or pink coloured!) male 4pin HSD connector of the factory head-unit.
Connect the waterblue colored female HSD+2 connector of the picture signal cable
to the male HSD+2 connector of the video-interface.
Note: No liability for vehicle wire colours and pin definition!
Changes by the vehicle manufacturer are possible. The given information has to be verified
by the installer.

Version 04.08.2022 HW CAM(V31)/(V22) RL2-MMI3G
Seite11
2.5. Connection –video sources
It is possible to connect 2 after-market Video-sources and 1 after-market rear-view camera
to the video-interface.
Before final installation of the peripheral devices, we recommend a test-run of the
interface. Due to changes in the production of the vehicle manufacturer is always the
possibility of incompatibility.
Connect the female 6pin connector of the video cable to the male 6pin connector of the
video-interface.
Connect the video RCA of the video source 1 and 2 to the female RCA connector
“Video IN1” and ”Video IN 2” of the 6pin video cable.
Connect the video RCA of the rear-view camera to the female RCA connector
“Camera IN” of the 6pin video cable.

Version 04.08.2022 HW CAM(V31)/(V22) RL2-MMI3G
Seite12
2.5.1. After-market rear-view camera
Note: Do not forget to set dip5 of video-interface to ON before testing.
To switch to the rear-view camera when reverse gear is engaged, an external switching
signal from the reverse gear light is required. As the reverse gear light signal contains
electronic interference, a traditional open relay (e.g AC-RW-1230 with wiring AC-RS5) or
filter (e.g. AC-PNF-RVC) is required. Below schema shows the use of a relay (normally open).
Connect the green switching input cable to the output connector (87) of the relay.
Connect the Reverse light’s power-cable to coil (85) and the vehicle’s ground to coil
(86) of the relay.
Connect the output connector (87) of the relay to the rear-view camera’s power-
cable, like you did it to the green switching input cable before.
Connect stabile and permanent +12V to the relay’s input connector (30).

Version 04.08.2022 HW CAM(V31)/(V22) RL2-MMI3G
Seite13
2.6. Audio insertion
This interface can only insert video signals into the factory infotainment. Audio
insertion must be done by factory audio AUX input, the optionally available AUX-in
interface AUX-110 (only for MMI3G, not for MMI3G+) or FM-modulator. The inserted
video-signal can be activated simultaneously to each audio-mode of the factory
infotainment.
If 2 AV sources shall be connected to the infotainment, additional electronic is
necessary to switch the audio signals.
2.7. Connecting - external keypad
Connect the female 4pin connector of the keypad to the male 4pin connector of the
video-interface.

Version 04.08.2022 HW CAM(V31)/(V22) RL2-MMI3G
Seite14
2.8. Picture settings
The picture settings are adjusted by the 3 buttons on the video-interface. Press the MENU
button to open the OSD settings menu or to switch to the next menu item. Press UP and
DOWN will change the selected value. The buttons are embedded in the housing to avoid
accidental changes during or after installation. Picture settings must be done separately for
AV1 and AV2 while the corresponding input is selected and visible on the monitor. The rear-
view camera settings conceivably have to be done in AV 2.
Note: The OSD menu is only shown when a working video source is connected to the
selected video-input of the interface.
The following settings are available:
Contrast
Brightness
Saturation
Position H (horizontal picture position)
Position V (vertical picture position)
Note: To adjust the reverse picture, engage the reverse gear.

Version 04.08.2022 HW CAM(V31)/(V22) RL2-MMI3G
Seite15
3. Switching video sources
Press theinterface’s external keypad to switch the video source. Each repetition will switch
to the next enabled input. If all inputs are enabled the order is:
Factory video → video IN1 → video IN2 → factory video →
Disabled inputs will be skipped.
Alternatively the white wire of the 6pin cable can be used with a +5-12V pulse to switch the
video-sources.
Note: Even if the switching through several video sources by the keypad mightn’t be
required, the keypad’s invisible connection and availability is strongly recommended.
4. Specifications video-interface
BATT/ACC range 7V - 25V
Stand-by power drain 4mA
Power 195mA
Video input 0.7V - 1V
Video input formats PAL/NTSC
Temperature range -40°C to +85°C
Dimensions video-box (W x H x D) 113 x 22 x 115mm

Version 04.08.2022 HW CAM(V31)/(V22) RL2-MMI3G
Seite16
4. FAQ –Trouble shooting Interface functions
For any troubles which may occur, check the following table for a solution before requesting
support from your vendor.
Symptom
Reason
Possible solution
No picture/black
picture (factory
picture).
Not all connectors have been
reconnected to factory head-
unit or monitor after
installation.
Connect missing connectors.
No power on CAN-bus box (all
LED CAN-bus box are off).
Check power supply of CAN-bus box. Check CAN-bus
connection of CAN-bus box.
CAN-bus box connected to
CAN-bus in wrong place.
Refer to the manual where to connected to the CAN-
bus. If not mentioned, try another place to connect to
the CAN-bus.
No power on video-interface
(all LED video-interface are
off).
Check whether CAN-bus box delivers +12V ACC on red
wire output of 8pin to 6pin cable. If not cut wire and
supply ACC +12V directly to video-interface.
No picture/black
picture/white picture
(inserted picture) but
factory picture is OK.
No picture from video source.
Check on other monitor whether video source is OK.
No video-source connected to
the selected interface input.
Check settings dips 1 to 3 of video interface which
inputs are activated and switch to corresponding
input(s).
LVDS cables plugged in wrong
place.
Double-check whether order of LVDS cables is exactly
connected according to manual. Plugging into head-
unit does not work when the manual says to plug into
monitor and vice versa.
Wrong monitor settings of
video-interface.
Try different combinations of dips 7 and 8 of video-
interface. Unplug 6pin power after each change.
Inserted picture totally
wrong size or position.
Inserted picture double
or 4 times on monitor.
Inserted picture
distorted, flickering or
running vertically.
Video sources output set to
AUTO or MULTI which causes
a conflict with the interfaces
auto detection.
Set video source output fixed to PAL or NTSC. It is best
to set all video sources to the same standard.
If error occurs only after
source switching: Connected
sources are not set to the
same TV standard.
Set all video sources to the same standard.
Some interfaces can only
handle NTSC input.
Check manual whether there is a limitation to NTSC
mentioned. If yes, set source fixed to NTSC output.
Inserted picture b/w.
Inserted picture qual.
bad.
Picture settings have not been
adjusted.
Use the 3 buttons and the interface's OSD to adjust the
picture settings for the corresponding video input.
Inserted picture size
slightly wrong.
Inserted picture
position wrong.
Camera input picture
flickers.
Camera is being tested under
fluorescent light which shines
directly into the camera.
Test camera under natural light outside the garage.
Camera input picture is
bluish.
Protection sticker not
removed from camera lens.
Remove protection sticker from lens.

Version 04.08.2022 HW CAM(V31)/(V22) RL2-MMI3G
Seite17
Symptom
Reason
Possible solution
Camera input picture
black.
Camera power taken directly
from reverse gear lamp.
Use relay or electronics to "clean" reverse gear lamp
power. Alternatively, if CAN-bus box is compatible
with the vehicle, camera power can be taken from
green wire of 6pin to 8pin cable.
Camera input picture
has distortion.
Camera input picture
settings cannot be
adjusted.
Camera input picture settings
can only be adjusted in AV2
mode.
Set dip 3 of video-interface to ON (if not input AV2 is
not already activated) and connect the camera to AV2.
Switch to AV2 and adjust settings. Reconnect camera
to camera input and deactivate AV2 if not used for
other source.
Graphics of a car in
camera input picture.
Function PDC is ON in the
interface OSD.
In compatible vehicles, the graphics will display the
factory PDC distance. If not working or not wanted, set
interface OSD menu item UI-CNTRL to ALLOFF.
Chinese signs in
camera input picture
Function RET or ALL is ON
(function for Asian market) in
the interface OSD.
Set interface OSD menu item UI-CNTRL to ALLOFF or
PDCON.
Not possible to switch
video sources by OEM
button.
CAN-bus interface does not
support this function for
vehicle.
Use external keypad or cut white wire of 6pin to 8pin
cable and apply +12V impulses for AV-switching.
Pressed too short.
For video source switching a longer press of about 2.5
seconds is required.
Not possible to switch
video sources by
external keypad.
SW-version of interface does
not support external keypad.
Use OEM-button or cut white wire of 6pin to 8pin
cable and apply +12V impulses for AV-switching.
Interface does not
switch to camera input
when reverse gear is
engaged.
CAN-bus interface does not
support this function for the
vehicles.
Cut the green wire of the 6pin to 8pin cable and apply
+12V constant from reverse gear-lamp signal. Use
relay to "clean" R-gear lamp power.
Interface switches
video-sources by itself.
CAN-bus interface
compatibility to vehicle is
limited.
Cut the grey wire of 6pin to 8pin and isolate both
ends. If problem still occurs, additionally cut the white
wire of 6pin to 8pin cable and isolate both ends.
5. Technical Support
Please note that direct technical support is only available for products purchased directly
from NavLinkz GmbH. For products bought from other sources, contact your vendor for
technical support.
NavLinkz GmbH
distribution/tech dealer-support
Heidberghof 2
D-47495 Rheinberg
Tel [phone]
Email [email protected]
10R-03 5384
Made in China
