THE!NEW!GENERATION!IN!TECHNOLOGY!
!
NF0588!
!
1.5”Digital!Photo!Frame!Keychain!
Instruction Manual

SAFETY PRECAUTION AND MAINTENANCE
•The apparatus shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed over the product. Dry location use only.
•No naked flame sources, such as candles, should be placed over or near the product.
•Keep the digital photo viewer clean and never store it next to a heat source or in dirty,
humid or wet places. Keep it out of direct sunlight.
•Press the digital photo viewer buttons gently. Pressing them or the screen too hard can
damage the digital photo frame.
•Do not use the player in an extremely dry environment, as this can lead to static
discharge which can damage the digital photo frame.
•Never abruptly disconnect the digital photo viewer from a PC while it is uploading,
downloading or formatting as this can cause program failure.
•Care is required with the use of this apparatus in tropical and/or moderate climates.
•Do not subject the product to harsh impacts. Do not drop the appliance. This may result
in damage to the product and loss of data.
•Do not attempt to dismantle or repair this unit yourself. Repairs should be performed by
qualified personnel only.
•Use a slightly dampened and lint-free cloth to clean this appliance. Do not use alcohol,
thinner or benzene to clean the surface of the player.
Product Features
-Supports Auto slide show
-Supports clock
- LCD contrast adjustment
-Built-in rechargeable Li-battery
- Auto off setting
-Store up to 143 photos
-Built-in downloading program software, no need to install any software from a CD disc
additionally.
-Supports the picture in JPG, GIF and BMP format.

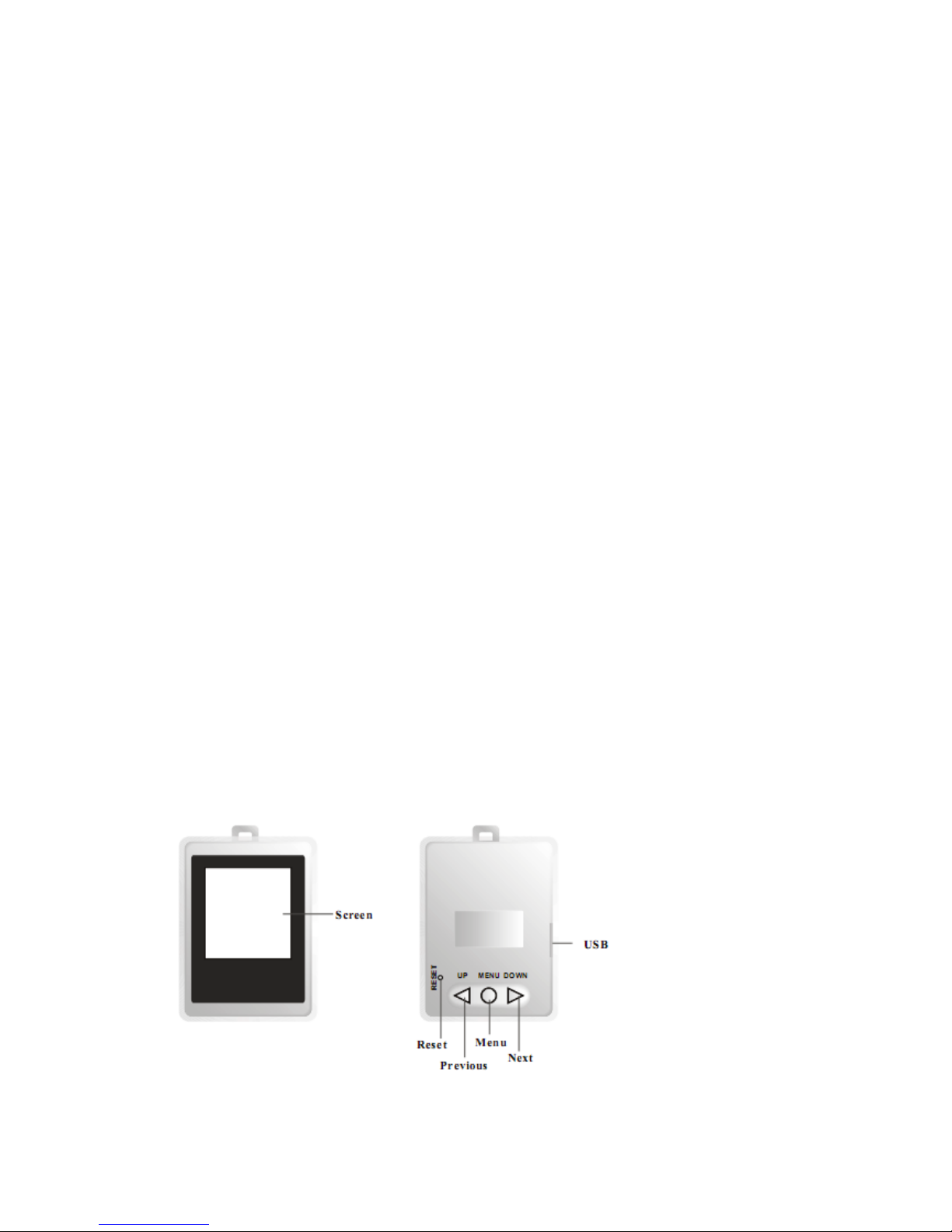

The controls and function definition

1."[M]" power/ menu button: A. Short press it to display the main menu. (The following is
instituted menu key). B. Press it to confirm when an item is selected. C. Press and hold it
for about 3 seconds to power on or off the player.
2. [ ] Select: Move up browse or upward choice (The following is instituted UP key).
3. [ ]Select: Move down browse or downward choice (The following is instituted DOWN
key).
4. Reset hole: Re-initialize the system of the unit.
Charging the battery
When you use the device for the first time, connect it with the computer via a USB cable
for charging. The first time for charging should be up to five hours. The standard charging
time is three hours.
When you connect it with the computer via a supplied USB cable, the player will charge
automatically and you can see the charging progress via battery icon at the top left corner
of the window screen.
Please note:
- Make sure that the battery is fully charged before the first use.
- Please fully charge the battery every two or three months if the player is not being used
for a long time. Otherwise, the saving time set will be lost.
-Please recharge the battery when the battery icon shows the power is empty.
OPERATION INSTRUCTION
Power on
In the power off mode, press and hold the [M] key to power on the player. The screen will
be turned on.
Power off
Press the [M] button. Then you will find the main menu. Press the [ ] or [ ] button to
select “Power Off”. Press the [M] button to enter submenu and press [ ] or [ ] to
choose “YES”; press [M] to confirm. The unit will be turned off. Or you can press and hold
[M] to power off the player directly.
Picture Browsing
•When the photo frame is powered on, it will start to play the pictures directly, the
picture-browsing mode is default.
•If no picture is downloaded in the photo frame, the screen will display ”No Photo”.
•Press the [ ] or [ ] button to browse the previous or next picture.
•During browsing the picture, press the [M] button to enter the main menu. Press the
[ ] or [ ] button to select “Slide Show”. And then press the [M] button to enter the
next menu. Press the [ ] or [ ] button to set the interval time of each picture in a slide
show(0-15 seconds).
Main Menu Specification
During browsing the picture, press the [M] button to enter the main menu, the menu will
display as below:
•USB Connect: Select to connect the photo frame with the
computer.
•Slide Show: To select the display mode.
•Auto Off: To set the auto power off time.
•Power Off: To select turn off the player.
•LCD Contrast: To adjust the contrast of the screen.
•Backlight: To adjust backlight of the photo frame
•Clock: to set the clock display mode.
USB Connect
Connect the photo frame to the computer with the provided USB cable, and then press [M]
to enter the main menu. Press [ ] or [ ] button to select the "USB Connect" option.
Press the [M] button to enter. Select “Yes” and press [M] to confirm, the screen will display
“USB CONNECTED”.
Slide Show
Press the [ ] or [ ] button to select "Slide Show" option from the main menu and
press the [M] button to enter the submenu. Press the [ ] or [ ] button to adjust
interval time of each picture. There are 0-15 seconds different interval times for selection.
Press the [M] key to confirm; photos will be played automatically.
If the interval time is set as “0”, you can browse the picture manually by pressing [ ] or
[ ] button.

Auto OFF setting
Select "Auto OFF" from the main menu and press the [M] button to enter the auto off time
setting. There are 0-20 minutes different options for users to choose. Adjust “00” to
disable this function.
Power off
Select "Power Off" menu from the main menu, and then press the [M] button to enter
submenu; press [ ] or [ ] button to select “Yes”. Then the unit will be turned off.
LCD Contrast
Select the "LCD Contrast" option and press the [M] button to enter the setting menu.
Press the [ ] or [ ] button to change the contrast of the screen. There are 00-15
levels for users to adjust the LCD Contrast.
Backlight
Select the "Backlight" option and press the [M] button to enter the setting menu. Press the
[ ] or [ ] button to change the backlight of the screen. There are 01-21 levels for
users to adjust the Backlight.
Display Clock
Select the " Clock" from the main menu and press the [M] button to enter the submenu.
There are three options: Digital Clock, Analog Clock, Alarm Clock.
1). Digital Clock
Select the “Digital Clock” option and press the [M] button to display the clock. Press the
[M] button to return to the picture browsing mode.
2). Analog Clock
Select “Analog Clock” option from the Clock submenu and press the [M] button to
confirm. It enters analog Clock display. Press [M] button to return to picture browsing
mode.
3). Alarm Clock
Select “Alarm Clock” option from the Clock submenu and press the [M] button to enter
the next menu. Press [ ] or [ ] to select On/Off/Cancel from the submenu.
Set Clock
Select the “Set clock” option from main menu and press the [M] button to display the clock.
Press the [M] button repeatedly to select the year, month, date, hour, minute, second, and
weekday; press the [ ] or [ ] button to change the value under each item and press
the [M] button to confirm.
Delete picture
Select “Delete One” and press [M] button to enter the next menu. Select “Yes” to delete
the current browsing picture or “No” to cancel the deletion and return to the picture browse
mode.
Select “Delete All” and press [M] button to enter the next menu. Select “Yes” to delete all
the pictures in the photo frame or “No” to cancel the deletion and return to picture browse
mode.
Stopwatch
Select “Stopwatch” and press [M] button to enter submenu; Press [M] to start the
stopwatch and press [M] again to pause. Press [ ] it return to picture browse and press
[ ] to reset the stopwatch time.
Exit
Select "Exit" menu from the main menu. Press the [M] button to exit and return to the
picture browsing mode.
CONNECTION AND DOWNLOADING
Make sure the viewer is connected properly to the PC during uploading or downloading to
avoid program errors.
Connecting to the PC
Connect the photo frame to the PC with the USB cable (included). Note that a USB hub or
USB extension cable must not be used.
Press the [M] button to display the main menu; Press [ ] [ ] button to select “USB
Connect” option from the main menu; press [M] button and select “Yes” to confirm the
connection.
PC system detects ”New hardware” and will begin to install the driver automatically. If
necessary, wait until system installation has been completed before use. Then the
DPFMate tool will pop out on computer screen. If the tool doesn’t pop out automatically,

pls double click “My Computer” and local disk with built in software will be found.
Please double click “DPFMate tools” icon in local disk to open it manually.
(Note: The default language is English.).
Button definition:
Select files: Select the image you want to put into the unit.
Delete: Delete the image you have chosen.
Add:Add the selected picture to the Device on the right of windows.
Rotate Left: Rotate the picture anti-clockwise.
Rotate Right: Rotate the picture clockwise.
+/-: Zoom in/out the picture you selected
Save: Click the desired picture in the device, and then click the Save bar to save the
selected pictures to computer.
SaveAll: Click SaveAll bar to save all the pictures in the device to computer.
All: Click All bar to select all the pictures in the device.
Download:Download the selected pictures in the Device to the unit.
Exit: Exit the picture download dialog.
Editing and downloading Pictures
•Choose picture source from the top left box of the window, and then select the desired
pictures in it. The selected picture will be displayed at “file list” area. Click your desired
picture. Then you will find the picture at “Preview” area.
•Select “Clear” means to crop the picture to become in rectangular dimension rations to
fit the dimension rations the screen. Click and hold the rectangular box to move
rectangular box to the desired position. Click the Add bar to add it to the preview album,
the part out of the rectangular selection will be deleted.
•Click the “Rotate L “or” Rotate R” bar to rotate the picture anti-clockwise or clockwise.
•Click “Add” bar to add the selected picture to “Device” on the right hand side of the
window. At the same time, other pictures in the GIF/JPEG/ BMP will be converted to BMP
format pictures supported by the unit. You can add up to 143 pictures to the preview
album.
•You can click and select one desired picture or press and hold the Ctrl button on the
keyboard to select multiple pictures.
•After adding the desired pictures to the device, click the “Download” bar to download
these pictures to the unit.
•Click the “Delete” to delete the selected pictures.
•Click the “Save” bar to save the selected pictures to the computer.
•After finished all, click the Exit bar to exit the built-in program.
Disconnecting from the PC
After transferring is completed, click the “Exit” button to quit the program, and then

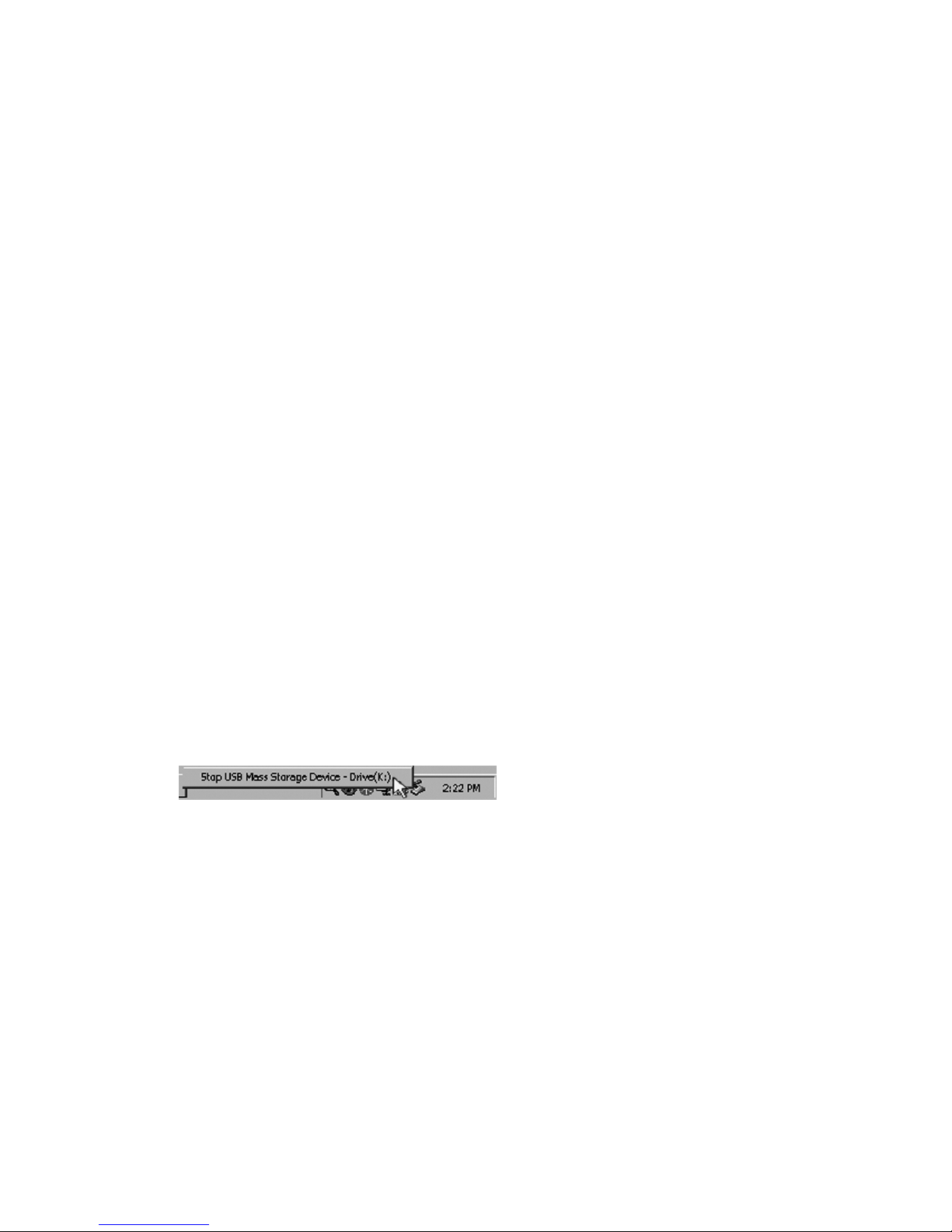

disconnect the photo frame from the PC safely; click the icon in the box at the bottom right
corner of the Windows screen, and a box will appear. Click the box, it will display “Safe to
remove hardware”; confirm stop the device and then unplug the USB cable.
SPECIAL REMINDER:
Do not disconnect the USB cable when the data is being transferred between PC and your
photo frame, which may damage and lose the data in the product.
Disconnection should be conducted only when “device can now be safely removed from
the system” is displayed.
