NCTE 2300 Series Instruction Manual

Version 20/01 –State September 2020
Instruction manual and data sheet

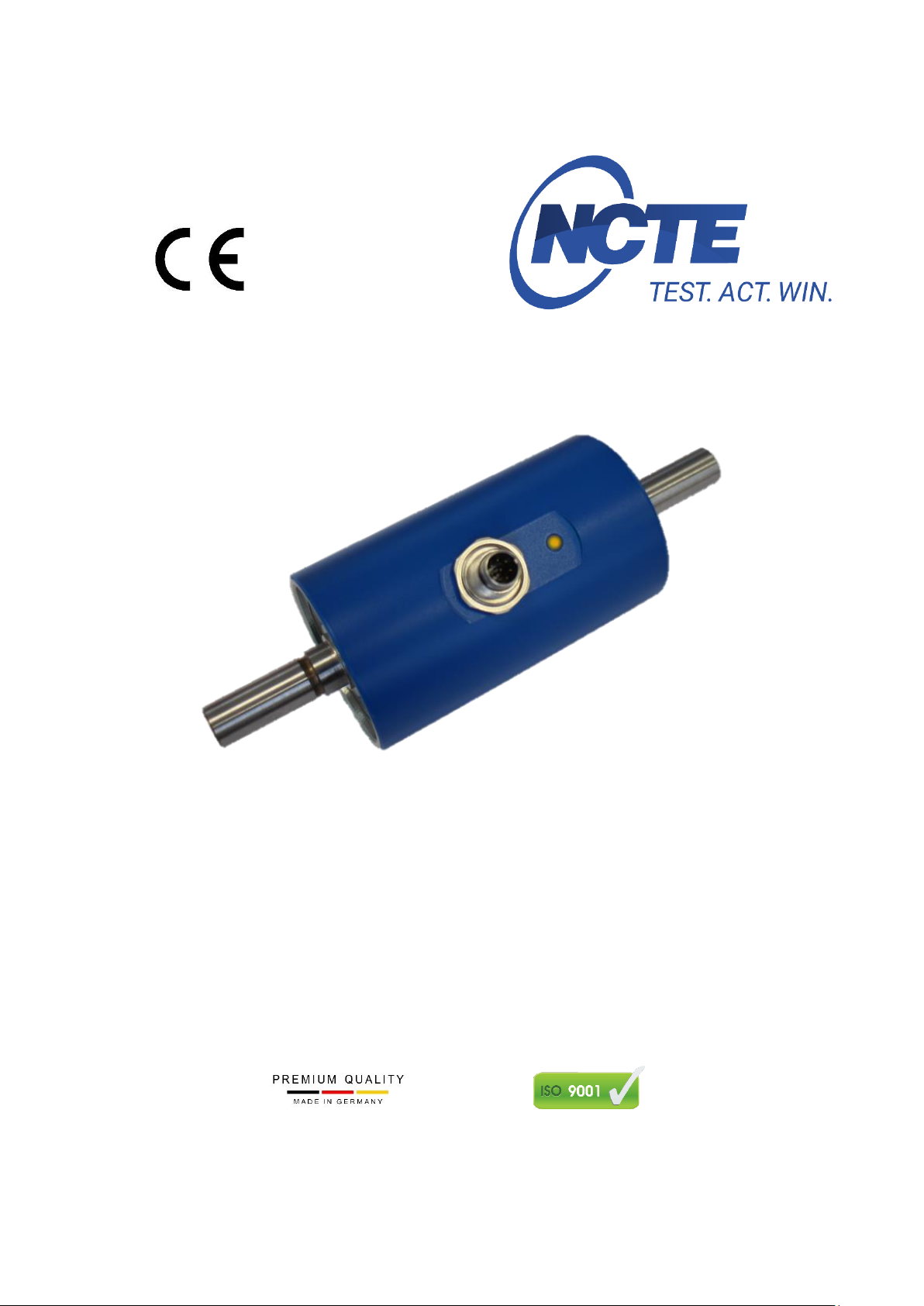

Torque Sensor Series 2300

Copyright ©
NCTE AG® Torque Sensor Series 2300 Instruction Manual and Data Sheet.
This instruction manual is property of NCTE AG®,
D-82041 Oberhaching
Unauthorized duplication, even in part, is not permitted.
State: September 2020

Instruction manual
1 General ...................................................................................................................................................... 5
1.1 Customer service address.................................................................................................................. 5
1.2 Warranty............................................................................................................................................ 5
1.3 Scope of delivery ............................................................................................................................... 5
1.4 Declaration of conformity ................................................................................................................. 6
2 Safety......................................................................................................................................................... 7
2.1 Intended use...................................................................................................................................... 7
2.2 Duration of use.................................................................................................................................. 7
2.3 Structural change............................................................................................................................... 7
2.4 Training of the operating personnel.................................................................................................. 7
2.5 Transport and handling ..................................................................................................................... 7
3 Torque Sensor Series 2300........................................................................................................................ 8
3.1 Short description ............................................................................................................................... 8
3.2 Assembly and disassembly ................................................................................................................ 8
3.3 Interface description ......................................................................................................................... 8
3.4 Starting up ......................................................................................................................................... 8
3.5 Operation during regular mode......................................................................................................... 9
3.6 Irregular operation, actions in case of failures.................................................................................. 9
3.7 Safety instructions............................................................................................................................. 9
3.8 Shaft preservation ............................................................................................................................. 9
3.9 Service, maintenance and repair....................................................................................................... 9
3.10 Disposal.............................................................................................................................................. 9

Data sheet
1 Key Facts.................................................................................................................................................. 10
2 Torque ranges.......................................................................................................................................... 10
3 Load characteristics................................................................................................................................. 10
4 Technical characteristics.......................................................................................................................... 11
5 EMV Emission data.................................................................................................................................. 12

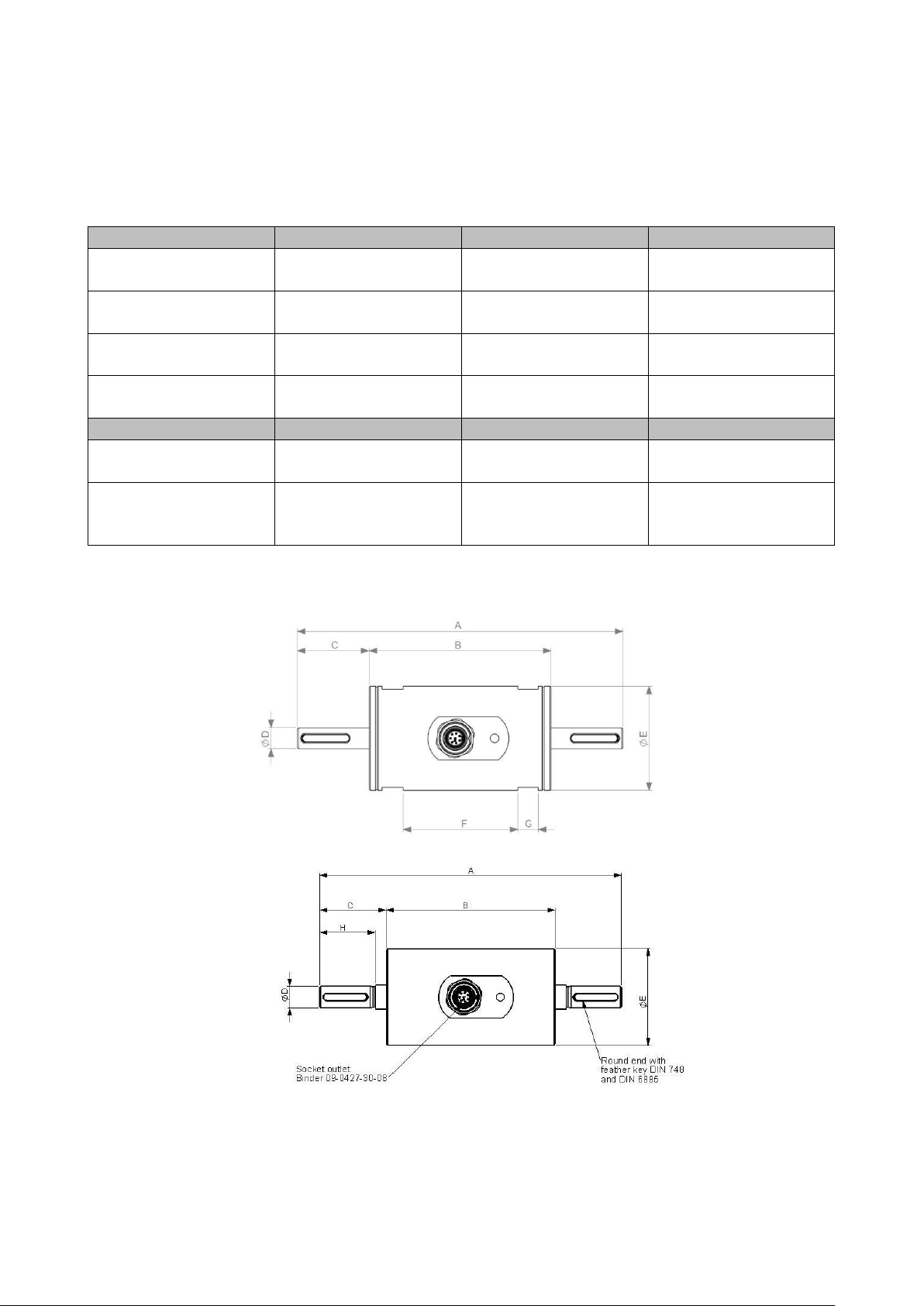

6 Dimensions .............................................................................................................................................. 12
7 Wiring diagram........................................................................................................................................ 13
8 Sensor wiring ........................................................................................................................................... 13
9 Angle sensor ............................................................................................................................................ 14
10 Order options .......................................................................................................................................... 14
11 Accessories .............................................................................................................................................. 15

_______________________________________________________________________________________
_______________________________________________________________________________________
Page 5 of 16
Instruction manual .
1General
Dear customers,
Thank you for your decision to buy our sensor products. You have chosen a high quality and extremely precise
torque measuring system.
This manual contains all the information necessary for you and the installation, operating and maintenance
personnel to use your measuring system under the intended conditions of use. It contains important
information to ensure proper and safe installation and operation.
For these reasons, the Instruction manual must always be available at the place of use of the torque
measuring system and always ready to hand.
We reserve the right to make changes in the course of product improvements. We try to maintain
compatibility with previous versions. All information without guarantee subject to technical changes.
For further questions we are of course also available after the purchase at any time.
Please use our contact address.
1.1 Customer service address
NCTE AG
Raiffeisenalle 3
D-82041 Oberhaching
Phone: [phone]
Email: [email protected]
Web: https://ncte.com/
1.2 Warranty
The warranty period is 12 months from the date of delivery from the factory, provided that the product is
used in accordance with its intended purpose, in compliance with the maintenance and calibration
regulations and the General Terms and Conditions of Business.
You can find these, current instruction manuals and data sheets on: https://ncte.com/serienprodukte/
1.3 Scope of delivery
The torque sensor system consists of a calibrated sensor, signal acquisition / -processing integrated in the
housing, a 5 m long connection cable with plug (Binder plug no. 99-0426-10-08) and keystone (round shaft).
Enclosed you will find the corresponding calibration certificate and the warning notes.

_______________________________________________________________________________________
_______________________________________________________________________________________
Page 6 of 16
1.4 Declaration of conformity
The manufacturer
NCTE AG
Raiffeisenalle 3
D-82041 Oberhaching
hereby declares that the following product
Product designation: Torque sensor series 2300
Trade designation: Series 2300
Model names: 2300-1
2300-2.5
2300-5
2300-10
2300-20
2300-50
2300-100
conforms to the requirements of the EMC Directive 2014/30/EU –including its amendments in force at the
time of this declaration.
The following harmonized standards were applied:
EN 61000-6-2:2019-11
EN 61000-6-4:2020-09
EN 61326-1:2013-07
EN 61326-1:2018-09 (Draft)
The following national laws, standards and specifications were applied:
Electromagnetic compatibility law –EMVG
Place: Oberhaching
Date: September 15th 2020
______________________________ ______________________________
Dr. Jürgen Uebbing, CEO Ms. Verena Graf, COO
______________________________
Mr. Bernhard Mayr, Technical Director

_______________________________________________________________________________________
_______________________________________________________________________________________
Page 7 of 16
2Safety
Please note the enclosed sheet on the warning notes.
2.1 Intended use
The sensors of the series 2300 are designed exclusively for measuring torque and/or speed. The respective
load range can be taken from the data sheet and must not be exceeded.
Proper use also includes compliance with the commissioning, assembly, operating, ambient and maintenance
conditions specified by the manufacturer.
Any use beyond these is considered improper. The manufacturer is not liable for any damage resulting from
such use.
2.2 Duration of use
A factory recalibration should be executed annually. See corresponding label on the sensor.
2.3 Structural change
Unauthorized conversions or changes to the torque measuring system are prohibited for safety reasons and
lead to the immediate expiration of the warranty claims.
2.4 Training of the operating personnel
Assembly, commissioning and maintenance personnel must have read and understood the complete
operating instructions, especially Chapter “2 Safety". The operator is recommended to have this confirmed
in writing.
2.5 Transport and handling
During handling, storage and transport, make sure that the sensor is not exposed to strong magnetic or
electromagnetic fields (e.g. degaussing coils).

_______________________________________________________________________________________
_______________________________________________________________________________________
Page 8 of 16
3Torque Sensor Series 2300
The 2300 series is the most cost-effective entry into professional torque measurement technology.
3.1 Short description
This series is mainly used in automotive test facilities, professional testing construction, climatic exposure
test cabinets (exceeding dew point), process monitoring and medical engineering.
Transmitted torque can be measured statically and dynamically in real time. Each sensor can be configured
individually with a lot of extras, such as angle sensor.
Series 2300 offers a wide range of output signals such as 0-10 V, 4-20 mA, CAN-Bus or USB. USB is offered
including a special NCTE software enables to show data in real time.
The sensor is provided as a complete unit with integrated evaluation electronic, including 5 m cable,
keystones and factory calibration certificate and in case of digital output 2.8 m USB cable is also included.
3.2 Assembly and disassembly
When mounting the sensor, make sure that the measuring shaft is exactly aligned with the connecting shafts.
It must then be possible to push the key adapters of the connection shafts onto the key adapter connections
of the sensor without any effort. No force must be exerted on the housing in the axial direction during
fastening. The sensor can be secured against rotation by means of the flat surface (optional sensor holder).
The cable length must not exceed 5m. Using a cable other than the one supplied by NCTE or an identical cable
with a different cable length may impair the function of the sensor system.
The disassembly may only be done without applying torque to the measuring shaft.
3.3 Interface description
Mechanical interfaces:
For power transmission, adapter connections are provided at both ends of the keystone round shafts.
Electrical interface:
A socket for power supply and signal output is attached to the upper side of the housing.
(Pin assignment see Chapter “7 Wiring diagram")
3.4 Starting up
After mounting the sensor, the following must be observed:
•Switch on power supply and check voltage value.
(Voltage peaks at the sensor must be avoided, devices must be checked accordingly before
connection to the sensor)
•Connect the sensor to the power supply. (using the cable supplied)
•Record the output signal of the sensor with high resistance.
(e.g. A/D converter, oscilloscope, PC measuring card)
•Record output signal in mechanically unloaded state of the sensor.

_______________________________________________________________________________________
_______________________________________________________________________________________
Page 9 of 16
3.5 Operation during regular mode
Optimal measuring values are achieved when the sensor is used while maintaining the specific nominal
torque. If the permissible operating conditions are observed, the sensor operates trouble-free and
maintenance-free.
3.6 Irregular operation, actions in case of failures
If the sensor is mechanically overloaded (e.g. if the maximum permissible longitudinal force or torque limit
is exceeded or if there are strong vibrations), the sensor may be damaged and the signal output may be
distorted. In this case do not open the device. Contact NCTE AG directly.
3.7 Safety instructions
The following safety instructions should be followed for smooth operation:
•Opening the sensor or even single screws is not allowed.
•The shaft retaining rings on the shaft ends must not be loosened.
•The fastening nut of the plug must not be loosened or tightened.
•Only use power supplies safely disconnected from the mains voltage.
•Regarding the electrical and mechanical load of the sensor, the specifications according to the
sensor-specific nameplate and the table in Chapter “4 Technical characteristics” must be observed.
•The sensor is not to be used as support bearing. The existing fastening options serve exclusively to
secure the housing against twisting.
•To protect your system, we recommend increasing the torque over several stages.
3.8 Shaft preservation
The shafts are protected on both sides with a film of anti-corrosion wax. We recommend to leave the
protection permanently. If technically necessary, remove the protective film with spirit/ethanol.
3.9 Service, maintenance and repair
As part of your test and measurement equipment management, we recommend regular inspection of your
test and measurement equipment. Please also observe the relevant standards and guidelines.
Maintenance plan by NCTE AG
Calibration: Every 12 months
Check the wiring, connectors and shaft: Every 12 months
Repairs and recalibrations can only be carried out by NCTE AG personnel.
3.10 Disposal
The device must be returned to NCTE AG, Raiffeisenallee 3, D-82041 Oberhaching for disposal.

Data sheet .
1Key Facts
Technical
Distinctive features
•Nominal torque: up to 100 Nm,
bidirectional
•Speed: ≤ 10000 rpm
•Accuracy: ≤ ±0.5 %
•Operating temperature: -30 °C to +85 °C
•Protection class: IP50
•Output signal options: 0-10V / 4-20 mA /
CAN-Bus / USB
•Cut-off frequency: 1.000 Hz
•Made in Germany
•Short delivery time (< two weeks)
•Excellent price / performance ratio
•Integrated electronic (Plug & Play)
•Completely contactless measuring system
•Delivery including 5 m cable and calibration
certificate
•Suitable accessories (bracket, readout unit)
2Torque ranges
Model line
Series 2300
Nominal torque
bidirectional (+/-)
[Nm]
Limiting torque
unidirectional
[Nm]
Limiting torque
bidirectional (+/-)
[Nm]
RPM
[rpm]
Ø 8 mm
1
1.3
1.3
10000
Ø 9 mm
2.5
3.25
3.25
5
6.5
6.5
10
13
13
20
26
26
Ø 15 mm
50
65
65
100
130
130
Note: In case of overload, the sensor leads to an offset in measurement. In such case, the sensor needs to be
recalibrated at NCTE AG. The sensor should be operated only within the specified nominal torque range.
3Load characteristics
Series 2300
Measuring range
Axial force [N]1
Limit transverse force [N]
Limit bending moment
[Nm]
1
500
8
1
2.5 and 5
1000
20
2.5
10 and 20
1000
30
12.5
50 and 100
1000
100
41.7
Any irregular stress (bending moment, transverse or axial force, exceeding the nominal torque) up to the
specified static load limit is only permissible as long as none of the other stresses can occur. Otherwise the
limit values must be reduced. If 30 % of the limit bending moment and 30 % of the limit transverse force are
present in each case, only 40 % of the axial force is permissible, whereby the nominal torque must not be
exceeded.
1
Specified values only apply to direct axial force on the shaft. If the axial force acts on the circlip, only 50 % of the force is permissible.

4Technical characteristics
2
The accuracy class means that the linearity deviation as well as the circulation modulation, individually, are each less than or equal to the value
specified as the accuracy class. The accuracy class must not be confused with a classification according to DIN 51309 or EA-10/14.
3
%ME: Related to the measuring range.
4
The exact sensor-specific values can be found in the calibration certificate supplied.
5
Wiring connected.
No.
Accuracy class2
0.5
Description
Unit
Value
1
Linearity deviation incl. hysteresis
%ME3
< ±0.5
2
Rotational Signal Uniformity (RSU)
< ±0.5
3
Repeatability
< ±0.05
Output signal general
Unit
Value
4
Cut-off frequency, -3dB point, Bessel
characteristic
Hz
1000
5
Analog signal
V | mA
0 … 10
4 … 20
6
Signal at torque = zero 4
V | mA
5
12
7
Signal at positive nominal torque 5
V | mA
9
20
8
Signal at negative nominal torque5
V | mA
1
4
9
Calibration parameter (normed)5
V/Nm
mA/Nm
4 V/ Measurement
range
8 mA/ Measurement
range
10
Error output
V | mA
0/10
<4/20<
11
Output resistance(Voltage Output)
Ω
< 1
12
Output resistance (Current output)
k Ω
≥250
Effect of temperature
Unit
Value
13
Zero point drift over temperature
%/10 K
< 0.1
14
Signal drift over temperature within
nominal temperature range
%/10 K
< 0.1
Power supply
Unit
Value
15
Supply voltage
VDC
5 … 28
16
Current consumption (max.)
mA
37 … 45
17
Start-up peak
mA
< 100
18
Absolute max. supply voltage
VDC
30
General information
Unit
Value
19
Protection class according to EN 605295
IP
50
20
Reference temperature
°C
+15 … +35
21
Operational temperature range
°C
-30 … +85
22
Storage temperature range
°C
-30 … +85
Nominal torque (bidirectional)
Nm
1
2.5
5
10
20
50
100
23
Weight
g
391
380
390
550
23
Moment of inertia
g mm²
270
546
698
4535

5EMV Emission data
EMV immunity and emitted interference (DIN EN IEC 61000-6-2 / DIN EN IEC 61000-6-4 / DIN EN 61326-1)
Examination
Test specification
Admission
Evaluation criteria
Discharge of static
electricity (ESD)
IEC 61000-4-2
± 4 kV Contact
discharge
B
passed
Electromagnetic HF-
field
IEC 61000-4-3
80 - 1000 MHz; 10 V/m;
80% AM
A
passed
Rapid transients
IEC 61000-4-4
± 1 kV
B
passed
High frequency,
asymmetrical
IEC 61000-4-6
0.15 - 80 MHz; 10V;
80% AM
A
passed
Examination
Test specification
Admission
Evaluation criteria
Interference voltage
0.15 - 30 MHz
CISPR 11:2009 +
A1:2010
Class B
Limit values observed
Radio interference field
strength
30 - 1000 MHz
CISPR 11:2009 +
A1:2010
Class B
Limit values observed
6Dimensions
Series 2300 –1Nm:
Series 2300 –2.5Nm to 100Nm:

Dimensions
Series 2300
Shaft size
Ø 8 mm
Ø 9 mm
Ø 15 mm
Nominal torque [Nm]
1
2.5 - 5 - 10 - 20
50 - 100
A
125
125
139
B
70
70
70
C
27.5
27.5
35
D
8g6
9g6
15g6
E
40
40
50
F
44
-
-
G
8
-
-
H
-
23
-
Dimensions keystone [mm]
Keystone
Round shaft
Width
Depth
Length
Height
Length
Amount
Ø 8 mm
3
1.3
18.5
3
18
1
Ø 9 mm
3
1.8
18.5
3
18
1
Ø 15 mm
5
3
25.5
5
25
1
For high alternating loads, torque transmission by positive and frictional locking via a suitable fit is
recommended.
7Wiring diagram
Connector
Power supply and outputs
Type
Binder Plug Series 712-M9 IP67 (Colour coding acc. to DIN 47100)
Pin
Colour
Description
Value
1
White
USB/CAN-Bus
D-/H
2
Brown
USB/CAN-Bus
D+/L
3
Green
Angle Channel A
0V … 5V
4
Yellow
Angle Channel B
0V … 5V
5
Grey
Analog GND
-
6
Pink
Signal Output analog Voltage/Current
0V … 10V
4mA …20mA
7
Blue
Ground GND
-
8
Red
Ground VCC
5V …28V
8Sensor wiring
Keystone

9Angle sensor
Optical angle sensor with 360 CPR.
Parameter
Min.
Typ.
Max.
Units
High Level Output Voltage
2.4
5
-
V
Low Level Output Voltage
0
-
0.4
V
Parameter
Description
C
One cycle of 360 CPR (degrees)
P
The duration of high state of the output within one cycle.
S
The number of electrical degrees between a transition in Channel A and
the neighbouring transition in Channel B.
Φ
The number of electrical degrees between the centre of high state of
Channel A and the Centre of high state of Channel B.
10 Order options
Series 2300 accuracy 0,5 %
Measuring range [Nm]
1
including 5m cable and calibration certificate
2.5
including 5m cable and calibration certificate
5
including 5m cable and calibration certificate
10
including 5m cable and calibration certificate
20
including 5m cable and calibration certificate
50
including 5m cable and calibration certificate
100
including 5m cable and calibration certificate
Angle sensor
0
Without angle sensor
1
Angle sensor 360 CPR
Analog output
A
Voltage output 0-10V
S
Current output 4-20mA
Digital output (optional)
U
USB incl. NCTE Software and 2.8 m cable
C
CAN-Bus
Shaft ends
0
Round shaft with keystone
Protection class according to EN 60529
0
IP50
2300
10
1
A
U
0
0
Example Sensor configuration

We would be pleased to provide you with further information about series products in a personal
conversation at Phone: [phone] or by e-mail: [email protected]
Please note that for the Sensor 2300 1Nm sensor a separate holder (article no.: 400006-ATS100) is necessary,
because the sensor housing has no fixing points / thread.
11 Accessories
Bracket
1
Series 2300 1 Nm (Art. No. 400006-ATS100)
Readout unit
A
Order number 400010-ATS001
(Art. No.: 400010005)
Sensor input: Voltage output 0-5 V and 0-10 V
1 x angle encoder input, A/B
USB interface, Software Windows included
SD card slot to use for data logging
S
Order number: 400010-ATS002
(Art. No.: 400010006)
Sensor input: current output 4-20 mA
1 x angle encoder input, A/B
USB interface, Software for windows included
SD card slot to use for data logging
Couplings
coupling types
Used for
D2 max.
KB2/15-26-8-D2
2300 –D8
10
KB2/45-41-9-D2
2300 –D9
18
KB2/100-47-9-D2
2300 –D9
25
KB2/100-47-9-D2
2300 –D9
25
KB4K/40-46-9-D2
2300 –D9
25,4
KB4K/80-55-15-D2
2300 –D15
30
KB4K/200-60-15-D2
2300 –D15
35
You can obtain further or additional accessories and special requests in a personal discussion with your
contact person for series products by calling [phone] or by e-mail: [e-mail].

Your experts for magnetostrictive sensors
