NCTE 4000 Series Instruction Manual

Version 20/01 –State September 2020
Instruction manual and data sheet

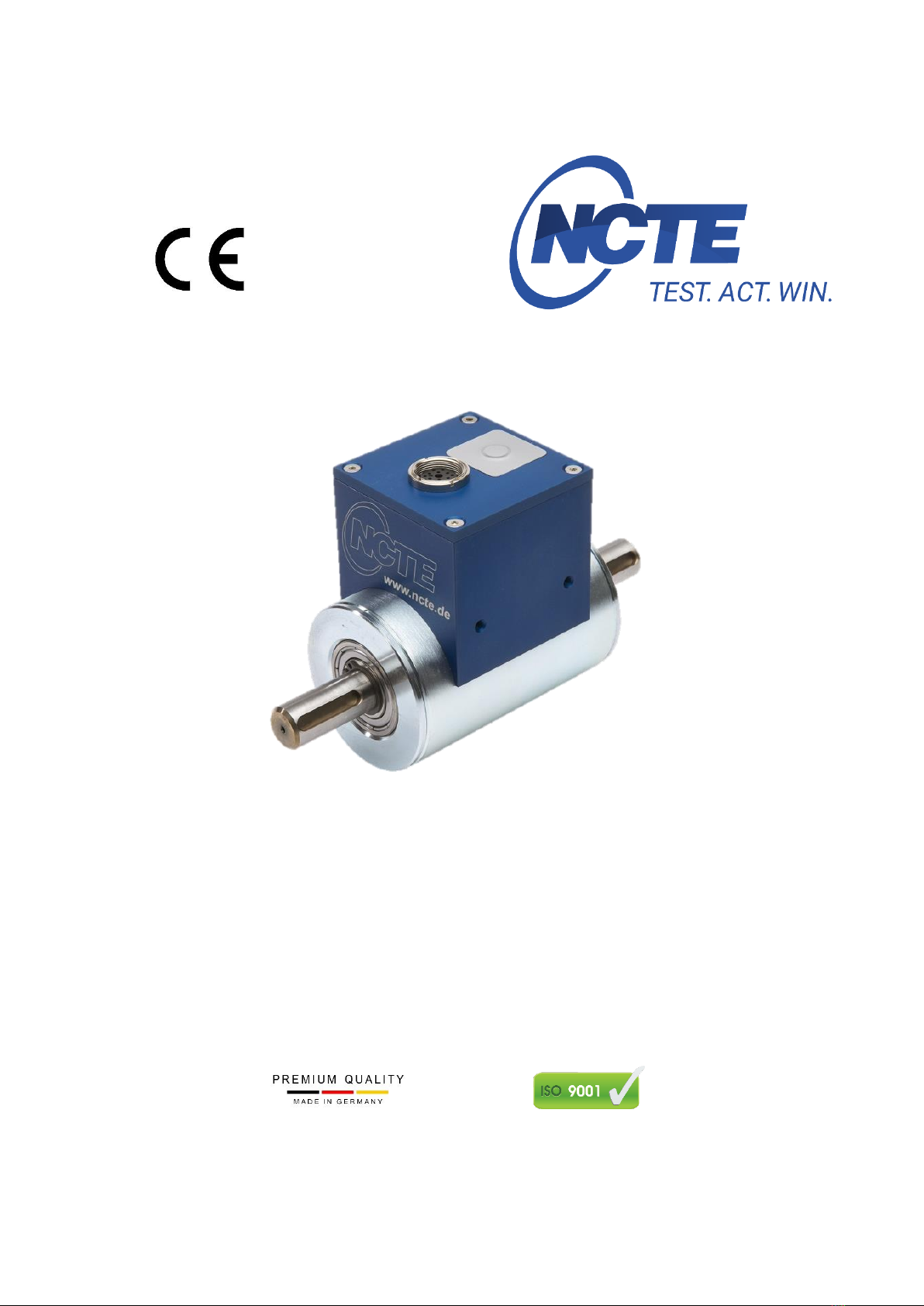

Torque Sensor Series 4000

Copyright ©
NCTE AG® Torque Sensor Series 4000 Instruction Manual and Data Sheet.
This instruction manual is property of NCTE AG®,
D-82041 Oberhaching
Unauthorized duplication, even in part, is not permitted.
State: September 2020

Instruction manual
1 General ...................................................................................................................................................... 5
1.1 Customer service address.................................................................................................................. 5
1.2 Warranty............................................................................................................................................ 5
1.3 Scope of delivery ............................................................................................................................... 5
1.4 Declaration of conformity ................................................................................................................. 6
2 Safety......................................................................................................................................................... 7
2.1 Intended use...................................................................................................................................... 7
2.2 Duration of use.................................................................................................................................. 7
2.3 Structural change............................................................................................................................... 7
2.4 Training of the operating personnel.................................................................................................. 7
2.5 Transport and handling ..................................................................................................................... 7
3 Torque Sensor Series 4000........................................................................................................................ 8
3.1 Short description ............................................................................................................................... 8
3.2 Assembly and disassembly ................................................................................................................ 8
3.3 Interface description ......................................................................................................................... 8
3.4 Starting up ......................................................................................................................................... 8
3.5 Operation during regular mode......................................................................................................... 9
3.6 Irregular operation, actions in case of failures.................................................................................. 9
3.7 Safety instructions............................................................................................................................. 9
3.8 Shaft preservation ............................................................................................................................. 9
3.9 Service, maintenance and repair....................................................................................................... 9
3.10 Disposal.............................................................................................................................................. 9

Datenblatt
1 Key Facts.................................................................................................................................................. 10
2 Torque ranges.......................................................................................................................................... 10
3 Load characteristics................................................................................................................................. 11
4 Technical characteristics.......................................................................................................................... 11
5 EMV Emission data.................................................................................................................................. 12
6 Dimensions .............................................................................................................................................. 13
7 Wiring diagram........................................................................................................................................ 14
8 Sensor wiring ........................................................................................................................................... 14
9 Angle sensor ............................................................................................................................................ 14
10 Order options .......................................................................................................................................... 15
11 Accessories .............................................................................................................................................. 15

_______________________________________________________________________________________
_______________________________________________________________________________________
Page 5 of 16
Instruction manual .
1General
Dear customers,
Thank you for your decision to buy our sensor products. You have chosen a high quality and extremely precise
torque measuring system.
This manual contains all the information necessary for you and the installation, operating and maintenance
personnel to use your measuring system under the intended conditions of use. It contains important
information to ensure proper and safe installation and operation.
For these reasons, the Instruction manual must always be available at the place of use of the torque
measuring system and always ready to hand.
We reserve the right to make changes in the course of product improvements. We try to maintain
compatibility with previous versions. All information without guarantee subject to technical changes.
For further questions we are of course also available after the purchase at any time.
Please use our contact address.
1.1 Customer service address
NCTE AG
Raiffeisenalle 3
D-82041 Oberhaching
Phone: [phone]
Email: [email protected]
Web: https://ncte.com/
1.2 Warranty
The warranty period is 12 months from the date of delivery from the factory, provided that the product is
used in accordance with its intended purpose, in compliance with the maintenance and calibration
regulations and the General Terms and Conditions of Business.
You can find these, current instruction manuals and data sheets on: https://ncte.com/serienprodukte/
1.3 Scope of delivery
The torque sensor system consists of a calibrated sensor, signal acquisition / -processing integrated in the
housing, a 5 m long connection cable with plug (Binder plug no. 99-0426-10-08) and keystone (round shaft).
Enclosed you will find the corresponding calibration certificate and the warning notes.

_______________________________________________________________________________________
_______________________________________________________________________________________
Page 6 of 16
1.4 Declaration of conformity
The manufacturer
NCTE AG
Raiffeisenalle 3
D-82041 Oberhaching
hereby declares that the following product
Product designation: Torque sensor series 4000
Trade designation: Series 4000
Model names: 4000-50 (round shaft)
4000-100
4000-250 (round shaft)
4000-1000 (round shaft)
conforms to the requirements of the EMC Directive 2014/30/EU –including its amendments in force at the
time of this declaration.
The following harmonized standards were applied:
EN 61000-6-2:2019-11
EN 61000-6-4:2020-09
EN 61326-1:2013-07
EN 61326-1:2018-09 (Draft)
The following national laws, standards and specifications were applied:
Electromagnetic compatibility law –EMVG
Place: Oberhaching
Date: September 15th 2020
______________________________ ______________________________
Dr. Jürgen Uebbing, CEO Ms. Verena Graf, COO
______________________________
Mr. Bernhard Mayr, Technical Director

_______________________________________________________________________________________
_______________________________________________________________________________________
Page 7 of 16
2Safety
Please note the enclosed sheet on the warning notes.
2.1 Intended use
The sensors of the Series 4000 are designed exclusively for measuring torque and/or speed. The respective
load range can be taken from the data sheet and must not be exceeded.
Proper use also includes compliance with the commissioning, assembly, operating, ambient and maintenance
conditions specified by the manufacturer.
Any use beyond these is considered improper. The manufacturer is not liable for any damage resulting from
such use.
2.2 Duration of use
A factory recalibration should be executed annually. See corresponding label on the sensor.
2.3 Structural change
Unauthorized conversions or changes to the torque measuring system are prohibited for safety reasons and
lead to the immediate expiration of the warranty claims.
2.4 Training of the operating personnel
Assembly, commissioning and maintenance personnel must have read and understood the complete
operating instructions, especially Chapter “2 Safety". The operator is recommended to have this confirmed
in writing.
2.5 Transport and handling
During handling, storage and transport, make sure that the sensor is not exposed to strong magnetic or
electromagnetic fields (e.g. degaussing coils).

_______________________________________________________________________________________
_______________________________________________________________________________________
Page 8 of 16
3Torque Sensor Series 4000
The Series 4000 serves the segment of very precise and reliable torque measurement technology.
3.1 Short description
The series is mainly used in laboratories, test fields and trials, in medical technology as well as in production
monitoring and quality assurance. With the Series 4000, torques can be measured statically as well as
dynamically in real time. The shaft is available as round and square. Each sensor can be configured
individually, so there is the option of an angle sensor. Analogue outputs 0-10V or 4-20mA are available as
signal outputs for the Series 4000. The sensor is supplied as a ready-to-connect unit including 5m long cable,
keystones (round shaft) and calibration certificate.
3.2 Assembly and disassembly
When mounting the sensor, make sure that the measuring shaft is exactly aligned with the connecting shafts
(corresponding couplings can be found in the accessories). It must then be possible to push the key adapters
/ square ends of the connection shafts onto the key adapter connections / square connections of the sensor
without any effort. No force must be exerted on the housing in the axial direction during fastening. The sensor
can be secured against rotation by means of the flat surface (optional sensor holder). The cable length must
not exceed 5m. Using a cable other than the one supplied by NCTE or an identical cable with a different cable
length may impair the function of the sensor system.
The disassembly may only be done without applying torque to the measuring shaft.
3.3 Interface description
Mechanical interfaces:
For power transmission, adapter connections are provided at both ends of the keystone round shafts.
In respect to square sensors, the shaft has square ends.
Electrical interface:
A socket for power supply and signal output is attached to the upper side of the housing.
(Pin assignment see Chapter “7 Wiring diagram")
3.4 Starting up
After mounting the sensor, the following must be observed:
Switch on power supply and check voltage value.
(Voltage peaks at the sensor must be avoided, devices must be checked accordingly before
connection to the sensor)
Connect the sensor to the power supply. (using the cable supplied)
Record the output signal of the sensor with high resistance. (e.g. A/D converter, oscilloscope,
PC measuring card)
Record output signal in mechanically unloaded state of the sensor.

_______________________________________________________________________________________
_______________________________________________________________________________________
Page 9 of 16
3.5 Operation during regular mode
Optimal measuring values are achieved when the sensor is used while maintaining the specific nominal
torque. If the permissible operating conditions are observed, the sensor operates trouble-free and
maintenance-free.
3.6 Irregular operation, actions in case of failures
If the sensor is mechanically overloaded (e.g. if the maximum permissible longitudinal force or torque limit
is exceeded or if there are strong vibrations), the sensor may be damaged and the signal output may be
distorted. In this case do not open the device. Contact NCTE AG directly.
3.7 Safety instructions
The following safety instructions should be followed for smooth operation:
Opening the sensor or even single screws is not allowed.
The shaft retaining rings on the shaft ends must not be loosened.
The fastening nut of the plug must not be loosened or tightened.
Only use power supplies safely disconnected from the mains voltage.
Regarding the electrical and mechanical load of the sensor, the specifications according to the
sensor-specific nameplate and the table in Chapter “4 Technical characteristics” must be observed.
The sensor is not to be used as support bearing. The existing fastening options serve exclusively to
secure the housing against twisting.
To protect your system, we recommend increasing the torque over several stages.
3.8 Shaft preservation
The shafts are protected on both sides with a film of anti-corrosion wax. We recommend to leave the
protection permanently. If technically necessary, remove the protective film with spirit/ethanol.
3.9 Service, maintenance and repair
As part of your test and measurement equipment management, we recommend regular inspection of your
test and measurement equipment. Please also observe the relevant standards and guidelines.
Maintenance plan by NCTE AG
Calibration: Every 12 months
Check the wiring, connectors and shaft: Every 12 months
Repairs and recalibrations can only be carried out by NCTE AG personnel.
3.10 Disposal
The device must be returned to NCTE AG, Raiffeisenallee 3, D-82041 Oberhaching for disposal.

_______________________________________________________________________________________
_______________________________________________________________________________________
Page 10 of 16
Data sheet .
1Key Facts
Technical
Distinctive features
Nominal torque: up to 1000 Nm,
bidirectional
Speed: ≤ 100000 rpm
Accuracy: ≤ ±0.1 %
Operating temperature: -40 °C to +85 °C
Protection class: IP50
Output signal options: 0-10V / 4-20 mA
Cut-off frequency: 2500 Hz
Made in Germany
Short delivery time (< two weeks)
Excellent price / performance ratio
Integrated electronic (Plug & Play)
Completely contactless measuring system
Delivery including 5 m cable and calibration
certificate
Suitable accessories (readout unit, couplings)
2Torque ranges
Model line
Series 4000
Round shaft
Nominal torque
bidirectional (+/-)
[Nm]
Limiting torque
unidirectional
[Nm]
Limiting torque
bidirectional (+/-)
[Nm]
RPM
[rpm]
Ø 15 mm
50
65
65
10000
100
130
130
Ø 25 mm
250
325
325
8000
Ø 40 mm
1000
1300
1300
5000
Model line
Series 4000
Square shaft
Nominal torque
bidirectional (+/-)
Limiting torque
unidirectional
Limiting torque
bidirectional (+/-)
RPM
[rpm]
⅜ inch
50
50
35
10000
¾ inch
250
250
250
8000
1 inch
1000
1000
670
5000
Note: In case of overload, the sensor leads to a measurement offset. In such case, the sensor needs to be
recalibrated at NCTE AG. The sensor should be operated only within the specified nominal torque range.

_______________________________________________________________________________________
_______________________________________________________________________________________
Page 11 of 16
3Load characteristics
Model line
Series 4000
Measuring range
Axial force [N]1
Limit transverse force [N]
Limit bending moment [Nm]
50 and 100
2300
300
41.7
250
7000
800
176
1000
24000
2000
700
Any irregular stress (bending moment, transverse or axial force, exceeding the nominal torque) up to the
specified static load limit is only permissible as long as none of the other stresses can occur. Otherwise the
limit values must be reduced. If 30 % of the limit bending moment and 30 % of the limit transverse force are
present in each case, only 40 % of the axial force is permissible, whereby the nominal torque must not be
exceeded.
4Technical characteristics
1
Specified values only apply to direct axial force on the shaft. If the axial force acts on the circlip, only 50 % of the force is permissible.
2
The accuracy class means that the linearity deviation as well as the circulation modulation, individually, are each less than or equal to the value
specified as the accuracy class. The accuracy class must not be confused with a classification according to DIN 51309 or EA-10/14.
3
% ME: Related to the measuring range.
4
Zero point can be set to 5 V using a tare button.
5
The exact sensor-specific values can be found in the calibration certificate supplied.
No.
Accuracy class2
0.1
Description
Unit
Value
1
Linearity deviation incl.
hysteresis
%ME3
< ±0.1
2
Rotational Signal Uniformity
(RSU)
< ±0.1
3
Repeatability
< ±0.05
Output signal general
Unit
Value
4
Frequency range, -3dB point,
Bessel characteristics
Hz
2500
5
Analog signal
V | mA
0 … 10
4 … 20
6
Signal at torque = Zero4
V | mA
5
12
7
Signal at positive nominal
torque5
V | mA
9
20
8
Signal at negative nominal
torque5
V | mA
1
4
9
Calibration parameter (normed)5
V/Nm
mA/Nm
4 V/
Measurement range
8 mA/
Measurement range
10
Error output
V | mA
0/10
<4/20<
11
Output resistance (Voltage
output)
Ω
62
12
Output resistance (Current
output)
k Ω
≥600
Effect of temperature
Unit
Value
13
Zero point drift over
temperature
%/10 K
< 0.2

_______________________________________________________________________________________
_______________________________________________________________________________________
Page 12 of 16
5EMV Emission data
EMV immunity and emitted interference (DIN EN IEC 61000-6-2 / DIN EN IEC 61000-6-4 / DIN EN 61326-1)
Examination
Test specification
Admission
Evaluation criteria
Discharge of static
electricity (ESD)
IEC 61000-4-2
± 4 kV Contact
discharge
B
passed
Electromagnetic HF-
field
IEC 61000-4-3
80 - 1000 MHz; 10 V/m;
80% AM
A
passed
Rapid transients
IEC 61000-4-4
± 1 kV
B
passed
High frequency,
asymmetrical
IEC 61000-4-6
0.15 - 80 MHz; 10V;
80% AM
A
passed
Examination
Test specification
Admission
Evaluation criteria
Interference voltage
0.15 - 30 MHz
CISPR 11:2009 +
A1:2010
Class B
Limit values observed
Radio interference field
strength
30 - 1000 MHz
CISPR 11:2009 +
A1:2010
Class B
Limit values observed
6
Wiring connected.
7
Based on the non-contact measurement principle the torque sensor is quite insensitive to bending and shearing forces. Self-aligning couplings are
recommended in case of dynamic loads.
14
Signal drift over temperature
within nominal temperature
range
%/10 K
< 0.5
Power supply
Unit
Value
15
Supply voltage
VDC
11 … 28
16
Current consumption (max.)
mA
150
17
Start-up peak
mA
< 200
18
Absolute max. supply voltage
VDC
30
General information
Unit
Value
19
Protection class according to
EN 605296
IP
50
20
Reference temperature
°C
+15 … +35
21
Operational temperature range
°C
-40 … +85
22
Storage temperature range
°C
-30 … +85
Nominal torque (bi-directional)
Nm
50
100
250
1000
23
Weight
kg
1.4
2.5
6
24
Moment of inertia
kg mm2
5.9
59.5
626
Load limits7
Unit
Value
25
Maximum measurable torque
%
110

_______________________________________________________________________________________
_______________________________________________________________________________________
Page 13 of 16

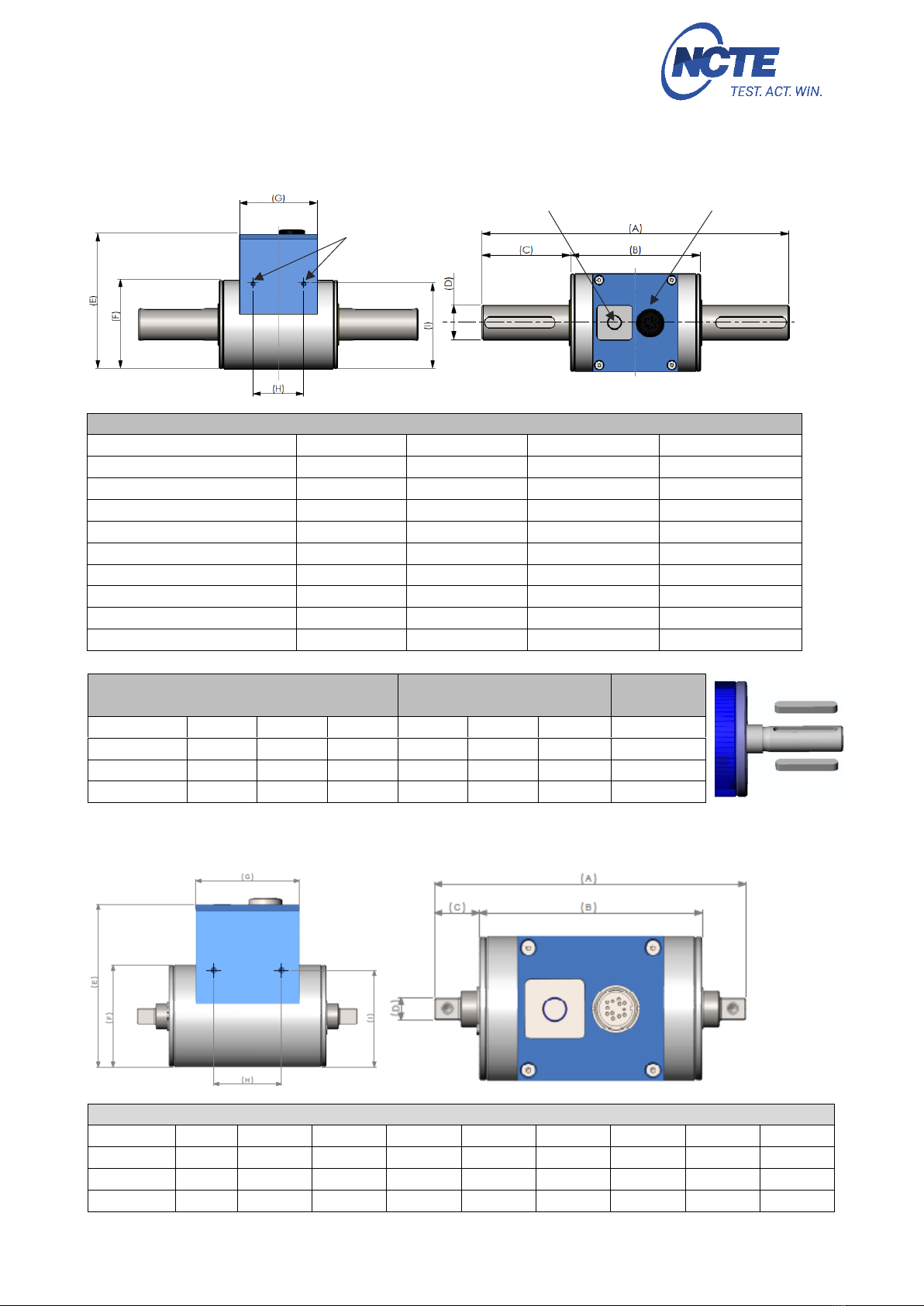

6Dimensions
Dimensions round shaft [mm]
Measuring range
50 Nm
100 Nm
500 Nm
1000 Nm
A
160
160
220
350
B
93
93
101
130
C
33.5
33.5
59.5
110
D
15g6
15g6
25g6
40g6
E
96
96
106
126
F
60
60
70
90
G
61
61
61
80
H
40
40
40
60
I
57
57
67
87
Dimensions keystone [mm]
Keystone DIN 6885
Keystone
position
Shaft
Width
Depth
Length
Height
Length
Amount
Distance L
Ø 15 mm
5N9
3
25.5
5
25
1
130.5
Ø 25 mm
8N9
4
50.5
7
50
2
165.5
Ø 40 mm
12N9
5
90.5
8
90
2
252.0
For high alternating loads, torque transmission by positive and frictional locking via a suitable fit or coupling
is recommended.
Dimensions square shaft [mm]
A
B
C
D
E
F
G
H
I
50 Nm
130
93
18.5
3/8 inch
96
60
61
40
57
250 Nm
180
101
39.5
3/4 inch
106
70
61
40
67
1000 Nm
230
130
50
1 inch
126
90
80
60
87
Keystone
2 x M4 x 8
Only for preventing a
rotation of the housing
Illuminated
Tare-button
Plug:
Binder Series 423/723/425

_______________________________________________________________________________________
_______________________________________________________________________________________
Page 14 of 16
7Wiring diagram
Connector
Power supply and
outputs
Type
Binder Plug Series 423/723/425 IP67
(Colour coding acc. to DIN 47100)
Pin
Colour
Description
Value
A
White
Supply voltage VCC
11V … 28V
B
Brown
Ground GND
-
C
Green
Analog Out
0V … 10V
D
Yellow
Analog GND
-
E
Grey
Analog Out
4mA … 20mA
F
Pink
Angle Ch A
0V … 5V
G
Blue
Angle Ch I
0V … 5V
H
Red
Angle Ch B
0V … 5V
J
Black
-
-
K
Purple
For internal use only
RX (TTL Pegel)
L
Grey-Pink
For internal use only
RX (TTL Pegel)
M
Red-Blue
Digital GND
-
8Sensor wiring
9Angle sensor
Parameter
Min.
Typ.
Max.
Einheit
High Level Output
Voltage
2.4
5
-
V
Low Level Output
Voltage
0
-
0.4
V
Parameter
Description
C
One cycle of 360 CPR (degrees)
P
The duration of high state of the
output within one cycle.
S
The number of electrical degrees
between a transition in Channel A and
the neighbouring transition in Channel
B.
Φ
The number of electrical degrees
between the centre of high state of
Channel A and the Centre of high state
of Channel B.

_______________________________________________________________________________________
_______________________________________________________________________________________
Page 15 of 16
10 Order options
Series 3000 accuracy 0.2 %
Measuring range [Nm]
50
including 5m cable and calibration certificate
100
including 5m cable and calibration certificate
250
including 5m cable and calibration certificate
1000
including 5m cable and calibration certificate
Angle sensor
0
Without angle sensor
1
Angle sensor 360 CPR
Analog output
A
Voltage output 0-10V
S
Current output 4-20mA
Shaft ends
0
Round shaft with keystone
1
Square shaft (available with 50/250/1000 Nm)
Protection class according to EN 60529
0
IP50
3000
100
1
A
0
0
Example Sensor configuration
We would be pleased to provide you with further information about serial products in a personal contact
under
Phone: [phone] or by e-mail: [email protected].
11 Accessories
Readout unit
A
Order number 400010-ATS001
(Art. No.: 400010005)
Sensor input: Voltage output 0-5 V and 0-10 V
1 x angle encoder input, A/B
USB interface, Software Windows included
SD card slot to use for data logging
B
Order number: 400010-ATS002
(Art. No.: 400010006)
Sensor input: current output 4-20 mA
1 x angle encoder input, A/B
USB interface, Software for windows included
SD card slot to use for data logging
Couplings
Coupling Type
Used for
D2 max.
KB4C/60-67-15-D2
3000/4000 –D 15
32
KB4C/150-78-15-D2
3000/4000 –D15
42
KB4C/300-94-25-D2
3000/4000 –D25
60
KB4C/500-100-25-D2
3000/4000 –D25
70
KB4/1400-168-40-D2
3000/4000 –D40
80
KB4C/300-94-19-D2
3000/4000 –D40
85
You can obtain further or additional accessories and special requests in a personal discussion with your
contact person for series products by calling [phone] or by e-mail: [email protected]e.

Your experts for magnetostrictive sensors
