NEC RWC-2117 User manual

ÇëÔÚʹÓÃÇ°×ÐϸÔĶÁ±¾Ê¹Óð²×°ËµÃ÷Êé,²¢Í×ÉƱ£¹Ü.
¿ÆÁúÅÆ´°Ê½·¿¼ä¿Õµ÷Æ÷¿ÆÁúÅÆ´°Ê½·¿¼ä¿Õµ÷Æ÷
SWINGSWING
OFFON/
MODE
TIMER
FAN
SPEED
F
HR
Window (Room) Air Conditioner
User Manual
Thank you very much for purchasing Air Conditioner.
Before please read this User
carefully, and keep it for future reference.
installing and using this appliance,
Manual
RWC-2117
RWC-2517

1
2
4
CONTENTS

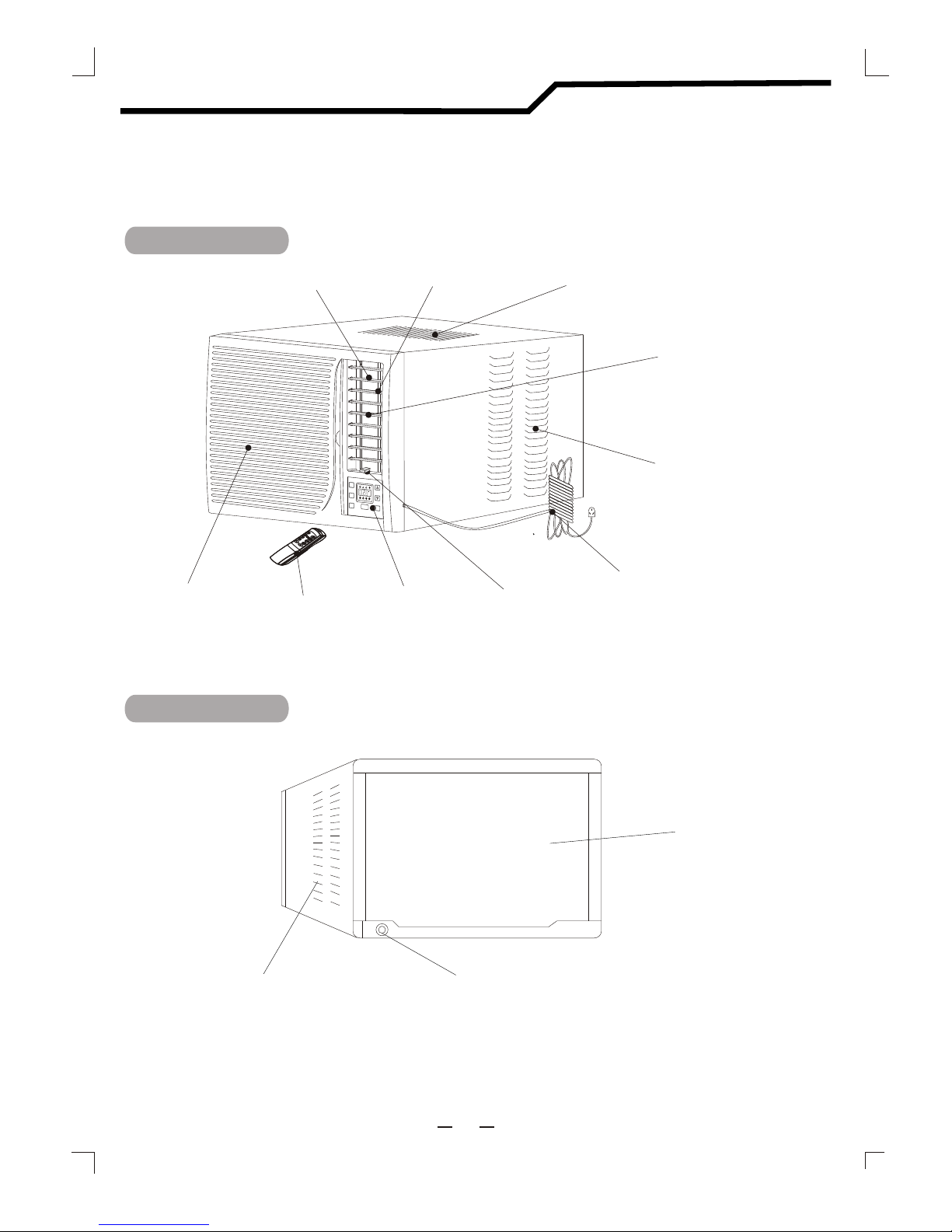

Parts Name
Operating Instructions
Care and Maintenance
Caution for Operation and Trouble Shooting
7
8
Installation Instructions 9

Outside Air Outlet
Drainage Tip
Back View
2
Exterior Air Inlet
Fig. 1
Fig. 2
Front View
Note:
The figures in this manual are based on the external view of a standard model.
Consequently, the shape may differ from that of the air conditioner you have selected.
ÅÅË®×ì
Air Outlet
Control Panel
Power Cord
Interior
Air Inlet
Grille
Horizontal Air Vane
Vertical Air Vane
Fresh air lever
Exterior Air Inlet
Exterior Air Inlet
Remote Controller
SWING SWING
OFF
ON/
MODE
TIMER
FAN
SPEED
FF
HRHR
Parts Name

1. Control Panel
2. Vent Lever
3
Fresh air lever Shut the fresh air door to
achieve the best cooling
effect and open it to
introduce fresh air into
the room if the air is foul
inside.
Fresh air
vent closes
Fresh air
vent opens
Electrical Models:
SWINGSWING
OFFON/
MODE
TIMER
FAN
SPEED
C
HR
Air Filter handle
SWING SWING
OFF
ON/
MODE
TIMER
FAN
SPEED
FF
HRHR
Parts Name

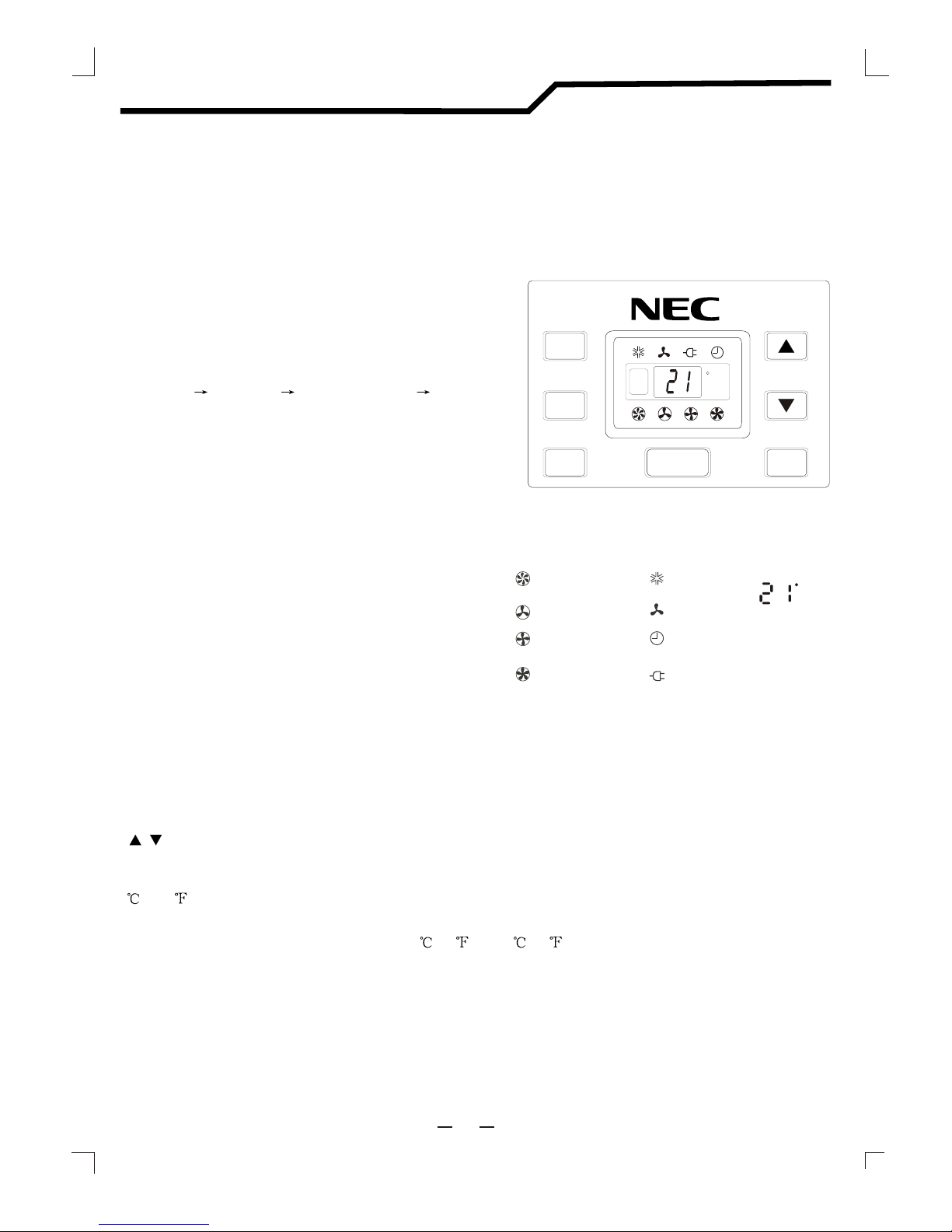

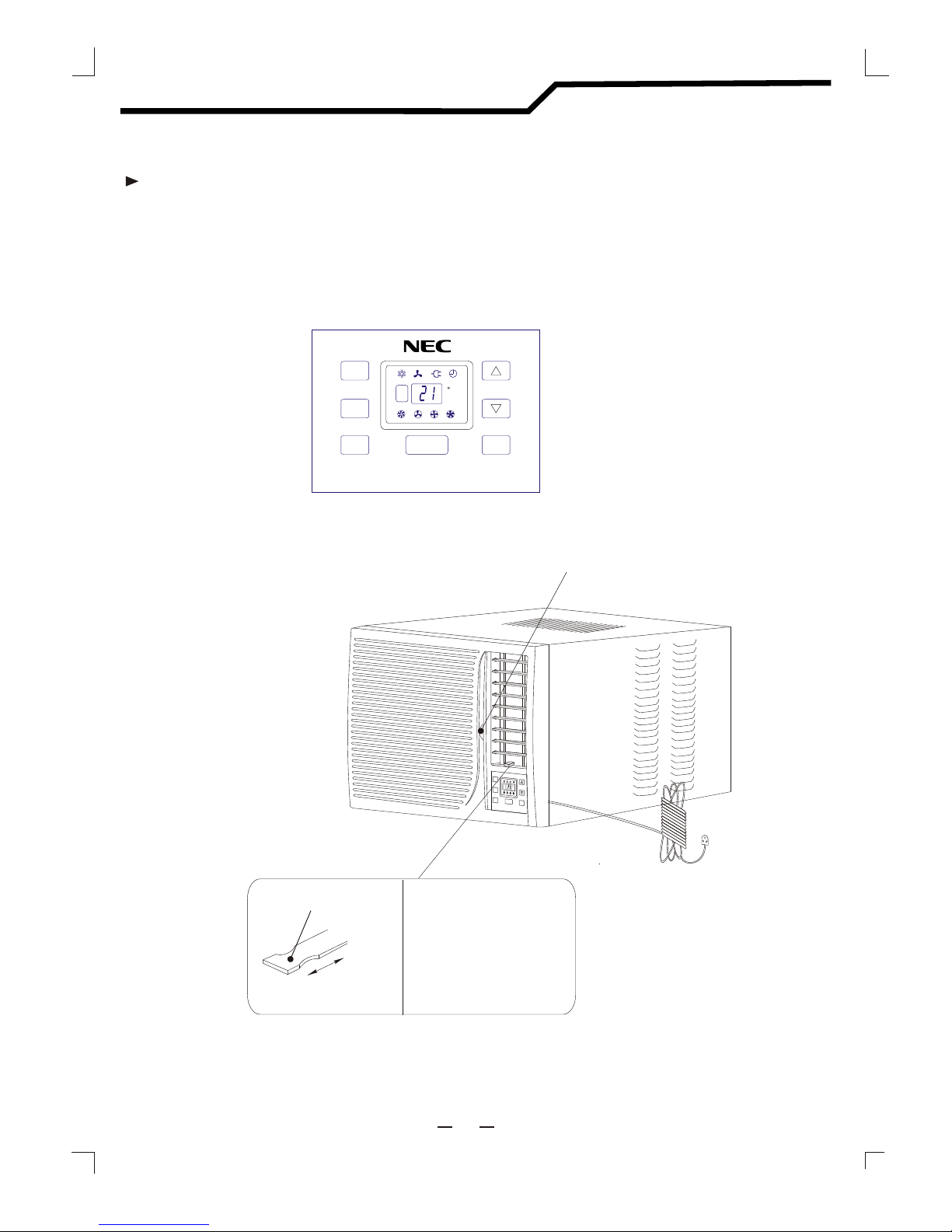

Control Panel and Vent Lever

4
MODE Button
Each time MODE button is pressed, the operation
mode is changed in sequence:
COOLING FAN ONLY ENERGY SAVING COOLING
NOTE: After setting the mode, allow 3
minutes before switching to another mode.
NOTE: Temperature setting range is from 19 (66 ) to 31 (88 ).
FAN SPEED Button
Used to select fan speed in sequence auto, low,
medium and high.
SWING Button
Used to select start or stop vertical air vanes swinging.
TIMER Button
Used to set or cancel timer operation.
When the unit is in operation, you can set OFF TIMER.
When the unit is off, you can set ON TIMER.
Timer setting range is 0 to 24 hours.
If the OFF TIMER is set, the timer LED displays
the remaining time to turn off the unit for only
12 seconds, then LED shifts to display set temperature.
If the ON TIMER is set, the timer LED displays
the remaining time to turn on the unit.
If you want to cancel ON TIMER, press TIMER button again.
Used to set room temperature in COOLING mode or used to set time in TIMER mode.
If the two keys are pressed at the same time,the temperature LED display will alternate between
and .
ON/OFF Button
The air conditioner will be started when it is energized
or will be stopped when it is in operation, if you press
this button.
You can easily operate this air conditioner by pressing
relevant button on the control panel as well as the
remote controller.
Indication symbols of LED on control panel:
High fan speed
Medium fan speed
Low fan speed
Auto fan speed Cooling
Fan only Display set temp
Display set timer
Timer
Above LED lights on when the relevant mode is in used.
Energy-saving
Button
Control Panel
SWING SWING
OFFON/
MODE
TIMER
FAN
SPEED
F
HR
CC
C
HR
Operating Instructions

Power
Mode
+
_
Temp/Time
Auto
Power Saver
Mid
High Low
Timer
Fan Speed
The remote controller transmits signals to the system.
5
1
1
2
3
8
2
3
5
6
8
Buttoms
POWER Buttom
MODE Buttom
TIMER Buttom
The appliance will be started when it is
energized or will be stopped when it is
in operation, if you press this button.
Used to select the operation mode.
Used to set or cancel timer operation..
Remote Controller
4HIGH Buttom
Used to select the mode.high fan speed
5MID Buttom
Used to select the Mid mode.fan speed
6LOW Buttom
Used to select the Low mode.fan speed
7AUTO Buttom
Used to select the Auto mode.fan speed
9POWER SAVEButtom
Used to select the mode.Energy-saving
Changing modes during operation, sometimes the unit does not response at once. Wait 3 minutes.
Wait 3 minutes before restarting the appliance.
4
7
9
Used to set room temperature in COOLING
mode or used to set time in TI MER mode.
Used to select start or stop vertical air vanes swinging.
10
Swing
10
SWING Buttom
Operating Instructions

Signal receptor
Remote Control
How to Insert the Batteries
Remove the battery cover according to the arrow direction.
Insert new batteries making sure that the (+) and (-) of battery
are matched correctly.
Reattach the cover by sliding it back into position.
Note:
Use 2 LR6 AA(1.5volt) batteries. Do not use rechargeable batteries. Re-
place batteries with new ones of the same type when the display beco-
mes dim.
If the replacement is done within 1 minute, the remote control will keep
original presetting.
How to Use
To operate the room air conditioner , aim the remote control
to the signal receptor.
The remote control will operate the air conditioner at a dis-
tance of up to 23 feet when pointing at signal receptor of indoor
unit.
SWING SWING
OFF
ON/
MODE
TIMER
FAN
SPEED
FF
HRHR
Operating Instructions
6

When servicing the air conditioner, be sure to
turn the mode switch to the "OFF" position and
disconnect the power cord from the electrical outlet.
1. DO NOT use gasoline, benzine, thinner or
other chemicals on the air conditioner as these
substances may cause damage to the paint finish
and deformation of plastic parts.
2. Never attempt to pour water directly to the
front of the unit as this will cause deterioration of
the electrical insulation.
Cleaning the Air Filter
If the air filter becomes clogged with dust, air-flow
is obstructed and reduces efficiency. The air filter
should be cleaned once a month. More frequent
cleaning may be necessary depending on outdoor
and indoor air quality.
Air Filter Removal:
The air filter on the above model is located
behind the air intake front grill.
To remove the air filter, grasp the filter handle(tab)
located on the right (center) side of the air inlet grille
and slide the air filter to the right.
To reinstall the air filter, reverse the above
procedure.
DO NOT forget to install the air filter. If the air
conditioner is left to operate without the air filter,
dust is not removed from the room and may
cause your air conditioner to fail.
When the air filter inlet grill and cabinet are dirty,
wipe with lukewarm water (below 40 C). Use of
mild detergent is recommended.
Cleaning of Air Filter
1. Remove dust clogged in the filter by
tapping it or vacuum clean it.
2. Wash the filter well with lukewarm water below
40 C while rubbing lightly: To get better
results, wash it with soapy water or a neutral
cleaning agent.
3. Rinse the filter well using clean water then
dry completely.
End-of-Season Care
1. Operate the fan alone for half a day to dry out
the inside of the unit.
2. Turn off power and remove plug from wall socket.
3. Clean filter.
4. Store in a dry location.
CAUTION
! !
Care and Maintenance
7

6. The air conditioner is safe when ambient static pressure is 0.8~1.05 standard atmosphere pressure.
5. When the room relative humidity is over 80% and the doors or windows are open, dew will forms
around the indoor air outlet during a long time COOLING operation.
4. Temperature range
The air conditioner will not operate in following operation mode and ambient temperature:
Power supply voltage should be at the range of 10% rated voltage, otherwise the appliance will not
operate normally or the fuse be blown.
3. Power supply
2. A specified fuses should be employed in the power source circuit for fear the appliance be damaged.
1. Wait for three minutes before restarting the air conditioner.
COOLING Outdoor temperature is over 43
Indoor temperature is below 18
Before asking for service, please check the appliance according to the following items.
The appliance can not be operate
Check if the power supply is connected correctly.
Check if the appliance restarts less than three minutes after it was switched off, in this case the
overload protector of the compressor may trigger.
Check if the power supply is wrong or the voltage is too low or too high.
The appliance performs worse cooling capacity
Check if any window or door is open. Close all of the windows and doors to achieve the best
cooling effect.
Check if sunlight is penetrating into the room directly through an open curtain.
Check if the appropriate temperature is set. Set the temperature according to the room temperature.
Check if the air filter is clogged, this will cause frosting up the evaporator, first, clean the air filter,
and then allow airflow in until the frost melted.
Check if the fuse is blown or the breaker trips.
Caution for OperationCaution for Operation
Trouble ShootingTrouble Shooting
Caution for Operation and Trouble Shooting
8

1.Accessories
20 10
5
32
40
480
15
350
50
530
430
1. buffer 2.leveling pad 3. seal foam pad 4. decorating strip
Note: All mentioned accessories are prepared or purchased by user.
90
390
490
490
20
390
90x20x490
530
90
180
A
A A
A
85
10~ 15
~
2. Installation Requirements
Leave a space more than 100cm at the rear of the appliance and ensure the outdoor air intake not
be blocked.
A wooden frame as shown in fig.1 is advisable if the appliance is installed through a window. The
installation bracket as shown in fig.2 should not be welded with the window sash.
The metallic installation bracket should be constructed as fig.4.
All the installation structure should de strong enough.
wooden strip
Fig.1
Space for outdoor
air intake Fig.3
Fig.2 Fig.4
thickness of wall
The square hole should be smooth enough if the appliance is installed through a wall. A space
as shown in fig.3 for outdoor air intake should be prepared if the wall is too thick.
Installation Instructions
9

Version NO. 819043160-01
NEC Australia Pty. Ltd
ABN 86 001 217 527
Home Electronics Group
NEC Service Centres
NEW South Wales
Sydney 184 Milperra Rd, Revesby 2212 (02) 9780 8688
Newcastle 120 Parry Street, Newcastle 2302 (02) 4926 2466
Victoria
Melborne 480 Princes Highway, Noble Park 3174 (03) 9554 6245
Queensland
Brisbane 116 Ipswich Rd, Woollongabba 4102 (07) 3361 5858
Southport Shop 1, 48 Ferry Rd, Southport 4215 (07) 5591 3670
South Australia
Adelaide 84A Richmond Rd, Keswick, 5053 (08) 8375 5710
Western Australia
Perth 45 Sarich Courl, Osborne Park 6017 (08) 9445 5901
For Service in outer areas, please contact your retailer for the address
of the nearest Authorized NEC Service Centre.
NEC Australia Pty. Ltd.
244 Beecroft Road EPPING 2121
Tel. 131- 632 Fax. [phone]
