SAFETY WARNINGS
SAFETY WARNINGS FOR USE
NEEDO RADIATORS
INSTALLATION
MANUAL USE
DIAGNOSTICS
CLEANING THE HORIZONTAL MODEL
CLEANING THE VERTICAL MODEL
USEFUL INFORMATION
ETS PARAMETERS DESCRIPTION
TECHNICAL DATA
CERTIFICATIONS
PURPOSE OF THE MANUAL AND GENERAL SAFETY
WARNINGS
The information in this product manual is essential for the correct installation, use and
maintenance of the Needo heating system and is up-to-date on the date shown in the actual
manual.
Any updates or modications can be found on the www.needo.eu website
Installation must only be carried out by qualied personnel, with the necessary skills for
the operation, with suitable tools and in full observance of all the laws, standards and
precautions on safety, as well as the specications and indications in this manual.
Failure to observe the above mentioned warnings and the specications in this manual may
lead to malfunctions, faults, breakages etc. and the risk of damage to objects and/or people,
as well as cancellation of the guarantee from Eltra Heizelemente GmbH (hereinafter referred
to as the Manufacturer). In some Countries the product may be type-approved for operation
with original product parts; therefore, the Manufacturer recommends the use of their original
spare parts or spare parts that have technical and functional characteristics that are exactly
the same.
The information has been provided by the makers in their own language (Italian) to give
users the necessary indications for using the radiator autonomously, conveniently and
without risk.
GENERAL SAFETY WARNINGS
Most accidents are caused by failure to observe basic safety regulations and precautions.
The Manufacturer cannot foresee all the possible circumstances that can lead to potential
risks. The warnings provided in this guide, in the manual and on the product are not,
therefore, all-inclusive. If procedures, equipment or methods are adopted during the various
operations that are not specically recommended by the Manufacturer, you must make sure
that the work is carried out while fully protecting the safety of those performing the task and
of others.
READ BEFORE USE
Before using the product, we recommend carefully reading and understanding the following
information. Needo products have been designed for you and your needs, but you must
remember that they have not been created for uses other than those presented in this
manual. We have compiled a list of the main safety warnings to be taken into consideration
when using the product. We invite you to pay particular attention to the following indications.
Do not touch the radiator with wet hands
and feet and do not install outdoors
The product is type-tested to resist water splashes:
however, it is always better to avoid coming into contact
with it with wet hands and feet.
The product has been designed to be used exclusively
indoors.
Do not place damp or wet clothing on it,
do not wet the appliance
Damp or wet clothing must not be placed on the
radiator.
The radiator must not be wet in an attempt to clean it.
This symbol shown on the radiator means: do not
cover the radiator.
Keep away from children
This device is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience or knowledge,
unless they benet by a person responsible for their
safety, monitoring or instruction on the use of the
appliance.
You should monitor children to ensure that they do not
play with the appliance.
Do not hang from it or place heavy
objects on it
The horizontal version of the product can be tilted.
The radiator is not designed to support the weight of
a person and /or objects, whether it is open or closed.
Therefore, you must not place heavy objects on it, sit
on it or hang from it.
The same indications also apply to the vertical version.
Do not alter or tamper with the product
The product has been designed to be repaired by
authorised personnel only. Do not carry out any
maintenance and do not replace damaged parts. Do
not put stickers on the radiator. Do not pierce or cut the
radiator.
Further safety warnings
We recommend that you carefully read the safety
warnings in the Installation Guide, provided in
the packaging with this manual, to help you fully
understand the product.
The Manufacturer accepts no responsibility for
any improper use, other than the uses indicated,
adopted by the purchaser. The Manufacturer will
respond to any queries that the user may have
about the appliance.
T, M, R LINES
PRODUCT PRESENTATION
The NEEDO design electrical radiator was designed to heat homes and ofces and is
regulated and controlled through the KNX communication system.
The innovative NEEDO technology and the precise heating management control make it
possible to save on the daily heating expenditure simply and accurately.
INSTALLATION GUIDE
Installation of the product must only be performed by qualied and skilled personnel. The
correct installation procedures are provided in the Installation Guide that is attached to this
manual. Once installation is complete it must be kept by the purchaser, together with this
manual.
If a copy of the Installation Guide is not included in the package, contact Customer Services
immediately, before carrying out any kind of operation.
Manual radiator control
The radiator can be controlled in manual mode thanks
to a button placed on the powerbox at the bottom of
the radiator itself (Fig. 01). Press this button to choose
one of the three operating modes of the radiator. The
selection is cyclical:
OFF -> Latest operating mode selected -> Boost ->
OFF -> …
MODE LED STATUS DEVICE STATUS
COMFORT RED, SOLID
(temperature below
the set-point)
GREEN, SOLID
(temperature above
the set-point)
Normal operating mode,
set-point set and selected by the
user
BOOST RED, BLINKING SLOWLY The radiator operates at full power
(100%) for two
hours, then goes into the latest
operating
mode selected.
STAND BY OFF The devise is turned off.
Fig. 01

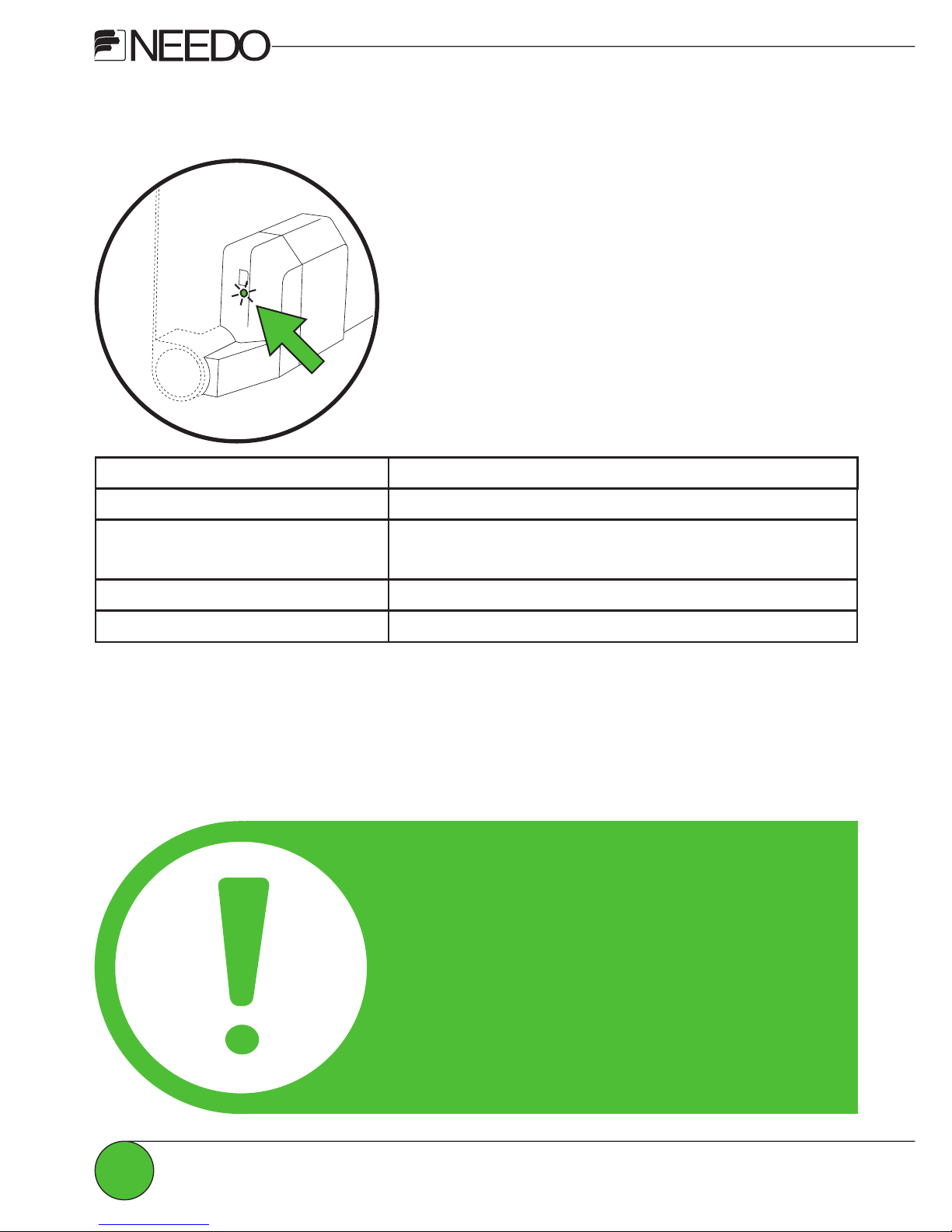

The led status (Fig. 02) makes it possible to understand
what is happening with your radiator. Below is a brief
guide to the various states and the operations to be
implemented, if necessary.
LED (Fig. 02) STATUS
Red the temperature in the room is below the set-point
Green the temperature in the room is equal to or above the
set-point
Off OFF
Red, blinking slowly boost
In the event of a rapidly ashing red LED contact
Customer Service
Fig. 02
ANTI-DUST SYSTEM
The advantages of Needo products
Needo products have been designed with you in
mind. The possibility of tilting the radiator (Fig. 03), in
the case of the horizontal model, allows you to easily
clean all the parts of the radiator body, keeping your
home healthy. We recommend that you follow these
indications and procedures very carefully.
How to clean
Before starting to clean the product make sure that the
radiator is in stand-by mode and is no longer hot.
Then proceed to unhook the radiator by following the
indications in Fig. 04. Clean with a clean dry cloth or
with special, non-aggressive products.
Once cleaning is complete, close the radiator again,
making sure that the mechanism locks properly.
Fig. 03
Fig. 04
How to clean
Before starting to clean the product make sure that the
radiator is in stand-by mode and is no longer hot.
Clean with a clean dry cloth or with special, non-
aggressive products.
What not to do (for both models)
Do not clean the radiator when it is switched on.
Do not use aggressive products to clean the radiator.
Do not clean the radiator with water or wet cloths.
Do not scratch the surface of the radiator or use
abrasive products.
Fig. 05
• The radiator does not heat up
Verify that the radiator is receiving the correct power supply and that it is not set to stand-
by mode. If the problem persists, contact the Technical Assistance Service, report any
diagnostic messages that appear on the My NEEDO.
• Uninstalling radiators
The product must only be uninstalled by qualied engineers, in compliance with current
legislation. Before starting to uninstall, switch off at the main switch. In the case of models
that are heavier than 25 kg, the operation must be carried out by two engineers.
GUARANTEE
The product has a ve year guarantee for the body and two years for
the powerbox from the date of purchase. This guarantee covers any
manufacturing faults. In the event of modications, the spare parts are
guaranteed for a year. The guarantee is only valid if accompanied by a
dated purchase receipt.
CONTACTS
The Needo Assistance Centre can be contacted as follows:
www.needo.eu
DISPOSAL
At the end of its lifetime the product must be disposed of in compliance
with the current directives of the Country where it is being used. The
product has electrical and electronic components that must be disposed
of in compliance with the European directives on WEEE.
In this Section the KNX Communication Objects available for the NEEDO radiator are
described in detail.
This “one bit” communication object enables the radiator to be switched between OFF and
ON. It can also be used to unload the radiator from the supply network.
This communication object provides the information about the ON-OFF status of the
radiator.
TThis communication object allows the radiator to work with predened values of
temperature, differentiating the operative modes. The operative modes dened are listed as
follows:
0) Standard
1) Comfort (congurable, default 21°C)
2) Standby (congurable as offset, default -2K)
3) Night (congurable as offset, default -3K)
4) Antifreeze (congurable, default 7°C)
5) OFF
When the set point is driven by an external thermostat, the radiator enters in the Standard
operative mode. The chosen set point is then memorized and associated to this operative
mode.
Comfort value (in °C)
Standby offset value (in °C)
Night offset value (in °C)
Antifreeze value (in °C)
Default 21, min=15, max=25
Default= -2, min=-10,max=-0.5
Default= -3, min=-10, max=-2
Default= 7, min=5, max=12
This data point provides the information about the radiator status in terms of Operation
Modes. It returns the operation mode as integer from 0 to 5, according to what described for
the communication object 3).
This communication object allows the user to change the inner set point variable without
using a KNX thermostat. This communication object is 1 bit. The transmitted value increases
or decreases the setpoint with a default step of +/-0.5°C. In particular, if 0 is sent, then the
setpoint is decremented by a value of -0.5°C, and if 1 is sent the setpoint is incremented by
a value of 0.5 °C. The step size can be customized by using the associated parameter.
Setpoint modication step range (°C) Default=0.5, min=0, max=3
This communication object is the set point generally given by a KNX thermostat object, or
any other device that can transmit a temperature data information. It is expressed in Celsius
degree [°C]. This communication object modies the set point around which the radiator
controls the environment temperature.
This communication object returns the current set point set to the radiator. It is expressed in
Celsius degrees [°C].
It also provides a Send setpoint parameter that transmits the communication object value,
according one of the following criteria: on request, on change, cyclically.
Send Setpoint On change, On request, Cyclically
(default=0, min=0, max=240)
This communication object provides an interface with an external temperature sensor (e.g. a
thermostat, a temperature sensor,etc.). The internal regulation algorithm of the radiator will
control the environment temperature according to the value passed by this communication
object (as reference), and the setpoint. When this group object is activated, the reference
temperature variable sensed by the embedded radiator NTC, (that is commonly used by
the system control of the radiator, and is provided by the communication object nr. 13), is
ignored by the control algorithm. If for any reason the radiator stops receiving information
about the external sensor via the communication object 8, the control system will keep on
working basing its reference value on its embedded NTC sensor.
This communication object provides an interface with an external presence detector (or
presence sensor). The logic adopted by this eld is the following:
a) 1 Comfort
b) 0 Standby
This communication object provides an interface with an external window sensor. The logic
adopted by this eld is the following:
a) 1 Antifreeze
b) 0 Latest operation mode
This communication object noties any faulty relative to the embedded temperature sensor.
This communication object provides a notication when the load (heating element of the
radiator) is damaged.
This communication object gives the environment temperature estimated by the temperature
sensor (NTC) embedded on the radiator. Since the NTC is generally inuenced by
the surface radiator temperature, an internal algorithm compensates this error. This
communication object thus reports the actual estimated environment temperature. If
the radiator does not receive any information about the environment temperature by
Other manuals for T750H
1
This manual suits for next models
20
Table of contents
Other NEEDO Heater manuals
Popular Heater manuals by other brands
Northern Radiator
Northern Radiator AH530 quick start guide
Beper
Beper RI.062 use instructions
Frico
Frico Corinte W AD Series Mounting and operating instructions
Stanley
Stanley ST-40-GFA-E user manual
Sovelor
Sovelor MT30 Use and maintenance book
flowair
flowair LEO S1 Technical documentation operation manual
