36V LI-ION CORDLESS CHAIN SAW CT3811
Ref no. M0L-AJ-300B
INSTRUCTION MANUAL
SAVE THESE INSTRUCTIONS AND PRECAUTIONS.
READ ALL PRECAUTONS AND INSTRUCTIONS BEFORE USE.

EC DECLARATION OF CONFORMITY
We CANNON TOOLS LTD
20 Station road, Rowley Regis, West Midlands,B65 0JU.U.K.
Declare that the design and construction of the following machine, in the
form supplied by us, comply with the requirements of the appropriate EC
directives.
Product description: 36V LI-ION CORDLESS CHAIN SAW
Model: CT3811
●EC-Machinery Directive 2006/42/EC
●EC-Directive on electromagnetic compatibility(EMC)2004/108/EC
CANNON TOOLS LTD
sign
Gurcharan Tony Singh Sanghera
2014-11-27

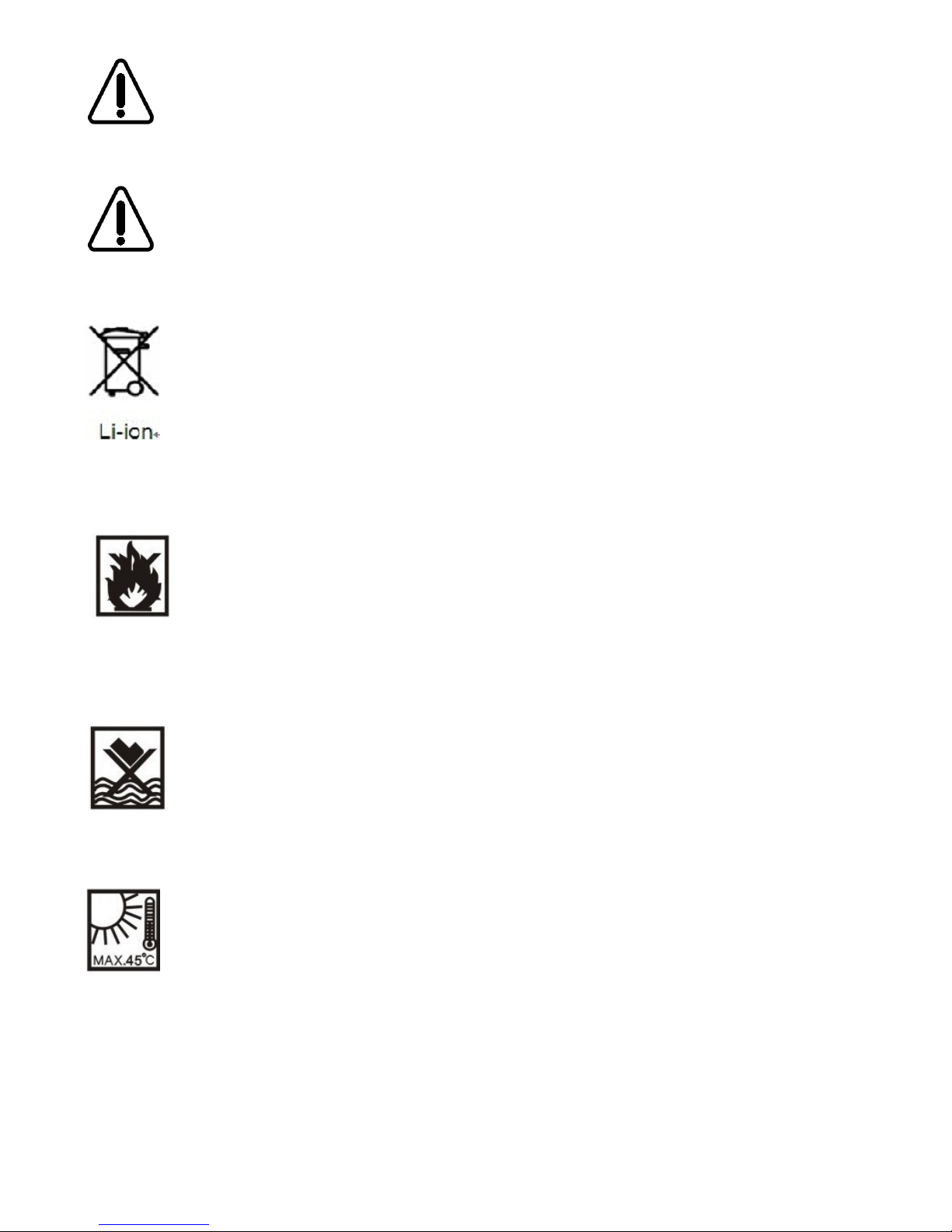

This symbol is known as the Crossed-out Wheelie Bin
Symbol. When this symbol is marked on a product or
battery, it means that it should not be disposed of with
your general household waste. Some chemicals
contained within electrical/electronic products or
batteries can be harmful to health and the environment.
These instructions are for your safety. Please read through them thoroughly before
use and retain them for future reference.
1

Your product
2

1. Guide bar scabbard
2. Spiked bumper
3. Front handle guard
4. Front handle
5. Battery pack
6. Lock-out button
7. Rear handle
8. Left enclosure
9. Chain oil tank cap
10. Saw chain
11. Locking knob for fixing guide bar and adjustment knob for tensioning saw
chain
12. Switch trigger
Unpack
1. Unpack all parts and lay them on a flat, stable surface.
2. Remove all packing materials and shipping devices if applicable.
3. Make sure the delivery contents are complete and free of any damage. If you find
that parts are missing or show damage do not use the product but contact your
dealer. Using an incomplete or damaged product represents a hazard to people
and property.
4. Ensure that you have all the accessories and tools needed for assembly and
operation. This also includes suitable personal protective equipment.
5. The guide bar, chain, bar and chain oil, scabbard, battery pack, battery charger,
and this operator’s manual are also included.
You will need
(items not supplied) Screwdriver, crosshead
Suitable personal protective equipment
Applications
The chain saw can be used for the following applications only:
■Limbing and pruning branches from trees.
■Felling small trees up to 8 in. (203 mm) diameter.
■Bucking the fallen tree into shorter lengths.
3

Symbols
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
･Take particular care and attention.
･Read instruction manual.
･Danger; be aware of thrown objects.
･Wear protective goggles and earplugs , eye protection and
hearing
･Wear protective gloves.
･Wear sturdy boots with nonslip soles. Steeltoed safety boots are
recommended.
･Do not expose to moisture.
.Guaranteed sound power level according to noise directive 2000/14/EC.
4

.Hold the saw with both hands while working! One-handed use is
extremely hazardous!
.Maximum Guide Bar length 350mm
.Direction of chain travel
.Do not dispose of electric equipment or battery pack together with
household waste material!
Intended use
The tool is intended for cutting lumbers and logs.
General Power Tool Safety
Warnings
WARNING Read all safety warnings and all instructions. Failure to
follow the warnings and instructions may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
5

Work area safety
1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
Electrical safety
4. Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
5. Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
6. Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
7. Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords increase the risk of electric
shock.
8. When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
9. If operating a power tools in a damp location is unavoidable, use a
residual current device (RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
Personal safety
10. Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or
under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in serious personal injury.
11. Use personal protective equipment. Always wear eye protection.
6

Protective equipment such as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions will reduce personal
injuries.
12. Prevent unintentional starting. Ensure the switch is in the off-position
before connecting to power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your finger on the switch or
energising power tools that have the switch on invites accidents.
13. Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result
in personal injury.
14. Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected situations.
15. Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing, and gloves away from moving parts.
Loose clothes, jewellery or long hair can be caught in moving parts.
16. If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust-related hazards.
Power tool use and care
17. Do not force the power tool. Use the correct power tool for our
application. The correct power tool will do the job better and safer at the rate
for which it was designed.
18. Do not use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and must be
repaired.
19. Disconnect the plug from the power source and/or the battery pack from
the power tool before making any adjustments, changing accessories,
or storing power tools. Such preventive safety measures reduce the risk of
starting the power tool accidentally.
20. Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to operate
the power tool. Power tools are dangerous in the hands of untrained users.
7

21. Maintain power tools. Check for misalignment or binding of moving
parts, breakage of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained power tools.
22. Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
23. Use the power tool, accessories and tool bits etc. in accordance with
these instructions, taking into account the working conditions and the
work to be performed. Use of the power tool for operations different from
those intended could result in a hazardous situation.
Battery tool use and care
24. Recharge only with the charger specified by the manufacturer. A charger
that is suitable for one type of battery pack may create a risk of fire when used
with another battery pack.
25. Use power tools only with specifically designated battery packs. Use of
any other battery packs may create a risk of injury and fire.
26. When battery pack is not in use, keep it away from other metal objects,
like paper clips, coins, keys, nails, screws or other small metal objects,
that can make a connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
27. Under abusive conditions, liquid may be ejected from the battery; avoid
contact. If contact accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.
Service
28. Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power
tool is maintained.
8

Cordless Chain saw safety
warnings:
1. Keep all parts of the body away from the saw chain when the
chain saw is operating. Before you start the chain saw, make
sure the saw chain is not contacting anything. A moment of inattention
while operating chain saws may cause entanglement of your clothing or body
with the saw chain.
2. Always hold the chain saw with your right hand on the rear handle and
your left hand on the front handle. Holding the chain saw with a reversed
hand configuration increases the risk of personal injury and should never be
done.
3. Hold the power tool by insulated gripping surfaces only, because the
saw chain may contact hidden wiring. Saw chains contacting a "live" wire
may make exposed metal parts of the power tool "live" and could give the
operator an electric shock.
4. Wear safety glasses and hearing protection. Further protective
equipment for head, hands, legs and feet is recommended. Adequate
protective clothing will reduce personal injury by flying debris or accidental
contact with the saw chain.
5. Before starting work, check that the chain saw is in proper working
order and that its condition complies with the safety regulations. Check
in particular that:
• The run-down brake is working properly;
• The chain brake is working properly;
• The bar and the sprocket cover are fitted correctly;
• The chain has been sharpened and tensioned in accordance with the
egulations;
6. Do not operate a chain saw in a tree. Operation of a chain saw while up in a
tree may result in personal injury.
7. Always keep proper footing and operate the chain saw only when
standing on fixed, secure and level surface. Slippery or unstable surfaces
such as ladders may cause a loss of balance or control of the chain saw.
8. When cutting a limb that is under tension be alert for spring back. When
9

the tension in the wood fibres is released the spring loaded limb may strike
the operator and/or throw the chain saw out of control.
9. Use extreme caution when cutting brush and saplings. The slender
material may catch the saw chain and be whipped toward you or pull you off
balance.
10. Carry the chain saw by the front handle with the chain saw switched off
and away from your body. When transporting or storing the chain saw
always fit the guide bar cover. Proper handling of the chain saw will reduce
the likelihood of accidental contact with the moving saw chain.
11. Follow instructions for lubricating, chain tensioning and changing
accessories. Improperly tensioned or lubricated chain may either break or
increase the chance for kickback.
12. Keep handles dry, clean, and free from oil and grease. Greasy, oily
handles are slippery causing loss of control.
13. Cut wood only. Do not use chain saw for purposes not intended. For
example: do not use chain saw for cutting plastic, masonry or
non-wood building materials. Use of the chain saw for operations different
than intended could result in a hazardous situation.
14. Causes and operator prevention of kickback:
Kickback may occur when the nose or tip of the guide bar touches an object,
or when the wood closes in and pinches the saw chain in the cut. Tip contact
in some cases may cause a sudden reverse reaction, kicking the guide bar up
and back towards the operator. Pinching the saw chain along the top of the
guide bar may push the guide bar rapidly back towards the operator. Either of
these reactions may cause you to lose control of the saw which could result in
serious personal injury. Do not rely exclusively upon the safety devices built
into your saw. As a chain saw user, you should take several steps to keep
your cutting jobs free from accident or injury.
Kickback is the result of tool misuse and/or incorrect operating procedures or
conditions and can be avoided by taking proper precautions as given below:
−Maintain a firm grip, with thumbs and fingers encircling the chain saw
handles, with both hands on the saw and position your body and arm to
10

allow you to resist kickback forces. Kickback forces can be controlled by the
operator, if proper precautions are taken. Do not let go of the chain saw.
−Do not overreach and do not cut above shoulder height. This helps prevent
unintended tip contact and enables better control of the chain saw in unexpected
situations.
−Only use replacement bars and chains specified by the manufacturer.
Incorrect replacement bars and chains may cause chain breakage and/or
kickback.
−Follow the manufacturer’s sharpening and maintenance instructions for
the saw chain. Decreasing the depth gauge height can lead to increased
kickback.
SAVE THESE INSTRUCTIONS.
WARNING:
DO NOT let comfort or familiarity with product (gained from
repeated use) replace strict adherence to safety rules for the
subject product. MISUSE or failure to follow the safety rules stated in this
instruction manual may cause serious personal injury.
IMPORTANT SAFETY INSTRUCTIONS
FOR BATTERY PACK
1. Before using battery pack, read all instructions and cautionary markings on
(1) battery charger, (2) battery, and (3) product using battery.
2. Do not disassemble battery pack.
3. If operating time has become excessively shorter, stop operating
immediately. It may result in a risk of overheating, possible burns and even
an explosion.
4. If electrolyte gets into your eyes, rinse them out with clear water and seek
medical attention right away. It may result in loss of your eyesight.
5. Do not short the battery pack:
(1) Do not touch the terminals with any conductive material.
11

(2) Avoid storing battery pack in a container with other metal objects such as
nails, coins, etc.
(3) Do not expose battery pack to water or rain. A battery short can cause a
large current flow, overheating, possible burns and even a breakdown.
6. Do not store the tool and battery pack in locations where the temperature
may reach or exceed 50 ﾟC (122 ﾟF).
7. Do not incinerate the battery pack even if it is severely damaged or is
completely worn out. The battery pack can explode in a fire.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
Tips for maintaining maximum battery life
1. Charge the battery pack before completely discharged. Always stop tool
operation and charge the battery pack when you notice less tool power.
2. Never recharge a fully charged battery pack. Overcharging shortens the
battery service life.
3. Charge the battery pack with room temperature at 10 ﾟC - 40 ﾟC (50 ﾟF -
104 ﾟF). Let a hot battery pack cool down before charging it.
FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and the battery pack is
removed before adjusting or checking function on the tool. Installing or
removing battery pack
CAUTION:• Hold the tool and the battery pack firmly
when installing or removing battery pack.
Failure to hold the tool and the battery pack firmly may cause them to
slip off your hands and result in damage to the tool and battery pack and a
personal injury.
•Always switch off the tool before installation or removal of the battery pack.
•To remove the battery pack, withdraw it from the tool while sliding the button.
12

•To insert the battery pack, align the tongue on the battery pack with the
groove in the housing and slip it into place. Always insert it all the way until it
locks in place with a little click.
•Do not use force when inserting the battery pack. If the pack does not slide in
easily, it is not being inserted correctly.
Switch action
CAUTION:
• Before inserting the battery pack into the tool, always check to see that
the switch trigger actuates properly and returns to the "OFF" position
when released.
1. Lock-off button
2. Switch trigger
To prevent the switch trigger from being accidentally pulled, a lock-off button is
provided. To start the tool, depress the lock-off button and pull the switch trigger.
Release the switch trigger to stop.
Checking the chain run down time
NOTE:
Hold the chain saw with both hands when switching it on.
Hold the top handle with your right hand, the front handle with your left. The bar
and the chain must not be in contact with any object.
2
1
13

First press the lock-off button, then the switch trigger. The saw chain starts
immediately.
Release the switch trigger. The saw chain must come to an immediate standstill.
CAUTION:
• Should the saw chain not come to a stop within two seconds when this
test is performed, the saw must not be used. Consult a specialist repair
shop.
Battery
WARNING! Always remove the battery pack from the product for charging!
Charge in a safe location away from moisture, heat or any hazard to the
charger or other danger!
> Align the battery pack to the slots on the charger and slide it in until it locks in place
(Fig. 15, 16)
>Connect the charger to the power supply.
WARNING! Check the voltage! The voltage must comply with the
information on the rating label!
(1) (2)
Fig.15 Fig.16
(1)Charger
(2)Battery pack
>Allow sufficient charging time (see technical data), and then disconnect the charger
from the power supply.
> Press the release button on the battery pack and remove it from the charger.
14

NOTE: It is normal for the battery pack and charger to become warm (but
not hot) during charging process. If the battery does not charge properly,
check to make sure the electrical outlet is "live".
NOTE: Always charge the battery before storage! To reduce
risk of fire, never leave the battery connected with the charger
for more than 24 hours!
batteries
Discarded batteries are an environmentally conscious manner and in
accordance with applicable regulations.
Fully discharge the battery by operating the tool to stop the engine at
idle. Remove the battery from the tool.
Do not discard the battery pack fire and placed next to the fire and
flammable
Note that the battery pack waterproof , do not place the battery pack wet
ground , but can not place the battery pack in water .
Do not put the battery pack on the environment above 45 degrees
15

Indicators
Battery indicators
The lights on the charger indicate the charger status
> The lights on the charger indicate the charger status.
> Check the battery pack capacity pressing the button
Remaining capacity display
Overdischarger/Low Loltage
5%<C<50%
50%<C<80%
C>80%
Fig. 17
Battery protection system
The tool is equipped with the protection system, which automatically cuts off the
output power for its long service life.
The tool may stop during operation when the tool and/or battery are placed under
the following situation. This is caused by the activation of protection system and
does not show the tool trouble.
• When the tool is overloaded: At this time, release the switch trigger and
remove causes of overload and then pull the switch trigger again to restart.
When the tool does not work even after pulling the switch trigger, the battery
power auto-stop is still at work. Charge the battery pack before use.
• When the remaining battery capacity becomes low: Recharge the battery
pack.
NOTE:
• The indicated capacity may be lower than the actual level during use or
immediately after using the tool.
• Depending on the conditions of use and the ambient temperature, the
indication may differ slightly from the actual capacity.
16

ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and the battery pack is
removed before carrying out any work on the tool.
Installing or removing saw chain
CAUTION:
• Always be sure that the tool is switched off and the battery pack is removed
before installing or removing the saw chain.
• Always wear gloves when installing or removing the saw chain.
Adjusting saw chain tension
When the chain becomes loose, completely unscrew the auto-tensioning knob
counter clockwise. Then retighten the auto-tensioning knob to reset the chain
tension.
Fully turn the auto-tensioning knob clock wise until it is tightly attached. The
proper chain tension will be set automatically.
The correct chain tension is reached when the chain can be be raised
approx.3-6mm from the chain bar in the center(the chain links should just remain
in the bar track).
The saw chain may become loose after many hours of use. From time to time
check the saw chain tension before use.
adjustment and locking knob
17

CAUTION:
• Installing or removing saw chain should be carried out in a clean place
free from sawdust and the like
OPERATION
Lubrication
1.Toolless filler cap
Saw chain is automatically lubricated when the tool is in operation. To refill the
tank, remove the cap from the oil tank opening. The oil tank capacity is 90 ml.
After refilling the tank, always screw the provided oil tank cap on the chain saw.
CAUTION:
• When filling the chain saw with chain oil for the first
time, or refilling the tank after it has been completely emptied, add oil up
to the bottom edge of the filler neck. The oil delivery may otherwise be impaired.
• As a saw chain oil, use oil exclusively chain saws or oil available in market.
• Never use oil including dust and particles or volatile oil.
• When pruning trees, use botanical oil. Mineral oil may harm trees.
• Never force the chain saw when pruning trees.
• Before cutting out, make sure that the provided oil tank cap is screwed in place.
1
18

Hold the chain saw away from the tree. Start it and wait until lubrication on saw
chain is adequate. Bring the lower guide into contact with the branch to be cut
before switching on. Cutting without bringing the lower guide into contact with the
branch may cause the guide bar to wobble, resulting in injury to operator.
Saw the wood to be cut by just moving it down.
WORKING WITH THE CHAIN SAW
The first time user should, as a minimum practice, do cutting logs on a saw-horse
or cradle.
Pruning trees
1. Spiked bumper
CAUTION:
• Keep all parts of the body away from the saw chain when the motor is
operating.
• Hold the chain saw firmly with both hands when the motor is running.
• Do not overreach. Keep proper footing and balance at all times.
Bring the Spiked bumper into contact with the branch to be cut before

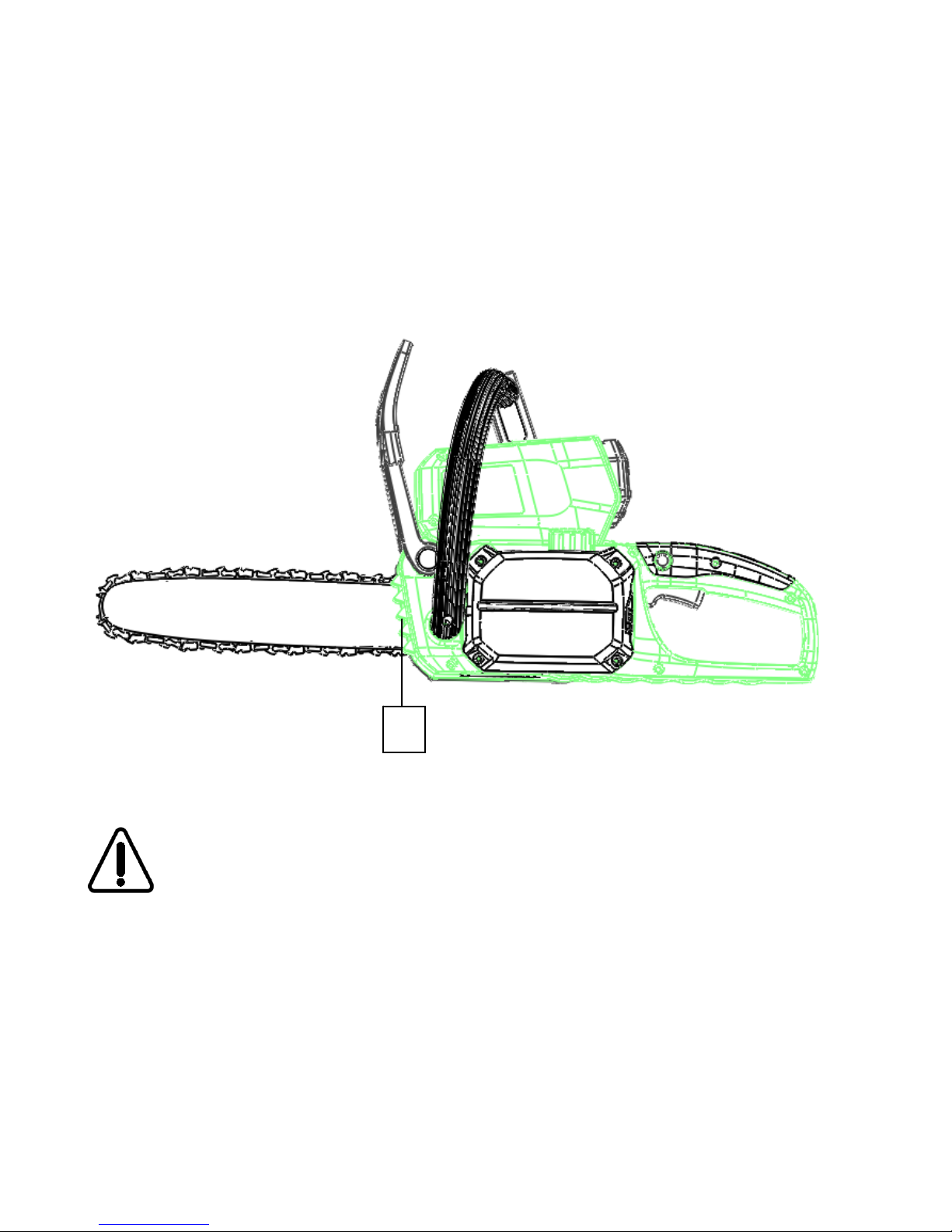

switching on. Cutting without bringing the Spiked bumper into contact with the
branch may cause the guide bar to wobble, resulting in injury to operator.
1
19
