Nemalux AR10 Guide
APPLICATION
AR luminaires are designed for use indoors, outdoors, wet locations, areas containing moisture, dirt,
corrosion, vibration and rough usage. This luminaire is certied by NSF for use in Splash-zone and
Non-Food areas of food processing locations as dened in NSF-2. The AR luminaire has been certied for
use on marine vessels inside, outside, and in other severely wet saltwater environments.
Certied to: UL 1598, UL 1598A, and UL 8750;
CSA 22.2 No. 250.0 and CSA22.2 No. 250.13
ABS Listed
Housing: Copper-free Cast Aluminium with Polycarbonate lens
Input Voltage: Based on luminaire sux in table below: Sux - AC: 120-277 VAC | Sux - HV: 347-480 VAC
Electrical Ratings:
Connections: 2 x 3/4” NPT Conduit | Black: Line | White: Neutral | Green: Ground
Optional: Purple: 0-10V Dimming (+) | Grey: 0-10V Dimming (-)
For connections use wire rated to a minimum of 90°C. Class 1 Wiring only.
Dimming control wires must be rated 300V minimum for luminaires with sux AC,
600V minimum for luminaires with sux HV.
Temperature Range: AR10, 15, 20, 25 AC Models: -40°C to +55°C
AR10, 15, 20, 25 HV Models: -40°C to +50°C
AR30 AC, HV Optical models: -40°C to +45°C
AR30 AC Flood model: -40°C to +40°C
AR30 HV Flood model: -40°C to +45°C
Ingress Protection: IP66/67 | Suitable For Wet Locations. Marine Outside Type (Salt Water)
SURFACE/CEILING
MOUNTING INSTALLATION
LUMINANCE
AR10
AR15
AR20
AR25
AR30
RATED VOLTAGE
[Volts]
RATED WATTAGE
[Watts]
INPUT
VOLTAGE
AC
HV
AC
HV
AC
HV
AC
HV
AC
HV
120-277
347-480
120-277
347-480
120-277
347-480
120-277
347-480
120-277
347-480
107
129
145
145
190
187
247
245
312
310
FREQUENCY
[Hz]
50/60
50/60
50/60
50/60
50/60
50/60
50/60
50/60
50/60
50/60
TM
Nemalux
I N DUSTRIAL
AR-GEN
rev. A-17
E477827
1-4
MADE IN CANADA
E477827
STEP 1.
Inspect shipping package and contents to ensure no
damage has occurred during shipping.
STEP 2.
Remove 8x M6 hex cap bracket mounting screws from
head and re-install with included Surface/Suspension
Mount Brackets. See diagram for orientation of brack-
ets. Torque M6 bolts to 5 Nm (45 in-lbs).
STEP 3.
A) For surface mounting conguration, mount lumi-
naire in desired ceiling location using 4x 1/4-20 OR 4x
M6 fasteners and washers (Not provided). One mount-
ing hole on each bracket is keyed to allow partial
pre-installation of two fasteners for ease of install.
B) For ceiling mounting congurations, connect 4x
anchors to the 12.7mm (0.5”) holes. Suspension hard-
ware (Not provided) must be rated for a minimum of
180 lbs.
STEP 4.
Open AR Lens with a 7mm socket or wrench and allow
Lens to hang via retention strap.
Note:
Screws are captive fasteners and will remain attached to
the Lens for ease of reinstall and to prevent loss of
fasteners.
5.0in
126mm
5.2in
132mm
21.1in
535mm
22.5in
570mm
0.5in
12.7mm
0.3in
6.8mm
0.5in
12.7mm
0.5in
12.7mm
0.5in
12.7mm
0.5in
12.7mm
SURFACE/CEILING MOUNT INSTALLATION
(Brackets Included as Standard Parts)
Refer to alternate instructions if using Conduit, Hook, Wall, Pole or Yoke Mount
Step 2
Step 3A
Step 3B
TM
Nemalux
I N DUSTRIAL
AR-GEN
rev. A-17
2-4
MADE IN CANADA
WARNING
To reduce the risk of electric shock, disconnect the luminaire
from the supply circuit before opening for installation and
servicing. Keep tightly closed when in operation.
WARNING
To avoid the risk of re, explosion, or electric shock, this
product should be installed, inspected, and maintained
by a qualied electrician only, in accordance with all
applicable electrical codes.
STEP 5.
Make wiring connections from branch circuit conductors
to factory provided lead wires. Refer to NEC/CEC codes
and follow all applicable local standards. See wiring
diagram on Page 4.
For 0-10V Analog Dimming Control, connect Violet (+)
and Gray (-) to 0-10VDC control wiring:
• 0-10V Interface can be wired as Class 1 or Class 2
Circuit.
• LED Drivers will source a combined maximum of
400µA for control needs.
• 0-10V Controller must sink current from LED driver
0-10V control connections.
NOTE:
To aid in assembly and protection against ingress use of a
petrolatum or soap thickened mineral oil based thread
lubricant/sealant is necessary.
Un-used conduit opening must be plugged to maintain the
integrity of the enclosure.
STEP 6.
Close AR lens. Ensure the retention cable is not pinched
between AR Head and the AR Lens. Tighten lens bolts
using a 7mm socket or box wrench to 1.7 N-m (15 in-lbs)
in the order designated in the diagram to ensure gasket
sealing.
5
6
7
8
9
10
11
12
1
23
4
Step 5
Step 6
TM
Nemalux
I N DUSTRIAL
AR-GEN
rev. A-17
3-4
MADE IN CANADA
WIRING DIAGRAM
PS 1
PS 2
GROUND
(Factory)
BLACK LINE
WHITE NEUTRAL
GREEN GROUND
PURPLE DIM +
GREY DIM
BLACK
WHITE
GREEN
PURPLE
GREY
TM
Nemalux
I N DUSTRIAL
AR-GEN
rev. A-17
4-4
MADE IN CANADA
AR-PM – POLE MOUNT INSTALLATION
Refer to alternate instructions if using Conduit, Hook, Wall or Yoke Mount
INSTALLATION STEPS
Step 3
Step 5
STEP 1.
Inspect shipping package and contents to ensure no damage has
occurred during shipping. Discard surface/ceiling mounting bracket
provided with AR luminaire. Remove 4 x M6 bolts from supply side of
luminaire and disard.
STEP 2.
Install the provided plastic 3/4”bushing into side 3/4" NPT entry.
STEP 3.
Install Pole Mount and gasket with adhesive side applied to mount
using included M6 bolts and washers.
Torque to 5 Nm (45 in-lbs)
STEP 4.
Thread luminaire assembly onto 1.5”NPT pole.
NOTE:
To aid in assembly and protection against ingress use of a petrolatum or soap
thickened mineral oil based thread lubricant/sealant is necessary.
Un-used conduit opening must be plugged to maintain the integrity of the
enclosure.
STEP 5.
Insert and tension M6 set screw to pole to lock rotation.
STEP 6.
Resume installation instructions provided with luminaire. (STEP 4 in AR
Installation Instructions provided with Luminaire)
SET SCREW
This AR-PM kit is intended for use with UL Listed AR luminaire as
marked on the luminaire nameplate.
Accessory Package Contents
AR-PM
PART NAMEQTY
1
1
4
4
1
1
POLE MOUNT
POLE MOUNT GASKET
M6 X 25mm HEX HEAD CAP SCREW
M6 FLAT WASHER
M6 X 16mm HEX HEAD CAP SCREW
3/4 NPT THREADED SMOOTH BORE BUSHING
TM
Nemalux
I N DUSTRIAL
AR-GEN
rev. A-17
1-1
MADE IN CANADA
AR-WM – WALL MOUNT INSTALLATION
Refer to alternate instructions if using Conduit, Hook, Pole or Yoke Mount
STEP 1.
Inspect shipping package and contents to ensure no damage has
occurred during shipping. Discard surface/ceiling mounting bracket
provided with AR luminaire. Remove 4 x M6 bolts from supply side of
luminaire and disard.
STEP 2.
Install provided 3/4 NPT conduit plugs in desired locations on wall
mount. To maintain ingress rating all NPT entries not used for wiring
connections are required to be plugged. Torque to 10 Nm (88 in-lbs)
NOTE:
To aid in assembly and protection against ingress use of a petrolatum or soap
thickened mineral oil based thread lubricant/sealant is necessary.
Un-used conduit opening must be plugged to maintain the integrity of the
enclosure.
STEP 3.
Install provided 3/4”NPT plastic bushing onto side NPT entry on AR
head, rotate so that ats are parallel to lens surface to avoid
interference with mount hardware.
STEP 4.
Install Wall Mount main body with included M6 bolts and washers and
adhesive backed gasket. Apply gasket to mount with adhesive backed
side. Torque to 5 Nm (45 in-lbs).
STEP 5.
Install Back Cover Plate with 4x M4 Flat head screws and adhesive
backed gasket. Apply gasket with adhesive side applied to mount main
body. Torque to 1.7 N-m (15 in-lbs).
STEP 6.
Mount luminaire assembly to desired location using 4x 1/4-20 OR M6
Screws or Bolts (Not Provided).
STEP 7.
Resume installation instructions provided with luminaire. (STEP 4 in AR
Installation Instructions provided with Luminaire)
Steps 2 through 5
[5.7in]
145mm
4 x
6.8mm THRU ALL
[5.7in]
145mm
Step 6
This AR-WM kit is intended for use with UL Listed AR luminaire as
marked on the luminaire nameplate.
Accessory Package Contents
AR-WM
PART NAMEQTY
1
1
1
1
4
4
4
3
1
WALL MOUNT
WALL MOUNT PLATE
WALL MOUNT PLATE SIDE GASKET
WALL MOUNT GASKET
6 x 25mm SOCKET HEAD CAP SCREW
M4x 10mm FLAT HEAD SOCKET CAP SCREW
M6 FLAT WASHER
3/4 NPT HEX CAP PLUG
3/4 NPT THREADED SMOOTH BORE BUSHING
INSTALLATION STEPS
TM
Nemalux
I N DUSTRIAL
AR-GEN
rev. A-17
1-1
MADE IN CANADA
4.3in
108.15mm
2.3in
59mm
0.27in
6.76mm
0.27in
6.8mm
1.7in
44mm
2.8in
70mm
AR-YM – YOKE MOUNT INSTALLATION
Refer to alternate instructions if using Conduit, Hook, Pole or Wall Mount
STEP 1.
Inspect shipping package and contents to ensure no damage has
occurred during shipping. Discard surface/ceiling mounting bracket
provided with AR luminaire. Remove 4 x M6 bolts from supply side of
luminaire and disard.
STEP 2.
Install suitable wiring system to the conduit opening per CEC/NEC
requirements for the specic location of install.
NOTE:
To aid in assembly and protection against ingress use of a petrolatum or soap
thickened mineral oil based thread lubricant/sealant is necessary.
Un-used conduit opening must be plugged to maintain the integrity of the
enclosure.
STEP 3.
Loosely assemble Yoke mount with carriage bolts on inside and
washers and nuts on the outside.
NOTE:
Depending on which mounting hole is used in the curved slot, the luminaire may
be congured for an upward or downward adjustable swing.
STEP 4.
Thread installed wiring through openings in yoke mount cheek plate
and yoke mount bracket. Mount yoke assembly to luminaire using 4x
M6 Socket Head Cap Screws and Washers (Provided). Torque fasteners
to 5 Nm (45 in-lbs).
STEP 5.
Mount luminaire assembly to desired location using 4x 1/4-20 OR M6
Screws or Bolts (Not Provided).
STEP 6.
Adjust and aim luminaire to desired position. Torque hardware nuts to
9 N-m (80 in-lbs).
STEP 7.
Resume installation instructions provided with luminaire. (STEP 4 in AR
Installation Instructions provided with Luminaire)
Step 5
Step 3
This AR-YM kit is intended for use with UL Listed AR luminaire as
marked on the luminaire nameplate.
Accessory Package Contents
INSTALLATION STEPS
AR-YM
PART NAMEQTY
1
1
1
4
4
4
4
YOKE MOUNT A
YOKE MOUNT B
CHEEK PLATE
1/4-20 HEX NUT
1/4" FLAT WASHER
1/4-20 x 0.5in CARRIAGE BOLT
M6 x 25mm HEX HEAD CAP SCREW
TM
Nemalux
I N DUSTRIAL
AR-GEN
rev. A-17
1-1
MADE IN CANADA
AR-HK – HOOK PENDANT INSTALLATION
Refer to alternate instructions if using Pendant, Wall, Pole or Yoke Mount
Step 3
STEP 1.
Inspect shipping package and contents to ensure no damage has
occurred during shipping. Discard surface/ceiling mounting bracket
provided with AR luminaire.
STEP 2.
It is recommended to install Secondary Safety Cable by looping
appropriate steel cable or chain through the outer band of the unit and
fastening a closed loop. Secondary safety hardware must be rated for a
minimum of 180lbs. Secondary safety cables made from stainless steel
aircraft cable are available upon request.
STEP 3.
Slide anti-rotation lock onto suspension hook assembly and install hook
assembly into ¾ NPT threaded entry. Tighten to hand tight plus 1 to 2
turns. Slide anti-rotation lock into place and tighten set screw to lock
unit in place.
NOTE:
To aid in assembly and protection against ingress use of a petrolatum or soap
thickened mineral oil based thread lubricant/sealant is necessary.
Un-used conduit opening must be plugged to maintain the integrity of the
enclosure.
STEP 4.
Latch hook onto eye-bolt or other xed mounting loop. Mounting point
must be rated for a minimum of 180lbs.
STEP 5.
Install remaining loop of secondary safety chain or steel cable to
suitable mounting location and fasten securely.
STEP 6.
Resume installation instructions provided with luminaire. (STEP 4 in AR
Installation Instructions provided with Luminaire)
Step 2
This AR-HK kit is intended for use with UL Listed AR luminaire as
marked on the luminaire nameplate.
Accessory Package Contents
INSTALLATION STEPS
AR-HK
PART NAME
QTY
1
1
PENDANT HOOK ASSEMBLY
ANTI-ROTATION ASSEMBLY
TM
Nemalux
I N DUSTRIAL
AR-GEN
rev. A-17
1-1
MADE IN CANADA
This kit contains NSF component Anti-Rotation-Lock
(1004-01-02-201)
AR-CM –
CONDUIT MOUNT INSTALLATION
Refer to alternate instructions if using Wall, Hook, Pole or Yoke Mount
Step 2
STEP 1.
Inspect shipping package and contents to ensure no damage has
occurred during shipping. Discard surface/ceiling mounting bracket
provided with AR luminaire.
STEP 2.
Slide anti-rotation lock onto suitably mounted hanging conduit or
luminaire hanger and install luminaire onto ¾”NPT threaded nipple.
Tighten to hand tight contact plus 1 to 2 turns. Slide anti-rotation lock
into place and tighten set screw to lock unit in place. Fixed Rigid Metal
Conduit must be suitably mounted to prevent rotation and system
must be rated for 180 lbs.
NOTE:
To aid in assembly and protection against ingress use of a petrolatum or soap
thickened mineral oil based thread lubricant/sealant is necessary.
Un-used conduit opening must be plugged to maintain the integrity of the
enclosure.
STEP 3.
Install Secondary Safety Cable by looping appropriate steel cable or
chain through the outer band of the unit and fastening a closed loop.
Secondary safety hardware must be rated for a minimum of 180lbs.
Install remaining loop of secondary safety chain or steel cable to
suitable mounting location and fasten securely. Secondary safety
hardware must be rated for 180lbs.
STEP 4.
Resume installation instructions provided with luminaire. (STEP 4 in AR
Installation Instructions provided with Luminaire)
Step 3
This AR-CM kit is intended for use with UL Listed AR luminaire as
marked on the luminaire nameplate.
Accessory Package Contents
INSTALLATION STEPS
AR-CM
PART NAMEQTY
1ANTI-ROTATION BRACKET ASSEMBLY
TM
Nemalux
I N DUSTRIAL
AR-GEN
rev. A-17
1-1
MADE IN CANADA
This kit contains NSF component Anti-Rotation-Lock
(1004-01-02-201)
AR-YK – HIGH VIBRATION YOKE INSTALLATION
Refer to alternate instructions if using Conduit, Hook, Pole, Wall Mount, or Yoke Mount
STEP 1.
Inspect shipping package and contents to ensure no damage has
occurred during shipping. Discard surface/ceiling mounting bracket
provided with AR luminaire. Remove 8 x M6 hex bolts from sides of
luminaire and discard.
STEP 2.
Mount AR high vibration yoke to mounting surface using a minimum of
4x ¼-20 or M6 fasteners (not provided).
STEP 3.
Install suitable wiring system to the conduit opening per CEC/NEC
requirements for the speci-c location of install.
NOTE:
To aid in assembly and protection against ingress use of a petrolatum or soap
thickened mineral oil based thread lubricant/sealant is necessary.
Un-used conduit opening must be plugged to maintain the integrity of the
enclosure.
STEP 4.
Mount AR Cheek Plates to sides of AR luminaire using 4x M6 at head
cap screws per side. Thread one cheek plate over installed wiring
during assembly. Torque fasteners to 5 Nm (45 in-lbs).
STEP 5.
Thread installed wiring through opening in AR high vibration yoke
mount and install AR luminaire into yoke. The raised circular bosses on
the AR cheek plates should register inside of the large circular holes on
the AR high vibration yoke mount arms. Rotate luminaire to aim in the
desired direction and fasten in place using 2x M6 socket head cap
screws and at washers per side. Torque fasteners to 5 Nm (45 in-lbs).
STEP 6.
Resume installation instructions provided with luminaire. (STEP 4 in AR
Installation Instructions provided with Luminaire)
Step 4
Step 2
This AR-YK kit is intended for use with UL Listed AR luminaire as
marked on the luminaire nameplate.
Accessory Package Contents
INSTALLATION STEPS
AR-YK
PART NAMEQTY
1
2
8
4
4
AR HIGH VIBRATION YOKE
CHEEK PLATE
M6 x 1 x 25mm SOCKET FLAT HEAD CAP SCREW
M6 FLAT WASHER
M6 x 1 x 16mm SOCKET HEAD CAP SCREW
TM
Nemalux
I N DUSTRIAL
AR-GEN
rev. A-17
1-1
MADE IN CANADA
WARNING:
The AR Head must not face upwards
by any degree beyond the vertical
position for Class II, Division 2, Zone 22,
and Class III hazardous locations.
✔
✘
LIGHT BEAM
HORIZON
[3.1in]
80mm
[17.3in]
440mm
[4.3in]
108mm
[2.3in]
59mm
[1.7in]
44mm
10 x 6.8mm [0.27in] THRU ALL
AR-SF – YOKE MOUNT w/ SLIPFITTER INSTALLATION
Refer to alternate instructions if using Conduit, Hook, Pole, Wall Mount, or High Vibration Yoke
STEP 1.
Inspect shipping package and contents to ensure no damage has occurred
during shipping. Discard surface/ceiling mounting bracket provided with
AR luminaire. Remove 4 x M6 hex bolts from supply side of luminaire and
discard.
STEP 2.
Install suitable exible wiring system to the conduit opening per CEC/NEC
requirements for the specic location of install, threading wiring through
openings in the slip tter, sheet metal yoke assemblies, and cheek plate
adapter.
NOTE: To aid in assembly and protection against ingress use of a petrolatum or
soap thickened mineral oil based thread lubricant/sealant is necessary. All un-used
conduit openings must be plugged to maintain the integrity of the enclosure.
STEP 3.
Attach Yoke Mount B and Cheek Plate adapter to the luminaire using 4 x
M6 x 30mm hex bolts (Provided). Torque fasteners to 5 Nm (45 in-lbs).
STEP 4.
Attach Yoke Mount A to Pole Mount using 4 x ¼-20 x 0.75in socket head
cap screws, 8 x ¼ inch washers, and 4 x ¼-20 hex nuts (Provided). Torque
fasteners to 5 Nm (45 in-lbs).
STEP 5.
Assemble yoke mount halves with carriage bolts on inside and washers
and nuts on the outside.
NOTE: Depending on which mounting hole is used in the curved slot, the luminaire
may be congured for an upward or downward adjustable swing.
STEP 6.
Mount luminaire with mounted slip-tter assembly to 2.375in OD pipe or
tenon (corresponding to 2 inch NPS pipe) and rotate to desired position.
Secure by tightening the 3 x 3/8" hex bolts until secure, tightening jam
nuts against the pole mount casting to lock in place. Torque to 200 in-lbs
(16.7 ft-lbs)
STEP 7.
Loosen fasteners connecting both halves of the yoke mount and adjust
luminaire to desired pitch angle. Torque nuts to 9 N-m (80 in-lbs) to secure.
NOTE: Depending on which mounting hole is used in the curved slot, the luminaire
may be congured for an upward or downward adjustable swing.
Step 3
Step 4,5
Step 6
This AR-SF kit is intended for use with UL Listed AR luminaire as
marked on the luminaire nameplate.
Accessory Package Contents
INSTALLATION STEPS
AR-SF
PART NAMEQTY
1
1
1
1
4
4
3
4
8
3
12
YOKE MOUNT A
YOKE MOUNT B
CHEEK PLATE
SLIP FITTER / TENON
1/4-20 x 0.625in CARRIAGE BOLT
M6 x 30mm HEX HEAD CAP SCREW
3/8-16 x 0.75in HEX HEAD CAP SCREW
1/4-20 x 1in SOCKET HEAD CAP SCREW
1/4-20 HEX NUT
3/8-16 HEX NUT
1/4in FLAT WASHER
TM
Nemalux
I N DUSTRIAL
AR-GEN
rev. A-17
1-1
MADE IN CANADA
AR-SP-AC – SURGE SUPPRESSOR KIT
(Requires AR-SP-AC Surge Protector Accessory Kit)
STEP 1.
Inspect shipping package and contents to ensure no damage has
occurred during shipping.
STEP 2.
Open AR Lens with 7mm hex socket driver. Allow Lens to hang via
retention strap.
NOTE:
Screws are captive fasteners and will remain attached to the Lens for ease of
reinstall and prevent loss of fasteners.
STEP 3.
Install provided double-sided tape along side of surge protector.
Remove backing paper and place between mounting points as shown,
with tape-side down. Install retention strap with two M3 fasteners and
ensure surge protector is held tightly in place.
STEP 4.
Wire according to wiring instructions on Page 2. Refer to NEC/CEC
codes and follow all applicable local standards.
STEP 5.
Close AR lens. Ensure the retention cable is not pinched between AR
Head and the AR Lens. Tighten lens bolts using a 7mm socket or box
wrench to 1.7 N-m (15 in-lbs) in the order designated in the diagram to
ensure gasket sealing. 5
6
7
8
9
10
11
12
1
23
4
Step 5
AR-SP-AC
PART NAMEQTY
1
1
1
2
2
FSP3-277-20KA SURGE PROTECTOR
3M VHB TAPE
SURGE SUPPRESSOR RETENTION STRAP
M3 x 8mm PAN HEAD PHILLIPS MACHINE SCREW
M3 FLAT WASHER
Step 3
M3 SCREW
This AR-SP-AC kit is intended for use with UL Listed AR luminaire as
marked on the luminaire nameplate.
Accessory Package Contents
INSTALLATION STEPS
TM
Nemalux
I N DUSTRIAL
AR-GEN
rev. A-17
1-2
MADE IN CANADA
1. Disconnect Line Input branch circuit conductor from splice or terminal
connected to Black leads from LED Driver. Re-connect Line Input branch
circuit conductor to Black wire from surge protector.
2. Connect Orange/Black wire from surge protector to splice or terminal
connected to Black leads from LED Drivers.
3. Connect White lead from surge protector to splice or terminal
connected to Neutral Input branch circuit conductor and White leads
from LED Drivers.
4. Connect Green wire from surge protector to splice or terminal
connected to Grounding branch circuit conductor and green lead from
luminaire case.
PS 1
PS 2
GROUND
(Factory)
BLACK
WHITE
ORANGE/BLACK
WHITE
GREEN
BLACK
PURPLE
GREY
SURGE
SUPPRESSOR
WIRING DIAGRAM
(AR-SP-AC)
GREEN
WHITE
TM
Nemalux
I N DUSTRIAL
AR-GEN
rev. A-17
2-2
MADE IN CANADA
BLACK - LINE
WHITE - NEUTRAL
GREEN - GROUND
PURPLE - DIM (+)
GREY - DIM (-)
STEP 1.
Inspect shipping package and contents to ensure no damage has
occurred during shipping.
STEP 2.
Open AR Lens with 7mm hex socket driver. Allow Lens to hang via
retention strap.
NOTE:
Screws are captive fasteners and will remain attached to the Lens for ease of
reinstall and prevent loss of fasteners.
STEP 3.
Install provided double-sided tape along side of surge protector.
Remove backing paper and place between mounting points as shown,
with tape-side down. Install retention strap with two M3 fasteners and
ensure surge protector is held tightly in place.
STEP 4.
Wire according to wiring instructions on Page 2. Refer to NEC/CEC
codes and follow all applicable local standards.
STEP 5.
Close AR lens. Ensure the retention cable is not pinched between AR
Head and the AR Lens. Tighten lens bolts using a 7mm socket or box
wrench to 1.7 N-m (15 in-lbs) in the order designated in the diagram to
maintain ideal gasket sealing.
AR-SP-HV
PART NAMEQTY
1
1
1
2
2
FSP3-480-20KA SURGE PROTECTOR
3M VHB TAPE
SURGE SUPPRESSOR RETENTION STRAP
M3 x 8mm PAN HEAD PHILLIPS MACHINE SCREW
M3 FLAT WASHER
5
6
7
8
9
10
11
12
1
23
4
Step 5
Step 3
M3 SCREW
AR-SP-HV – SURGE SUPPRESSOR KIT
(Requires AR-SP-HV Surge Protector Accessory Kit)
This AR-SP-HV kit is intended for use with UL Listed AR luminaire as
marked on the luminaire nameplate.
Accessory Package Contents
INSTALLATION STEPS
TM
Nemalux
I N DUSTRIAL
AR-GEN
rev. A-17
1-2
MADE IN CANADA
PS 1
PS 2
GROUND
(Factory)
BLACK
WHITE
ORANGE/BLACK
YELLOW/BLACK
GREEN
YELLOW
ORANGE
BLACK WHITE
PURPLE
GREY
SURGE
SUPPRESSOR
WIRING DIAGRAM
(AR-SP-HV)
1. Disconnect Line Input branch circuit conductor from splice or terminal
connected to Black leads from LED Driver. Re-connect Line Input branch
circuit conductor to Orange wire from surge protector.
2. Connect Orange/Black wire from surge protector to splice or terminal
connected to Black leads from LED Drivers.
3. Disconnect Neutral Input branch circuit conductor from splice or
terminal connected to White leads from LED Driver. Re-connect Neutral
Input branch circuit conductorto Yellow wire from surge protector.
4. Connect Yellow/Black wire from surge protector to splice or terminal
connected to White leads from LED Drivers.
5. Connect Green wire from surge protector to splice or terminal
connected to Grounding branch circuit conductor and green lead from
luminaire case.
TM
Nemalux
I N DUSTRIAL
AR-GEN
rev. A-17
2-2
MADE IN CANADA
BLACK - LINE
WHITE - NEUTRAL
GREEN - GROUND
PURPLE - DIM (+)
GREY - DIM (-)
TM
Nemalux
I N DUSTRIAL
AR-GEN
rev. A-17
1-1
MADE IN CANADA
STEP 1.
Remove the bottom-left pre-installed M6 x 16mm Hex Cap Screw.
STEP 2.
Install bracket on AR luminaire as shown using supplied M6 x 20mm
Hex Cap Screw. Torque M6 x 20mm Hex Cap Screw to 40 in-lbs (4.5
Nm). It is strongly recommended that a medium or high strength
thread-locker be used when installing the bracket. For units using
surface or suspension mounting, install safety kit hardware on top of
the surface mount or suspension mount brackets in the same location
as shown.
STEP 3.
Attach stainless steel chain to safety kit bracket using stainless steel
oval shaped threaded connecting link.
STEP 4.
Attach loose end of chain. Secondary safety mounting point must be
suitable for supporting a minimum of 120lbs:
- Attach loose end of stainless steel chain to xed eye-bolt (not
supplied) using the second stainless steel oval shaped thread-
ed connecting link.
- Alternate attachment method: Wrap loose end of chain
around xed beam or other immovable support and create a
closed loop using the second stainless steel oval shaped
threaded connecting link. Supporting beam or structure must
form a closed loop to prevent the secondary safety chain from
slipping o or becoming unhooked.
AR-SK-##
PART NAMEQTY
1
1
1
2
1
1003-01-02-301 (ZLM Secondary Safety)
M6 Flat Washer
M6 x 20mm Hex Cap Screw
Oval Shaped Threaded Connecting Link
Stainless Steel Chain, 1/8”Trade Size
AR-SK-## – SECONDARY SAFETY KIT
This AR-K-## kit is intended for use with UL Listed AR luminaire as
marked on the luminaire nameplate.
Accessory Package Contents
INSTALLATION STEPS
Step 2
Step 1
1
2
3
M6 SCREW
This manual suits for next models
4
Table of contents
Other Nemalux Lantern manuals
Popular Lantern manuals by other brands
IDEAL INDUSTRIES

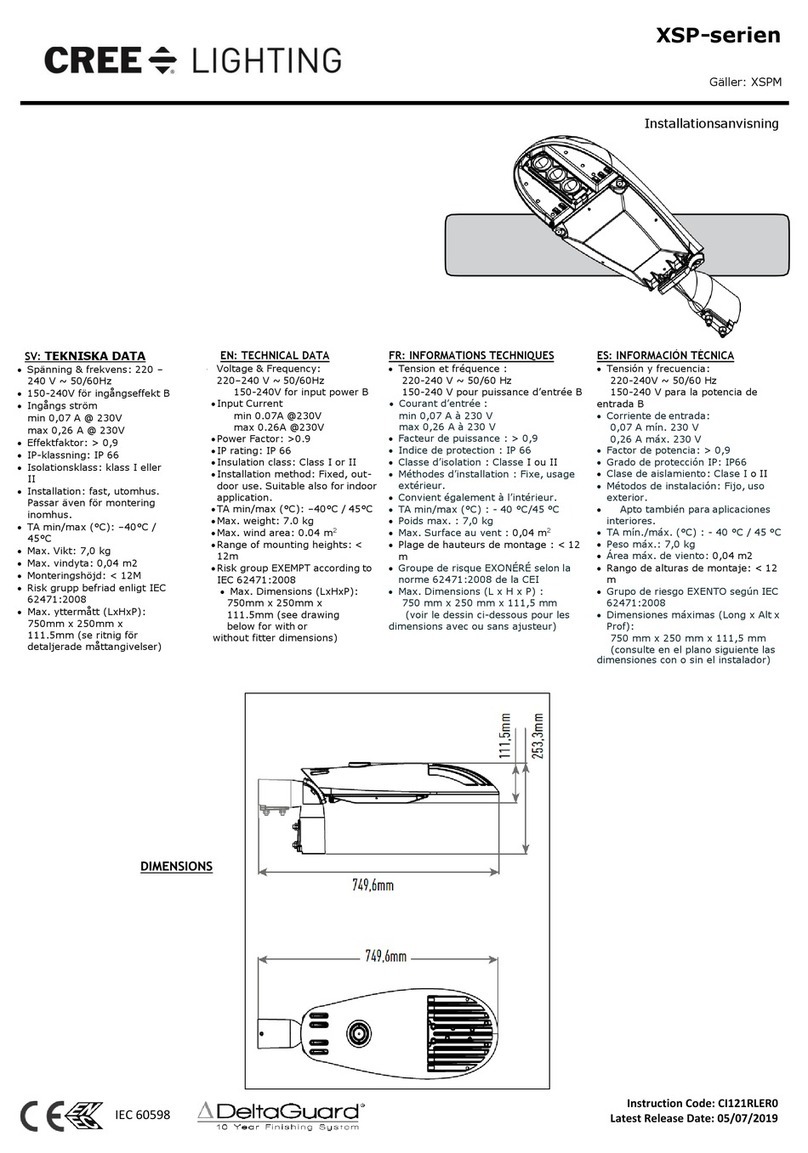

IDEAL INDUSTRIES CREE LIGHTING XSP Series manual
Sternberg Lighting
Sternberg Lighting OLD TOWN A850HID WITH 990 FITTER Customer installation instructions
Gama Sonic
Gama Sonic GS-114F instruction manual
Solarbotics
Solarbotics PumLantern manual
KUNDALINI

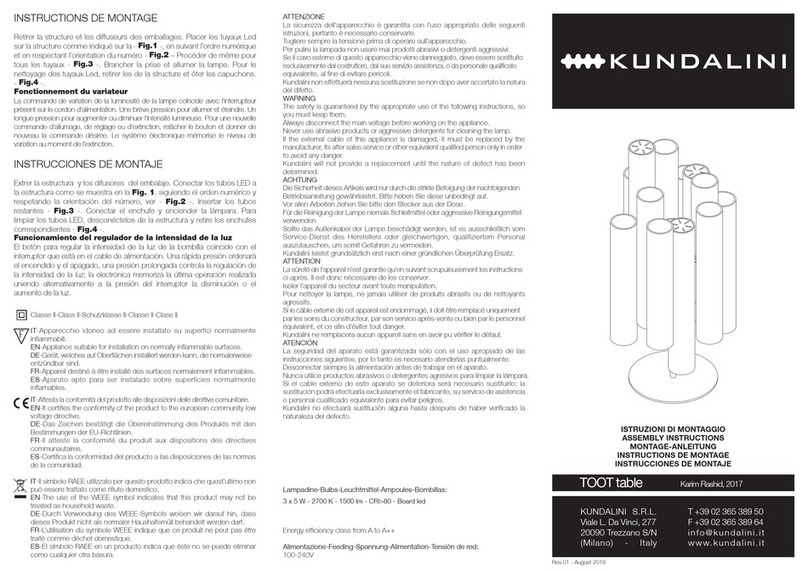

KUNDALINI TOOT Table Assembly instructions
Chalmit

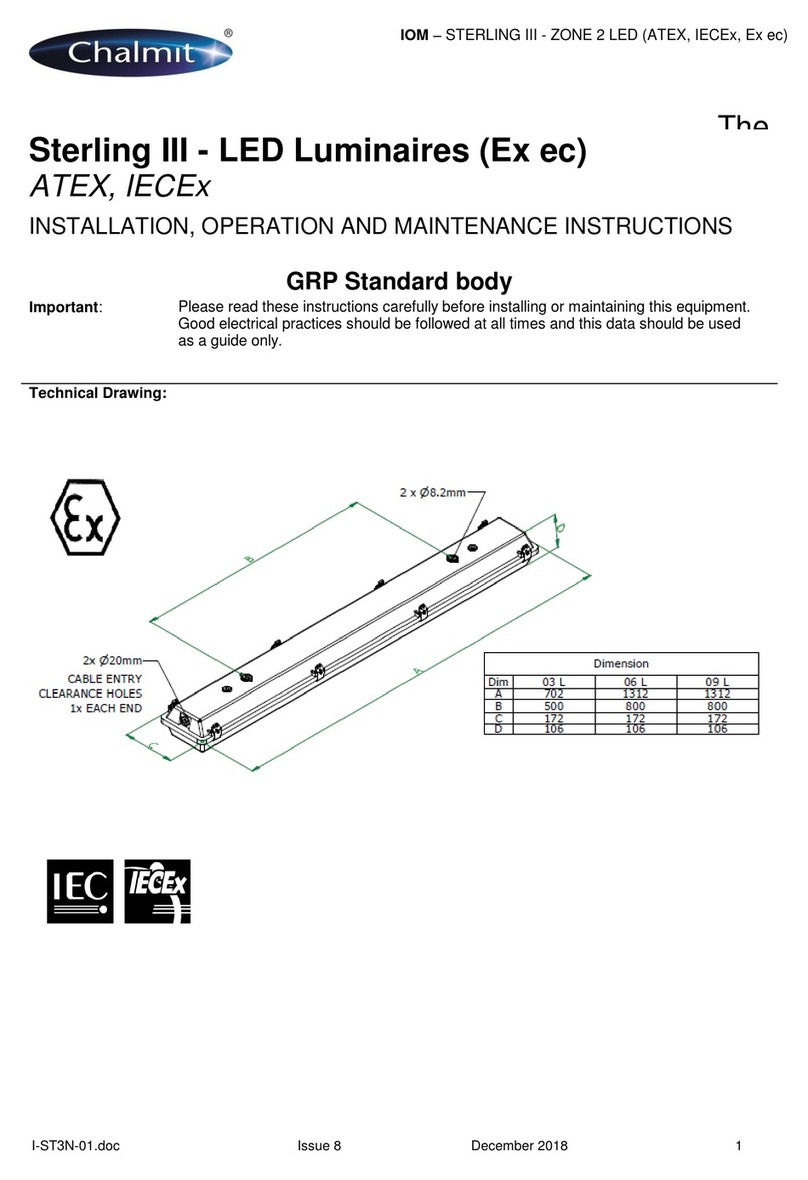

Chalmit Sterling III Installation, operation and maintenance instructions
