NemaVision-iPC NVHMI-707P User manual

1
NemaVision-iPC
NV-HMI-7XX
User Manual
Release Date _ Revision
Oct. 2014 V1.6

2
Warning!_____________________________
Avertissement!________________________
Caution
Risk of explosion if the battery is replaced with an incorrect type.
Batteries should be recycled where possible. Disposal of used batteries must be in
accordance with local environmental regulations.
Precaution
Risque d'explosion si la pile usagée est remplacée par une pile de type incorrect.
Les piles usagée doivent être recyclées dans la mesure du possible. La mise au rebut
des piles usagées doit resecter les réglementations locales en vigueur en matière de
protection de l'environnement.
Risque de choc électrique - Ne pas faire fonctionner la machine avec son capot arrière
enlevé. Des tensions dangereuses sont élevées à l'intérieur.
Electric Shock Hazard –Do not operate the machine with its back cover removed. There
are dangerous high voltages inside.
Cet équipement génère, utilise et peut émettre une énergie de radiofréquence et s'il
n'est pas installé et utilisé conformément au manuel d'instructions, il peut provoquer des
interférences dans les communications radio. Il a été testé et approuvé conforme aux
limites pour un dispositif de classe A et selon les règles de la FCC, qui sont conçues pour
fournir une protection raisonnable contre de telles interférences dans un environnement
commercial. Le fonctionnement de cet équipement dans une zone résidentielle est
susceptible de provoquer des interférences, dans ce cas l'utilisateur, à ses propres frais,
devra faire le nécessaire pour prendre toutes les mesures requises pour corriger le
problème.
This equipment generates, uses and can radiate radio frequency energy and if not
installed and used in accordance with the instructions manual, it may cause interference to
radio communications. It has been tested and found to comply with the limits for a Class A
computing device pursuant to FCC Rules, which are designed to provide reasonable
protection against such interference when operated in a commercial environment.
Operation of this equipment in a residential area is likely to cause interference in which
case the user at his own expense will be required to take whatever measures may be
required to correct the interference.

3
Packing List
Accessories (as ticked) included in this package are:
□Adaptor
□Driver & manual CD disc
□Other.___________________(please specify)
Safety Precautions
Follow the messages below to prevent your systems from damage:
◆Avoid your system from static electricity on all occasions.
◆Prevent electric shock. Don‘t touch any components of this card when the card is
power-on. Always disconnect power when the system is not in use.
◆Disconnect power when you change any hardware devices. For instance, when
you connect a jumper or install any cards, a surge of power may damage the
electronic components or the whole system.
Consignes de sécurité
Suivez les messages ci-dessous pour éviter que vos systèmes contre
les dommages:
◆Éviter votre système contre l'électricité statique sur toutes les occasions.
◆Évitez les chocs électriques. Ne pas toucher les composants de cette carte
lorsque la carte est sous tension. Toujours débrancher lorsque le système n'est
pas en cours d'utilisation.
◆Couper l'alimentation électrique lorsque vous changez tous les périphériques
matériels. Par exemple, lorsque vous connectez un cavalier ou d'installer des
cartes, une forte augmentation de la puissance peut endommager les
composants électroniques ou l'ensemble du système.

4
Table of Contents___________________
Warning!/Avertissement!............................…………………………….……..….2
Caution/Precaution……………..……………………………………………………2
Packing List…………………………………………………………………………..3
Safety Precautions/Consignes de sécurité……….……………………………..3
Chapter 1 Getting Started
1.1 Specifications…………………………...…………………………..6
1.2 Dimensions………..………………………...………………….......9
1.3 Brief Description of NV-HMI Series…………………….………14
1.4 Installation of HDD (NV-HMI-707/NV-HMI-708)…..…………16
1.5 Installation of HDD (NV-HMI-710)…………………………….. 18
1.6 Installation of HDD (NV-HMI-712/NV-HMI-715)...…...………19
Chapter 2 Hardware
2.1 Mainboard………………..…………………..………………..…..21
2.2 Installations…….……………………………..…………………...24
2.3 Jumpers Setting and Connectors.............................................26
Chapter 3 BIOS Setup
3.1 Operations after POST Screen................................................51
3.2 BIOS Setup Utility…................................................................51
3.3 Main Settings….......................................................................52
3.4 Advanced Settings..................................................................53
3.5 Chipset Settings......................................................................59
3.6 Boot Settings….......................................................................62
3.7 Security Settings.....................................................................64
3.8 Save and Exist Settings...........................................................65
Chapter 4 Installation of Drivers
4.1 Intel Chipset Driver.……………………….………………………68
4.2 Intel Graphics Media Accelerator Driver...……….……………..71
4.3 Intel (R) Network Adapter……..………………………………….74
4.4 Realtek ALC662 HD Audio Driver Installation…….……………76
Chapter 5 Touch Screen Installation
5.1 Windows 2000/XP USB Driver Installation for PenMount 6000
Series……………………………………………………………...78
5.1.1 Installing Software (Resistive Touch)....................................78
5.1.2 Installing Software (Projected Capacitive)............................82

5
5.2 Software Functions……………………………………………….88
5.2.1 Software Functions (Resistive Touch)...................................88
5.2.2 Software Functions (Projected Capacitive)……….……...….97
Figures
Figure 1.1: Dimensions of NV-HMI-707…....………………..……...9
Figure 1.2: Dimensions of NV-HMI-708……..……….………..…..10
Figure 1.3: Dimensions of NV-HMI-710………………………..…..11
Figure 1.4: Dimensions of NV-HMI-712……………………....……12
Figure 1.5: Dimensions of NV-HMI-715…………………….......…13
Figure 1.6: Front View of NV-HMI SERIES……………….....…….14
Figure 1.7: Rear View of NV-HMI-707/NV-HMI-708……………..15
Figure 1.8: Rear View of NV-HMI-710……………………………...15
Figure 1.9: Rear View of NV-HMI-712/NV-HMI-715……………..15
Figure 2.1: Mainboard Dimensions…………………………..……...23
Figure 2.2: Jumpers and Connectors Location_ Board Top……....24
Figure 2.3: Jumpers and Connectors Location_ Board Bottom..…25

6
Chapter 1 Getting Started
1.1 Specifications
NV-HMI
-707(P)
NV-HMI
-708(P)
NV-HMI
-710(P)
NV-HMI
-712(P)
NV-HMI
-715(P)
System
CPU
Intel Atom Cedar View N2600 1.6GHz Dual Core Processors
/Intel Atom D2550 1.8GHz (Optional for NV-HMI-712(P)/715(P) only)
System
Chipset
Intel NM10
System
Memory
Onboard DDR3 2GB 800 MHz
/4GB (Optional for NV-HMI-712(P)/715(P) only)
IO Port
USB
2 x USB 2.0 type A
Serial/
Parallel
1 x RS-232/422/485 DB-9, COM1, Default RS-232
1 x RS-232 DB-9, COM2
Audio
1 x Line out phone jack
LAN
2 x GbE RJ-45
Power
3 pins terminal block connector, DC Power input
Storage Space
HDD
1 x 1.8” SATA 2
1 x 2.5” SATA 2
Movable
device
1 x Internal SD slot, up to 32GB
Expansion
Expansion
Slot
1 x Internal Mini-PCIe half size
None
1 x Internal Mini-PCIe slot half size
2 x UART via internal CN3
2 x USB via internal CN3
1 x PCIe x1 via internal CN3
1 x PS/2 via internal CN3
4 x GPIO via internal CN3
Optional
Outside I/O
Port
2 x RS-232 DB-9 +1 x Mini-PCIe slot via TB-528C2ME1 (For NV-HMI-710(P)/712(P)/715(P))
2 x CAN bus via TB-528CAN2 (For NV-HMI-710(P)/712(P)/715(P))
2 x USB 2.0 type A +1 x Mini-PCIe slot +1 x RS-232 DB-9 via TB-528C1U2P1 (For NV-HMI-710(P))
2 x USB 2.0 type A +1 x Mini-PCIe slot via TB-528U2ME1 (For NV-HMI-712(P)/715(P))
Display
Display Type
7” TFT-LCD
8” TFT-LCD
10.1” TFT-LCD
12.1” TFT-LCD
15”TFT-LCD
Max.
Resolution
800x480
800x600
1280x800
800x600
1024x768
Max. Color
262K
16.2M
262K
16.2M
16.2M
Luminance
(cd/m²)
350
350
350
330
350
View
angle(H°/V°)
140/120
140/125
160/160
160/140
170/170
Contrast
Ratio
400:1
500:1
800:1
Backlight
20,000 Hrs
40,000 Hrs
50,000 Hrs

7
Lifetime
Touch Screen
Type
Resistive Touch / Projected Capacitive Touch (for P model)
Interface
RS-232 / USB (for P model)
Light
Transmission
(%)
80% / 90% (for P model)
Power
Power Input
9~36V DC
Mechanical
Construction
Sliver aluminum front bezel and chassis
IP Rating
IP65 front panel
Mounting
Panel mounting, VESA 75 x 75
Panel mounting, VESA 100 x 100
Dimension
(mm)
202 x 149 x 39
231 x 176 x 51
285 x 189 x 48.9
319 x 245 x 51.68
410 x 310 x 54.67
Net Weight
(Kgs)
1.2
1.8
2
2.5
4.4
Environmental
Operating
Temperature
(°C)
0~50℃
Storage
temperature
(°C)
-20~60℃
Storage
humidity
10 to 90% @ 40°C, non- condensing
Certification
CE / FCC Class A (NV-HMI-710(P))
CE / FCC Class A/ CB / CCC (NV-HMI-707(P)/708(P)/712(P)/715(P))
Operating
System
Support
Windows XP Pro, Windows XP Embedded, Windows Embedded CE6.0(Note 1), Windows 7 pro for
Embedded, Windows Embedded standard 7(Win 7 support 3D Graphic function)
Note 1: NV-HMI series is covered by one or more of the following patents: US6, 570, 884,
US6,115,776, and US6,327,625.
** Please be notice.
Due to the limitation for Intel N2000/D2000 EMGD driver, therefore NV-HMI will have some
limitation under XP.
1. The Intel EMGD driver version is v1.15
2. It will have the unknown device under device management due to not
support the Intel HDA device (refer to the photo below)
3. It will need install the correct driver by LCD panel size/resolution, totally
four version : 800*480, 800*600, 1024*768(18bit), 1024*768(24bit)
4. The original driver not support VGA display will have to customize

8

9
1.2 Dimensions

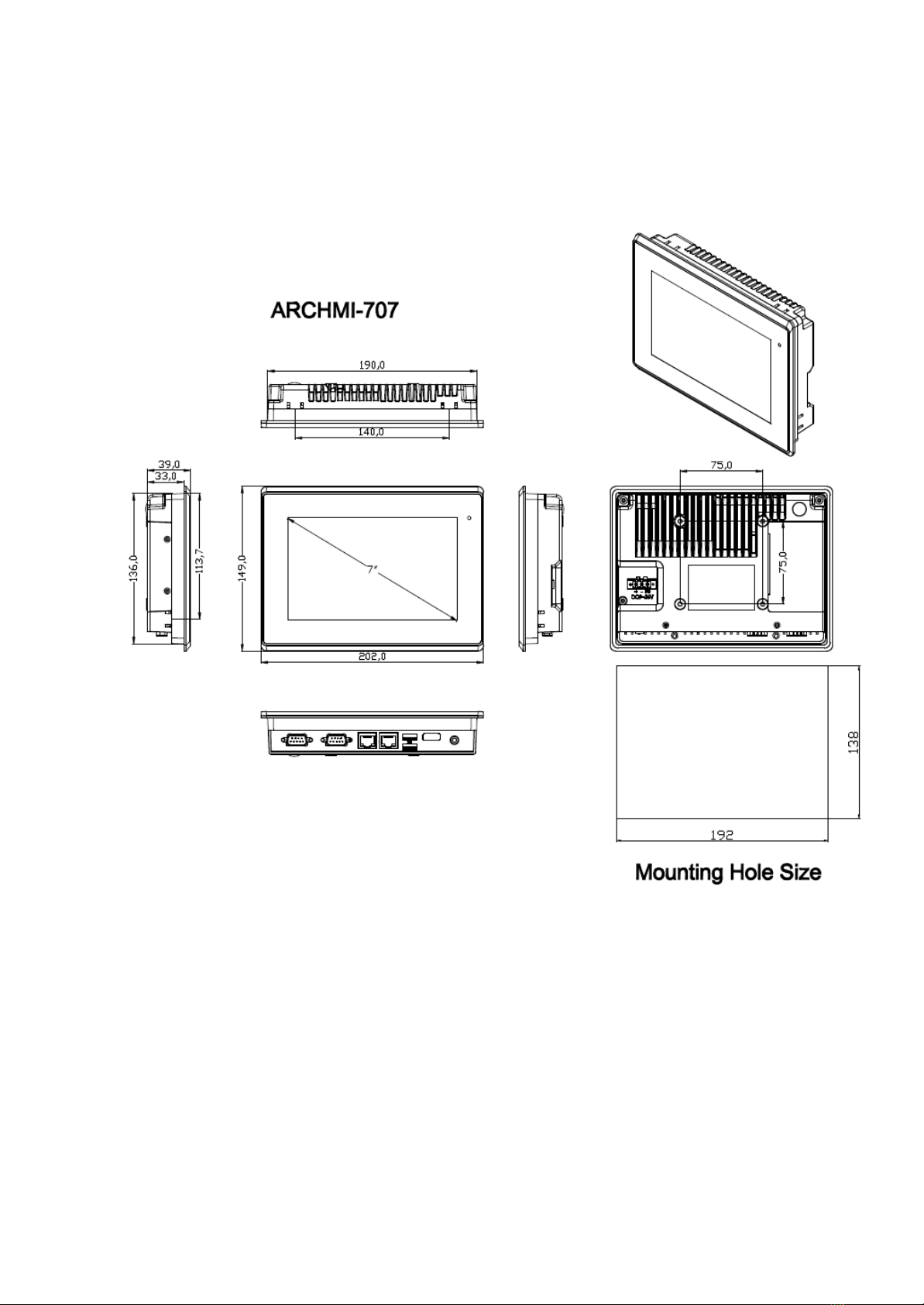

Figure 1.1: Dimensions of NV-HMI-707

10

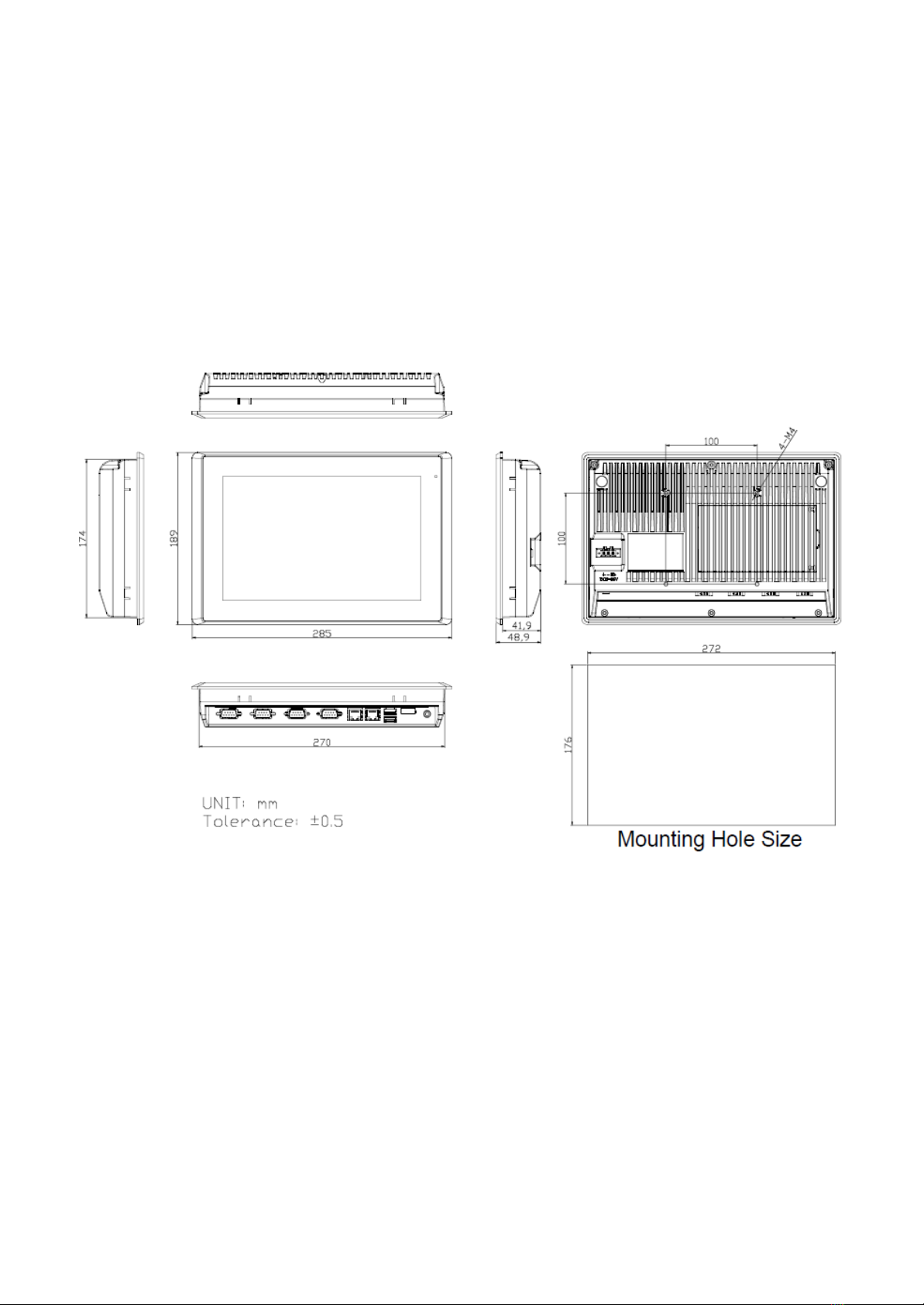

Figure 1.2: Dimensions of NV-HMI-708

11
Figure 1.3: Dimensions of NV-HMI-710

12

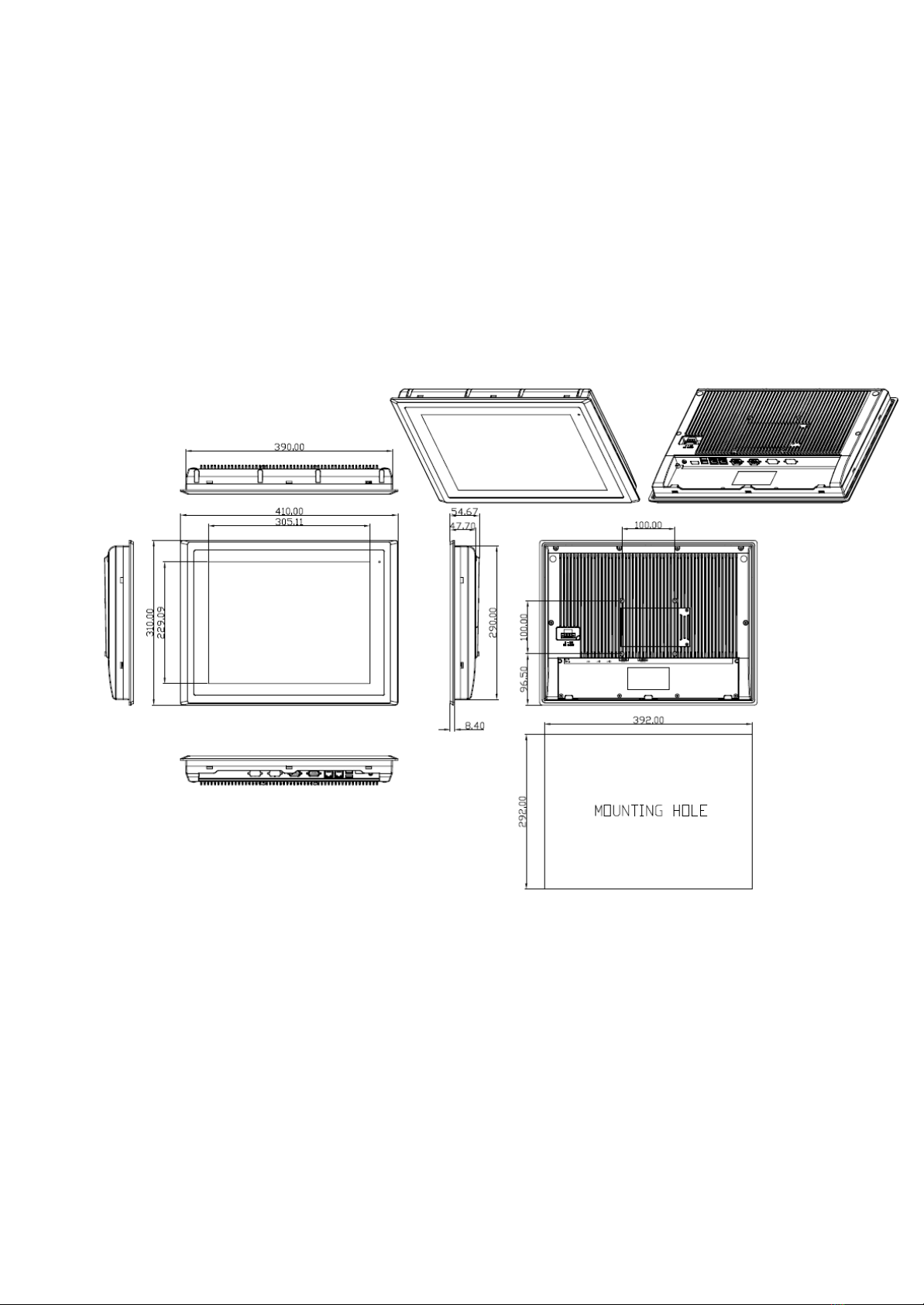

Figure 1.4: Dimensions of NV-HMI-712

13
Figure 1.5: Dimensions of NV-HMI-715

14
1.3 Brief Description of NV-HMI Series
There are 7”, 8”, 10.1”, 12.1”, 15”, Industrial Compact Size Panel PC in NV-HMI series,
which comes with flat front panel touch screen and fanless design. It is powered by Intel Atom
N2600 1.6GHz CPU built-in, 2GB DDR III 800 MHz, and now it also can be powered by Intel
Atom D2550 1.8GHz CPU built-in, 4GB DDR III 800MHz optional for NV-HMI-712 and
NV-HMI-715. NV-HMI series is 9~36VDC wide-ranging power input and IP65 compliant front
panel. Optional projected capacitive touch screen support 7H anti-scratch surface is ideal for
use as a PC-based controller for IndustrialAutomation & Factory Automation.
Figure 1.5: Front View of NV-HMI SERIES

15
Figure 1.6: Rear View of NV-HMI -707/NV-HMI -708
Figure 1.7: Rear View of NV-HMI-710
Figure 1.8: Rear View of NV-HMI -712/ NV-HMI- 715

16
1.4 Installation of HDD (NV-HMI-707/NV-HMI-708)
Step 1
There are 2 screws to deal with when
enclosing or removing the chassis. Gently
remove 2 screws.
Step 2
There is a SSD card in the bracket. Gently
remove the screw, then carefully pull SSD
card.
Step 3
Take out SSD Card bracket.

17

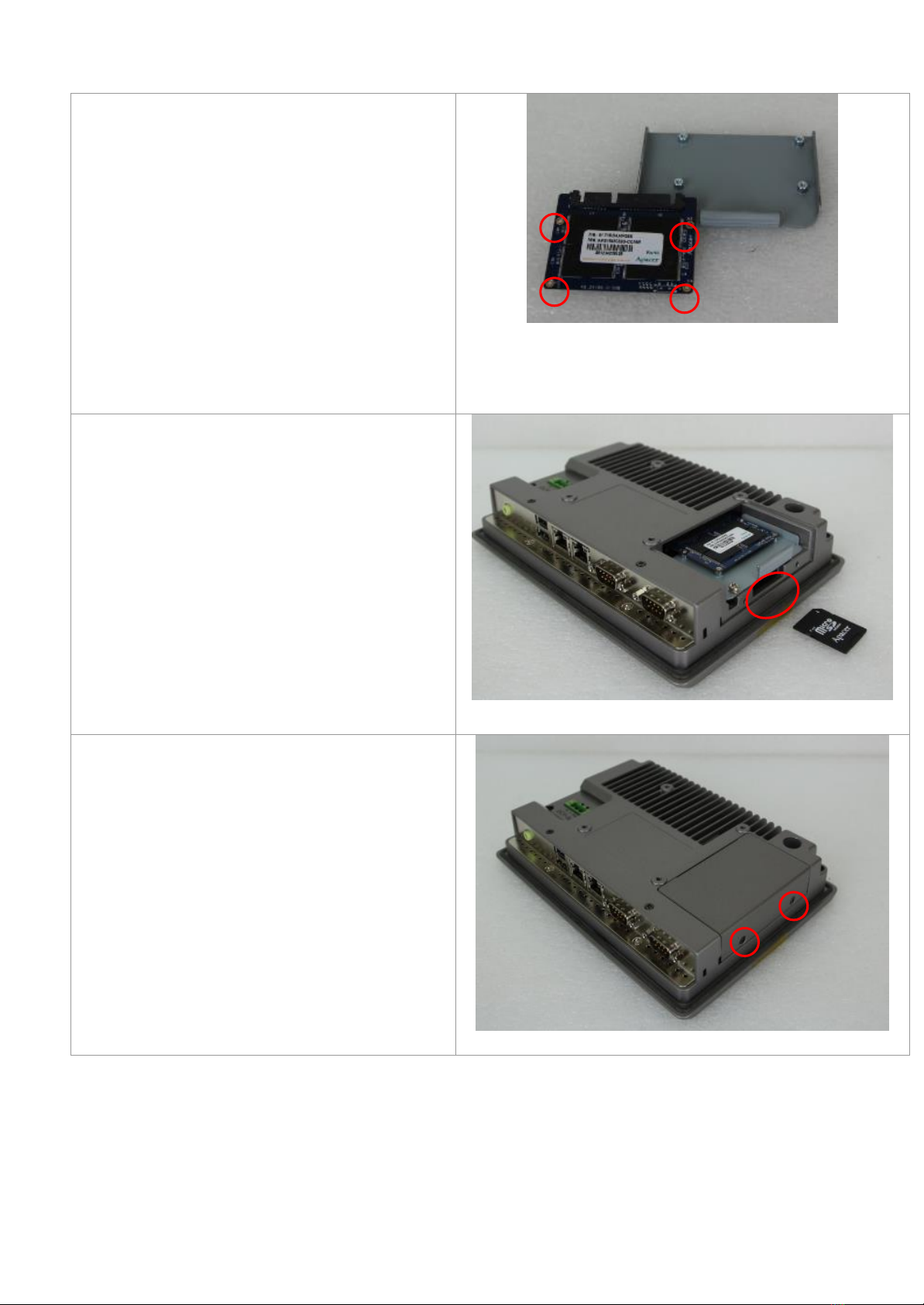

Step 4.
You can replace SSD card by unscrewing 4
screws as shown in the picture.
Note: 4 screws are packed in the packing
list.
Step 5
There is a SD card hole in the side of the
machine. You can replace SD card from
there.
Step 6.
Gently screw the screws.

18

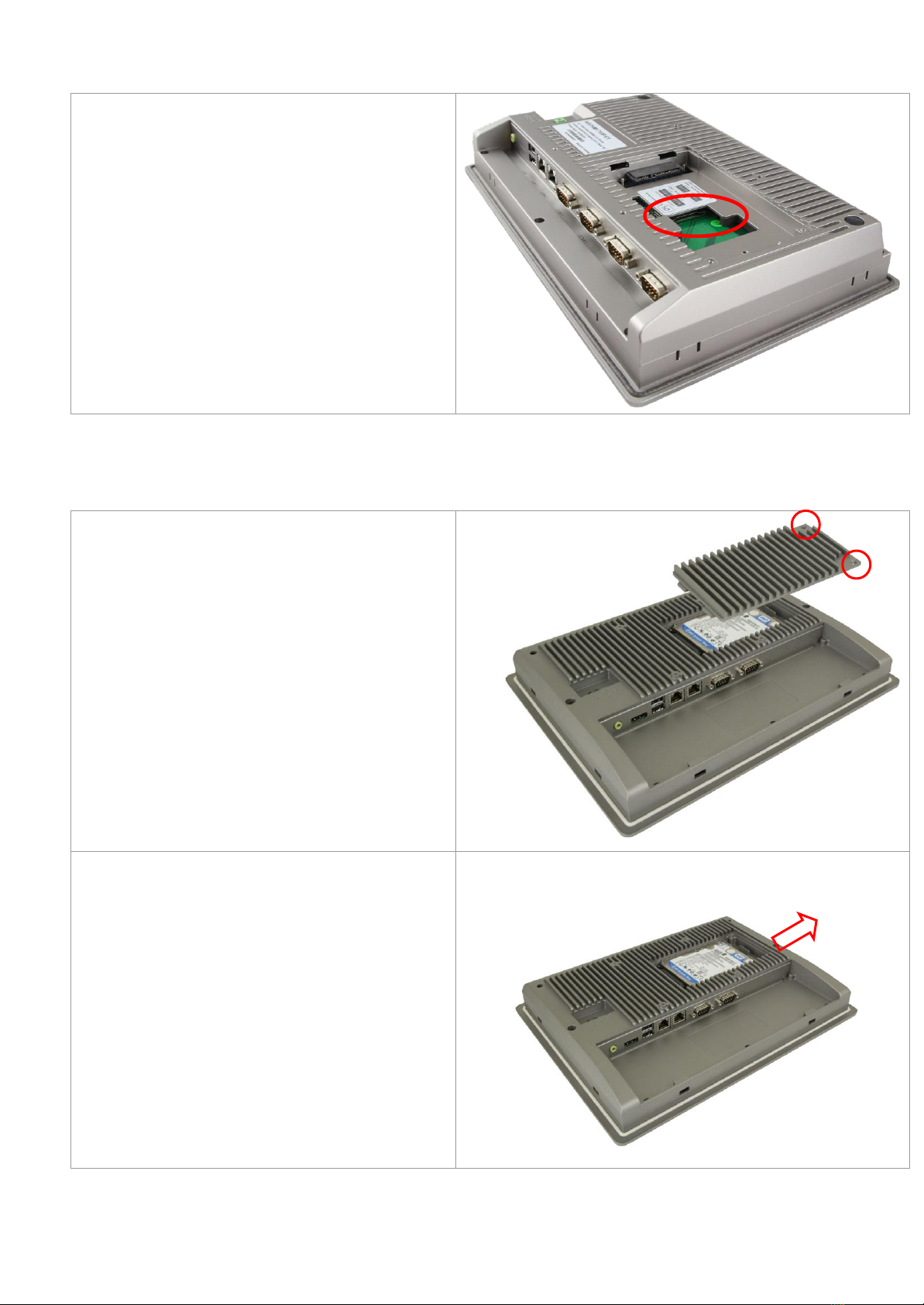

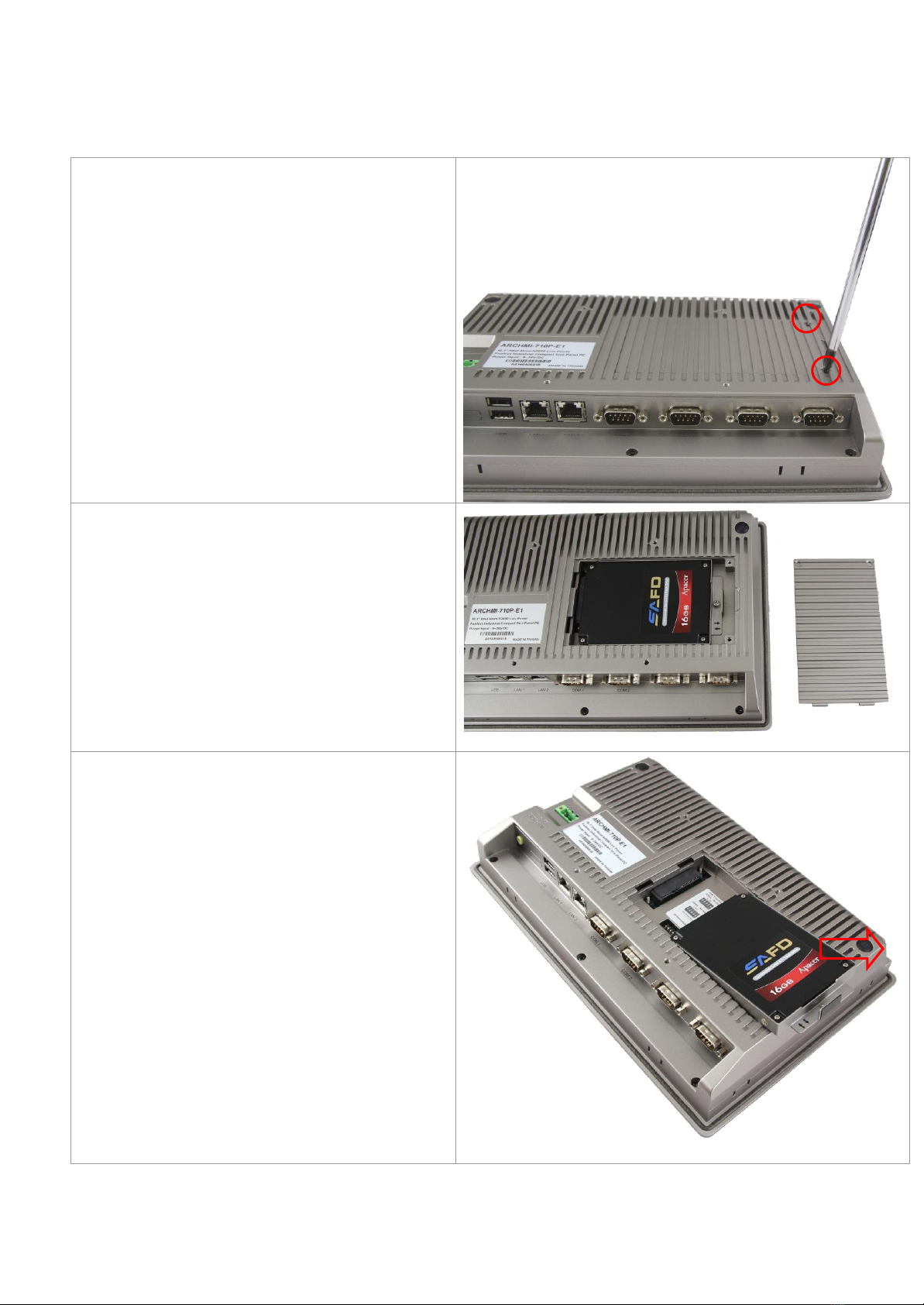

1.5 Installation of HDD (NV-HMI-710)
Step 1
There are 2 screws to deal with when
enclosing or removing the chassis. Gently
remove 2 screws.
Step 2
Take the storage cover beside the Panel PC.
Step 3
You can put or remove HDD into the
machine by pulling the HDD bracket.

19
Step 4.
There is a SD hole in the side of machine.
You can replace SD card from there.
1.6 Installation of HDD (NV-HMI-712/NV-HMI-715)
Step 1
There are 2 screws to deal with when
enclosing or removing the chassis. Gently
remove 2 screws.
Step 2
You can put or remove HDD into the
machine by pulling the HDD bracket.

20
Step 3
You can remove HDD by unscrewing 4
screws in the HDD bracket.
Note: 4 screws are packed in the packing
package.
Step 4
There is a SD hole in the side of machine.
You can replace SD card from there.
