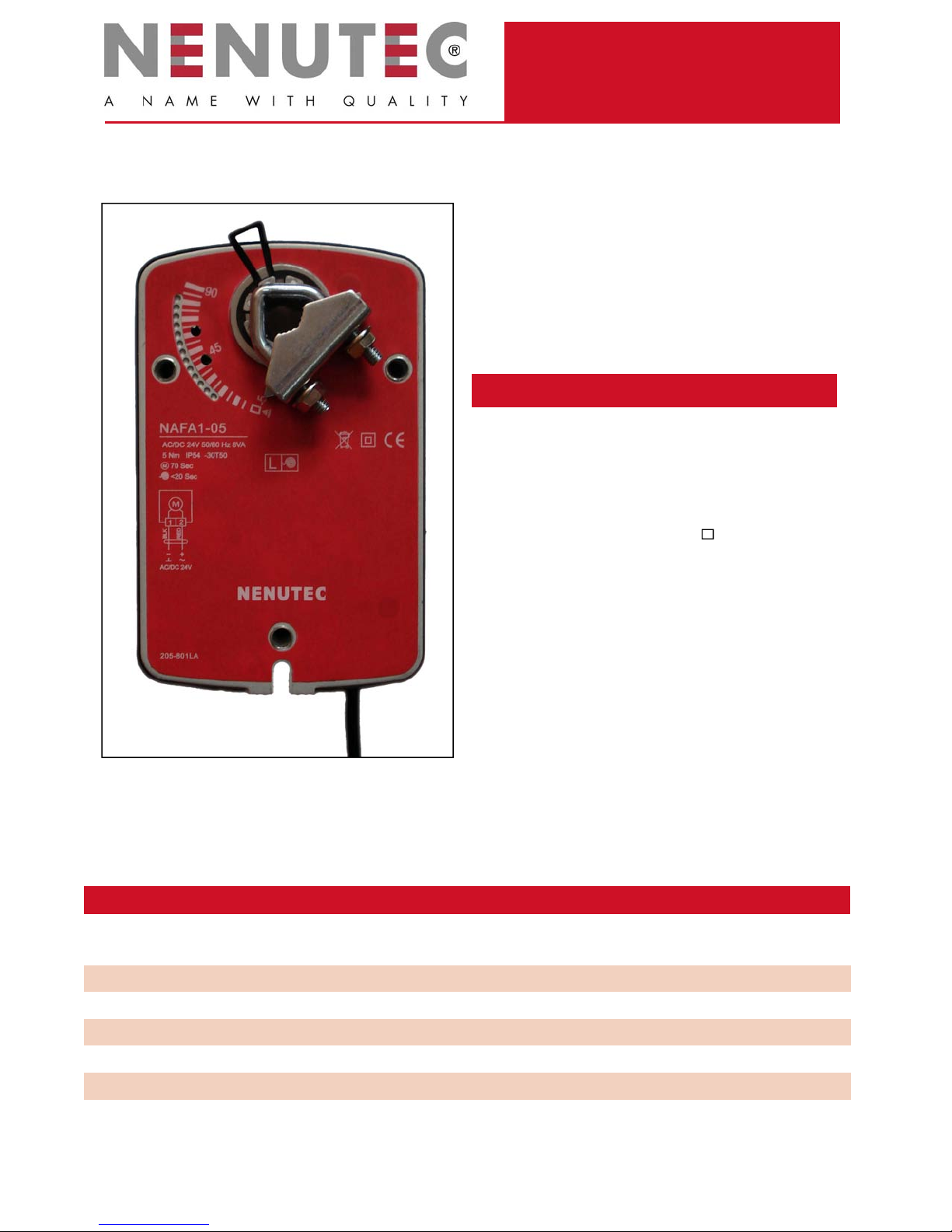

NENUTEC NAFA 1-05 User manual

1
Rotary Damper Actuator
Spring Return 5 Nm
2 Point On/Off Control
■NENUTEC NAFA…05 (S1) 5 Nm Spring Return
damper actuator Series are designed specifically for
application into the HVAC market.
■NENUTEC high quality damper actuators are devel-
oped for use with air damper, butterfly valve, charac-
terized ball valve and other devices that required a fail
safe function. The actuator motorized the damper or
other devices when power on and spring back to it
original position when power is cut off.
■2 points on/off control
■Damper Size up to 1.0 m²
■Voltage AC/DC 24V and AC 230V available
■Universal Spindle Clamp for easy direct mounting
■Shaft dimension Ø10...16 mm / 7...11 mm square
■Minimum Shaft Length 40mm
■Anti-rotation bracket provided for stability
■Adjustable angle of rotation
■Selectable direction of rotation by reversing actuator
■1 adjustable SPDT auxiliary switches when requested
■Energy saving at end stops
■Actuators with 1m cable connection
■Customised version available on request
Product Features
Model Selection Table
Torque Running Time Power Supply Auxiliary Switches Model/Type
5 Nm 50...70 sec AC/DC 24V No NAFA 1-05
Spring Back <20 sec 1 x SPDT NAFA 1-05S1
5 Nm 50...70 sec AC 230V ±10% No NAFA 2-05
Spring Back <20 sec 1 x SPDT NAFA 2-05S1
V290208

2
Rotary Damper Actuator
Spring Return 5 Nm
2 Point On/Off Control
Technical Specification
NAFA 1-05 (S1) NAFA 2-05 (S1)
Torque — Motor (Rated Voltage)
— Spring Min. 5 Nm Min. 5 Nm Min. 5 Nm Min. 5 Nm
Damper Size 1 m² 1 m²
Power Supply AC/DC 24 V AC 230V
Frequency 50...60Hz 50...60Hz
Power Consumption
-Operating 7.2 W 4.2 W
Auxiliary Switches Rating (Amp and Voltage) 3 (1.5) A / 230 V (for 24 V and 230 V) 3 (1.5) A / 230 V (for 24 V and 230 V)
Protection Class II (for 24 V and 230 V) II (for 24 V and 230 V)
Controls Signal 2 Point On/Off 2 Point On/Off
Angle of Rotation 90˚(95˚mechanical) 90˚(95˚mechanical)
Angle of Rotation Limiting 5˚...85˚in 5˚step 5˚...85˚in 5˚step
Weight 1.8 Kg 1.9 Kg
Life Cycle 60,000 rotation 60,000 rotation
Sound Level Below 45 dB Below 45 dB
IP Protection IP54 IP54
Ambient Temperature -20˚...50˚as per IEC 721-3-3 -20˚...50˚as per IEC 721-3-3
Ambient Humidity 5...95% RH 5...95% RH
Inventory Temperature +70˚as per 721-3-2 +70˚as per 721-3-2
Certification CE and ISO 9000
EN / EEC… Requirements CE and ISO 9000 EN / EEC … Requirements
Maintenance Maintenance free Maintenance free
-At the end stops 2.5 W 2.5 W
For wire sizing 10.0 VA 10.0 VA
Actuator Dimensions (mm)

3
Rotary Damper Actuator
Spring Return 5 Nm
2 Point On/Off Control
Changing Direction of Rotation NAFA….05 (S1)
Auxiliary Switches adjustment NAFA…05 (S1)
Switch a
adjustable
0˚….90˚
Built-in Micro Switch Adjustment
Turn the screw from 0˚….90˚according to the scale
AC/DC 24V: Connect via safety isolating transformer.
AC 230V: To isolate from the main power supply, the system must incorporate a device which disconnects
the phase conductors (with a least a 3 mm contact gap)
Angle of Rotation Limiting 5˚to 85˚adjustment
For 5˚to 45˚Adjustment (Diagram 1)
1. Loosen Screw of the mechanical
limiter plate.
2. Move the limiter plate to the
appropriate position.
3. Tighten the screw .
For 45˚to 85˚Adjustment (Diagram 2)
1. Release the secure ring of the adapter.
2. Remove the adapter and turn
negative 45˚as shown.
3. Insert adapter and secure the adapter
ring.
4. Loosen Screw of the mechanical
limiter plate
5. Move the limiter plate to the
appropriate position
6. Tighten the screw
Angle of Rotation Limiting
1. Release Secure Ring
2. Remove Adapter
3. Reverse Actuator
4. Insert Adapter 5. Fasten Secure Ring
Diagram 1
5˚to 45˚Adjustment 45˚to 85˚Adjustment
Diagram 2
Secure Ring Turn adapter
negative 45˚
Wiring Diagram NAFA..05
Auxiliary Switches NAFA..05 (S1)

4
Rotary Damper Actuator
Spring Return 5 Nm
2 Point On/Off Control
Headquater:
Schachenstrasse 80
CH-8645 Jona / Switzerland
Phone [phone]
Fax [phone]
Email: [email protected]
Http://www.nenutec.com
Asia Pacific / Middle East
NENUTEC ASIA PACIFIC PTE LTD
32 Upper Serangoon View
#15-42 Singapore 534 209
Tel: [phone]
Fax: [phone]
Email: [email protected]
Http://www.nenutecap.com
OEM—Customized Version
TELIMA / NENUTEC offer actuators in customized version on request in your own brand name. Please
contact us for further information.
Installation / Mounting Instruction
Remarks
NENUTEC NAFA….05 (S1) Spring Return Actuator series can be used with a variety of NENUTEC prod-
ucts. Consult NENUTEC representative or factory for the specific requirements and selection for your in-
tended application
This device contain electrical and electronic components and may not be disposed as household garbage.
Please consult your local authority for proper disposal.
