Neotek DT8003TP User manual

P S
CAUTION: Federal Law restricts this device to sale by or on the
order of a physician or licensed practitioner
Neo TekTM Combo
Digital TENS/EMS Combo Stimulator
DT8003TP
INSTRUCTION MANUAL

This manual is valid for the Neo TekTM Combo Stimulator
This user manual is published by TENS PROS. TENS PROS does not guarantee
its contents and reserves the right to improve and amend it at any time
without prior notice. Amendments will, however, be published in a new
edition of this manual.
All Rights Reserved.
DT8003TP Rev. V1.0 © 2014-01-03
United States Federal Law restricts this device to sale by or on the
order of a physician or licensed practitioner
Declaration of conformity:
TENS PROS declares that the DT8003TP complies with
following normative documents:
IEC60601-1, IEC60601-1-2, IEC60601-2-10, IEC62366,
ISO10993-5, ISO10993-10, ISO10993-1, ISO7010, ISO14971

Table of contents
3
1. SAFETY INFORMATION----------------------------------------------
2. PRESENTATION--------------------------------------------------------
3. SPECIFICATION--------------------------------------------------------
4. INSTRUCTION FOR USE----------------------------------------------
5. PROGRAM LIST AND WAVEFORM--------------------------------
6. CLEANING AND CARE------------------------------------------------
7. TROUBLESHOOTING-------------------------------------------------
8. DISPOSAL----------------------------------------------------------------
9. GLOSSARY OF SYMBOLS--------------------------------------------
10. IMPORTANT INFORMATION REGARDING
ELECTROMAGNETIC COMPATIBILITY (EMC)------------------
4
14
16
17
22
25
27
29
29
30

4
1. Safety information
1.1 Product Description
Neo TekTM Combo Stimulator is a portable electrotherapy device featuring two
therapeutic modes: Transcutaneous Electrical Nerve Stimulator (TENS) and
Electrical Muscle Stimulation (EMS), which are used for pain relief and electrical
muscle stimulation. The stimulator sends gentle electrical current to underlying
nerves and muscle groups via electrodes applied to the skin. The parameters of
the device are controlled by the buttons on the front panel. The intensity level
is adjustable according to the needs of each individual patient.
1.2 Indications for use
The Neo TekTM Combo Stimulator (TENS and EMS) may be used for the
following conditions.
For TENS mode
1. Symptomatic relief of chronic intractable pain
2. Post traumatic pain
3. Post surgical pain
For EMS mode
1. Relaxation of muscle spasms
2. Increase of local blood ow circulation
3. Prevention or retardation of disuse atrophy
4. Muscle re-education
5. Maintaining or increasing range of motion
6. Immediate post-surgical stimulation of calf muscles to prevent venous
thrombosis
1.3 Medical background
EXPLANATION OF PAIN
Pain is a warning system and the body's method of telling us that something
is wrong. Pain is important; without it abnormal conditions may go

5
undetected, causing damage or injury to vital parts of our bodies. Even
though pain is a necessary warning signal of trauma or malfunction in the
body, nature may have gone too far in its design. Aside from its value in
diagnosis, long-lasting persistent pain serves no useful purpose. Pain does
not begin until coded message travels to the brain where it is decoded,
analyzed, and then reacted to. The pain message travels from the injured area
along the small nerves leading to the spinal cord. Here the message is
switched to dierent nerves that travel up the spinal cord to the brain. The
pain message is then interpreted, referred back and the pain is felt.
HOW TENS STIMULATOR FOR PAIN RELIEF WORKS
What is it?
The Neo TekTM Combo Stimulator is a two output channel TENS machine and
highly eective in relieving pain. TENS is now regularly recommended by
doctors, physiotherapists and pharmacists throughout the world.
Transcutaneous Electrical Nerve Stimulation (TENS) is a noninvasive, drug free
method of controlling pain. TENS uses tiny electrical impulses sent through
the skin to nerves to modify your pain perception. TENS does not cure any
physiological problem; it only helps control the pain. TENS does not work for
everyone; however, in most patients it is eective in reducing or eliminating
the pain, allowing for a return to normal activity.
How TENS works?
Scientic theory suggests that electrical stimulation therapy may work in
several ways:
1) The gentle electrical pulses move through the skin to nearby nerves to
block or shut out the pain message from ever reaching the brain from the
source of the pain.
2) The gentle electrical pulses increase the production of the body’s natural
pain killer, such as endorphins.
3) Furthermore, it is thought that the electrical stimulation improves blood
circulation as well. Muscles contract and relax with the ow of the electrical

6
stimulation. With repeated contracting and relaxing, the blood ows in and
out and the blood circulation is improved.
HOW EMS STIMULATOR FOR MUSCLE STIMULATION WORK
What is it?
Electrical Muscle Stimulation (EMS) is an internationally accepted and proven
way of treating muscular injuries. It works by sending electronic pulses to the
muscle needing treatment; this causes the muscle to exercise passively. It is a
product derived from the square waveform (ladder‐shaped). Through the
square wave pattern it is able to work directly on muscle motor neurons. This
device has low frequency, and this in conjunction with the square wave
pattern, allows direct work on muscle groupings. This is being widely used in
hospitals and sports clinics for the treatment of muscular injuries and for the
re‐education of paralyzed muscles, to prevent atrophy in aected muscles
and improving muscle tone and blood circulation.
How EMS works?
The EMS unit sends comfortable impulses through the skin that stimulate the
nerves in the treatment area. When the muscle receives this signal it contracts
as if the brain has sent the signal itself. As the signal strength increases, the
muscle exes as in physical exercise. Then when the pulse ceases, the muscle
relaxes and then the cycle is continuously repeated. The goal of electrical
muscle stimulation is to achieve contractions or vibrations in the muscles.
Normal muscular activity is controlled by the central and peripheral nervous
systems, which transmit electrical signals to the muscles. EMS works similarly
but uses an external source (the stimulator) with electrodes attached to the
skin for transmitting electrical impulses into the body. The impulses stimulate
the nerves to send signals to a specically targeted muscle, which reacts by
contracting, just as it does with normal muscular activity.

7
1.4 IMPORTANT SAFETY PRECAUTIONS AND WARNINGS
It is important that you read all the warning and precautions included in this
manual because they are intended to keep you safe, prevent injury and avoid a
situation that could result in damage to the device.
SAFETY SYMBOLS USED IN THIS MANUAL
DANGER Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
WARNING
Indicates a potentially hazardous situation which, if not
avoided, could result in serious injury and equipment
damage.
Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury to the
user or patient or damage to the device or other property.
CAUTION
DANGER
This stimulator must not be used in combination with the following medical
devices:
● Internally transplanted electronic medical devices, such as a pacemaker.
● Electronic life support equipment, such as respirators.
●Electronic medical devices attached to the body, such as
electrocardiographs.
Using this stimulator with other electronic medical devices may cause
erroneous operation of those devices.
WARNING
DO NOT USE THIS DEVICE UNDER THESE CONDITIONS:
●Consult with your physician before using this device, because the device
may cause lethal rhythm disturbances in certain susceptible individuals.
●Do not use if you have a cardiac pacemaker, implanted debrillator, or

8
other implanted metallic or electronic device. Such use could cause
electric shock, burns, electrical interference, or death.
● Do not use together with a life-supporting medical electronic device
such as an articial heart or lung or respirator.
● Stimulation should not take place while the user is connected to high-
frequency surgical equipment, it may cause burn injuries on the skin
under the electrodes, as well as problems with the stimulator.
● Do not use the stimulator in the vicinity of shortwave or microwave
therapy equipment, since this may aect the output power of the
stimulator.
● Do not use in the presence of electronic monitoring equipment (e.g.,
cardiac monitors, ECG alarms), which may not operate properly when the
electrical stimulation device is in use.
● Do not use on open wounds or rashes, or over swollen, red, infected, or
inamed areas or skin eruptions (e.g., phlebitis, thrombophlebitis,
varicose veins); or on top of, or in proximity to, cancerous lesions.
● Do not use over areas of skin that lack normal sensation.
● Do not use on the opposite sides of your head since the eects of
stimulation of the brain are unknown.
DO NOT USE ON THE FOLLOWING INDIVIDUALS
● Pregnant women, because the safety of electrical stimulation during
pregnancy has not been established.
● Children or infants, because the device has not been evaluated for
pediatric use.
● Persons incapable of expressing their thoughts or intentions.
DO NOT USE THIS DEVICE DURING THESE ACTIVITIES
● When in the bath or shower.
● While sleeping.
● While driving, operating machinery, or during any activity in which
electrical stimulation can put you at risk for injury.

9
PAIN MANAGEMENT WARNINGS
●If you have had medical or physical treatment for your pain, consult with
your physician before using this device.
●If your pain does not improve, becomes seriously chronic or severe, or
continues for more than ve days, stop using the device and consult with
your physician.
●The mere existence of pain functions as a very important warning telling
us that something is wrong. Therefore, if you suer from any serious
illness, consult your physician in order to conrm that it is advisable for
you to use this TENS Stimulator.
WARNINGS REGARDING THE ELECTRODE PADS
●Apply pads to normal, healthy, dry, clean skin (of adult patients) because
it may otherwise disrupt the healing process.
●If you experience any skin irritation or redness after a session, do not
continue stimulation in that area of the skin.
NEVER APPLY THE PADS TO:
●The head or any area of the face (e.g. eyes or mouth).
●The neck (especially the carotid sinus) or any area of the throat because
this could cause severe muscle spasms resulting in closure of the airway,
diculty in breathing, or adverse eects on heart rhythm or blood
pressure.

10
● Both sides of the thorax or upper back simultaneously (lateral or front
and back), or across your chest or your heart because the introduction of
electrical current may cause rhythm disturbances which could be lethal.
CAUTION
PRECAUTIONS REGARDING THE ELECTRODE PADS
● Do not bend or fold because the electrode pad may not function
properly. Place the pads onto the plastic lm and then store into a
sealed package when not in use.
●Do not apply ointment or any solvent to the electrode pads or to your
skin because it will disrupt the electrode pads from functioning properly.
●The electrode pads are already pre-gelled and will adhere to your skin.
●To avoid damage to the adhesive surface of the electrode pads, put the
electrode pads only on the skin or on the plastic lm provided.
●Place the electrode pads at least 1 inch apart on your skin. The electrode
pads should never touch each other.
●Always place clean electrode pads on your body according to the user
manual or on the advice of your physical therapist.
●Make sure the components are connected well and the electrode pads
are xed on the part of the body you wish to treat or the therapy may not
be eective.
DO NOT USE YOUR ELECTRODE PADS THIS WAY
●The electrode pads should not touch each other when placed onto
your skin.
●Do not place the electrode pad on your spine or backbone.
●The electrode pads should not touch any metal object, such as a belt
buckle or necklace.
●The electrode pads should not be placed simultaneously on the soles of
both feet.
●The electrode pads should not be placed simultaneously on the calves of
both legs.

11
●Do not share electrode pads with another person. This may cause skin
irritation or infection. Electrode pads are intended for use by one person.
●Do not place or relocate the electrode pads pads while the device is on.
●Always turn the power o before removing or changing the electrode
pads location.
●Do not leave electrode pads pads attached to the skin after treatment.
CAUTION WHILE USING THE STIMULATOR
●If the stimulator is not functioning properly or you feel discomfort,
immediately stop using the device.
●Do not use for any other purpose except for what it is intended for.
●Do not insert the electrode plug into any place other than the jack on the
main unit.
●Do not mix Alkaline and Manganese batteries as this will shorten the
battery life.
●Do not pull on the electrode cord during treatment.
●Do not use the device while wearing electronic devices such as watches
as this may damage the device.
●Do not use near a cell phone as this may cause the stimulator to
malfunction.
●Do not bend or pull the end of the cord.
●When pulling out the cord from the device, hold the plug and pull.
●Replace the cord when broken or damaged.
●Do not throw the batteries into a re. The batteries may explode.
●Dispose of the device, batteries, and components according to applicable
legal regulations. Unlawful disposal may cause environmental pollution.
●The size, shape and type of electrode pads may aect the safety and
eectiveness of electrical stimulation.
●The electrical performance characteristics of electrode pads may aect
the safety and eectiveness of electrical stimulation.
●Using electrode pads that are too small or incorrectly applied, could
result in discomfort or skin burns.

●The long-term eects of electrical stimulation are unknown.
●Apply stimulation to only normal, intact, clean, dry, and healthy skin.
●TENS is not eective in treating the original source or cause of the pain,
including headache.
●TENS is not a substitute for pain medications and other pain
management therapies.
●TENS devices do not cure disease or injuries.
●TENS is a symptomatic treatment and, as such, suppresses the sensation
of pain that would otherwise serve as a protective mechanism.
●Eectiveness is highly dependent upon a patient’s selection of a
practitioner qualied in the management of pain.
●You may experience skin irritation or hypersensitivity due to the
electrical stimulation or electrical conductive medium (gel).
●If you have suspected or diagnosed heart disease, you should follow
precautions recommended by your physician.
●If you have suspected or diagnosed epilepsy, you should follow
precautions recommended by your physician.
●Use caution if you have a tendency to bleed internally, such as following
an injury or fracture.
●Consult with your physician prior to using the device after a recent
surgical procedure, because stimulation may disrupt the healing process.
●Use caution if stimulation is applied over the menstruating or pregnant
uterus.
●Use caution if stimulation is applied over areas of the skin that lack
normal sensation.
●Keep unit away from young children. The unit contains small pieces
that may be swallowed. If any device piece has been swallowed
immediately contact a medical professional for assistance.
●Use this device only with the leads, electrodes, and accessories
recommended by the manufacturer.
●Keep unit out of the reach of young children. The electrode cord can
cause strangulation.
12
GENERAL PRECAUTIONS

13
Possible Adverse Reactions
●Do not use to treat one region for extended periods of time (more than
30 minutes a session, up to 2 times/day) or muscles in that region may
become exhausted and sore.
●You may experience skin irritation and burns beneath the stimulation
electrodes applied to your skin.
●You may experience headache and other painful sensations during or
following the application of electrical stimulation near your eyes and to
your head and face.
●You should stop using the device and consult with your physician if you
experience adverse reactions from the device.

14
2. Presentation
2.1 Product structure
P
1) LED Indicator: Indicates the working status of channel 1
2) LED Indicator: Indicates the working status of channel 2
3) LCD Display: Shows the operating state of the device
4) [ P] Button:
1. Allows user to select a therapeutic program;
2. Restores the original time setting
5) [CH1+] Button:
1. Increases the output intensity of channel 1.
2. Use to select treatment time in the setting mode.
6) [CH1-] Button:
1. Decreases the output intensity of channel 1.

15
2.2 LCD display
Therapeutic mode
Type of waveform
Program number Low-battery
indicator
Treatment time
Timer symbol
Channel 1 Channel 2
Output intensity
of channel 1
Lock function indicator
Output intensity
of channel 2
2. Use to select treatment time in the setting mode.
7) [ S] Button: Press the button to enter time setting mode.
8) [CH2+] Button:
1. Increases the output intensity of channel 2.
2. Use to select treatment time in the setting mode.
9) [CH2-] Button:
1. Decreases the output intensity of channel 2.
2. Use to select treatment time in the setting mode.
10) Output socket for channel 1: electric signal output after connection of the
cable with the adhesive electrodes to channel 1.
11) Output socket for channel 2: electric signal output after connection of the
cable with the adhesive electrodes to channel 2.
12) [ ] Button:
1. Turn on or turn o the device.
2. Stop treatment.
13) Belt Clip.
14) The battery compartment cover.

16
3. Specication
3.1 Accessories
NO DESCRIPTION QTY
1
2
3
4
5
Neo TekTM Combo 1pc
1pc
Lead wires 2pcs
40mm x 40mm Electrodes pads 4pcs
1.5V Battery( AAA) 4pcs
Instruction Manual
3.2 Technical information
Channel: Two channels
Power supply: DC 6.0V (1.5V x 4AAA)
Waveform: Mono-phasic square waveform
Frequency: 2Hz-125Hz
Pulse width: 100us~400us
Weight: About 102g ( Without batteries)
Output amplitude: 0-80V (at 1000Ω Load)
Dimensions: 123mm x 64mm x 34 mm ( L x W x H )
Treatment time: 15min, 30min, 60min and continuous
Operating conditions: 5°C to 40°C ( 41℉to 104℉) with a relative humidity
of 30%-80%, atmospheric pressure from 700 to 1060 hPa
-10°C to 55°C (14℉to 131℉) with a relative
humidity of 10%-90%, atmospheric pressure from 700
to 1060 hPa
The amplitude level will be reset to 0mA when the
amplitude level is 12mA or greater and an open circuit
at either channel is detected.
3 years.
With new battery, approximately 20 days when used for
30 minutes a day in TENS program 01 at 60 level intensity.
Storage and
transportation
conditions:
Load detection
function：
Service life of the
device:
Service life of the
batteries :

17
4. Instruction for use
4 .1 Check/Replace the battery
Over time, in order to ensure the functional
safety of the device, changing the battery is
necessary.
1. Slide the battery compartment cover to
open.
2. Insert the batteries (4x1.5V, type AAA) into the
battery compartment.
3. Make sure you are installing the battery properly. Be sure to match the
positive and negative ends of the battery to the proper markings in the
battery compartment of the device.
4. Press and pull down following the direction of the arrow indicated on the
photo.
5. Replace the battery compartment cover and press to close.
6. If replacing the battery, slide the battery compartment cover to open. Pull
up the battery following the direction of the arrow indicated on the photo.
Insert the battery according to the above step 2 - 5.
CAUTION:
1. Swallowing a battery may be fatal. Therefore, keep the battery and the product out of the reach of
children. If a battery is swallowed, consult medical assistance immediately.
2. If a battery has leaked, avoid contact with skin, eyes and mucus membranes. Rinse the affected
areas with lots of water immediately and contact medical assistance immediately.
3. Do not charge, dismantle or throw a battery into fire or allow it to short-circuit.
4. Protect battery from excess heat. Remove battery from the device if they are spent or if the device is
no longer being used.
5. Always replace with the same type batteries.
+
-
-
++
-

18
4.2 Connect electrodes to lead wires
Insert the lead wire connector into the electrode connector (standard 0.08
inch female connection). Make sure no bare metal of the pins are exposed
after connecting.
Connection Cables Transparent Film
4.3 Connect lead wires to device
P S

19
1) Before proceeding to this step, be sure the device is completely turned OFF.
2) The wires provided with the system insert into the output sockets located
on the top of the device.
3) Holding the insulated portion of the connector, push the plug end of the
wire into one of the sockets (see drawing); one or two sets of wires may
be used.
4) This device has two output sockets controlled by Channel 1 and Channel
2 at the top of the unit. You may choose to use one or two channels with
lead wires. Using both channels gives the user the advantage of
stimulating two dierent areas at the same time.
CAUTION:
Do not insert the plug of the lead wire into any AC power supply socket.

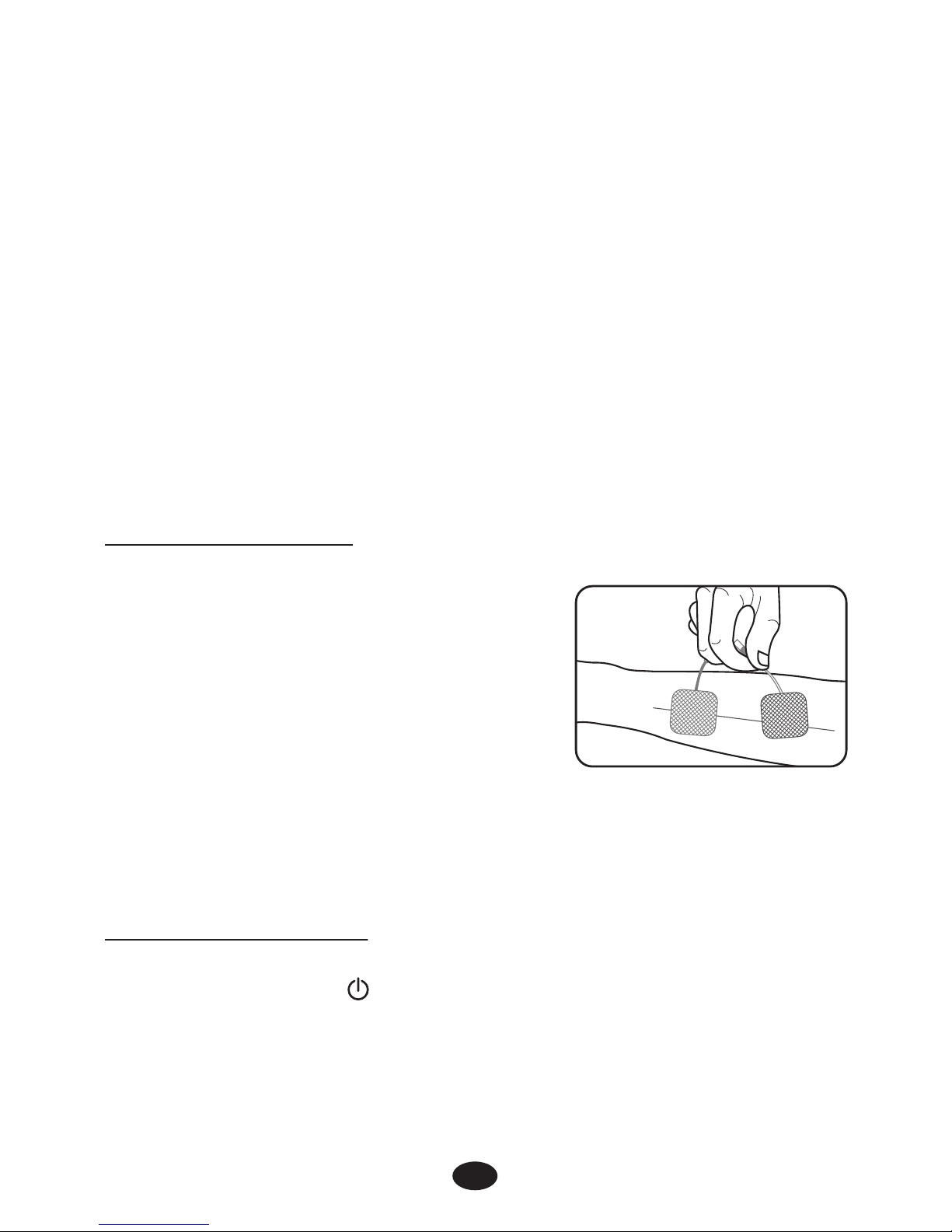

4.4 Electrode Placement
Remove the clear transparent lm from the
back of the electrode pad. Place electrode
pads on clean, dry and healthy skin near or
surrounding the area with pain at least 1"
apart. Do not let them touch. Make sure there
is a linear path between the two electrode pads.
WARNING:
Make sure the device is turned o or the intensities are set to 0 before placing
the electrodes on the body.
4.5 Turning on the Device
Press the power button [ ] to turn on the device, the LCD will illuminate.
Before using the device for the rst time, it is strongly advised that you take
careful note of the contraindications and safety measures detailed at the
beginning of this manual (Safety information). This electronic equipment is
intended for pain managemant and muscie stimulation therapy only .This
device is not a gadget or toy.

20
4.6 Selecting the therapeutic program
Press the program button [ P ] to select the
available therapeutic program.
NOTE:
1. The LCD will display the therapeutic mode and
program after you selected.
2. Scroll through the therapeutic programs-TENS
01 through EMS 10 by pressing the [P] button.
see pages 22-24 for more list delails and waveform.
4.7 Set treatment time
Press the set button [ S ] button to enter time
setting mode. The lowercase ‘min’ will ash on the
screen. You may select treatment time through the
intensity buttons ([CH1+], [CH1-], [CH2+], [CH2-]).
To save your selection in this program, press the
[S] button again to save.
NOTE：
To restore original settings, press the [ P ]
button while in the setting mode.
4.8 Adjust intensity and start treatment
Press [CH1+] or [CH2+] to increase the
output intensity of channel 1 or channel 2,
and the treatment time will begin.
Press [CH1-] or [CH2-] to decrease the output
intensity of channel 1 or channel 2.
