Neotherm Futura W Pro SQ60524 User guide

Room Thermostat
Futura W Pro Analog 24V
INSTALLER MANUAL
www.neotherm.dk
Issue Date: NOV 2020
V007
Product Description
Thank you for purchasing the SQ60524(WB) Thermostat. This thermostat is a device that
lets you customise the heating and cooling of your home as needed. The SQ60524(WB) is
an electronic room temperature controller which oers key advantages over conventional
mechanical products. The controller is easy to operate using the conventional backlit
adjusting dial and oers you unique control convenience for heating applications of all types
thanks to the high quality device electronics.
We hope you enjoy our product.
Icons used in this manual:
Safety
Important info
Your benet
Fixing Screws1 x Installer ManualSQ60524(WB) Room Thermostat
Use in accordance to national and EU regulations. Use the device as intended, keeping it in dry condition.
Product for indoor use only. Installation must be carried out by a qualied person in accordance to
national and EU regulations. Disconnect your equipment before cleaning it with a dry cloth.
Product Compliance
Safety Information
Please always ensure the AC 24V mains power is switched o before installing or working on any
components.
Warning:
This product complies with the essential requirements and other relevant provisions of Directives
2014/30/ EU, 2014/35/EU and 2011/65/EU.The full text of the EU Declaration of Conformity is available
at the following internet address: www.saluslegal.com
Package content User interface
Installation
Temperature is set by turning the knob to wanted temperature: 5° - 35°C.
The ideal position to locate the thermostat is 1,5 m above oor level, far from heating
or cooling sources. The thermostat can’t be exposed to sunlight or any extreme conditions,
for example draft. It should be mounted in a location where the thermostat is easily
accessible and away from direct sunlight.
1. Gently remove front housing and make the wiring connections
2. For wall mounting, mark the correct position on the wall and mount the rear case to
the wall.
1. Temperature scale
2. Dial button
3. LED
1
2
3

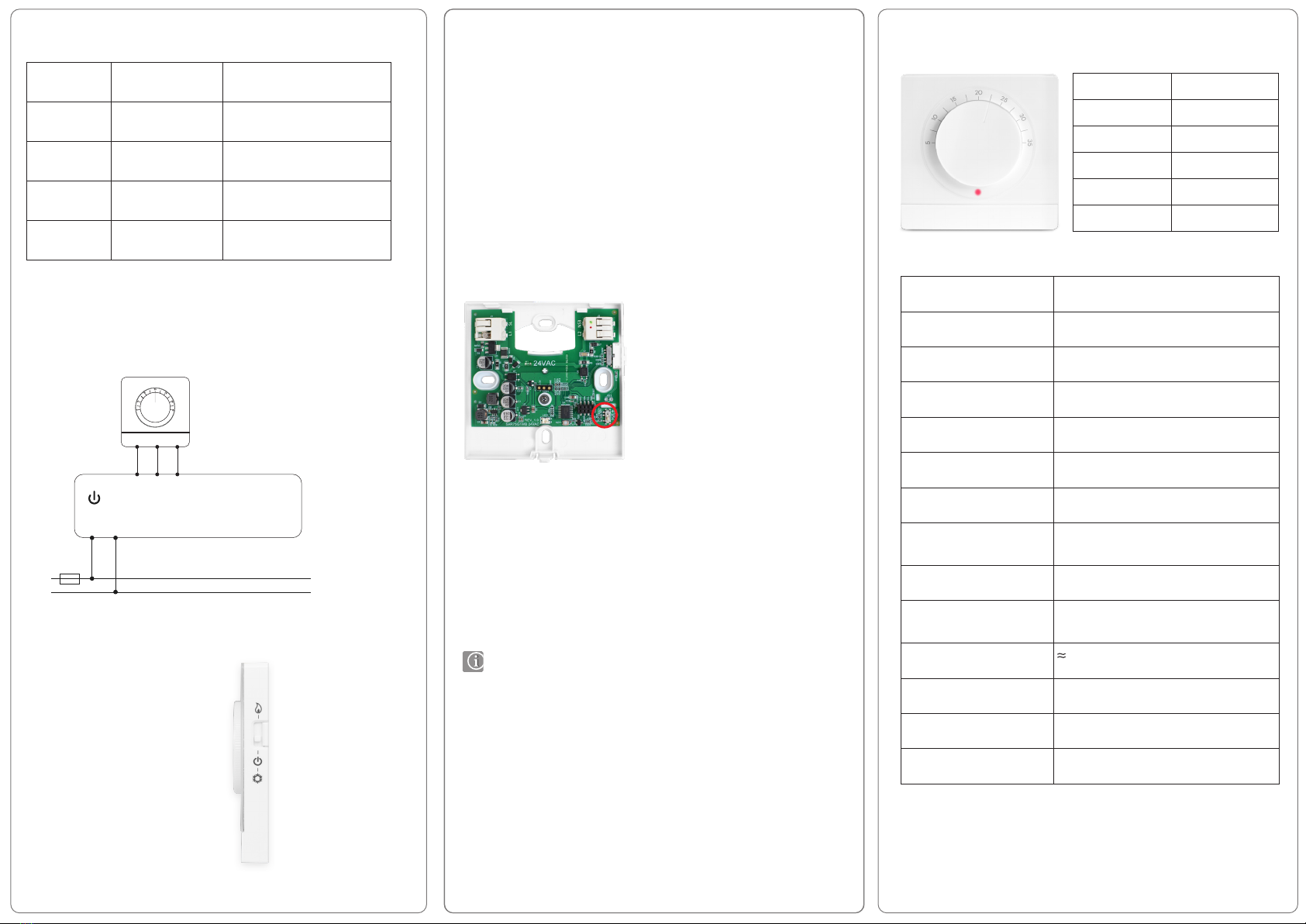

Terminals description
Switches
Thermostat functions
Technical specication
Protection functions
Control Pattern – Span +/- 0,5°C
LED Indicators
Terminal Type Function
L1 Power 24VAC Live
L2 Power 24VAC Neutral
SL Output 24V Switched Live
NSB Input Night Set Back Input (24V Active)
Output Call LED indication
Idle OFF
Heat demand RED
Cooling demand Blue
Sensor failure Red (Flashing in 1Hz)
Knob Failure Blue (Flashng in 4 HZ)
Connecting to KL08NSB1 Wiring center (purchased separately)
Slide Switch on the side with 3 positions:
UP-Heat Mode
Middle-OFF Mode
Down - Cooling mode
Default position is UP (Heat mode).
Heat Mode
Side switch in the upper position.
Cooling Mode
Side switch in the lower position.
OFF Mode
The thermostat will be turned o when the side switch is in the middle position.
NSB (Nigth Set Back) function
NSB mode depends on the NSB wired connection: 0V = NSB OFF; 24V = NSB ON
When NSB is ON the temperature will be set back to 2°C or 4°C according to the dipswitch
setting located inside the thermostat.
Heat cut o
When the room temperature is over 36°C heating output will be turned o.
Cooling cut o
When the room temperature is under 4°C cooling output will be cut o.
Short cycle protection
When the cooling mode is enabled the minimum interval between On/OFF is 3 minutes.
Heating mode
The thermostat will start heating when the room temperature will get below the setpoint.
The thermostat will stop the Heating function when the room temperature is on set point
or above.
Cooling mode
The thermostat will start cooling when the room temperature gets above the setpoint. The
termostat will stop the Cooling function when the room temperature is on setpoint or below.
The Dip Switch is located inside theThermostat - NSB 4C/2C Night Set Back Default 2C. Model: SQ60524(WB)
Voltage: 24VAC, ± 10%, 50/60 Hz
Temperature setback: 2°C-4°C
Temperature range: 5°C - 35°C
Span ± 1 / 0.5°C
Storage temperature: -20°C - 60°C
Ambient temperature: 0°C - 45°C
Operating humidity
(Non condensed)
5 – 95 % RH
Degree of protection: IP30
Terminal connection: Screwless type for solid-core wire (max wire
gauge 1 mm2)
Weight: 70 g
Valve protection Yes
Heating and cooling Yes. Manual modes changeover.
Dimension: 86 mm x 86 mm x 15,5 mm
1-8 Zones
AC 230V
Power
L1
L1
L1
L1
L2
L2
L2
L2
SL
SL
AC 24V
KL08NSB1
When the cooling mode is enabled thermostat respects minimum time interval of 3
minutes between next stop/start cooling signal.
