Nerival NEO-80 User manual

1 www.nerival.fi
User manual
AUTOMATIC DOOR OPERATOR NEO-80

2 www.nerival.fi
Table of contents
Safety instructions .....................................................................................................3
Overview....................................................................................................................4
Technical information ................................................................................................5
Installation example...................................................................................................6
Installation of mounting plate and door operator...................................................6
Outward opening door: Installation with push arm (door operator inside) ............7
Inward opening door: Installation with pull arm (door operator inside).................8
Connection.................................................................................................................9
Button functions ......................................................................................................11
Settings ....................................................................................................................12
General settings 1-22............................................................................................12
Advanced settings................................................................................................. 13
Remote control functions.........................................................................................14
Adding a remote control.......................................................................................14
Deleting remote controls......................................................................................14
Digital display code table .........................................................................................15

3 www.nerival.fi
Safety instructions
This manual is intended for use by electrical professionals. All installation
connections and adjustments must be made in accordance with this instruction
manual.
•Before installation
Check for transport damages, do not install / use a damaged unit.
Make sure that the strength and stability of the wall and door structures are
sufficient.
•Connection
Only professional electricians are allowed to make electrical connections.
Make sure the power supply is turned off before making any connections.
This product must be earthed.
•Before turning on the power
Ensure correct supply voltage 230VAC.
Make sure that the input and output connections are connected correctly,
and the connectors are tight. Improper connection can damage the door
operator.
•Always switch off the power before installation or maintenance
and make sure that power is disconnected.
Read the manual carefully before installing the product.
Improper installation can be fatal.
The manufacturer or distributor is not responsible for the
consequences of incorrect installation or use.

4 www.nerival.fi
Overview
Automatic door operator
Accessories
Dimensions

5 www.nerival.fi
Technical information
Model
NEO-80
Door max. weight
100kg, recommended 80kg
Door max. width
1200mm, recommended 1000mm
Weight
6,5kg
Service life
More than 1.000.000 operations
Installation method
Surface mounting
Voltage output for locking
12VDC
With included relay card
12V AC/DC - 30V AC/DC
Door hold-open time
0-30s, adjustable
Opening angle
0°-99°, adjustable
Supply voltage
230VAC
Max. power
45W
Standby power consumption
< 2W
Remote control distance
Over 30m
Operating temperature
-20℃- 55℃
Protection class
IP12D
Dimensions
515mm x 95mm x 90mm
Approvals
EU Directive
Test Standard(s)
2011/65/EU
(RoHs)
EN 62321-1:2013
EN 62321-2:2014
EN 62321-3-1:2014
EN 62321-4:2014+A1:2017
EN 62321-5:2014
EN 62321-6:2015
EN 62321-7-1:2015
EN 62321-7-2:2017
EN 62321-8:2017
EU Directive
Test Standard(s)
2014/30/EU
(EMC)
EN IEC 61000-6-1:2019
EN 61000-6-3:2007/A1:2011
/AC:2012

6 www.nerival.fi
Installation example
Installation of mounting plate and door operator

7 www.nerival.fi
Outward opening door: Installation with push arm (door operator inside)
Loosen the screws to set the
push arm at a 90-degree angle
to the door.
Adjust the limit block in the correct
position when the door is open.

8 www.nerival.fi
Inward opening door: Installation with pull arm (door operator inside)

9 www.nerival.fi
Connection
electric lock
Electric lock output +12VDC, max 600mA*
electric lock
Electric lock output -12VDC*
Emergency power supply
Backup power supply input +12VDC
COM
Backup power supply input -12VDC

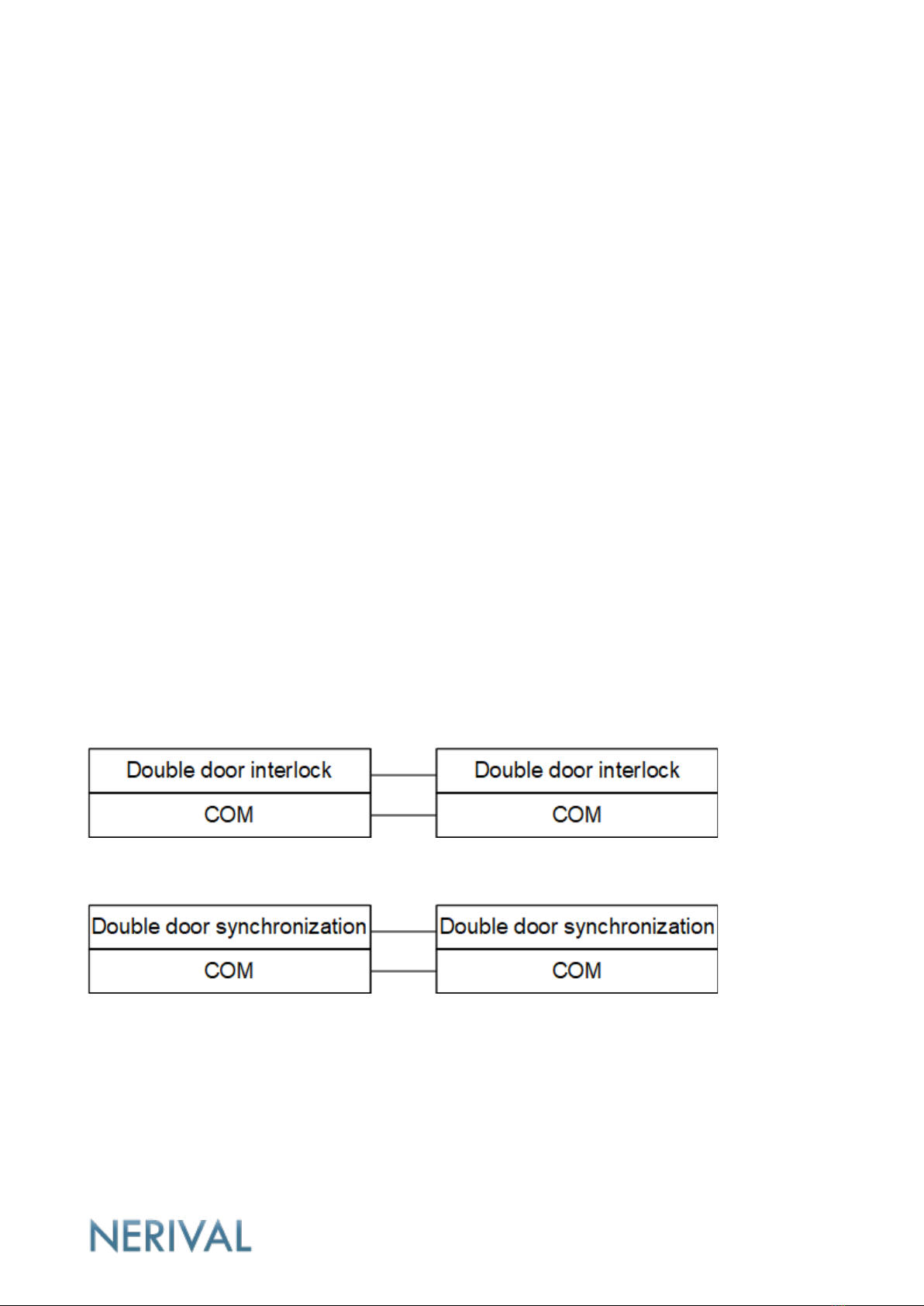

Double door interlock
Interlock signal
COM
COM
Double door synchronization
Synchronization of two door operators
COM
COM
Sensor power supply
Sensor output -12VDC
Sensor power supply
Sensor output +12VDC
Sensor signal
Sensor signal input
Sensor signal
Sensor signal input
12V
Voltage output +12VDC, max 200mA
0V
Voltage output -0VDC
COM
COM
OpeningDoor anti-collision
Opening door safety sensor input
ClosingDoor anti-collision
Closing door safety sensor input
Access control signal
Access control signal input

10 www.nerival.fi
Sensor signal/Sensor signal: Signal opens the door from sensor. When the input is
active, the display shows F1.
OpeningDoor anti-collision/COM: Opening door safety sensor. When the sensor
detects, the door stops. When the input is active, the display shows F2.
ClosingDoor anti-collision/COM: Closing door safety sensor. When the sensor
detects, the door opens. When the input is active, the display shows F3.
Access control signal/COM: Signal opens the door from access control. The input is
either a voltage signal of 12VDC or a short circuit signal. When the input is active,
the display shows F4.
Double door interlock/COM: When the input is active, the display shows F5. Ask
your supplier for more information.
Double door synchronization/COM: Synchronization of two door operators. Both
door operators operate simultaneously. When the input is active, the display shows
F6.
* Use the supplied relay card if voltage used for locking is other than 12VDC.

11 www.nerival.fi
Button functions
•The door operator has a self-learning process when it is turned on or a new
setting is made. The door operator drives the door in its closing direction and
stops it when the door is closed in the correct position.
If the device cannot detect the correct stop position, the error message "E08"
is displayed.
•If the door closes in the wrong direction, see setting no. 9.
•To skip the self-learning process, press the ▲button to enter the setting
mode.
Option+ : Scroll up the settings
Option- : Scroll down the settings
Parameter- : Increase parameter
Parameter+ : Decrease parameter
Save: Save setting / Exit

12 www.nerival.fi
Settings
Press the ▲button to enter the setting mode.
Use the ▲and ▼buttons to select the setting you want to set.
Press the decrease or increase button to set the desired value.
To save the setting and exit the setting mode, press the button.
General settings 1-22
Setting
number
Function
Setting
range
Factory
setting
Additional information
1
Opening speed
0-30
25
The higher the value, the faster the
door opens
2
Closing speed
0-30
20
The higher the value, the faster the
door closes
3
Opening angle
0-99
45
The higher the value, the larger the
opening angle
4
Door hold open time
0-30
2
0-30 seconds opening time after the
door has opened
5
Slow opening angle
0-30
8
The higher the value, the greater the
angle at which the door opens slowly
6
Slow closing angle
0-30
8
The higher the value, the greater the
angle at which the door closes slowly
7
Closing force
0-10
8
The higher the value, the greater the
closing force
8
Type of electric lock
0-3
0
0: magnetic lock
1: electric lock
2: fail safe electric strike
3: fail secure electric strike
9
Opening direction
0-1
0
0: left
1: right
10
Adding a remote
control
0-40
0
see Adding a remote control
Additional controller e.g.
Nerival #33340 RCT-1224
11
Opening door anti-
collision delay
0-10
8
The lower the delay, the faster the
door stops in a collision
12
Closing door anti-
collision delay
0-10
8
The smaller the delay, the faster the
door opens in a collision
13
Closing speed after
reset
0-10
0
Closing speed after reset
14
Low speed
0-10
0
Minimum deceleration speed
15
Unlock delay
0-0
0
The lock is released first, after which
the door opens after a set delay of 0
seconds
16
Push / pull to open
0-1
0
0: off
1: on
17
Remote control mode
0-1
0
0: Buttons have different functions
1: All buttons open the door
18
Force to keep open
0-10
0
0: minimum
10: maximum

13 www.nerival.fi
19
Force to keep closed
0-5
1
0: minimum
5: maximum
20
Motor torque
0-20
10
0: minimum
20: maximum
21
Delete the remote
controls
0 tai 10
0
0: empty
10: Delete all remote controls
22
Restore factory
settings
0-1
0
0: empty
1: resets settings 1-22 settings to
factory defaults
Advanced settings
Press the ▼button for five seconds to enter the advanced setting mode.
Use the ▲and ▼buttons to select the setting you want to set.
Press the decrease or increase button to set the desired value.
To save the setting and exit the setting mode, press the button.
Setting
number
Function
Setting
range
Factory
setting
Additional information
23
Low speed
compensation
0-5
2
The higher the value, the slower the
minimum speed
24
Damping
compensation
0-4
1
The higher the value, the higher the
damping force
25
Deceleration ramp
0-5
2
The higher the value, the greater the
slope
26
Opening angle
multiplier
0-5
0
Add multiplier if normal adjustment
of the opening angle is not sufficient
27
Encoder direction
0-1
0
0: normal
1: reverse
29
Access control signal
source
0-1
0
0: access control
1: electric lock
30
E9 fault code reset
time
0-10
0
1-11 minutes
31
Opening door anti-
collision input method
0-1
0
0: N.O
1: N.C
32
Lock status in case of
failure
0-1
0
0: unlock
1: get signal to unlock
33
Sulkeutuvan oven
törmäyksenesto
0-1
0
0: päällä
1: pois päältä
34
Closing door anti-
collision input method
0-1
0
1: N.O
2: N.C
36
Mode when the door
is opened by force
0-1
0
0: the door closes
1: the door opens
40
Restore factory
settings
0-1
0
0: empty
1: resets all settings to factory
defaults

14 www.nerival.fi
Remote control functions
A1: Automatic mode. The door opens when the button
is pressed and closes normally.
A2: Hold-open mode. The door opens and stays open.
A3: Sensor signal disabled. The door only opens from
the remote control or access control signal, the sensors
are not in use.
A4: Sensor and access control signals disabled.
The door can only be controlled with the remote control.
Adding a remote control
1. Go to setting no. 10 and press the parameter increase or decrease button.
2. Press any key on the remote control.
3. The value of the digital display increases by 1.
4. The remote control has been added successfully.
Repeat the above steps to add more remote controls.
Additional controller e.g. Nerival #33340 RCT-1224
(Note Additional controller only works in remote control mode 1, see setting no. 17)
Maximum quantity 40 pcs
Deleting remote controls
1. Got to setting no. 21
2. Set value to 10
3. Press the Save button
4. All the remote controls have been successfully deleted.

15 www.nerival.fi
Digital display code table
Fucntion code
Function description
F1
Sensor signal active
F2
Opening door anti-collision signal active
F3
Closing door anti-collision signal active
F4
Access control signal active
F5
Interlock signal active
F6
Synchronization signal active
A1
Automatic mode
A2
Hold-open mode
A3
Sensor signal disabled
A4
Sensor and access control signals disabled
Error code
Cause
Solution
E0
System error
Replace the controller
E1
The motor is not connected
Check motor connection
E2
Motor line failure
Check motor connection, replace the motor
E3
No motor coil detected
Check motor connection
E4
12VDC abnormal voltage
Check the electric lock, 12V voltage port
E5
Encoder direction is wrong
Check setting no. 27
E6
Voltage is too high
Check voltage
E7
Voltage is too low
Check voltage
E8
No door was detected
Check the attachment of the pull and push arm
E9
The door does not close
Check the door, remove obstacles in front of the
door
