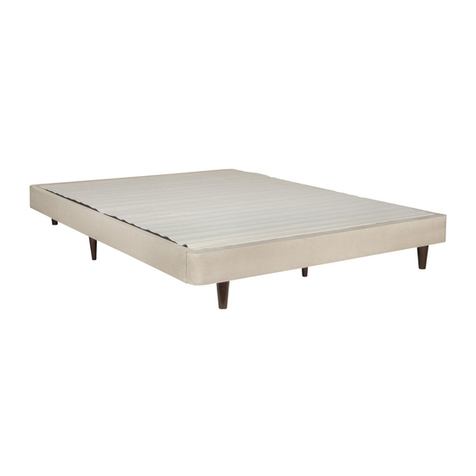

nest HOMEBASE User manual

HOMEBASE®+ HEADBOARD
ASSEMBLY INSTRUCTIONS
ASSEMBLY

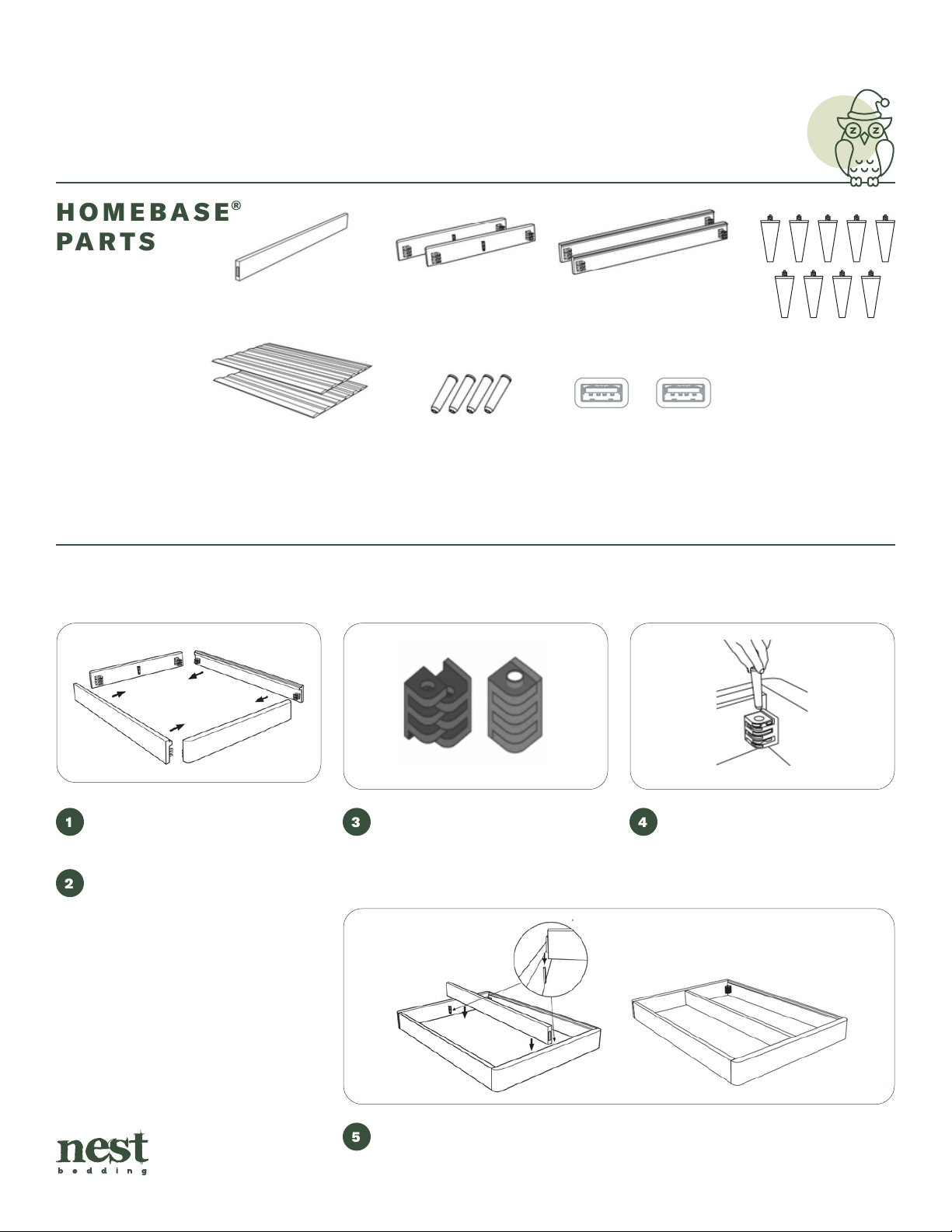

PARTS
1 Center Support Beam 2 Shorter End Rails 2LongerSideRails
4 Black Corner Bracket Pegs 2Fabric Encased Slates 9 5inch Wood Legs (optional)
2 USB Charging Ports Kits
PARTS
1 Center Support Beam 2 Shorter End Rails 2LongerSideRails
4 Black Corner Bracket Pegs 2Fabric Encased Slates 9 5inch Wood Legs (optional)
2 USB Charging Ports Kits
PARTS
1 Center Support Beam 2 Shorter End Rails 2LongerSideRails
4 Black Corner Bracket Pegs 2Fabric Encased Slates 9 5inch Wood Legs (optional)
2 USB Charging Ports Kits
PARTS
1 Center Support Beam 2 Shorter End Rails 2LongerSideRails
4 Black Corner Bracket Pegs 2Fabric Encased Slates 9 5inch Wood Legs (optional)
2 USB Charging Ports Kits
PARTS
1 Center Support Beam 2 Shorter End Rails 2LongerSideRails
4 Black Corner Bracket Pegs 2Fabric Encased Slates 9 5inch Wood Legs (optional)
2 USB Charging Ports Kits
PARTS
1 Center Support Beam 2 Shorter End Rails 2LongerSideRails
4 Black Corner Bracket Pegs 2Fabric Encased Slates 9 5inch Wood Legs (optional)
2 USB Charging Ports Kits
PARTS
1 Center Support Beam 2 Shorter End Rails 2LongerSideRails
4 Black Corner Bracket Pegs 2Fabric Encased Slates 9 5inch Wood Legs (optional)
2 USB Charging Ports Kits
1 Center Support
Beam
Remove all pegs from the
interlocking corner brackets.
Arrange the rails so the arrows
point up. Organize them so that
the two longer side rails are
parallel and the two shorter end
rails are parallel.
Now align the joints in the four
corners and push them together.
Corner brackets should interlock.
Slide the black center support beam, arrow pointing up, in place. Make sure
you have pushed the beam all the way down so it is level with the head and
foot of the frame.
Insert a peg into each of the four
joints and push them down firmly,
so everything is properly aligned.
2 Fabric Encased
Slats
4 Black Corner
Bracket Pegs
2 USB Charging
Ports Kits
2 Shorter End Rails 2 Longer Side Rails
9 5-inch Wood Legs
(optional)
A s s e m b l y
Step 1.Remove all pegs from the interlocking corner
brackets.
Step 2. Arrange the rails so the arrows point up. Organize
them so that the two longer side rails are parallel
and the two shorter end rails are parallel.
1 3
5
4
2
A s s e m b l y
Step 3. Now align the joints in the four corners and push
them together. Corner brackets should interlock.
Step4. Insert a peg into each of the four joints and push
them down firmly, so everything is properly
aligned.
A s s e m b l y
Step 3. Now align the joints in the four corners and push
them together. Corner brackets should interlock.
Step4. Insert a peg into each of the four joints and push
them down firmly, so everything is properly
aligned.
A s s e m b l y
Step5. Slide the black center support beam, arrow
pointing up, in place. Make sure you have pushed
the beam all the way down so it is level with the
head and foot of the frame. 
HOMEBASE®
PARTS

ASSEMBLY
(Optional: Base can be assembled
with or without legs) Screw in all 9
wood legs. And flip frame over.
Place one roll of support slats
along an end rail. Unroll the
slats towards the center of the
foundation, along the support
beam. Do this symmetrically with
the other roll of slats, starting at
the other end. Unroll towards the
center so the two sets of slats
meet in the middle.
USB Charging Port
A. Set up USB Ports before slats are in place.
B. USB are already installed in side rails.
C. Connect them to the Y cable connector.
D. Then connect the Y cable connector to the
Power Supply unit.
E. Use the wire ties to tie up excess wires.
A s s e m b l y
Step6. (Optional: Base can be assembled with or without legs)
Screw in all 9 wood legs. And Flip frame over.
6
8
7
A s s e m b l y
Step8. Place one roll of support slats along an end rail. Unroll
the slats towards the center of the foundation, along
the support beam. Do this symmetrically with the
other roll of slats, starting at the other end. Unroll
towards the center so the two sets of slats meet in
the middle.
A s s e m b l y
Need Assembly Assistance?
We a e available via Live Chat!
at Nestbedding.com
Call us at 1-800-992-2001
Email us at:
custome se [e-mail]
| ASSEMBLY INSTRUCTIONSHOMEBASE® + HEADBOARD

HEADBOARD
PARTS
| ASSEMBLY INSTRUCTIONSHOMEBASE® + HEADBOARD
12 1½ inch Screws
2 Legs
1 Headboard
ASSEMBLY
Take the headboard out of the box
and lay with the back to you.
Place the two legs on the headboard with the sliding angle connector towards
the frame and with the connector towards the inside. Adjust your spacing on
the headboard according to your mattress height.
1
2

Need Assembly Assistance?
We are available via Live Chat! at Nestbedding.com
Call us at 1-800-992-2001
Email us at [e-mail]
| ASSEMBLY INSTRUCTIONSHOMEBASE® + HEADBOARD
A s s e m b l y
Need Assembly Assistance?
We a e available via Live Chat!
at Nestbedding.com
Call us at 1-800-992-2001
Email us at:
custome se [e-mail]
ASSEMBLY
With the headboard facing
towards the foundation slide
the connector into the receiving
connector on the end rails of the
foundation.
3
A s s e m b l y
Need Assembly Assistance?
We a e available via Live Chat!
at Nestbedding.com
Call us at 1-800-992-2001
Email us at:
custome se [e-mail]
