Netech Delta 1600 User manual

Innovative Instruments Since 1987
Delta 1600
AED TESTER
User Manual
(Automated External Defibrillator Tester)
Intended Use: Delta 1600 AED Tester is a precision instrument that
simulates various cardiac waveforms and measures discharged energy.
It assures AEDs detect the waveforms, audibly advise shock, and
discharge energy as per manufacturer’s specications.

2 | Delta 1600 - Quick-Reference Manual
Table of Contents
Notices.............................................................................. 3
Unpacking and Inspection of the unit .................... 3
Contact Information............................................... 3
Warnings............................................................... 3
Intended User........................................................ 4
Environment.......................................................... 4
Introduction..................................................................... 5
Delta 1600 Features.............................................. 5
Specications................................................................. 6
Energy Measurement............................................ 6
 GeneralSpecications.......................................... 7
Part Numbers and Ordering Information............... 8
Preparation for Use............................................... 9
InitialSetup...................................................................... 12
Introduction........................................................... 12
Shock Advisory Test.............................................. 13
AUTO Function Test.............................................. 15
ECGSimulation............................................................... 16
Rate Selection...................................................... 16
Amplitude Selection.............................................. 16
Warranty........................................................................... 17

Delta 1600 - Quick-Reference Manual | 3
Notices
Unpacking and Inspection of the unit
Before unpacking the Delta 1600, inspect the shipping box for any
visual damage. If damage is found, do not unpack the unit and
immediately notify the shipping carrier. If no damage is found to the
shipping box, open the box and perform a visual inspection of the
Delta 1600. If any damage to the unit is observed please contact
Netech Customer Service.
The Service Return Form may be obtained at our website http://www.
netechcorp.us/RMARequests or contact our Netech Customer
ServiceDepartment[email protected]
Contact Information
NetechCorporation,110ToledoSt.Farmingdale,NY11735
Phone: [phone]
Calibration
The Delta 1600 is factory calibrated, thoroughly tested, and meets
Netech’s ISO 9001-2015 quality standards.
Any attempt to remove or tamper with the calibration seal will void
the warranty.
Warnings
Caution Important Safety Information
Hazardous Voltage
Conforms to European Union Directive
SYMBOL DESCRIPTION

4 | Delta 1600 - Quick-Reference Manual
Intended User
Environment
The Delta 1600 is intended to be used by a
trained technician.
The Delta 1600 is intended for testing and
verifying the performance of AEDs.
The Delta 1600 should never be used in a
patient care location where it might come in
contact with a patient.
The Delta 1600 is intended to be used
within the published specifications. Any
unauthorized alteration or modifications will
result in a hazardous condition or improper
operation.
The Delta 1600 should never be used in
harsh environmental conditions outside
the specifications as this will affect the
performance of the unit.
The Delta 1600 should never be used in wet
condition or in a flammable environment.

Delta 1600 - Quick-Reference Manual | 5
Introduction
The Delta 1600 is a precision, compact, and battery operated
instrument for testing automated external debrillators (AEDs). The
Delta 1600 simulates various cardiac waveforms to ensure that the
AED can detect, analyze and audibly advise shock. In addition to
the shock advisory test, Delta 1600 measures discharged energy
of the AED, thereby ensuring that the AED complies with specied
requirements. The dedicated function keys and menu driven display
on the unit makes it simple for operation.
The Delta 1600 has a built-in load resistance of 50 ohms to simulate
the human body impedance. To establish electrical connection
between the AED and the Delta 1600, manufacturer specic
interface cables (contact Netech Sales for custom cables) are required. The
interface cable must be connected between the AED and input jacks
of Delta 1600. Once the AED is discharged, Delta 1600 samples the
pulse, calculates and displays the delivered energy.
Delta 1600 Features
lUnique, one-of-a kind instrument for testing all AEDs including
Pulsed (Schiller AEDs)
lCompact, lightweight and easy-to-use
lAuto Function – Eliminates multiple discharges
lLarge backlit Graphics Display
lMultiple Arrhythmia simulations
l7.4 Volt Li-Ion Rechargeable battery

6|Delta 1600 - Quick-Reference Manual
Specifications
Energy Measurement
EnergyOutput:
Maximum Energy : 500 J
Display Resolution : Based on Auto Range
Resolution : 1 J
Accuracy : ±1 % of reading ± 1
LoadResistance:
50 ohms ±1 %; non-inductive (< 1 μH)
Sampling Time : 20 uS
Measurement Time Window : 60 ms
Pulse Width : 60 ms
PatientSimulator
Waveform Simulation: ECG (NSR),
ECG Rate: 60, 70, 80, 90, 100, 110, 120, 130, 140, 150, 160, 170,
180, 190, 200, 220, 240. BPM
Accuracy: ± 1%
Waveform Amplitude: ECG (AMP)
ECG Amplitude:1.0, 2.0, 3.0, 4.0 mV
Accuracy: ± 5% peak to peak

Delta 1600 - Quick-Reference Manual | 7
ArrhythmiaSelections:(Shockadvisorywaveforms)
Ventricular Fibrillation Coarse (VFBC)
Ventricular Fibrillation Fine (VFBF)
Ventricular Tachycardia (VTAC)
Atrial Fibrillation (AFIB)
General Specifications
TemperatureRange:
Operating : +15°C to +35°C
Storage : 0°C to +50°C.
Display:
Type: LCD with LED backlit Graphics display
Power: 7.4 Volt Li-Ion Rechargeable Battery
100-230 VAC input 8.5V Battery Charger
Housing:
High impact ABS plastic enclosure
Dimensions:
D x W x H :10.25 x 6.25 x 2.5 Inch
26 X 16 x 6.4 Cm

8 | Delta 1600 - Quick-Reference Manual
Part Numbers and Ordering Information
PartNo : 630
Delta 1600 AED Tester
(All Standard Accessories are included).
StandardAccessories: (Included with the unit)
630-Li-Battery: Li-ion rechargeable battery
630-LI-Charger: Li-ion Battery Charger
630-HARD-CASE: Hard carrying case
630-6383: Open-ended interface cable
OptionalAccessories:
PartNo. InterfaceCable
630-651-HP HP/Philips
630-651-ZOLL ZOLL
630-651-SURVIVAL Cardiac Science / Survivalink/Burdick
Cardiovive
630-651-PHYSIO Physio-Control / Life-Pak / Medtronic
630-612 Philips HeartStart FRx
630-615 Philips (and Laerdal) HeartStart FR3
630-617 Philips (and Laerdal) HeartStart FR/FR2/
FR2+
630-618 Philips HeartStart OnSite and HeartStart
Home
630-619 Debtech Lifeline or Lifeline AUTO AED
630-620 Debtech Lifeline VIEW/ECG/PRO
630-621 CU Medical Systems
630-622 ZOLL CPR-D-padz
630-623 ZOLL AED Plus or ZOLL AED Pro
Note:
Various Manufacturers’ model specic interface cables are available.
Please call for the part numbers or visit www.NetechCorp.us

Delta 1600 - Quick-Reference Manual | 9
Peparation for Use
The Delta 1600 is shipped with the following items included in the
customized hard case:
• Delta 1600 AED Tester.
• Li-Ion Rechargeable Battery Charger (110/220 V input)
• User manual / USB Jump Drive
Before getting started it is important to get
familiar with the control and operation of the
unit.
Instrument Familiarization
Charge Indicator LED
Li-Ion
Charger Input Power \
ON/OFF Keys
Menu
Selection Keys
Graphics Display
AED Interface Jack

10|Delta 1600 - Quick-Reference Manual
Follow AED’s shock advisory audio
response.
Display
The Delta 1600 incorporates a high contrast LCD graphics display
with an LED backlight for easy viewing.
Key Pad
The keypad utilizes soft touch tactile keys, providing a uid resistant
barrier to the internal circuitry. The dedicated key functions and
interactive menu make it easier to use.
The following are the description of the Key Functions:
F1,F2,F3,F4,<,and>:These are interactive keys associated with
respective function selections.
“ESC”:Reverts to the previous menu
“AUTO”: Pressing “AUTO” key changes the Arrhythmia (previously
selected) to VFBC. Once the discharged energy is displayed,
arrhythmia changes automatically to NSR (Normal ECG @ 90 BPM)
This will eliminate multiple discharges by the AED thus saving the
AED batteries.
AED Interface Jack:
2 RED Shrouded banana jacks.
Power ON/OFF Switch:
This switch powers the unit on/off. The power ON/OFF switch is
located on the lower side panel.

Delta 1600 - Quick-Reference Manual | 11
Battery Charger Input connector:
DC jack (2.1mm)- Li Ion battery charger Input connection.
Battery Charger Input connector:
Yellow LED indicates that the battery charging is active.
Note:
BatterychargefunctionisactiveonlyinthePowerOFFmode.
Battery Charger:
Li-Ion Battery Charger provided with the unit is specically designed
for the Delta 1600. When the battery is fully charged, the red LED
on the CHARGER changes to green.
Battery:
Delta 1600 incorporates a specially designed 7.4V Li-Ion polymer
battery with short circuit protection. The battery is enclosed in a
reproof battery compartment with tamper proof seal.
Do not attempt to break the seal and
tamper with the battery.
Doing so will damage the unit and void the
Warranty.

12|Delta 1600 - Quick-Reference Manual

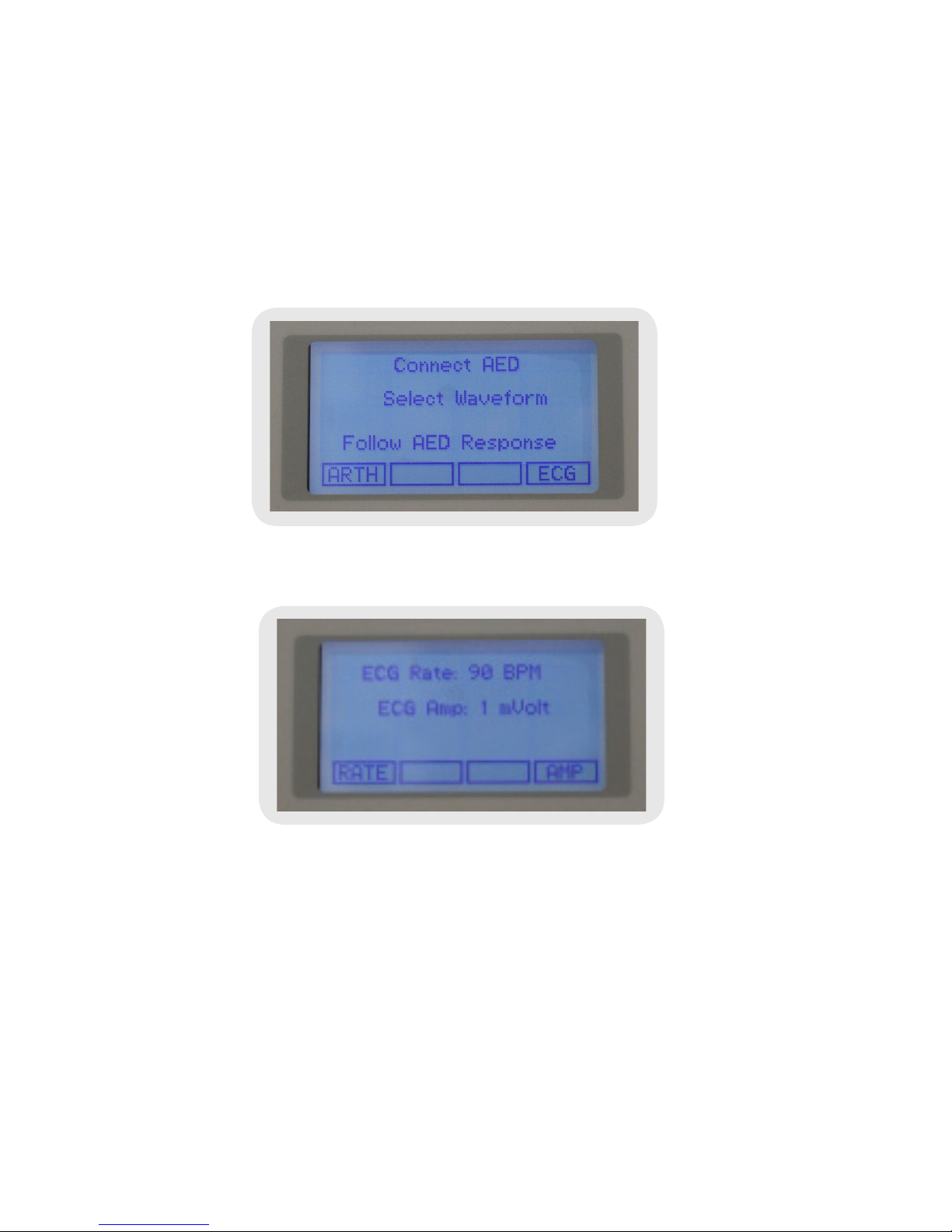

The functions associated with the menu prompt can be selected by
the F1–F4 Keys. In this Menuthere are two selections.
1. Press F1(“ARTH”) for the ArrhythmiaMenu.
2. Press F2 (“ECG”) for the ECG–Rate and Amplitude
Menu.
Initial Setup
Introduction
The Delta 1600 is simple to operate and requires minimum setup.
However, the user must read the manual thoroughly for safe and
proper operation.
When the unit is rst powered, the screen momentarily shows the
software version and the build number. Thereafter, the MainMenu
will be displayed as illustrated below.

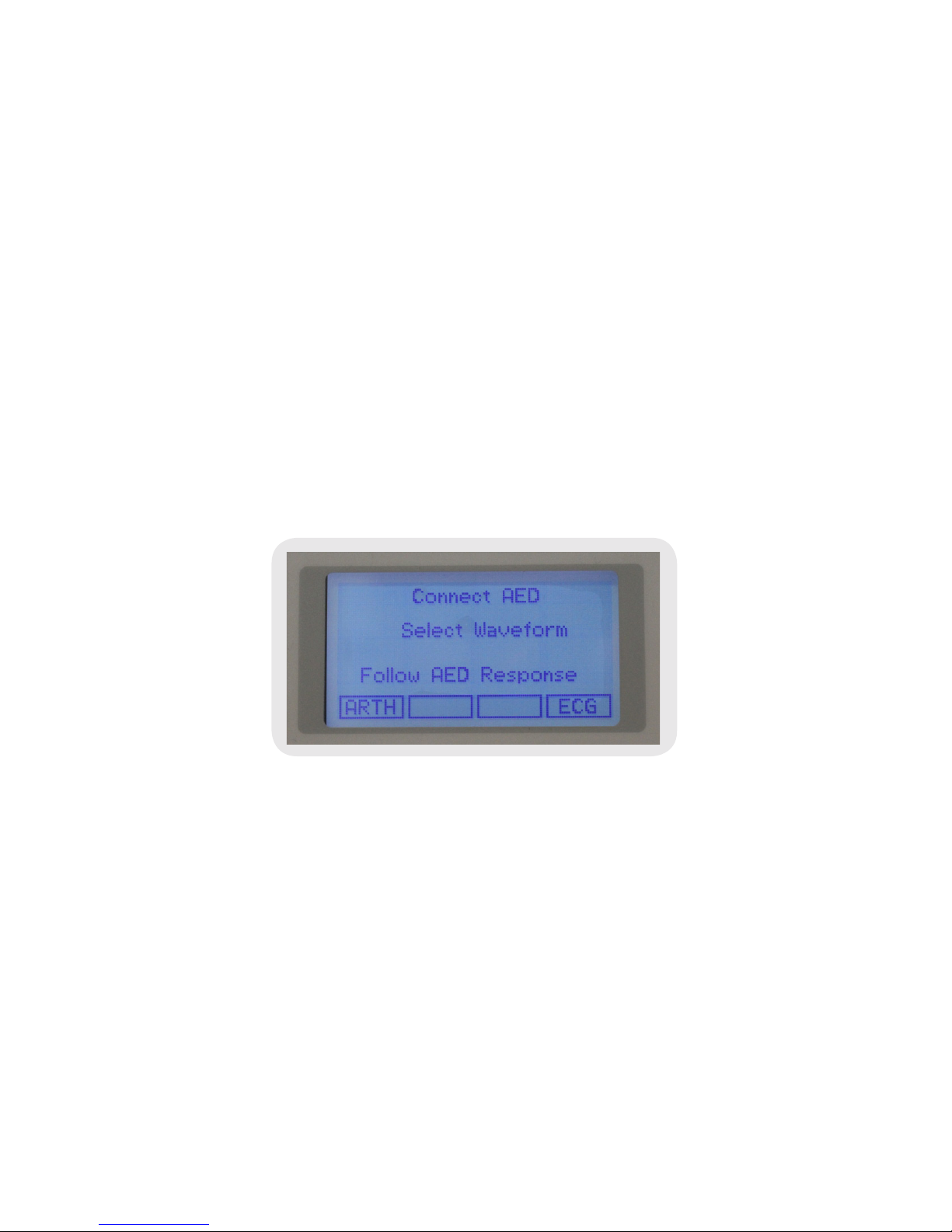

AED Main Menu

Delta 1600 - Quick-Reference Manual | 13
• Connect the manufacturer specic interface cable between the
Delta 1600 (red shrouded banana jacks) and the AED under test.
• From the AED Main Menu, press ‘F1’(Arrhythmia Menu) and
select the Arrhythmia waveform. (The default waveform is
“VFBC”)
• Select the desired Arrhythmia waveform by pushing F1, F2, F3
or F4.
• The selected Arrhythmia waveform will be displayed (ashing)
as illustrated below.
• Turn the AED power ON and follow the manufacturer’s operating
instructions and the audio response.
Shock Advisory Test
WARNING
Before getting started, follow the
manufacturers safety instructions and test
procedures.
Defibrillator discharge voltages are
potentially dangerous. To avoid potential
shock hazards, observe all safety
procedures for the safe handling of the
instrument before attempting to test the
defibrillator.

14|Delta 1600 - Quick-Reference Manual
• The AED will analyze the selected waveform and audibly alert
either “shockadvised” or “noshockadvised”; depending on
the selected arrhythmia.
• If the response is “shockadvised”, press “SHOCK” on the AED
and wait until the energy is discharged. Once discharged, the
energy will be displayed as illustrated below.
• If the response is “no shock advised”, select a different
arrhythmia waveform from the arrhythmia menu and repeat the
process.
Stay clear. The discharge energy is lethal.
Do not touch the Cable or the unit.
To stop the ‘SHOCK’ advisory, select “ESC” and
press F4 from the AED menu to run an ECG
(NSR –Normal Sinus Rhythm) waveform.

Delta 1600 - Quick-Reference Manual | 15
AUTO Function Test
The Delta 1600 Auto function is a very useful method for testing
energy discharge of AEDs.
“AUTO”function will prevent the need for multiple discharges and
helps preserve the battery life of the AED.
• Select “AUTO” key and wait for the AED’s response. (The
default arrhythmia waveform is set to “VFBC”)
• If shock advised, discharge the AED
• The discharge energy is displayed and the arrhythmia waveform
is switched to normal ECG @ 90 BPM as illustrated below.
• Once the AED detects normal ECG @ 90 BPM, further shocks
will not be advised.

16|Delta 1600 - Quick-Reference Manual
ECG Simulation
The Delta 1600 simulates ECG (Normal Sinus) waveforms with user
selectable rates and amplitudes.
From the MainMenu select F4“ECG”
The Rate and amplitude function can be selected from the following ECG
selection menu.
Rate Selection
The default ECG rate is set @90 BPM. ECG rate can be changed in 10
BPM increments from 60 BPM up to 200 BPM and 20 BPM increments
from 200 BPM up to 240 BPM by pushing the F1 key.
Amplitude Selection
The default ECG Amplitude is set @ 1 mVolt. The ECG Amplitude can be
changed in increments of 1 mV up to 4 mV by pushing F4 key.

Delta 1600 - Quick-Reference Manual | 17
Warranty
Netech warrants this instrument to the original purchaser, as
purchased from a Netech distributor or dealer, will conform to
thewrittenspecicationasofthedateofitsmanufacture,fora
periodofveyearsfromthedateofpurchase.Thesecondyear
warranty, and each thereafter, is contingent upon returning the
unit to the factory for the annual recalibration. Netech warrants
this instrument against defects in materials and workmanship.
If it fails to conform to these warranties, Netech will repair or
replace the unit and/or its components within two weeks of arrival
at our facility.
These warranties are made upon the expressed condition that::
1. The purchaser promptly noties Netech in writing of any
non-conformity with the above warranty including a detailed
explanationoftheallegeddeciencies.
2. The Delta 1600 is returned to Netech at the buyer’s expense
only after obtaining the proper RMA authorization from Netech
Service Department.
3. Netech will not be liable for any incidental or consequential
damages.
4. In the opinion of Netech upon inspection, the Delta 1600 has
not been misused, altered (broken tamper seals), or damaged
due to the abnormal handling and/or operation.
5. Repairs to the Delta 1600 and/or its components have not been
made by anyone other than Netech or one of its authorized
service agents.
6. The Delta 1600 has not been modied, altered, or changed

18|Delta 1600 - Quick-Reference Manual
in any manner by anyone other than Netech or one of its
authorized service agents.
7. Allshippingandhandlingchargeswillbebilledtothepurchaser.
THIS WARRANTY EXCLUDES ALL OTHER WARRANTIES,
WHETHER EXPRESSED OR IMPLIED, ORAL OR WRITTEN,
INCLUDING WITHOUT LIMITATION WARRANTIES OF
MERCHANTABILITY AND / OR FITNESS FOR A PARTICULAR
PURPOSE. NETECH IS NOT LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR LOSSES FROM ANY MISUSE
OF THE INSTRUMENT.

Delta 1600 - Quick-Reference Manual | 19
Appendix: A
Netech warrants this instrument to the original purchaser, as
CurrentRevision: R1  06/12/17
