Bakare Evolution Series User manual

Series Evolution
Evolution Series
Instructions

2 |

|3
Dear Customers,
You have purchased a hospital bed from Bakare Beds Ltd
- a durable product that complies with the demands of nursing
care for function and the highest level of safety.
We thank you for the confidence you have shown us.
Our company guarantees you that we select materials with
care and conduct quality controls of state-of-the-art produc-
tion methods.
Follow the directions and operating instructions to prevent ac-
cidents and obtain the greatest benefits from this patient bed.

4 |
Contents 4
Product designation 6
Purpose 7
Environmental Impact 7
Instructions 8
Pictograms / Symbols 8
Safety Guidelines 9
Technical data 12
Lying surface drive 12
Lifting system drive 12
Nameplate 13
Hand switch symbols for ICS control 14
Hand switch symbols for 24V system 15

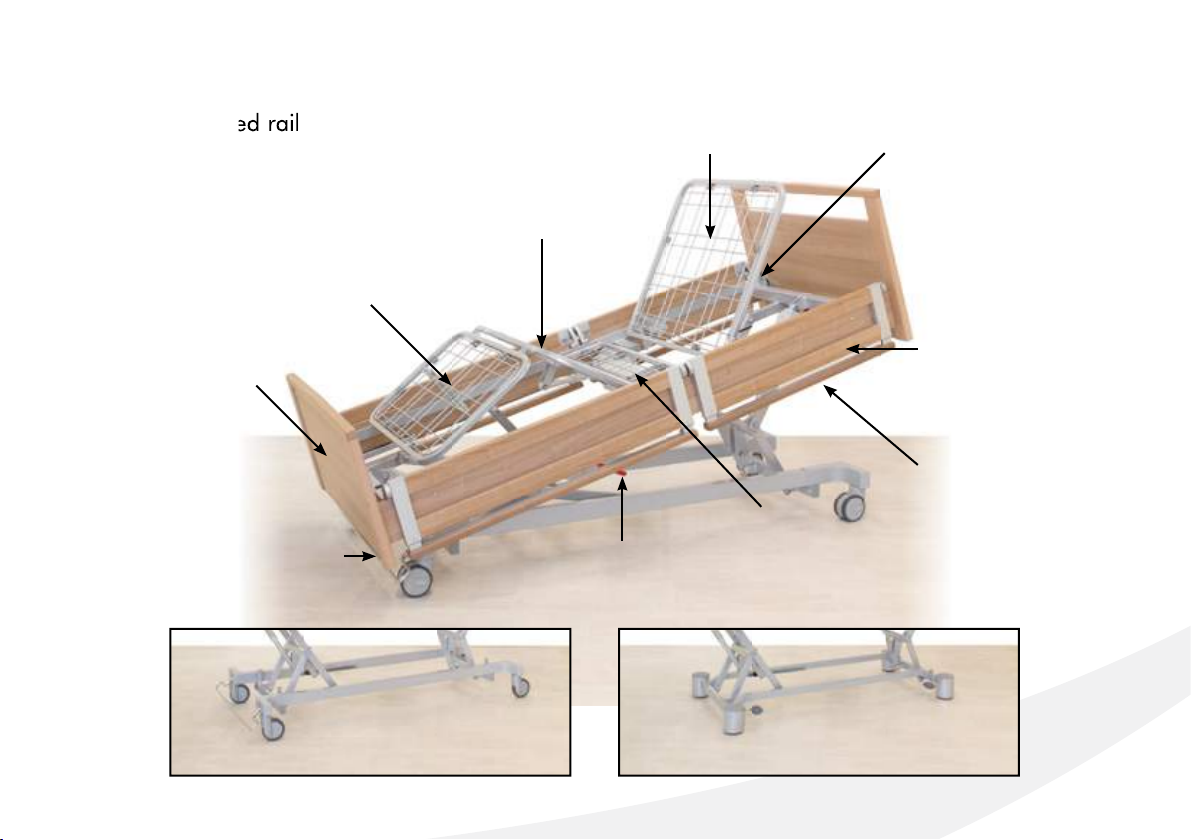

Image 16
One-piece bed rail 16
Split bed rail 17
Function description 18
Backrest (RL) 18
Mechanical unlocking of
the backrest (option) 18
Upper leg section (OT) 18
Height adjustment (HV) 18
Comfort sitting position 19
Auto contour 19
Trendelenburg /
Anti-Trendelenburg positioning 19
Blocking function on manual
control unit 20
Braking and transporting 20
Adjusting the side railing 22
Supply and assembly 26
Accessories (excerpt) 27
Back Support 27
Infusion Holder 27
CONTENTS

|5
Bed Lamp 27
Mattress Extender 28
Urine Bottle Holder / Urine Bottle /
Urine Bag Holder 28
Manual Control Holder (optional) 29
Mattresses 29
Side Rail Extender /
Three Side Rails 29
Troubleshooting 30
Reference test (only for Standard ICS) 31
Mains isolation 31
Troubleshooting 32
Product safety 33
Cleaning and Disinfection 34
Disinfection 34
Care of Wood Parts 34
Maintenance 35
Storage 35
Warranty and Service 36
Customer Service 36
EC Declaration of Conformity 37

6 |
Evolution 100
Evolution 200
Evolution 300 (XL)
Evolution 400
Evolution 400 LR100
PRODUCT DESIGNATION

|7
ENVIRONMENTAL IMPACT
Bakare Beds Ltd. beds are manufactured in accordance
with applicable regulations and latest technology,
and are free of hazardous materials. The materials used in the
finish contain no CFCs or solvents.
Patient beds that must be taken out of use due to age or da-
mage must be disposed of in accordance with the legal regu-
lations for disposals.
Important! Please observe the respective re-
gional regulations when disposing of metal,
wood, and electrical waste.
Hospital beds from Bakare Beds Ltd. are for use in old-
age and nursing care environments. These beds are used
exclusively for this purpose. The beds’ convenience and func-
tionality provide relief for personnel when performing nursing
duties, and offer postural compensation and relief to disabled
persons in old-age and nursing care facilities.
Use of the hospital beds for other applications requires
the prior written consent of Bakare Beds Ltd.
The product must be used as an operational and auxiliary aid
for nursing care, and is subject to the regulations of the em-
ployer‘s liability insurance association. The hospital bed com-
plies with the applicable norms and regulations for a medical
product. As such, the product may only be used under medical
supervision.
PURPOSE

8 |
INSTRUCTIONS PICTOGRAMS / SYMBOLS
The following tips and guidelines in these instructions are for
nursing staff or other employees or persons who are responsib-
le for using and handling the patient bed.
The instructions must be available to the staff
at all times to prevent errors in use and endure
smooth operation. The nursing staff must be
instructed carefully in the use of patient beds
before operating them. The instructions must
be followed.
The instruction booklet is designed for the Evolution series of
patient beds. The illustrations, diagrams, and texts included do
not cover the entire line.
For simple orientation, in these instructions for use we partly
work with pictograms, which are described below:
Important Note! Passages of text marked in this
way must be strictly observed in order to prevent
injuries or damage!
Information! Information, which is applicable to
the current topic, is marked with this pictogram.
Observe the service instructions! For accessories
or complex working instructions, we have special
service instructions available. You will find these at
www.bakare.co.uk in the service area.

|9
SAFETY GUIDELINES
1. The instructions must be read and followed before using
the patient bed.

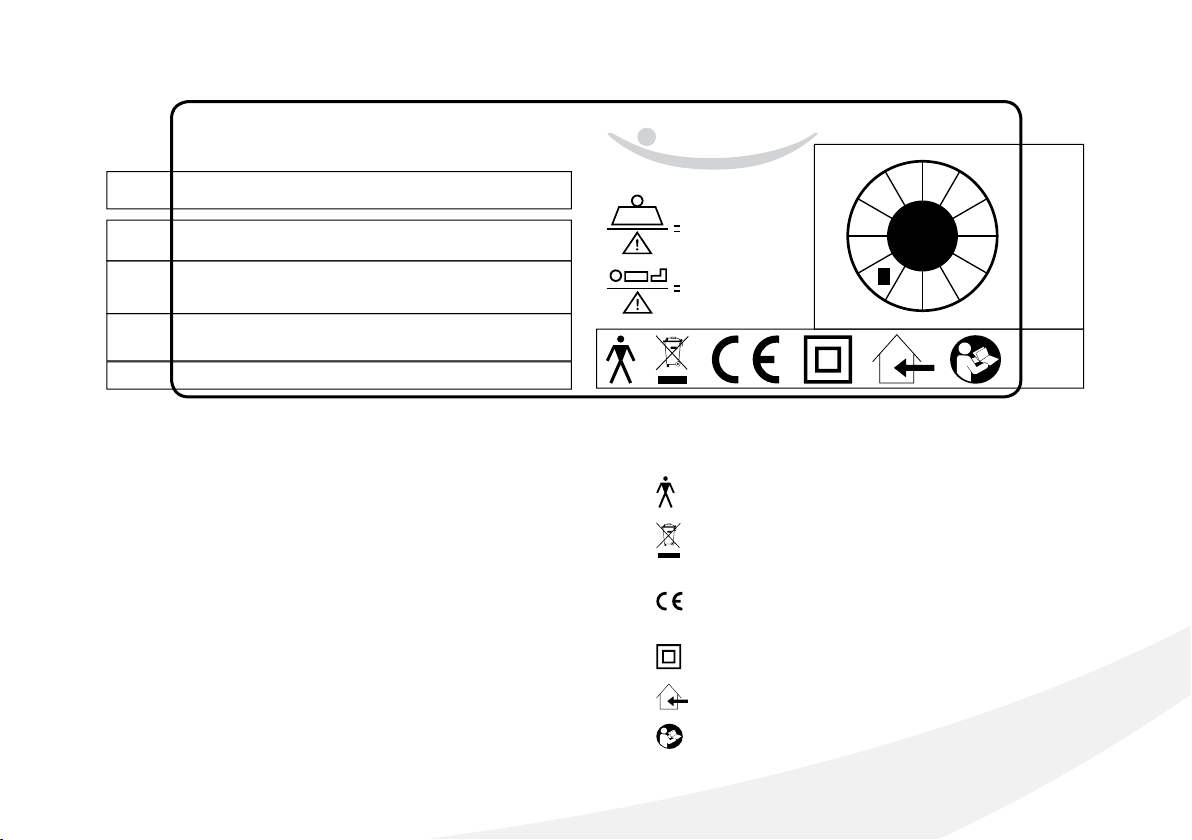

2. Explanation of symbols on the type label.
CE Conformity label according to the medical
products guidelines
IPX4 Electrical equipment splash proof
“Use only in dry rooms”
Safety class II (double insulation,
reinforced insulation)
The information on the type label must be observed.
3. The bed may not be operated in case of malfunctions or
defects that could endanger persons.
4. Electric patient beds may be operated only by trained
personnel.
5. Before operating the bed, the user must check it for safe
function and proper operating condition.
6. To avoid the danger of falls when patients get in and
out of bed, the brakes on the wheels should always be
locked.
7. The bed can be transported in various positions. Please
ensure that no body parts or other objects are in the ad-
justable areas.
8. Only nursing staff may adjust the side rails. Please en-
sure that the patient is not touching the side rails when
changing mattress position to avoid crushing body parts.
9. The function of the side rails must be inspected daily and
they may not be loaded more than 70 kg in vertical po-
sition or 50 kg in horizontal position.
10. When lowering the mechanical emergency back rest (op-
tion) it must always be supported to prevent a sudden
collapse.

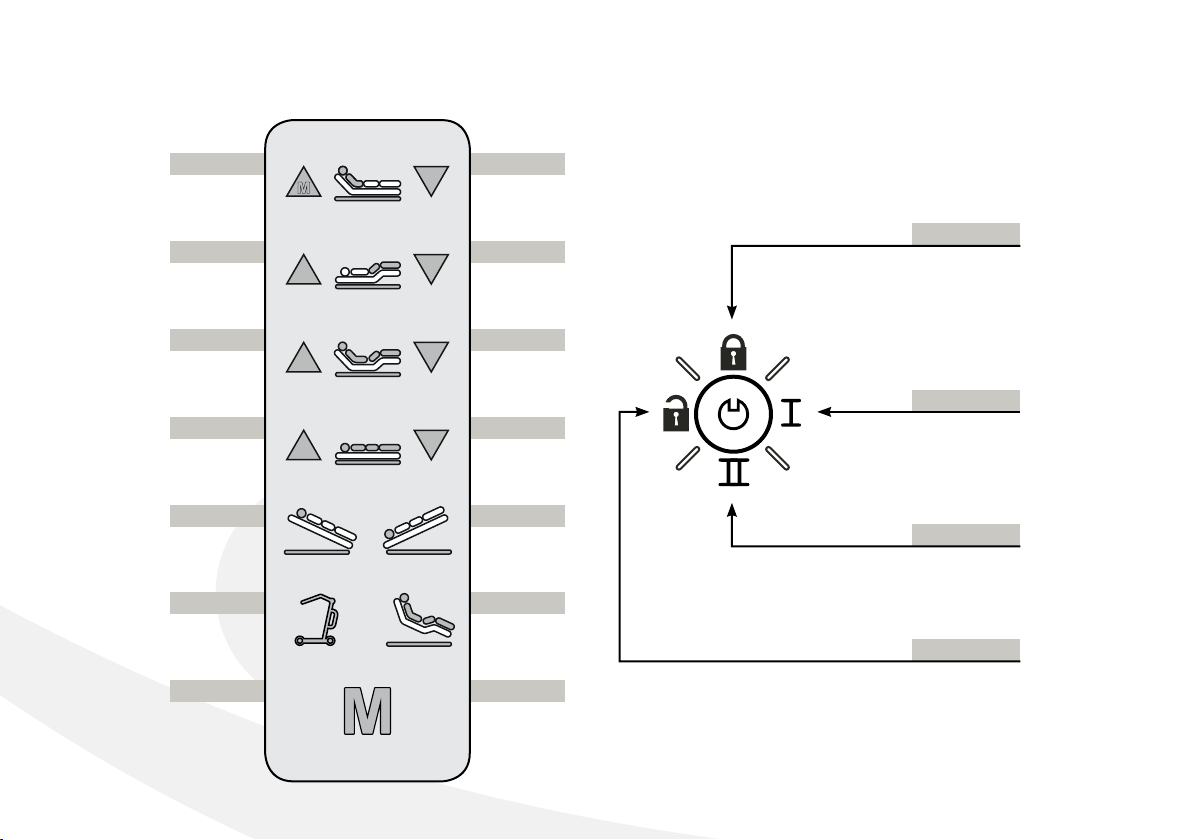

11. The functions of the manual control can be blocked or
activated by an additional switch on the back. The action
of the blocking function must be checked on the manual
control.
12. The drive mechanism used must be supplied with power
from a VDF power source – power adaptor 220 V, 50 Hz.
13. The power cable has an additional mechanical strain re-
lief. Still, care should be taken to protect the cable from
sharp edges and crushing or abrasion.
14. The layout of the manual control device allows it to be
placed in the holder so that the buttons are not accidently
activated between two objects. It should be ensured that
the manual control is freely accessible and not blocked
between the side rails and nightstand.
15. When using the bed in the patient room, ensure to main-
tain safe distances from the walls, windowsills, or other
furnishings. The safe distances are determined depen-
ding on the design and model of the bed and the height
adjustment and positioning. The minimum distance is 30
mm.

10 |
16. When used improperly, the following dangers may arise:
Unintended activation of electrical functions
Use of the bed by children under age 12
Moving the bed by pulling the power cable or side
rails
Simultaneous activation of electrical functions by
more than one person
Activation of the functions by patients who have not
been instructed in use
Pulling on the power cable to cut off electricity
Moving the bed on a slope or rough surface
The mattress used must comply with safety stan-
dards and may not be more than 120 mm thick.
Permanent presence of liquids in the motor area is
to be avoided (e.g. incontinence)
The handle on the backrest is to be replaced com-
pletely every 5 years for safety reasons.
Repairs and maintenance of electrical components
may use only original manufacturer replacement
parts and must be carried out by specially trained
personnel.
The patient bed is not intended for permanent ope-
ration for more than 2 min. If the motor is overused
or overheated, operations are automatically swit-
ched off. The motor can be switched on again only
after a 2-hour cooling-down period.
Blocking the mechanical parts of the bed must be
avoided as this can lead to damage and complete
loss of the motor function from overheating.
Exceeding the safe load must also be avoided.
The long-term positioning of immobilized patients
can cause bedsores if no other positioning aids are
used. The manufacturer of the patient bed is not
liable for bedsores.
Electrically operated patient beds are medical pro-
ducts and according to the medical product law
and medical product operator directive § 6 are
subject to technical safety checks. These regular
technical safety checks must be conducted at least
once a year. A visual and functional inspection
of functional and electrical safety according to
VDE0751 must be conducted. See. No. 13. Main-
tenance
In addition, electric patient beds are electrical
equipment; the employer is responsible for their
safety. Monitoring this responsibility is the duty of
the professional association for health care and
welfare (BGW) and the trade supervisory offices.
The regulations of the associations for safety and

|11
health (BGV, formerly VBG) apply. In particular
BGV A2 (formerly VBG) “Electrical Systems and
Equipment”, which recommends inspections of
portable electrical equipment every six months,
but at least once a year. These inspections may be
carried out only by an electrician or a person with
electrical training using a special test instrument.
The inspections according to BGV A2 can be car-
ried out during safety checks for medical products
by personnel trained by the manufacturer, as these
BGV inspections are included in the technical safe-
ty tests.
Electrically powered patient beds are active medi-
cal products and in accordance with the medical
device operator directive must be included in an
inventory list for each business premises. It is re-
commended to document the proper execution of
the required technical safety checks in the inven-
tory and to present it at the next inspection. The
required records of the previously technical safety
checks should be included in the inventory.
The orderly execution and documentation of the
technical inspections, service and maintenance
work, and technical safety checks recommended
by the manufacturer are a necessary condition for
preserving the customer’s warranty rights. If the
operator of a medical product does not fulfill his
duties, risks of damages and accidents may arise
that are expressly not the responsibility of the ma-
nufacturer.
Repairs are to be carried out in accordance with
VDE0751-1 and concluded by documenting with
a technical safety inspection.

12 |
TECHNICAL DATA
Lying surface: approx. 200 x 90 cm
Heavy duty bed 300 XL approx. 200 x 100 cm
Height adjustment: approx.
Evolution 100 36 to 81 cm
Evolution 200 34 to 86 cm
Evolution 300 31 to 86 cm – 125 mm castors
Evolution 400 25 to 82 cm
Evolution 400 LR100 26 to 83 cm
Heavy duty bed 300 XL 33 to 83 cm – 100 mm castors
measured from frame of lying
surface
Backrest adjustment: 71° reclining angle for backrest
(mattress compensation) 12 cm
Upper leg setting: 30°
Trendelenburg: 14°
Antitrendelenburg: 17°
Maximal load bearing 225 kg (170 kg patient weight)
capacity: + 30 kg mattress
+ 25 kg accessories)
Heavy duty bed 300 XL 300 kg (250 kg patient weight)
Weight: approx. 120 kg
Heavy duty bed 300 XL approx. 160 kg
Protection type: IPX4
Lying surface drive
Electrical connection: 240 V, 50 Hz
Protection type: IPX4
Protection class: II
Output voltage: 24 V
Continuous load
of motors: maximum 2 min
Power consumption: up to approx. 400 W peak load
Adjustment speed: approx. 5 mm / s
Compressive force: max. 2500 N
Lifting system drive
Maximum voltage: 24 V
Current limiter: approx. 5,5 A
Compressive force: 2 x 3000 N
Heavy duty bed 300 XL 2 x 6000 N
Adjustment speed: greater than 10 mm / s
Protection type: IPX4 (in assembled state)
Protection class: II
Continuous load of motors: maximum 2 min

|13
NAMEPLATE
The nameplate can be found on the cross beam of the mattress
base, at the head end on the right. In order to see the name-
plate, move the head section into the uppermost position.
1. Model description
2. Serial number
3. Mains voltage; mains frequency; power consumption
4. Operating time of the electric motor adjustment; for pro-
tection against overheating, please observe these details!
The bed in the example can be permanently operated for
a max. of 2 min. within a 12 min. period.
5. Protection of the electric fittings from splash water “Use in
dry rooms only”, Protection Class II
6. (double insulation, insulated)
7. Marked with the next technical testing after delivery ac-
cording to VDE0751-1.
Sample images of a care bed Evolution 400 nameplate in the standard design with mains connection.
8. Declaration of the used symbols on the nameplate:
Application Type B
Directive 2002/96/EC on Waste Electrical
and Electronic Equipment
Conformity marking in accordance with
The Medical Device Directive
Protection Class II (double insulation, insulated)
“Use in dry rooms only”
“Observe the instruction manual”
1
2
3
4
5
6
7
Eingang: 230-240 V ~ 50 Hz max 2A
Ausgang: 24 V = 5 A
Betrieb: 15% max. 2 min. ON / 12 min. off
max. 5 Zyklen/min
Schutzgrad: IPX4
225 kg
195 kg
BettenMalschGmbH | Rohbergstraße 9 | D-36208Wildeck-Obersuhl
Tel.: [phone] / 915 100 | Fax: [phone] / 915 116
S/N 123456789
Malsch
care design
12
3
4
5
67
8
9
10
11 12
N
Ä
C
H
S
T
E
K
O
N
T
R
O
L
L
E
2013
PFLEGEBETT Modell Impulse 400
8

14 |
HAND SWITCH SYMBOLS FOR ICS CONTROL
Lock functions
S1
Back rest
adjustment
up
S2
Back rest
adjustment
down
S3
Leg rest
adjustment
up
S5
Auto contour
up
S7
Lift adjustment
up
S9
Anti-
Trendelenburg
S11
Lift position
S13
Memory
S4
Leg rest
adjustment
down
S6
Auto contour
down
R1
LOCKED
No functions
operational
R2
FREE
All functions
available
R3
WITHOUT
FUNCTION
R4
RESIDENT-
POSITION
All functions
available,
except S9/S10
S8
Lift adjustment
down
S10
Trendeleburg
S12
Comfort
seating
Set as
S12+S13 in
the memory

|15
HAND SWITCH SYMBOLS FOR 24V SYSTEM
Lock functions
R1
LOCKED
No functions
operational
R2
FREE
All functions
available
R3
RESIDENT-
POSITION
All functions
available,
except S10
R4
FREE
All functions
available
S12
Low
positioning
S1
Back rest
adjustment
up
S2
Back rest
adjustment
down
S3
Leg rest
adjustment
up
S5
Auto contour
up
S7
Lift adjustment
up
S9
Anti-
Trendelenburg
S11
Comfort
seating
S4
Leg rest
adjustment
down
S6
Auto contour
down
S8
Lift adjustment
down
S10
Trendeleburg

16 |
I M A G E
One-piece bed rail
One-piece bed rail
Adjustable
back rest
Adjustable
upper leg rest
Sitting area
(fixed)
CPR emergency
lowering (optional)
Latch for
bed rail
Erectable bed rails
(one-piece)
Frame bracket
for trapeze bar
Foot rest
Chassis
Evolution 100
Chassis
Evolution 200
Foot pedal with central
brake () and direction
fixation () of the
double casters
Adjustable
lower leg rest

|17
Split bed rail
Split bed rail
Adjustable
back rest
Adjustable
upper leg rest
Sitting area
(fixed)
Bed rails
telescopic
CPR
emergency
lowering
(optional)
Erectable
bed rails (split)
Frame bracket
for trapeze bar
Foot rest
Chassis
Evolution 300
Chassis
Evolution 400
Adjustable
lower leg rest
Foot pedal with central
brake () and direction
fixation () of the
double casters

18 |
Engaging the unlocking mechanism:
Press the corresponding button on the hand control unit down-
wards until the sound of the motor is no longer audible. Then
press the button on the hand control unit upwards until an
audible locking sound can be heard. The electric RL function
is once again active.
Upper leg section (OT)
The OT is adjusted by means of the corresponding buttons on
the hand control unit.
(Operating buttons upper leg sectionl)
For safety reasons, this position may only be set by medical
personnel.
The lower leg section (UT) can be set to the horizontal position
by nursing personnel using a fine locking device.
Height adjustment (HV)
The HV is adjusted by means of the corresponding buttons on
the hand control unit.
(Operating buttons height adjustment)
FUNCTION DESCRIPTION
Depending on the model and type of hospital bed, the bed can
be used in the following positions by adjusting the backrest, the
upper and lower leg sections as well as the height:
Backrest (RL)
Die Verstellung der Rückenlehne erfolgt über die entsprechen-
den Tasten des Handschalters.
(Operating buttons backrest)
The movement sequence of the RL enables a length compen-
sation at the head section of the bed of 120 mm.
This function (mattress compensation) permits the patient to
adopt a comfortable sitting position without being compressed
or restricted in movement in the abdomen and upper body.
Mechanical unlocking of
the backrest (option)
When operating the mechanical unlocking, hold the backrest
firmly in the set position and reduce force slightly where neces-
sary. Then pull firmly on the unlocking mechanism of the RL
until the RL is significantly lowered. Slowly lower the RL to the
end position.

|19
Caution! When adjusting the height, care
should be taken to ensure that the patient is
secure! No foreign objects may be present in
the area of the lifting mechanism.
Comfort sitting position
The adjustment for comfort sitting position is made using the
respective buttons of the hand control.
(Operating buttons comfort sitting position)
When using the button function, the actuator motors of the
mattress base and the lifting mechanism simultaneously move
the bed into a sitting position.
This function should only be used for mobile persons and resi-
dents without physical complaints.
Caution ! When using the comfort sitting positi-
on, ensure the safety of the patient! No foreign
bodies must be in the movement area of the
lifting mechanism.
Auto contour
The adjustment for auto contour position is made using the
respective buttons of the hand control.
(Operating buttons auto contour)
Using the operating buttons, the back and upper leg rests are
equally adjusted, so that the patient can be brought into an
upright sitting position.
This function should only be used for mobile persons and resi-
dents without physical complaints.
Caution ! When using the auto contour positi-
on, ensure the safety of the patient! No foreign
bodies must be in the movement area of the
lifting mechanism.
Trendelenburg /
Anti-Trendelenburg positioning
In the standard version, the care bed series Evolution is equip-
ped with function for rotating the lying position.

20 |
Using the depicted button function, the head or foot low posi-
tion can be adjusted.
(Operating buttons Trend/Anti-Trend)
Caution ! When using the rotation function,
ensure the safety of the patient! No foreign
bodies must be in the movement area of the
lifting mechanism. These functions may only
be used by professional personnel and must be
locked on the back of the remote by the profes-
sional personnel. Maladjustment may lead to
permanent damage to the resident.
Blocking function on manual
control unit
The electrical equipment is based on state-of-the-art technolo-
gy and first failure safety.
The blocking function provides an additional safety measure.
This function is located on the rear side of the hand control unit
and can be operated by personnel using a key switch. In the
event of a malfunction of the electric drive, the functions can
be stopped using the appropriate rotary switch.
Operation:
The operation of the lock function is further described on page
14/15 (hand switch symbols).
Braking and transporting
Evolution 100
The lying surface is in the lowest positi-
on. Hold down switch S8 on the hand
control unit and at the same time
press the roller button on the hand
control unit to release the castors.
(Operating buttons release castors)
The Evolution 100 model is now ready for transport. Use the S7
button on the hand control unit – height adjustment of lying
surface to retract the castors. The bed is now resting on the
supporting feet.
(Operating buttons retract castors )
Caution ! On the Evolution 100 model (trans-
portable in lowest position), the S8 hand
control switch has a double function (only ICS).
