Mode Config of a VPN tunnel from ProSafe Client to FVX538v2 Router:
Mode Config is a feature included in some of the Netgear Routers which allows the IP addressing
of the remote client devices be handled and controlled by the VPN Router by using a Virtual
Adapter. This document will guide you on how to create IKE and Mode Config policies for your
FVX538v2, as well as how to configure the VPN Pro-Safe VPN client in order to allow a Virtual
Private Network to be established over the internet.
NOTE: This document assumes that your FVX538v2 is either receiving a public IP
address on the WAN interface or that the gateway device(s) have the correct port
forwarding or DMZ configured so that port 500 UDP is open for the FVX538v2, these
gateway devices must also allow VPN pass-through.

FVX538v2 – Mode Config:
To configure it, go to the VPN section and then select Mode Config. For our example we’ll use the
following settings:
The first pool of IP addresses, 192.168.24.1 to 192.168.24.250, lists the addresses that the
clients will acquire when they connect. Notice that you can add up to three pools, addresses from
the second pool will be used when the addresses of the first pool are all in use. Likewise for the
third pool, it’ll be used when the first and second pools are exhausted. Notice that you can also
set particular DNS servers or WINS for the client virtual adapters.
(Note: DO NOT add IP addresses that are currently in use in any of the networks at either side of
the VPN tunnel – Use completely different subnets.)

FVX538v2 – IKE Policy:
With the Mode Config policy created, go to VPN, Policies, IKE policies and create a new one. For
our example, we’ll use the following settings.
(Note: The pre-shared key could be any alphanumeric string)

Pro-Safe VPN Client - Configuration:
Right click on “My Connections” and add a new connection. Use the same name you used to
name the VPN policy in your VPN gateway. In this example the name will be “VPN”.
Click on the name of the new created connection and fill the parameters accordingly, for this
example we’ll use these:
(NOTE: The Subnet and Mask must be those of the LAN side of your FVX538. The Gateway IP address field must be the
WAN IP address of the FVX538. )

Click on “My Identity” and fill the fields accordingly, be sure to click on the Pre-Shared Key
button and input your own pre shared key. Here are the settings used in our example:
Click on “Security Policy” and verify the following settings:

Next, expand “Security Policy” and “Authentication (Phase 1)” – Click on “Proposal 1” and
verify the settings contained to match the ones of your policy. Functional settings in our example:
Open the “Key Exchange (Phase 2)” category – Click on “Proposal 1” and verify the settings
contained to match the ones of your policy. Functional settings in our example:

For last, right click on the tray icon of the Netgear VPN client with your mouse, select connect and
select the connection you just created.
If your settings are correct you’ll receive a message confirming the connection.

FVX538v2 – Verifying connection:
If you wish to verify that the connection is established, which IP did you receive from the Mode
Config pools and whether you can access the LAN side of the VPN router, open a command

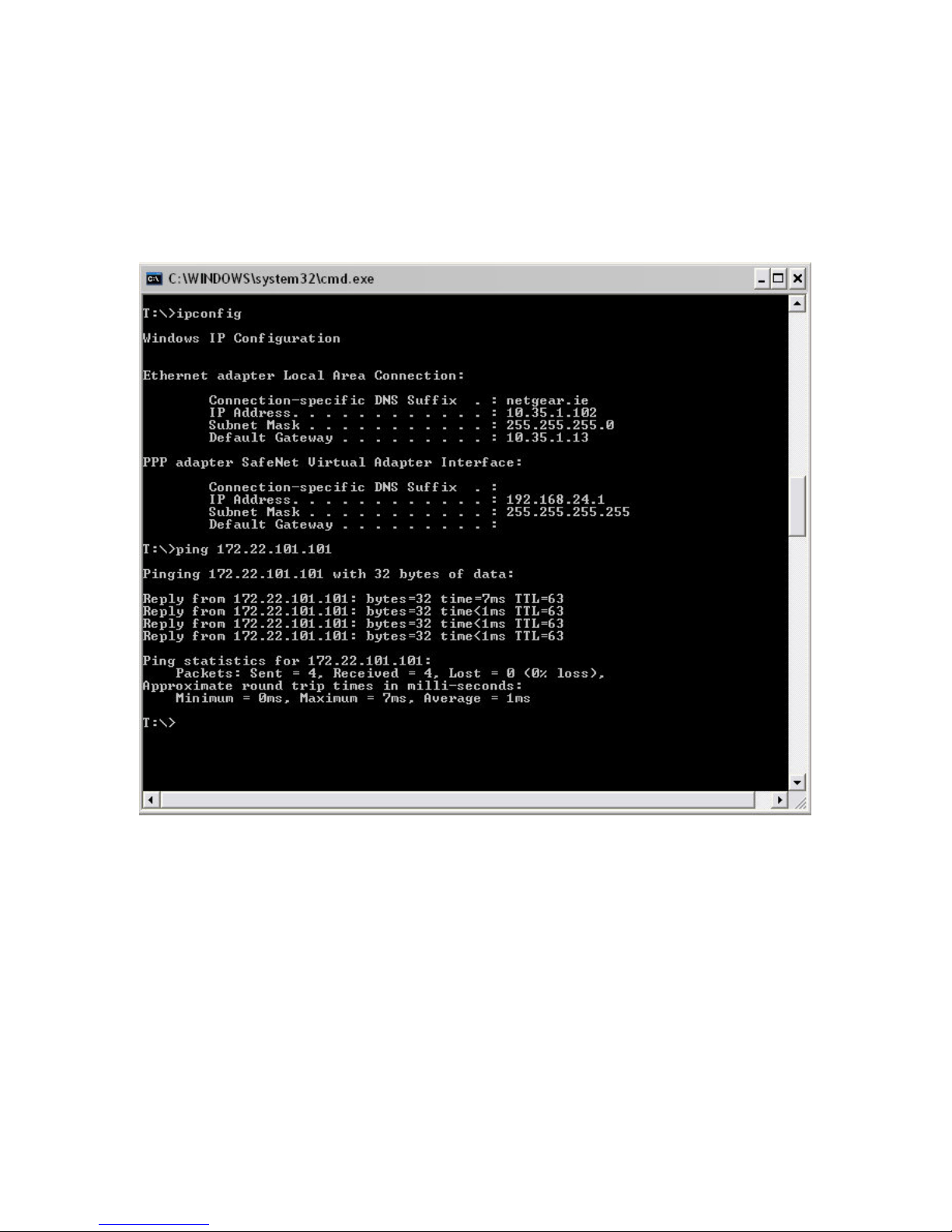

console and use the IPCONFIG command to see the IP address of the Virtual Adapter. You can
also use the command PING towards the LAN address of your router to verify connectivity.
