ReadyNAS Ultra, Ultra Plus,
NVX, and Pro Series
Hardware Manual
Models:
Ultra 2
Ultra 4
Ultra 6
Ultra 2 Plus
Ultra 4 Plus
Ultra 6 Plus
NVX Pioneer
NVX (Business Edition)
Pro 2
Pro 4
Pro 6
Pro Pioneer
Pro (Business Edition)

2
ReadyNAS Desktop Storage Systems
© 2011 NETGEAR, Inc. All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language in any form or by any means without the written permission of NETGEAR, Inc.
Technical Support
Thank you for choosing NETGEAR. To register your product, get the latest product updates, or get support online,
visit us at http://support.netgear.com.
Phone (US & Canada only): 1-888-NETGEAR
Phone (Other Countries): See support information card.
Trademarks
NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of
NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change
without notice. © 2011 NETGEAR, Inc. All rights reserved.
Statement of Conditions
To improve internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes
to the products described in this document without notice. NETGEAR does not assume any liability that may occur
due to the use, or application of, the product(s) or circuit layout(s) described herein.

3
Table of Contents
Chapter 1 Getting Started
Additional Documentation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Choosing a Setup Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Diskless Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Chapter 2 ReadyNAS Ultra 2, Ultra 2 Plus, Pro 2
Front and Side Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Drive Bay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Status Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
System Shutdown. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Boot Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Chapter 3 ReadyNAS Ultra 4, Ultra 4 Plus, Pro 4, NVX Pioneer,
NVX (Business Edition)
Front and Side Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Drive Bay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Status Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
System Shutdown. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Boot Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Chapter 4 ReadyNAS Ultra 6, Ultra 6 Plus, Pro 6, Pro Pioneer,
Pro (Business Edition)
Front and Side Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Drive Bay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Status Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
System Shutdown. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Boot Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Chapter 5 Disks
Previously Formatted Disks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Adding a Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Failed Disk Notification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Replacing a Disk. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

4
ReadyNAS Desktop Storage Systems
Appendix A Defaults and Technical Specifications
Two-Bay Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Four-Bay Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Six-Bay Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Safety Warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Electrical Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
General Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Electrostatic Discharge (ESD) Precautions . . . . . . . . . . . . . . . . . . . . . .43
Appendix B Compliance Notification
Index

5
1
1. Getting Started
Congratulations on your purchase of a NETGEAR ReadyNAS®storage system. This ReadyNAS
Ultra, Ultra Plus, NVX, and Pro Series Hardware Manual describes the physical features of these
storage systems.
This chapter contains the following sections:
• Additional Documentation
• Choosing a Setup Location
• System Requirements
• Diskless Units

6
ReadyNAS Desktop Storage Systems
Additional Documentation
For detailed information about configuring, managing, and using your storage system, see the
appropriate software manual for your unit, as listed in the following table.
Model Software Manual
Ultra Series: Ultra 2, Ultra 4, Ultra 6 ReadyNAS for Home RAIDiator 4.2.17 Software Manual
Ultra Plus Series: Ultra 2 Plus, Ultra 4
Plus, Ultra 6 Plus
NVX Pioneer
Pro Pioneer
NVX (Business Edition) ReadyNAS for Business RAIDiator 4.2.17 Software Manual
Pro 2
Pro 4
Pro 6
Pro (Business Edition)
Both documents are available at http://www.readynas.com/documentation.
NETGEAR maintains a community website that supports ReadyNAS products. Visit
http://readynas.com for reviews, tutorials, a comparison chart, software updates, documentation,
an active user forum, and much more.
Choosing a Setup Location
Your ReadyNAS desktop unit is suitable for use in a home or small office environment where
it can be freestanding. The small, compact size makes it suitable for sitting on a desk or on a
closet shelf.
Choose a location for your unit that meets these criteria:
• Cables can be connected easily.
• Water or moisture cannot enter the case.
• Airflow around the unit and through the vents in the side of the case is not restricted.
• The air is as free of dust as possible.
• Temperature operating limits are not likely to be exceeded.
• If you are using an uninterruptable power supply (UPS) for protection, the power cable
can be securely and safely connected to the UPS.

7
ReadyNAS Desktop Storage Systems
System Requirements
Your ReadyNAS desktop unit requires the following:
• Ethernet connection
• Microsoft Windows 7, Vista, XP, 2000, Mac OS, UNIX, or Linux operating system
• Microsoft Internet Explorer 7.0+, Apple Safari, 2.0+, Mozilla Firefox 2.0+, or Opera
9.5+ browser
• Hard disk drive or drives from the NETGEAR Hardware Compatibility List; see
http://www.readynas.com/hard_disk_hcl.
Diskless Units
If you purchased a ReadyNAS storage system without a pre-installed hard disk drive or
drives, you must follow this procedure before you use your unit. The following procedure is
illustrated with a 2-bay ReadyNAS storage system, but the same steps apply to 4-bay and
6-bay models.
To prepare a diskless unit for first use:
1. Obtain at least one hard disk drive that appears on the NETGEAR Hardware
Compatibility List.
See http://www.readynas.com/hard_disk_hcl.
If you are using a previously formatted disk, see the precautions listed in Previously
Formatted Disks on page 27.

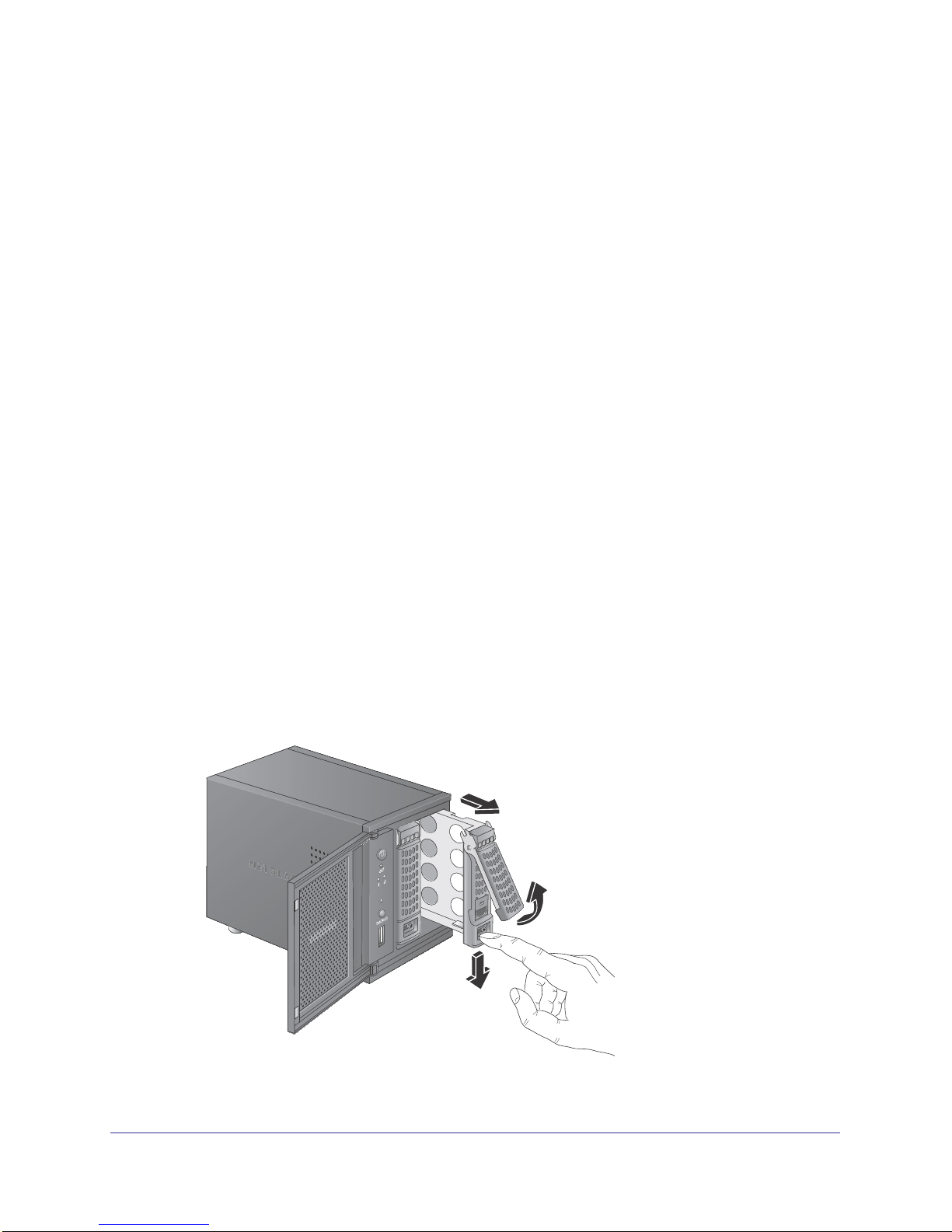

2. With the unit turned off, insert a disk into a drive bay, as follows:
a. Press the disk tray release latch.
The tray handle pops out.

8
ReadyNAS Desktop Storage Systems

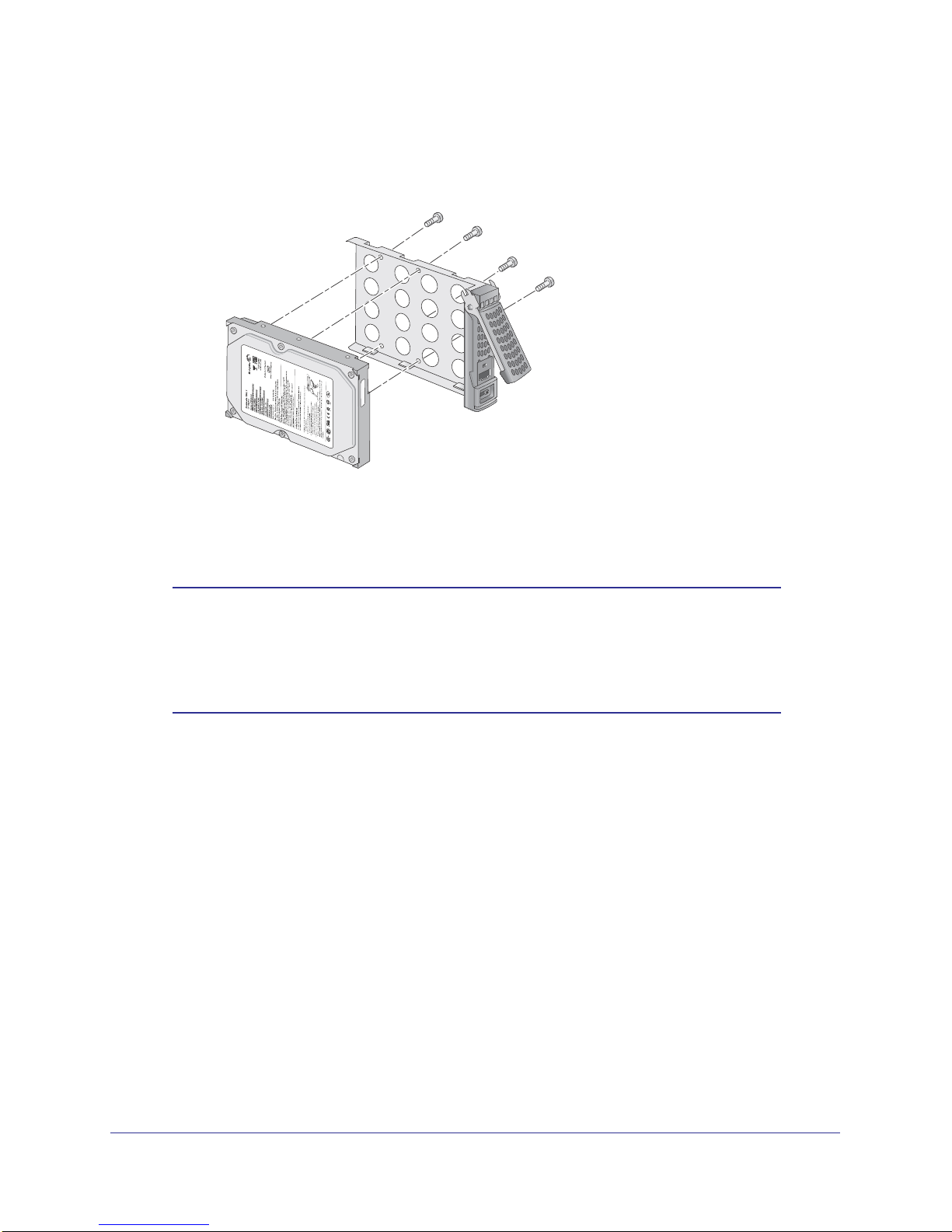

b. Pull out the disk tray, place the new disk on the tray, and assemble the disk and tray
with the screws that came with your unit.
c. Make sure that the hard disk connectors face the interior of the disk bay.
d. Slide the disk tray back into the unit and press the handle to secure the disk.
3. Turn the unit on and perform a factory reboot.
e. See Boot Menu on page 15.
Note: Note: This process erases all data and formats the disk as
X-RAID2TM. If you are using a previously formatted disk that contains
data you want to preserve, you must move the data to an external
drive before using the previously formatted disk in your ReadyNAS
unit.
The factory reboot process can take up to 30 minutes while your unit tests and formats
the disk, installs the operating system, and creates a volume. This process can take up to
30 minutes; you can follow the progress in RAIDar. For more information about RAIDar,
see the software manual for your unit, which is available at
http://www.readynas.com/documentation.
If you are installing multiple disks at the same time, they must synchronize. This might
take several hours, depending on the disk size. You can continue to use your ReadyNAS,
although access is slower until the volume synchronization finishes.

9
2
2. ReadyNAS Ultra 2, Ultra 2 Plus, Pro 2
This chapter provides an overview of the physical features of the ReadyNAS Ultra 2, Ultra 2
Plus, and Pro 2 and includes the following sections:
• Front and Side Panels
• Drive Bay
• Rear Panel
• Status Information
• System Shutdown
• Boot Menu

10
ReadyNAS Desktop Storage Systems
Front and Side Panels
This section describes the front and side panels of ReadyNAS Ultra 2, Ultra 2 Plus, and Pro 2
units. Your unit’s color might vary from the color shown in this manual.
1
23
6
8
4
5
7

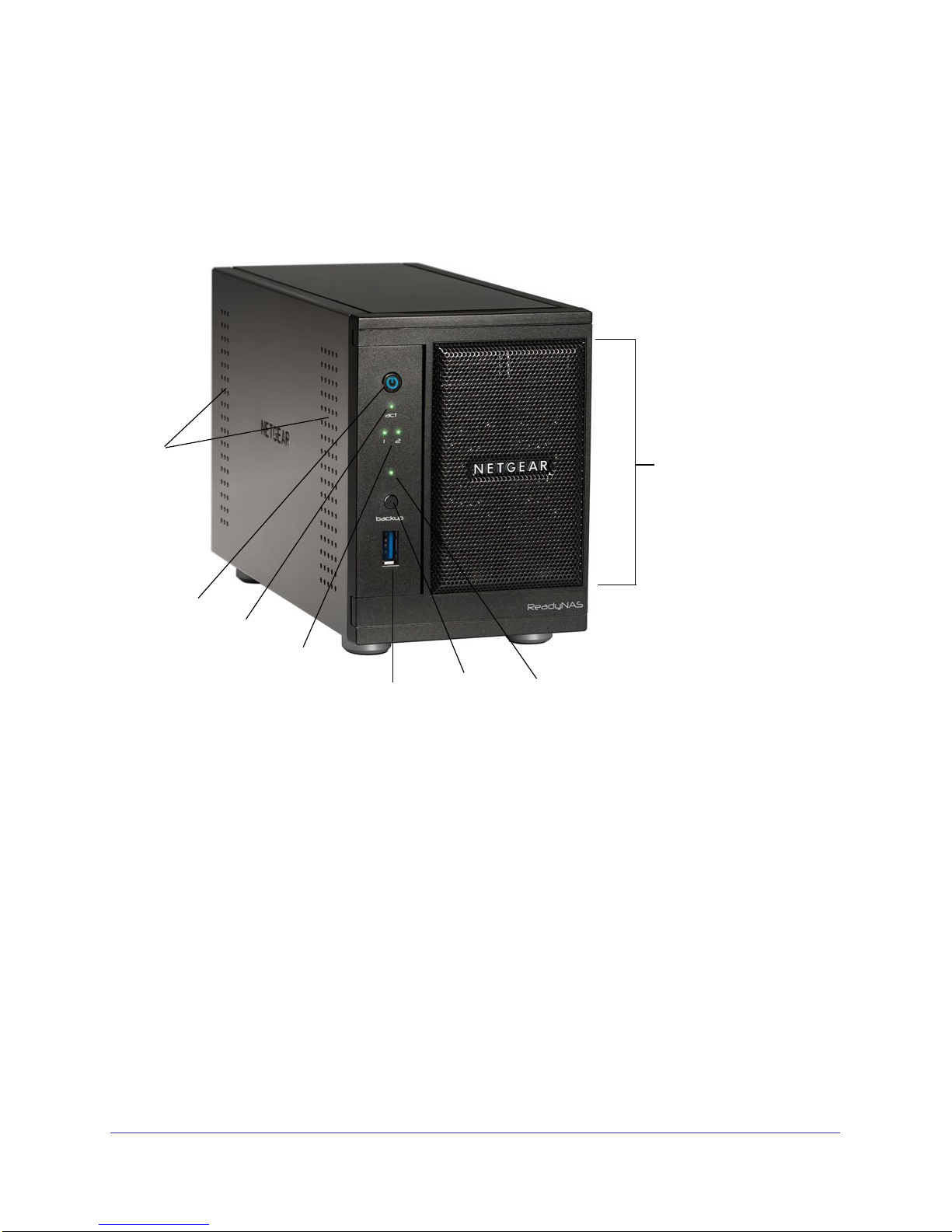

Figure 1. ReadyNAS Ultra 2, Ultra 2 Plus, and Pro 2 front and side panels
1. Exhaust vents
2. Power button and LED
3. Disk activity LED
4. Disk 1 and disk 2 LEDs
5. USB 3.0 port
6. Backup button
7. USB and backup status LED
8. Drive bay door

11
ReadyNAS Desktop Storage Systems
Drive Bay
This section describes the drive bay of ReadyNAS Ultra 2, Ultra 2 Plus, and Pro 2 units.
3
1
53
2
6
44
Figure 2. ReadyNAS Ultra 2, Ultra 2 Plus, and Pro 2 drive bay
1. Drive bay door
2. Disk bays
3. Recessed disk tray locking mechanism
4. Disk release latch
5. Disk tray latch handle
6. Disk tray

12
ReadyNAS Desktop Storage Systems
Rear Panel
This section describes the rear panel of ReadyNAS Ultra 2, Ultra 2 Plus, and Pro 2 units.
1
2
3 4 / 5 6 / 7 8

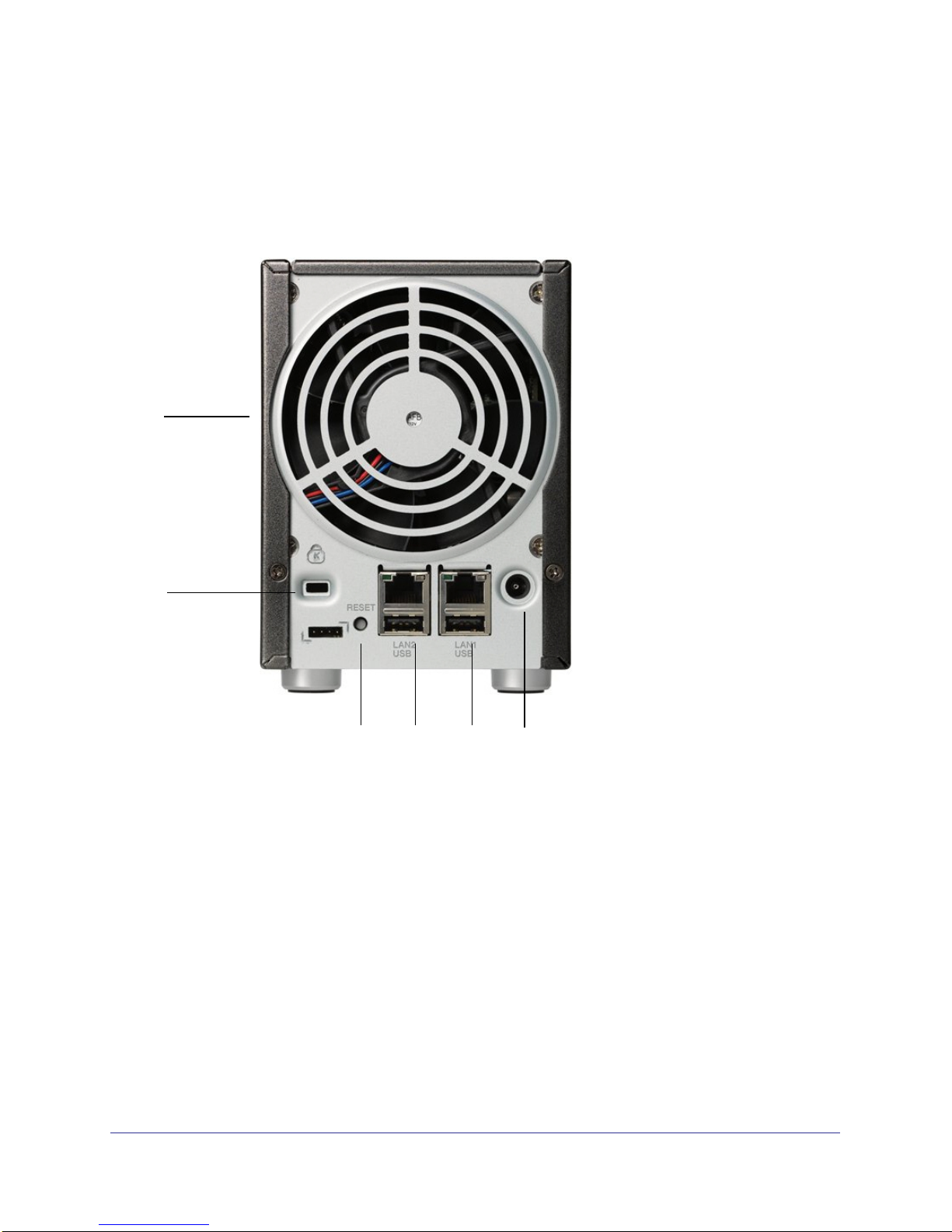

Figure 3. ReadyNAS Ultra 2, Ultra 2 Plus, and Pro 2 rear panel
1. Exhaust fan
2. Kensington lock
3. Reset button
4. LAN2 gigabit Ethernet port with LED status indicators
5. USB 2.0 port
6. LAN1 gigabit Ethernet port with LED status indicators
7. USB 2.0 port
8. Power cable socket

13
ReadyNAS Desktop Storage Systems
Status Information
You can obtain information about the status of your unit by reviewing the indicators listed in
the following table.
Indicator Description
Power button and LED Press this button to turn on the ReadyNAS. The LED has these states:
• Blinking. Booting
• Blue. Powered on
• Off. Powered off
Disk LEDs (1, 2) Each disk bay has an LED associated with it on the front panel of the unit. The
disk LEDs have these states:
• On. Power is on and the disk is operating normally.
• Blinking. The disk was removed, failed, or is resynchronizing.
• Off. The disk bay is empty.
Disk activity LED The disk activity LED has these states:
• Blinking green. A disk is active.
• Off. No disks are active.
Rear panel Ethernet ports Two LED status indicators are built into these ports. One LED indicates port
activity. The other LED indicates connection speed as follows:
• Green. The port is operating at 1,000 Mbps.
• Amber. The port is operating at 100 Mbps.
• Off.The port is operating at 10 Mbps.
System Shutdown
You can shut down your unit in these ways:
• Using the Power button:
• Preferred shutdown. Press the Power button twice initiate a graceful shutdown.
• Forced shutdown. If the unit is hung, press the Power button and hold for 5 seconds
to force shutdown.
• Using FrontView. For information about using FrontView to shut down your storage
system, see the software manual for your unit, which is available at
http://www.readynas.com/documentation.

14
ReadyNAS Desktop Storage Systems
Boot Menu
Use the boot menu to restart or troubleshoot your ReadyNAS unit. Your unit has the following
boot modes:
• Normal. Initiates a normal boot process, just like booting using the Power button.
• Factory default. Initiates a short disk test that takes approximately 5 minutes, then
begins a 10-minute time-out period waiting for RAIDar. During the 10-minute time-out
period, the system can be powered off safely without causing any data loss. After 10
minutes, or if you select the factory default option with RAIDar during the time-out period,
the factory default process begins.
WARNING!
The factory default reboot process resets the unit to factory
settings, erases all data, resets all defaults, and reformats the disk
to X-RAID2.
• OS reinstall. Reinstalls the firmware from the internal flash to the disks. Use the OS
reinstall boot mode when the system crashes and corrupts some configuration files. OS
reinstall boot mode also resets some settings on your unit, such as Internet protocol
settings and the administrator password, to defaults.
• Tech support. Boots into a low-level diagnostic mode. Use the tech support boot mode
only when instructed to do so by a NETGEAR Technical Support representative.
• Skip volume check. After a system crash, the system tries to scan and fix the volume
using a file system check. If several problems are found on a disk, this process can stall,
causing the system not to boot. Use this option to skip the scan and let the system boot.
WARNING!
Use the skip volume check boot mode only when instructed to do
so by a NETGEAR Technical Support representative, otherwise
data loss might occur.
• Memory test. Performs a memory test. The pass or fail result is reported using the unit’s
LEDs. Contact a NETGEAR technical support representative to interpret memory test
results.
• Disk test. Performs an offline full disk test. This can take 4 hours or more, depending on
the size of your disks. Any problems are reported in the RAIDar discovery tool.

15
ReadyNAS Desktop Storage Systems
To access the boot menu:
1. Power off your unit.
2. Using a straightened paper clip, press and hold the Reset button.
3. Press the Power button to power on the unit.
4. Continue to press the Reset button until the Power button LED, USB and backup status
LED, disk 1 LED, and disk 2 LED illuminate.
5. Press the Backup button to scroll through boot mode options.
The unit shows the boot mode options using the LEDs, as described in the following
table:
Boot Mode Status Indicator
Description Power
LED Disk 1 LED Disk 2 LED USB &
Backup
LED
Normal Power LED illuminates.
Factory default Disk 1 LED illuminates.
OS reinstall Disk 2 LED illuminates.
Tech support USB and backup status LED illuminates.
Skip volume check Power LED and disk 1 LED illuminate.
Memory test Power LED and disk 2 LED illuminate.
Disk test Power LED and USB and backup status
LED illuminate.
Legend:
• On: 
• Off: 
6. Press and release the Reset button to confirm your boot menu selection.
The system boots in the selected boot mode.








16
3
3. ReadyNAS Ultra 4, Ultra 4 Plus, Pro 4,
NVX Pioneer, NVX (Business Edition)
This chapter provides an overview of the physical features of the ReadyNAS Ultra 4, Ultra 4
Plus, Pro 4, NVX Pioneer, and NVX (Business Edition) and includes the following sections:
• Front and Side Panels
• Drive Bay
• Rear Panel
• Status Information
• System Shutdown
• Boot Menu

17
ReadyNAS Desktop Storage Systems
Front and Side Panels
This section describes the front and side panels of ReadyNAS Ultra 4, Ultra 4 Plus, Pro 4,
NVX Pioneer, and NVX (Business Edition) units. Your unit’s color might vary from the color
shown in this manual.
1
23
6
7
45
8
Figure 4. ReadyNAS Ultra 4, Ultra 4 Plus, Pro 4, NVX Pioneer, and NVX (Business Edition) front
and side panels
1. Exhaust vents
2. USB 2.0 port
3. Backup button and backup LED
4. Disk LEDs
5. Disk activity LED
6. Power button and LED
7. Drive bay door
8. Status display screen

18
ReadyNAS Desktop Storage Systems
Drive Bay
This section describes the drive bay of ReadyNAS Ultra 4, Ultra 4 Plus, Pro 4, NVX Pioneer,
and NVX (Business Edition) units.
3
6
1
43 2 5 4
Figure 5. ReadyNAS Ultra 4, Ultra 4 Plus, Pro 4, NVX Pioneer, and NVX (Business Edition) drive
bay
1. Drive bay door
2. Disk bays
3. Recessed disk tray locking mechanism
4. Disk release latch
5. Disk tray latch handle
6. Disk tray

19
ReadyNAS Desktop Storage Systems
Rear Panel
This section describes the rear panel of ReadyNAS Ultra 4, Ultra 4 Plus, Pro 4, NVX Pioneer,
and NVX (Business Edition) units.
1
2
5
6
4
3
Figure 6. ReadyNAS Ultra 4, Ultra 4 Plus, Pro 4, NVX Pioneer, and NVX (Business Edition) rear
panel
1. Exhaust fan
2. Power cable socket
3. Reset button
4. LAN1 and LAN2 gigabit Ethernet ports with LED status indicators
5. USB 2.0 ports
6. Kensington lock

20
ReadyNAS Desktop Storage Systems
Status Information
You can obtain information about the status of your unit by reviewing the indicators listed in
the following table.
Item Description
Power button and LED Press this button to turn on the ReadyNAS. The LED has these states:
• Blinking. Booting
• Blue. Powered on
• Off. Powered off
Disk LEDs (1, 2, 3, 4) Each disk bay has an LED associated with it, in numerical order from left to right,
along the top of the front panel of the unit. The disk LEDs have these states:
• On. Power is on and the disk is operating normally.
• Blinking. The disk failed or is resynchronizing. See the status display screen
for details.
• Off. The disk bay is empty.
Disk activity LED The disk activity LED has these states:
• Blinking green. A disk is active.
• Off. No disks are active.
Rear panel Ethernet port
LEDs Two LED status indicators are built into these ports. One LED indicates port activity. The other LED indicates connection speed as follows:
• Green. The port is operating at 1,000 Mbps.
• Amber. The port is operating at 100 Mbps.
• Off.The port is operating at 10 Mbps.
Status display screen Displays messages about the status of your unit. Note that the status display
screen goes to sleep to prevent burn-in; to wake it, press the Power button. If the
unit reports an abnormal operation or error, the status display screen stays on.
